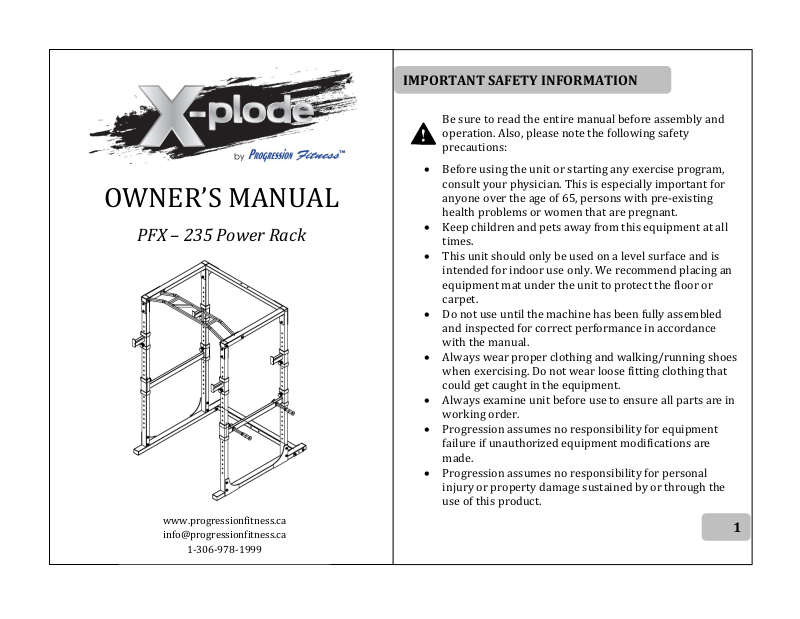

OWNER’S MANUAL
PFX – 235 Power Rack
www.progressionfitness.ca
info@progressionfitness.ca
1-306-978-1999
Be sure to read the entire manual before assembly and
operation. Also, please note the following safety
precautions:
Before using the unit or starting any exercise program,
consult your physician. This is especially important for
anyone over the age of 65, persons with pre-existing
health problems or women that are pregnant.
Keep children and pets away from this equipment at all
times.
This unit should only be used on a level surface and is
intended for indoor use only. We recommend placing an
equipment mat under the unit to protect the floor or
carpet.
Do not use until the machine has been fully assembled
and inspected for correct performance in accordance
with the manual.
Always wear proper clothing and walking/running shoes
when exercising. Do not wear loose fitting clothing that
could get caught in the equipment.
Always examine unit before use to ensure all parts are in
working order.
Progression assumes no responsibility for equipment
failure if unauthorized equipment modifications are
made.
Progression assumes no responsibility for personal
injury or property damage sustained by or through the
use of this product.
IMPORTANT SAFETY INFORMATION
1
asdasdasd
asdasdasdasd
A H
B I
C J
D K
E L
F M
G
Item
Qty
Description
A
1
Left Base Frame
B
1
Right Base Frame
C
2
Top Beam
D
1
Top Crossing Frame
E
1
Top Crossing Bar
F
1
Below Crossing Frame
G
4
Upright
H
2
Plate A
I
2
Handle Bar
J
1
Right Slide Cross Weight Holder
K
1
Left Slide Cross Weight Holder
L
4
Rear Weight Slide Holder
M
2
Plate B
1
2
3
4
5
Item
Qty
Description
1
8
Bolt (90mm x 12mm), nut, washer
2
8
Bolt (95mm x 12mm), nut, washer
3
8
Bolt (75mm x 12mm), nut, washer
4
2
Key Bolt Pin
5
8
Adjustable Pin
HARDWARE
PARTS
2
3
