Active PFC - Meets EN61000-3-2, -3
•
Small Size 3.0” x 5.0” x 1.25”
•
Single, Triple & Quad Outputs
•
Overvoltage & Overcurrent Protection
•
Power Fail Detect
•
International Safety Approvals
•
•
Input
AC Input Voltage • 90-264 VAC
Input Frequency • 47-63 Hz
Power Factor • 0.98 typical
Inrush Current • 24 A max at 100 VAC
Input Current • 0.8 A max at 240 VAC
1.8 A max at 100 VAC
Output
Output Voltage • See Table
Output Power • 125 Watts
Minimum Load • 5 W minimum load on any output
or combination of outputs required
to maintain regulation
Line/Load Regulation • See Table
Ripple and Noise • ±2% pk-pk maximum
> = 5 V out ±1% maximum
Transient Response • 5% max deviation, recovering
to a 1% of final value in less than
500 µs after a 25% load change
Temperature • 0.04%/°C maximum
Coefficient
Hold up Time • >28 ms minimum at full load
Overvoltage • V1 & V2: 113% to 148% recycle input
Protection to reset
Overcurrent • All outputs 115% to 135% with
Protection auto recovery
Remote Sense • V1 only compensates for 0.5 V drop
Not Available on IFC125-31
General
Efficiency • 83% typical
Power Density • 6.66 W/in
3
MTBF • >220,000 hours per Bellcore
Isolation Voltage • 3000 VAC Input to Output
1500 VAC Input to Ground
500 VAC Output to Ground
Signals • Power Good - On = Logic Hi

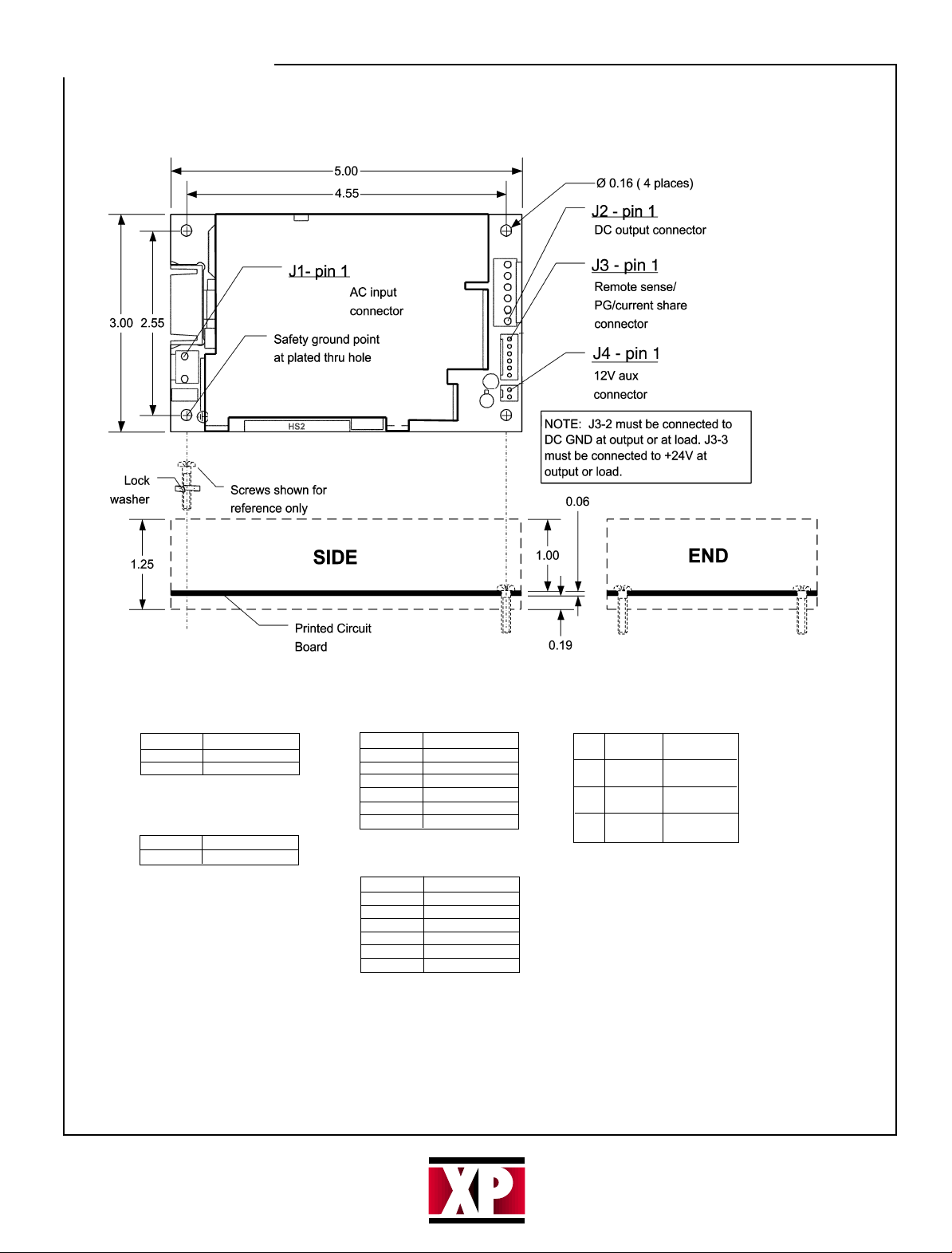

Size • 5.00” x 3.00” x 1.25”
Weight • 312 grams approx.
Environmental
Operating • -25 °C to +70 °C derate linearly from
Temperature 100% load at +70 °C to 50% load
at +50 °C
Cooling • 5 CFM forced air required for 125 W
Humidity • 5-95% RH, non-condensing
Storage Temperature • -40 °C to +85 °C
EMC & Safety
Safety Approvals • UL60950, CSA22.2: 60950 per cUL,
EN60950, CE mark LVD
EMI/EMC • Meets EN61000-3-2, -3
EN55022/CISPR22 Class B and FCC
Class B conducted
125 Watts
IFC125 Series
AC/DC Open Frame
Specification
•
Intelligent Design Quality Product
