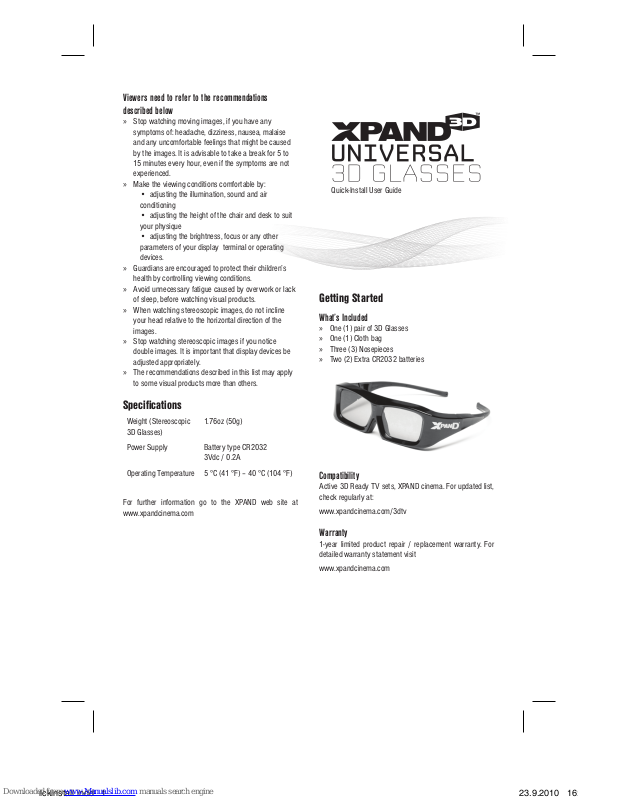

Xpand Universal Quick Installation & User Manual

Quick-Install User Guide

Getting Started

What’s Included

» One (1) pair of 3D Glasses
» One (1) Cloth bag
» Three (3) Nosepieces
» Two (2) Extra CR2032 batteries

Compatibility

Active 3D Ready TV sets, XPAND cinema. For updated list,
check regularly at:

www.xpandcinema.com/3dtv

Warranty

1-year limited product repair / replacement warranty. For
detailed warranty statement visit

www.xpandcinema.com

Viewers need to refer to the recommendations
described below

» Stop watching moving images, if you have any

symptoms of: headache, dizziness, nausea, malaise
and any uncomfortable feelings that might be caused
by the images. It is advisable to take a break for 5 to
15 minutes every hour, even if the symptoms are not
experienced.

» Make the viewing conditions comfortable by:

• adjusting the illumination, sound and air
conditioning

• adjusting the height of the chair and desk to suit
your physique

• adjusting the brightness, focus or any other
parameters of your display terminal or operating
devices.

» Guardians are encouraged to protect their children’s

health by controlling viewing conditions.

» Avoid unnecessary fatigue caused by overwork or lack

of sleep, before watching visual products.

» When watching stereoscopic images, do not incline

your head relative to the horizontal direction of the
images.

» Stop watching stereoscopic images if you notice

double images. It is important that display devices be
adjusted appropriately.

» The recommendations described in this list may apply

to some visual products more than others.

Specifications

Weight (Stereoscopic
3D Glasses)

1.76oz (50g)

Power Supply Battery type CR2032

3Vdc / 0.2A

Operating Temperature 5 °C (41 °F) – 40 °C (104 °F)

For further information go to the XPAND web site at
www.xpandcinema.com

Functionality

Glasses Overview

(1) Button (ON, OFF, TV selection)

(2) LED light

TV Manufacturer Codes

Samsung® or Mitsubishi®* One Blink

LG® Two Blinks

Sony®* Three Blinks

Panasonic® or Toshiba® Four Blinks

Philips®* Five Blinks

XPAND Emitter Six Blinks

*some TV models require the use of external emitter, please
check with your TV manufacturer

If you do not see your TV Manufacturer listed go to
www.xpandcinema.com/3dtv for a complete list

Turning On/Off Your Glasses

» Step 1 ON: Press button (1) once
» Step 2 LED light (2) will ramp from off to bright
» Step 3 OFF: Press button (1) once
» Step 4 LED light (2) will ramp from bright to off

Select TV

» Step 1 While the glasses are on, press and hold the

button (1) for 3 seconds

» Step 2 LED light (2) will blink once, corresponding to a

Samsung TV (See TV Manufacturer Codes above)

» Step 3 Press button once to step through the other TV

options until you get to your TV Manufacturer

» Step 4 If you have selected the correct TV

Manufacturer than sit back and enjoy your
program. Within 30 seconds the glasses will exit
the programming mode and store your selection in
memory. The glasses will always start up in this mode
the next time you turn the glasses on.

Set Glasses for use in XPAND Equipped Cinemas

» Step 1 ON: Press and hold button (1) for 3 seconds
» Step 2 LED light (2) will blink 3 times

Please, turn!

» Step 3 OFF: Press button (1) once
» Step 4 LED light (2) will ramp from bright to off

Battery Replacement

» Step 1 Open battery compartment
» Step 2 Take out the battery
» Step 3 Insert new battery
» Step 4 Close the battery compartment

Troubleshooting

Glasses don’t work: Make sure that glasses are turned on
in home mode and proper TV manufacturer was selected in
program mode. If problems persist try to turn ambient lights
off or shade windows if intensive sunlight is present. Make
sure that IR emitter on the TV is not blocked by some object
and that viewing angle is not too large.

Glasses don’t work with Samsung TV: On some models
there are intensive IR disturbances caused by backlight.
Try to reduce backlight setting on the TV until glasses
start working. Also make sure that IR emitter on the TV
is not blocked by some object and that viewing angle is
not too large.

Attention – Consult
Accompanying Documentation

Important Safety Instructions

» Read these instructions.
» Keep these instructions.
» Heed all warnings.
» Follow all instructions.
» Do not use this apparatus near water.
» Clean only with dry cloth.
» Only use the attachments/accessories included.

Battery

Replace Battery With Type CR2032 Only.
Use of Another Battery May Present A Risk
Of Fire Or Explosion.

WARNING, Battery May Explode
If Mistreated. Do Not Recharge,
Disassemble, Or Dispose of In Fire.

Dispose Of Used Battery Promptly.
Keep Away From Children.
