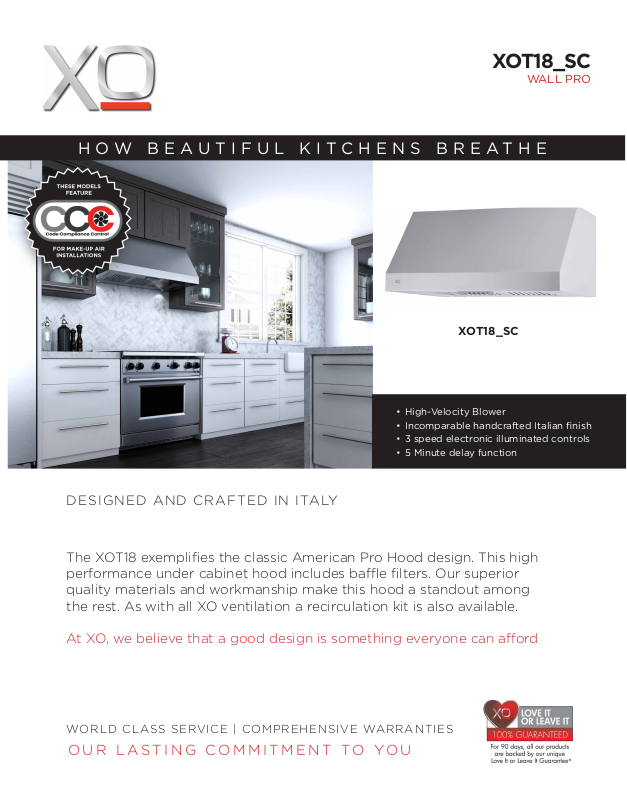

Page 1
XOT18_SC
WALL PRO
HOW BEAUTIFUL KITCHENS BREATHE
XOT18_SC
• High-Velocity Blower
• Incomparable handcrafted Italian finish
• 3 speed electronic illuminated controls
• 5 Minute delay function
DESIGNED AND CRAFTED IN ITALY
The XOT18 exemplifies the classic American Pro Hood design. This high
performance under cabinet hood includes bae filters. Our superior
quality materials and workmanship make this hood a standout among
the rest. As with all XO ventilation a recirculation kit is also available.
At XO, we believe that a good design is something everyone can aord
WORLD CLASS SERVICE | COMPREHENSIVE WARRANTIES
OUR LASTING COMMITMENT TO YOU
Page 2
XOT18_SC
WALL PRO
FEATURES SPECIFICATIONS
115VAC 60HZ 4.0 AMP
H
W
D
Stainless Steel
• Electronic 3 Speed Control + Power Boost
• CCC Code Compliance Control - 395 or 600 CFM
• High Eciency 3000k LED Lights (x2)
• Stainless Steel PRO Bae Filters
• 6” Vertical Duct or Recirculating (Kit Sold Separately)
FEATURES FINISH
(Recirculation adds 2-1/4” to the overall height of the unit)
• Optional 12” Duct Cover Available
• 5 Minute Delay Shuto Timer
• Made In Italy
PERFORMANCE
SPEED 1 2 3 BOOST
CFM 150 250 395 600
SONES 1.0 2.4 4.0 6.4
ELECTRICAL
DIMENSIONS

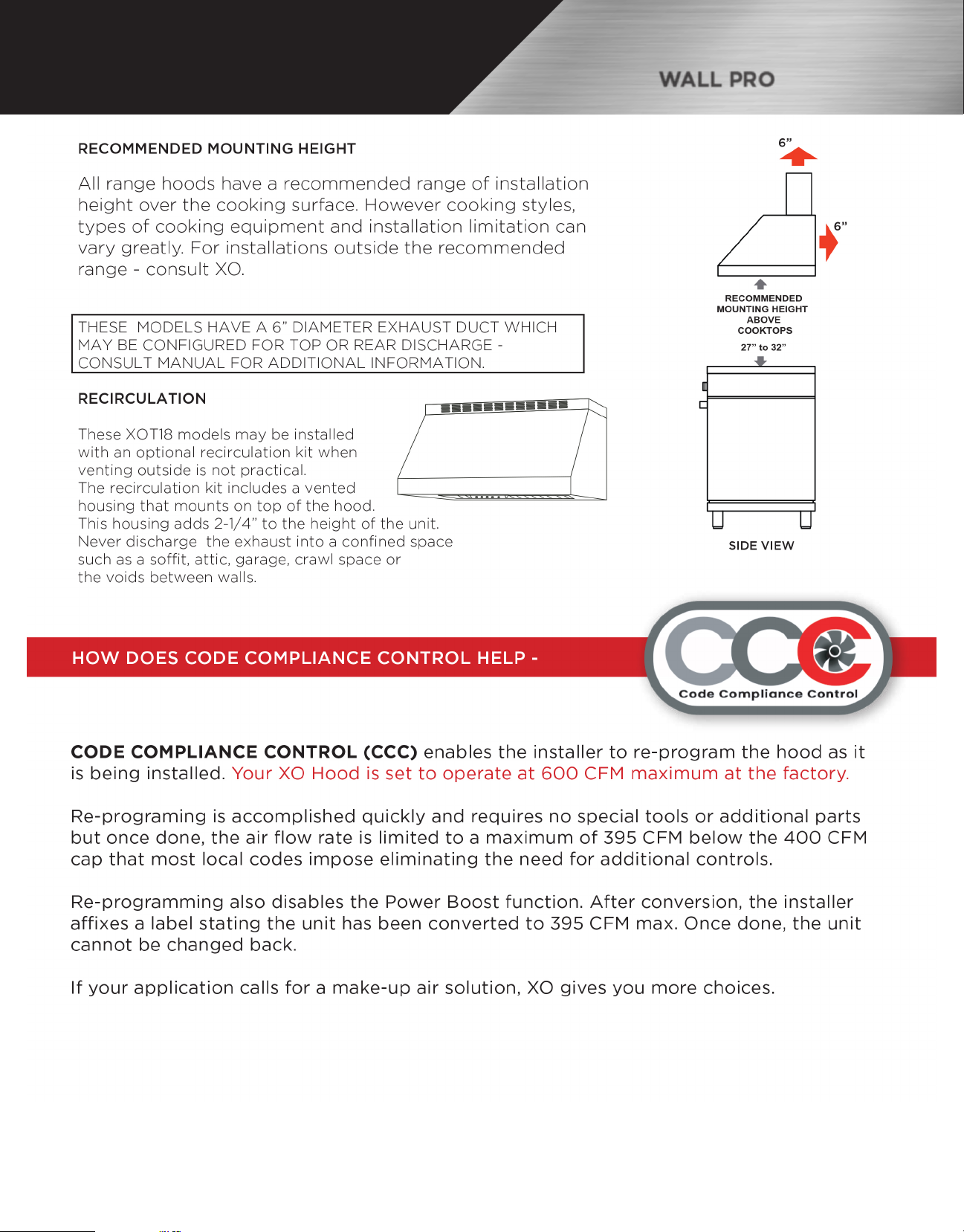

MOUNTING HEIGHT
ABOVE COOKING 27” - 32”
DUCTING OPTIONS
6 inch round top or rear venting
OPTIONS
Recirculation Kit XOT30
Recirculation Kit XOT36
Recirculation Filters
Duct Cover XOT1830
Duct Cover XOT1836
Duct Cover XOT1842
Make Up Air Kit (6”)
18”
30” - 36” - 42”
22”
XORFK07
XORFK08
XORFRND
XOTDC30S
XOTDC36S
XOTDC42S
XOMA06
