Page 1
XOIL_SC
ALL-IN-ONE INSERT BLOWER + LINER
HOW BEAUTIFUL KITCHENS BREATHEHOW BEAUTIFUL KITCHENS BREATHE
XOIL_SC
• High-Velocity Blower
• Incomparable handcrafted Italian finish
• 3 speed electronic illuminated controls
• 5 Minute delay function
ALL-IN-ONE INSERT BLOWER + LINER
The XOIL series are designed as all-in-one blower / liner combination units
for easy installation into custom hoods. Each XOIL model is designed and
crafted in Italy to incorporate a multi-speed blower, controls, filtration, LED
Lamps and back flow damper. The XOIL is everything you need in one easy
to install package.
At XO, we believe that a good design is something everyone can aord
WORLD CLASS SERVICE | COMPREHENSIVE WARRANTIES
OUR LASTING COMMITMENT TO YOU
Page 2
XOIL_SC
ALL-IN-ONE INSERT BLOWER + LINER
FEATURES SPECIFICATIONS
XOIL SERIES - Stainless Steel
Available in 30” | 36” | 42”
Also available in 48” - 1000 CFM model
ELECTRICAL
DIMENSIONS
12”
H
28-3/8” | 34-3/8” | 40-3/8”
W
115V 60HZ 4 AMP
• Electronic 3 Speed Control + Power Boost
19 1/4”
D
• CCC Code Compliance Control (395 or 600 CFM)*
• Combination Blower and SS Liner in One
• Optional ADA Compatible Remote
• High eciency dimmable 3000K LED (x2)
CUTOUT DIMENSIONS
XOIL3019 28-1/2” x 19-7/16”
XOIL3619 34-1/2” x 19-7/16”
XOIL4219 40-1/2” x 19-7/16”
• Dishwasher safe SS PRO Bae filters
FEATURES FINISH
• 6” Vertical, Rear or Recirculating (Kit Sold Separately)
(Filtered, recirculated air must be returned to the living space)
• Made In Italy

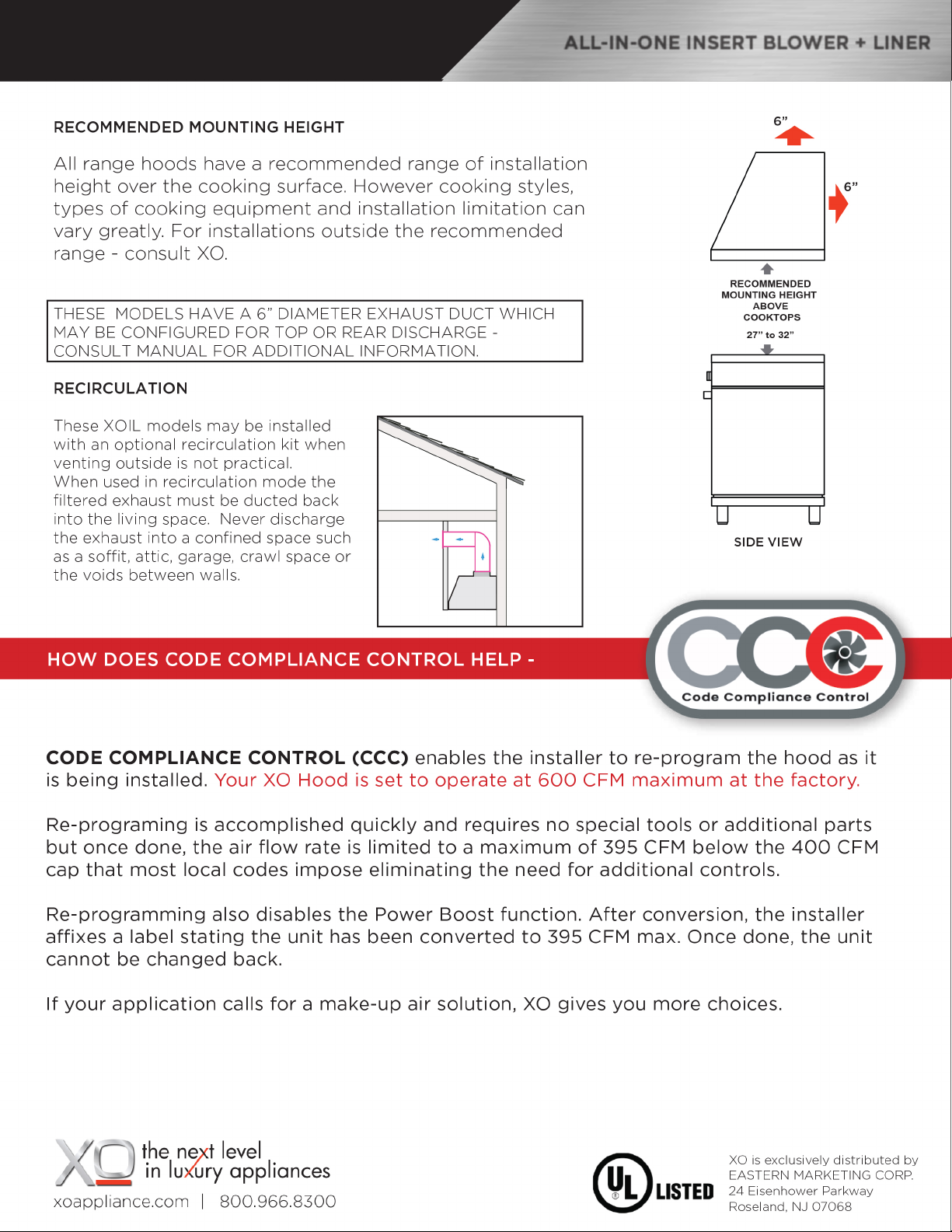

MOUNTING HEIGHT
ABOVE COOKING 27” - 32”
OPTIONS
Recirculation Kit
Recirculation Filters
PERFORMANCE
SPEED 1 2 3 BOOST
CFM 160 250 395 600
SONES 1.0 2.4 4.0 6.4
ADA Compatible Remote
Make Up Air Kit (6”)
DUCT OPTIONS:
6 in. round duct Top or Rear
Ductless option available
XORFK12
XORFRND
XOVREMOTE1
XOMA06
XO is exclusively distributed by
EASTERN MARKETING CORP.
24 Eisenhower Parkway
Roseland, NJ 07068
Page 3
XOIL_SC
ALL-IN-ONE INSERT BLOWER + LINER
