Page 1
EL 150.TW
USER MANUAL
Page 2
Dimensions
All dimensions are in millimeters
106
136
336
206
1.0
Page 3
WARNING!
Read the safety precautions in this section before
installing, powering, operating or servicing this
product
The follo wing sy mbols are u sed to id entify im porta nt s afety i nform at ion on th e produ ct a nd in thi s manual:
DAN GER!
Saf ety haz ard.
Ris k of seve re
inj ury or de ath.
Warning! Risk Group 3 (high risk) LED product according to EN 62471. Do not look into the beam at a distance
of less than 3 meters from the front surface of the product. Do not view the light output with optical instruments
or any device that may concentrate the beam.
This product is for professional use only. It is not for household use.
This product presents risks of severe injury or death due to fire and burn hazards, electric shock and falls.
Read this manual before installing, powering or servicing the fixture, follow the safety precautions listed below and
observe all warnings in this manual and printed on the fixture. If you have questions about how to operate the fixture
safely, please contact your supplier.
PROTECTION FROM ELECTRIC SHOCK
l Disconnect the fixture from AC power before removing or installing any cover or part and when not in use.
l Always ground (earth) the fixture electrically.
l Use only a source of AC power that complies with local building and electrical codes and has both overload and
l Before using the fixture, check that all power distribution equipment and cables are in perfect condition and rated for
l Power input and through out cables must be rated 16A minimum, have three conductors 1.5 mm² minimum
l Use only cable connectors to connect to power input sockets. Use only cable connectors to PowerCON PowerCON
l Isolate the fixture from power immediately if the power plug or any seal, cover, cable, or other component is
DAN GER!
Haz ardou s
vol tage. R isk of
let hal or se vere
ele ctric s hock.
WAR NIN G!
Fir e hazar d.
WAR NIN G!
LED l ight
emi ssion . Risk of
eye i njury.
WAR NIN G!
Bur n hazar d. Hot
sur face. D o not
tou ch.
WAR NIN G!
Wea r pro tec tiv e
eye wear.
WAR NIN G!
Ref er to use r
man ual.
ground-fault (earth-fault) protection.
the current requirements of all connected devices.
conductor size and an outer cable diameter of 5 - 15 mm . Cables must be hard usage type and heat-resistant to 90°
C minimum.
connect to power through put sockets.
damaged, defective, deformed, wet or showing signs of overheating. Do not reapply power until repairs have been
completed.
2.0
Page 4
l Refer any service operation not described in this manual to a qualified technician.
l Socket outlets used to supply the fixture with power or external power switches must be located near the fixtures and
easily accessible so that the fixtures can easily be disconnected from power.
PROTECTION FROM BURNS AND FIRE
l The exterior of the fixture becomes hot during use. Avoid contact by persons and materials.
Allow the fixture to cool for at least 10 minutes before handling.
l Keep all combustible materials (e.g. fabric, wood, paper) at least 100 mm away from the fixture.
l Keep flammable materials well away from the fixture.
l Ensure that there is free and unobstructed airflow around the fixture.
l Do not illuminate surfaces within 200 mm of the fixture.
l Do not attempt to bypass thermostatic switches or fuses.
l If you relay power from one fixture to another using power throughput sockets, do not connect more than ten the
fixture in total to each other in an interconnected chain.
l Connect only other the fixture to fixture power throughput sockets. Do not connect any other type of device to these
sockets.
l Do not connect any other type of device to these sockets.
l Do not modify the fixture in any way not described in this manual.
l Do not use fixture on a dimmer.
PROTECTION FROM INJURY
l Do not look continuously at LEDs from a distance of less than 3 meters from the front surface of the fixture without
protective eyewear such as shade 4-5 welding goggles. At less than this distance, the LED emission can cause eye
injury or irritation. At distances of 3 meters and above, light output is harmless to the naked eye provided that the
eye’s natural aversion response is not overcome.
l Do not look at LEDs with magnifiers, telescopes, binoculars or similar optical instruments that may concentrate the
light output.
l Ensure that persons are not looking at the LEDs from within 3 meters when the product lights up suddenly. This can
happen when power is applied, when the product receives a DMX signal, or when SERVICE menu items are
selected.
l Fasten the fixture securely to a fixed surface or structure when in use.
l Ensure that any supporting structure and/or hardware used can hold at least 10 times the weight of all the devices
they support.
l Allow enough clearance around the fixture to ensure that it cannot collide with an object or another fixture when it
moves.
l Check that all external covers and rigging hardware are fastened securely.
l Block access below the work area and work from a stable platform whenever installing, servicing or moving the
fixture.
l Do not operate the fixture with missing or damaged covers, shields or any optical component.
3.0
Page 5

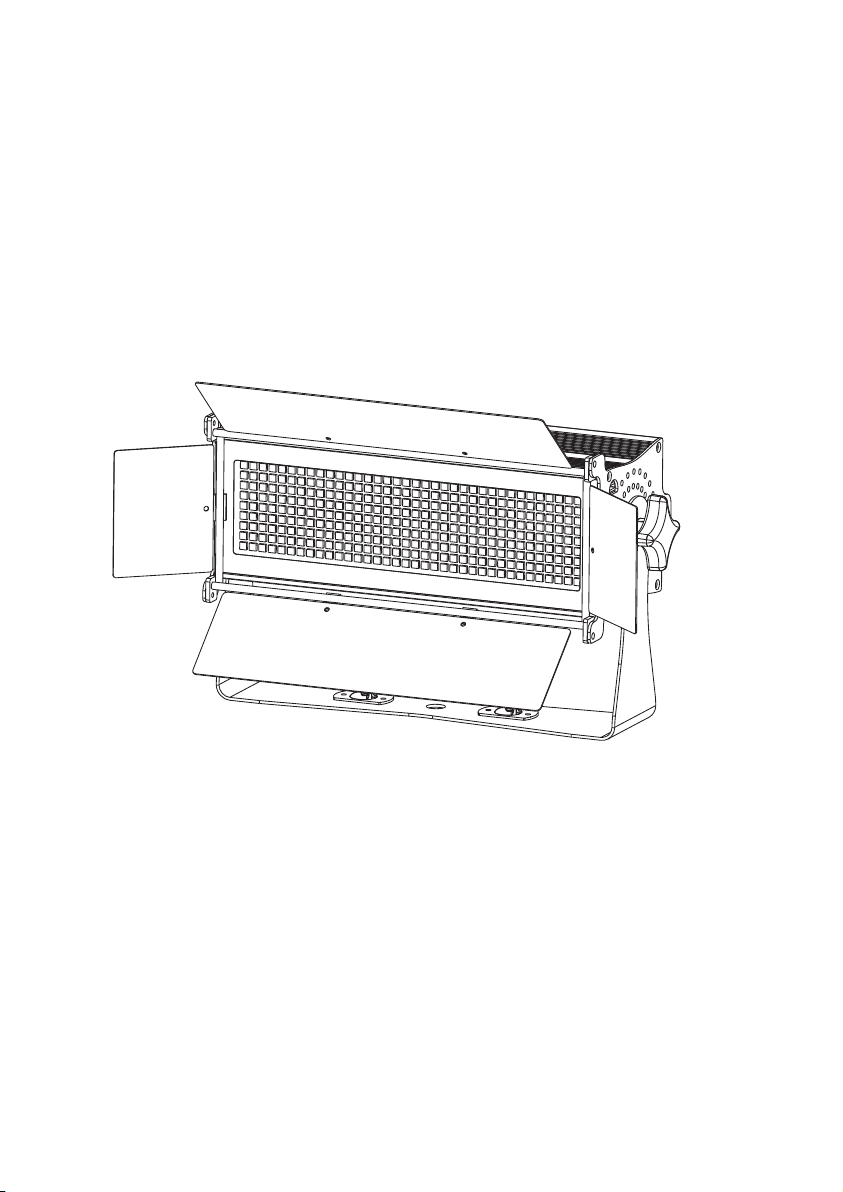

fixture overview
3P & 5P DMX INput
3P & 5P DMX OUTput
AC mains power
input
AC mains power
throughput
dimmer switch
CCT switch
Safety cable
attachment point
LCD Display
Control buttons
4.0
Page 6
Using for the first time
Warning! Read “Sa fety Info rmation” on page 2 before installing, powering, operating or servicing the fixture.
Before applying power to the f ixture:
l Check that the loca l AC mains powe r source is within the fixt ure’s power voltage and freq uency ranges.
l See “Power cabl es and power plug” on page 6. Install a power inpu t connector on a suitabl e power PowerCON
cable.
AC power
War ning! Read “Safet y Information” star ting on page 2 before connectin g the fixtures to AC mains power.
War ning! For protectio n from electric shock, the fixt ure must be grounded (earth ed). The power
distributi oncircuit must be equip ped with a fuse or circuit brea ker and ground-faul t (earth-fault) pro tection.
War ning ! Sock et outlets or exter nal power swi tches used to suppl y the fix ture with pow er mus t be
loc ated near the fixtu re and ea sily acces sibl e so that the fixt ures can easi ly be dis connect ed from power.
Impor tan t! Do n ot inse rt or r emo ve live conne cto rs to a pply or c ut po wer, a s this ma y Power CON
cause a rci ng at t he term ina ls th at will d ama ge th e con necto rs.
Impor tan t! Do n ot use an e xte rna l dimmi ng sy ste m to su pply po wer t o the f ixtur e, as t his m ay caus e
damag e to th e fix ture th at is n ot co vered b y the p rod uct w arran ty.
The fix tur e can b e hard- wir ed to a e lectr ica l ins talla tio n if yo u want to inst all i t per manen tly, o r a pow er pl ug
that is s uit abl e for the l oca l pow er outl ets c an be i nstal led o n the p ower ca ble .
power voltage
War nin g! Ch eck tha t the v olt age ran ge sp eci fied on t he fi xtu res lab el ma tch es the lo cal A C mai ns powe r
volta ge be for e apply ing p owe r to the fi xtu re.
The fix tur es ac cepts AC m ain s pow er at 100 -24 0 V nom inal, 5 0/6 0 Hz. D o not app ly AC ma ins p ower to the
fixtu re at a ny ot her vol tag e tha n speci fie d.
5.0
Page 7
power cables
Wire Color (EU models)
Wire Color (US models)
Conductor
Symbol
Brown
Black
LiveLBlue
White
Neutral
N
Yellow/Green
Green
Ground (earth)
or
Power i npu t and t hroug hpu t cab les mus t be ra ted 1 6A minim um, h ave t hree co ndu cto rs 1. 5 mm² min imu m
condu cto r siz e and an ou ter c abl e diame ter o f 5 - 15 mm . Cable s mus t be ha rd usage typ e and h eat - resis tan t
to 90°C m ini mum . In the EU t he ca ble m ust be HA R app rov ed or equ iva len t.
If you in sta ll a po wer plu g on th e pow er cabl e, in sta ll a grou ndi ng- type (e art hed ) plug that is r ate d 16A
minim um. F oll ow the pl ug ma nuf actur er’s instr uct ion s. Tabl e 1 shows s tan dar d wire color -co din g schem es
and som e pos sib le pin id ent ifi catio n sch eme s; if pin s are n ot cl early i den tif ied.
Table 1 : Wire color-coding and power connections
Relaying power to other devices
War nin g! Do n ot conn ect m ore t han ten f ixt ure s in tota l to AC ma ins p ower in o ne in ter conne cte d cha in.
Power c an be r ela yed to an oth er de vice vi a the throu ghp ut so cket.Power CON
If you da isy c hai n the fix tur es in a c hain so t hat t hey a ll draw AC m ain s pow er via the fir st fi xtu re, cer tai n
point s mus t be re spect ed:
• A heavy d uty, t hre e-c onduc tor, 1 .5 mm cabl e must be used t o con nec t the fir st fi xtu re to AC mai ns po wer.
• conn ectors must be used to draw AC mains powe r from the fixtures power throu ghput sockets and Power CON
yellow connector s must be used to supply power at the fixtu re’s power inp ut sockets.PowerCON
• No matt er wh at th e AC mains p owe r vol tage is , do no t con nect mo re th an te n the fixtur e in to tal ( i nclud ing
the fir st fi xtu re) to AC ma ins p owe r in one in ter con necte d dai sy ch ain usi ng po wer i nput and thr oug h out
conne cto rs.
2
DATA LINK
A DMX 512 da ta li nk is r equir ed in o rde r to cont rol a f ixt ure via D MX. The fi xtu re ha s 3 & 5-pin X LR co nne ctors
for DMX d ata i npu t and out put . The p in- out o n all con nec tor s is pin 1 = sh iel d, pi n 2 = cold (- ), an d pin 3 = h ot
(+) Pin s 4 and 5 i n the 5 -pin XL R con nec tors ar e not u sed .
tips for reliable data transmission
To connec t the f ixt ure to da ta:
1. Conne ct the DM X data ou tput from the contr olle r to the 3 or 5 -pi n XLR con nec tor o f the n eares t fix tur e.
2. Conn ect t he DM X outpu t of th e fix ture cl ose st to t he control ler t o the D MX inpu t of th e nex t fixtu re an d
conti nue c onn ectin g fix tur es outp ut to i npu t.
6.0
Page 8
Physical installation
War nin g! Th e fix ture mu st be e ith er fast ene d to a fl at surf ace s uch a s a sta ge or wal l, or c lam ped to a tr uss o r
simil ar st ruc ture in a ny or ien tatio n usi ng a ri gging c lam p.
War nin g! If t he fixt ure c an ca use inj ury o r dam age it if f all s, at tach an a ppr ove d safet y cab le to o ne of the
safet y cab le at tachm ent p oin ts on the b ase ( see “ Fixtu re ov erv iew” on page 4 ).
Check t hat a ll su rface s to be i llu minat ed ar e min imum 20 0 mm. f rom t he fixture , tha t com busti ble m ate rials
(wood , fab ric , paper, e tc. ) are m inimu m 100 m m. fr om the fi xtu re, t hat t here is f ree a irf low aro und t he fi xture
and tha t the re ar e no flam mab le ma teria ls ne arb y.
Fastening the fixture to a flat surface
The fix tur e can b e faste ned t o a fix ed flat s urf ace t hat is or ien ted a t any a ngle. C hec k tha t the sur fac e can
suppo rt at l eas t 10 time s the w eig ht of all f ixt ure s and equ ipm ent t o be install ed on i t.
War nin g! Th e sup porti ng su rfa ce must b e har d and f lat or ai r ven ts in t he base may be b loc ked , which w ill
cause o ver hea ting. F ast en th e fixtu re se cur ely. Do not s tand it o n a sur fac e or leav e it wh ere i t can be mo ved
or can fa ll ov er. Att ach a sec ure ly an chore d saf ety c able to t he sa fet y cable atta chm ent p oint (s ee “F ixt ure
overv iew ” on pa ge 4) if th e fix tur e is to be in sta lle d in any lo cat ion w here it m ay fa ll an d cau se inju ry or
damag e if th e pri mary at tac hme nt fail s.
1. Bloc k acc ess u nder th e wor k are a. Wo rki ng from a s tab le pl atfor m, ha ng th e fixtu re on t he tr uss. Tig hte n
the rig gin g cla mp.
2. Secu re th e fix ture ag ain st cl amp fai lur e wit h a secon dar y att achment su ch as a n app roved s afe ty ca ble
that is r ate d for t he weig ht of t he fi xture u sin g one o f the attach men t poi nts at th e edg es of t he hous ing ( see
“Fixt ure o ver view” o n pag e 4). D o not use a ny ot her p art of th e fix tur e as a sa fety ca ble a tta chmen t poi nt.
7.0
Page 9
SETUP
War nin g! Re ad “Saf ety I nfo rmati on” o n pag e 2 befor e ins tal ling, p owe rin g, oper ati ng th e fixtu re.
Control panel and menu navigation
The onb oar d con trol pa nel a nd ba cklit g rap hic d ispla y are u sed t o set the f ixt ure ’s DM X add ress, c onf igu re
indiv idu al fi xture s ett ing s (pers ona lit y), rea d out d ata a nd exec ute s erv ice u tilit ies . See “ Onboa rd co ntr ol
menus ” on for a com ple te li st of men us an d com mands . page 9
Using t he co ntr ol butt ons
• To ente r the men u sel ect [ MODE] .
• Press [ UP] a nd [D OWN] to s cro ll wi thin a me nu or a dju st valu es.
• To ente r a menu, s ele ct a fu nctio n or ap ply a s election , pre ss [E NTER] .
• To esca pe a func tio n or mo ve back o ne le vel i n the menu str uct ure , press [ MOD E].
DMX address setting
The DMX address, also known as the start channel, is the first channel used to receive instructions from the controller.
For ind epe nde nt cont rol , eac h fixtu re mu st be a ssign ed it s to a se parate cha nne l .
The DMX a ddr ess c an be con fig ure d by usin g the D MX ADD RESS me nu in t he co ntrol p ane l. Fo r set ting th e
DMX add res s pre ss [ENT ER] b efo re you ca n cha nge t he addr ess .
• The m ain scr een w ill s how a 'do t' an d the b acklight w ill b e swi tched o ff wh en a DM X sig nal is de tec ted .
• The f ixtur e is fu lly R DM read y. So when yo u are u sin g a RDM rea dy co nso le you ca n add res s the uni t and
read ou t its c omp lete st atu s. Fo r RDM fun cti ons p lease r efe r to th e ANSI /ESTA E1.20- 200 6 sta ndard
8.0
Page 10
Onboard control menus
NO.
Main Menu
Menu level 2
Menu level 3
Remark
1
DMX
001-512
Default 001
2
MODE
2CH
1.Coo l whi te, 2 .warm w hit e
Default : 5CH
3CH
1.Dimmer, 2.Cool white, 3.warm white
4CH
1.Dimmer, 2.Cool white, 3.warm white, 4.CCT
5CH
1.Dim mer, 2 .Co ol whit e, 3. war m white , 4.C CT,
5.Str obe
6CH
1.Dimmer, 2.Cool white, 3.warm white, 4.CCT,
5.Strobe. 6,Dimmer speed
3
SET
D.spe ed
Off
Default : Off
Speed 1 / S pee d 2 / Spe ed 3 / Spee d 4
D.cur ve
linea r
Default : linear
Squar e (Sq uar e law)
INV Sq (I NV Sq uar e law)
S-Cur ve
Speci al
KEYLO CK
ON
Password:MENU, UP, DOWN,
MENU, UP, DOWN,ENTER
OFF
REFRE SH
600 / 120 0 / 240 0 / 480 0 Hz
Default : 600 Hz
MASTE R
Maste r
Default : Slave
Slave
4
CCT
2800K ,32 00K ,3500 K,3 800 K,420 0K, 450 0K,48 00K ,50 00K,5 600 K
Default : 2800K
5
INFO
VERSI ON
VX.XX
USAGE .T
Xxxx H
RESET
Use tim e res et (p asswo rd)
TEMP
XXX℃
RDM.U ID
xxxxx xxx xxx xx
6
FACTORY
LOAD
Pleas e reb oot p ower be for e res et take s effect !
9.0
Page 11
50
6
0
0
4
0
3
0
2
0
1
0
7
0
8
0
9
0
1
0
0
4.2 K
5
K
.8
2
.6K
Selec t dim mer s witch 0 -10 0%
Selec t CCT s wit ch 2800 K to 56 00K w hite
Sign al priority after boot:
1. DMX mo de:
If the EL 15 0.T W detec t an DM X sig nal, it w ill b e con troll ed by t his s ignal .
2. Mast er/ Sla ve
The mas ter i s con troll ed by t he di mmer sw itc h + CCT s wit ch an d contr ols a ll co nnect ed sl ave s. To cha nge a sla ve to
maste r use t he on board c ont rol m enu (Se t/M ast er/Ma ste r) or t urn t he dimm er sw itc h to 0%, pa use 1 s ec, t urn it to
100% an d pau se 1 se c. Th is func tio n wil l be disable d 60 se c. af ter boo t.
3. Stan d alo ne / No s ignal
The lam p is co ntr olled b y the p osi tion of t he di mme r switc h & the C CT sw itc h.
Troubl esh oot ing:
If ther e are m ore t han one m ast er in t he line , tha n it is p ossib le to f orc e the o ther ma ste rs to c hange r emo tel y to
slave s. Th is co uld b e done by t urn ing t he dimmer of t he se lec ted mas ter t o 0%, w ait 1se c, tu rn it t o 100% an d wai t
again 1 sec . The n all o ther ma ste rs sw itc h remot ely t o sla ves.T his f unc tion wi ll be d isa bled 60 s ec. a fte r boot.
10.0
Page 12
DIMMER MODE
provides five dimming options (see picture below):
Outpu t
DMX %
LINEA R
Outpu t
DMX %
S-CURVE
l LINEAR – the increase in light intensity appears to be linear as DMX value is increased.
l SQUARE LAW – light intensity control is finer at low levels and coarser at high levels.
l INV Square law – light intensity control is coarser at low levels and finer at high levels.
l S-CURVE – light intensity control is finer at low levels and high levels and coarser at medium levels.
l Special – the light intensity was linear increase with DMX value , and light intensity control is finer at low level
with DMX values decrease , the dimmer speed will also has effect on it
Whichever DIMMER CURVE option you select, you can choose between Off or Speed 1 / 2 / 3 / 4 dimming settings:
l Off is the default setting. It gives a virtually instantaneous reaction when you dim from one intensity to another,
but dimming slowly from one intensity to another may appear slightly uneven.
l The Speed 1 / 2 / 3 / 4 setting gives smoother dimming during slow changes in intensity, but it limits the speed of
dimming changes slightly. This makes it ideal for slow, smooth dimming, but a short time-lag may be noticeable
if you try to dim quickly from one intensity to another.
Outpu t
DMX %
SQUAR E LAW
Outpu t
DMX % Up DM X % Dow n
SPECI AL
Outpu t
DMX %
INVER SE SQ UAR E LAW
11.0
Page 13
dmx protocols
2CH
Function
Value
Setting
Remark
1
Cool white
000 - 255
0 - 100%
2
Warm white
000 - 255
0 - 100%
3 CH
Function
Value
Setting
Remark
1
Dimmer
000 - 255
0 - 100%
2
Cool white
000 - 255
0 - 100%
3
Warm white
000 - 255
0 - 100%
4 CH
Function
Value
Setting
Remark
1
Dimmer
000 - 255
0 - 100%
2
Cool white
000 - 255
0 - 100%
3
Warm white
000 - 255
0 - 100%
4
CCT
000 - 255
2800k - 5600k
5 CH
Function
Value
Setting
Remark
1
Dimmer
000 - 255
0 - 100%
2
Cool white
000 - 255
0 - 100%
3
Warm white
000 - 255
0 - 100%
4
CCT
000 - 255
2800k - 5600k
5
Strob e
000 - 024
025 - 064
065 - 069
070 - 084
085 - 089
090 - 104
105 - 109
110 - 12 4
125 - 129
130 - 144
145 - 149
150 - 164
165 - 169
170 - 184
185 - 189
190 - 204
205 - 209
210 - 224
225 - 229
230 - 244
245 - 255
ON
Strob e 1 (fa st → sl ow)
ON
Strob e 2: op eni ng puls e (fa st → sl ow)
ON
Strob e 3: cl osi ng puls e (fa st → sl ow)
ON
Strob e 4: ra ndo m strob e (fa st → sl ow)
ON
Strob e 5: ra ndo m openi ng pu lse ( fast → sl ow)
ON
Strob e 6:r and om clos ing p uls e (fast → s low )
ON
Strob e 7: bu rst p ulse (f ast → s low )
ON
Strob e 8: ra ndo m burst p uls e (fa st → slow )
ON
Strob e 9:s ine w ave (fa st → sl ow)
ON
Strob e 10: b urs t (fast → s low )
ON
2 cha nnels：
3 cha nnels：
4 cha nnels：
5 cha nnels：
12.0
Page 14
dmx protocols
6 CH
Function
Value
Setting
Remark
1
Dimmer
000 - 255
0 - 100%
2
Cool white
000 - 255
0 - 100%
3
Warm white
000 - 255
0 - 100%
4
CCT
000 - 255
2800k - 5600k
5
Strob e
000 - 024
025 - 064
065 - 069
070 - 084
085 - 089
090 - 104
105 - 109
110 - 12 4
125 - 129
130 - 144
145 - 149
150 - 164
165 - 169
170 - 184
185 - 189
190 - 204
205 - 209
210 - 224
225 - 229
230 - 244
245 - 255
ON
Strob e 1 (fa st → sl ow)
ON
Strob e 2: op eni ng puls e (fa st → sl ow)
ON
Strob e 3: cl osi ng puls e (fa st → sl ow)
ON
Strob e 4: ra ndo m strob e (fa st → sl ow)
ON
Strob e 5: ra ndo m openi ng pu lse ( fast → sl ow)
ON
Strob e 6:r and om clos ing p uls e (fast → s low )
ON
Strob e 7: bu rst p ulse (f ast → s low )
ON
Strob e 8: ra ndo m burst p uls e (fa st → slow )
ON
Strob e 9:s ine w ave (fa st → sl ow)
ON
Strob e 10: b urs t (fast → s low )
ON
6
Fade
000 - 255
dimme r spe ed (f ast → slo w)
6 cha nnels：
13.0
Page 15
Specifications
Physical
Length
336mm
Width
136mm
Height
206mm
Weight
3.25 kg
Optics
Light source
324 x SMD 5050
beam angle
120°
Control and Programming
Control
DMX512-A
DMX channels
2 / 3 / 4 / 5 / 6
Setting and addressing
Control panel with backlit LCD graphic display
Protocol
RDM, USITT DMX512-A
CONSTRUCTION
Color
Black
Housing
metal
Protection rating
IP 20
Installation
Orientation
Any
Minimum distance to combustible materials
100 mm. from fixture
Minimum distance to illuminated surfaces
200 mm. from fixture
Connections
AC power input
PowerCON input socket
AC power throughput
PowerCON output socket
DMX data in/out
3 & 5 pin locking XLR
Electrical
AC power
100-240 V nominal, 50/60 Hz
Maximum total power consumption
240 W
Power supply unit
Auto-ranging electronic switch mode
Power consumption, zero light output
<15 W
Cooling
active
14.0
Page 16
Loading...
