XT-12P Door Phone User Manual
About This Manual
Thank you for choosing XonTel products. In user manual, we provides all functions and
configurations you want to know about XonTel XT-12P IP intercom. Please verify the
packaging content and network status before setting.
4.7. Phone ............................................................................................................................... 32
4.7.1 Time/Language ....................................................................................................... 32
Content
1. Overview ................................................................................... 5
1.1. Product Description ............................................................................................................ 5
1.2. Features.............................................................................................................................. 6
1.3. Keypad ................................................................................................................................ 8
2. Configuration ............................................................................ 9
2.1. Administrator interface ...................................................................................................... 9
2.1.1 System Information .................................................................................................. 9
2.1.2 Admin Settings ......................................................................................................... 9
2.1.3 System Setting ........................................................................................................ 10
2.2. User interface ................................................................................................................... 11
2.2.1 Public Pin Modif...................................................................................................... 11
2.2.2 Add User Cards ....................................................................................................... 11
2.2.3 Add Private Pin ....................................................................................................... 11
3. Basic Using .............................................................................. 12
3.1. Make a call ....................................................................................................................... 12
3.2. Receive a call .................................................................................................................... 12
3.3. Unlock .............................................................................................................................. 12
4. Web ................................................................................................... 13
4.1. Obtain IP address .............................................................................................................. 13
4.2. Login the web ................................................................................................................... 13
4.3. Status................................................................................................................................ 14
4.3.1 Basic ....................................................................................................................... 14
4.4. Intercom ........................................................................................................................... 15
4.4.1 Basic ....................................................................................................................... 15
4.4.2 Advanced ................................................................................................................ 16
4.4.3 Relay ....................................................................................................................... 17
4.4.4 Input ....................................................................................................................... 18
4.4.5 Live Stream ............................................................................................................. 19
4.4.6 RTSP ........................................................................................................................ 20
4.4.7 ONVIF ..................................................................................................................... 21
4.4.8 Motion .................................................................................................................... 21
4.4.9 Card Setting ............................................................................................................ 22
4.4.10 Action ................................................................................................................... 24
4.5. Account ............................................................................................................................ 25
4.5.1 Basic ....................................................................................................................... 25
4.5.2 Advanced ................................................................................................................ 27
4.6. Network ............................................................................................................................ 30
4.6.1 Basic ....................................................................................................................... 30
4.6.2 Advanced ................................................................................................................ 31
4.7.2 Call Feature ............................................................................................................ 33
4.7.3 Voice ....................................................................................................................... 34
4.7.4 Dial Plan .................................................................................................................. 35
4.7.5 Multicast ................................................................................................................ 36
4.7.6 Call log .................................................................................................................... 37
4.7.7 Door log .................................................................................................................. 38
4.8. Upgrade ............................................................................................................................ 38
4.8.1 Basic ....................................................................................................................... 38
4.8.2 Advanced ................................................................................................................ 39
4.9. Security ............................................................................................................................. 41
4.9.1 Basic ....................................................................................................................... 41
1.
Overview
1.1. Product Description

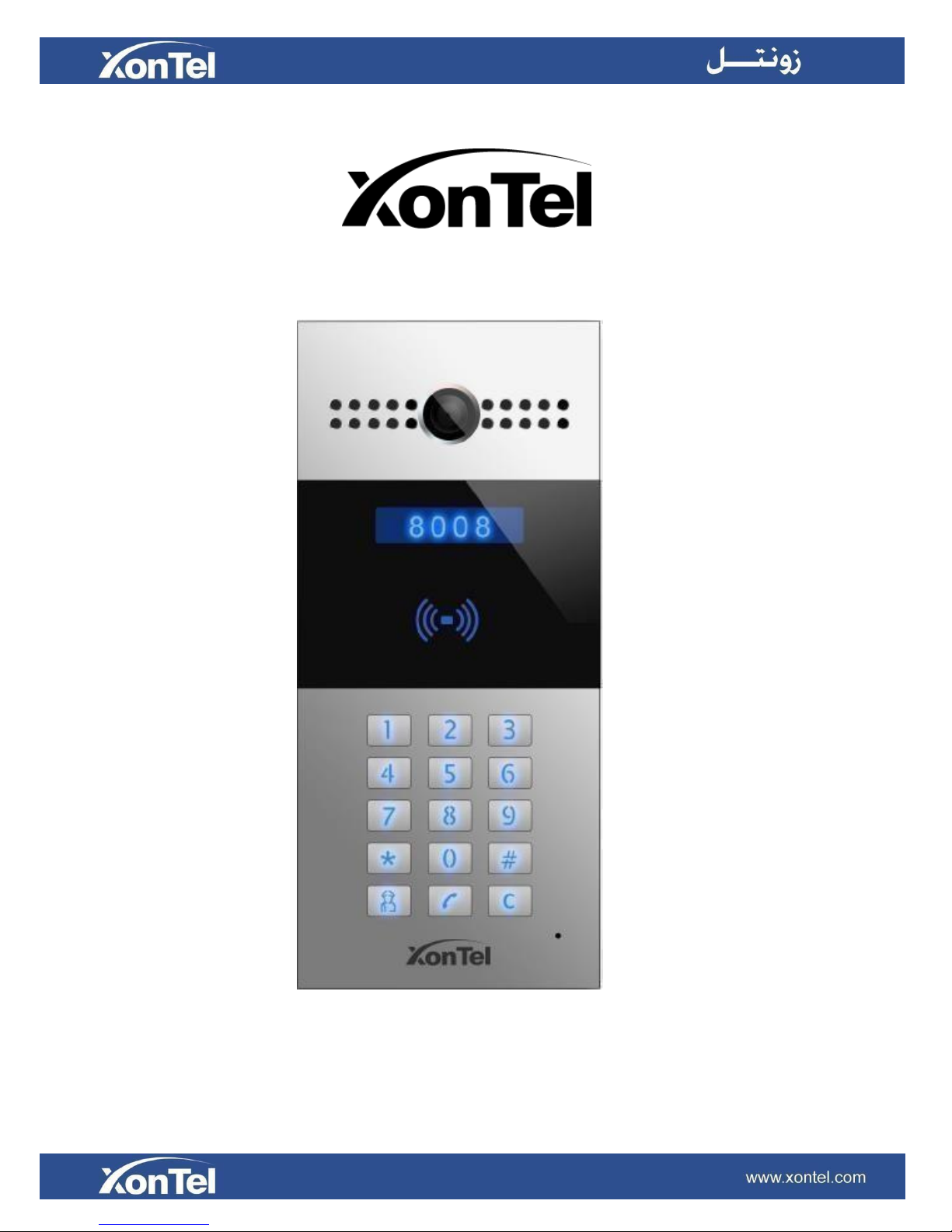

XonTel XT-12P
XonTel XT-12P is a SIP-compliant, hands-free and video outdoor phone. It can be
connected with your IP Phone for remote unlock control and monitor. You can
operate the indoor handset to communicate with visitors via voice and video, and
unlock the door if you wish. It’s applicable in villas, office and so on.
1.2. Features
Highlight
Vandal resistant body, with a flush button
Wild-angle camera:120°
POE(IEEE802.3af, Power-over-Ethernet)
Two-way audio communication over IP network with Echo cancel feature
Complies with SIP Standard for easy integration in each SIP PBXs
Complies with ONVIF standard for easy integration with any network
surveillance system
Physical&Power
Body material: all-aluminum
Camera: 3M pixels, automatic lighting
Numeric keypad with extra buttons
Infrared Sensor: Support
Wiegand port: Support
RF Card Reader:13.56MHz & 125kHz
Output Relay: 3 output relays for door opener
802.3af Power-Over-Ethernet
12V DC connector(if not using POE)
Water proof&Dust proof: IP65
Installation: Flush-mounted & Wall-mounted
Flush-mounted DIM:280x130x68mm
Wall-mounted DIM:280x130x38mm
SIP Endpoint
SIP v1(RFC2543), SIP v2(RFC3261)
Audio codecs: G.711a, G.711μ, G.722, G.729
Video codecs: H264
Speech Quality: 7kHz Audio
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Video
Resolution: up to 720p
Maximum image transfer rate:720p-30pfs
High intensity IR LEDs for picture lighting during dark hours with internal light
sensor
Compatible with 3
rd
.Party. Video components, e.g.NVRs.
Door Entry Feature
Relay control individually by DTMF tones
Camera permanently operational
White Balance: Auto
Auto-night mode with LED illumination
Minimum illumination: 0.1LUX
Network Features
1x10/100Mbps Ethernet Port
Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP,
ICMP, DHCP and ARP
1.3. Keypad
Key
Description
Numeric Key
Manage Center Key
Dialing Key
Delete Key
2.
Configuration
2.1. Administrator interface
Press *2396# to enter administrator interface. Administrator interface provides some
advanced permissions to administrators, including System Information, Admin
Settings and System Settings.
2.1.1 System Information
Press 1 to enter System Information to check IP address, Mac address and Firmware
version of the door phone.
2.1.2 Admin Settings
2.1.2.1 Admin card setting
Add admin card
Enter Admin Card Setting interface, press 1 to quick add admin card. When you see
“Please Swipe Admin Card...” please place admin card in the RF card reader area.
After the screen shows “An admin card is added +1” , it means adding successfully.
Clean admin card data
Enter Admin Card Setting interface, press 2 to delete the current admin card. When
you see “Please Swipe Admin Card....” place the added admin card you want to delete
in the RF card area. After the screen shows “An admin card is deleted”, it means
deleting successfully.
2.1.2.2 Admin Code Setting
Admin code is used to enter administrator interface. The default code is 2396. Enter
Admin Code Setting to input 4 digit new admin codes, click Dial key to save.
2.1.2.3 Service Code Setting
Service Code Setting is used to enter user interface. The default code is 3888. Enter
service code setting to input 4 digit new user codes, click Dial to save.
2.1.3 System Setting
2.1.3.1 Network settings
Enter System Setting interface, press 1 to enter Network setting. Select DHCP mode,
door phone will access network automatically. Choose Static mode, user need to
setup IP address, subnet mask and default gateway. Press Dial key when you
finish each step.
2.1.3.2 Station No.Settings
User can setup the device ID to limit the unlock permissions.
2.1.3.3 Restore default
Enter System setting, press 3 to enter restore interface. After you sure to make the
device restore to factory setting, swipe you admin card or enter admin code, then the
device will restore.
2.2. User interface
Press *3888# to enter user interface. User interface includes Public Pin Modif, Add
User Cards and Add Private Pin. These functions can only be accessed by
administrator.
2.2.1 Public Pin Modif
The default public Pin is 33333333. Before you modify public Pin, users need to swipe
admin card or enter admin code, then you can enter 8 digit new Public Pin, click Dial
key to save.
2.2.2 Add User Cards
User card is used to unlock. Before adding user’s card, users need to swipe admin
card or enter admin code, then you will see “Please Swipe IC Card...” place user card in
the RF card reader. Then the screen will show “Add IC Card +1”, it means adding
successfully.
2.2.3 Add Private Pin
Users can also use private pin code to unlock. Before adding private pin, users need
to swipe admin card or enter admin code. Then enter an 8 digit private pin, click Dial
key to save.
3.
Basic Using
3.1. Make a call
In the idle interface, press the account or IP address + Dial key to make a call.
3.2. Receive a call
XonTel XT-12P will auto answer the incoming call by default. If users disable auto
answer function, press dial key to answer the incoming call.
3.3. Unlock
Unlock by Pin code: Users can unlock the door by using predefined Public Pin or
Private Pin. Press # + 8 digit Pin Code + # to unlock, then you will hear “The door is
now opened”. If users input the wrong Pin code, the screen will show “Incorrect
Code”.
Unlock by RF Card: Place the predefined user card in RF card reader to unlock. Under
normal conditions, the phone will announce “The door is now opened”. If the card
has not been registered, the phone will show “Unauthorized”.
Unlock by DTMF Code: During the talking, the president can press the predefined
DTMF code to remote unlock the door. (Please refer to chapter 4.4.4 about DTMF
code setting). Then you will also hear “The door is now opened”.
4.
Web
4.1. Obtain IP address
The XonTel XT-12P use DHCP IP by default. Press *2396# to enter Administrator
interface. Enter System Information to check the phone IP address.
4.2. Login the web
Open a Web Browser, enter the corresponding IP address. Then, type the default
user name and password as below to log in:
User name: admin
Password: xontel
4.3. Status

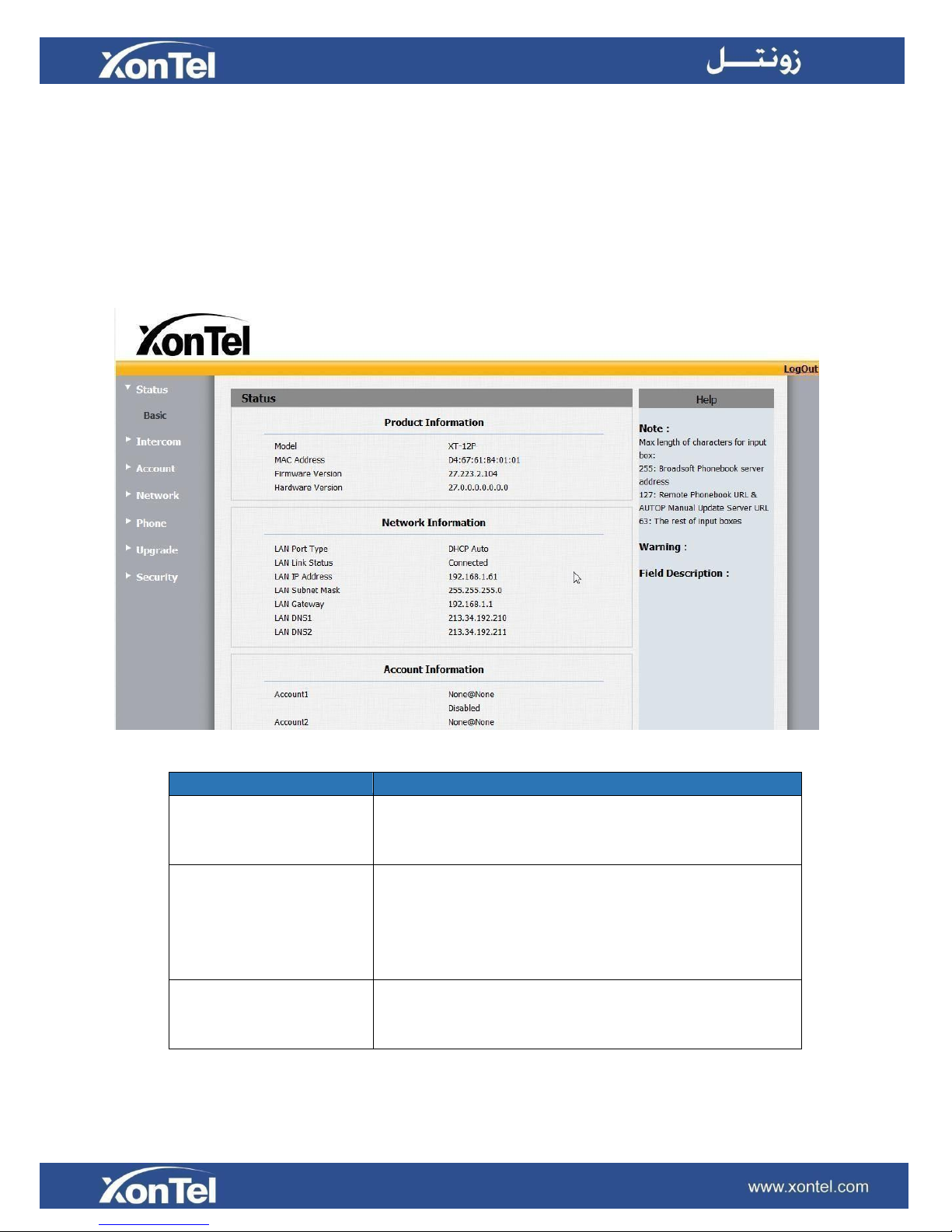

4.3.1 Basic
Status, including product information, network information and account information,
this can be viewed from Status -> Basic.
Sections
Description
Product Information
To display the device’s information such as Model name, MAC
address (IP device’s physical address), Firmware version and
Hardware firmware.
Network Information
To display the device’s Networking status (LAN Port), such as
Port Type(which could be DHCP/Static/PPPoE), Link Status, IP
Address, Subnet Mask, Gateway, Primary DNS server, Secondary
DNS server, Primary NTP server and Secondary NTP server (NTP
server is used to synchronize time from Internet automatically).
Account Information
To display device’s Account information and Registration
status (account username, registered server’s address,
Register result).
4.4. Intercom
4.4.1 Basic
Go to the path: Intercom-Basic
Sections
Description
Public Key
Public Key is used to unlock.
Key Switch: User can disable or enable this function.
Key Value: The default public Key is 33333333. Users can modify
this function.
Display Number
This function is used to hide or display the number when you operate in
the phone. If you select disable, the phone will show “*” when you dial.
Speed Dial
This Feature is used to call out 4 numbers in the same time. After setup
the number you need to call, press manage center key to call
Web Call
To dial out or answer the phone from website.
Call Event
This feature is similar with the Input event. Once user make a
call, it will execute the action.
It supports 3 types - FTP, Email and HTTP
To setup the FTP and Email in Action interface, the FTP server
and Email will receive the capture picture when call out. If you
choose HTTP mode, enter the URL format: http://http server IP
address/any information
(such as http://192.168.35.48/mac=000 ).Then you will check
this information which capture the network packet.
Max Call Time
To configure the max call time.
Max Dial Time
Dial in Time: When other phone calls to XT-12P, if ring tone
is over the Dial in Time without answer. The call will be hang
up.
Dial out Time: When XT-12P call to the other party, if the
ringtone is over the Dial out Time without answer. XT-12P
will continue to call to no answer call number in order.
4.4.2 Advanced
Sections
Description
AEC Level
AEC (Configurable Acoustic and Line Echo Cancelers) is used to
adjust the echo effect during the communication. The default
value is 700. Increase the level, the echo control is better.
Photoresistor
Photoresistor is used to sense the light intensity that XT-12P will
auto enable infrared LED. You can adjust the Photosensitive
value by yourself.
Tamper Alarm
Enable the Tamper Alarm, if the gravity of XT-12P changes, the
phone will alarm. The Threshold value is smaller, the faster
reaction of device.
Wiegand
XonTel provides two Wiegand protocol. According to the
corresponding wiegand access device to choose the suitable
protocol.
4.4.3 Relay
Sections
Description
Private Key
Import or Export the Private Key template.
Relay
To configure some settings about unlock
Relay Select: XonTel XT-12P support 3 relays
Relay Type: Different locks use different relay types, default
state or invert state. If you connect the Lock in NO connector,
select default state. Otherwise using invert state.
Relay Delay(sec): Allows door remain “open” for certain
period The range is from 1 to 10 seconds
DTMF Option: XonTel XT-12P support 1、2、3、4 digits
DTMF unlock code. Please select one type and enter the
corresponding code.
DTMF: Setup 1 digit DTMF code for remote unlock
Multiple DTMF: Setup multiple digits DTMF code for remote unlock.
Status: the status will be changed by the relay state.
Open Relay via HTTP
User can use a URL to remote unlock the door.
Switch: Enable this function. Disable by default.
Username & password: Users can setup the username and password for
HTTP unlock. by default username is admin and password is xontel
URL format:
http://192.168.1.102/fcgi/do?action=OpenDoor&UserName=admin&Password
=xontel&DoorNum=1
where:
192.168.1.102 is XT-12P IP address
admin is XT-12P username
xontel is XT-12P password
4.4.4 Input
Sections
Description
Input
Input function is used to open the door from inside.
Trigger Option: According to different lock connection to choose
different trigger mode. If user connect in normal open contact, select
low. If you choose High, please connect in normal close contact.
Action to execute: Choose one or more ways to receive the action
message.
Http URL: If you tick Http URL, then enter the Http server IP address
in the HTTP URL area. When the Input is triggered, it will send Http
message.URL format: http://http server IP address/any information
(such as http://192.168.35.48/mac=000 ). Then you will check this
information which capture the network packet.
Action Delay: Setup the action delay time. After the delay time, the
phone will send to the action information in the corresponding way.
Open Relay: To choose a suitable relay for input connector.
4.4.5 Live Stream
Sections
Description
Live Stream
To check the real-time video from XT-12P.
4.4.6 RTSP
Sections
Description
RTSP Basic
To active the RTSP function, then XT-12P can be monitored.
RTSP Stream
To enabled RTSP video and select the video codec. XT-12P supports H264 video
codec.
H.264 Video Parameters
H264: A video stream compression standard. Different from H263, it provides
an approximately identical level of video stream quality but a half bit rate. This
type of compression is sometimes called MPEG-4 part 10.
To modify the resolution, framerate and bitrate of H264
MPEG4 Video Parameters
MPEG4: it is one of the network video image Compression standard. It supports
the maximum Compression ratio 4000:1. It is an important and common video
function with great communication application integration ability and less core
program space.
To modify the resolution, framerate and bitrate of MPEG4.
MJPEG Video Parameters
MJPEG: called Motion Joint Photographic Experts Group. It is a video encoding
format in which each image is compressed separately by JPEG. MJPEG
compression can produce high quality video image and has a flexible
configuration in video definition and compressed frames to modify the
resolution.

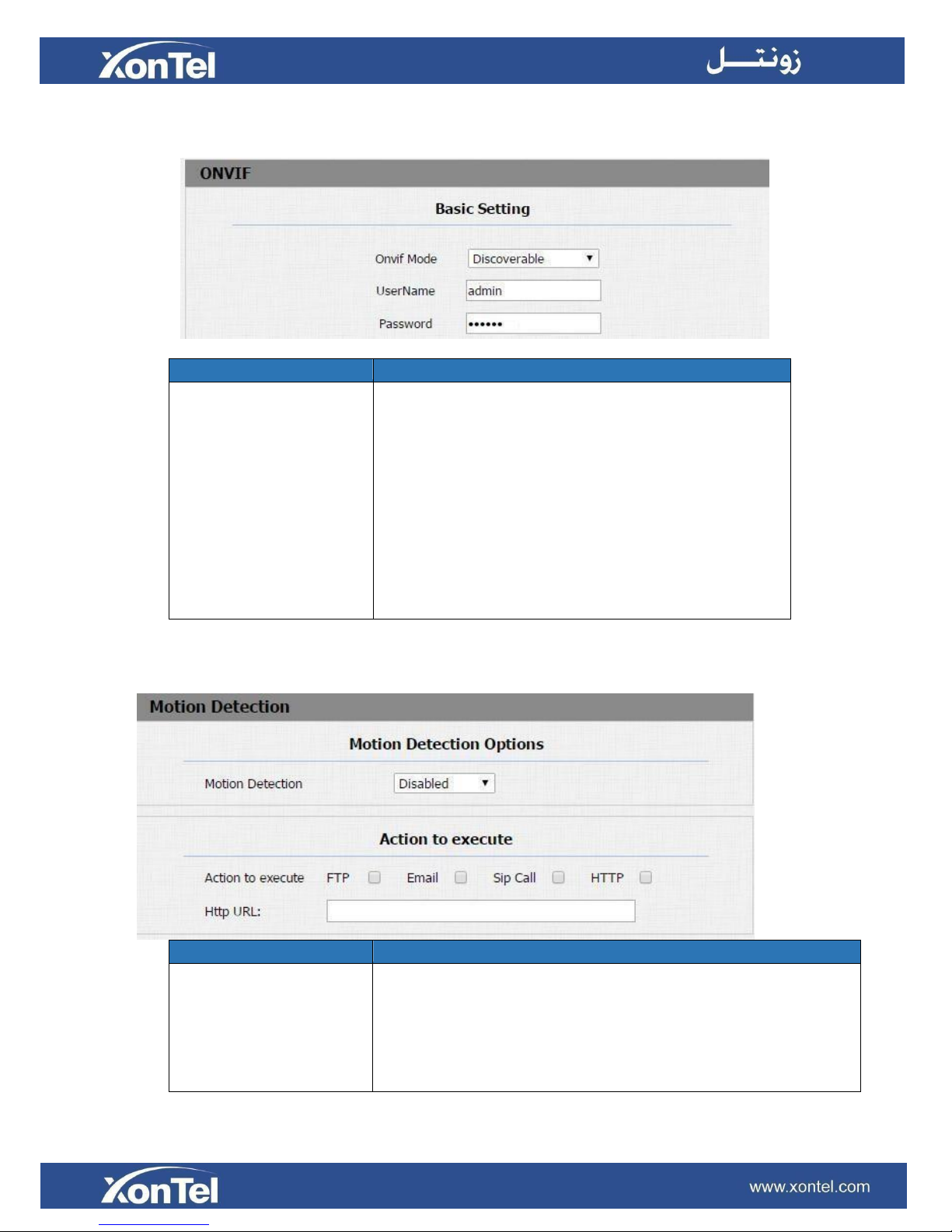

4.4.7 ONVIF
Sections
Description
Basic Setting
To setup the ONVIF function parameters. It is used to connect
with the corresponding ONVIF tool.
ONVIF Mode: Two modes - Discoverable and Non-
discoverable. Discoverable by default. Only Discoverable
mode, then ONVIF software can search XT-12P.
User Name: To modify the user name you need. admin
by default.
Password: To modify the password you want. xontel by
default.
Note: User name and password is used for authentication.
4.4.8 Motion
Sections
Description
Motion Detection
Motion detection is used to record the change of the surrounding
environment.
Motion Detection Options: Enable to active this function.
Action to execute: Select a suitable way to receive the motion
detection information (FTP, Email, SIP Call, and HTTP).
Please refer to chapter 4.4.10.
4.4.9 Card Setting
Sections
Description
Import/Export Card Data
To import or export the card data file. Only support .xml
format.
Card Status
Normal: Choose Normal mode when reading card.
Card Issuing: Choose Card Issuing mode when writing
card.
Card Event
This feature is similar with the Input event. Once user using
card to unlock , it will execute the action.
It supports 3 types - FTP, Email, HTTP
To setup the FTP and Email in Action interface, the FTP server
and Email will receive the capture picture when unlocking. If
you choose HTTP mode, enter the URL format: http://http
server IP address/any information
(such as http://192.168.35.48/mac=000 ).Then you will check
this information which capture the network packet.
Card Setting
IC Key DoorNum: XT-12P can support to connect 3 relays
Choose one and add the valid card for unlock.
IC Key Day: To choose the valid day for the card
you added.
IC Key Time Setup an accurate valid time for the card.
IC Key Name: To setup corresponding name for thecard.
IC Key Code: Place the card in the XT-12P RF Card Read
area, then click Obtain button. After XT-12P reads the
card code, click Add, the card information will show in
the Door Card Management list.
Door Card Management
Valid card information will show in the list. Users can tick the
current card information then delete one or all in the list.
4.4.10 Action
Sections
Description
Email Notification
Sender Email Address: Input the sender email address
Receiver Email Address: Input the receiver email address
SMTP Server Address: Enter the SMTP server format
SMTP User name: Enter the SMTP Username
SMTP password: Enter the sender email password
Email Subject: Enter the subject name.
Email content: Enter the content name.
Email test: Click test to make sure the parameters you enter is right.
FTP Notification
FTP Server: Enter the FTP server address.
FTP User Name: Enter the FTP server username.
FTP Password: Enter the corresponding FTP server password.
FTP test: Click test to make sure the parameters you enter is right.
SIP Call Notification
When you enable SIP Call function of motion. Enter the number and name in
the corresponding area. When the motion is triggered, the device will call out
the number automatically.
4.5. Account
4.5.1 Basic
Sections
Description
SIP Account
To display and configure the specific Account settings.
Status: To display register result.
Display Name: Which is sent to the other call party for
display.
Register Name: Allocated by SIP server provider, used for
authentication.
User Name: Allocated by your SIP server provide, used
for authentication.
Password: Used for authorization.
SIP Server 1
To display and configure Primary SIP server settings.
Server IP: SIP server address, it could be an URL or IP
address.
Registration Period: The registration will expire after
Registration period, the IP phone will re-register
automatically within registration period.
SIP Server 2
To display and configure Secondary SIP server settings.
This is for redundancy, if registering to Primary SIP server fails,
the IP phone will go to Secondary SIP server for registering.
Note: Secondary SIP server is used for redundancy, it can be
left blank if there is not redundancy SIP server in user’s
environment.
Outbound Proxy Server
To display and configure Outbound Proxy server settings.
An outbound proxy server is used to receive all initiating
request messages and route them to the designated SIP
server.
Note: If configured, all SIP request messages from the IP
phone will be sent to the outbound proxy server forcefully.
Transport Type
To display and configure Transport type for SIP message
UDP: UDP is an unreliable but very efficient transport
layer protocol.
TCP: Reliable but less-efficient transport layer protocol.
TLS: Secured and Reliable transport layer protocol.
DNS-SRV: A DNS RR for specifying the location of
services.
NAT
To display and configure NAT (Net Address Translator)
settings.
STUN: Short for Simple Traversal of UDP over NATs, a
solution to solve NAT issues.
Note: By default, NAT is disabled.
4.5.2 Advanced
Sections
Description
SIP Account
To display current Account settings or to select which account to display.
Codecs
To display and configure available/unavailable codecs list. Codec means
coder-decoder which is used to transfer analog signal to digital signal or vice
versa.
Familiar codecs are PCMU (G711U), PCMA (G711A), G722 and G729.
Video Codec
To configure the video quality.
Codec Name: The default video codec is H264.
Codec Resolution: It can support QCIF, CIF, VGA, 4CIF, 720P.
Codec Bitrate: The lowest bitrate is 128, the highest bitrate is 2048.
Codec payload: From 90-119.
Subscribe
To display and configure MWI, BLF, ACD subscription settings.
MWI: Message Waiting Indicator which is used to indicate whether there
is unread new voice message.
BLF: BLF is short for Busy Lamp Field which is used to monitor the
designated extension status.
ACD: Automatic Call Distribution is often used in offices for customer
service, such as call center. The setting here is to negotiate with the server
about expire time of ACD subscription.
DTMF
To display and configure DTMF settings.
Type: Support Inband, Info, RFC2833 or their combination.
How To Notify DTMF: Only available when DTMF Types Info.
DTMF Payload: To configure payload type for DTMF. Note: By default,
DTMF type is RFC2833 which is the standard. Type Inband uses inband
frequency to indicate DTMF tone which is most used to be compatible to
traditional telephone server. Type Info use SIP Info message to indicate
DTMF message.
Call
To display and configure call-related features.
Max Local SIP Port: To configure maximum local sip port for
designated account.
Min Local SIP Port: To configure minimum local sip port for designated
account.
Caller ID Header: To configure which Caller ID format to fetch for
displaying on Phone UI.
Auto Answer: If enabled, IP phone will be auto-answered where there is
an incoming call for designated call
Ringtones: Choose the ringtone for each account.
Provisioning Response ACK: 100% reliability for all provisional messages,
this means it will send ACK every time the IP phone receives a provisional
SIP message from SIP server.
User=phone: If enabled, IP phone will send user=phone within SIP
message.
PTime: Interval time between two consecutive RTP packets.
Anonymous Call: If enabled, all outgoing call for the designated
account will be anonymous number.
Anonymous Call Rejection: If enabled, all incoming anonymous-out call
for the designated account will be rejected.
Is escape non Ascii character: To transfer the symbol to Ascii character.
Missed Call Log: To display the miss call log.
Prevent SIP Hacking: Enable to prevent SIP from hacking.
Session Timer
To display or configure session timer settings.
Active: To enable or disable this feature, If enable, the ongoing call will
be disconnected automatically once the session expired unless it’s been
refreshed by UAC or UAS.
Session Expire: Configure session expire time.
Session Refresher: To configure who should be response for
refreshing a session.
Note: UAC means User Agent Client, here stands for IP phone. UAS
means User Agent Server, here stands for SIP server.
BLF List
To display or configure BLF List URI address.
BLFList URI: BLF List is short for Busy Lamp Field List.
BLFList PickUp Code: To set the BLF pickup code.
BLFList BargeIn Code: To set the BLF barge in code.
Encryption
To enable or disabled SRTP feature.
Voice Encryption (SRTP): If enabled, all audio signal (technically
speaking its RTP streams) will be encrypted for more security.
NAT
To display NAT-related settings.
UDP Keep Alive message: If enabled, IP phone will send UDP keep-alive
message periodically to router to keep NAT port alive.
UDP Alive Msg Interval: Keep alive message interval.
Rport: Remote Port, if enabled, it will add Remote Port into outgoing
SIP message for designated account.
User Agent
One can customize User Agent field in the SIP message; If user agent is set
to specific value, user could see the information from PCAP. If user agent is
not set by default, user could see the company name, model number and
firmware version from PCAP.
4.6. Network
4.6.1 Basic
Sections
Description
LAN Port
To display and configure LAN Port settings.
DHCP: If selected, IP phone will get IP address, Subnet
Mask, Default Gateway and DNS server address from
DHCP server automatically.
Static IP: If selected, you have to set IP address, Subnet
Mask, Default Gateway and DNS server manually.

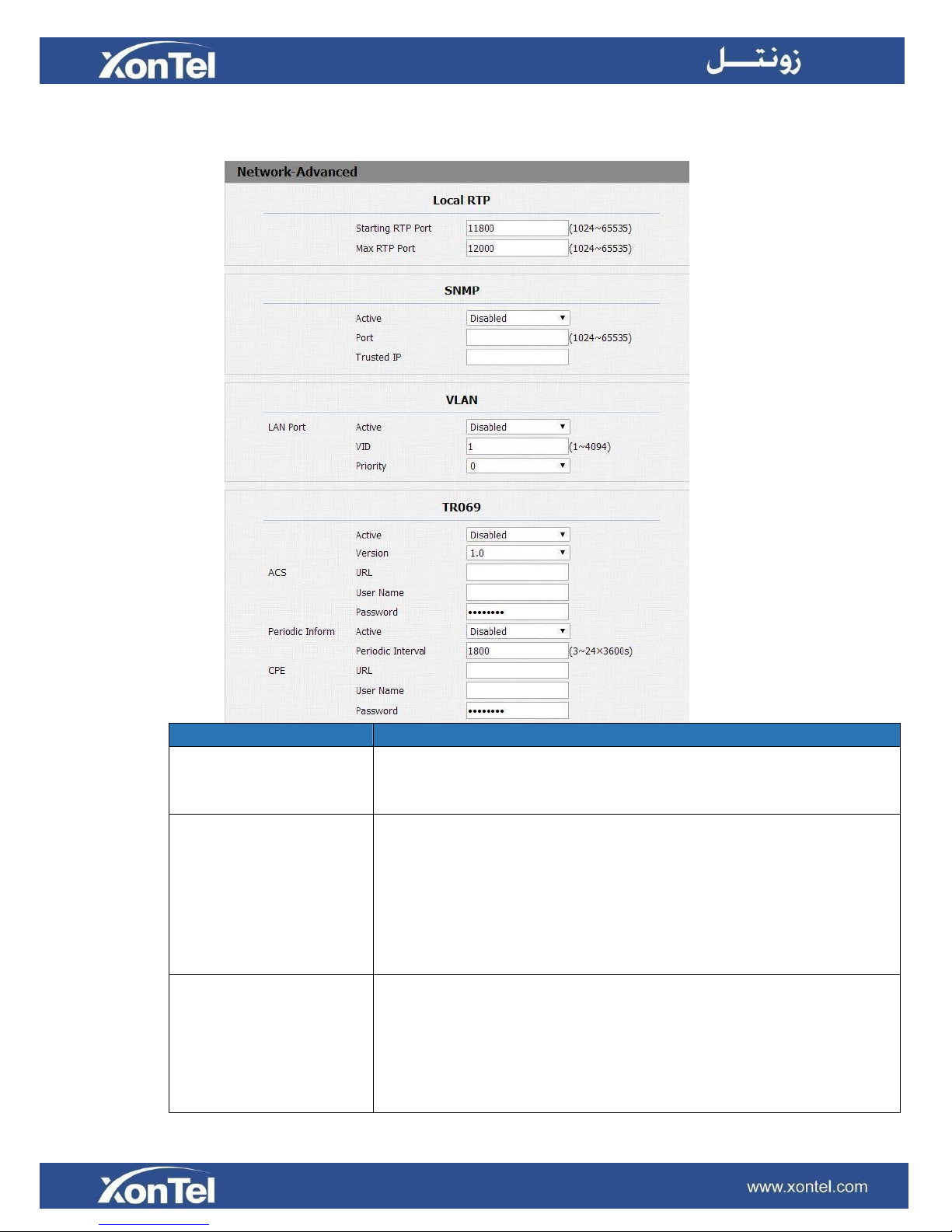

4.6.2 Advanced
Sections
Description
Local RTP
To display and configure Local RTP settings.
Max RTP Port: Determine the maximum port that RTP stream can use.
Starting RTP Port: Determine the minimum port that RTP stream can use
SNMP
To display and configure SNMP settings.
Active: To enable or disable SNMP feature.
Port: To configure SNMP server’s port.
Trusted IP: To configure allowed SNMP server address, it could be an IP
address or any valid URL domain name.
Note: SNMP (Simple Network Management Protocols) is Internet
standard protocol for managing devices on IP networks
VLAN
To display and configure VLAN settings.
Active: To enable or disable VLAN feature for designated port.
VID: To configure VLAN ID for designated port.
Priority: To select VLAN priority for designated port.
Note: Please consult your administrator for specific VLAN settings in your
networking environment.
TR069
To display and configure TR069 settings.
Active: To enable or disable TR069 feature.
Version: To select supported TR069 version (version1.0 or 1.1).
ACS/CPE: ACS is short for Auto configuration servers as server side, CPE
is short for Customer-premise equipment as client side devices.
URL: To configure URL address for ACS or CPE.
User name: To configure username for ACS or CPE.
Password: To configure Password for ACS or CPE.
Periodic Inform: To enable periodically inform.
Periodic Interval: To configure interval for periodic inform.
Note: TR-069(Technical Report 069) is a technical specification entitled CPE
WAN Management Protocol (CWMP).It defines an application layer protocol
for remote management of end-user devices.
4.7. Phone
4.7.1 Time/Language
Sections
Description
NTP
To configure NTP server related settings.
Time Zone: To select local Time Zone for NTP server.
Primary Server: To configure primary NTP server address.
Secondary Server: To configure secondary NTP server address
it takes effect if primary NTP server is unreachable.
Update interval: To configure interval between two
consecutive NTP requests.
Note: NTP, Network Time Protocol is used to automatically
synchronized local time with Internet time, since NTP server only
response GMT time, so that you need to specify
the Time Zone for IP phone to decide the local time.
4.7.2 Call Feature
Sections
Description
Mode
Mode: Select the desired mode.
DND
DND (Do Not Disturb) allows IP phones to ignore any
incoming calls.
Return Code when DND: Determine what response code
should be sent back to server when there is an incoming
call if DND on.
DND On Code: The Code used to turn on DND on
server’s side, if configured, IP phone will send a SIP
message to server to turn on DND on server side if you
press DND when DND is off.
DND Off Code: The Code used to turn off DND on
server’s side, if configured, IP phone will send a SIP
message to server to turn off DND on server side if you
press DND when DND is on.
Intercom
Intercom allows user to establish a call directly with the
callee.
Active: To enable or disable Intercom feature.
Intercom Mute: If enabled, once the call established, the
callee will be muted.
Others
Return Code When Refuse: Allows user to assign specific
code as return code to SIP server when an incoming call
is rejected.
Auto Answer Delay: To configure delay time before an
incoming call is automatically answered.
Auto Answer Mode: To set video or audio mode for auto
answer by default.
Direct IP: Direct IP call without SIP proxy.
4.7.3 Voice
Secti
ons
Description
Mic Volume
To configure Microphone volume, from 1-15. 8 by default.
Speaker Volume
To configure Speaker Volume, from 1-15, 8 by default.
Open Door Warning
When the door is opened, users will hear that open door
prompt voice. If you disable it, you won’t hear the
announcement.
RingBack Upload
During the calling, user will hear the ring back tone before the
other party answer. User can upload the suitable Ring
Back Tone by yourself. Please note the file format and
size.
Opendoor Tone Upload
Choose a suitable open door warning tone to upload.
Please not the file format and size.
4.7.4 Dial Plan
Sections
Description
Rules Management
For easy management, users can export and import the
replace rule file directly. (The export file format is .tgz, user
need to unzip it, then check the .XML file. The Import
format is .XML)
Rules
Allow user to select Replace rule or Dial-now to display or
edit.
Rules Modify
Allow user to modify selected rules information, for replace
rule, you can modify related accounts, prefix and replace.
Such as: Account:1
Prefix: 100
Replace: 110
Then user dial 100 with account1, the phone will call out 110
actually.
4.7.5 Multicast
Sections
Description
Multicast Setting
To display and configure the Multicast setting.
Paging Barge: Choose the multicast number, the range
is 1-10.
Paging priority Active: Enable o disable the multicast.
Priority List
To setup the multicast parameters.
Listening Address: Enter the IP address you need to
listen.
Label Input the label for each listening address.
4.7.6 Call log
Sections
Description
Call History
To display call history records.
Available call history types are All calls, dialed calls, received
calls, missed calls, and forwarded calls.
Users can check the call history in detail. Tick the number to
delete or delete all logs. XT-12P supports 100 call logs.
4.7.7 Door log
Sections
Description
Door Log
To display unlock history. This interface can only show the RF
card unlock history now.
Users can check the unlock information in detail. User can
delete one or all logs. The maximum door log is 500.
4.8. Upgrade
4.8.1 Basic
Sections
Description
Upgrade
To select upgrading zip file from local or a remote server automatically.
Note: Please make sure it’s right file format for right model.
Firmware version
To display firmware version, firmware version starts with model name.
Hardware Version
To display Hardware version.
Reset to Factory Setting
To enable you to reset IP phone’s setting to factory settings.
Reboot
To reboot IP phone remotely from Web UI.
4.8.2 Advanced
Sections
Description
PNP Option
To display and configure PNP setting for Auto Provisioning.
PNP: Plug and Play, once PNP is enabled, the phone will
send SIP subscription message to PNP server automatically
to get Auto Provisioning server’s address.
By default, this SIP message is sent to multicast address
224.0.1.75(PNP server address by standard).
Manual Autop
To display and configure manual update server’s settings.
URL: Auto provisioning server address.
User name: Configure if server needs a username to
access, otherwise left blank.
Password: Configure if server needs a password to access,
otherwise left blank.
Common AES Key: Used for IP phone to decipher common
Auto Provisioning configuration file.
AES Key (MAC): Used for IP phone to decipher MAC-
oriented auto provisioning configuration file (for example,
file name could be 0c1105888888.cfg if IP phone’s MAC
address is 0c1105888888).
Note: AES is one of many encryption, it should be configure
only configure file is ciphered with AES, otherwise left blank.
Automatic Autop
To display and configure Auto Provisioning mode settings.
This Auto Provisioning mode is actually self-explanatory.
For example, mode “Power on” means IP phone will go to do
Provisioning every time it powers on.
System Log
To display system log level and export system log file.
System log level: From level 0~7.The higher level means the
more specific system log is saved to a temporary file. By
default, it’s level 3.
Export Log: Click to export temporary system log file to
local PC.
4.9. Security
4.9.1 Basic
Sections
Description
Web Password Modify
To modify user’s password.
Current Password: The current password you used.
New Password: Input new password you intend to use.
Confirm Password: Repeat the new password.
Loading...
