Xonix USBWATCH Users Manual

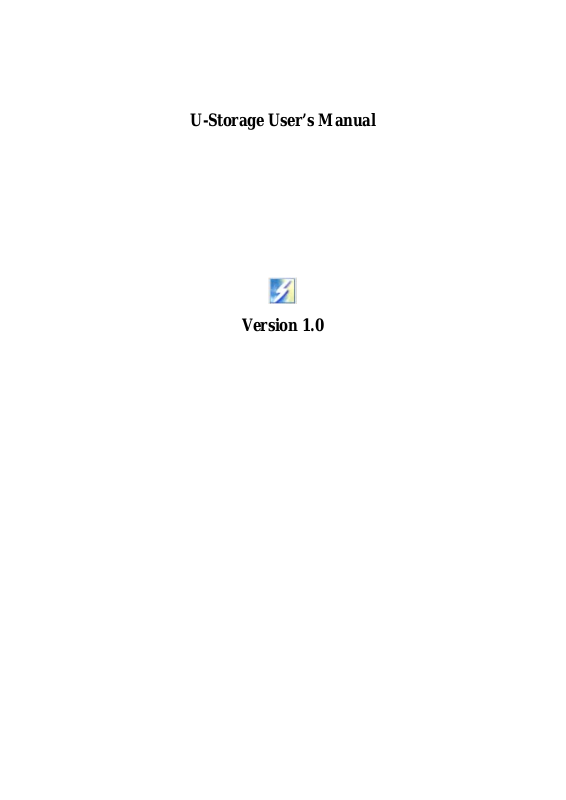

U-Storage User’s Manual
Version 1.0
Introduction
Thank you for purchasing the U-Storage device. The manual explains how to use the
U-Storage software bundled with the device.
Safety Precautions
Please follow the safety precautions carefully before you use the U-Storage device
and the application software (the product). Make sure that you use the product
correctly according to the procedures described in this guide.
Warnings This mark indicates topics that could lead to serious
injury of your body or damage of the product if
ignored or handled incorrectly.
_____________________________________________________________________
Warnings
_____________________________________________________________________
! Do not attempt to disassemble or alter any part of the product that is not
described in this guide.
! Do not allow the product to come into contact with water or other liquids. In the
event that water or other liquids enter the interior, immediately unplug the
product from the computer. Continued use of the product may result in fire or
electrical shock. Please consult your product distributor or the closest support
center.
! Do not handle the product to do the plug and unplug operation if your hands are
wet. Otherwise it will cause electrical shock.
! Do not place the product near a heat source or expose them to direct flame or
heat.
! Never place the product close to equipment generating strong electromagnetic
fields. Exposure to strong magnetic fields may cause malfunctions or corrupt
data.
! protect the USB plug from salt water or any corrosive liquid to ensure the
reliable connection.
! make sure the plug is dry before you connect U-Storage to computer in case the
humidity results in short circuit which might damage your computer in
succession.
! Hold the USB plug to disconnect U-Storage from computer. Never unplug by
only holding the watch or wire to avoid the break of the wire. Also do no bend
the wire severely during the plug and unplug operation to prolong the wire life.
! recommend frequent cleaning of accumulated residue inside the plug to prolong
the product life.
! The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to the equipment. Such modifications could void the
User’s authority to operate the equipment.
FCC Notice: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordanc e with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
How to Set Time
! Pull out the crown when the second hand arrives at 12 o’clock position.
! Turn the crown in either direction to set hour and minute.
! Push the crown to the normal position to start
How to change battery
Please follow the procedures as below:
1 Unscrew the case back of the watch
2 Unscrew the CBA
3Lift the CBA as showed in the picture
4Remove the red insulator and replace the battery, screw back the CBA first and then
the case back
System Requirements
There are minimum hardware and software requirements that must be satisfied to
ensure the product to function properly.
! Computer Model IBM PC/AT Compatible, Power Macintosh, PowerBook,
iMAC or iBook
! OS Windows 98 Second Edition, Windows Millennium
Edition (Windows ME), Windows 2000, Windows XP,
Linux 2.4 or higher, Mac OS 9.0 or higher
! Interface USB
! Free Hard Disk Space 3 MB and more
# Windows 98 SE does not support default Mass Storage Driver. You have to
install the driver bundled with the product.
# The product can use the default driver in most of the OS. If you want to run
the application software bundled with the product, install the vendor driver
by the “U-StorageTools1.0.exe” utility. Then, the application software will
work properly.
# The application software only can run with Microsoft Windows OS.
# However, the U-Storage basic functions can be supported in all OS listed
above.
Guide to Components
USB Interface: The interface connects to the USB port of the computer.
LED Display: This LED Display will show the status of the device. Once
the device is in operation, the LED will flash quickly.
Basic Functions
1. Plug and Play
When you plug the device into the USB port of your computer, you will see a
“Removable Disk” icon in the file manager window.
In Macintosh, once you plug the U-Storage into the USB port. You can see the
disk icon in the “Desktop”.
In Linux OS, you can mount the device by the following instruction.
Execute cd /etc/sysconfig/ ( cat /etc/sysconfig/hwconf | more )
Check the device information in hwconfwrite down the mount point.
Make a directory in /mnt (ex: mkdir /mnt/usbHD )
Then, execute mount /dev/sda1 /mnt/usbHD (if mount point was .dev/sda)
2. Read and Write
You can retrieve or store files in the device as a hard disk. The read/write
operation of the device is the same as that of a hard disk.
3. Unplug
You can remove the device after you finish the action with the device. However, in
Windows ME and Windows 2000, please follow the safe removal procedure. You

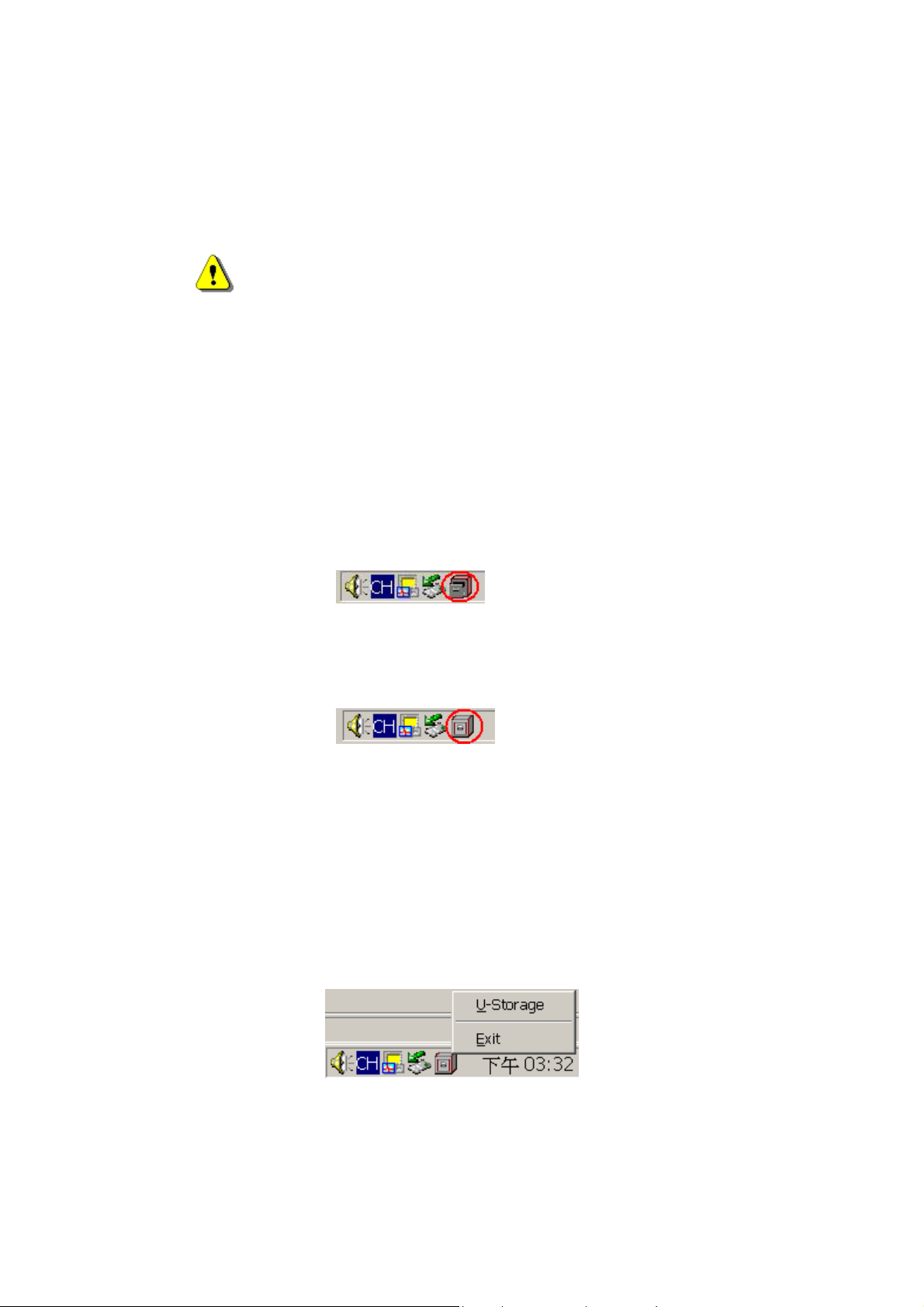

can find a safe removal icon in your computer’s notification area.
Double click the “safe removal” icon; the “Unplug or Eject Hardware” window
will pop up. You can select the device you want to remove. Then, click the “Stop”
button. After that you can unplug the device from the USB port of your computer.

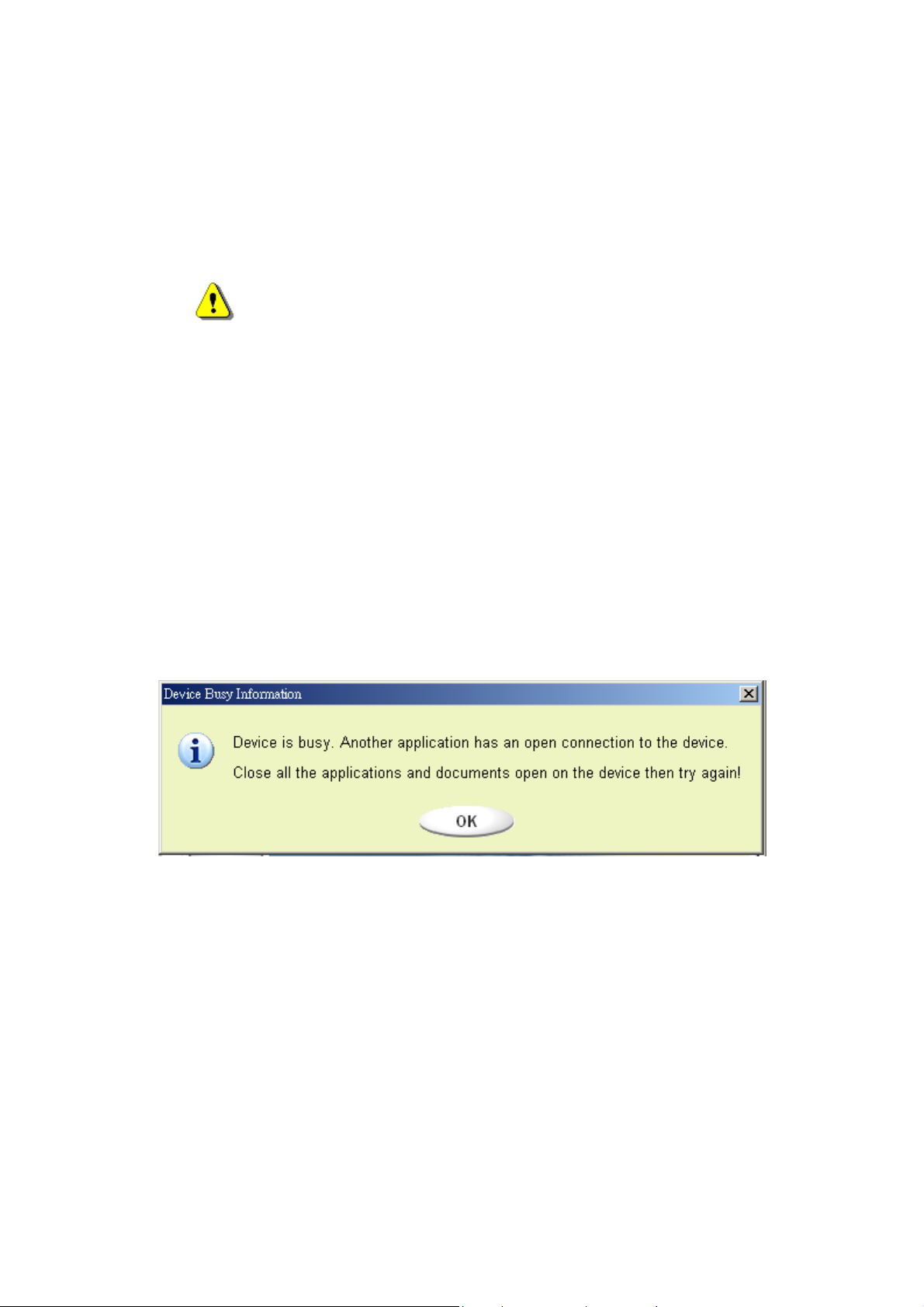

Warning When you want to remove the U-Storage device, make
sure the LED is not flashing. When the LED flashes
quickly, there are some traffic on going between the OS
and the U-Storage device. Don’t remove the U-Storage at
this moment. Otherwise, it will cause some damages to
the data or even the U-Storage device itself.
Warning If you do not follow the safe removal procedure in
Windows ME and Windows 2000 systems, data loss
caused by the “write cache” issue may happen.
In Macintosh systems, you can drag the removable disk icon and put into the trash.
This action will perform the “Eject” function.
In Linux OS, please follow the “umount” command procedure to un-mount the
device.
Partition Type
The U-Storage may be partitioned into three types of disk. We will use the following
terms in this guide,
1. Public Area There is no “Security” function at all. You can do any basic
functions, described in the “Basic Functions” section, in this
area.
2. Security Area This area cannot be viewed without the application software.

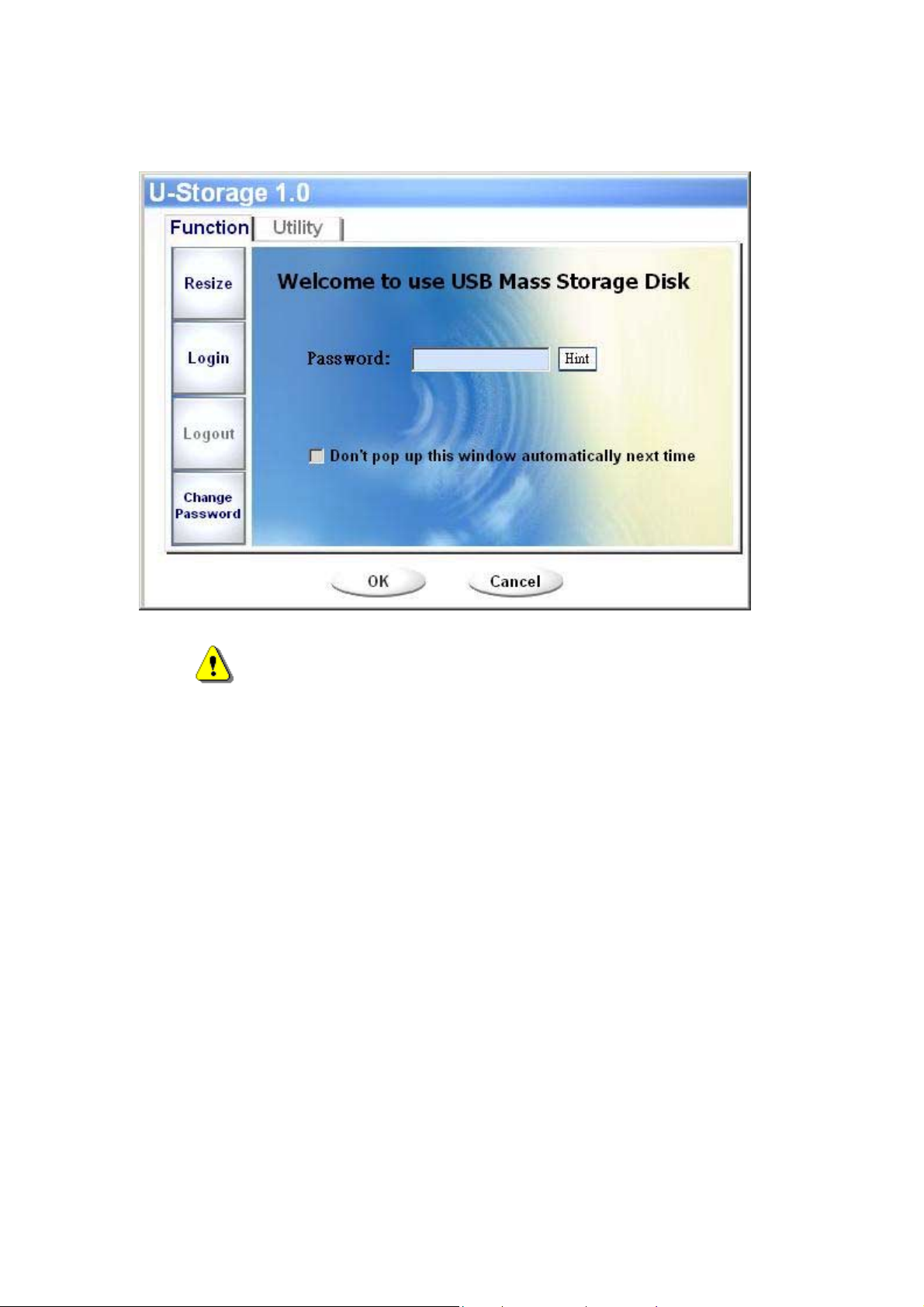

Once you do the “Log In” action in the application software,
you will switch view from “Public Area” to “Security Area”.
After successful switch, you can do any basic functions,
described in the “Basic Functions” section, in this area.
$ You can only view either “Public Area” or “Security
Area” at the same time in the same disk logic unit
number(LUN).

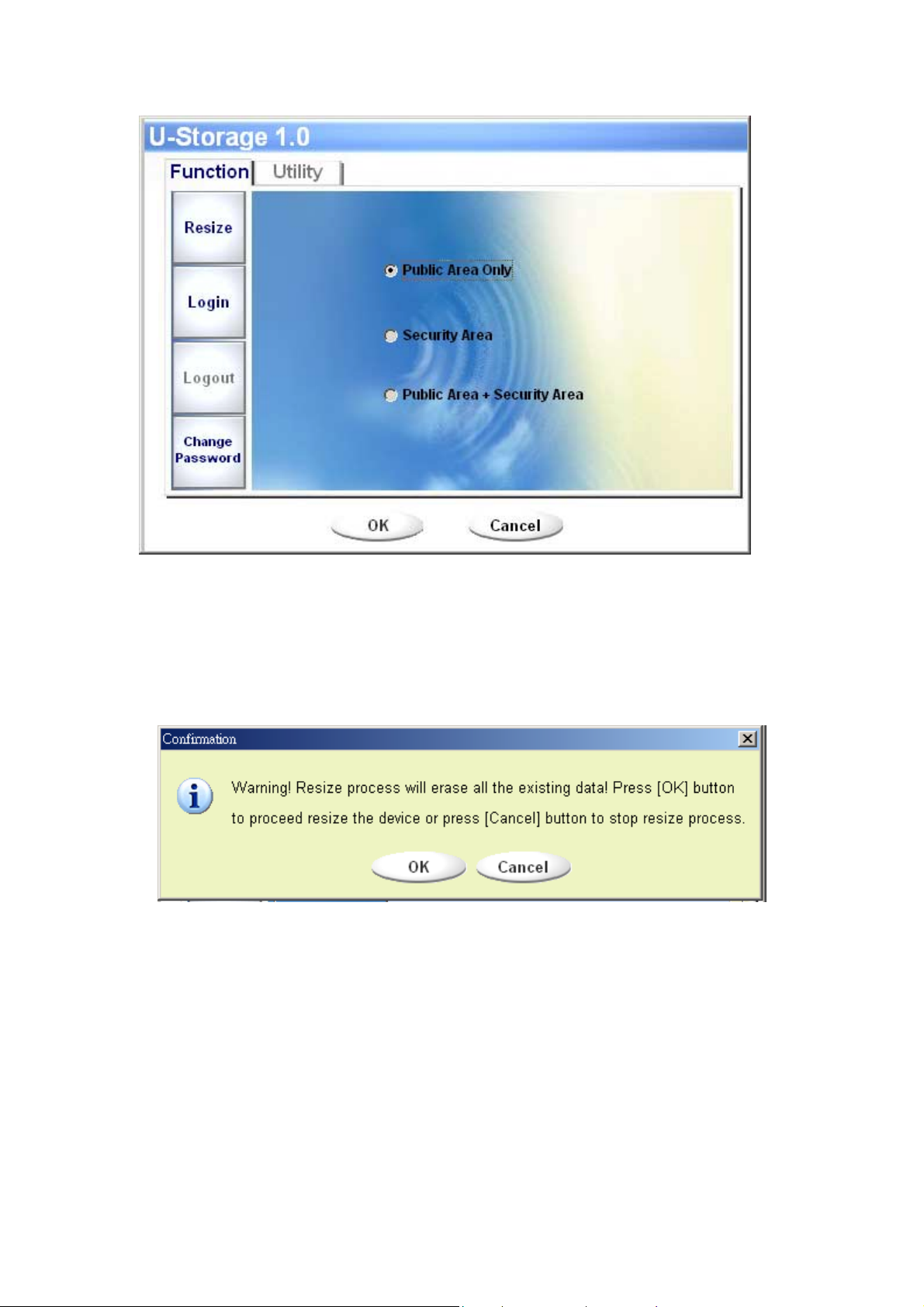

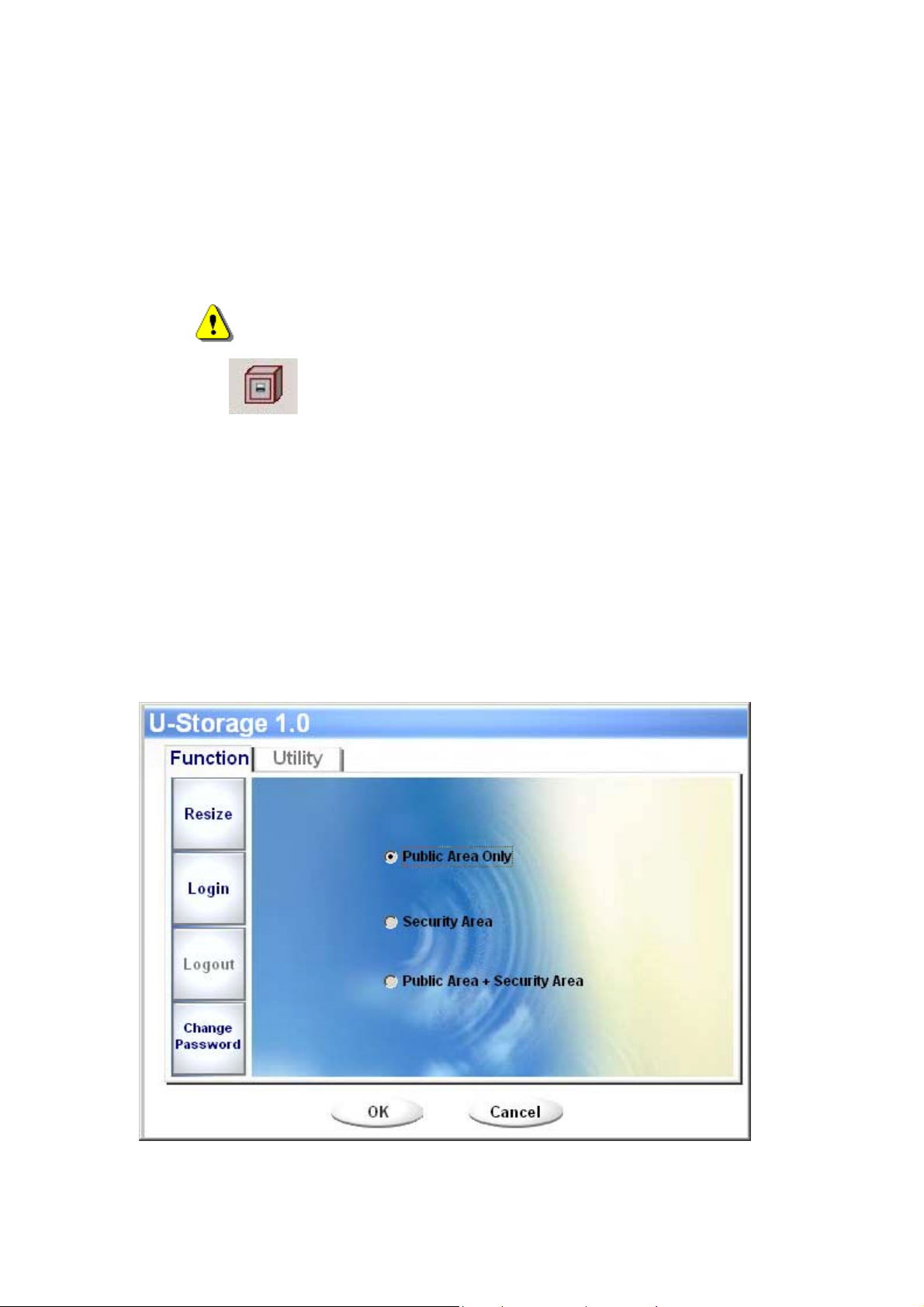

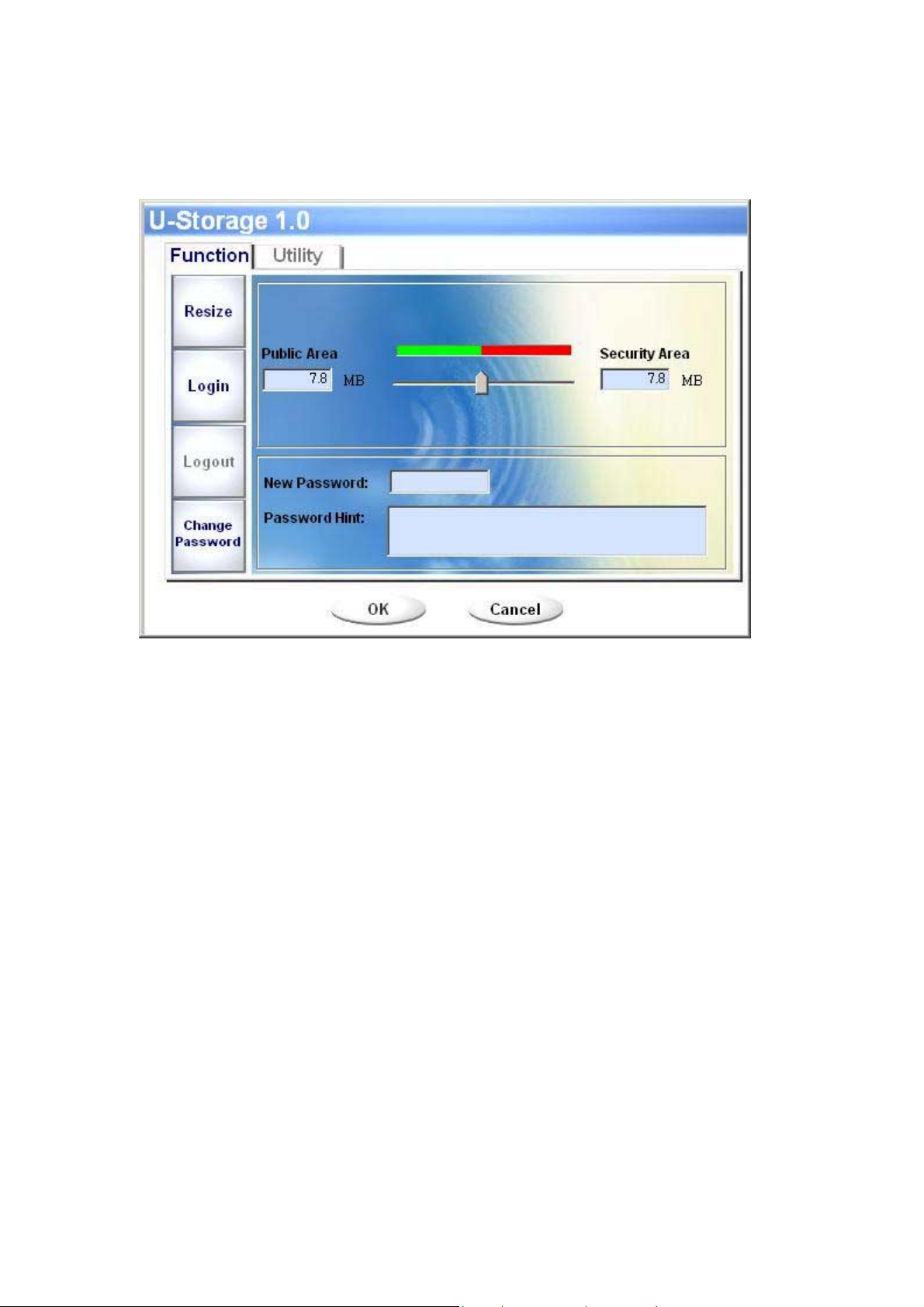

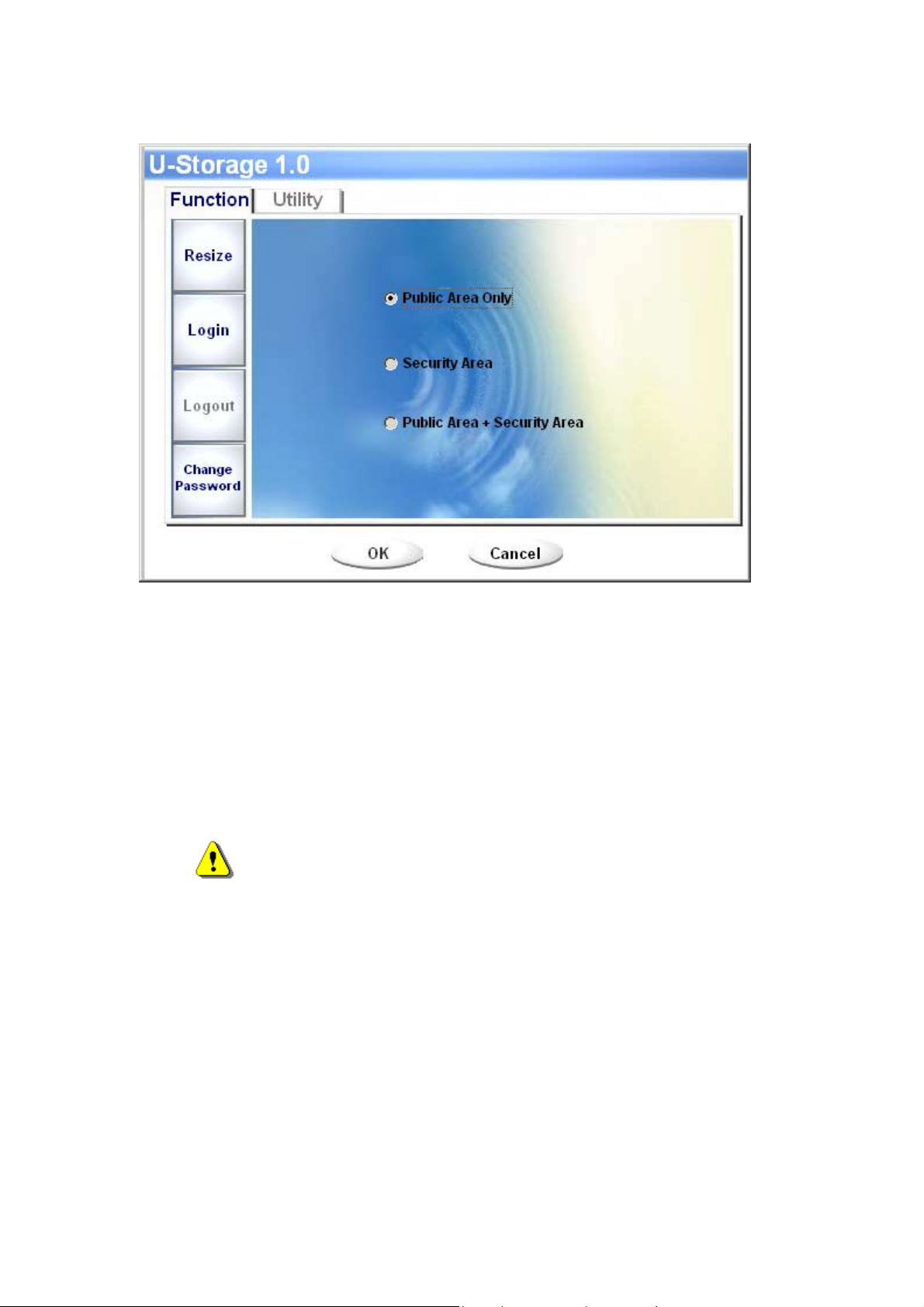

In U-Storage, you can select the following partition combinations:
1. Single Public Area Make all the device area accessible by everybody.
2. Security Area Make the device area into two partitions in the
same LUN, Public A rea and Securit y Area.
Everybody can access the Public Area. The
Security Area can be accessed “Only” with a
password.
3. Public Area Plus Security Area Make the device area into three partitions in two
LUNs, Public Area and Security Area in LUN0,
and Public Area in LUN1. You can access these
partitions by the multiple-LUN driver. The
partition status was shown in the following figure.
The partitions in LUN 0 will perform as described
in item 2. The partition in LUN 1 will perform as
described in item1.
Loading...
