Parts identification sheet

Xone:DX

Copyright © 2011 Allen & Heath Limited. All rights reserved

Allen & Heath Limited

Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK

ALLEN&HEATH Xone:DX parts identification Issue 1 1

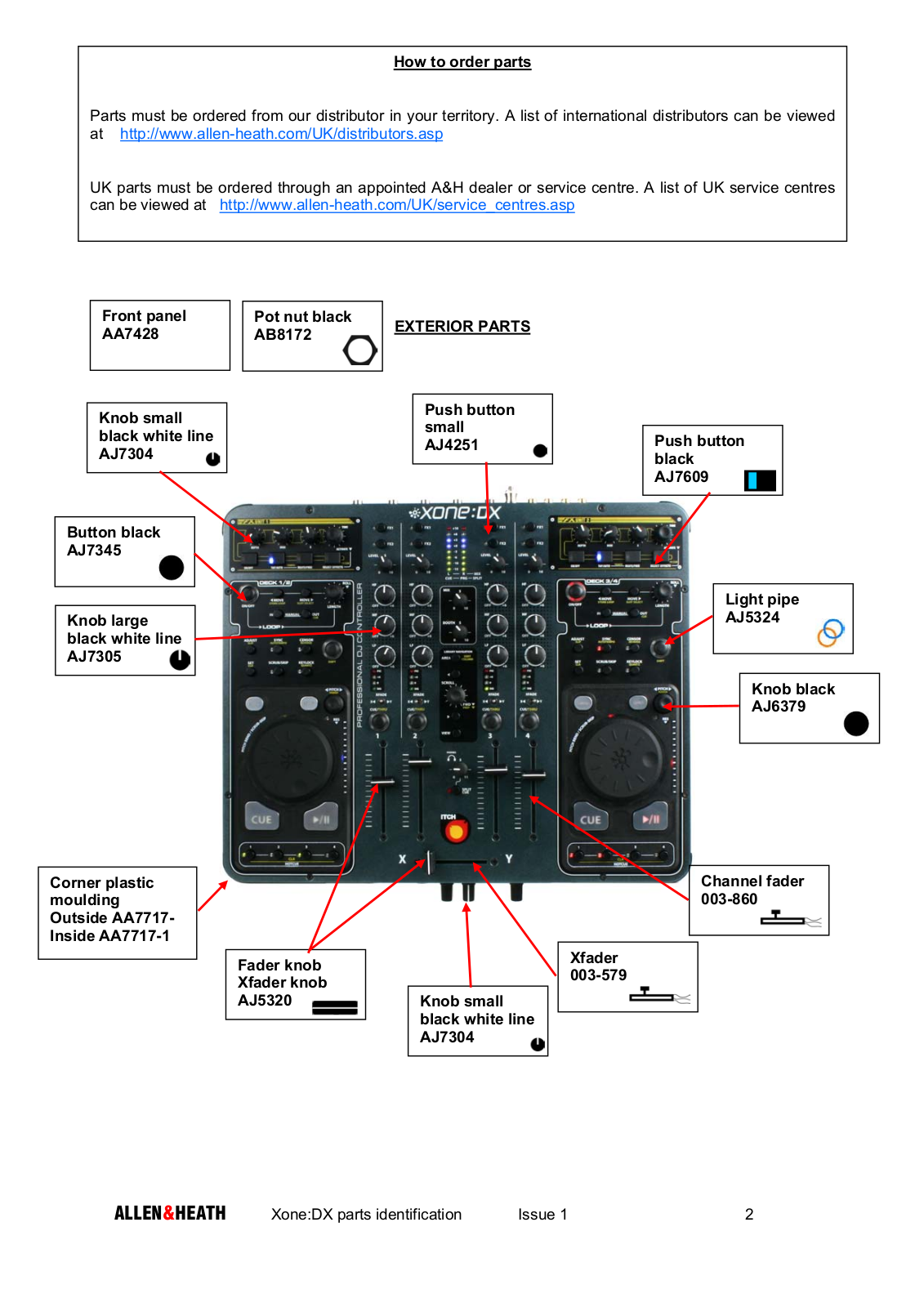

How to order parts

Parts must be ordered from our distributor in your territory. A list of international distributors can be viewed
at http://www.allen-heath.com/UK/distributors.asp

UK parts must be ordered through an appointed A&H dealer or service centre. A list of UK service centres
can be viewed at http://www.allen-heath.com/UK/service_centres.asp

Front panel
AA7428

Knob small
black white line
AJ7304

Button black
AJ7345

Knob large
black white line
AJ7305

Corner plastic
moulding
Outside AA7717­Inside AA7717-1

Pot nut black
AB8172

Fader knob
Xfader knob
AJ5320

EXTERIOR PARTS

Push button
small
AJ4251

Knob small
black white line
AJ7304

Xfader
003-579

Push button
black
AJ7609

Light pipe
AJ5324

Channel fader
003-860

Knob black
AJ6379

ALLEN&HEATH Xone:DX parts identification Issue 1 2

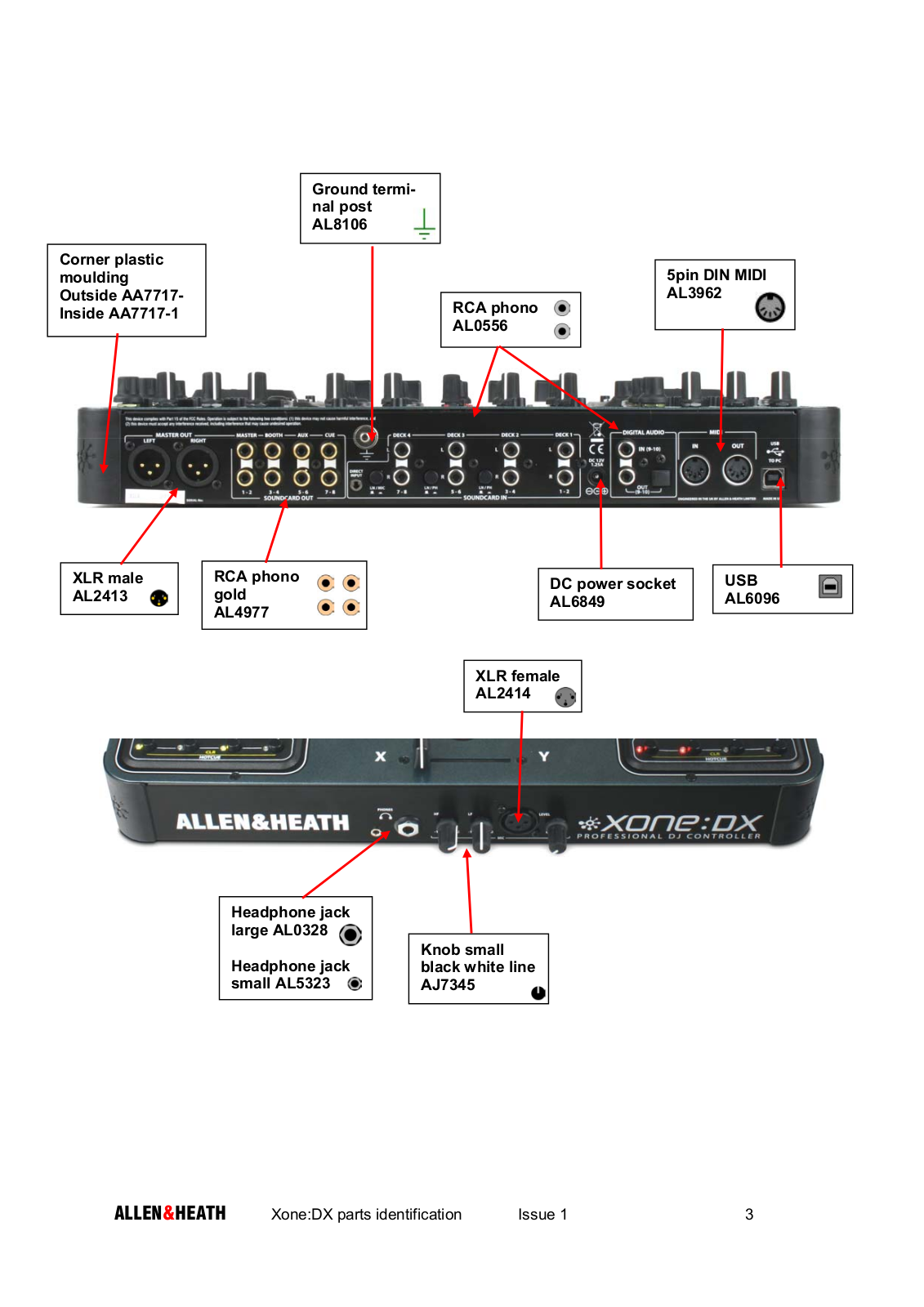

Corner plastic
moulding
Outside AA7717­Inside AA7717-1

XLR male
AL2413

RCA phono
gold
AL4977

Headphone jack
large AL0328

Headphone jack
small AL5323

Ground termi­nal post
AL8106

RCA phono
AL0556

XLR female
AL2414

Knob small
black white line
AJ7345

5pin DIN MIDI
AL3962

DC power socket
AL6849

USB
AL6096

ALLEN&HEATH Xone:DX parts identification Issue 1 3

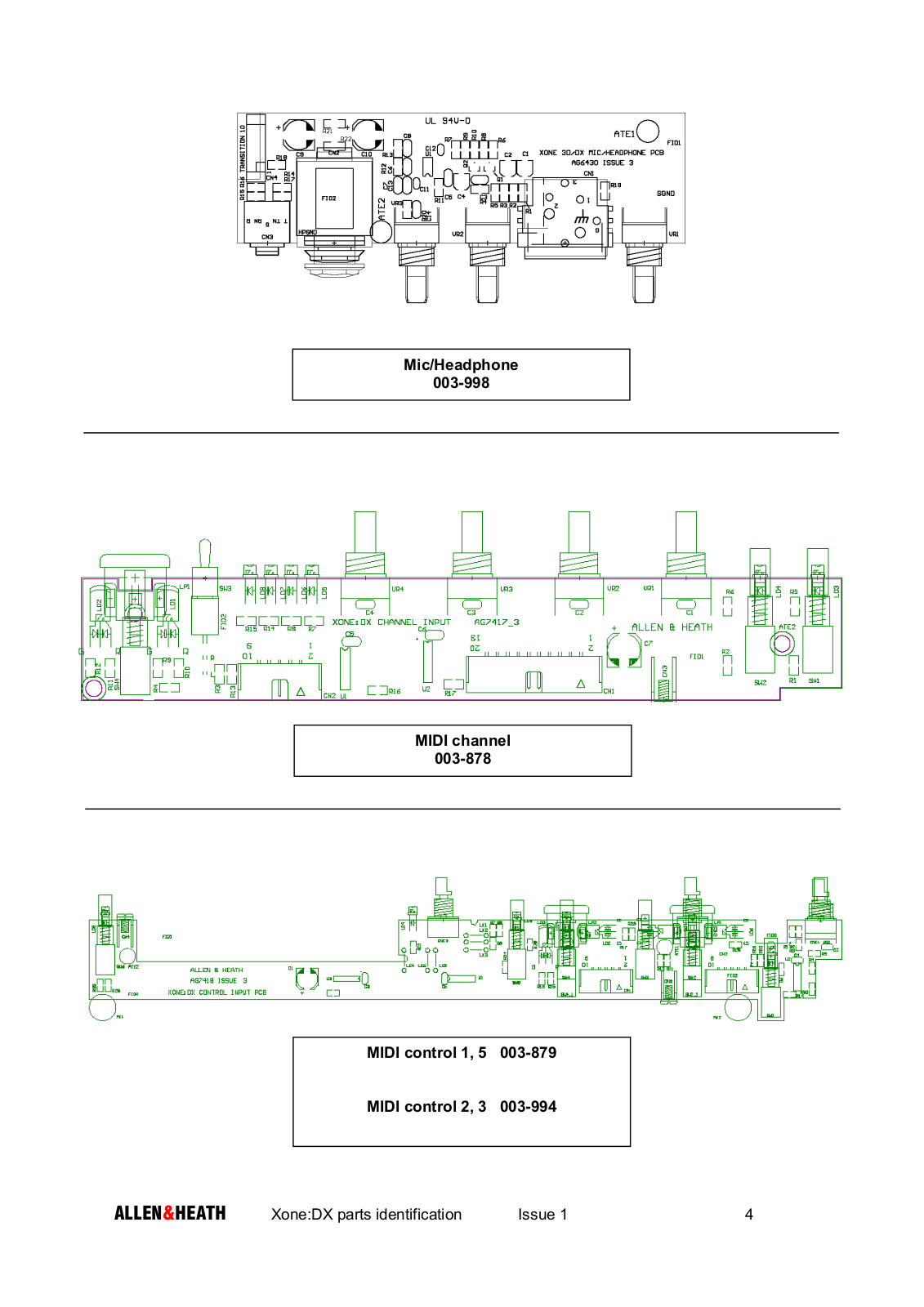

Mic/Headphone

003-998

MIDI channel

003-878

MIDI control 1, 5 003-879

MIDI control 2, 3 003-994

ALLEN&HEATH Xone:DX parts identification Issue 1 4

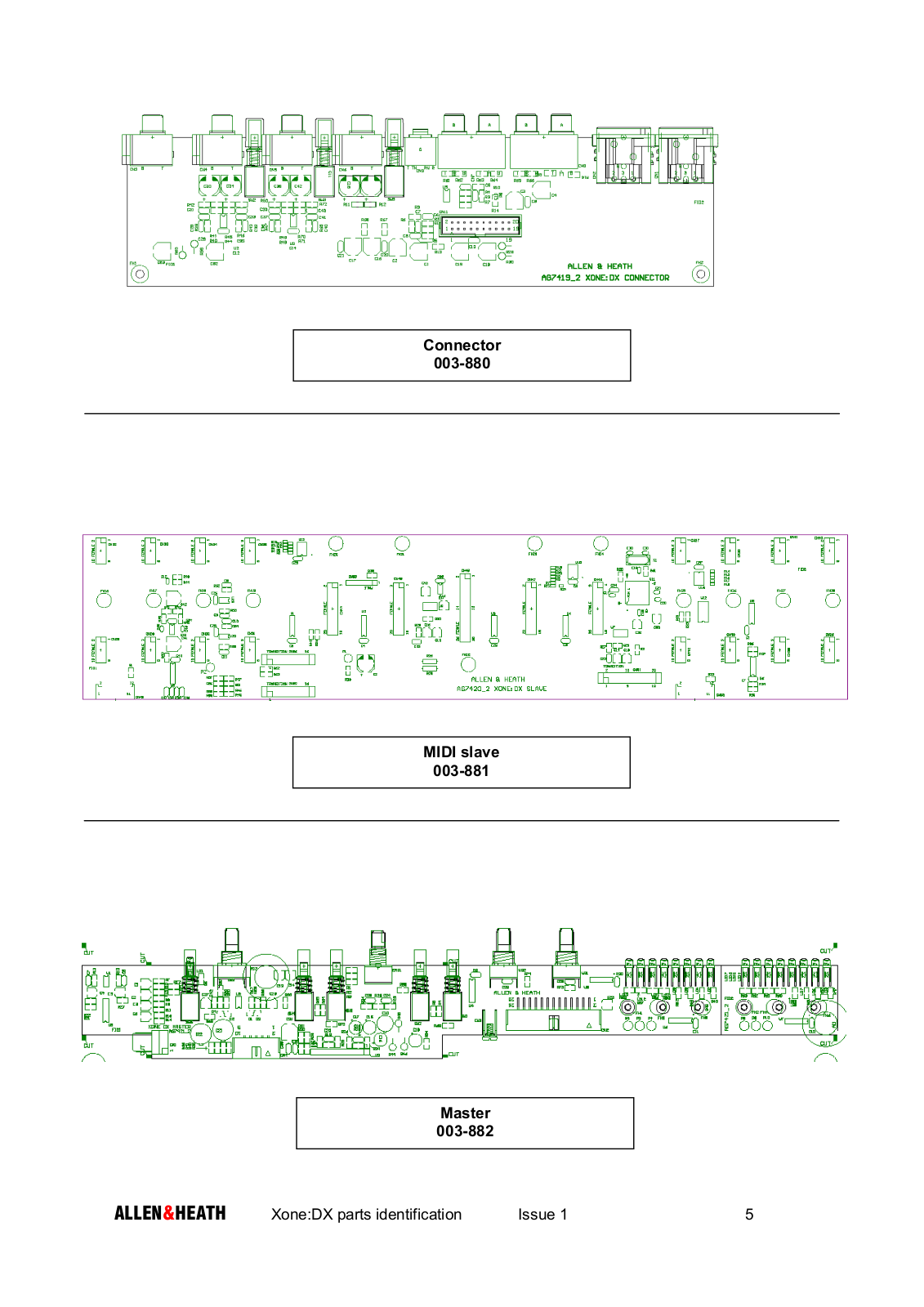

Connector

003-880

MIDI slave

003-881

Master

003-882

ALLEN&HEATH Xone:DX parts identification Issue 1 5

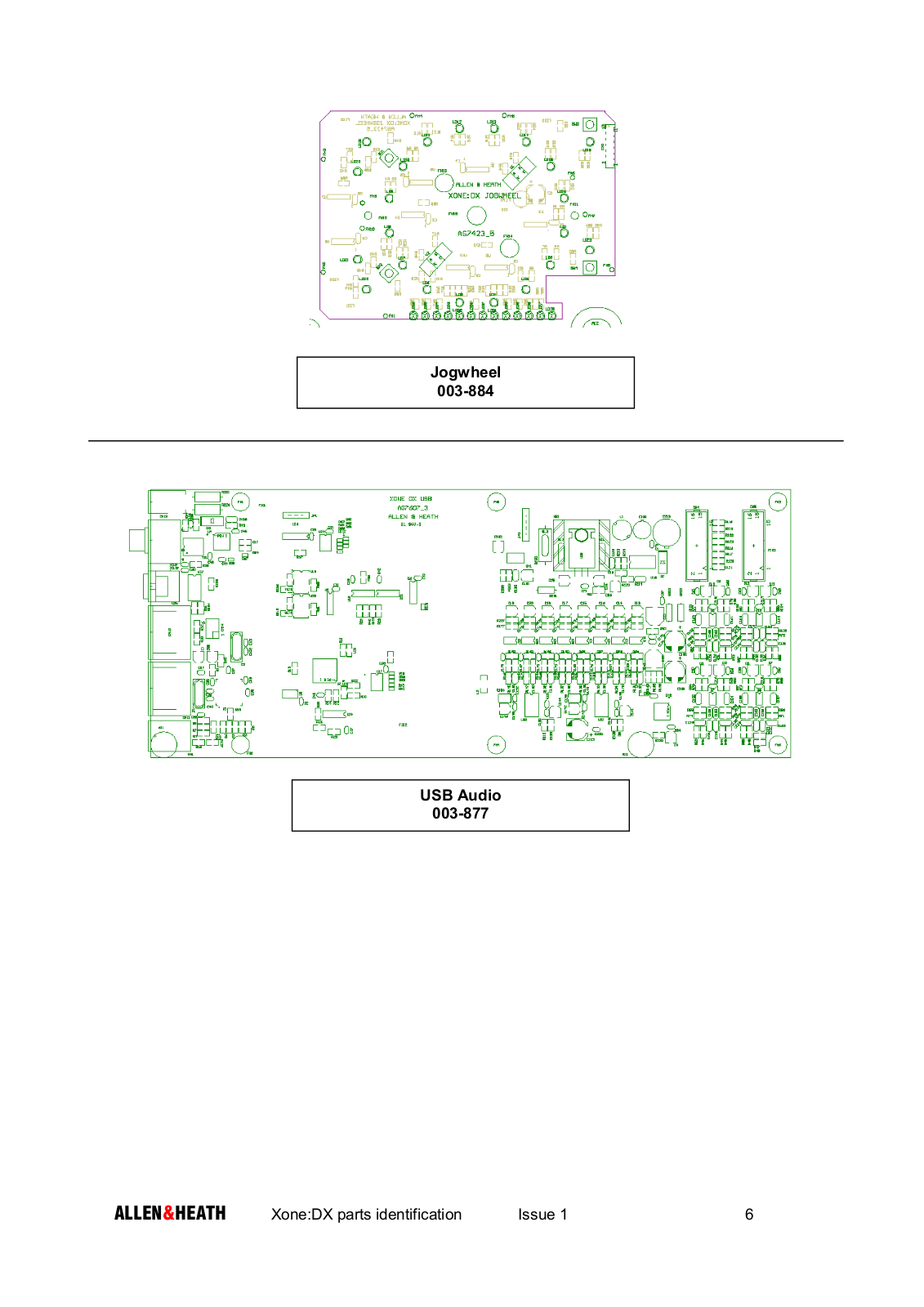

Jogwheel

003-884

USB Audio

003-877
