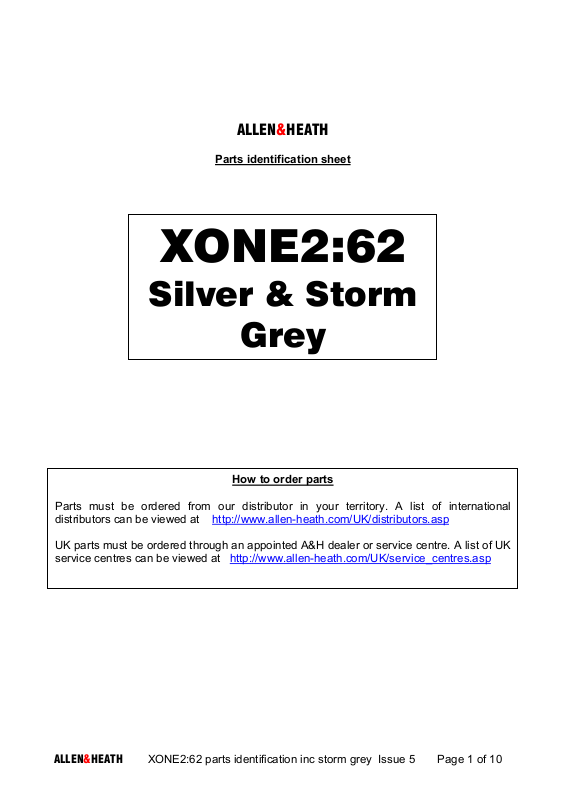

Page 1
ALLEN&HEATH
Parts identification sheet
Parts must be ordered from our distributor in your territory. A list of international
distributors can be viewed at http://www.allen-heath.com/UK/distributors.asp
UK parts must be ordered through an appointed A&H dealer or service centre. A list of UK
service centres can be viewed at http://www.allen-heath.com/UK/service_centres.asp
XONE2:62
Silver & Storm
Grey
How to order parts
ALLEN&HEATH XONE2:62 parts identification inc storm grey Issue 5 Page 1 of 10
Page 2
A
EXTERIOR PARTS:
PRE switch cap
Silver AJ2052
Storm grey AJ7210
MIC Line switch cap
SilverAJ2960
Storm grey AJ7211
EQ switch cap
AJ4251
Channel meter
AE2702
Meter screw
Silver AB3821
Storm grey AB0059
MIC channel
Pot nut
AB8172
AUX pot
AI8007
Silver / blue line knob
AJ4245
Black / white line knob
AJ7304
GAIN pot
AI8006
HI, MID1, MID2,
LO pot
I8006
Silver / blue line knob
AJ4245
Black / white line knob
AJ7305
CUE switch cap
AJ8107
Fader screw
Silver AB3818
Storm grey AB3329
Fader
002-684
Fader knob
AJ4310
ALLEN&HEATH XONE2:62 parts identification inc storm grey Issue 5 Page 2 of 10
Page 3
PRE switch cap
Silver AJ2052
Storm grey AJ7210
MIC Line switch cap
SilverAJ2960
Storm grey AJ7211
EQ switch cap
AJ4251
Channel meter
AE2702
Fader knob
AJ4310
MUSIC channel
AUX pot
AI8007
GAIN pot
AI8006
HI, MID1, MID2,
LO pot
AI8006
CUE switch cap
AJ8107
Fader 002-684
ALLEN&HEATH XONE2:62 parts identification inc storm grey Issue 5 Page 3 of 10
Page 4

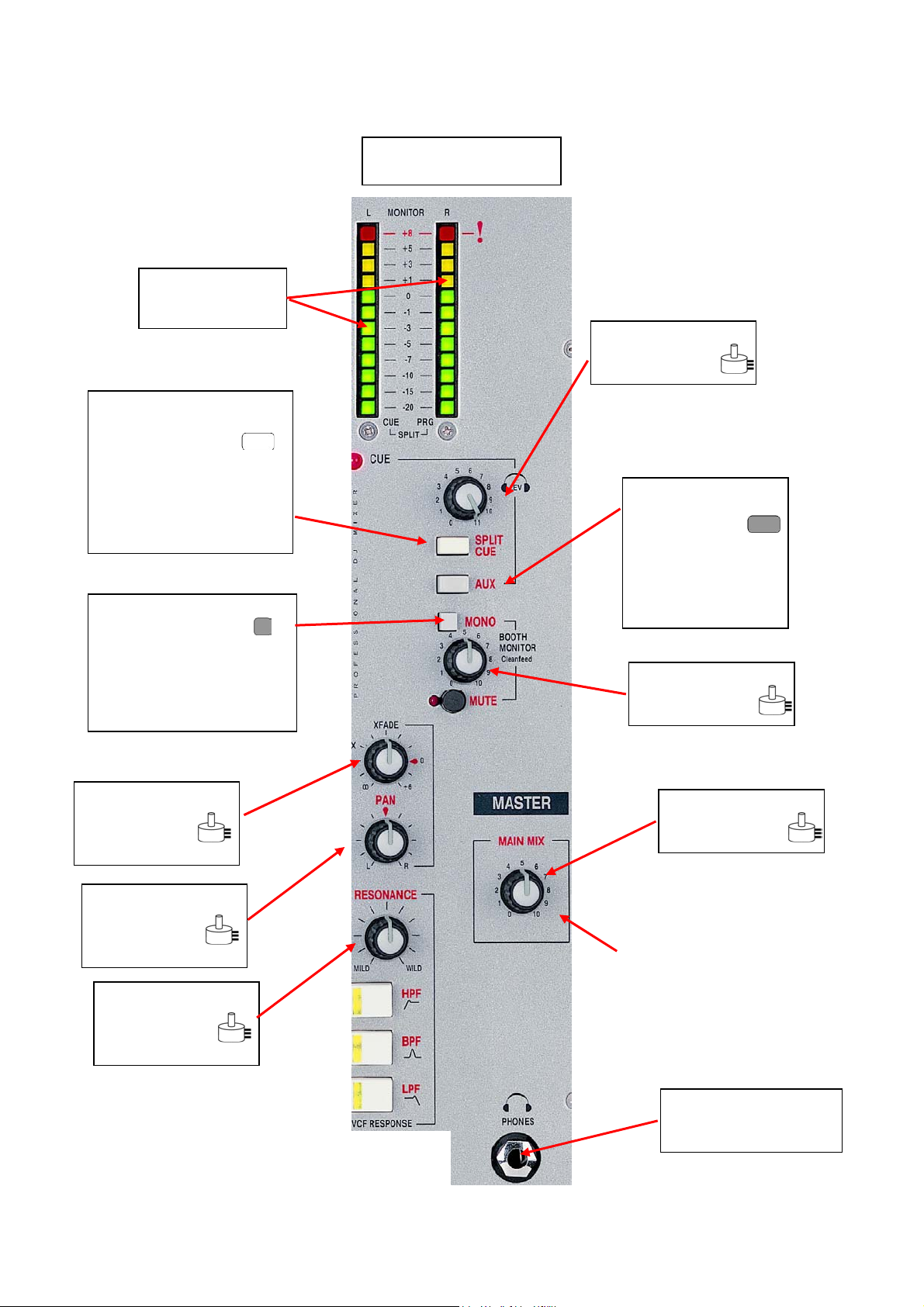

SPLIT CUE switch
cap
Silver AJ2962
Storm grey AJ7180
MONO switch cap
Silver AJ2052
Storm grey AJ7210
RESONANCE
pot
AI8007
RESONANCE
pot
AI8008
Main meter
AE2701
RESONANCE
pot
AI8008
MASTER & filters
Headphone pot
AI8007
AUX switch cap
Silver AJ2865
Storm grey
AJ7179
Booth pot
AI8007
Master pot
AI8007
Headphone socket
AL0328
ALLEN&HEATH XONE2:62 parts identification inc storm grey Issue 5 Page 4 of 10
Page 5

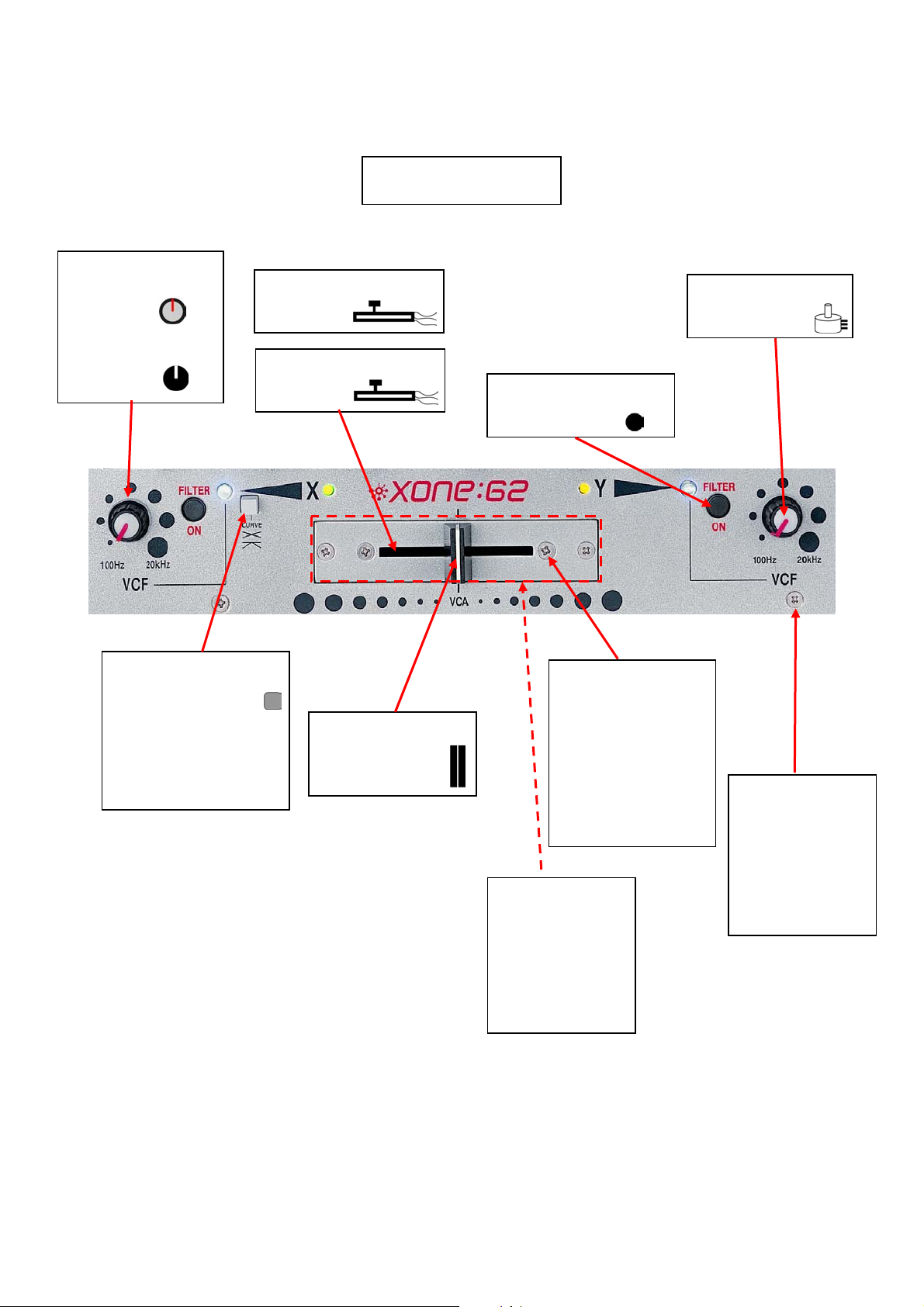

VCF filter knob
AJ4246
AJ7608
CURVE switch cap
Silver AJ2052
Storm grey AJ7210
Cross fader & VCF
ALPS cross fader
002-718
P&G cross fader
002-719
Cross fader knob
XONE
AJ5320
FILTER switch cap
AJ4251
Xfader mounting
screw
Silver AB3820
Storm grey
AB0074
Fader plate
silver
AA4231
Fader plate
storm grey
AA7492
VCF filter pot
AI8003
Fron panel
screw
Silver AB3819
Storm grey
AB0070
ALLEN&HEATH XONE2:62 parts identification inc storm grey Issue 5 Page 5 of 10
Page 6
A
A
A
Mains switch
cap
J2887
Mains switch
AL3338
FX, Aux,
Mono jacks
AL3407
Fuse holder
AL3178

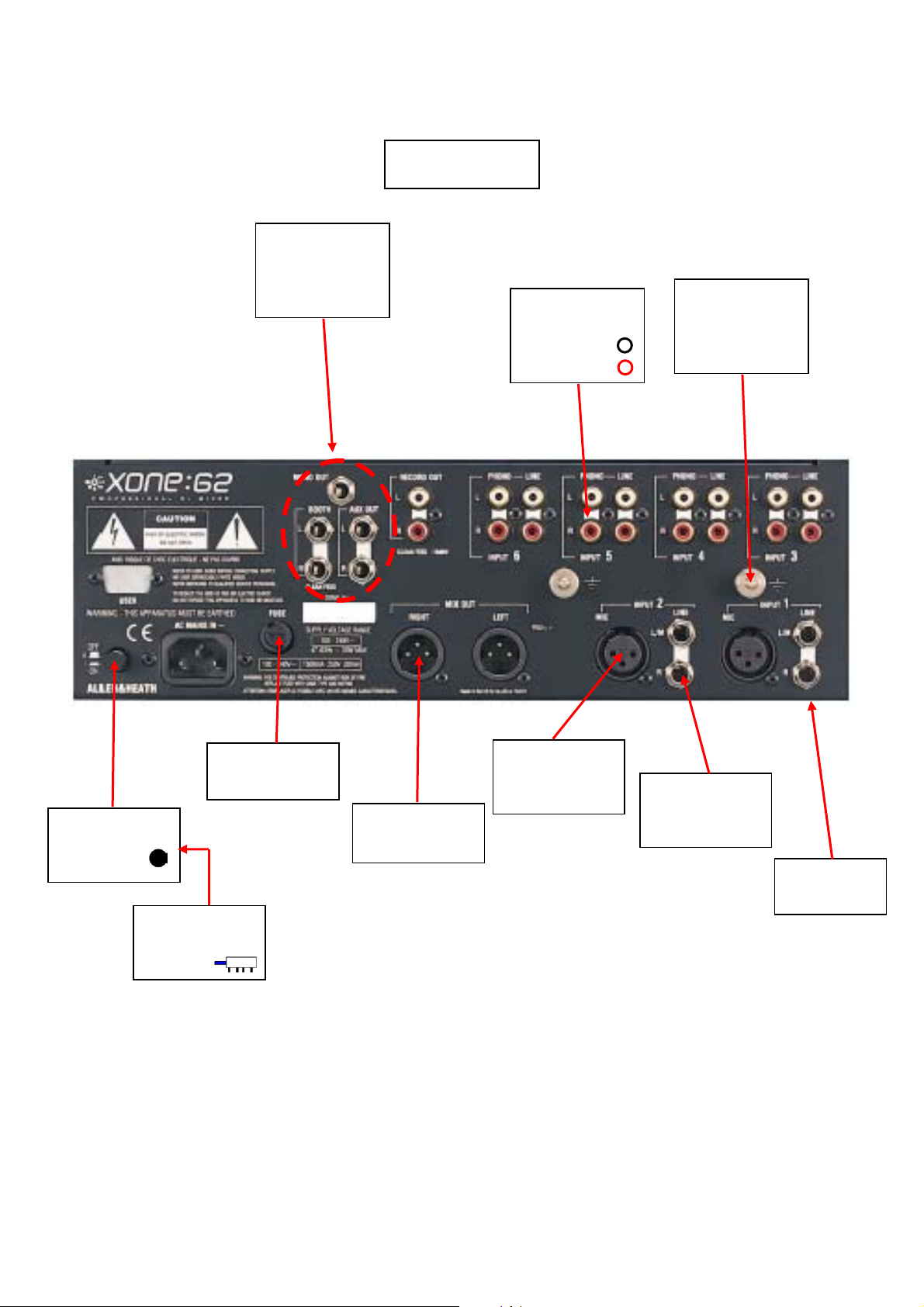

Connectors
Output XLR
AL2413
RCA phono /
line
AL3753
Mic input
XLR
L2410
Ground
terminal post
AL8106
Line input
jack
L3410
Feet
AK0102
ALLEN&HEATH XONE2:62 parts identification inc storm grey Issue 5 Page 6 of 10
Page 7

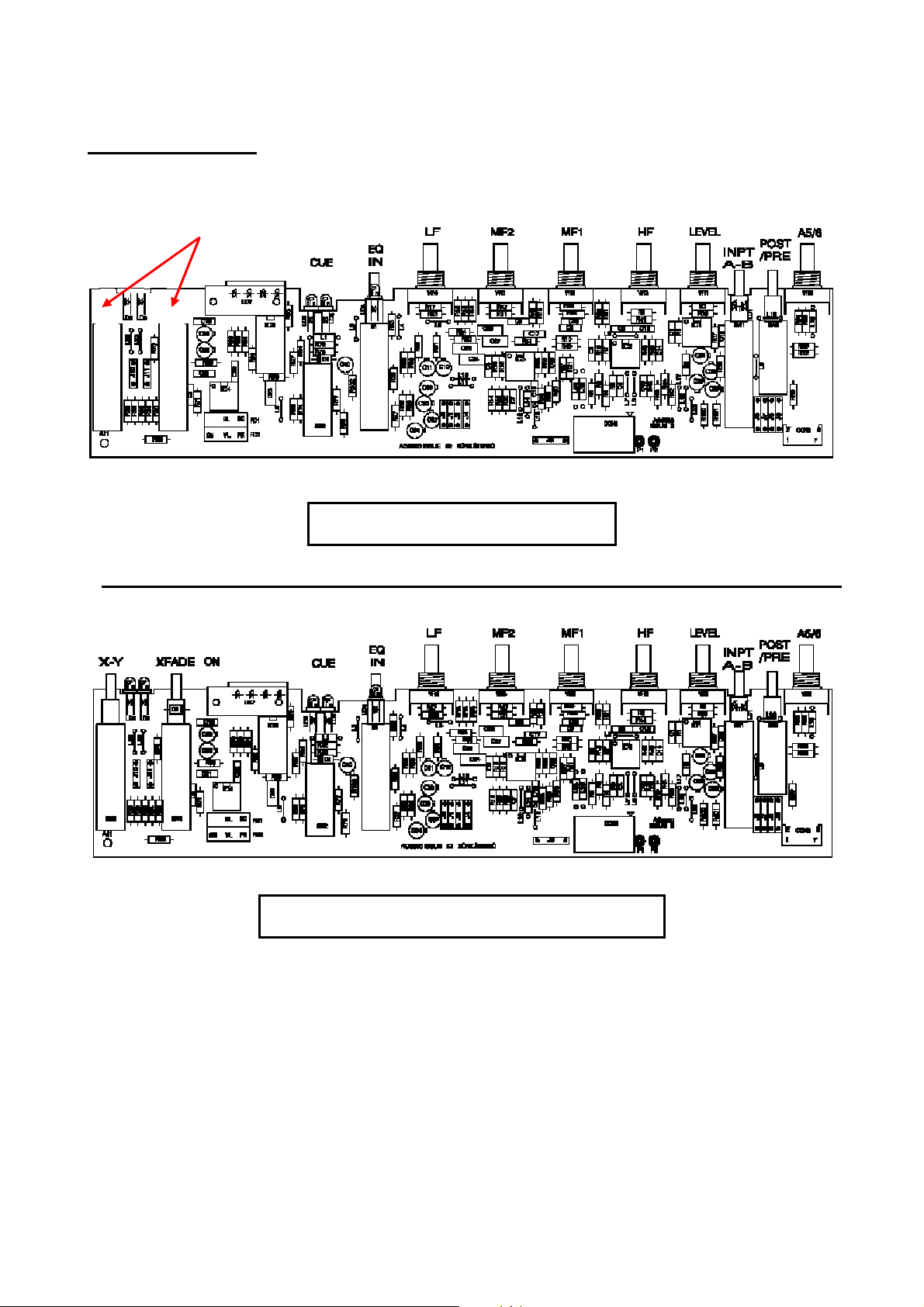

INTERIOR PARTS:
Same as MUSIC
channels 3, 4, 5, 6 but
NO X-fade XY switches
MIC 1,2 channel 002-685
MUSIC 3, 4, 5, 6 stereo channel 002-686
ALLEN&HEATH XONE2:62 parts identification inc storm grey Issue 5 Page 7 of 10
Page 8

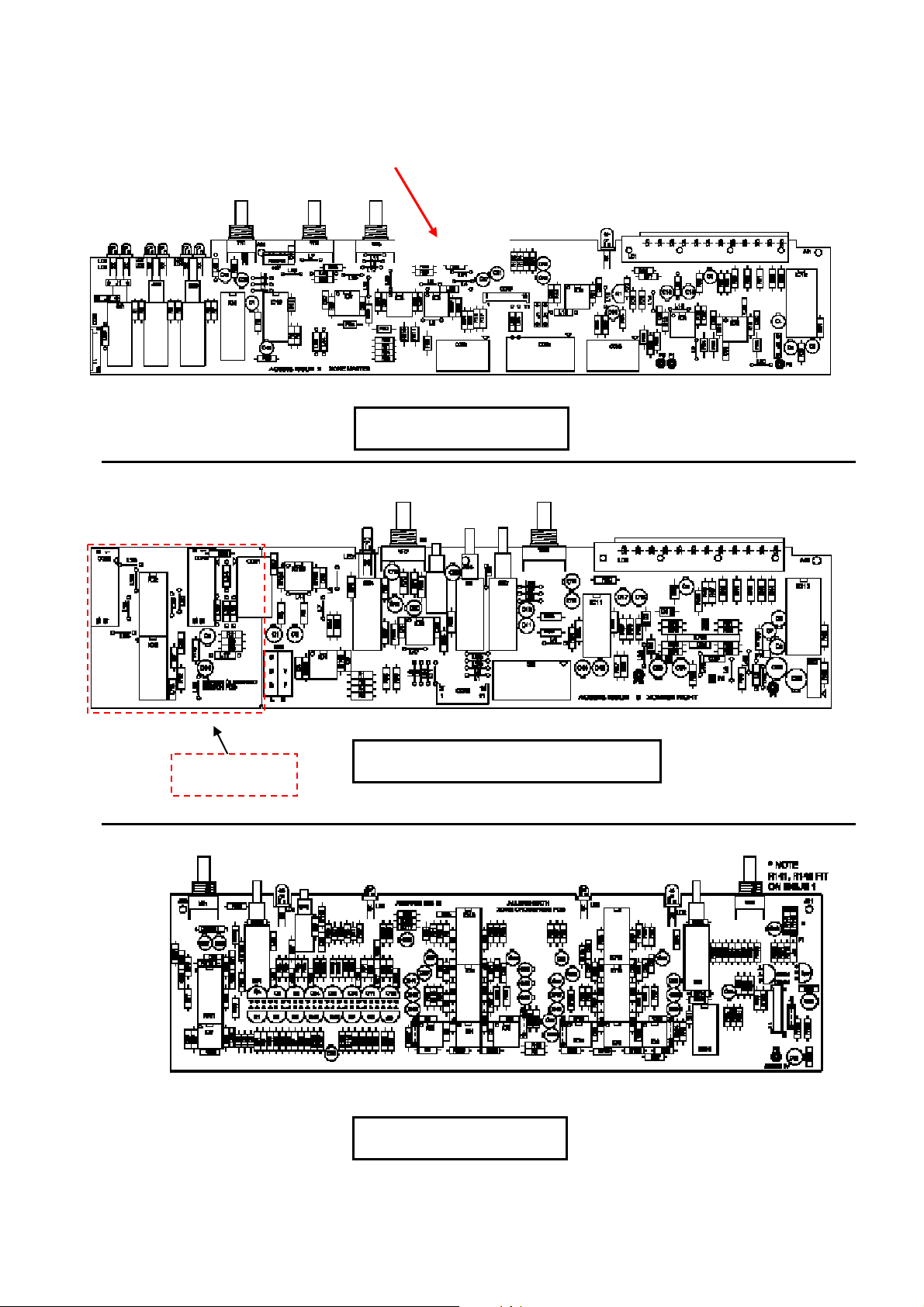

Clean feed
Same as Xone:464 but NO
aux 1-4 pots
Left 002-525
Right & mic clean feed 002-692
X-fade 002-627
ALLEN&HEATH XONE2:62 parts identification inc storm grey Issue 5 Page 8 of 10
Page 9

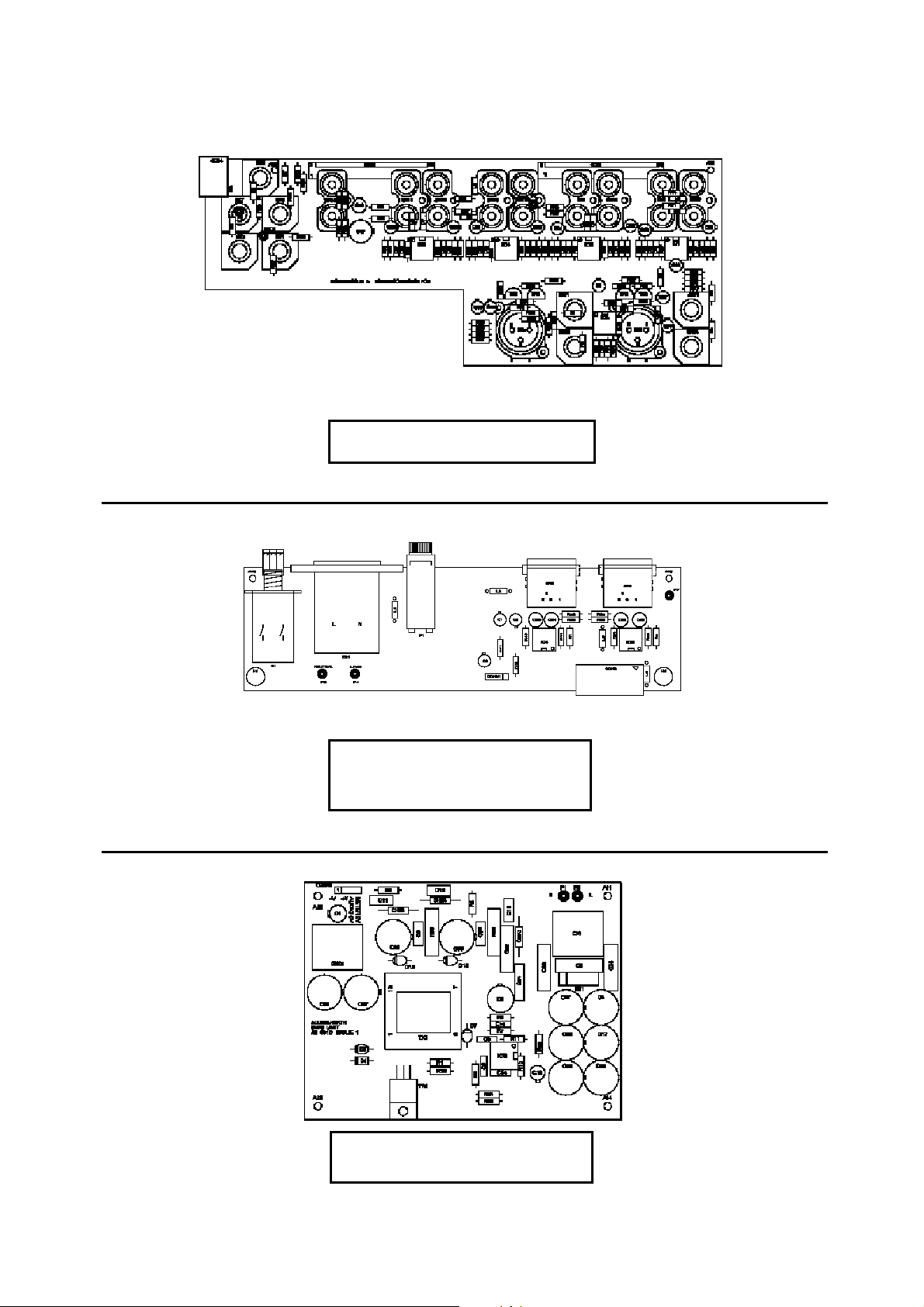

Rear connector 002-527
Mains AC inlet & main
output 002-652
PSU 002-629
ALLEN&HEATH XONE2:62 parts identification inc storm grey Issue 5 Page 9 of 10
Page 10

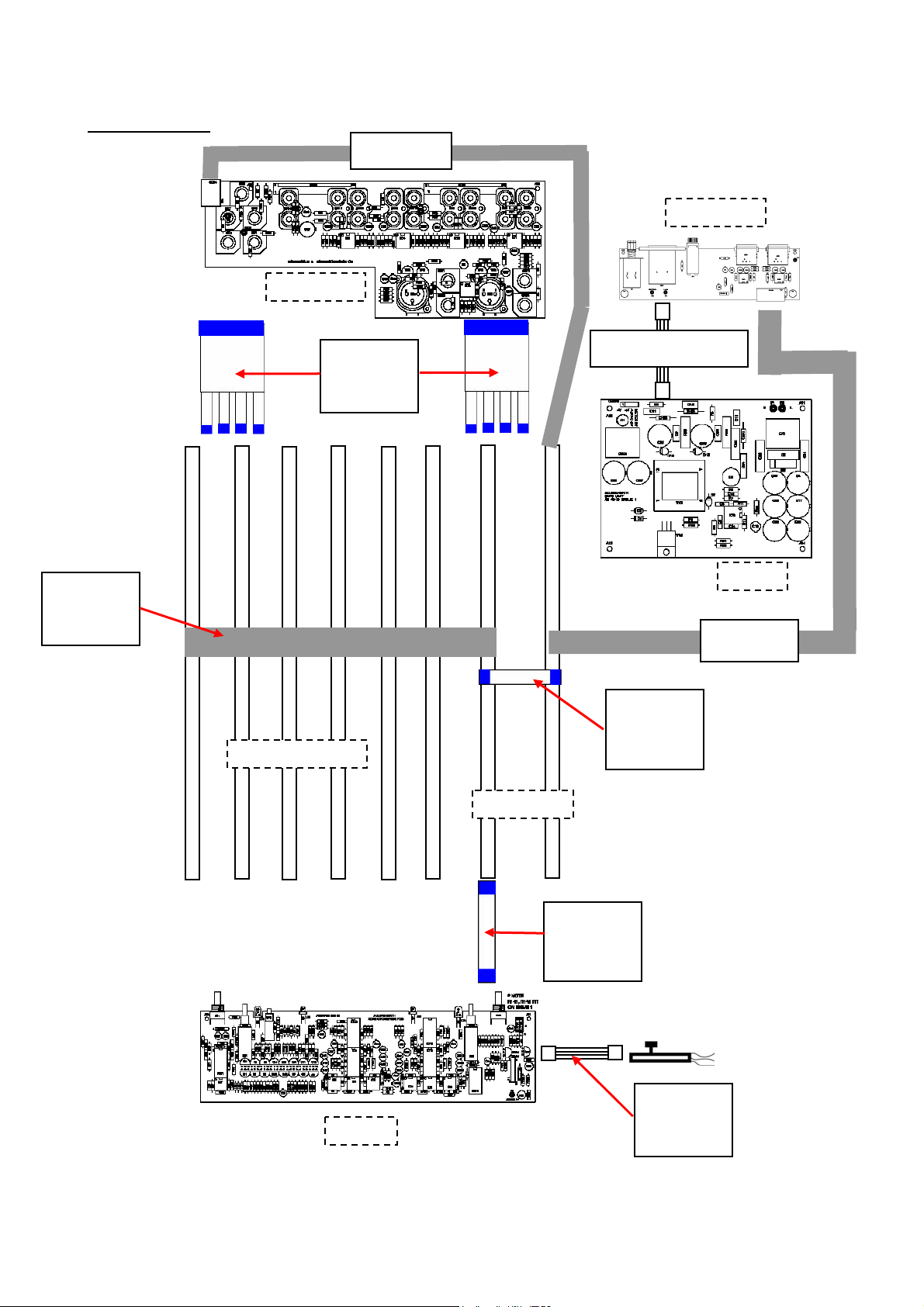

HARNESSES:
t
X
-
A
AL38
900
Main
harness
AL3735
Connector
Stereo channels
AL3822
39 way
flexi
AH2
fade
C mains
4 way AL3817
PSU
AL3756
12 way
flexi
AH2228
Left / Righ
12 way
flexi
AH2228
4 way
x-fader
17
ALLEN&HEATH XONE2:62 parts identification inc storm grey Issue 5 Page 10 of 10
