Xoceco LC-37R25 Schematic

LCD TELEVISION

LC-37R25

America

CONTENTS

Safety precautions………………………………………………………………………..… Alignment instructions …………………………….…….……………………………….… Working principle analysis of the unit……………………………….………….…………. Block diagram…………………………………..………………………………….………… IC block diagram………………………………………………………………………..…… Wiring diagram ……………………………………………………………..……………... Troubleshooting………………………………………………………………………..…… Schematic diagram ………………………………………………………………………… APPENDIX-A: Part list APPENDIX-B: Exploded view

1 3 7 8 9 19 20 26

Attention: This service manual is only for service personnel to take reference with. Before

servicing please read the following points carefully.

Safety precautions

1. Instructions

Be sure to switch off the power supply before replacing or welding any components or inserting/plugging in connection wire Anti static measures to be taken (throughout the entire production process!): a) Do not touch here and there by hand at will; b) Be sure to use anti static electric iron; c) It’s a must for the welder to wear anti static gloves. Please refer to the detailed list before replacing components that have special safety requirements. Do not change the specs and type at will.

2. Points for attention in servicing of LCD

2.1 Screens are different from one model to another and therefore not interchangeable. Be sure to use the screen of the original model for replacement.

2.2 The operation voltage of LCD screen is 700-825V. Be sure to take proper measures in protecting yourself and the machine when testing the system in the course of normal operation or right after the power is switched off. Please do not touch the circuit or the metal part of the module that is in operation mode. Relevant operation is possible only one minute after the power is switched off.

2.3 Do not use any adapter that is not identical with the TV set. Otherwise it will cause fire or damage to the set.

2.4 Never operate the set or do any installation work in bad environment such as wet bathroom, laundry, kitchen, or nearby fire source, heating equipment and devices or exposure to sunlight etc. Otherwise bad effect will result.

2.5 If any foreign substance such as water, liquid, metal slices or other matters happens to fall into the module, be sure to cut the power off immediately and do not move anything on the module lest it should cause fire or electric shock due to contact with the high voltage or short circuit.

2.6 Should there be smoke, abnormal smell or sound from the module, please shut the power off at once. Likewise, if the screen is not working after the power is on or in the course of operation, the power must be cut off immediately and no more operation is allowed under the same condition.

2.7 Do not pull out or plug in the connection wire when the module is in operation or just after the power is off because in this case relatively high voltage still remains in the capacitor of the driving circuit. Please wait at least one minute before the pulling out or plugging in the connection wire.

2.8 When operating or installing LCD please don’t subject the LCD components to bending, twisting or extrusion, collision lest mishap should result.

2.9 As most of the circuitry in LCD TV set is composed of CMOS integrated circuits, it’s necessary to pay attention to anti statics. Before servicing LCD TV make sure to take anti static measure and ensure full grounding for all the parts that have to be grounded.

2.10 There are lots of connection wires between parts behind the LCD screen. When servicing or moving the set please take care not to touch or scratch them. Once they are damaged the screen

would be unable to work and no way to get it repaired.

2.11 Special care must be taken in transporting or handling it. Exquisite shock vibration may lead to breakage of screen glass or damage to driving circuit. Therefore it must be packed in a strong case before the transportation or handling.

2.12 For the storage make sure to put it in a place where the environment can be controlled so as to prevent the temperature and humidity from exceeding the limits as specified in the manual. For prolonged storage, it is necessary to house it in an anti-moisture bag and put them altogether in one place. The ambient conditions are tabulated as follows:

Temperature Scope for operation 0 ~ +50 oC

Scope for storage -20 ~ +60 oC

Humidity Scope for operation 20% ~ 85%

Scope for storage 10% ~ 90%

2.13 Display of a fixed picture for a long time may result in appearance of picture residue on the screen, as commonly called “ghost shadow”. The extent of the residual picture varies with the maker of LCD screen. This phenomenon doesn’t represent failure. This “ghost shadow” may remain in the picture for a period of time (several minutes). But when operating it please avoid displaying still picture in high brightness for a long time.

3. Points for attention during installation

3.1 The front panel of LCD screen is of glass. When installing it please make sure to put it in place.

3.2 For service or installation it’s necessary to use specified screw lest it should damage the screen.

3.3 Be sure to take anti dust measures. Any foreign substance that happens to fall down between the screen and the glass will affect the receiving and viewing effect

3.4 When dismantling or mounting the protective partition plate that is used for anti vibration and insulation please take care to keep it in intactness so as to avoid hidden trouble.

3.5 Be sure to protect the cabinet from damage or scratch during service, dismantling or mounting.

Alignment instructions

1. Test equipment

PM5518 (Video signal generator) VG-848 (Signal generator) CA210 (White balancer)

2. The alignment flow chart (see below figure)

Check DDC, HDCP KEY and FLASH

Production of main board and analog board on the line.

Check CPU board and analog board

Combined test for general assembly

Connect to central signal source; check if various

TV functions (station skipping, modulate quantity

control etc), check if the output of earphone and

speaker are normal.

Input AV/S signal and HDTV signal; check various

functions under AV/S terminal

Input VGA signal and check if display is normal in

the state of PC and various functions (analog

quantity control, line/field center etc.)

Input HDMI singal and check if display is normal in

the state of HDMI and various functions (sound

and analog quantity control).

Preset ex-factory

Check accessories and then packing

3. The unit adjustment

Enter factory menu method: press the SOURCE→ 2→ 5→8→0 buttons one by one on the remote control to factory menu. Press the MENU button to select item. Press the DSP button to exit the factory menu.

3.1 EEPROM initialization and back light adjustment

Enter the firs page of factory menu, adjust item OPTION-1 to 9, OPTION-2 to 5 and back light to 255(LG PANEL) or 0(SHARP and CMO panel), select the EEPROM initial after, press the VOL+ button, then display the DOING, still the DOING disappear and turn off the unit. Note: option-1 and option-2 function as follows:

Option-1 Option-2

Bit3 0: No memory function after power off for 10s

1: memory function after power off for 10s

Bit2,1 00: STANDBY

01: turn on

10: memory function of turn on

Bit0 0: without LOGO

1: With LOGO

0:no signal noise wave of TV

1:no signal blue screen of TV

00:complexion correction (OFF)

01: complexion correction (WEAK)

10: complexion correction (MIDDLE)

11: complexion correction (STRONG)

0: Video and Graphic channel white balance no share

1: Video and Graphic channel white balance share

3.2 HDMI channel adjustment

Input the VG-848 TIME854(800X600/60Hz) and PATTERN920 8-LEVEL gray signal, enter the factory menu2(white balance adjustment menu), adjust the third step and the seventh step. Adjust R-OFFSET, G-OFFSET and B-OFFSET item, still the third step and the seventh step color coordinate to (285, 293). Adjust R-GAIN, G- GAIN and B- GAIN item, still the seventh step color coordinate to (285, 293). Repeat adjustment R-OFFSET, G-OFFSET and B-OFFSET item and R-GAIN, G- GAIN and B- GAIN item, still two step gray to (285, 293). Enter the factory menu3 (cool and warm color temperature difference menu), adjust cool and warm color temperature difference according the following table:

R-offset-D

Warm

Cool

TV MODE

27CMO 0 -1 1 0 -7 -22

32LG 0 0 0 0 -9 -26

26SHARP -1 -1 1 0 -11 -27

32SHARP 2 3 3 0 -13 -25

27CMO 0 -1 0 -25 -9 0

32LG -1 1 0 -24 -5 0

26SHARP 0 0 0 -23 -7 0

32SHARP 5 3 2 -30 -11 0

27CMO

32LG 0 -7 0 0 0 0

elta

G-offset-D

elta

B-offset-D

elta

R-Gain-

Delta

G-Gain-

Delta

B-Gain-

Delta

26SHARP 0 -5 0 0 -3 0

32SHARP

Note: R-OFFSET, G-OFFSET and B-OFFSET values must be an item value to 128 at least; R-GAIN, G- GAIN and B- GAIN values must be an item value to 255 at least.

3.3 VGA channel adjustment

3.3.1 mode pre-set Input the VGA signal of VG-848 (PATTERN 980:1 dot ON/OFF), select the TIME877 (720x400/70Hz) signal, press auto-adjust button to all screen or adjust PC setting menu to auto correction. Separate auto adjust for TIME885 (640x480/60Hz) and TIME854 (800x600/60Hz).

3.3.2 VGA channel auto color adjustment Input the VG-848 TIME854(800x600/60Hz) and PATTERN920(GRAY 8 STEP(H)), enter the factory menu1, select the AUTO COLOR after, press the VOL+ button to select AUTO COLOR.

3.4 YPBPR channel adjustment

Input the VG-848 TIME972(1080i/60Hz) and PATTERN976(64 GRAY & Color), enter the factory menu1, select the AUTO COLOR after, press the VOL+ button to select AUTO COLOR.

3.5 Other setting Separate Factory Menu 4, Factory Menu 5, Factory Menu 6, Factory Menu 7 adjustment as follows:

Factory Menu 4 Factory Menu 6

Bright Max 148 Picture_Mode Soft Normal Bright

Bright Center 128 Brightness 50 50 55

Bright Min 78 Contrast 35 50 75

Contrast Max 154 Color 40 50 60

Contrast center 118 Sound_Mode Music Movie News

Contrast Min 28 Bass 80 50 30

Color Center 128 treble 60 50 40

Factory Menu 5

27CMO 32LG 26SHARP 32SHARP

Volume_1 48 52 S2310_Color 142

Volume_25 100 102 S2310_Contrast 120

Volume_50 114 116 S2310_Bright 133

Volume_100 123 121

Bright_Cen_Delt 0

Bright_Max_Delt 2

Cont_Cen_Delt 10

Cont_Max_Delt 12

Factory Menu 7

4. Performance check

4.1 TV function Input center source signal to RF-TV terminal, check if the channel is leak for auto searching.

4.2 AV/S and YPBPR terminal Input AV/S and HDTV signal, check if the signal is normal.

4.3 VGA terminal Input 640 x 480 @60Hz VGA format signal, check if the signal is normal.

4.4 HDMI terminal

Separate input HDMI and DVI signal; check the picture and sound is normal, check if the HDCP function is normal.

4.5 check the sound channel Check the speaker and headphone of each channel.

4.6 ex-factory setting Enter the first page of factory menu, select the factory out after, press the VOL+ button to display “doing”, then “doing” disappear while it can auto ex-factory setting.

Working principle analysis of the unit

The RF1 via integrative tuner TUNER1 after, the FBAS VIDEO1 and SIF is generated. The RF2 via integrative tuner TUNER2 after, the FBAS VIDEO2 and AUDIO is generated. Video signal and audio signal of VIDEO1,VIDEO2,AV1/SVHS1,AV2,AV3/SVHS2 and audio signal of VGA and so on, its sent NA3 (CXA2089Q) to switch selection. The output video signal of main picture (Y/V,C) sent N7 (TVP5160) to decode. The signal via N7 decode after, it sent 8-bit ITU-R656 format signal to N10 (FLI2310) non-interlaced processing. It sent 24bit YUV signal to main processing control chip N15(GM1501/1601). The sub-picture video signal via CXA2089Q selcet after, it sent N8 (TVP5147) to decode. The signal via N8 decode after, it sent 8-bit ITU-R656 format signal to N10 (FLI2310) non-interlaced processing. Thereinto, the signal of TUNER2 is sub-picture only. The main-picture video signal from CXA2089Q is sent to decoder and also AV OUTPUT. Two ways YPBPR signal via HDTV switch N36(CBT3257C) selection after, it sent RGB switch N4(CT3257C) and 24bit RGB from pc signal to GM1501/1601. The HDMI via receiver N34(MST3383MB) processing after, it output RGB signal of 24bit to GM1501/1601. They sent to GM1501/1601 picture processing, therein YPBYP or RGB to A/D conversion after, it and other two signal are switched selection and digital display processing, it include OSD, GAMMA correction, brightness and contrast processing, then LVDS conversion to LCD panel display. The SIF of tuner output signal to audio processing NA4(MSP3420),The audio of main-picture and sub-picture via switch conversion NA3(HEF4052) to MSP3420, the audio of two YPBPR via switch conversion NA2(HEF4052), the HDMI via MST3383MB decode to audio, it audio via N26(CS4334) D/A conversion to MSP3420. The stereo of the SIF with other four ways audio switch conversion selection to volume control and audio processing. One way output right/left channel audio of main-picture, the signal sent SRS processing NA5 (M62494) to SRS sound stereo processing. It via sound amplifier NA7(TPA3008D2) to speaker; one way output right/left channel audio of sub-picture, it sent to earphone, another way is AV OUT R/L output. The work of whole unit is controlled by MCU, which includes GM1501/1601.

Block diagram

NA2

NA3

NA4

NA5

NA7

N10

N34

N15

NA1

EDID

24C02

Hs Vs

SN74AHC14

Hs Vs

Power_ON,IR,KeyA,KeyB,Led1,Led2 Mute,HP_SW,VGA_CAB,DVI_CAB YUV/VGA,YUV_SW,YUV/USB

VGA

YPbPr 1 YPbPr 2

HDMI

AV OUT AV IN 1 AV IN 2 AV IN 3

Tuner 2

EDID

24C02

HDTV Switch

CBT3257C

HDMI RX MST3383

HDCP KEY

24C04

YUV_SW

Y_Main/C_main

V_PIP

AV Switch

CXA2089Q

R G B

HDTV Switch

CBT3257C

OPTION

Media Player

(USB)

Video Decoder

TVP5160

TVP5147

L/R_PIP

L/R_Main

Y Pb/Cb Pr/Cr

YUV/USB

SC1_OUT

SC1_L/R

SC2_L/R

RGB Switch CBT3257C

YUV/VGA

Deinterlacer

FLI2310

DACM_L/R

Audio Processor

MSP3420G

SC2_OUT

SC3_L/R

SC4_L/R

ANA_IN1

R G B

Y Pb/Cb Pr/Cr

EEPROM

Frash/ROM

Frame Buffer

LCD TV Controller

GM1601/GM1501

SRS Audio AMP

Head Phone

AMP

HP_SW

DDR

BK Control

PANEL

INVERTER

VBL/VCC

Power_ON,+5V_STB,VCC,VBL

Tuner 1

L/R_HDMI L/R_VGA L/R_USB L/R_YPbPr1 L/R_YPbPr2

Audio Switch

TC4052

SIF

Power Supply

YUV/USB YUV_SW

IC block diagram

1.MSP3420

The MSP 34x0G family of single-chip Multistandard Sound Processors covers the sound processing of all analog TV-Standards worldwide, as well as the NICAM digital sound standards. The full TV sound processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed on a single chip. Figure 1–1 shows a simplified functional block diagram of the MSP 34x0G. This new generation of TV sound processing ICs now includes versions for processing the multichannel television sound (MTS) signal conforming to the standard recommended by the Broadcast Television Systems Committee (BTSC). The DBX noise reduction, or alternatively, Micronas Noise Reduction (MNR) is performed alignment free. Other processed standards are the Japanese FM-FM multiplex standard (EIA-J) and the FM Stereo Radio standard. Current ICs have to perform adjustment procedures in order to achieve good stereo separation for BTSC and EIA-J. The MSP 34x0G has optimum stereo performance without any adjustments. All MSP 34xxG versions are pin compatible to the MSP 34xxD. Only minor modifications are necessary to adapt a MSP34xxD controlling software to the MSP 34xxG. The MSP 34x0G further simplifies controlling software. Standard selection requires a single I2C transmission only. The MSP 34x0G has built-in automatic functions: The IC is able to detect the actual sound standard automatically (Automatic Standard Detection). Furthermore, pilot levels and identification signals can be evaluated internally with subsequent switching between mono/ stereo/bilingual; no I2C interaction is necessary (Automatic Sound Selection). The MSP 34x0G can handle very high FM deviations even in conjunction with NICAM processing. This is especially important for the introduction of NICAM in China. The ICs are produced in submicron CMOS technology. The MSP 34x0G is available in the following packages: PLCC68 (not intended for new design), PSDIP64, PSDIP52, PQFP80, and PLQFP64.

Fig. 1–1: Simplified functional block diagram of the MSP 34x0G

2. TVP5160

The TVP5160 device is a high quality; digital video decoder that digitizes and decodes all popular baseband analog video formats into digital component video. The TVP5160 decoder supports the A/D conversion of component YPbPr and RGB (SCART) signals, as well as the A/D conversion and decoding of NTSC, PAL, and SECAM composite and S-Video into component YCbCr. Additionally, component progressive signals can be digitized. The chip includes two 11-bit, 60-MSPS, A/D converters (ADCs). Prior to each ADC, each analog channel contains an analog circuit, which clamps the input to a reference voltage and applies a programmable gain and offset. A total of 12 video input terminals can be configured to a combination of YPbPr, RGB, CVBS, and S-Video video inputs. Progressive component signals are sampled at 2x clock frequency (54 MHz) and are then decimated to the 1x rate. In SCART mode the component inputs and the CVBS inputs are sampled at 54 MHz alternately, then decimated to the 1x rate. Composite or S-Video signals are sampled at 4x the ITU-R BT.601 clock frequency (54 MHz), line-locked for correct pixel alignment, and are then decimated to the 1x rate. CVBS decoding utilizes advanced 3D Y/C filtering and 2-dimensional complementary 5-line adaptive comb filtering for both the luma and chroma data paths to reduce both cross-luma and cross-chroma artifacts. 3D Y/C color separation may be used on both PAL and NTSC video signals. A chroma trap filter is also available. On CVBS and Y/C inputs, the user can control video characteristics such as hue, contrast, brightness, and saturation via an I2C host port interface. Furthermore, luma peaking with programmable gain is included, as well as a patented color transient improvement (CTI) circuit. Attenuation at higher frequencies or asymmetrical color subcarrier sidebands are compensated using the IF compensation block. Frame adaptive noise reduction may be applied to reduce temporal noise on CVBS, S-Video, or component inputs. 3D noise reduction and 3D Y/C separation may be used at the same time or independently. The TVP5160 decoder utilizes Texas Instruments’ patented technology for locking to weak, noisy, or unstable signals and can auto-detect between broadcast quality and VCR-style (nonstandard) video sources. The TVP5160 decoder generates synchronization, blanking, field, active video window, horizontal and vertical syncs, clock, genlock (for downstream video encoder synchronization), host CPU interrupt and programmable logic I/O signals, in addition to digital video outputs. The TVP5160 decoder includes methods for advanced vertical blanking interval (VBI) data retrieval. The VBI data processor (VDP) slices and performs error checking on teletext, closed caption, and other VBI data. A built-in FIFO stores up to 11 lines of teletext data, and, with proper host port synchronization, full-screen teletext retrieval is possible. The TVP5160 decoder can pass through the output formatter 2x sampled raw Luma data for host-based VBI processing. Digital RGB overlay can be synchronously switched with any video input, with all signals being oversampled at 4x the pixel rate.

INTERNAL BLOCK DIAGRAM:

3. TPA3008D2

The TPA3008D2 is a 10-W (per channel) efficient, class-D audio amplifier for driving bridged-tied stereo speakers. The TPA3008D2 can drive stereo speakers as low as 8. The high efficiency of the TPA3008D2 eliminates the need for external heatsinks when playing music. The gain of the amplifier is controlled by two gain select pins. The gain selections are 15.3, 21.2,

27.2, and 31.8 dB. The outputs are fully protected against shorts to GND, VCC, and output-to-output shorts. A fault terminal allows short-circuit fault reporting and automatic recovery. Thermal protection ensures that the maximum junction temperature is not exceeded. INTERNAL BLOCK DIAGRAM:

4. MST3383MB

The MST3383MB integrates the HDMI compliant receiver for enabling advanced digital display devices such as digital TVs, plasma displays, LCD TVs and projectors to receive and display. Compliant with the HDMI 1.0 specification, the MST3383MB enables consumer electronic devices to receive uncompressed, high quality, digital audio and video HD content over a single, low-cost HDMI cable. The MST3383MB is available in a 128-pin PQFP package. FUNCTIONAL DESCRIPTION DVI/HDMI Interface The MST3383MB integrates an HDMI compliant receiver and enables a high quality and secure delivery of digital video and audio. The HDMI link input supports up to 170 MHz pixel rate. With the HDMI input and signal detection, the MST3383MB provides a high-performance solution for up to 1080p for video and 1600x1200 (UXGA) for monitor applications. The MST3383MB’s HDMI receiver is fully backward compatible to DVI 1.0 and HDCP 1.0. MCU Interface The MST3383MB provides 2-wire serial bus for interfacing with an MCU. It detects active inputs for both on-line and off-line operations. During on-line operation, the MST3383MB also provides polarity and period count information of active input’s DE signals. The MCU can easily adjust the input mode and switch to active input properly. Color Space Conversion The MST3383MB supports all general color space conversions such as RGB to YUV or RGB to YCbCr using parameters programmable by 2-wire serial bus. Digital Video Output Formatting The MST3383MB can output digital data in the following configurations: . 24-bit 4:4:4 YCbCr/RGB output formats . 16-bit 4:2:2 YCbCr output formats (ITU.601) . 8-bit 4:2:2 YCbCr output formats (ITU.656) . Channel swap . MSB/LSB swap Audio Stream S/PDIF port output is supported to enable PCM, Dolby Digital, DTS with sample rates of 32~48 kHz and a sample size of 16~24 bits. Audio Serial bus is supported to enable 2-channel PCM audio with sample rates of 32~192 kHz and a sample size of 16~24 bits.

5.GM1601/GM1501

The gm1601H is a dual channel graphics and video processing IC for Liquid Crystal Display (LCD) monitors and televisions incorporating Picture in Picture, up to WUXGA output resolutions. The gm1601H provides all key IC functions required for image capture, processing and display timing control. On-chip functions include a high-speed triple-ADC and PLL, Ultra-Reliable DVI® receiver, high quality zoom and shrink scaling engines, Motion Adaptive De-Interlacing (MADI), Low Angle Diagonal Interpolation (LADI), an on-screen display (OSD) controller, a 100MHz on-chip X186 micro-controller (OCM), and a selectable double wide TTL or dual channel LVDS transmitter for interface to displays. With all these functions integrated onto a single device, the gm1601H eliminates the need for several system components, simplifying the design and reducing the cost of high-end multimedia LCD monitors and televisions while maintaining a high degree of flexibility and quality. The gm1601H is available in two silicon revisions – “BD” and “CF”. GM1601H-CF is a backwards-compatible addition that incorporates some functional and quality improvements.

Applliicattiions

 Multi-media LCD monitors up to WUXGA resolutions  LCD, PDP and Rear Projection TV at WXGA, UXGA, WUXGA and HD(720P & 1080P)

resolutions

GM1601H Systtem Desiign Examplle

Figure 2 below shows a typical high-resolution multi-media LCD monitor/TV system based on the gm1601H. Designs based on the gm1601H have reduced system cost, simplified hardware and firmware design and increased reliability because only a minimal number of components are required in the system.

Figure 2. gm1601H System Design Example

6. FLI2310

The FLI230x and FLI2310 are highly integrated digital video format converters for DTV and DVD applications using patented deinterlacing and post processing algorithms from Faroudja Laboratories, coupled with highly flexible scaling, a wide variety of aspect ratio conversions, and other special video enhancing features to produce the highest quality image.

6.1 Inputs  Input all industry standard and non-standard video resolutions, including 480i (NTSC), 576i

(PAL/SECAM), 480p, 720p, 1080i, and VGA to XGA

 Digital input, 8-bit Y/Cr/Cb (ITU-R BT656), 8-bit Y/Pr/Pb, 16-bit Y Cr/Cb (ITU-R BT601), 24-bit

RGB, YCrCb, YPrPb

 Input pixel rate up to 75MHz maximum

6.2 Outputs

 Output resolutions include 480p, 576i, 576p, 720p, 1080i, 1080p, and VGA to SXGA  Interlaced or Progressive output  In the FLI230x, the output can be either analog YUV/RGB (through the integrated 10-bit DAC),

or digital 24-bit RGB, YCrCb, YPrPb (4:4:4), or digital 16/20-bit Y Cr/Cb (4:2:2)

 The FLI2301 can provide 525P/625P Macrovision compliant analog output  In the FLI2310, digital output of 24-bit RGB, YCrCb, YPrPb (4:4:4), or 16/20-bit Y Cr/Cb (4:2:2)

are available

 Output pixel rate up to 150 MHz maximum

6.3 Formats  Input color manipulation matrix supports all color spaces: RGB, YPrPb, 4:4:4 YCrCb, 4:2:2

YCr/Cb, ITU-R BT656, ITU-R BT601

 Output supports analog RGB, YPrPb, and YCrCb in the FLI230x; and digital RGB, YPrPb, 4:4:4

YCrCb and 4:2:2 YCr/Cb in FLI230x/FLI2310

6.4 Frame Rate Conversion Tearless Frame Rate Conversion 50/60/72/75/100/120 Hz

6.5 Front End Processing

 Motion Adaptive Noise Reduction – Improves picture quality for off-air material.  Cross Color Suppressor (CCS) - Removes cross color artifacts in composite video signals due

to poor Y/C separation in standard 2-D video decoders, eliminating the need for expensive 3-D video decoders.

6.6 Deinterlacing

 Per-pixel Motion Adaptive Deinterlacing  Patented FilmMode Processing - Used for proper de-interlacing of 3:2 and 2:2 pulldown

material.

 Edit Correction - Film content is continuously monitored for any break in sequence caused by

“bad edits” and quickly compensates for the most effective reduction in artifacts.

 DCDi™ - Video is analyzed on a single pixel granularity to detect presence or absence of

angled lines and edges, which are then processed to produce a smooth and natural looking image without visible artifacts or “jaggies”.

6.7 Scaling

 High Quality Fully Programmable Two Dimensional Scaler  Aspect Ratio Conversion for “Anamorphic” or “Panoramic” (non-linear)  Display 4:3 images on 16:9 displays and vice versa, including Letterbox to Fullscreen, Pillarbox,

and Subtitle Display Modes

6.8 TrueLife™ Enhancer Two dimensional, non-linear, luma and chroma video enhancer brings out details in the picture, producing a more life-like image.

6.9 Memory 32-bit wide SDRAM (i.e. one 2M x 32-bit, or two 1M x 16-bit) controller, up to 166 MHz operation, for external SDRAM

INTERNAL BLOCK DIAGRAM:

7. TVP5147

Functional Block Diagram

8. CXA2089Q

Wiring diagram

CPU board

Analog board

Power supply board

to speaker

Filter board

Trouble shooting

1. Fault clearance

Before servicing please check to find the possible causes of the troubles according to the table

below.

1.1 Antenna (signal):

Picture is out of focus or jumping  Bad status in signal receiving

 Poor signal

 Check if there are failures with the electrical connector or

the antenna.

 Check if the antenna is properly connected.

Fringe in picture  Check if the antenna is correctly oriented.

 Maybe there is electric wave reflected from hilltop or

building.

Picture is interfered by stripe shaped

bright spots

There appear streaks or light color

on the screen

1.2 TV set:

Symptoms Possible cause

Unable to switch the power on  Check to see if the power plug has been inserted properly

No picture and sound  Check to see if the power supply of liquid crystal TV has

Deterioration of color phase or color

tone

Screen position or size is not proper  Check is the screen position and size is correctly set up.

Picture is twisted and deformed  Check to see if the picture-frame ratio is properly set up.

Picture color changed or colorless  Check the “Component” or “RGB” settings of the liquid

 Possibly due to interference from automobile, train, high

voltage transmission line, neon lamp etc.

 Maybe there is interference between antenna and power

supply line. Please try to separate them in a longer

distance.

 Maybe the shielded-layer of signal wire is not connected

properly to the connector.

 Check if interfered by other equipment and if interfered

possibly by the equipment like transmitting antenna,

non-professional radio station and cellular phone.

into the socket.

been switched on. (As can be indicated by the red LED at

the front of the TV set)

 See if it’s receiving the signal that is transmitted from other

source than the station

 Check if it’s connected to the wrong terminal or if the input

mode is correct.

 Check if the signal cable connection between video

frequency source and the liquid crystal TV set is correct.

 Check if all the picture setups have been corrected.

crystal TV set and make proper adjustment according to the

signal types.

Picture too bright and there is

distortion in the brightest area

Picture is whitish or too bright in the

darkest area of the picture

No picture or signal produced from

the displayer if “XXX in search”

appears.

There appears an indication -

“outside the receivable scope)

Remote control cannot work

properly

No picture and sound, but only

hash.

Blur picture  Check if the antenna cable is correctly connected.

No sound  Check if the “mute” audio frequency setting is selected.

When playing VHS picture search

tape, there are lines at the top or

bottom of the picture.

 Check if the contrast setting is too high.

 Possibly the output quality of DVD broadcaster is set too

high.

 It maybe also due to improper terminal connection of the

video frequency signal in a certain position of the system.

 Check if the setting for the brightness is too high

 Possibly the brightness grade of DVD player (broadcaster)

is set too high.

 Check if the cable is disconnected.

 Check if it’s connected to the proper terminal or if the input

mode is correct.

 Check if the TV set can receive input signal. The signal is

not correctly identified and VGA format is beyond the

specified scope.

 Check if the batteries are installed in the reverse order.

 Check if the battery is effective.

 Check the distance or angle from the monitor.

 Check if there is any obstruct between the remote control

and the TV set.

 Check if the remote control signal- receiving window is

exposed to strong fluorescence.

 Check if the antenna cable is correctly connected, or if it

has received the video signal correctly.

 Of if it has received the right video signal.

 Check if the sound volume is set to minimum.

 Make sure the earphone is not connected.

 Check if the cable connection is loose.

 When being played or in pause VHS picture search tape

sometimes can’t provide stable picture, which may lead to

incorrect display of the liquid crystal TV, In this case please

press “auto” key on the remote control so as to enable the

liquid crystal TV set to recheck the signal and then to

display correct picture signal

2. Identification criteria for the bright spot and dark spot of the LCD screen

Category Criteria

One single

spot

Bright

spot

Dark

spots

Total defected point ≤8 ≤7 ≤5 ≤4 /

Two

neighboring

spots

Tota l No . ≤5 ≤2 ≤5 ≤2 ≤3

One single

spot

Two

neighboring

spots

Tota l No . ≤6 ≤7 ≤5 ≤4 ≤10

15" 20" 22" 30" 40" 15" 20" 22" 30" 40"

≤5 ≤2 ≤5 ≤2 ≤3

≤2 ≤1 ≤2 ≤1 ≤1

≤6 ≤7 ≤5 ≤4 ≤10

≤2 ≤2 ≤2 ≤1 ≤5

Notes:

1. Definition of defected point (bright spot, dark spot): It is identified as a defected point if its area exceeds 1/2 of a single picture element (R, G, B).

2. Definition of bright spot: It is identified as a bright spot if it is bright in the state of dark field and its bright size remains unchanged

3. Definition of dark spot: It is identified as a dark spot if it is dark in the state of white field and its dark size remains unchanged

4. Definition of two neighboring points: Defects of a group of picture elements (RB, RG, GB).

Quantity allowed Distance between two spots

≥15mm

≥10mm ≥5mm

3. Troubleshooting guide

1. Without backlight

In STANDBY, does

LED red light

Ye s

Check the LED

Green

Does LED flicker

Check the pin1 and pin3 o

CN3 has +5V output

Check the

FUSE

Replace CPU board

o change colo

Replace CPU boar

Replace suppl

power board

Check if between R172

and R173 connect wire

has 3.3V, if R178 shor

to the guand?

Ye s

Check the pin B and pi

C of V10 and V12 is

normal?

Ye s

Yes

Check if the X508

(pin1-2) of the

board has 18V,

pin10-12 has 120V.

Yes

Is 5v for pin10 o

X20 ?

Yes

owe

Replace CP

board

Problem LCD screen

Yes

Check the

acklight socket is

normal?

2. With backlight, without picture

Does remote control

and key of the uni

not operate?

Enter the factor

menu, the CLEA

EEPROM

adjustment after,

turn off the unit,

and check if the

icture is normal

when turn on.

Replacing

Replacing CPU assy

Yes

Does not picture

of all channel

Display OSD?

Check

LVDS

cord

Does

(pin5-8)

output 18V?

Check FU1

Ye s

Replacing

CPU assy

o Yes

HDMI

Does R223 an

R216-R219

output signal?

o Ye s

Replacing

Which no picture

VGA

Check the

in4 an

in8 o

24 has

H-V sync?

TV/VIDEO

YPBPR

Check if C16

has SO

signal

Sub


Main

icture o

sub

picture?

Main


Replacing N24

Replacing N4

Replacing N7

Yes

Replacing N8

Yes

Check if the pin1 and pin5 o

24 has input signal

Check if the pin2 and pin3

of N4 has input signal

Check if R74, R75 has

output signal

Ye s

Check the

and output

Ye s

Yes

Does

R70-R73

input signal

10 inpu

Replacing

CPU assy

Yes

Check the N35

and N36 inpu

and output

o Yes Ye s

3. No sound

Check if the pin2 o

XA15 is 18V?

o Yes

Check if the

in1 and pin2 o

XA17 is 18V?

Check the

supply power

Check i

RA136 short to

the ground?

Yes

Is high level o

A9 (pin1)

Is the signal

output NA5 (pin5

and pin8)

Ye s

Check the

in3 o

X14

Ye s

Which is hig

level for DA8,

DA10, DA11?

Check the

speaker outpu

1, 2 or 3,4

Replacing NA7

DA11DA8 DA10

Check the

output

of V18

Is the signal outpu

A4 (pin27 and pin28)

Is the signal output NA4

(pin67)

Is the signal outpu

TUNA1(pin12)

Replacing TUNA1

Ye s

Replacing NA5

Ye s

Replacing NA4

Graphic/Component IN of CPU board 203-L37R70-01DL

Page 1 of 7

Video decoders of CPU board 203-L37R70-01DL

Page 2 of 7

CPU board 203-L37R70-01DL

Page 3 of 7

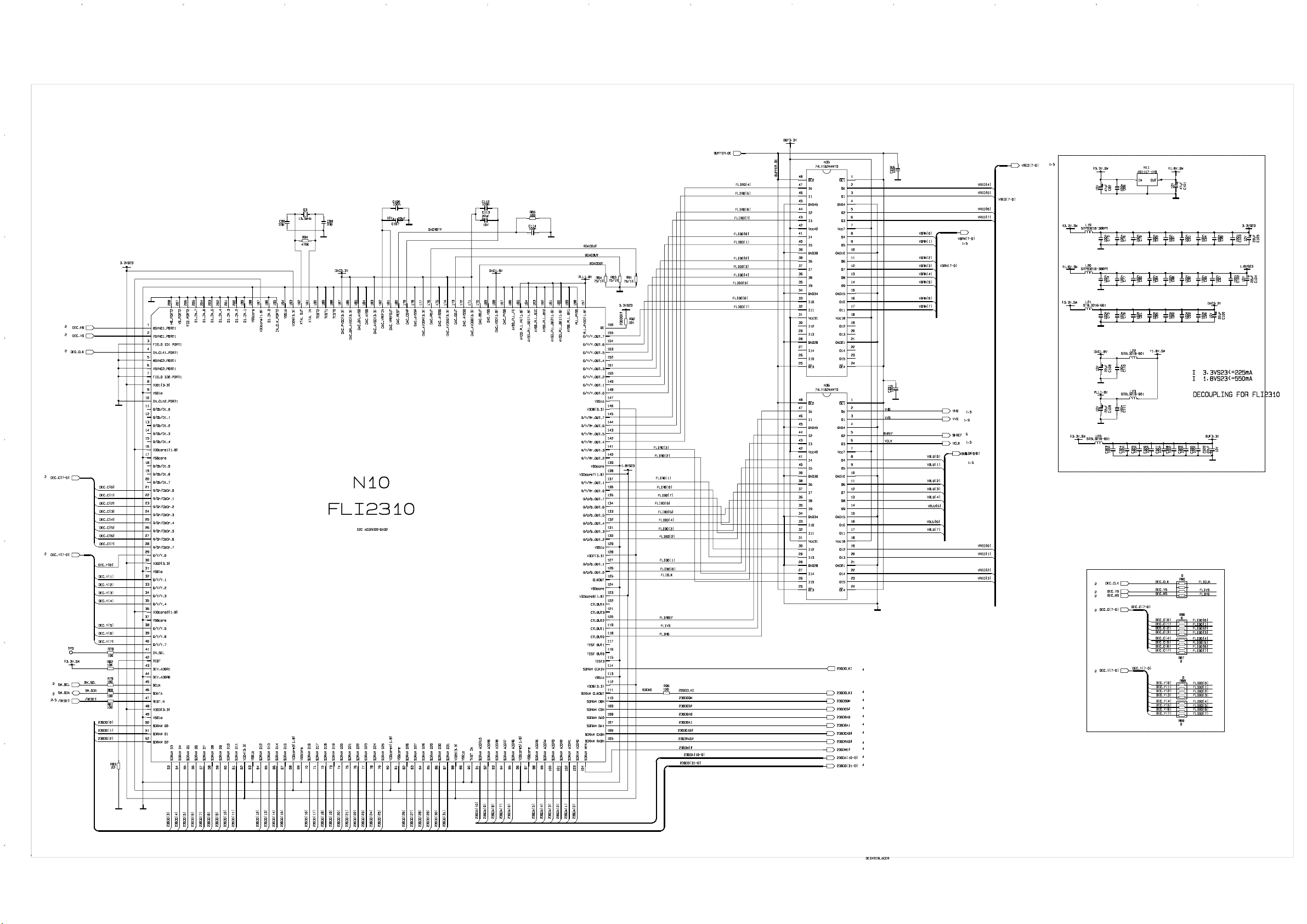

Frame memory of CPU board 203-L37R70-01DL

Page 4 of 7

GM1601 of CPU board 203-L37R70-01DL

Page 5 of 7

Memory I/F of CPU board 203-L37R70-01DL Page 6 of 7

Power of CPU board 203-L37R70-01DL

Page 7 of 7

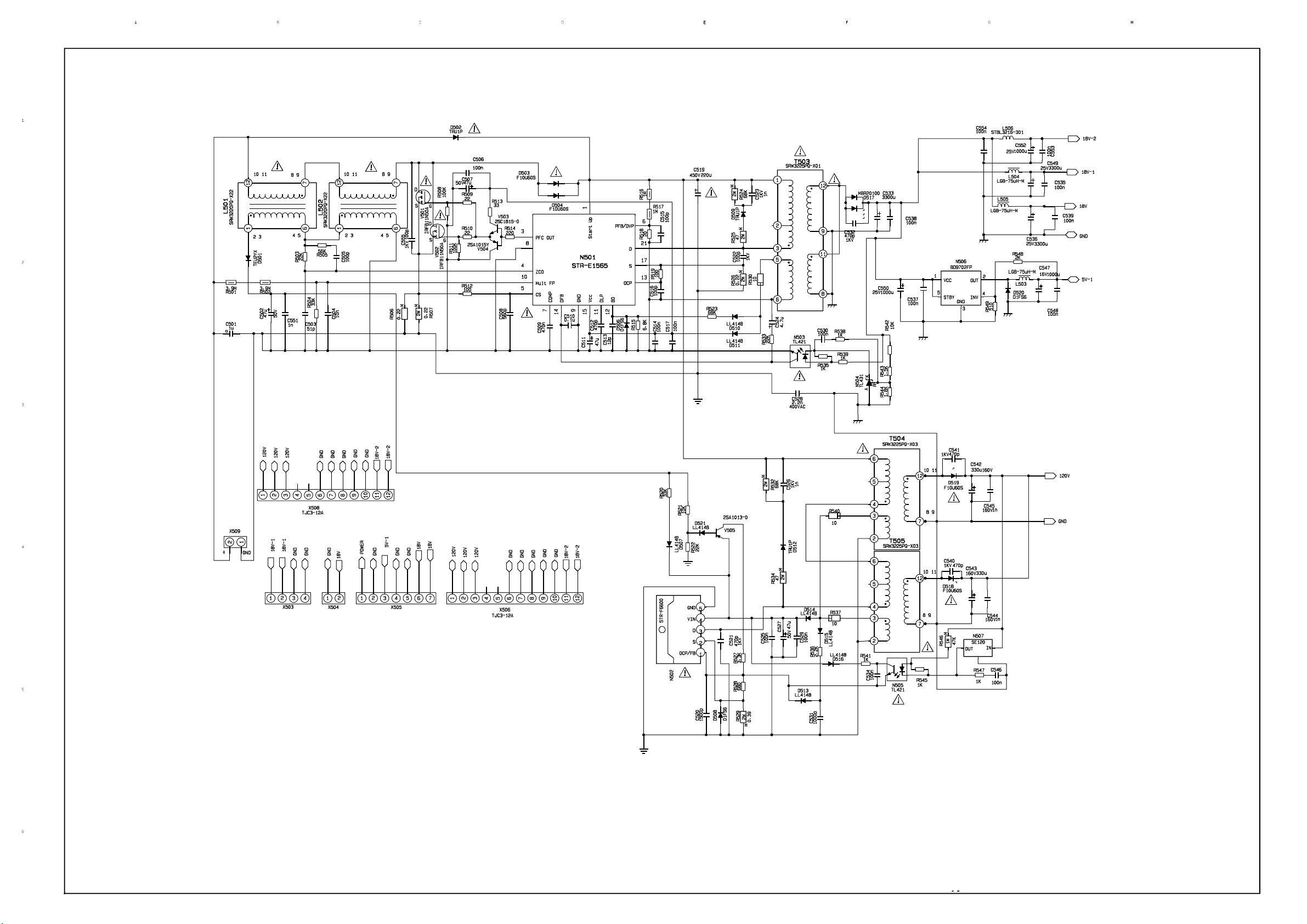

Power supply board

782-LYT25-2000

Filter board 782-L37R7-5100

Analog board 782-L37R7-5300

Page 1 of 2

Analog board 782-L37R7-5300

Page 2 of 2

PART LIST

PART# DESCRIPTION LOCA.NO.

SL37R70-01A10 SOFTWARE 100-L37R250-11 LC-37R25 100-L37R250-02 LC-37R25 B30

335-37014-00 DISPLAY SCREEN T370HW01V.1 ! 364-42201-00 SOCKET WP2-9C 364-42201-00 SOCKET WP2-9C 364-42201-00 SOCKET WP2-9C 364-42201-00 SOCKET WP2-9C

485-10170-0A *POWER CORD LAP-31+LASR-24 !

488-10007-01 BATTERY (5# NO CHINESE , IRON CASE )

604-L37R257-00 OWNER'S MANUAL(PRIMA CAN)

615-10467-00 TV BOARD SHIELD COVER ASS'Y ( TOP ) 615-10468-00 TV BOARD SHIELD COVER ASS'Y ( BOTTOM )

615-10469-00B DIGITAL BOARD SHIELD COVER ASS'Y ( TOP )

615-10470-00 DIGITAL BOARD SHIELD COVER ASS'Y ( BOTTOM ) 615-10620-00 PANEL TRANS-CONNECTING BRACKET ASS'Y (TOP )

615-10621-00 615-20479-00A SPEAKER ASS'Y 615-20479-00A SPEAKER ASS'Y

655-21201-87 ( 2-PINS ) LEAD WITH HOUSING

655-31201-140 * ( 3-PINS ) LEAD WITH HOUSING

655-31201-43 (3-PINS) LEAD WITH HOUSING

655-41201-280 (4-PINS) LEAD WITH HOUSING

655-44301-24 (4-PINS) LEAD WITH HOUSING 655-4E302-120 (4-PINS) LEAD WITH HOUSING

655-5L201-05 (5-PINS) LEAD WITH HOUSING

655-71202-80 ( 7-PINS ) LEAD WITH HOUSING

655-L1202-30 ( 14-PINS ) LEAD WITH HOUSING

655-T1202-62 ( 10-PINS ) LEAD WITH HOUSING

655-T1202-62 ( 10-PINS ) LEAD WITH HOUSING 665-D0002-421 VIDEO LINE BLUE GREEN RED 665-D0002-422 VIDEO LINE YELLOW WHITE RED 665-D0002-423 AUDIO LINE XH-3.5-RCA-2000 665-D0002-452 SPEAKER LINE 2468 20# FERRITE BEAD 410 665-D0002-648 *LVDS LINE 41-PINS

742-30088-110 TIE ( MOLD TRANSPARENT )

742-30090-00 TIE ( DARK GRAY )

742-30090-00 TIE ( DARK GRAY ) 743-1A187-00A DECORATIVE PIECE ( ALUMINIUM ) 743-1B210-AF0 KEY DECORATIVE PIECE ( GREY 05)

780-Y25L1J6A1A FRONT CABINET (ABS V0 BLACK / BLACK

780-Y25LIHAF8A BACK CABINET (V0 GREY 05,SILK-SCREEN )

785-20023-120 SCREW CAP ( MOLD GREY G05)

804-20442-00 PANEL CONNECT PIECE (LG/CMO)

PANEL TRANS-CONNECTING BRACKET ASS'Y (BOTTOM )

804-2A401-00 INTERFACE SPACE PLATE ( TV BOARD LEFT )

804-2A402-00 INTERFACE SPACE PLATE ( TV BOARD BOTTOM )

804-2A403-00A INTERFACE SPACE PLATE ( DIGITAL BOARD )

808-10812-AF0 POWER CORD COVER BOARD ( GREY 05) 808-10892-AF0 BACK CABINET BAFFLE ( LEFT ) GREY 05 808-10893-AF0 BACK CABINET BAFFLE ( RIGHT ) GREY 05 808-10894-AF0 BACK CABINET BAFFLE (BOTTOM ) GREY 05 808-10896-AF0 AV BAFFLE ( RIGHT TOP ) GREY 05 808-10900-AF0

ECORATIVE COVER BOARD LEFT RIGHT ( GREY 05) 808-10901-AF0 DECORATIVE COVER BOARD ( BOTTOM ) GREY 05 808-10902-9A0 808-10903-9A0

SOUND BOX BACK COVER LEFT ( BLACK / GREY 05)

SOUND BOX BACK COVER RIGHT ( BLACK / GREY 05)

808-1A895-AF0 AV BAFFLE ( LEFT TOP ) GREY 05 808-1A899-AF0 AV BAFFLE (BOTTOM ) GREY 05 808-1B898-AF0 AV BAFFLE ( RIGHT BOTTOM ) GREY 05 808-1G897-AF0 AV BAFFLE ( LEFT BOTTOM ) GREY 05

808-20342-202

PMMA DECORATIVE BOARD 　TOP (2H )

808-20343-262 PMMA DECORATIVE BOARD (2HSILK-SCREEN )

808-70259-00 EVA GLUE (25X15X2) 808-70269-00 EVA GLUE (575X2X1) 808-70330-00 INSULATOR 808-70331-00 INSULATOR

822-10204-120 GLUE COVER ( MOLD GREY G05)

851-33010-51 SCREW B(+)3X10G-D.Zn 851-33010-51 SCREW B(+)3X10G-D.Zn 851-33010-51 SCREW B(+)3X10G-D.Zn 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-34010-57 SCREW B(+)4X10G-D.Zn ( BLACK ) 851-34010-57 SCREW B(+)4X10G-D.Zn ( BLACK ) 851-34010-57 SCREW B(+)4X10G-D.Zn ( BLACK ) 851-34010-57 SCREW B(+)4X10G-D.Zn ( BLACK ) 851-34010-57 SCREW B(+)4X10G-D.Zn ( BLACK ) 851-34010-57 SCREW B(+)4X10G-D.Zn ( BLACK ) 851-34012-57 SCREW B(+)4X12G-D.Zn ( BLACK ) 851-34012-57 SCREW B(+)4X12G-D.Zn ( BLACK ) 851-34016-57 SCREW B(+)4X16G-D.Zn ( BLACK ) 851-34016-57 SCREW B(+)4X16G-D.Zn ( BLACK ) 851-34025-57 SCREW B(+)4X12G-D.Zn ( BLACK )

851-34025-57 SCREW B(+)4X12G-D.Zn ( BLACK ) 851-43008-52 SCREW F(+)T3X8G-DNi 851-43008-52 SCREW F(+)T3X8G-DNi 851-43010-11 SCREW F(+)T3x10A-DZn 851-43010-11 SCREW F(+)T3x10A-DZn 851-43010-11 SCREW F(+)T3x10A-DZn 851-43012-52 SCREW F(+)T3X12G-DNi 851-43012-57 SCREW F(+)3X12G-D.Zn ( BLACK ) 851-43012-57 SCREW F(+)3X12G-D.Zn ( BLACK ) 851-43014-14 SCREW F(+)T3x14A-Y 851-43014-14 SCREW F(+)T3x14A-Y 852-33006-87 SCREW B(+) M3X6-D.Zn ( BLACK ) 852-33006-87 SCREW B(+) M3X6-D.Zn ( BLACK ) 852-33006-87 SCREW B(+) M3X6-D.Zn ( BLACK ) 852-33006-87 SCREW B(+) M3X6-D.Zn ( BLACK ) 852-33006-87 SCREW B(+) M3X6-D.Zn ( BLACK ) 852-33006-87 SCREW B(+) M3X6-D.Zn ( BLACK ) 852-33006-87 SCREW B(+) M3X6-D.Zn ( BLACK ) 852-33008-82 SCREW B(+) M3X8-D.Ni 852-33008-82 SCREW B(+) M3X8-D.Ni 852-33008-87 SCREW B(+) M3X8-D.Zn ( BLACK ) 852-33008-87 SCREW B(+) M3X8-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 852-35008-82 SCREW F(+)M5*8-D.Ni 852-35008-82 SCREW F(+)M5*8-D.Ni 852-43006-87 SCREW F(+) M3*6-DZn ( BLACK ) 852-43006-87 SCREW F(+) M3*6-DZn ( BLACK )

852-43008-87 SCREW F(+)M3X8-D.Zn( BLACK ) 852-43008-87 SCREW F(+)M3X8-D.Zn( BLACK ) 852-44012-82 SCREW F(+)M4X12-D.Ni 852-44012-82 SCREW F(+)M4X12-D.Ni 852-45008-82 SCREW F(+)M5X8-D.Ni 852-45008-82 SCREW F(+)M5X8-D.Ni 852-84008-81 COMPOSE SCREW SJ2835 M4X8-DZn 852-84008-81 COMPOSE SCREW SJ2835 M4X8-DZn 852-84008-81 COMPOSE SCREW SJ2835 M4X8-DZn 852-84008-81 COMPOSE SCREW SJ2835 M4X8-DZn 852-84008-81 COMPOSE SCREW SJ2835 M4X8-DZn 852-84014-81 COMPOSE SCREW SJ2835 M4X14-DZn 852-84014-81 COMPOSE SCREW SJ2835 M4X14-DZn

862-20039-00 CARTON CLIPS 863-81253-00B POLY FOAM ( LEFT TOP EPE) 863-81254-00B POLY FOAM ( LEFT BOTTOM EPE) 863-81255-00B POLY FOAM ( RIGHT TOP EPE) 863-81256-00B POLY FOAM ( RIGHT BOTTOM EPE) 863-81257-00B CUSHION BOARD (EPE)

864-10224-AW0A SPEAKER NET ( LEFT ) BLACK 864-10225-AW0A SPEAKER NET ( RIGHT ) BLACK

864-90044-00 SOUND ABSORBENT

870-10236-00 BOARD CONNECT BRACKET

870-10241-00 WALL MOUNT BRACKET

870-10242-00 WALL MOUNT CONNECT BRACKET

870-10246-00 TV BOARD BRACKET

870-10248-00 HIGH DEFINITION BOARD BRACKET

870-10249-00 STAND COLUMN BRACKET

870-10300-00 BRACKET (AV BAFFLE )

870-10380-00 PANEL CONNECT PIECE (AU)

870-10381-00 AU PANEL CONNECT BRACKET

870-1A230-00 PANEL CONNECT BRACKET (TOP ) 870-1A231-00 PANEL CONNECT BRACKET (BOTTOM ) 870-1A234-00 BOARD CONNECT BRACKET ( LEFT ) 870-1A235-00 BOARD CONNECT BRACKET ( RIGHT ) 870-1A237-00 BOARD CONNECT PIECE (1 ) 870-1A238-00 BOARD CONNECT PIECE (2 ) 870-1A381-00 AU PANEL CONNECT BRACKET

870-30202-00 KEY BRACKET

870-3B203-AF0 KEY COVER BOARD BRACKET ( GREY 05)

877-50498-0T0 KEY CAP (PLATE SILVERY WHITE )

881-60085 BLANK WARNING LABEL

881-62876-76 BACK PLATE LABEL (LC-37R25,PRIMA ) 881-63016-00A POWER SYMBOL LABEL ( T2751)

881-64247-00 Mylar label LABEL (LC-37R25,PRI

881-80675-00

SERVICE CARD ( LCD37以TOP )

881-L37R257-00 OPERATION CARD

886-31756-00 WALL MOUNT CARTON BOX (LC-37X7)

886-31836-10 CARTON BOX (LC-37R25,PRIMA)

886-31837-00 CARTON BOX BOTTOM COVER

886-31838-00 PAPER BRACKET

887-21074-00 PALSTIC BAG (100X230)

887-21135-02 CLASPER PALSTIC BAG 230X330X0.1

887-21207-P0 PE/PEARL COTTONPALSTIC BAG 1500X1000

615-10552-00 HOLDER ASS'Y (DZ-3037)

852-33012-82 SCREW B(+) M3X12-D.Ni

852-33008-82 SCREW B(+) M3X8-D.Ni

852-34014-82 SCREW B(+) M4X14-D.Ni

807-20236-AC0 HOLDER ( BLACK ) 808-10905-AD0 808-10906-AD0

TAND COLUMN DECORATIVE COVER FRONT (PLATE SILVERY )

TAND COLUMN DECORATIVE COVER BACK (PLATE SILVERY )

820-20061-00 HOLDER BALANCE BOARD

868-20792-060 RUBBER WASHER ( MOLD GREY 02)

870-40218-AD0 STAND COLUMN (PLATE SILVERY )

615-10518-00A AXLETREE ASS'Y 808-10904-8A0 HOLDER DECORATIVE COVER ( SILVER WHITE 06

868-2A448-00 HOLDER CUSHION

742-30098-110 TIE ( MOLD TRANSPARENT )

851-43008-51 SCREW F(+)T3X8G-D.Zn 851-43008-51 SCREW F(+)T3X8G-D.Zn 851-53010-31 SCREW SJ2825 ST3X10FT-D.Zn 851-53010-31 SCREW SJ2825 ST3X10FT-D.Zn 852-33008-82 SCREW B(+) M3X8-D.Ni 852-34014-82 SCREW B(+) M4X14-D.Ni 852-34014-82 SCREW B(+) M4X14-D.Ni 852-45016-82 SCREW F(+)M5X16 DNi 852-45016-82 SCREW F(+)M5X16 DNi 852-45010-81 SCREW F(+)M5X10-D.Zn 852-45010-81 SCREW F(+)M5X10-D.Zn 887-21172-P0 PE/PEARL COTTONPALSTIC BAG (780X600) 868-20037-00 FIBRE WASHER φ8Xφ3.2X0.5

667-L37R25-05 KEY BOARD ASS'Y

667-L37R25-05\ KEY BOARD ASS'Y ( MANUAL INSERTION )

340-10066-90 LED HFT503MP-1 LED 352-38060-60 IC HRM138BB3006 (M) N1 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B SK2 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B SK3 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B SK4 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B SK5 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B SK6

360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B SK7 364-331AY-00 3-PINS CONNECTORS TJC10-3A XK1 364-351AY-00 5-PINS CONNECTORS TJC10-5A X1

464-6C722-M0 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M C2

667-L37R25-05* KEY BOARD ASS'Y ( SMD )

455-12110-H0 SMD RESISTOR FTR0603101JR R2 455-12115-H0 SMD RESISTOR FTR0603151JR RK3 455-12151-H0 SMD RESISTOR FTR0603511JR RK5 455-12210-H0 SMD RESISTOR FTR0603102JR RK7 455-12218-H0 SMD RESISTOR FTR0603182JR RK4 455-12222-H0 SMD RESISTOR FTR0603222JR R1 455-12233-H0 SMD RESISTOR FTR0603332JR RK6

455-12318-H0 SMD RESISTOR FTR0603183JR RK2 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C1 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C3

782-L37R25-050A BUTTON PCB

667-L37T7-20 POWER PCB ASS'Y (37" AU)

667-L37T7-20\ POWER PCB ASS'Y (MANUAL INSERTION )

340-00291-00 DIODE TEU2YX D501 340-00400-00 DIODE SARS01 D509 340-00400-00 DIODE SARS01 D512 340-00406-00 DIODE EM2A D502 343-09660-60 TRANSISTOR 2SA966-0 V504 343-10130-60 TRANSISTOR 2SA1013-0 V505 343-22360-10 TRANSISTOR 2SC2236-Y V503 352-00240-10 *IC SE024 N507 352-04210-10 IC TLP4214GR N503 352-04210-10 IC TLP4214GR N505 352-04310-00 IC LM431A (M) N504 364-32101-00 2-PINS CONNECTORS TJC3-02A X504

364-331CK-00 3-PINS CONNECTORS FF-A3963-WV-2 X511

364-33101-00 3-PINS CONNECTORS TJC3-03A X509 364-34101-00 4-PINS CONNECTORS TJC3-04A X503

364-37101-00 7-PINS CONNECTORS TJC3-07A X505 364-3D101-00 10-PINS CONNECTORS TJC3-10A X512 364-3D101-00 10-PINS CONNECTORS TJC3-10A X513 364-3D101-00 10-PINS CONNECTORS TJC3-10A X514

459-B222M-20 CERAMIC CAPACITOR ECK-DNS222MEX ! C528

459-6110H-00 CERAMIC CAPACITOR CT81-06C-Bn-1KV-101J C522 459-6133K-00 CERAMIC CAPACITOR DE0405B331K1K C561 459-6147K-00 CERAMIC CAPACITOR DE0705B471K1k C521 459-6147K-00 CERAMIC CAPACITOR DE0705B471K1k C532 459-6147K-00 CERAMIC CAPACITOR DE0705B471K1k C540 459-6147K-00 CERAMIC CAPACITOR DE0705B471K1k C541 459-6168K-00 CERAMIC CAPACITOR DE0705B681K1k C523 459-6210K-00 CERAMIC CAPACITOR DE0705B102K1K C526

459-6210K-00 CERAMIC CAPACITOR DE0705B102K1K C551

462-D5510-H1 POLYESTER CAPACITOR CBB21A-400V-1uF-J C501 464-RE833-T0 ELECTROLYTIC CAPACITOR CD110HR-25V-3300uF-T C533 464-RE833-T0 ELECTROLYTIC CAPACITOR CD110HR-25V-3300uF-T C536 464-RE833-T0 ELECTROLYTIC CAPACITOR CD110HR-25V-3300uF-T C549

464-RF822-T0 ELECTROLYTIC CAPACITOR CD110HR-35V-2200uF-T C542 464-RF822-T0 ELECTROLYTIC CAPACITOR CD110HR-35V-2200uF-T C543 464-RF822-T0 ELECTROLYTIC CAPACITOR CD110HR-35V-2200uF-T C554 464-RF822-T0 ELECTROLYTIC CAPACITOR CD110HR-35V-2200uF-T C555 464-RF822-T0 ELECTROLYTIC CAPACITOR CD110HR-35V-2200uF-T C556 464-R0647-T0 ELECTROLYTIC CAPACITOR CD110HR-50V-47uF-T C527 464-R0710-T0 ELECTROLYTIC CAPACITOR CD110HR-50V-100uF-T C507 464-R0710-T0 ELECTROLYTIC CAPACITOR CD110HR-50V-100uF-T C511

464-08722-M0N ELECTROLYTIC CAPACITOR CD294-450V-220uF-M C519

464-6D810-M0 ELECTROLYTIC CAPACITOR CD110-16V-1000uF-M C547

464-60547-M0 ELECTROLYTIC CAPACITOR CD110-50V-4.7uF-M C524

464-61647-M0 *ELECTROLYTIC CAPACITOR CD110-100V-47uF-M C502 467-1D022-H03 CARBON RESISTOR RT14-1/4W-22Ω-J R509 467-1D022-H03 CARBON RESISTOR RT14-1/4W-22Ω-J R510 467-1D033-H03 CARBON RESISTOR RT14-1/4W-33Ω-J R513 467-1D122-H03 CARBON RESISTOR RT14-1/4W-220Ω-J R514

467-2GB18-H0 METAL RESISTOR 2W-0.18Ω-JL R506 467-2GB18-H0 METAL RESISTOR 2W-0.18Ω-JL R529 467-2GB15-H0 METAL RESISTOR 2W-0.15Ω-JL R507 467-2GB39-H0 METAL RESISTOR 2W-0.39Ω-JL R526

467-2G047-H0 METAL RESISTOR 2W-47Ω-JL R525

467-2G047-H0 METAL RESISTOR 2W-47Ω-JL R534

467-2G368-H0 METAL RESISTOR 2W-68K-JL R524

467-2G368-H0 METAL RESISTOR 2W-68K-JL R532

467-4E022-H0 FUSIBLE RESISTOR 1/2W-22Ω-JL R537 467-4E022-H0 FUSIBLE RESISTOR 1/2W-22Ω-JL R540 467-4F010-H0 FUSIBLE RESISTOR 1W-10Ω-JL R530 467-8E510-H0 SOLID RESISTOR 1/2W-1MΩ-JL ! R516

467-8E510-H0 SOLID RESISTOR 1/2W-1MΩ-JL ! R517 467-8E539-H0A SOLID RESISTOR 1/2W-3.9MΩ-J ! R501 467-8E539-H0A SOLID RESISTOR 1/2W-3.9MΩ-J ! R502

470-00394-00 SWITCHING TRANSFORMERSRW3220PQ-X22V002! L501 470-00394-00 SWITCHING TRANSFORMERSRW3220PQ-X22V002! L502 470-00399-00 *SWITCHING TRANSFORMERSRW3225PQ-X01V015 T503 470-00400-00 *SWITCHING TRANSFORMERSRW3225PQ-X02V015 T504 470-00400-00 *SWITCHING TRANSFORMERSRW3225PQ-X02V015 T505 477-40031-00 FIXED COIL LG750 L503 477-40031-00 FIXED COIL LG750 L504 477-40031-00 FIXED COIL LG750 L505 775-60137-00 HOLLOW PILLAR φ2.36×14B 775-60137-00 HOLLOW PILLAR φ2.36×14B

364-3B101-00 102-PINS CONNECTORS TJC3-12A X508

852-23008-81 SCREW SJ2829 M3X8-D.Zn

852-23008-81 SCREW SJ2829 M3X8-D.Zn 340-00381-00 DIODE FFPF10U60S D503 340-00381-00 DIODE FFPF10U60S D504 340-00399-00 DIODE SF20JC10 D517 340-00415-00 DIODE FME-220B D518 340-00415-00 DIODE FME-220B D519 343-34690-00 TRANSISTOR 2SK3469-01MR V501 343-34690-00 TRANSISTOR 2SK3469-01MR V502 352-15010-70 *IC AP1501T5 N508 352-15650-10 IC STR-E1565 N501 352-64670-10 *IC STR-F6467 N502

706-BA402-01A HEAT SINK SRP50

706-BA604-01B HEAT SINK SRP50

706-B6004-01A HEAT SINK SRP50 706-B6006-01A HEAT SINK SRP50

851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) 851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) 851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK ) 851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) N501

667-L37T7-20* POWER PCB ASS'Y (SMD )

340-00001-0S SMD DIODE LL4148 D507 340-00001-0S SMD DIODE LL4148 D510 340-00001-0S SMD DIODE LL4148 D513 340-00001-0S SMD DIODE LL4148 D515 340-00001-0S SMD DIODE LL4148 D516 340-00001-0S SMD DIODE LL4148 D521 340-00296-00 SMD DIODE SK34 D522 340-00405-00 SMD DIODE D1FS4 D506 340-00405-00 SMD DIODE D1FS4 D508 340-00405-00 SMD DIODE D1FS4 D520 342-01440-10 SMD TRANSISTOR DTC144EKA V506

353-97010-10 *SMD ICBD9701FP N506 455-22110-H0 SMD RESISTOR RC11-1/8W-100-J R512 455-22110-H0 SMD RESISTOR RC11-1/8W-100-J R519 455-22110-H0 SMD RESISTOR RC11-1/8W-100-J R550 455-22151-H0 SMD RESISTOR RC11-1/8W-510-J R549 455-22168-H0 SMD RESISTOR RC11-1/8W-680-J R528 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R535 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R538 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R539 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R541 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R545 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R546 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R547 455-22215-H0 SMD RESISTOR RC11-1/8W-1.5K-J R543 455-22215-H0 SMD RESISTOR RC11-1/8W-1.5K-J R552

455-22218-H0 SMD RESISTOR RC11-1/8W-1.8K-J R544 455-22220-H0 SMD RESISTOR RC11-1/8W-2K-J R536 455-22220-H0 SMD RESISTOR RC11-1/8W-2K-J R548 455-22233-H0 SMD RESISTOR RC11-1/8W-3.3K-J R527 455-22268-H0 SMD RESISTOR RC11-1/8W-6.8K-J R515 455-22310-H0 SMD RESISTOR RC11-1/8W-10K-J R521 455-22310-H0 SMD RESISTOR RC11-1/8W-10K-J R542 455-22313-H0 SMD RESISTOR RC11-1/8W-13K-J R553 455-22320-H0 SMD RESISTOR RC11-1/8W-20K-J R518 455-22322-H0 SMD RESISTOR RC11-1/8W-22K-J R520 455-22322-H0 SMD RESISTOR RC11-1/8W-22K-J R533 455-22322-H0 SMD RESISTOR RC11-1/8W-22K-J R503 455-22333-H0 SMD RESISTOR RC11-1/8W-33K-J R504 455-22347-H0 SMD RESISTOR RC11-1/8W-47K-J R551 455-22356-H0 SMD RESISTOR RC11-1/8W-56K-J R505 455-22356-H0 SMD RESISTOR RC11-1/8W-56K-J R522 455-22368-H0 SMD RESISTOR RC11-1/8W-68K-J R523 455-22410-H0 SMD RESISTOR RC11-1/8W-100K-J R508 455-22410-H0 SMD RESISTOR RC11-1/8W-100K-J R511

456-1447K-B2 SMD CAPACITOR 08052R474K160BA C509

456-3004H-12 SMD CAPACITOR C2012CH1H040JT C503 456-3051H-12 SMD CAPACITOR C2012CH1H510JT C560 456-3110H-12 SMD CAPACITOR C2012CH1H101JT C505 456-3110H-12 SMD CAPACITOR C2012CH1H101JT C515 456-3110H-12 SMD CAPACITOR C2012CH1H101JT C516 456-3115H-12 SMD CAPACITOR C2012CH1H151JT C513 456-3147H-12 SMD CAPACITOR C2012CH1H471JT C512 456-3210H-12 SMD CAPACITOR C2012CH1H102JT C508 456-3210H-12 SMD CAPACITOR C2012CH1H102JT C520 456-3210H-12 SMD CAPACITOR C2012CH1H102JT C531

456-3310K-B2 SMD CAPACITOR C2012X7R1H103KT C504 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C506 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C510 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C514 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C517 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C525 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C529 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C530 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C534 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C535 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C537 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C538 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C539 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C544 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C545 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C546 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C548 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C557

456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C558 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C559

782-L37T7-200B POWER PCB

455-22000-H0 SMD RESISTOR RC11-1/8W-0-J R554

340-00425-00 DIODE ESID D511

340-00425-00 DIODE ESID D514

667-L37R25-10 EARPHONE ASS'Y

364-11205-00 EARPHONE JACK 3F27K X3

364-34186-00 4-PINS CONNECTORS TJC10-4AWT X2 459-2210K-00 CERAMIC CAPACITOR CT1-06-2B4-63V-102K C1 459-2210K-00 CERAMIC CAPACITOR CT1-06-2B4-63V-102K C2

782-L37R25-1000 EARPHONE PCB

667-L37R7-51 POWER FILTER BOARD ASS'Y

459-B147K-10 CERAMIC CAPACITOR DE7090B471KVA1-KC ! C603

459-B147K-10 CERAMIC CAPACITOR DE7090B471KVA1-KC ! C604 462-2B410-M0V POLYESTER CAPACITOR 250VAC-0.1uF-M ! C601 462-2B410-M0V POLYESTER CAPACITOR 250VAC-0.1uF-M ! C605 462-2B410-M0V POLYESTER CAPACITOR 250VAC-0.1uF-M ! C602

462-D5510-H1 POLYESTER CAPACITOR CBB21A-400V-1uF-J C606

462-D5510-H1 POLYESTER CAPACITOR CBB21A-400V-1uF-J C607

462-D5510-H1 POLYESTER CAPACITOR CBB21A-400V-1uF-J C608

467-8E522-H0A SOLID RESISTOR 1/2W-2.2M-J ! R601

469-40012-00 THERMISTOR M2R014C RT601 477-20081-00 POWER FILTER LCL103B ! L602 477-20081-00 POWER FILTER LCL103B ! L601 477-40269-00 FIXED COIL LG101E L603 569-14141-80 FUSE 50T 4AL 250V ! FU601

706-B6005-01 HEAT SINK SRP60

775-10054-00 SOLDERING BLADE X601 775-10054-00 SOLDERING BLADE X602 775-10054-00 SOLDERING BLADE X603 775-10054-00 SOLDERING BLADE X604 364-77511-00 FUSE HOLDER

782-L37R7-5100 POWER FILTER PCB

895-6020025-50 RIVET GB876-86-2X2.5-COPPER M01 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M02 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M03 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M05 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M06 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M07 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M08 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M09 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M10 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M11 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M12 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M12

895-6020025-50 RIVET GB876-86-2X2.5-COPPER M13 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M14 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M15 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M16 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M17 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M18 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M19 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M20 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M21 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M22 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M23 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M24 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M25 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M26

340-80011-00 RECTIFIER RBV-606 D601 655-32801-02 (3-PINS) LEAD WITH HOUSING 851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK )

667-L37R7-53 ANALOGUE BOARD ASS'Y

667-L37R7-53* ANALOGUE BOARD ASS'Y (SMD )

340-00001-0S SMD DIODE LL4148 DA10 340-00001-0S SMD DIODE LL4148 DA11 340-00001-0S SMD DIODE LL4148 DA12 340-00001-0S SMD DIODE LL4148 DA8 340-00296-00 SMD DIODE SK34 DA13 340-00296-00 SMD DIODE SK34 DA14 342-08470-90 SMD TRANSISTOR BC847AW VA1 342-08470-90 SMD TRANSISTOR BC847AW VA10 342-08470-90 SMD TRANSISTOR BC847AW VA11 342-08470-90 SMD TRANSISTOR BC847AW VA12 342-08470-90 SMD TRANSISTOR BC847AW VA13 342-08470-90 SMD TRANSISTOR BC847AW VA17 342-08470-90 SMD TRANSISTOR BC847AW VA4 342-08470-90 SMD TRANSISTOR BC847AW VA5 342-08470-90 SMD TRANSISTOR BC847AW VA6 342-08470-90 SMD TRANSISTOR BC847AW VA9 342-08570-90 SMD TRANSISTOR BC857 AW VA18 342-08570-90 SMD TRANSISTOR BC857 AW VA2 342-08570-90 SMD TRANSISTOR BC857 AW VA3 353-00450-10 SMD ICPACDN045YB6 NA12 353-12180-10 SMD ICCM1218-04SC NA13 353-12180-10 SMD ICCM1218-04SC NA14 353-15010-10 *SMD ICAP1501K5LA NA11 353-15010-50 SMD ICAP1501-50K5 NA10 353-20890-80 SMD ICCXA2089Q (D) NA3 353-30080-10 SMD ICTPA3008D2 NA7 353-32570-10 SMD ICSN74CBT3257CDR NA1 353-34200-10 SMD ICMSP3420G-B8-V3 NA4

353-40520-80 SMD IC HEF4052BT (M) NA2 353-62494-20 *SMD ICM62494FP (M) NA5 353-70530-70 SMD IC TDA7053AT (M) NA9

353-74040-20 SMD IC 74HC04D (D) NA8 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA128 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA148 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA149 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA216 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA29 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA30 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA31 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA32 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA35 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA36 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA38 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA39 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA46 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA52 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA55 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA73 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA74 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA79 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M CA97 454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M CA142 454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M CA193 454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M CA194 454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M CA21 454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M CA22 454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M CA23 454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M CA24 454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M CA25 454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M CA26 454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M CA99 454-04710-MC SMD ELECTROLYTIC CAPACITOR CDPS-16V-100uF-M CA109 454-04710-MC SMD ELECTROLYTIC CAPACITOR CDPS-16V-100uF-M CA81 454-04722-MD SMD ELECTROLYTIC CAPACITOR CDPS-16V-220uF-M CA124 454-04722-MD SMD ELECTROLYTIC CAPACITOR CDPS-16V-220uF-M CA126 454-04722-MD SMD ELECTROLYTIC CAPACITOR CDPS-16V-220uF-M CA133 454-04722-MD SMD ELECTROLYTIC CAPACITOR CDPS-16V-220uF-M CA47 454-04722-MD SMD ELECTROLYTIC CAPACITOR CDPS-16V-220uF-M CA60 454-04722-MD SMD ELECTROLYTIC CAPACITOR CDPS-16V-220uF-M CA68 454-04722-MD SMD ELECTROLYTIC CAPACITOR CDPS-16V-220uF-M CA82 454-04722-MD SMD ELECTROLYTIC CAPACITOR CDPS-16V-220uF-M CA90 454-04722-MD SMD ELECTROLYTIC CAPACITOR CDPS-16V-220uF-M CA93 454-04722-MD SMD ELECTROLYTIC CAPACITOR CDPS-16V-220uF-M CA94

454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M CA125 454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M CA165 454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M CA210

454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M CA226 454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M CA33 454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M CA34 454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M CA37 454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M CA40 454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M CA48 454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M CA67

454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M CA70 454-06610-MA SMD ELECTROLYTIC CAPACITOR CDPS-25V-10uF-M CA208 454-06610-MA SMD ELECTROLYTIC CAPACITOR CDPS-25V-10uF-M CA215

454-06722-ME *SMD ELECTROLYTIC CAPACITOR CDPS-25V-220uF-M CA190

454-06747-MF SMD ELECTROLYTIC CAPACITOR CDPS-25V-470uF-M CA164

454-06747-MF SMD ELECTROLYTIC CAPACITOR CDPS-25V-470uF-M CA182

454-06747-MF SMD ELECTROLYTIC CAPACITOR CDPS-25V-470uF-M CA197

454-06747-MF SMD ELECTROLYTIC CAPACITOR CDPS-25V-470uF-M CA206 454-08522-MA SMD ELECTROLYTIC CAPACITOR CDPS-50V-2.2uF-M CA106 454-08522-MA SMD ELECTROLYTIC CAPACITOR CDPS-50V-2.2uF-M CA107 454-08533-MA SMD ELECTROLYTIC CAPACITOR CDPS-50V-3.3uF-M CA127

455-12000-H0 SMD RESISTOR FTR0603000XR RA185 455-12000-H0 SMD RESISTOR FTR0603000XR RA186 455-12000-H0 SMD RESISTOR FTR0603000XR RA187 455-12000-H0 SMD RESISTOR FTR0603000XR RA53 455-12000-H0 SMD RESISTOR FTR0603000XR RA73

455-12075-F0 SMD RESISTOR FTM06030750FR RA10 455-12075-F0 SMD RESISTOR FTM06030750FR RA5 455-12075-F0 SMD RESISTOR FTM06030750FR RA6 455-12075-F0 SMD RESISTOR FTM06030750FR RA7 455-12075-F0 SMD RESISTOR FTM06030750FR RA8

455-12075-F0 SMD RESISTOR FTM06030750FR RA9 455-12075-H0 SMD RESISTOR FTR0603750JR RA106 455-12075-H0 SMD RESISTOR FTR0603750JR RA126 455-12075-H0 SMD RESISTOR FTR0603750JR RA15 455-12075-H0 SMD RESISTOR FTR0603750JR RA18 455-12075-H0 SMD RESISTOR FTR0603750JR RA26 455-12075-H0 SMD RESISTOR FTR0603750JR RA27 455-12075-H0 SMD RESISTOR FTR0603750JR RA28 455-12075-H0 SMD RESISTOR FTR0603750JR RA29 455-12075-H0 SMD RESISTOR FTR0603750JR RA60 455-12075-H0 SMD RESISTOR FTR0603750JR RA79 455-12110-H0 SMD RESISTOR FTR0603101JR RA1 455-12110-H0 SMD RESISTOR FTR0603101JR RA100 455-12110-H0 SMD RESISTOR FTR0603101JR RA101 455-12110-H0 SMD RESISTOR FTR0603101JR RA104 455-12110-H0 SMD RESISTOR FTR0603101JR RA105 455-12110-H0 SMD RESISTOR FTR0603101JR RA123 455-12110-H0 SMD RESISTOR FTR0603101JR RA124 455-12110-H0 SMD RESISTOR FTR0603101JR RA129 455-12110-H0 SMD RESISTOR FTR0603101JR RA132

455-12110-H0 SMD RESISTOR FTR0603101JR RA133 455-12110-H0 SMD RESISTOR FTR0603101JR RA140 455-12110-H0 SMD RESISTOR FTR0603101JR RA141 455-12110-H0 SMD RESISTOR FTR0603101JR RA151 455-12110-H0 SMD RESISTOR FTR0603101JR RA30 455-12110-H0 SMD RESISTOR FTR0603101JR RA31 455-12110-H0 SMD RESISTOR FTR0603101JR RA32 455-12110-H0 SMD RESISTOR FTR0603101JR RA35 455-12110-H0 SMD RESISTOR FTR0603101JR RA38 455-12110-H0 SMD RESISTOR FTR0603101JR RA39 455-12110-H0 SMD RESISTOR FTR0603101JR RA65 455-12110-H0 SMD RESISTOR FTR0603101JR RA81 455-12110-H0 SMD RESISTOR FTR0603101JR RA82 455-12110-H0 SMD RESISTOR FTR0603101JR RA85 455-12122-H0 SMD RESISTOR FTR0603221JR RA70 455-12122-H0 SMD RESISTOR FTR0603221JR RA71 455-12122-H0 SMD RESISTOR FTR0603221JR RA86 455-12122-H0 SMD RESISTOR FTR0603221JR RA92 455-12122-H0 SMD RESISTOR FTR0603221JR RA93 455-12122-H0 SMD RESISTOR FTR0603221JR RA98 455-12122-H0 SMD RESISTOR FTR0603221JR RA99 455-12147-H0 SMD RESISTOR FTR0603471JR RA114 455-12147-H0 SMD RESISTOR FTR0603471JR RA115 455-12147-H0 SMD RESISTOR FTR0603471JR RA75 455-12147-H0 SMD RESISTOR FTR0603471JR RA89 455-12147-H0 SMD RESISTOR FTR0603471JR RA90 455-12156-H0 SMD RESISTOR FTR0603561JR RA47 455-12175-H0 SMD RESISTOR FTR0603751JR RA103 455-12175-H0 SMD RESISTOR FTR0603751JR RA118 455-12175-H0 SMD RESISTOR FTR0603751JR RA67 455-12175-H0 SMD RESISTOR FTR0603751JR RA74 455-12175-H0 SMD RESISTOR FTR0603751JR RA94 455-12210-H0 SMD RESISTOR FTR0603102JR RA102 455-12210-H0 SMD RESISTOR FTR0603102JR RA107 455-12210-H0 SMD RESISTOR FTR0603102JR RA108 455-12210-H0 SMD RESISTOR FTR0603102JR RA109 455-12210-H0 SMD RESISTOR FTR0603102JR RA110 455-12210-H0 SMD RESISTOR FTR0603102JR RA111 455-12210-H0 SMD RESISTOR FTR0603102JR RA131 455-12210-H0 SMD RESISTOR FTR0603102JR RA150 455-12210-H0 SMD RESISTOR FTR0603102JR RA22 455-12210-H0 SMD RESISTOR FTR0603102JR RA23 455-12210-H0 SMD RESISTOR FTR0603102JR RA24 455-12210-H0 SMD RESISTOR FTR0603102JR RA25 455-12210-H0 SMD RESISTOR FTR0603102JR RA54 455-12210-H0 SMD RESISTOR FTR0603102JR RA55 455-12210-H0 SMD RESISTOR FTR0603102JR RA83 455-12210-H0 SMD RESISTOR FTR0603102JR RA91

455-12214-F1 SMD RESISTOR FTM06031431FR RA96 455-12215-H0 SMD RESISTOR FTR0603152JR RA120 455-12220-H0 SMD RESISTOR FTR0603202JR RA138 455-12230-H0 SMD RESISTOR FTR0603302JR RA121 455-12233-H0 SMD RESISTOR FTR0603332JR RA152 455-12239-H0 SMD RESISTOR FTR0603392JR RA135 455-12247-H0 SMD RESISTOR FTR0603472JR RA33 455-12247-H0 SMD RESISTOR FTR0603472JR RA34 455-12247-H0 SMD RESISTOR FTR0603472JR RA36 455-12247-H0 SMD RESISTOR FTR0603472JR RA37 455-12247-H0 SMD RESISTOR FTR0603472JR RA68 455-12247-H0 SMD RESISTOR FTR0603472JR RA72 455-12256-H0 SMD RESISTOR FTR0603562JR RA2 455-12256-H0 SMD RESISTOR FTR0603562JR RA3 455-12291-H0 SMD RESISTOR FTR0603912JR RA97 455-12310-H0 SMD RESISTOR FTR0603103JR RA130 455-12310-H0 SMD RESISTOR FTR0603103JR RA136 455-12310-H0 SMD RESISTOR FTR0603103JR RA154 455-12310-H0 SMD RESISTOR FTR0603103JR RA155 455-12310-H0 SMD RESISTOR FTR0603103JR RA157 455-12310-H0 SMD RESISTOR FTR0603103JR RA158 455-12310-H0 SMD RESISTOR FTR0603103JR RA159 455-12310-H0 SMD RESISTOR FTR0603103JR RA160 455-12310-H0 SMD RESISTOR FTR0603103JR RA161 455-12310-H0 SMD RESISTOR FTR0603103JR RA162 455-12310-H0 SMD RESISTOR FTR0603103JR RA163 455-12310-H0 SMD RESISTOR FTR0603103JR RA164 455-12310-H0 SMD RESISTOR FTR0603103JR RA165 455-12310-H0 SMD RESISTOR FTR0603103JR RA166 455-12310-H0 SMD RESISTOR FTR0603103JR RA167 455-12310-H0 SMD RESISTOR FTR0603103JR RA168 455-12310-H0 SMD RESISTOR FTR0603103JR RA172 455-12310-H0 SMD RESISTOR FTR0603103JR RA173 455-12310-H0 SMD RESISTOR FTR0603103JR RA174 455-12310-H0 SMD RESISTOR FTR0603103JR RA175 455-12310-H0 SMD RESISTOR FTR0603103JR RA176 455-12310-H0 SMD RESISTOR FTR0603103JR RA177 455-12310-H0 SMD RESISTOR FTR0603103JR RA21 455-12310-H0 SMD RESISTOR FTR0603103JR RA4 455-12310-H0 SMD RESISTOR FTR0603103JR RA43 455-12310-H0 SMD RESISTOR FTR0603103JR RA44 455-12310-H0 SMD RESISTOR FTR0603103JR RA45 455-12310-H0 SMD RESISTOR FTR0603103JR RA46 455-12310-H0 SMD RESISTOR FTR0603103JR RA48 455-12310-H0 SMD RESISTOR FTR0603103JR RA49 455-12310-H0 SMD RESISTOR FTR0603103JR RA50 455-12310-H0 SMD RESISTOR FTR0603103JR RA51 455-12310-H0 SMD RESISTOR FTR0603103JR RA61

455-12310-H0 SMD RESISTOR FTR0603103JR RA62 455-12310-H0 SMD RESISTOR FTR0603103JR RA78 455-12310-H0 SMD RESISTOR FTR0603103JR RA95 455-12312-H0 SMD RESISTOR FTR0603123JR RA40 455-12315-H0 SMD RESISTOR FTR0603153JR RA42 455-12410-H0 SMD RESISTOR FTR0603104JR RA11 455-12410-H0 SMD RESISTOR FTR0603104JR RA12 455-12410-H0 SMD RESISTOR FTR0603104JR RA13 455-12410-H0 SMD RESISTOR FTR0603104JR RA14 455-12410-H0 SMD RESISTOR FTR0603104JR RA16 455-12410-H0 SMD RESISTOR FTR0603104JR RA17 455-12410-H0 SMD RESISTOR FTR0603104JR RA19 455-12410-H0 SMD RESISTOR FTR0603104JR RA20 455-12410-H0 SMD RESISTOR FTR0603104JR RA66 455-12410-H0 SMD RESISTOR FTR0603104JR RA69 455-12410-H0 SMD RESISTOR FTR0603104JR RA80 455-12410-H0 SMD RESISTOR FTR0603104JR RA84 455-12410-H0 SMD RESISTOR FTR0603104JR RA87 455-12410-H0 SMD RESISTOR FTR0603104JR RA88 455-12412-H0 SMD RESISTOR FTR0603124JR RA146 455-12412-H0 SMD RESISTOR FTR0603124JR RA149 455-12412-H0 SMD RESISTOR FTR0603124JR RA156 455-12456-H0 SMD RESISTOR FTR0603564JR RA41 455-12456-H0 SMD RESISTOR FTR0603564JR RA52 456-1447R-C3 SMD CAPACITOR C3216Y5V1C474ZT CA180 456-1447R-C3 SMD CAPACITOR C3216Y5V1C474ZT CA181 456-2122H-11 SMD CAPACITOR 0603CG221J250BA CA114 456-2147H-11 SMD CAPACITOR 0603CG471J250BA CA105 456-2147H-11 SMD CAPACITOR 0603CG471J250BA CA112 456-2147H-11 SMD CAPACITOR 0603CG471J250BA CA113 456-2147H-11 SMD CAPACITOR 0603CG471J250BA CA145 456-2147H-11 SMD CAPACITOR 0603CG471J250BA CA91

456-2210K-B1 SMD CAPACITOR 06032R102K250BA CA11 456-2210K-B1 SMD CAPACITOR 06032R102K250BA CA12 456-2210K-B1 SMD CAPACITOR 06032R102K250BA CA13 456-2210K-B1 SMD CAPACITOR 06032R102K250BA CA14 456-2210K-B1 SMD CAPACITOR 06032R102K250BA CA162 456-2210K-B1 SMD CAPACITOR 06032R102K250BA CA163 456-2215K-B1 SMD CAPACITOR 06032R152K250BA CA102 456-2215K-B1 SMD CAPACITOR 06032R152K250BA CA144 456-2215K-B1 SMD CAPACITOR 06032R152K250BA CA86

456-2310R-C1 SMD CAPACITOR 06032E103Z250BA CA103 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA CA141 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA CA220 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA CA57 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA CA58 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA CA59

456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA1

456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA143 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA15 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA170 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA172 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA188 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA189 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA192 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA199 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA200 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA205 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA209 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA219 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA227 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA228 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA229 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA231 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA80

456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA115 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA116 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA120 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA122 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA131 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA132 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA134 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA139 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA140 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA151 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA168 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA187 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA195 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA196 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA198 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA207 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA213 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA53 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA56 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA64 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA65 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA66 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA69 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA85 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA92 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA95 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA96 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT CA98

456-2422M-C1 SMD CAPACITOR 06032E224M250BA CA130 456-2422M-C1 SMD CAPACITOR 06032E224M250BA CA169 456-2422M-C1 SMD CAPACITOR 06032E224M250BA CA171

456-2422M-C1 SMD CAPACITOR 06032E224M250BA CA185 456-2422M-C1 SMD CAPACITOR 06032E224M250BA CA186

456-2433R-C1 SMD CAPACITOR 06032E334Z250BA CA78 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA100 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA101 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA104 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA110 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA117 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA118 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA121 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA123 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA152 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA153 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA154 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA155 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA156 456-2482R-C1 SMD CAPACITOR 06032E824Z250BA CA108 456-2510R-C1 SMD CAPACITOR 06032E105Z250BA CA159 456-2510R-C1 SMD CAPACITOR 06032E105Z250BA CA160 456-2510R-C1 SMD CAPACITOR 06032E105Z250BA CA175 456-2510R-C1 SMD CAPACITOR 06032E105Z250BA CA42 456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA CA201 456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA CA202 456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA CA204 456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA CA230 456-3018H-11 SMD CAPACITOR 0603CG180J500BA CA83 456-3018H-11 SMD CAPACITOR 0603CG180J500BA CA84 456-3051H-11 SMD CAPACITOR 0603CG510J500BA CA87 456-3051H-11 SMD CAPACITOR 0603CG510J500BA CA88 456-3051H-11 SMD CAPACITOR 0603CG510J500BA CA89 456-3122H-11 SMD CAPACITOR 0603CG221J500BA CA203 456-3156H-11 SMD CAPACITOR C1608CH1H561JT CA16 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA176 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA177 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA178 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA179 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA221 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA3 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA4 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA49 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA51 456-3215H-11 SMD CAPACITOR 0603CG152J500BA CA2 456-3215H-11 SMD CAPACITOR 0603CG152J500BA CA41 456-3222H-11 SMD CAPACITOR 0603CG222J500BA CA146 456-3222H-11 SMD CAPACITOR 0603CG222J500BA CA147 456-3247H-11 SMD CAPACITOR 0603CG472J500BA CA129

456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA10 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA17

456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA18 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA19 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA20 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA27 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA28 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA5 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA50 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA54 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA6 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA7 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA71 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA72 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA75 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA8 456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA9 456-3318K-B1 SMD CAPACITOR 06032R183K500BA CA111

474-14010-K0 SMD COIL SGMI3216K100KT LA56

477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 LA38

477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 LA41

477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 LA42

477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 LA45

477-40212-00 SMD FIXED INDUCTANCE SLF12575T-470M2R7 LA53

477-40212-00 SMD FIXED INDUCTANCE SLF12575T-470M2R7 LA57

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA1

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA11

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA12

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA13

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA14

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA15

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA16

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA17

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA18

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA19

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA2

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA20

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA21

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA22

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA23

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA25

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA26

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA27

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA28

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA3

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA4

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA48

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA49

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA50

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA52

666-12012-00 SMD FERRITE BEAD BG2012B300T LA10

666-12012-00 SMD FERRITE BEAD BG2012B300T LA5

666-12012-00 SMD FERRITE BEAD BG2012B300T LA6

666-12012-00 SMD FERRITE BEAD BG2012B300T LA7

666-12012-00 SMD FERRITE BEAD BG2012B300T LA8

666-12012-00 SMD FERRITE BEAD BG2012B300T LA9

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA37

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA39

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA40

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA43

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA44

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA65

782-L37R7-530B

667-L37R7-53\ ANALOGUE BOARD ASS'Y (MANUAL INSERTION )

329-61805-00 CRYSTAL HC-49U 18.432MHZ GA1

364-32101-00 2-PINS CONNECTORS TJC3-02A XA15

364-34101-00 4-PINS CONNECTORS TJC3-04A XA17

364-34101-00 4-PINS CONNECTORS TJC3-04A XA18

364-341AY-00 4-PINS CONNECTORS JC10-4A XA16

364-41207-00 ANTENNA SOCKET HR-F

364-91202-00 S-VIDEO TERMINAL CKX5-2K-2 XA1

364-91202-00 S-VIDEO TERMINAL CKX5-2K-2 XA2

364-93219-00 AV JACK AV3-14WKD XA6

364-93219-00 AV JACK AV3-14WKD XA7

364-94206-00 AV JACK HJR-413/PB-1 XA3

364-96221-00 AV JACK HJR-613/PB-1 XA4

364-96228-00 AV JACK AV13-06-526 XA5 462-90410-H0 POLYESTER CAPACITOR 63V-0.1uF-J CA173 462-90410-H0 POLYESTER CAPACITOR 63V-0.1uF-J CA174 462-90410-H0 POLYESTER CAPACITOR 63V-0.1uF-J CA183 462-90410-H0 POLYESTER CAPACITOR 63V-0.1uF-J CA184

464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M CA76 464-6D747-M0 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M CA77 464-6D810-M0 ELECTROLYTIC CAPACITOR CD110-16V-1000uF-M CA191 464-6D810-M0 ELECTROLYTIC CAPACITOR CD110-16V-1000uF-M CA211 464-6D810-M0 ELECTROLYTIC CAPACITOR CD110-16V-1000uF-M CA212

464-6E610-M0 ELECTROLYTIC CAPACITOR CD110-25V-10uF-M CA166 464-6E610-M0 ELECTROLYTIC CAPACITOR CD110-25V-10uF-M CA167

471-1068H-00 PEAKING COIL EL0606SKI-680J LA24 471-1068H-00 PEAKING COIL EL0606SKI-680J LA29 471-1068H-00 PEAKING COIL EL0606SKI-680J LA30 471-1068H-00 PEAKING COIL EL0606SKI-680J LA31 471-1068H-00 PEAKING COIL EL0606SKI-680J LA32 471-1068H-00 PEAKING COIL EL0606SKI-680J LA33 471-1068H-00 PEAKING COIL EL0606SKI-680J LA34 471-1068H-00 PEAKING COIL EL0606SKI-680J LA35 471-1068H-00 PEAKING COIL EL0606SKI-680J LA36

ANALOGUE处理 BOARD PCB

471-1068H-00 PEAKING COIL EL0606SKI-680J LA55

590-40716-00 TUNER JS-6AM/134 ! TUNA1

590-40718-00 TUNER JS-6AM/134-A2 TUNA2

655-4E301-110 (4-PINS) LEAD WITH HOUSING XA19

655-64301-14 (6-PINS) LEAD WITH HOUSING XA9 655-6E301-62 (6-PINS) LEAD WITH HOUSING XA8 655-8E301-45 (8-PINS) LEAD WITH HOUSING XA10 655-B1201-66 (12-PINS) LEAD WITH HOUSING XA14 665-N0100-00 COAXIAL CABLE CSYV-2B-100 665-N0260-00 *COAXIAL CABLE CSYV-2B-260

666-13001-00 FERRITE BEAD TY30X20X10

666-13512-00 FERRITE BEAD 253D-02 LA46

666-13512-00 FERRITE BEAD 253D-02 LA47

666-13512-00 FERRITE BEAD 253D-02 LA51

666-13512-00 FERRITE BEAD 253D-02 LA54

666-13512-00 FERRITE BEAD 253D-02 LA59

666-13512-00 FERRITE BEAD 253D-02 LA66

667-L37R25-56 CPU BOARD ASS'Y

667-L37R25-56\ CPU BOARD ASS'Y (MANUAL INSERTION )

667-L37R7-56\ CPU BOARD ASS'Y (MANUAL INSERTION )

329-61304-00 CRYSTAL HC-49S 13.5MHz G3

329-61402-00 CRYSTAL HC-49/US 14.31818MHZ G1

329-61402-00 CRYSTAL HC-49/US 14.31818MHZ G2

329-61402-00 CRYSTAL HC-49/US 14.31818MHZ G4

329-61402-00 CRYSTAL HC-49/US 14.31818MHZ G5

364-33104-00 3-PINS CONNECTORS TJC3-03AWT X20

364-331AY-00 3-PINS CONNECTORS TJC10-3A X9

364-34168-00 4-PINS CONNECTORS 112-DS04G-S X22

364-341AY-00 4-PINS CONNECTORS JC10-4A X24 364-341AY-00 4-PINS CONNECTORS JC10-4A X7 364-351AY-00 5-PINS CONNECTORS TJC10-5A X10 364-361AY-00 6-PINS CONNECTORS TJC10-06A X1 364-361AY-00 6-PINS CONNECTORS TJC10-06A X6

364-37101-00 7-PINS CONNECTORS TJC3-07A X21

364-381AY-00 8-PINS CONNECTORS JC10-8A X8

364-3B1AY-00 12-PINS CONNECTORS TJC10-12A X15

364-91227-00 VGA SOCKET SCREW X3

364-92228-00 SOCKET AV2-8413 X5

464-6C722-M0 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M C260 464-6C810-M0 ELECTROLYTIC CAPACITOR CD110-10V-1000uF-M C258

464-6E710-M0 ELECTROLYTIC CAPACITOR CD110-25V-100uF-M C246

471-1068H-00 PEAKING COIL EL0606SKI-680J L4

569-02155-00 FUSE 20N030L-125V 3A ! FU1

666-13512-00 FERRITE BEAD 253D-02 L40

667-L37R25-56* CPU BOARD ASS'Y (SMD )

667-L37R7-56* CPU BOARD ASS'Y (SMD )

340-00001-0S SMD DIODE LL4148 D101

340-00001-0S SMD DIODE LL4148 D102

340-00001-0S SMD DIODE LL4148 D401

340-00001-0S SMD DIODE LL4148 D402

340-00001-0S SMD DIODE LL4148 D403

340-00001-0S SMD DIODE LL4148 D404

340-00001-0S SMD DIODE LL4148 D406

340-00001-0S SMD DIODE LL4148 D412

340-00001-0S SMD DIODE LL4148 D503

340-00289-00 SMD DIODE BAV99LT1 D5

340-00289-00 SMD DIODE BAV99LT1 D601

340-00289-00 SMD DIODE BAV99LT1 D602

340-00289-00 SMD DIODE BAV99LT1 D603

340-00296-00 SMD DIODE SK34 D6

340-00362-00 SMD DIODE MBRST130LT3 D3

340-00362-00 SMD DIODE MBRST130LT3 D4

340-00372-00 SMD DIODE MMBD1204 D1

340-00372-00 SMD DIODE MMBD1204 D2

340-00372-00 SMD DIODE MMBD1204 D9

342-01380-00 *SMD TRANSISTOR BSS138LT1 V1

342-01380-00 *SMD TRANSISTOR BSS138LT1 V2

342-01380-00 *SMD TRANSISTOR BSS138LT1 V6

342-01380-00 *SMD TRANSISTOR BSS138LT1 V7

342-01380-00 *SMD TRANSISTOR BSS138LT1 V8

342-01440-10 SMD TRANSISTOR DTC144EKA V102

342-01440-10 SMD TRANSISTOR DTC144EKA V16

342-08470-40 SMD TRANSISTOR BC847B V109

342-08470-90 SMD TRANSISTOR BC847AW V10

342-08470-90 SMD TRANSISTOR BC847AW V105

342-08470-90 SMD TRANSISTOR BC847AW V106

342-08470-90 SMD TRANSISTOR BC847AW V108

342-08470-90 SMD TRANSISTOR BC847AW V11

342-08470-90 SMD TRANSISTOR BC847AW V110

342-08470-90 SMD TRANSISTOR BC847AW V112

342-08470-90 SMD TRANSISTOR BC847AW V113

342-08470-90 SMD TRANSISTOR BC847AW V114

342-08470-90 SMD TRANSISTOR BC847AW V12

342-08470-90 SMD TRANSISTOR BC847AW V13

342-08470-90 SMD TRANSISTOR BC847AW V15

342-08470-90 SMD TRANSISTOR BC847AW V17

342-08470-90 SMD TRANSISTOR BC847AW V19

342-08470-90 SMD TRANSISTOR BC847AW V203

342-08470-90 SMD TRANSISTOR BC847AW V204

342-08470-90 SMD TRANSISTOR BC847AW V3

342-08470-90 SMD TRANSISTOR BC847AW V4

342-08470-90 SMD TRANSISTOR BC847AW V402

342-08470-90 SMD TRANSISTOR BC847AW V9

342-08570-90 SMD TRANSISTOR BC857 AW V107

342-08570-90 SMD TRANSISTOR BC857 AW V401

343-27170-004 TRANSISTOR 2SC2717 V104

353-00050-40 SMD IC SRV05-4 (M) N29

353-00050-40 SMD IC SRV05-4 (M) N30

353-00450-10 SMD ICPACDN045YB6 N6

353-02320-30 SMD ICMT48LC2M32B2TG-6 N13

353-08090-10 SMD ICMAX809 STR N14

353-11170-10 SMD IC B1117N-2.5 (D) N19

353-11170-10 SMD IC B1117N-2.5 (D) N32

353-11170-20 SMD IC AS1117M-3.3 (M) N18 353-11170-G0 SMD IC AMS1117-1.8 (D) N11 353-11170-G0 SMD IC AMS1117-1.8 (D) N20 353-11170-G0 SMD IC AMS1117-1.8 (D) N9

353-12180-10 SMD ICCM1218-04SC N27

353-12180-10 SMD ICCM1218-04SC N28

353-12180-10 SMD ICCM1218-04SC N31

353-15010-10 *SMD ICAP1501K5LA N502

353-15010-30 SMD ICAP1501-33K5 N22

353-15010-50 SMD ICAP1501-50K5 N501

353-15900-10 SMD ICR2S15900SP N301

353-16010-20 *SMD IC GM1601-CF (D) N15

353-16244-20 SMD IC 74LVC16244ADGG N35

353-16244-20 SMD IC 74LVC16244ADGG N36

353-23100-10 SMD ICFLI2310-CF N10

353-24020-60 SMD IC 24C02N-10SI27 N1

353-24020-60 SMD IC 24C02N-10SI27 N2

353-24040-00 SMD IC 24LC04B/SN N5

353-24320-50 SMD IC24LC32A/SN N16

353-28322-20 SMD ICHY5DU283222 AQ-5 N12

353-29040-10 SMD IC MX29LV040QC-70 N17

353-30080-10 SMD ICTPA3008D2 N401

353-32570-10 SMD ICSN74CBT3257CDR N4

353-33830-10 *SMD ICMST 3383MB-170 N34

353-43340-30 SMD ICCS4334-KS N26

353-51470-10 SMD ICTVP5147PFP N8

353-51600-10 *SMD ICTVP5160-PNP N7

353-74140-30 SMD IC SN74AHC14PWP (D) N24

353-98161-60 *SMD ICW9816161CH-6 N33

353-99330-00 SMD IC SI9933ADY (O) N21 364-T1503-00 15-PINS CONNECTORS HA125A-15T X16 364-T1901-00 SMD 19-PINSHDMI1775244-2 X2 364-T3001-00 SMD 30-PINSFF-A1255-WRS X17

454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C100 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C104 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C105 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C107 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C108 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C109

454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C113 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C115 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C116 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C147 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C232 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C322 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C1 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C101 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C144 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C145 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C146 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C150 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C151 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C152 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C153 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C154 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C155 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C188 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C234 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C235 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C236 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C239 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C240 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C241 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C244 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C247 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C295 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C296 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C313 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C7 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C70 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C72 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C8 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C82 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C9 454-03710-MC SMD ELECTROLYTIC CAPACITOR CDPS-10V-100uF-M C38 454-03710-MC SMD ELECTROLYTIC CAPACITOR CDPS-10V-100uF-M C44 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C267 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C268 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C289 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C290 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C291 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C292 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C293 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C294 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C301 454-04710-MC SMD ELECTROLYTIC CAPACITOR CDPS-16V-100uF-M C12 454-04710-MC SMD ELECTROLYTIC CAPACITOR CDPS-16V-100uF-M C13

454-06647-MC *SMD ELECTROLYTIC CAPACITOR CDPS-25V-47uF-M C249

455-10010-H9 SMD RESISTOR NCA4R100JR R214 455-10010-H9 SMD RESISTOR NCA4R100JR R215 455-10010-H9 SMD RESISTOR NCA4R100JR R216 455-10010-H9 SMD RESISTOR NCA4R100JR R217 455-10010-H9 SMD RESISTOR NCA4R100JR R218 455-10010-H9 SMD RESISTOR NCA4R100JR R219 455-10010-H9 SMD RESISTOR NCA4R100JR R223 455-10010-H9 SMD RESISTOR NCA4R100JR R251 455-10010-H9 SMD RESISTOR NCA4R100JR R252 455-10310-H9 SMD RESISTOR NCA4R103JR R161 455-10310-H9 SMD RESISTOR NCA4R103JR R162 455-10310-H9 SMD RESISTOR NCA4R103JR R163 455-10310-H9 SMD RESISTOR NCA4R103JR R164 455-12000-H0 SMD RESISTOR FTR0603000XR C706 455-12000-H0 SMD RESISTOR FTR0603000XR R102 455-12000-H0 SMD RESISTOR FTR0603000XR R107 455-12000-H0 SMD RESISTOR FTR0603000XR R126 455-12000-H0 SMD RESISTOR FTR0603000XR R130 455-12000-H0 SMD RESISTOR FTR0603000XR R131 455-12000-H0 SMD RESISTOR FTR0603000XR R150 455-12000-H0 SMD RESISTOR FTR0603000XR R165 455-12000-H0 SMD RESISTOR FTR0603000XR R167 455-12000-H0 SMD RESISTOR FTR0603000XR R168 455-12000-H0 SMD RESISTOR FTR0603000XR R19 455-12000-H0 SMD RESISTOR FTR0603000XR R222 455-12000-H0 SMD RESISTOR FTR0603000XR R4 455-12000-H0 SMD RESISTOR FTR0603000XR R411 455-12000-H0 SMD RESISTOR FTR0603000XR R710 455-12020-H0 SMD RESISTOR FTR0603200JR R26 455-12020-H0 SMD RESISTOR FTR0603200JR R27 455-12020-H0 SMD RESISTOR FTR0603200JR R28 455-12022-H0 SMD RESISTOR FTR0603220JR R62 455-12022-H0 SMD RESISTOR FTR0603220JR R66 455-12022-H0 SMD RESISTOR FTR0603220JR R76 455-12022-H0 SMD RESISTOR FTR0603220JR R77 455-12022-H0 SMD RESISTOR FTR0603220JR R83 455-12033-H0 SMD RESISTOR FTR0603330JR R129 455-12056-H0 SMD RESISTOR FTR0603560JR R120 455-12056-H0 SMD RESISTOR FTR0603560JR R33 455-12056-H0 SMD RESISTOR FTR0603560JR R34 455-12056-H0 SMD RESISTOR FTR0603560JR R35

455-12075-F0 SMD RESISTOR FTM06030750FR R7

455-12075-F0 SMD RESISTOR FTM06030750FR R8

455-12075-F0 SMD RESISTOR FTM06030750FR R9

455-12075-F0 SMD RESISTOR FTM06030750FR R91

455-12075-F0 SMD RESISTOR FTM06030750FR R93

455-12075-F0 SMD RESISTOR FTM06030750FR R94

455-12075-H0 SMD RESISTOR FTR0603750JR R44 455-12075-H0 SMD RESISTOR FTR0603750JR R45 455-12075-H0 SMD RESISTOR FTR0603750JR R46 455-12075-H0 SMD RESISTOR FTR0603750JR R47 455-12075-H0 SMD RESISTOR FTR0603750JR R48 455-12075-H0 SMD RESISTOR FTR0603750JR R49 455-12075-H0 SMD RESISTOR FTR0603750JR R50 455-12075-H0 SMD RESISTOR FTR0603750JR R51 455-12075-H0 SMD RESISTOR FTR0603750JR R52 455-12075-H0 SMD RESISTOR FTR0603750JR R53 455-12075-H0 SMD RESISTOR FTR0603750JR R601 455-12075-H0 SMD RESISTOR FTR0603750JR R602 455-12075-H0 SMD RESISTOR FTR0603750JR R605 455-12075-H0 SMD RESISTOR FTR0603750JR R705 455-12110-H0 SMD RESISTOR FTR0603101JR R112 455-12110-H0 SMD RESISTOR FTR0603101JR R123 455-12110-H0 SMD RESISTOR FTR0603101JR R124 455-12110-H0 SMD RESISTOR FTR0603101JR R134 455-12110-H0 SMD RESISTOR FTR0603101JR R14 455-12110-H0 SMD RESISTOR FTR0603101JR R146 455-12110-H0 SMD RESISTOR FTR0603101JR R147 455-12110-H0 SMD RESISTOR FTR0603101JR R148 455-12110-H0 SMD RESISTOR FTR0603101JR R15 455-12110-H0 SMD RESISTOR FTR0603101JR R150 455-12110-H0 SMD RESISTOR FTR0603101JR R151 455-12110-H0 SMD RESISTOR FTR0603101JR R156 455-12110-H0 SMD RESISTOR FTR0603101JR R160 455-12110-H0 SMD RESISTOR FTR0603101JR R188 455-12110-H0 SMD RESISTOR FTR0603101JR R209 455-12110-H0 SMD RESISTOR FTR0603101JR R210 455-12110-H0 SMD RESISTOR FTR0603101JR R212 455-12110-H0 SMD RESISTOR FTR0603101JR R213 455-12110-H0 SMD RESISTOR FTR0603101JR R221 455-12110-H0 SMD RESISTOR FTR0603101JR R234 455-12110-H0 SMD RESISTOR FTR0603101JR R238 455-12110-H0 SMD RESISTOR FTR0603101JR R239 455-12110-H0 SMD RESISTOR FTR0603101JR R29 455-12110-H0 SMD RESISTOR FTR0603101JR R304 455-12110-H0 SMD RESISTOR FTR0603101JR R305 455-12110-H0 SMD RESISTOR FTR0603101JR R401 455-12110-H0 SMD RESISTOR FTR0603101JR R402 455-12110-H0 SMD RESISTOR FTR0603101JR R5 455-12110-H0 SMD RESISTOR FTR0603101JR R6 455-12110-H0 SMD RESISTOR FTR0603101JR R63 455-12110-H0 SMD RESISTOR FTR0603101JR R64 455-12110-H0 SMD RESISTOR FTR0603101JR R65 455-12110-H0 SMD RESISTOR FTR0603101JR R67 455-12110-H0 SMD RESISTOR FTR0603101JR R68

455-12110-H0 SMD RESISTOR FTR0603101JR R69 455-12110-H0 SMD RESISTOR FTR0603101JR R78 455-12110-H0 SMD RESISTOR FTR0603101JR R79 455-12110-H0 SMD RESISTOR FTR0603101JR R80 455-12110-H0 SMD RESISTOR FTR0603101JR R81 455-12110-H0 SMD RESISTOR FTR0603101JR R95

455-12113-F1 SMD RESISTOR FTM06031370FR R105 455-12115-H0 SMD RESISTOR FTR0603151JR R718 455-12115-H0 SMD RESISTOR FTR0603151JR R719 455-12118-H0 SMD RESISTOR FTR0603181JR R85 455-12124-H0 SMD RESISTOR FTR0603241JR R127 455-12133-H0 SMD RESISTOR FTR0603331JR R405 455-12133-H0 SMD RESISTOR FTR0603331JR R553 455-12133-H0 SMD RESISTOR FTR0603331JR R554 455-12133-H0 SMD RESISTOR FTR0603331JR R701 455-12133-H0 SMD RESISTOR FTR0603331JR R704 455-12133-H0 SMD RESISTOR FTR0603331JR R707 455-12139-H0 SMD RESISTOR FTR0603391JR R220 455-12147-H0 SMD RESISTOR FTR0603471JR R143 455-12147-H0 SMD RESISTOR FTR0603471JR R38 455-12147-H0 SMD RESISTOR FTR0603471JR R39 455-12147-H0 SMD RESISTOR FTR0603471JR R703 455-12147-H0 SMD RESISTOR FTR0603471JR R708 455-12147-H0 SMD RESISTOR FTR0603471JR R709 455-12147-H0 SMD RESISTOR FTR0603471JR R717 455-12156-H0 SMD RESISTOR FTR0603561JR R118 455-12168-H0 SMD RESISTOR FTR0603681JR R140 455-12175-H0 SMD RESISTOR FTR0603751JR R25 455-12210-H0 SMD RESISTOR FTR0603102JR R106 455-12210-H0 SMD RESISTOR FTR0603102JR R108 455-12210-H0 SMD RESISTOR FTR0603102JR R11 455-12210-H0 SMD RESISTOR FTR0603102JR R124 455-12210-H0 SMD RESISTOR FTR0603102JR R138 455-12210-H0 SMD RESISTOR FTR0603102JR R154 455-12210-H0 SMD RESISTOR FTR0603102JR R157 455-12210-H0 SMD RESISTOR FTR0603102JR R181 455-12210-H0 SMD RESISTOR FTR0603102JR R182 455-12210-H0 SMD RESISTOR FTR0603102JR R214 455-12210-H0 SMD RESISTOR FTR0603102JR R216 455-12210-H0 SMD RESISTOR FTR0603102JR R414 455-12210-H0 SMD RESISTOR FTR0603102JR R415 455-12210-H0 SMD RESISTOR FTR0603102JR R42 455-12210-H0 SMD RESISTOR FTR0603102JR R43 455-12210-H0 SMD RESISTOR FTR0603102JR R502 455-12210-H0 SMD RESISTOR FTR0603102JR R720 455-12220-H0 SMD RESISTOR FTR0603202JR R113 455-12222-H0 SMD RESISTOR FTR0603222JR R107 455-12222-H0 SMD RESISTOR FTR0603222JR R108

455-12222-H0 SMD RESISTOR FTR0603222JR R133 455-12222-H0 SMD RESISTOR FTR0603222JR R139 455-12222-H0 SMD RESISTOR FTR0603222JR R155 455-12222-H0 SMD RESISTOR FTR0603222JR R158 455-12222-H0 SMD RESISTOR FTR0603222JR R211 455-12222-H0 SMD RESISTOR FTR0603222JR R240 455-12222-H0 SMD RESISTOR FTR0603222JR R712 455-12222-H0 SMD RESISTOR FTR0603222JR R714 455-12224-H0 SMD RESISTOR FTR0603242JR R125 455-12227-H0 SMD RESISTOR FTR0603272JR R117 455-12227-H0 SMD RESISTOR FTR0603272JR R132 455-12227-H0 SMD RESISTOR FTR0603272JR R133 455-12227-H0 SMD RESISTOR FTR0603272JR R135 455-12227-H0 SMD RESISTOR FTR0603272JR R149 455-12227-H0 SMD RESISTOR FTR0603272JR R162 455-12227-H0 SMD RESISTOR FTR0603272JR R56 455-12227-H0 SMD RESISTOR FTR0603272JR R58 455-12230-H0 SMD RESISTOR FTR0603302JR R301 455-12230-H0 SMD RESISTOR FTR0603302JR R306 455-12233-H0 SMD RESISTOR FTR0603332JR R125 455-12233-H0 SMD RESISTOR FTR0603332JR R130 455-12239-H0 SMD RESISTOR FTR0603392JR R145 455-12239-H0 SMD RESISTOR FTR0603392JR R149 455-12247-H0 SMD RESISTOR FTR0603472JR R115 455-12247-H0 SMD RESISTOR FTR0603472JR R151 455-12247-H0 SMD RESISTOR FTR0603472JR R171 455-12247-H0 SMD RESISTOR FTR0603472JR R176 455-12247-H0 SMD RESISTOR FTR0603472JR R179 455-12247-H0 SMD RESISTOR FTR0603472JR R186 455-12247-H0 SMD RESISTOR FTR0603472JR R236 455-12247-H0 SMD RESISTOR FTR0603472JR R237 455-12247-H0 SMD RESISTOR FTR0603472JR R248 455-12256-H0 SMD RESISTOR FTR0603562JR R123

455-12263-F1 SMD RESISTOR FTM06036341FR R503 455-12268-H0 SMD RESISTOR FTR0603682JR R129 455-12275-H0 SMD RESISTOR FTR0603752JR R127 455-12310-H0 SMD RESISTOR FTR0603103JR R10 455-12310-H0 SMD RESISTOR FTR0603103JR R103 455-12310-H0 SMD RESISTOR FTR0603103JR R104 455-12310-H0 SMD RESISTOR FTR0603103JR R104 455-12310-H0 SMD RESISTOR FTR0603103JR R109 455-12310-H0 SMD RESISTOR FTR0603103JR R109 455-12310-H0 SMD RESISTOR FTR0603103JR R110 455-12310-H0 SMD RESISTOR FTR0603103JR R116 455-12310-H0 SMD RESISTOR FTR0603103JR R116 455-12310-H0 SMD RESISTOR FTR0603103JR R118 455-12310-H0 SMD RESISTOR FTR0603103JR R12 455-12310-H0 SMD RESISTOR FTR0603103JR R121

455-12310-H0 SMD RESISTOR FTR0603103JR R122 455-12310-H0 SMD RESISTOR FTR0603103JR R126 455-12310-H0 SMD RESISTOR FTR0603103JR R128 455-12310-H0 SMD RESISTOR FTR0603103JR R132 455-12310-H0 SMD RESISTOR FTR0603103JR R136 455-12310-H0 SMD RESISTOR FTR0603103JR R137 455-12310-H0 SMD RESISTOR FTR0603103JR R137 455-12310-H0 SMD RESISTOR FTR0603103JR R138 455-12310-H0 SMD RESISTOR FTR0603103JR R139 455-12310-H0 SMD RESISTOR FTR0603103JR R140 455-12310-H0 SMD RESISTOR FTR0603103JR R152 455-12310-H0 SMD RESISTOR FTR0603103JR R159 455-12310-H0 SMD RESISTOR FTR0603103JR R16 455-12310-H0 SMD RESISTOR FTR0603103JR R160 455-12310-H0 SMD RESISTOR FTR0603103JR R161 455-12310-H0 SMD RESISTOR FTR0603103JR R17 455-12310-H0 SMD RESISTOR FTR0603103JR R172 455-12310-H0 SMD RESISTOR FTR0603103JR R174 455-12310-H0 SMD RESISTOR FTR0603103JR R175 455-12310-H0 SMD RESISTOR FTR0603103JR R178 455-12310-H0 SMD RESISTOR FTR0603103JR R187 455-12310-H0 SMD RESISTOR FTR0603103JR R189 455-12310-H0 SMD RESISTOR FTR0603103JR R190 455-12310-H0 SMD RESISTOR FTR0603103JR R191 455-12310-H0 SMD RESISTOR FTR0603103JR R192 455-12310-H0 SMD RESISTOR FTR0603103JR R193 455-12310-H0 SMD RESISTOR FTR0603103JR R194 455-12310-H0 SMD RESISTOR FTR0603103JR R224 455-12310-H0 SMD RESISTOR FTR0603103JR R24 455-12310-H0 SMD RESISTOR FTR0603103JR R241 455-12310-H0 SMD RESISTOR FTR0603103JR R244 455-12310-H0 SMD RESISTOR FTR0603103JR R245 455-12310-H0 SMD RESISTOR FTR0603103JR R249 455-12310-H0 SMD RESISTOR FTR0603103JR R303 455-12310-H0 SMD RESISTOR FTR0603103JR R36 455-12310-H0 SMD RESISTOR FTR0603103JR R37 455-12310-H0 SMD RESISTOR FTR0603103JR R403 455-12310-H0 SMD RESISTOR FTR0603103JR R404 455-12310-H0 SMD RESISTOR FTR0603103JR R501 455-12310-H0 SMD RESISTOR FTR0603103JR R57 455-12310-H0 SMD RESISTOR FTR0603103JR R59 455-12310-H0 SMD RESISTOR FTR0603103JR R60 455-12310-H0 SMD RESISTOR FTR0603103JR R61 455-12310-H0 SMD RESISTOR FTR0603103JR R82 455-12310-H0 SMD RESISTOR FTR0603103JR R92 455-12312-H0 SMD RESISTOR FTR0603123JR R144 455-12312-H0 SMD RESISTOR FTR0603123JR R716 455-12315-H0 SMD RESISTOR FTR0603153JR R159

455-12315-H0 SMD RESISTOR FTR0603153JR R163 455-12320-H0 SMD RESISTOR FTR0603203JR R153 455-12333-H0 SMD RESISTOR FTR0603333JR R715 455-12339-H0 SMD RESISTOR FTR0603393JR R114 455-12347-H0 SMD RESISTOR FTR0603473JR R134 455-12347-H0 SMD RESISTOR FTR0603473JR R136 455-12347-H0 SMD RESISTOR FTR0603473JR R177 455-12347-H0 SMD RESISTOR FTR0603473JR R215 455-12347-H0 SMD RESISTOR FTR0603473JR R217 455-12347-H0 SMD RESISTOR FTR0603473JR R302 455-12347-H0 SMD RESISTOR FTR0603473JR R314 455-12368-H0 SMD RESISTOR FTR0603683JR R142 455-12410-H0 SMD RESISTOR FTR0603104JR R22 455-12410-H0 SMD RESISTOR FTR0603104JR R32 455-12410-H0 SMD RESISTOR FTR0603104JR R40 455-12410-H0 SMD RESISTOR FTR0603104JR R41 455-12410-H0 SMD RESISTOR FTR0603104JR R505 455-12410-H0 SMD RESISTOR FTR0603104JR R54 455-12410-H0 SMD RESISTOR FTR0603104JR R55 455-12410-H0 SMD RESISTOR FTR0603104JR R603 455-12410-H0 SMD RESISTOR FTR0603104JR R604 455-12410-H0 SMD RESISTOR FTR0603104JR R606 455-12410-H0 SMD RESISTOR FTR0603104JR R607 455-12412-H0 SMD RESISTOR FTR0603124JR R410 455-12412-H0 SMD RESISTOR FTR0603124JR R412 455-12415-H0 SMD RESISTOR FTR0603154JR R111 455-12415-H0 SMD RESISTOR FTR0603154JR R112 455-12415-H0 SMD RESISTOR FTR0603154JR R312 455-12415-H0 SMD RESISTOR FTR0603154JR R317 455-12422-H0 SMD RESISTOR FTR0603224JR R113 455-12433-H0 SMD RESISTOR FTR0603334JR R2 455-12447-H0 SMD RESISTOR FTR0603474JR R84 455-12456-H0 SMD RESISTOR FTR0603564JR R141 455-22062-H0 SMD RESISTOR RC11-1/8W-62-J R110 455-22110-H0 SMD RESISTOR RC11-1/8W-100-J R507 455-22110-H0 SMD RESISTOR RC11-1/8W-100-J R508 455-22156-H0 SMD RESISTOR RC11-1/8W-560-J R504 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R506 455-22310-H0 SMD RESISTOR RC11-1/8W-10K-J R406 455-22310-H0 SMD RESISTOR RC11-1/8W-10K-J R407 455-22412-H0 SMD RESISTOR RC11-1/8W-120K-J R413 455-30022-H9 SMD RESISTOR NCA4R220JR R131 455-30022-H9 SMD RESISTOR NCA4R220JR R141 455-30022-H9 SMD RESISTOR NCA4R220JR R142 455-30022-H9 SMD RESISTOR NCA4R220JR R143 455-30022-H9 SMD RESISTOR NCA4R220JR R144 455-30022-H9 SMD RESISTOR NCA4R220JR R145 455-30022-H9 SMD RESISTOR NCA4R220JR R146

455-30022-H9 SMD RESISTOR NCA4R220JR R147 455-30022-H9 SMD RESISTOR NCA4R220JR R148 455-30022-H9 SMD RESISTOR NCA4R220JR R152 455-30022-H9 SMD RESISTOR NCA4R220JR R153 455-30022-H9 SMD RESISTOR NCA4R220JR R154 455-30022-H9 SMD RESISTOR NCA4R220JR R155 455-30022-H9 SMD RESISTOR NCA4R220JR R156 455-30022-H9 SMD RESISTOR NCA4R220JR R157 455-30022-H9 SMD RESISTOR NCA4R220JR R225 455-30022-H9 SMD RESISTOR NCA4R220JR R226 455-30022-H9 SMD RESISTOR NCA4R220JR R227 455-30022-H9 SMD RESISTOR NCA4R220JR R228 455-30022-H9 SMD RESISTOR NCA4R220JR R229 455-30022-H9 SMD RESISTOR NCA4R220JR R230 455-30022-H9 SMD RESISTOR NCA4R220JR R231 455-30022-H9 SMD RESISTOR NCA4R220JR R232 455-30022-H9 SMD RESISTOR NCA4R220JR R233 455-30022-H9 SMD RESISTOR NCA4R220JR R70 455-30022-H9 SMD RESISTOR NCA4R220JR R71 455-30022-H9 SMD RESISTOR NCA4R220JR R72 455-30022-H9 SMD RESISTOR NCA4R220JR R73 455-30022-H9 SMD RESISTOR NCA4R220JR R74 455-30022-H9 SMD RESISTOR NCA4R220JR R75 456-1447R-C3 SMD CAPACITOR C3216Y5V1C474ZT C430 456-1447R-C3 SMD CAPACITOR C3216Y5V1C474ZT C431 456-2022H-11 SMD CAPACITOR 0603CG220J250BA C224 456-2022H-11 SMD CAPACITOR 0603CG220J250BA C227 456-2110H-11 SMD CAPACITOR 0603CG101J250BA C324 456-2110H-11 SMD CAPACITOR 0603CG101J250BA C325

456-2210K-B1 SMD CAPACITOR 06032R102K250BA C320 456-2210K-B1 SMD CAPACITOR 06032R102K250BA C321

456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C108 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C110 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C112 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C119 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C120 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C136 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C16 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C17 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C18 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C19 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C20 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C21 456-2310R-C1 SMD CAPACITOR 06032E103Z250BA C22

456-2322K-B1 SMD CAPACITOR 0603X7R223K250BA C117 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C10 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C101 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C102

456-2410M-C1 SMD CAPACITOR 06032E104M250BA C102 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C103 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C104 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C106 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C107 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C109 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C11 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C110 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C111 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C112 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C114 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C114 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C117 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C118 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C119 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C120 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C121 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C122 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C122 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C123 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C124 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C125 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C126 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C127 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C128 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C129 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C129 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C130 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C131 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C131 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C132 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C133 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C134 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C135 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C136 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C137 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C138 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C139 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C14 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C140 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C141 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C142 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C143 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C148 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C149 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C15 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C156 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C157

456-2410M-C1 SMD CAPACITOR 06032E104M250BA C158 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C159 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C160 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C161 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C162 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C163 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C164 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C165 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C166 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C167 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C168 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C169 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C170 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C171 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C172 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C173 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C174 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C175 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C176 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C177 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C178 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C179 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C180 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C181 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C182 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C183 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C184 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C185 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C186 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C187 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C189 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C190 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C191 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C192 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C193 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C194 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C195 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C196 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C197 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C198 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C199 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C2 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C200 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C201 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C202 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C203 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C204 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C205

456-2410M-C1 SMD CAPACITOR 06032E104M250BA C206 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C207 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C208 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C209 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C210 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C211 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C212 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C213 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C214 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C215 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C216 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C217 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C220 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C221 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C222 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C223 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C225 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C226 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C228 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C229 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C23 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C230 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C231 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C233 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C237 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C238 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C24 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C242 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C243 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C248 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C25 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C251 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C254 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C255 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C256 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C26 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C269 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C27 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C270 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C271 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C272 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C273 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C274 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C275 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C276 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C277 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C278 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C279

456-2410M-C1 SMD CAPACITOR 06032E104M250BA C28 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C280 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C281 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C282 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C283 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C284 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C285 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C286 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C287 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C288 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C29 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C297 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C298 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C299 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C30 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C300 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C302 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C303 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C304 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C305 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C306 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C307 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C308 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C309 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C31 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C310 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C311 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C312 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C314 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C315 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C316 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C317 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C318 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C319 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C321 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C323 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C324 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C325 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C326 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C327 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C328 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C329 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C330 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C36 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C37 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C39 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C4 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C40

456-2410M-C1 SMD CAPACITOR 06032E104M250BA C407 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C408 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C41 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C411 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C42 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C421 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C423 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C43 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C436 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C437 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C442 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C45 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C46 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C47 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C48 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C49 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C5 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C50 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C502 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C504 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C506 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C51 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C516 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C517 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C518 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C52 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C53 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C54 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C55 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C56 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C57 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C58 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C59 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C6 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C60 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C61 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C62 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C63 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C64 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C65 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C66 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C67 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C68 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C69 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C703 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C705 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C71 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C73

456-2410M-C1 SMD CAPACITOR 06032E104M250BA C74 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C75 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C76 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C77 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C78 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C79 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C80 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C81 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C83 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C84 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C85 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C86 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C87 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C88 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C89 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C91 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C92 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C93 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C94 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C95 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C96 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C97 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C99

456-2410R-C2 SMD CAPACITOR C2012Y5V1E104ZT C702 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C322 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C420 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C422 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C434 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C435

456-2447R-C1 SMD CAPACITOR 06032E474Z250BA C413

456-2447R-C1 SMD CAPACITOR 06032E474Z250BA C414

456-2447R-C1 SMD CAPACITOR 06032E474Z250BA C415

456-2447R-C1 SMD CAPACITOR 06032E474Z250BA C416

456-2447R-C1 SMD CAPACITOR 06032E474Z250BA C417

456-2510R-C1 SMD CAPACITOR 06032E105Z250BA C218

456-2510R-C1 SMD CAPACITOR 06032E105Z250BA C245

456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA C438

456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA C439

456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA C441

456-3002C-11 SMD CAPACITOR 0603CG020C500BA C135

456-3015H-11 SMD CAPACITOR 0603CG150J500BA C509

456-3022H-11 SMD CAPACITOR C1608CH1H220JT C263

456-3022H-11 SMD CAPACITOR C1608CH1H220JT C264

456-3033H-11 SMD CAPACITOR C1608CH1H330JT C137

456-3033H-11 SMD CAPACITOR C1608CH1H330JT C32

456-3033H-11 SMD CAPACITOR C1608CH1H330JT C33

456-3033H-11 SMD CAPACITOR C1608CH1H330JT C34

456-3033H-11 SMD CAPACITOR C1608CH1H330JT C35

456-3033H-11 SMD CAPACITOR C1608CH1H330JT C90

456-3033H-11 SMD CAPACITOR C1608CH1H330JT C98

456-3047H-11 SMD CAPACITOR C1608CH1H470JT C3

456-3082H-12 SMD CAPACITOR C2012CH1H820JT C106

456-3110H-11 SMD CAPACITOR C1608CH1H101JT C219

456-3118H-12 SMD CAPACITOR C2012CH1H181JT C126

456-3122H-12 SMD CAPACITOR C2012CH1H221JT C440

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C426

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C427

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C428

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C429

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C507

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C511

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C601

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C602

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C603

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C604

456-3239K-B1 SMD CAPACITOR 06032R392K500BA C265 456-3239K-B1 SMD CAPACITOR 06032R392K500BA C266

456-3310K-B1 SMD CAPACITOR 06032R103K500BA C132 462-00282-K02 POLYESTER CAPACITOR CL11-100V-8200PF-K C307 462-00282-K02 POLYESTER CAPACITOR CL11-100V-8200PF-K C317 462-00315-K02 POLYESTER CAPACITOR CL11-100V-0.015uF-K C310

464-60447-M02 ELECTROLYTIC CAPACITOR CD110-50V-0.47uF-M C105 464-60447-M02 ELECTROLYTIC CAPACITOR CD110-50V-0.47uF-M C115 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C125 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C301 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C302 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C303 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C304 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C312 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C313 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C314 464-60610-M02 ELECTROLYTIC CAPACITOR CD110-50V-10uF-M C513

464-60647-M02 ELECTROLYTIC CAPACITOR CD110-50V-47uF-M C133 464-6D547-M02 ELECTROLYTIC CAPACITOR CD110-16V-4.7uF-M C130 464-6D547-M02 ELECTROLYTIC CAPACITOR CD110-16V-4.7uF-M C305 464-6D547-M02 ELECTROLYTIC CAPACITOR CD110-16V-4.7uF-M C306 464-6D547-M02 ELECTROLYTIC CAPACITOR CD110-16V-4.7uF-M C311 464-6D547-M02 ELECTROLYTIC CAPACITOR CD110-16V-4.7uF-M C315 464-6D547-M02 ELECTROLYTIC CAPACITOR CD110-16V-4.7uF-M C316 464-6D547-M02 ELECTROLYTIC CAPACITOR CD110-16V-4.7uF-M C320 464-6D610-M02 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C116 464-6D610-M02 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C124 464-6D610-M02 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C127 464-6D610-M02 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M C227 464-6D647-M02 ELECTROLYTIC CAPACITOR CD110-16V-47uF-M C701 464-6D710-M02 ELECTROLYTIC CAPACITOR CD110-16V-100uF-M C121

464-6D722-M02 ELECTROLYTIC CAPACITOR CD110-16V-220uF-M C323 464-6D747-M02 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M C512 464-6D747-M02 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M C514 464-6D747-M02 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M C515

464-6E610-M02 *ELECTROLYTIC CAPACITOR CD110-25V-10uF-M C443 464-6E647-M02 ELECTROLYTIC CAPACITOR CD110-25V-47uF-M C508 464-6E710-M02 ELECTROLYTIC CAPACITOR CD110-25V-100uF-M C505 464-6E722-M02 ELECTROLYTIC CAPACITOR CD110-25V-220uF-M C401 464-6E722-M02 ELECTROLYTIC CAPACITOR CD110-25V-220uF-M C503

477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 L403 477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 L406 477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 L407 477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 L410 477-40212-00 SMD FIXED INDUCTANCE SLF12575T-470M2R7 L38 477-40212-00 SMD FIXED INDUCTANCE SLF12575T-470M2R7 L502 477-40212-00 SMD FIXED INDUCTANCE SLF12575T-470M2R7 L504 477-90003-00 SMD FILTER LFA20-2A1E103M Z603 477-90003-00 SMD FILTER LFA20-2A1E103M Z604 477-90003-00 SMD FILTER LFA20-2A1E103M Z606 477-90003-00 SMD FILTER LFA20-2A1E103M Z607 477-90004-00 SMD FILTER LFA20-2A1E104M Z601 477-90004-00 SMD FILTER LFA20-2A1E104M Z602 477-90004-00 SMD FILTER LFA20-2A1E104M Z605 666-12008-00 SMD FERRITE BEAD STBH2012-501PT L7 666-12008-00 SMD FERRITE BEAD STBH2012-501PT L8 666-12012-00 SMD FERRITE BEAD BG2012B300T L1 666-12012-00 SMD FERRITE BEAD BG2012B300T L2 666-12012-00 SMD FERRITE BEAD BG2012B300T L3 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L19 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L20 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L24 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L25 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L31 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L404 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L405 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L408 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L409 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L43 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L44 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L45 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L46 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L507 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L510 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L54 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L705 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L10 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L11 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L12

666-13208-00 SMD FERRITE BEAD STBH3216-301PT L13 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L14 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L15 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L16 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L17 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L18 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L21 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L22 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L23 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L26 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L27 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L28 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L29 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L30 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L32 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L33 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L34 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L35 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L36 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L37 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L47 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L48 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L49 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L50 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L51 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L52 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L53 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L55 666-13208-00 SMD FERRITE BEAD STBH3216-301PT L9

782-L27U25-400E TV PCB

782-L37R7-560B CPU PCB

301-DL37R25-03A RC-D03-0AREMOTE CONTROL UNIT (PRIMA)

APPENDIX-B: Exploded view

333334343535363637373838393940404141

2121 2222 2323 2424 2525 2626 2727 2828 2929 3030 3131 3232

4242

4343

44444545464647474848494950505858 5757 5656 5555 5454 5353 5252

1010 1111 1212 1313 1414 1515 1616 1717 1818 1919 2020

5151

44 55

PART LIST OF EXPLODED VIEW

No. PART NO. DESCRIPTION 1 808-10892-AF0 REAR CABINET BAFFLE(LEFT) 2 364-42201-00 SOCKET 3 808-10903-9A0 SOUND BOX REAR COVER(RIGHT) 4 780-Y25LIHAF8A REAR CABINET 5 785-20023-120 SCREW CAP 6 870-3B203-AF0 BUTTON COVER BRACKET 7 743-1B210-AF0 BUTTON DECORATIVE PIECE 8 615-10467-00 TV BOARD SHIELD COVER ASSY(UPPER) 9 808-1A899-AF0 AV BAFFLE(BOTTOM) 10 804-2A402-00 PORT BAFFLE(BELOW TV BOARD ) 11 808-1G897-AF0 AV BAFFLE(BOTTOM LEFT) 12 804-2A401-00 PORT BAFFLE(LEFT TV BOARD ) 13 ANALOGUE BOARD ASSY 14 615-10468-00 TV BOARD SHIELD COVER ASSY(BOTTOM) 15 808-1A895-AF0 AV BAFFLE(UPPER LEFT) 16 804-2A403-00A PORT BAFFLE(DIGITAL BOARD ) 17 CPU BOARD ASSY 18 615-10470-00 DIGITAL BOARD SHIELD COVER ASSY(BOTTOM) 19 615-10469-00B DIGITAL BOARD SHIELD COVER ASSY(UPPER) 20 808-10896-AF0 AV BAFFLE(UPPER RIGHT) 21 870-1A230-00 LCD PANEL CONNECTION BRACKET(UPPER) 22 870-1A234-00 BOARD CONNECTION BRACKET(LEFT) 23 870-10236-00 BOARD CONNECTION BRACKET 24 870-1A237-00 BOARD CONNECTION PIECE 25 870-1A238-00 BOARD CONNECTION PIECE 26 615-10620/10621-00 LCD PANEL TRANS-CONNECTION BRACKET 27 870-1A235-00 BOARD CONNECTION BRACKET(LEFT) 28 870-10380-00 LCD PANEL CONNECTION PIECE 29 864-10225-AW0A SPEAKER NET(RIGHT) 30 780-Y25L1J6A1A FRONT CABINET 31 743-1A187-00A DECORATIVE PIECE 32 808-20343-262 PMMA DECORATIVE BOARD 33 864-10224-AW0A SPEAKER NET(LEFT) 34 877-50498-0T0 BUTTON CAP 35 870-30202-00 BUTTON BRACKET 36 BUTTON BOARD ASSY 37 808-20343-222 PMMA DECORATIVE BOARD 38 870-1A381-00 AV PANEL CONNECTION BRACKET 39 870-10381-00 AV PANEL CONNECTION BRACKET 40 870-1A231-00 LCD PANEL CONNCTION BRACKET(BOTTOM) 41 335-37014-00 DISPLAY SCREEN 42 870-10300-00 BRACKET(AV BAFFLE) 43 870-10241-00 WALL MOUNT BRACKET 44 870-10242-00 WALL MOUNT CONNECTION BRACKET 45 870-10249-00 STAND COLUMN BRACKET 46 808-1B898-AF0 AV BAFFLE (RIGHT BOTTOM) 47 808-10902-9A0 SOUND BOX REAR COVER(LEFT) 48 POWER BOARD ASSY 49 808-10900-AF0 DECORATIVE COVER(LEFT RIGHT) 50 615-20479-00A SPEAKER ASSY 51 870-10289-00 POWER SUPPLY BRACKET 52 360-30042-00 POWER SWITCH 53 808-10901-AF0 DECORATIVE COVER(BOTTOM) 54 808-10812-AF0 POWER COVER COVER 55 808-10893-AF0 REAR CABINET BAFFLE(RIGHT) 56 808-10894-AF0 REAR CABINET BAFFLE(BOTTOM) 57 742-30090-00 LINE CLASP 58 615-10552-00 HOLDER ASSY

603-L37R250-10/11 Ver.1.0

Xoceco LC-37R25 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
