COLOR TELEVISION

LC-37K7

(FPE3705)

CONTENTS

Safety instructions………………………………………………………………………..… Adjustment instruction …………………………….…….…………………………….… Trouble shooting ……………………………………………………….…………………… Method of software upgrading ………………………………………….…….…………… LC-37K7 working principle analysis……………………………….………….…………. LC-37K7 block diagram…………………………………..……………………….………… IC block diagram………………………………………………………………………..…… Main assembly……………………………………………………………………………..… Identification criteria for the bright spot and dark spot of the LCD screen………..…. Wiring diagram ……………………………………………………………..……………... Troubleshooting charts………………………………………………………………..……

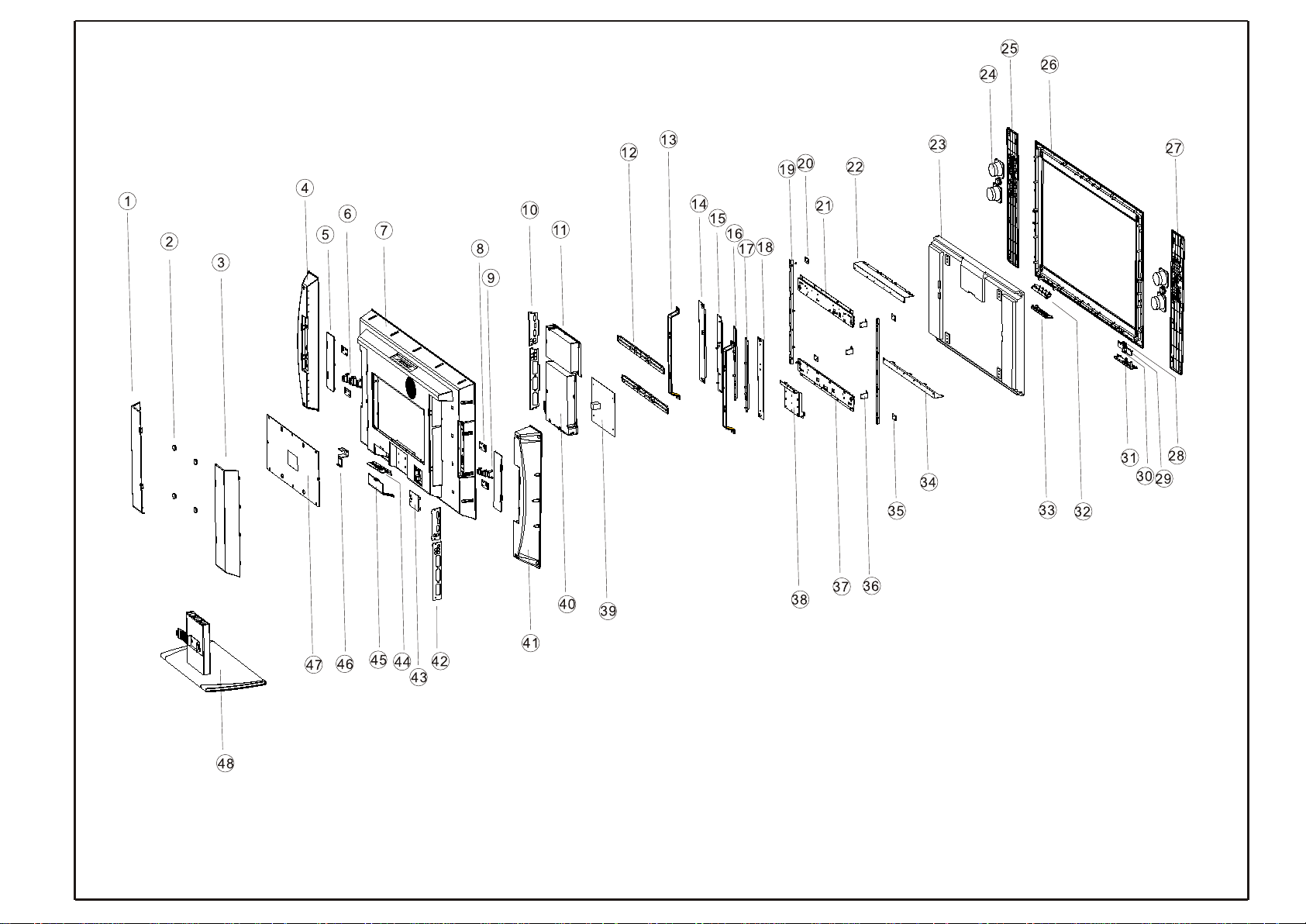

Exploded view …………………………………………………………………….…........

Part list....................................................................................................................... 27

1 3 5 7 9 10 11 18 19 20 21 24

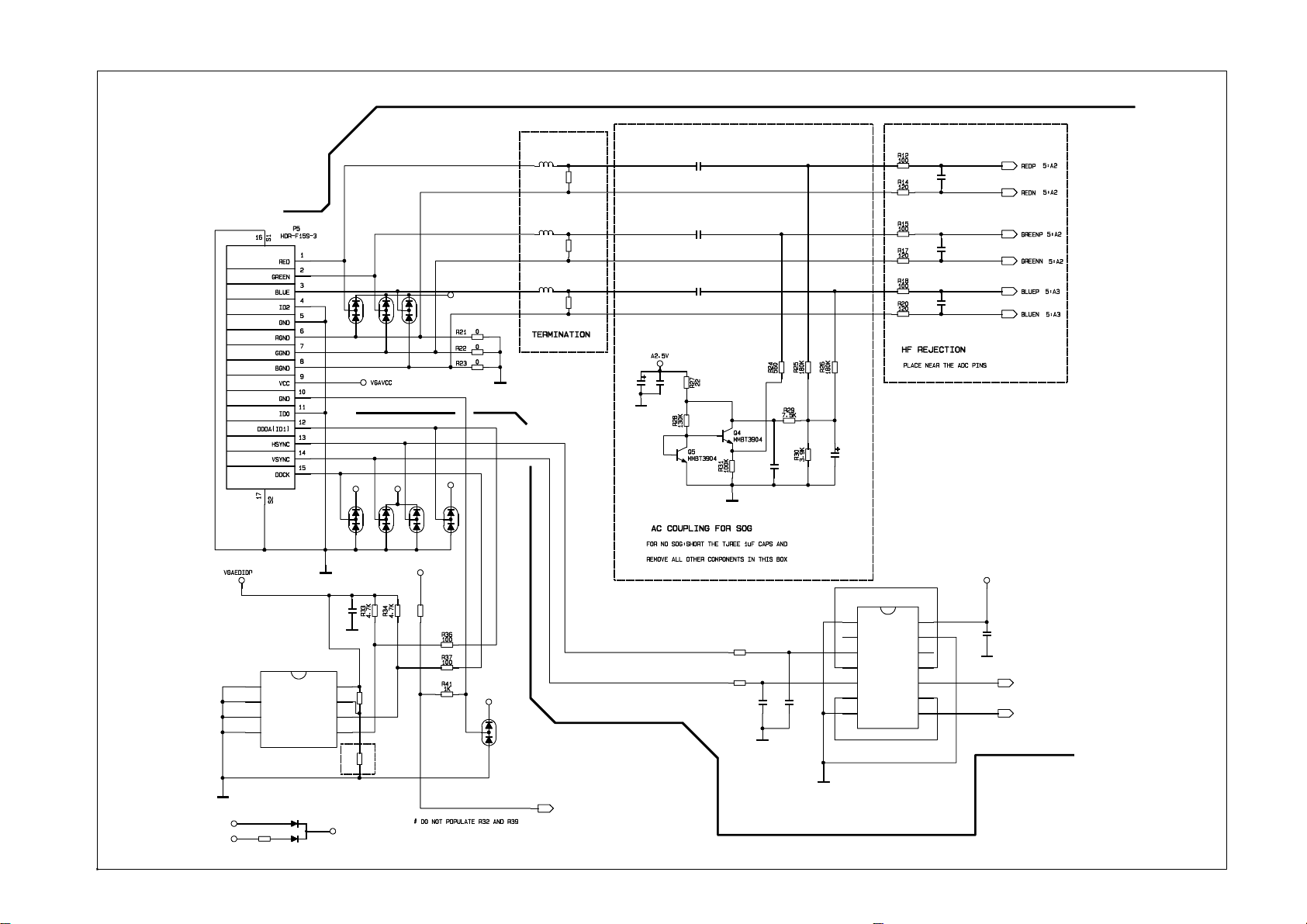

Schematic diagram..................................................................................................... 58

Attention: This service manual is only for service personnel to take reference with. Before

servicing please read the following points carefully.

Safety instructions

1. Instructions

Be sure to switch off the power supply before replacing or welding any components or inserting/plugging in connection wire Anti static measures to be taken (throughout the entire production process!): a) Do not touch here and there by hand at will; b) Be sure to use anti static electric iron; c) It’s a must for the welder to wear anti static gloves. Please refer to the detailed list before replacing components that have special safety requirements. Do not change the specs and type at will.

2. Points for attention in servicing of LCD

2.1 Screens are different from one model to another and therefore not interchangeable. Be sure to use the screen of the original model for replacement.

2.2 The operation voltage of LCD screen is 700-825V. Be sure to take proper measures in protecting yourself and the machine when testing the system in the course of normal operation or right after the power is switched off. Please do not touch the circuit or the metal part of the module that is in operation mode. Relevant operation is possible only one minute after the power is switched off.

2.3 Do not use any adapter that is not identical with the TV set. Otherwise it will cause fire or damage to the set.

2.4 Never operate the set or do any installation work in bad environment such as wet bathroom, laundry, kitchen, or nearby fire source, heating equipment and devices or exposure to sunlight etc. Otherwise bad effect will result.

2.5 If any foreign substance such as water, liquid, metal slices or other matters happens to fall into the module, be sure to cut the power off immediately and do not move anything on the module lest it should cause fire or electric shock due to contact with the high voltage or short circuit.

2.6 Should there be smoke, abnormal smell or sound from the module, please shut the power off at once. Likewise, if the screen is not working after the power is on or in the course of operation, the power must be cut off immediately and no more operation is allowed under the same condition.

2.7 Do not pull out or plug in the connection wire when the module is in operation or just after the power is off because in this case relatively high voltage still remains in the capacitor of the driving circuit. Please wait at least one minute before the pulling out or plugging in the connection wire.

2.8 When operating or installing LCD please don’t subject the LCD components to bending, twisting or extrusion, collision lest mishap should result.

2.9 As most of the circuitry in LCD TV set is composed of CMOS integrated circuits, it’s necessary to pay attention to anti statics. Before servicing LCD TV make sure to take anti static measure and ensure full grounding for all the parts that have to be grounded.

2.10 There are lots of connection wires between parts behind the LCD screen. When servicing or moving the set please take care not to touch or scratch them. Once they are damaged the screen

would be unable to work and no way to get it repaired.

2.11 Special care must be taken in transporting or handling it. Exquisite shock vibration may lead to breakage of screen glass or damage to driving circuit. Therefore it must be packed in a strong case before the transportation or handling.

2.12 For the storage make sure to put it in a place where the environment can be controlled so as to prevent the temperature and humidity from exceeding the limits as specified in the manual. For prolonged storage, it is necessary to house it in an anti-moisture bag and put them altogether in one place. The ambient conditions are tabulated as follows:

Temperature Scope for operation 0 ~ +50 oC

Scope for storage -20 ~ +60 oC

humidity Scope for operation 20% ~ 85%

Scope for storage 10% ~ 90%

2.13 Display of a fixed picture for a long time may result in appearance of picture residue on the screen, as commonly called “ghost shadow”. The extent of the residual picture varies with the maker of LCD screen. This phenomenon doesn’t represent failure. This “ghost shadow” may remain in the picture for a period of time (several minutes). But when operating it please avoid displaying still picture in high brightness for a long time.

3. Points for attention during installation

3.1 The front panel of LCD screen is of glass. When installing it please make sure to put it in place.

3.2 For service or installation it’s necessary to use specified screw lest it should damage the screen.

3.3 Be sure to take anti dust measures. Any foreign substance that happens to fall down between the screen and the glass will affect the receiving and viewing effect

3.4 When dismantling or mounting the protective partition plate that is used for anti vibration and insulation please take care to keep it in intactness so as to avoid hidden trouble.

3.5 Be sure to protect the cabinet from damage or scratch during service, dismantling or mounting.

Alignment instruction

1 Alignment equipment

PM5518 (video signal generator) K-7253 (VGA signal generator) CA210 (white balancer)

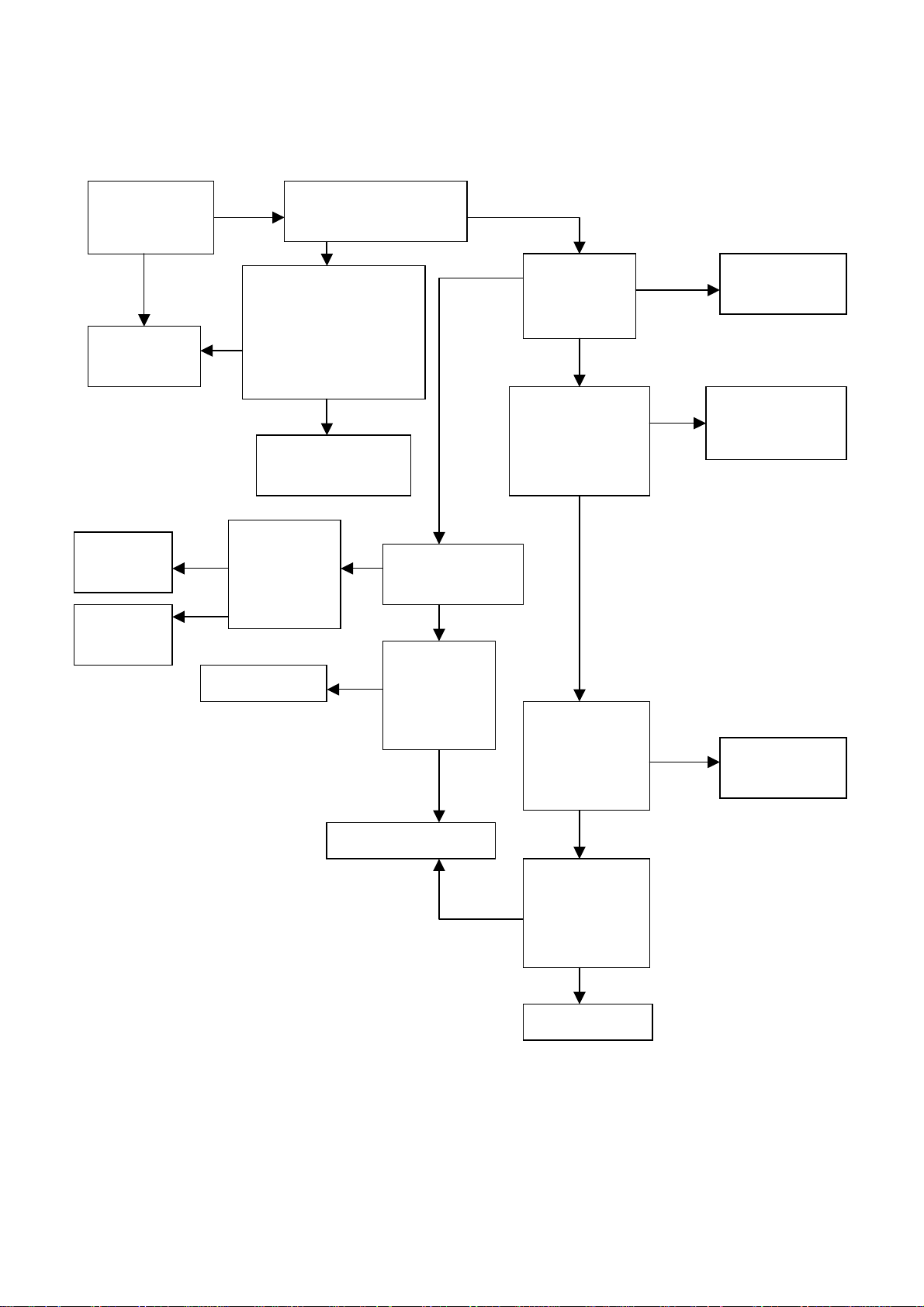

2 Alignment flow-chart

The alignment flow-chart is shown as fig-1

To produce CPU board and analog board

Check the CPU board and an alog board

Connect with central signal source, then check each function of TV such as analog control etc., check the output of headphone and speaker

Input AV/S and HD signal, then check each function of all the terminals

Input VGA signal (one format), check if the displ ay is normal under PC condition, check each function such as analog control etc., check ho rizo ntal /vertical center etc.

Check the accessories and pack t hem in box

Fig-1 adjustment flow-chart

3 Unit adjustment Connect CPU board and analog board according to wiring diagram of 203-L37K70-01JL, connect with power and observe the display. Method for entering factory menu: press “VOL+”, “MUTE” and “VIDEO” repeatedly to enter factory menu; press “ENTER” to select different items when the first line of each adjustment item just lights up; input VGA and DVI signal, then select the “mode” item; after that, you can press “enter” to select three kinds of color temperature namely 6500K, 9300K and 12000K press “MENU” to exit.

Note: the white balance adjustment should be done under “nature” picture mode.

Check DDC and FLASH

All testing

Preset ex-factory

3.1 EEPROM initialization Enter the first page of factory menu, select “clear eeprom” and then press “enter”, shut down the unit after “ok” appears.

3.2 VGA/DVI channel adjustment

3.2.1 Preset VGA channel mode Input VGA signal (PATTERN 5: Final Test) of K-7253, select TIME301(640*350/70Hz), press “AUTO” to do the auto adjustment until the screen is filled with picture. Use the same method to do auto adjustment for the following items:

TIME302 (720*400/70Hz) TIME303 (640*480/60Hz) TIME311 (800*600/60Hz) TIME313 (1024*768/60Hz) TIME315 (640*480/75Hz) TIME316 (800*600/75Hz)

TIME317 (1024*768/75Hz) TIME319 (1280*1024/75Hz) TIME339 (1280*1024/60Hz)

3.2.2 ADC adjustment of VGA channel Adjust ADC-gain to 15.

3.2.3 White balance adjustment VGA/DVI channel Input K-7253 8 level gray-scale signal of TIME311 and PATTERN474, enter white balance adjustment menu; adjust the third and seventh levels using white balance. Select 6500k of “mode”, adjustment offset_R, offset_G and offset_B, let the color coordinate of the third level be 308 and 316 and its brightness be 16nit more or less. Adjust gain_R, gain_G and gain_B, let the color coordinate of seventh level be 308 and 316. Adjustment offset_R, offset_G, offset_B, gain_R, gain_G and gain_B repeatedly until the value of the two levels gray-scale be 308 and 316. Select 9300k of “mode”, adjustment offset_R,offset_G and offset_B,let the color coordinate of the third level be 285 and 290 and its brightness be 16nit more or less. Adjust gain_R,gain_G and gain_B, let the color coordinate of seventh level be 285 and 290. Select 12000k of “mode”, adjustment offset_R, offset_G and offset_B, let the color coordinate of the third level be 270 and 283 and its brightness be 16nit more or less. Adjustment offset_R, offset_G, offset_B, gain_R, gain_G and gain_B repeatedly until the value of the two levels gray-scale be 270 and 283.

Note: gain_R, gain_G, gain_B is value not above 128 and let its value 128 at least.

3.3 Adjustment TV channel

3.3.1 Adjustment VCO, OPTION, sub-brightness and sub-contrast Input AV color bar signal (PM5518 COLOR BAR 100%) to VIDEO 1 terminal, enter the first page of factory menu, press “enter” selecting “auto color”, display “OK” after 2 seconds; then you can finish the VCO adjustment; set the value of “option” to 10, “back light” to 0 and “s-bright” to 140 as well as S-contrast to 140. set the MaxVolume according to its product standard.

3.3.2 white balance adjustment of TV channel Input AV signal (PM5518, NTSC system, 8 level gray-scale signal), enter adjustment menu of white balance, adjust the third level and seventh level using white balance. Adjust offset_R, offset_G and offset_B to let color coordinate of the third level be 270 and 275 and its brightness be about 21nit. fixate gain_B to 128, adjust gain_R, gain_G to color coordinate of the seventh level be 280 and 280. adjust offset_R, offset_G,offset_B, gain_R and gain_G, repeatedly using the same method until

the value of the two levels gray-scale be the specified value.

3.4 white balance adjustment YPbPr channel input YpbPr signal of K-7253 to YPbPr-1 terminal, input TIME380(480i) PATTERN471 8 level gray-scale signal, set the value of Hor-width to 23, Ver-width to 5, S-bright to 120 and S-contrast to

140.Enter adjustment menu of white balance, adjust the third level using white balancer. Adjust offset_R, offset_G and offset_B, to let color coordinate of the third level be 270 and 275 and its brightness be about 24nit. Input 8 level gray-scale signal of TIME392(480p), TIME394(720p) and TIME396(1080i) separately, repeat the above operations to let color coordinate of the third level be 270 and 275 and its brightness be about 24nit.

4 Performance check

4.1 TV function Enter searching menu → auto search, connect RF-TV terminal with central signal source and check if there are channels be skipped

4.2 AV/S, YpbPr terminals Input AV/S, HD signal, check if it is normal.

4.3 VGA terminal Insert VGA terminal, input VGA format signal of 640 X 480@60 Hz, check if the display is normal. If interference exists, press the auto adjust button on remote control again and check if it is normal.

4.4 DVI terminal Insert DVI terminal, input signal of 640 X 480@60 Hz signal and check if the display is normal.

4.5 check sound channel Check the speaker and headphone of each channel.

4.6 presetting before ex-factory

item setting item setting item setting

Picture mode NATURE OSD language English BALANCE 50

Sound mode NEWS VGA color

N/R WEAK SPEAKER ON CCD OFF

SCREEN 16:9 HEAD PHONE ON Turn off TV

9300 SRS OFF

temperature

Trouble shooting

Before servicing please check to find the possible causes of the troubles according to the table below.

1.Antenna(signal):

Picture is out of focus or jumping  Bad status in signal receiving

 Poor signal  Check if there are failures with the electrical connector or

the antenna.

 Check if the antenna is properly connected.

Fringe in picture  Check if the antenna is correctly oriented.

 Maybe there is electric wave reflected from hilltop or

building. Picture is interfered by stripe shaped bright spots

There appear streaks or light color on the screen

 Possibly due to interference from automobile, train, high

voltage transmission line, neon lamp etc.

 Maybe there is interference between antenna and power

supply line. Please try to separate them in a longer

distance.

 Maybe the shielded-layer of signal wire is not connected

properly to the connector.

 Check if interfered by other equipment and if interfered

possibly by the equipment like transmitting antenna, non

professional radio station and cellular phone.

2.TV set:

Symptoms Possible cause Unable to switch the power on  Check to see if the power plug has been inserted

properly into the socket.

No picture and sound  Check to see if the power supply of liquid crystal TV

has been switched on. ( as can be indicated by the red LED at the front of the TV set)

 See if it’s receiving the signal that is transmitted from

other source than the station

 Check if it’s connected to the wrong terminal or if the

input mode is correct.

 Check if the signal cable connection between video

frequency source and the liquid crystal TV set is

correct. Deterioration of color phase or color tone

Screen position or size is not proper  Check is the screen position and size is correctly set

Picture is twisted and deformed  Check to see if the picture-frame ratio is properly set

Picture color changed or colorless  Check the “Component” or “RGB” settings of the

Picture too bright and there is distortion in the brightest area

Picture is whitish or too bright in the  Check if the setting for the brightness is too high

 Check if all the picture setups have been corrected.

up.

liquid crystal TV set and make proper adjustment

according to the signal types.

 Check if the contrast setting is too high.  Possibly the output quality of DVD broadcaster is set

too high.

 It maybe also due to improper terminal connection of

the video frequency signal in a certain position of the

system.

darkest area of the picture  Possibly the brightness grade of DVD player

(broadcaster) is set too high. No picture or signal produced from the displayer if “XXX in search” appears.

There appears an indication - “outside the receivable scope)

Remote control cannot work properly  Check if the batteries are installed in the reverse

No picture and sound, but only hash.  Check if the antenna cable is correctly connected, or

Blur picture  Check if the antenna cable is correctly connected.

No sound  Check if the “mute” audio frequency setting is

When playing VHS picture search tape, there are lines at the top or bottom of the picture.

 Check if the cable is disconnected.  Check if it’s connected to the proper terminal or if the

input mode is correct.

 Check if the TV set can receive input signal. The

signal is not correctly identified and VGA format is

beyond the specified scope.

order.

 Check if the battery is effective.  Check the distance or angle from the monitor.  Check if there is any obstruct between the remote

control and the TV set.

 Check if the remote control signal- receiving window

is exposed to strong fluorescence.

if it has received the video signal correctly.

 Of if it has received the right video signal.

selected.

 Check if the sound volume is set to minimum.  Make sure the earphone is not connected.  Check if the cable connection is loose.  When being played or in pause VHS picture search

tape sometimes can’t provide stable picture, which

may lead to incorrect display of the liquid crystal TV,

In this case please press “auto” key on the remote

control so as to enable the liquid crystal TV set to

recheck the signal and then to display correct picture

signal

Method of software upgr adi ng

Steps of software upgrading are as follows:

1. Select a serial connection wire and a VGA connection wire and then connect them by means of a patch panel;

2. Use a serial wire to connect the PC to the patch panel and set TV set to off state; Open the software upgrade file holder and double click

FlashUpgraderNT (use under window 2000/XP/NT)

FlashUpgrader (use under window 98),

The following interfaces will show up after running the program:

Based on the computer features, set up the serial port (COM Port). Select corresponding serial port (if it’s unable to FLASH WRITE, change to another port). Baud is selected to be 115200. Then select Reset Target After Download. Click FLASH pushbutton, it’s ready to run. For other settings, please refer to the Fig. Above (already defaulted by the system, normally no need to change). Switch on TV set the FLASH write program begins to run;

After FLASH write is over, push button “cancel” will become flash. Then shut the main power supply

and it’s OK just switch it on again.

Note: Do not shut the power off or turn the TV set on during t he FLASH write. Otherwise it may lead to no way for flash to rewrite.

LC-37K7 working pr inciple analysis

Please refer to LC-37K7 BLOCK DIAGRAM in order to know the working principle of LC-37K7 brief introduction to its signal flow is shown as follows:

RF signal produces composite color television signal through TUNER201, the signal together with AV1/SVHS(SVHS priority) and AV2 etc. are sent to U29 VPC3230D to decode and do switching selection. In addition to decode the selected video signal, part of the selected video signal is also sent to AV terminal and 21 line decoder U32 Z86229 which is exclusive to decode CCD/V-CHIP to decode. After decoded by U32, the signal will be sent back to U29 in the form of R G B and FB, then it will be added to the decoded picture and then it will be sent to U13 FL12310 in the form of ITU-R656 signal format of 8BIT to do line-by-line process.

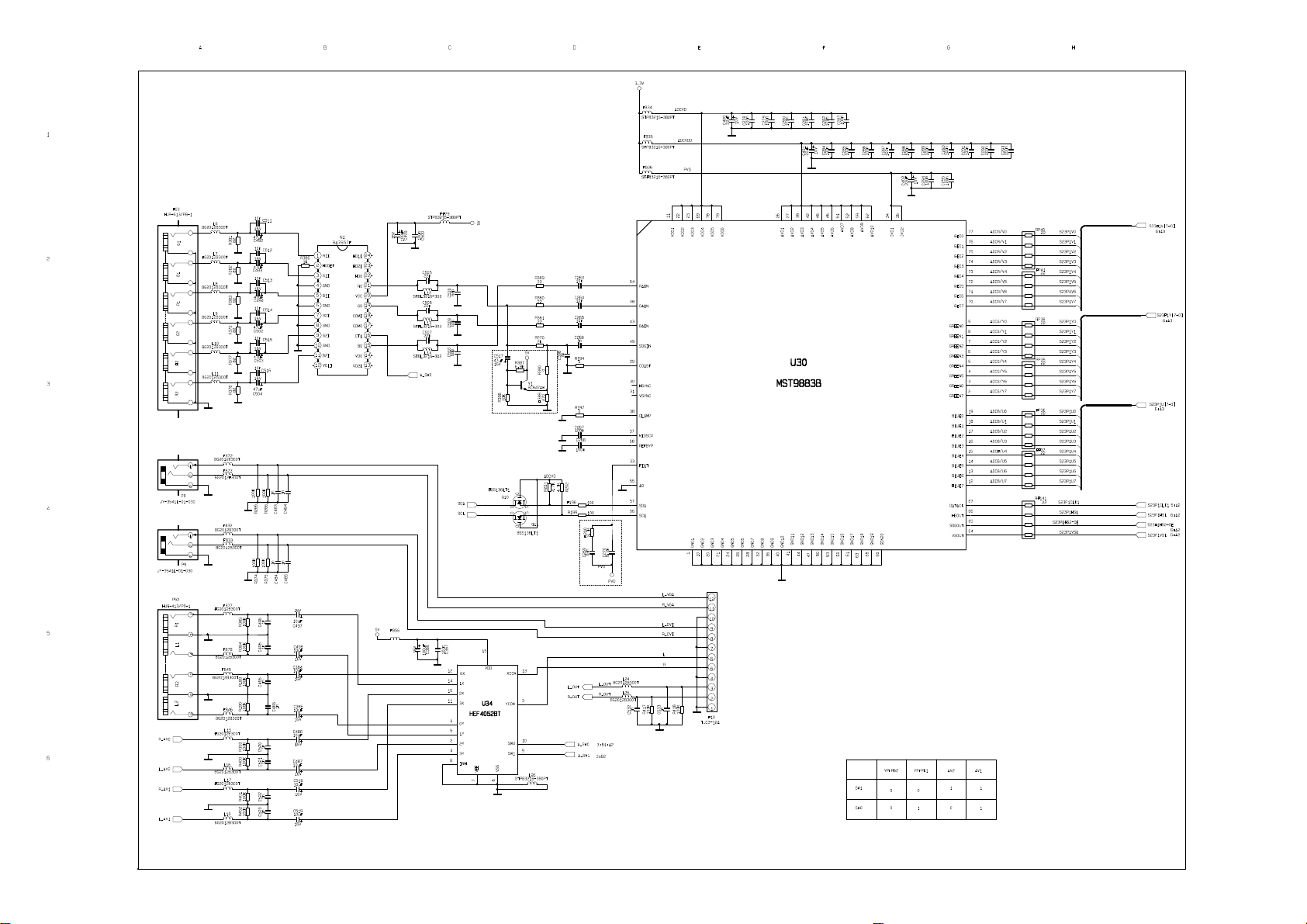

Send two ways YPRPB signal to U30 MST9883 through selection by N2 PI5V330 in order to do the A/D conversion. After this, the signal will be converted into YUV signal of 24BIT, send it to FLI2310 also.

After a series of procedure such as matrix, chroma and tint etc. by FL12310, the two ways signal will be converted into RGB of 24bit, then send it to the main processing chip U12 JAG-ASM. send RGB signal it to the main processing chip U12 at the same time. There has another signal which should be sent to U12 together with he above two kinds of signal that is: RGB signal of 24BIT produced by DV1 through U15 TFP403/501. Do the picture format processing for the three kinds of signal in U12. Firstly do the A/D conversion for RGB signal of VGA, then do the switching selection together with the other two kinds of signal. And then they will be converted into 1024*768 format through digital display processing such as OSD and GAMMA correction etc. output it in the form of 24BIT RGB signal. Send it to LVDS convertor U31 DS90C383A, then it will be converted into signal format which can be accepted by LCD screen namely 3 low-voltage differential signal and 1 clock signal, finally send it to LCD screen to do the picture display PWM of U12 can also be used to control the brightness of back light-source.

Send SIF (the second IF) outputted by tuner to audio processor NA01 MSP3420; send YPRPB and audio signal of DVI to NA01 through switching selection by U34 HEF4052; Send AV1/SVHS, AV2 and audio signal of VGA to NA01 also. Firstly SIF will be done the switching selection together with another four ways of audio signal, finally volume control and sound effect processing will be done. Output left-right sound channel signal R/L. one will be sent to SRS sound field processor NA03 M62494 to do SRS processing and finally amplified by NA03 and NA04 TPA3008D2 to drive the speaker, one will be used to drive the headphone through NA02 TLE2142 and the last part will be outputted as R/L of AV OUT.

LC-37K7 Block diagram

RGB

RGB 24bit

U15 DVI

DRIVER TFP403

RGB RF 24bit SIF RGB V 24bit

ITU-R656 AV1-V/S-Y 8bit

SVHS-C

TUNER1

VIDEO DECODER

VPC3230

U29

U13

DEINTER LACER FLI2310

AV2 -V

U14

SDRAM

AV-V OUT I IC BUS

YprPb

YprPb2 YUV

24bit

1 BA76 57F8 3

U30

ADC MST98 83

EEPROM

MICROCONTROLER

TSC80251G2D

R/L

SIF DVI-R/L VGA-R/L R/LR/L

U34

HEF4052

YprPb1-R/L R/L R/L R/L

YprPb2-R/L R/L R/L

AV1/SVHS-R/L

AV2-R/L

A01

AUDIO

PROCESSOR

MSP3410

A03

SRS 3D STEREO CONTROLLER

M62494

AV-R/L OUT．

U19

SDRAM

U12

SCALER

JAG-ASM

U31

DS90C383

U20

SDRAM

FLASH

MEMORY

IR / KEYBOAD

A02

TLE2142

NA04

AUDIO

AMPLIFIER

TPA3008D2

PANEL

LVDS

DRIVER

HEADPHONE

SPEAKER

IC block diagram

1.MSP3420

Pins description:

2,3 PIN: SCL,SDA applied for control the operation of IC . 27,28 PIN: output left and right sound channel R/L to speaker processor. 36,37 PIN:AV OUT of sound R/L. 47,48 PIN:D4-1/D4-2/PCMCIA selected input R/L. 50,51 PIN:Input of VGA. R/L 53,54 PIN:Input of AV1/SVHS and AV2 R/L. 56,57 PIN:Input R/L of BS 67 PIN: Input TV SIF.

2.VPC3230

Pins description:

4 PIN: Input U of PCMCIA. 5,73 PIN: Input Y of PCMCIA. 6 PIN: Input V of PCMCIA 31-34, 37-40 PIN: output format signal of. ITU-R656 70 PIN:Video of AV OUT 71 PIN:Input C of SVHS. 72 PIN:input Video (SVHS in priority) of Y or AV1 of SVHS. 74 PIN:input Video of AV2. 75 PIN:input Video of TV/BS.

3.AD9883

4.FLI2310-Simplified Internal Block Diagram

5.JAG-ASM

6. TFP403

functional block diagram

3.3 V

Internal 50-

Termination



3.3 V

1.8 V

Regulator

3.3 V

Rx2+

Rx2-

Rx1+

Rx1-

Rx0+

Rx0-

RxC+

RxC-

RED(0-7)

CTL3 CTL2

GRN(0-7)

CTL1

BLUE(0-7)

VSYNC HSYNC

Panel

Interface

Latch

PLL

Channel 2

Channel 1

Channel 0

Data Re co ver y

and

Synchronization

+ _

CH2(0-9)

CH1(0-9)

CH0(0-9)

TMDS

Decoder

QE(0-23) QO(0-23 )

ODCK DE SCDT

CTL2 CTL1 VSYNC HSYNC

Terminal Functions

TERMINAL

NAME NO.

AGND 79 GND A nalog ground? Ground reference and current return for analog circuitry AV

82,85,88,91V

CAP 67 V

CTL[2:1] 41,40 DO General-purpose control signals? Used for user defined control. In normal mode CTL1 is not powered down

DE 46 DO Output data enable? Used to indicate time of active video display versus nonactive display or blank time.

DFO 1 DI Outp ut cloc k data f ormat? Contro ls the o utput c lock ( ODCK) f ormat f or eith er TFT or DSTN panel su pport . For

DGND 5,39,68 GND Digital ground? Ground reference a nd current return for digital co re DV

6,38 V HSYNC 48 DO Horizontal sync ou tp ut OCK_INV 100 DI ODCK polarity? Selects ODCK edge on whi ch pixel data (QE[23:0] and QO[23:0]) and control signa ls

I/O

I/O DESCRIPTION

Analog VDD? Power supply for analog circuitry. Nominally 3.3 V

Bypa ss c apa ci t or? 4.7F tantalum and 0.01 F ceramic conn ected to gro und. This ca paci tor is o ptiona l for

the TFP403, but is required for the TFP501.

via PDO

DESCRIPTION

During blank, on ly HSYNC, VSYNC, and CTL1-2 are tr ansmitted. During tim es of active display , or nonbla nk, only pixel data, QE[23:0] and QO[23:0], is transmitted.

High : Active display time Low: Blank time

TFT support ODCK clock runs cont inuously . For DST N support OD CK only clock s when DE is high; ot herwise ODCK is held low when DE is low .

High : DSTN support/ODCK held low when DE = low Low: TFT support/ODCK runs continuously.

Digital VDD? Power supply for digital core. Nominally 3.3 V

(HSYNC, VSYNC, DE, CTL1-2 ) are latched Normal mode:

High : Latches output data on rising ODCK edge Low : Latches output data on falling ODCK edge

7. DS90C385

DS90C365

DS100868-1

Order Number DS90C385MTD or DS90C385SLC

See NS Package Number MTD56 or SLC64A

DS100868-29

Order Number DS90C365MTD

See NS Package Number MTD48

Main assembly

NAME NO. MAIN COMPONENT AND it’S NO.

AV processing board

CPU board

IR board Keypad board Earphone assy

667-L37K7N-40 NA01

667-L37K72-56

667-L37K7-09 667-L37K7-05 667-L37K7-10

Power supply board 667-L37K5-20A Remote control (RC-U38R-0C)

Panel (LC370W01)

301-UL27K6-38R C 335-37010-00

NA03 N04

U12 U13 U15 U29 U30 U31

U2 U4

MSP3410 (353-34100-80) M62494FP (353-62494-20) TPA3008D2 (353-30080-10)

JAG-ASM (353-0JAG0-00) FLI2310 (353-23100-00)

TFP403PZP (353-04030-10)

VPC3230D (353-32300-80) MST9883B (353-98830-10) DS90C385 (353-03850-20)

TSC80251G2D (353-80251-10) AT49F002NT (352-49002-70)

Identification criteria for the bright spot and dark spot of the LCD screen

Category criteria

One single

Bright

spo

Dark

spots

Total defected point ≤8 ≤7 ≤5 ≤4 /

spot

2 neighboring

spots

Total No. ≤5 ≤2 ≤5 ≤2 ≤3

One single

spot

Two

neighboring

spots

Total No. ≤6 ≤7 ≤5 ≤4 ≤10

15" 20" 22" 30" 40" 15" 20" 22" 30" 40"

≤5 ≤2 ≤5 ≤2 ≤3

≤2 ≤1 ≤2 ≤1 ≤1

≤6 ≤7 ≤5 ≤4 ≤10

≤2 ≤2 ≤2 ≤1 ≤5

Q’ty allowed Distance between two spots

≥15mm

≥10mm

≥5mm

Notes:

1. Definition of defected point (bright spot, dark spot): It is identified as a defected point if its area exceeds 1/2 of a single picture element (R,G,B).

2. Definition of bright spot: It is identified as a bright spot if it is bright in the state of dark field and its bright size remains unchanged

3. Definition of dark spot: It is identified as a dark spot if it is dark in the state of white field and its dark size remains unchanged

4. Definition of two neighboring points: Defects of a group of picture elements(RB,RG,GB).

Wiring diagram

To Keypad board

Remote contro

Left panel

AV processing board

CPU BOARD

Right panel

To speaker

To earphone

Top panel

Troubleshooting charts

1. No raster

Turn-on power supply, chec if the red indicator is light in the STANDBY?

Check PIN3(5V output) of the power supply board C3

Check if it’s melted of FUSE in the power supply board?

Replacing power supply board

yes

Check the indicator i turn-on condition

on-change color

Replacing CPU board

Replacing U22

blue

Check if the indicator is flicke in the sensor control normal condition?

yes

Check if the CN2 output 24V

yes

Check if the PIN1 of P29 is high-level(5V)?

Check if the PIN26-30 of P4 is high-level(5V)?

Check if it’s melted of F3?

Check if the B of Q7 is

Check if the pin 1, pin3 of U21

Replacing U21

yes

high-level?

yes

is high-level(5V)

yes

2. raster, but no picture

Check if the uni can operation?

Replacing CPU board

Enter factory-menu, operation CLEA

EEPROM, then tur off , turn on again , it i display picture.

Adjust CPU board

Replacing

U30

Replacing

yes

Testing PIN65 o U30 SYNC signal

Replacing U13

Check if the al channels have signal?

yes

again

yes

Replacing CPU board

Display “NO-SIGNAL”

Testing

1VPP signa of TP1, TP2, TP3.

YPRPB

yes

noyes

Which is no signal o channels

Testing power supply (+12V) o video processing board

yes

Check if PIN2 1VPP signal and noise wave of P32?

yes

Check if PIN56

15.734KHz sync signal o U29?

Replacing U29

VGA/DVI

Replacing CP board

Replacing power supply board

Replacing

TUNER01

3.no sound

Check if PIN1 and PIN2 is 18V of XA12

Check if PIN2 is 12V o XA09

Check power supply

yes

Check PIN5 and PIN8 output wave of NA03

Check PIN27 an PIN28 output wave o

A01

Check PIN67 wave of NA01

Replacing TUNA01

yes

Replacing NA04

yes

Replacing NA03

yes

Replacing NA01

EXPLODED VIEW

FPE3705

PART LIST OF EXPLDED VIEW

NO. DESCRIPTION PART#

1 BACK CABINET COVER (LEFT) 808-10783-AN0 2 SCREW CAP 785-20023-00 3 BACK CABINET COVER (RIGHT) 808-10784-AN0 4 SPEAKER BOX BACK COVER(LEFT) 808-10778-AN0 5 SPEAKER BOX CONNECTION COVER 808-10780-AN0 6 SOCKET (SPEAKER BOX) 364-42201-00 7 REAR CABINET 780-Y07LI-AN1 8 SPEAKER BOX CONNECTION PIECE 804-20404-00

9 SPEAKER BOX LINE CLASP BRACKET 870-10247-00 10 AV BAFFLE 808-1C786-AN0 11 AV PROCESSING BOARD ASSY 667-L37K7-40 12 WALL MOUNT CONNECTION BRACKET 870-10242-00 13 WALL MOUNT BRACKET 870-10241-00 14 BOARD CONNECTION BRACKET (LEFT) 870-10234-00 15 BOARD CONNECTION BRACKET 870-10235-00 16 BOARD CONNECTION PIECE(1) 870-10237-00 17 BOARD CONNECTION PIECE(2) 870-10238-00 18 BOARD CONNECTION BRACKET (RIGHT) 870-10235-00 19 SCREEN CONNECTION PIECE 870-10243-00 20 LG SCREEN CONNECTION PIECE(1) 870-10244-00

21 SCREEN CONNECTION BRACKET(TOP) 870-10230-00

22 SCREEN CONNECTION BRACKET(TOP) 870-1A232-00

23 LG SCREEN 335-37010-00

24 SPEAKER ASSY 615-20434-00

25 SPEAKER BOX FRONT COVER (RIGHT) 615-10515-0R0A

FPE3705

NO. DESCRIPTION PART#

26 FRONT CABINET 780-Y07L0-GA1 27 SPEAKER FRONT COVER(LEFT) 615-10514-0R0A 28 IR SENSE PCB ASSY 667-L37K7-09 29 EARPHONE ASSY 667-L37K7-09 30 POWER SWITCH 360-30042-00 31 COVER BOARD(USB) 808-1C790-AN0 32 BUTTON BOARD 667-L37K7-05 33 COVER BOARD(BUTTON) 808-10789-AN0 34 SCREEN CONNECTION BRACKET( BELOW) 870-10233-00 35 LG SCREEN CONNECTION PIECE(2) 870-10245-00 36 CONNECTION BOARD 804-2A372-00 37 CONNECTION BRACKET(BELOW) 870-10231-00 38 STAND COLUMN BRACKET 870-10249-00 39 POWER BOARD ASSY 667-L37K5-20A 40 CPU BOARD ASSY 667-L37K5-56 41 SPEAKER BOX BACK COVER(RIGHT) 808-10779-AN0 42 AV BAFFLE 808-1B787-AN0 43 POWER CORD COVER BOARD 808-10812-AN0 44 AV BAFFLE 808-1B788-AN0 45 BACK CABINET BAFFLE(BELOW) 808-10785-AN0 46 LINE CLASP 742-30088-110 47 BACK CABINET BAFFLE 808-10795-AN0

48 HOLDER ASSY 615-10507-00

PART LIST

PART# DESCRIPTION LOCA.NO.

SL22K90-01B10 SOFTWARE K#LCD DDC-VGA SL22K90-01C10 SOFTWARE K#LCD DDC-DVI

100-L37K70-11 FPE3705

100-L37K70-02 LC-37K7 15

485-10170-00 POWER CORD LAP-31+LASR-24 !

881-63071-00 GROUNDING LABEL 655-B1201-37 (12-PINS) LEAD WITH HOUSING 655-B1201-38 (12-PINS) LEAD WITH HOUSING

655-21201-87 (２-PINS) LEAD WITH HOUSING

655-41201-280 (4-PINS) LEAD WITH HOUSING

655-44301-24 (4-PINS) LEAD WITH HOUSING 655-5L201-05 (5-PINS) LEAD WITH HOUSING

655-71202-80 (７-PINS) LEAD WITH HOUSING 655-8K301-15 (8-PINS) LEAD WITH HOUSING

655-81102-06 (8)-PINS LEAD WITH HOUSING

852-33006-87 SCREW B(+) M3X6-D.Zn ( BLACK )

665-D0002-562 LVDS LINE 30-PINS210mm

700-60248-100 LED COLUMN( TRANSPARENT GREY 0A) 700-60249-070 LED COLUMN(LED TRANSPARENT ) 742-30088-110 TIE ( MOLD TRANSPARENT )

770-089B0-79 2468 26# 80mm TRANSPARENT

785-20023-00 SCREW CAP 804-2A372-00 CONNECT BOARD

808-1B786-AN0 AV BAFFLE (1) GREY 08 808-1B787-AN0 AV BAFFLE (2)

808-10783-AN0 BACK CABINET BAFFLE ( LEFT ) GREY 08 808-10784-AN0 BACK CABINET BAFFLE ( RIGHT ) GREY 08 808-10785-AN0 BACK CABINET BAFFLE (BOTTOM ) GREY 08 808-10795-AN0 BACK CABINET BAFFLE ( GREY 08) 808-10812-AN0 POWER CORD COVER BOARD ( GREY 08)

852-43008-87 SCREW F(+)M3X8-D.Zn( BLACK )

851-33008-51 SCREW B(+)3X8G-D.Zn

851-34010-57 SCREW B(+)4X10G-D.Zn ( BLACK )

851-43012-52 SCREW F(+)T3X12G-DNi

851-44012-57 SCREW F(+)4X12G-D.Zn ( BLACK )

852-33008-87 SCREW B(+) M3X8-D.Zn ( BLACK )

887-21074-00 PALSTIC BAG (100X230)

852-33008-87 SCREW B(+) M3X8-D.Zn ( BLACK )

852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK )

852-34030-82 SCREW B(+) M4X30-D.Ni

852-35008-82 SCREW F(+)M5*8-D.Ni

852-44010-87 SCREW F(+)M4X10-D.Zn( BLACK )

852-44020-81 SCREW F(+)M4X20-D.Zn

852-45008-82 SCREW F(+)M5X8-D.Ni

862-20039-00 CARTON CLIPS 870-1A232-00 PANEL CONNECT BRACKET (TOP )

870-10230-00 PANEL CONNECT BRACKET (TOP )

870-10231-00 PANEL CONNECT BRACKET (BOTTOM )

870-10233-00 PANEL CONNECT BRACKET (BOTTOM )

870-10234-00 BOARD CONNECT BRACKET ( LEFT )

870-10235-00 BOARD CONNECT BRACKET ( RIGHT )

870-10236-00 BOARD CONNECT BRACKET 870-1A237-00 BOARD CONNECT PIECE (1) 870-1A238-00 BOARD CONNECT PIECE (2)

870-10241-00 WALL MOUNT BRACKET

870-10242-00 WALL MOUNT CONNECT BRACKET

870-10249-00 STAND COLUMN BRACKET

852-84008-81 COMPOSE SCREW SJ2835 M4X8-DZn

804-20404-00A SOUND BOX CONNECT PIECE

808-10780-AN0 SOUND BOX CONNECT COVER BOARD ( GREY 08)

851-34010-57 SCREW B(+)4X10G-D.Zn ( BLACK )

870-10248-00 BRACKET 887-21207-P0 PE/PEARL COTTONPALSTIC BAG 1500X1000

852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK )

852-34006-87 SCREW B(+) M4X6-D.Zn ( BLACK ) 804-2A404-00 SOUND BOX CONNECT PIECE

742-30032-00 TIE

852-33008-87 SCREW B(+) M3X8-D.Zn ( BLACK )

852-43006-87 SCREW F(+) M3*6-DZn ( BLACK )

335-37010-00 * DISPLAY SCREEN LC370W01 !

886-31744-00 CARTON BOX ( BLANK )

780-Y07LIPAN3 BACK CABINET HIPS GREY 08,SILK-SCREEN 780-Y07L1-GA0 FRONT CABINET SILVER WHITE 06+ BLACK

863-81133-00A POLY FOAM ( LEFT TOP EPE) 863-81134-00A POLY FOAM ( LEFT BOTTOM EPE) 863-81135-00A POLY FOAM ( RIGHT TOP EPE) 863-81136-00A POLY FOAM ( RIGHT BOTTOM EPE)

886-31745-00 CARTON BOX BOTTOM COVER

886-31747-00 BRACKET

615-10467-00 TV BOARD SHIELD COVER ASS'Y (TOP )

615-10468-00 TV BOARD SHIELD COVER ASS'Y (BOTTOM )

615-10469-00 DIGITAL BOARD SHIELD COVER ASS'Y (TOP )

615-10470-00 DIGITAL BOARD SHIELD COVER ASS'Y (BOTTOM )

852-33006-87 SCREW B(+) M3X6-D.Zn ( BLACK )

851-33010-57 SCREW B(+)3X10G-D.Zn ( BLACK )

851-33010-57 SCREW B(+)3X10G-D.Zn ( BLACK ) 804-2B401-00 INTERFACE SPACE PLATE (TV BOARD LEFT )　 804-2B402-00 INTERFACE SPACE PLATE (TV BOARD BOTTOM )　 804-2B403-00 INTERFACE SPACE PLATE ( DIGITAL BOARD )　

808-1B788-AN0 AV BAFFLE (3) ( GREY 08) 808-1C786-AN0 AV BAFFLE (1) GREY 08 808-1C787-AN0 AV BAFFLE (2) GREY 08

808-10789-AN0 COVER BOARD ( KEY ) GREY 08

808-70330-00 INSULATOR

808-70331-00 INSULATOR

851-33008-51 SCREW B(+)3X8G-D.Zn

851-43012-14 SCREW F(+)T3x12A-Y

870-10246-00 TV BOARD BRACKET

870-30164-00 KEY BRACKET

877-50488-0T0 KEY CAP (BIG)PLATE SILVERY WHITE 877-50489-0T0 KEY CAP ( SMALL )PLATE SILVERY WHITE 　

852-33008-87 SCREW B(+) M3X8-D.Zn ( BLACK )

852-33008-81 SCREW B(+) M3X8-D.Zn

364-42201-00 SOCKET WP2-9C

488-10012-00

BATTERY 7＃(made in china

868-10089-00 CUSHION

868-10089-00 CUSHION 655-4E302-95 * (4-PINS) LEAD WITH HOUSING

665-D0002-423 AUDIO LINE XH-3.5-RCA-2000

808-1A790-AN0 COVER BOARD ( GREY 08,USB)

851-33008-51 SCREW B(+)3X8G-D.Zn

851-23010-14 SCREW SJ2824 ST3X10C-Y

852-33008-87 SCREW B(+) M3X8-D.Zn ( BLACK )

887-21135-02 CLASPER PALSTIC BAG 230X330X0.1

870-10243-00 PANEL CONNECT PIECE (LG/CMO)

870-10244-00 LG PANEL CONNECT PIECE (1)

870-10245-00 LG PANEL CONNECT PIECE (2)

870-10247-00

SOUND BOX LINE 卡 BRACKET

886-31756-00 WALL MOUNT CARTON BOX (LC-37X7)

881-62876-26A BACK PLATE LABEL FPE3705,AUDIOVOX 665-D0002-510 VGA LINE XH-LCD-52

681-40002 CERTIFICATE LABEL 681-40002 CERTIFICATE LABEL

780-Y07LIHAN3 BACK CABINET V0 GREY 08SILK-SCREEN

780-Y07L1J0G1 FRONT CABINET ABS V0 SILVER WHITE 06SILK-SCREEN

886-31745-02 CARTON BOX BOTTOM COVER (LC-37K7,AUDIOVOX)

886-31744-03A CARTON BOX (FPE3705, AUDIOVOX)

604-L37K77-00 OWNER'S MANUAL(AUDIOVOX)

808-1C790-AN0 COVER BOARD (USB GREY 08)

881-80611-00 REGISTER CARD (AUDIOVOX)

881-80612-00A WRRANTY (AUDIOVOX)

615-20430-02 SOUND BOX ASS'Y ( LEFT )

364-42201-00 SOCKET WP2-9C

615-10514-0G0A SOUND BOX FRONT COVER ASS'Y LEFT SILVERY WHITE 06

615-20523-00 SPEAK ASS'Y

852-34005-87 SCREW B(+) M4X5-D.Zn ( BLACK )

804-20405-00 SOUND BOX FIXER( LEFT )

808-10778-AN0 SOUND BOX BACK COVER ( LEFT ) GREY 08

808-70389-00 EVA GLUE (575X2X2)

808-70259-00 EVA GLUE (25X15X2)

851-24035-11 SCREW SJ2824 ST4X35C-D.Zn

851-33006-51 SCREW B(+)3X6G-D.Zn

851-23010-14 SCREW SJ2824 ST3X10C-Y

851-33010-57 SCREW B(+)3X10G-D.Zn ( BLACK )

864-90044-00 SOUND ABSORBENT

868-10043-00 WASHER (14X4X1 METAL )

868-20772-00 RUBBER WASHER

615-20431-02 SOUND BOX ASS'Y ( RIGHT )

364-42201-00 SOCKET WP2-9C

615-10515-0G0A SOUND BOX FRONT COVER ASS'Y RIGHT SILVERY WHITE 06

615-20523-00 SPEAK ASS'Y

852-34005-87 SCREW B(+) M4X5-D.Zn ( BLACK )

804-20406-00 SOUND BOX FIXER( RIGHT )

808-10779-AN0 SOUND BOX BACK COVER ( RIGHT ) GREY 08

808-70389-00 EVA GLUE (575X2X2)

808-70259-00 EVA GLUE (25X15X2)

851-24035-11 SCREW SJ2824 ST4X35C-D.Zn

851-33006-51 SCREW B(+)3X6G-D.Zn

851-23010-14 SCREW SJ2824 ST3X10C-Y

851-33010-57 SCREW B(+)3X10G-D.Zn ( BLACK )

864-90044-00 SOUND ABSORBENT

868-10043-00 WASHER (14X4X1 METAL )

868-20772-00 RUBBER WASHER

615-10507-02 HOLDER ASS'Y (DZ-1537)

742-30073-110 TIE ( MOLD TRANSPARENT )

808-10673-AD0 STAND COLUMN BAFFLE (PLATE SILVERY )

852-43008-82 SCREW F(+)M3X8-D.Ni

851-53012-11 SCREW SJ2825 ST3X12C-D.Zn

804-20407-00 HOLDER PANEL ( ALUMINIUM )

808-10781-0G0 HOLDER BAFFLE ( LEFT ) SILVER WHITE 06 808-10782-0G0 HOLDER BAFFLE ( RIGHT ) SILVER WHITE 06 820-20051-00A HOLDER BALANCE BOARD

851-43012-51 SCREW F(+)4X12G-D.Zn

852-44014-82 SCREW F(+)M4X14 DNi

868-20807-00 CUSHION

870-40205-AD0 HOLDER STAND COLUMN (PLATE SILVERY )

667-L37R7-51 POWER FILTER BOARD ASS'Y

459-B147K-10 CERAMIC CAPACITOR DE7090B471KVA1-KC ! C603 459-B147K-10 CERAMIC CAPACITOR DE7090B471KVA1-KC ! C604

462-2B410-M0V POLYESTER CAPACITOR 250VAC-0.1uF-M ! C601

462-2B410-M0V POLYESTER CAPACITOR 250VAC-0.1uF-M ! C605 462-2B410-M0V POLYESTER CAPACITOR 250VAC-0.1uF-M ! C602

462-D5510-H1 POLYESTER CAPACITOR CBB21A-400V-1uF-J C606 462-D5510-H1 POLYESTER CAPACITOR CBB21A-400V-1uF-J C607 462-D5510-H1 POLYESTER CAPACITOR CBB21A-400V-1uF-J C608

467-8E522-H0A SOLID RESISTOR 1/2W-2.2M-J ! R601

469-40012-00 THERMISTOR M2R014C RT601

477-20081-00 POWER FILTER LCL103B ! L602

477-20081-00 POWER FILTER LCL103B ! L601

477-40269-00 FIXED COIL LG101E L603

569-14141-80 FUSE 50T 4AL 250V ! FU601 706-B6005-01 HEAT SINK SRP601

775-10054-00 SOLDERING BLADE X601

775-10054-00 SOLDERING BLADE X602

775-10054-00 SOLDERING BLADE X603

775-10054-00 SOLDERING BLADE X604

364-77511-00 FUSE HOLDER

782-L37R7-5100 POWER FILTER PCB

895-6020025-50 RIVET GB876-86-2X2.5-COPPER M01 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M02 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M03 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M05 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M06 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M07 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M08 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M09 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M10 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M11 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M12 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M12 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M13 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M14 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M15 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M16 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M17 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M18 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M19 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M20 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M21 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M22 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M23 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M24 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M25 895-6020025-50 RIVET GB876-86-2X2.5-COPPER M26

340-80011-00 RECTIFIER RBV-606 D601

655-32801-02 (3-PINS) LEAD WITH HOUSING

851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK )

667-L37K7-05 KEY BOARD ASS'Y

360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S1

360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S2

360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S3

360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S4

360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S5

360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S6

360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S7

782-L37K7-050A BUTTON PCB

364-381BQ-00 8-PINS CONNECTORS 1.25T-1-8AW X1

667-L37K7-09 IR RECEIVE BOARD ASS'Y

667-L37K7-09\ IR RECEIVE BOARD ASS'Y (MANUAL INSERTION )

340-10113-20 LED HFT503MPBR-1 LED1

352-17060-00 IC HRM138BB1706 (D) N1

364-351AY-00 5-PINS CONNECTORS TJC10-5A X1

464-6C722-M0 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M C2

667-L37K7-09* IR RECEIVE BOARD ASS'Y (SMD )

455-12110-H0 SMD RESISTOR FTR0603101JR R2 455-12310-H0 SMD RESISTOR FTR0603103JR R1

456-2410M-C1 SMD CAPACITOR 06032E104M250BA C1 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C3

782-L40D91-090C IR RECEIVE PCB

667-L37K7-10 EARPHONE ASS'Y

364-11212-00 EARPHONE JACK ST-112 X2

364-34186-00 4-PINS CONNECTORS TJC10-4AWT X3 459-2210K-00 CERAMIC CAPACITOR CT1-06-2B4-63V-102K C1 459-2210K-00 CERAMIC CAPACITOR CT1-06-2B4-63V-102K C2

782-L37Q7-1000

EARPHONE ／USB PCB

667-L37K7N-40

AUDIO／ VIDEO PROCESSING BOARD ASS'Y

667-L37K7N-40\ AUDIO／ VIDEO PROCESSING BOARD ASS'Y (MANUAL INSERTION )

\ 667-L37K7-40\ AUDIO／ VIDEO PROCESSING BOARD ASS'Y (MANUAL INSERTION )

329-61805-00 CRYSTAL HC-49U 18.432MHZ GA01

340-00287-00 DIODE 1N5822 DA03

352-21420-00 IC TLE2142 CP (D) NA02

352-78090-90 IC TA78L09 (D) NA05

364-34101-00 4-PINS CONNECTORS TJC3-04A XA12

364-34101-00 4-PINS CONNECTORS TJC3-04A XA10

364-38101-00 8-PINS CONNECTORS TJC3-08A XA08

364-3B1AY-00 12-PINS CONNECTORS TJC10-12A XA06 364-3B1AY-00 12-PINS CONNECTORS TJC10-12A XA07

364-341AY-00 4-PINS CONNECTORS JC10-4A XA04 462-90410-H02 POLYESTER CAPACITOR 63V-0.1uF-J CA91 462-90410-H02 POLYESTER CAPACITOR 63V-0.1uF-J CA92 462-90410-H02 POLYESTER CAPACITOR 63V-0.1uF-J CA99 462-90410-H02 POLYESTER CAPACITOR 63V-0.1uF-J CA100

464-6C722-M0 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M CA07

464-6C722-M0 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M CA08 464-6D522-M0 #ELECTROLYTIC CAPACITOR CD110-16V-2.2uF-M CA46 464-6D522-M0 #ELECTROLYTIC CAPACITOR CD110-16V-2.2uF-M CA50 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M CA17 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M CA43 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M CA44 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M CA47 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M CA48 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M CA49 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M CA59 464-6D610-M0 ELECTROLYTIC CAPACITOR CD110-16V-10uF-M CA62 464-6D647-M0 ELECTROLYTIC CAPACITOR CD110-16V-47uF-M CA10

464-6D647-M0 ELECTROLYTIC CAPACITOR CD110-16V-47uF-M CA19 464-6D647-M0 ELECTROLYTIC CAPACITOR CD110-16V-47uF-M CA28 464-6D647-M0 ELECTROLYTIC CAPACITOR CD110-16V-47uF-M CA38 464-6D647-M0 ELECTROLYTIC CAPACITOR CD110-16V-47uF-M CA40 464-6D710-M0 ELECTROLYTIC CAPACITOR CD110-16V-100uF-M CA36 464-6D710-M0 ELECTROLYTIC CAPACITOR CD110-16V-100uF-M CA70 464-6D710-M0 ELECTROLYTIC CAPACITOR CD110-16V-100uF-M CA82

464-6E610-M0 ELECTROLYTIC CAPACITOR CD110-25V-10uF-M CA83

464-6E610-M0 ELECTROLYTIC CAPACITOR CD110-25V-10uF-M CA86

464-6E610-M0 ELECTROLYTIC CAPACITOR CD110-25V-10uF-M CA112

464-60510-M0 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M CA30

464-60510-M0 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M CA31 464-6D747-M02 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M CA84 464-6D747-M02 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M CA85 464-6D747-M02 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M CA93

464-60533-M0 ELECTROLYTIC CAPACITOR CD110-50V-3.3uF-M CA32 464-6E747-M02 ELECTROLYTIC CAPACITOR CD110-25V-470uF-M CA106 464-6E747-M02 ELECTROLYTIC CAPACITOR CD110-25V-470uF-M CA114 464-6E747-M02 ELECTROLYTIC CAPACITOR CD110-25V-470uF-M CA115 464-6E747-M02 ELECTROLYTIC CAPACITOR CD110-25V-470uF-M CA116

471-1056H-003 PEAKING COIL EL0606SKI-560J LA02 471-1056H-003 PEAKING COIL EL0606SKI-560J LA03 471-1056H-003 PEAKING COIL EL0606SKI-560J LA04 471-1056H-003 PEAKING COIL EL0606SKI-560J LA05 471-1056H-003 PEAKING COIL EL0606SKI-560J LA10

666-13501-0G FERRITE BEAD 3.5X1X6 L1 666-13501-0G FERRITE BEAD 3.5X1X6 L2

477-40230-00 FIXED COIL LH470-1 LA19 590-40422-00 TUNER JS-6B1/111C6 ! TUNA01 870-10189-00 CONNECT BRACKET 340-00003-00 DIODE IN4001 DA08 364-32101-00 2-PINS CONNECTORS TJC3-02A XA09

464-6D747-M0 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M CA56

655-71202-86 (7-PINS) LEAD WITH HOUSING XA02

655-B4302-13 (12-PINS) LEAD WITH HOUSING XA01

655-31202-119 (3-PINS) LEAD WITH HOUSING XA05

655-2E302-81 (2-PINS) LEAD WITH HOUSING XA11

364-41205-00 ANTENNA SOCKET HR-J2

665-N0300-00 COAXIAL CABLE CSYV-2B-300

666-13001-00 FERRITE BEAD TY30X20X10

\ 590-40716-00 TUNER JS-6AM/134 ! \ 364-41207-00 ANTENNA SOCKET HR-F

667-L37K7N-40* AUDIO／ VIDEO PROCESSING BOARD ASS'Y (SMD )

* 353-34200-10 SMD ICMSP3420G-B8-V3 NA01

* 667-L37K7-40* AUDIO／ VIDEO PROCESSING BOARD ASS'Y (SMD )

340-00001-0S SMD DIODE LL4148 DA01 340-00001-0S SMD DIODE LL4148 DA02 340-00001-0S SMD DIODE LL4148 DA05

342-08470-90 SMD TRANSISTOR BC847AW VA02 342-08470-90 SMD TRANSISTOR BC847AW VA03 342-08470-90 SMD TRANSISTOR BC847AW VA04 353-15010-50 SMD ICAP1501-50K5 NA06 353-30080-10 SMD ICTPA3008D2 NA04

353-62494-20 *SMD ICM62494FP (M) NA03 455-12000-H0 SMD RESISTOR FTR0603000XR RA47 455-12000-H0 SMD RESISTOR FTR0603000XR RA48 455-12075-H0 SMD RESISTOR FTR0603750JR RA11 455-12110-H0 SMD RESISTOR FTR0603101JR RA01 455-12110-H0 SMD RESISTOR FTR0603101JR RA02 455-12110-H0 SMD RESISTOR FTR0603101JR RA03 455-12110-H0 SMD RESISTOR FTR0603101JR RA08 455-12110-H0 SMD RESISTOR FTR0603101JR RA12 455-12110-H0 SMD RESISTOR FTR0603101JR RA13 455-12110-H0 SMD RESISTOR FTR0603101JR RA22 455-12110-H0 SMD RESISTOR FTR0603101JR RA24 455-12110-H0 SMD RESISTOR FTR0603101JR RA25 455-12110-H0 SMD RESISTOR FTR0603101JR RA26 455-12110-H0 SMD RESISTOR FTR0603101JR RA27 455-12110-H0 SMD RESISTOR FTR0603101JR RA30 455-12110-H0 SMD RESISTOR FTR0603101JR RA36 455-12110-H0 SMD RESISTOR FTR0603101JR RA51 455-12110-H0 SMD RESISTOR FTR0603101JR RA52 455-12000-H0 SMD RESISTOR FTR0603000XR RA06 455-12210-H0 SMD RESISTOR FTR0603102JR RA37 455-12210-H0 SMD RESISTOR FTR0603102JR RA38 455-12215-H0 SMD RESISTOR FTR0603152JR RA40 455-12220-H0 SMD RESISTOR FTR0603202JR RA35 455-12230-H0 SMD RESISTOR FTR0603302JR RA41 455-12239-H0 SMD RESISTOR FTR0603392JR RA39 455-12268-H0 SMD RESISTOR FTR0603682JR RA31 455-12268-H0 SMD RESISTOR FTR0603682JR RA33 455-12310-H0 SMD RESISTOR FTR0603103JR RA14 455-12310-H0 SMD RESISTOR FTR0603103JR RA15 455-12310-H0 SMD RESISTOR FTR0603103JR RA16 455-12310-H0 SMD RESISTOR FTR0603103JR RA17 455-12310-H0 SMD RESISTOR FTR0603103JR RA18 455-12310-H0 SMD RESISTOR FTR0603103JR RA19 455-12310-H0 SMD RESISTOR FTR0603103JR RA20 455-12310-H0 SMD RESISTOR FTR0603103JR RA21 455-12310-H0 SMD RESISTOR FTR0603103JR RA23 455-12310-H0 SMD RESISTOR FTR0603103JR RA28 455-12310-H0 SMD RESISTOR FTR0603103JR RA32 455-12310-H0 SMD RESISTOR FTR0603103JR RA34 455-12310-H0 SMD RESISTOR FTR0603103JR RA46 455-12410-H0 SMD RESISTOR FTR0603104JR RA43 455-12410-H0 SMD RESISTOR FTR0603104JR RA45 455-12410-H0 SMD RESISTOR FTR0603104JR RA49 455-12410-H0 SMD RESISTOR FTR0603104JR RA50 455-12412-H0 SMD RESISTOR FTR0603124JR RA59 455-12412-H0 SMD RESISTOR FTR0603124JR RA56 455-12412-H0 SMD RESISTOR FTR0603124JR RA57

456-1447R-C3 SMD CAPACITOR C3216Y5V1C474ZT CA96 456-1447R-C3 SMD CAPACITOR C3216Y5V1C474ZT CA97

456-2110H-11 SMD CAPACITOR 0603CG101J250BA CA13 456-2110H-11 SMD CAPACITOR 0603CG101J250BA CA15

456-2310R-C1 SMD CAPACITOR 06032E103Z250BA CA55 456-2322K-B1 SMD CAPACITOR 0603X7R223K250BA CA64

456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA09

456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA11 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA18 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA33 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA34 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA51 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA53 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA54 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA66 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA67 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA71 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA72 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA73 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA79 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA80 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA81 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA88 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA90 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA94 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA98 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA103 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA104 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA105 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA111 456-2410M-C1 SMD CAPACITOR 06032E104M250BA CA113 456-2422M-C1 SMD CAPACITOR 06032E224M250BA CA60 456-2422M-C1 SMD CAPACITOR 06032E224M250BA CA87 456-2422M-C1 SMD CAPACITOR 06032E224M250BA CA89 456-2422M-C1 SMD CAPACITOR 06032E224M250BA CA101 456-2422M-C1 SMD CAPACITOR 06032E224M250BA CA102

456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA20 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA21 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA23 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA25 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA27 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA29 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA74 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA75 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA76 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA77 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA CA78 456-2482R-C1 SMD CAPACITOR 06032E824Z250BA CA63 456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA CA107 456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA CA108 456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA CA110

456-3051H-11 SMD CAPACITOR 0603CG510J500BA CA01 456-3051H-11 SMD CAPACITOR 0603CG510J500BA CA02 456-3051H-11 SMD CAPACITOR 0603CG510J500BA CA03 456-3122H-11 SMD CAPACITOR 0603CG221J500BA CA26 456-3122H-11 SMD CAPACITOR 0603CG221J500BA CA109 456-3147H-11 SMD CAPACITOR 0603CG471J500BA CA16 456-3147H-11 SMD CAPACITOR 0603CG471J500BA CA24 456-3147H-11 SMD CAPACITOR 0603CG471J500BA CA42 456-3147H-11 SMD CAPACITOR 0603CG471J500BA CA61 456-3147H-11 SMD CAPACITOR 0603CG471J500BA CA65 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA35

456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA37 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA39 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA45 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA68 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA69 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA117 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA118 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA119 456-3210H-11 SMD CAPACITOR 0603CG102J500BA CA120 456-3215H-11 SMD CAPACITOR 0603CG152J500BA CA14 456-3215H-11 SMD CAPACITOR 0603CG152J500BA CA22 456-3215H-11 SMD CAPACITOR 0603CG152J500BA CA41 456-3247H-11 SMD CAPACITOR 0603CG472J500BA CA57

456-3310K-B1 SMD CAPACITOR 06032R103K500BA CA58 456-3318K-B1 SMD CAPACITOR 06032R183K500BA CA52

456-3018H-11 SMD CAPACITOR 0603CG180J500BA CA04 456-3018H-11 SMD CAPACITOR 0603CG180J500BA CA05

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA06

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA07

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA08

666-12008-00 SMD FERRITE BEAD STBH2012-501PT LA21

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA11

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA12

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA13

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA14

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA23

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA24

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA25

666-13207-00 SMD FERRITE BEAD STPB3216-380PT LA26

353-34100-80 *SMD IC MSP3410G PQFP80(M) NA01

782-L37K7-400B

AUDIO ／ VIDEO PROCESSING PCB

474-14047-K0 SMD COIL SGMI3216M470KT LA22

342-08570-90 SMD TRANSISTOR BC857 AW VA05

477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 LA15

477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 LA16

477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 LA17

477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 LA18 455-12147-H0 SMD RESISTOR FTR0603471JR RA42 455-22110-H0 SMD RESISTOR RC11-1/8W-100-J LA09 455-12212-H0 SMD RESISTOR FTR0603122JR RA44

667-L37K72-56 CPU BOARD ASS'Y

667-L37K72-56\ CPU BOARD ASS'Y (MANUAL INSERTION )

\ 364-34101-00 4-PINS CONNECTORS TJC3-04A P51

\ 471-1056H-00 PEAKING COIL EL0606SKI-560J FB54

\ 667-L37K7-56\ CPU BOARD ASS'Y (MANUAL INSERTION )

329-61304-00 CRYSTAL HC-49S 13.5MHz X2

329-61402-00 CRYSTAL HC-49/US 14.31818MHZ X1

329-62001-00 CRYSTAL CAST5 20.25MHZ X3

340-00287-00 DIODE 1N5822 D12

340-00287-00 DIODE 1N5822 D13

364-03205-00 IC SOCKET 32T6 U4

364-94206-00 AV JACK HJR-413/PB-1 P52

364-96221-00 AV JACK HJR-613/PB-1 P53

364-11212-00 EARPHONE JACK ST-112 P8

364-11212-00 EARPHONE JACK ST-112 P9

364-32101-00 2-PINS CONNECTORS TJC3-02A X7

364-33101-00 3-PINS CONNECTORS TJC3-03A P29

464-6C722-M0 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M C207 464-6C722-M0 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M C501 464-6C722-M0 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M C536

364-37101-00 7-PINS CONNECTORS TJC3-07A P3

364-37101-00 7-PINS CONNECTORS TJC3-07A P11

364-49217-00 DVI SOCKET DVI34-24+5SFW P7

364-381AY-00 8-PINS CONNECTORS JC10-8A P40

364-3B101-00 102-PINS CONNECTORS TJC3-12A P10

364-91227-00 VGA SOCKET SCREW P5

364-91202-00 S-VIDEO TERMINAL CKX5-2K-2 X6

464-6D810-M1 ELECTROLYTIC CAPACITOR CD110-16V-1000uF-M C537

364-93219-00 AV JACK AV3-14WKD X5

364-96228-00 AV JACK AV13-06-526 X4

364-351AY-00 5-PINS CONNECTORS TJC10-5A P39 464-6D810-M1 ELECTROLYTIC CAPACITOR CD110-16V-1000uF-M C197 464-6D810-M1 ELECTROLYTIC CAPACITOR CD110-16V-1000uF-M C200 464-6D810-M1 ELECTROLYTIC CAPACITOR CD110-16V-1000uF-M C382 464-6D810-M1 ELECTROLYTIC CAPACITOR CD110-16V-1000uF-M C469

569-02155-00 FUSE 20N030L-125V 3A ! F3

870-10189-00 CONNECT BRACKET 471-1056H-00 PEAKING COIL EL0606SKI-560J FB28 471-1056H-00 PEAKING COIL EL0606SKI-560J FB31

352-49002-70 IC AT49F002NT-70PC U4

855-A0053 HEXAGONAL SCREW M3X7 855-A0053 HEXAGONAL SCREW M3X7

\ 464-6C722-M0 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M C330 \ 464-6C722-M0 ELECTROLYTIC CAPACITOR CD110-10V-220uF-M C538

667-L37K72-56* CPU BOARD ASS'Y (SMD )

* 342-01380-00 *SMD TRANSISTOR BSS138LT1 Q3 * 342-01380-00 *SMD TRANSISTOR BSS138LT1 Q2 * 342-01440-10 SMD TRANSISTOR DTC144EKA Q8 * 342-08470-90 SMD TRANSISTOR BC847AW Q151 * 342-08470-90 SMD TRANSISTOR BC847AW Q14 * 353-05010-00 SMD ICTFP501 PZP U15 * 353-24080-90 SMD IC M24C08-WMN6 U11

* 353-86229-10 *SMD ICZ8622912SSC (M) U32 * 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C386 * 454-06547-MA SMD ELECTROLYTIC CAPACITOR CDPS-25V-4.7uF-M C403

* 455-12000-H0 SMD RESISTOR FTR0603000XR R302 * 455-12075-H0 SMD RESISTOR FTR0603750JR R303 * 455-12075-H0 SMD RESISTOR FTR0603750JR R304 * 455-12075-H0 SMD RESISTOR FTR0603750JR R305 * 455-12075-H0 SMD RESISTOR FTR0603750JR R306 * 455-12110-H0 SMD RESISTOR FTR0603101JR R231 * 455-12110-H0 SMD RESISTOR FTR0603101JR R235 * 455-12110-H0 SMD RESISTOR FTR0603101JR R236 * 455-12110-H0 SMD RESISTOR FTR0603101JR R237 * 455-12110-H0 SMD RESISTOR FTR0603101JR R311 * 455-12110-H0 SMD RESISTOR FTR0603101JR R312 * 455-12143-H0 SMD RESISTOR FTR0603431JR R209

* 455-12147-H0 SMD RESISTOR FTR0603471JR R234 * 455-12156-H0 SMD RESISTOR FTR0603561JR R211 * 455-12175-H0 SMD RESISTOR FTR0603751JR R230 * 455-12210-H0 SMD RESISTOR FTR0603102JR R232 * 455-12210-H0 SMD RESISTOR FTR0603102JR R233 * 455-12210-H0 SMD RESISTOR FTR0603102JR R226 * 455-12210-H0 SMD RESISTOR FTR0603102JR R225 * 455-12210-H0 SMD RESISTOR FTR0603102JR R224 * 455-12210-H0 SMD RESISTOR FTR0603102JR R223 * 455-12247-H0 SMD RESISTOR FTR0603472JR R227 * 455-12247-H0 SMD RESISTOR FTR0603472JR R229 * 455-12247-H0 SMD RESISTOR FTR0603472JR R228 * 455-12268-H0 SMD RESISTOR FTR0603682JR R240 * 455-12310-H0 SMD RESISTOR FTR0603103JR R238 * 455-12310-H0 SMD RESISTOR FTR0603103JR R295 * 455-12310-H0 SMD RESISTOR FTR0603103JR R294 * 455-12310-H0 SMD RESISTOR FTR0603103JR R212 * 455-12310-H0 SMD RESISTOR FTR0603103JR R132 * 455-12312-H0 SMD RESISTOR FTR0603123JR R213 * 455-12347-H0 SMD RESISTOR FTR0603473JR R296 * 455-12347-H0 SMD RESISTOR FTR0603473JR R297

* 455-22310-F0 SMD RESISTOR RC-05K103FT R239#

* 456-2368K-B1 *SMD CAPACITOR 06032R683K250BA C327 * 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C326 * 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C324 * 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C329 * 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C489

* 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C488 * 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C320 * 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C321 * 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C322

* 456-3156H-11 SMD CAPACITOR C1608CH1H561JT C325

* 456-3282K-B1 SMD CAPACITOR 06032R822K500BA C328

* 666-12008-00 SMD FERRITE BEAD STBH2012-501PT FB53

* 667-L37K7-56* CPU BOARD ASS'Y (SMD )

329-61405-00 SMD CRYSTAL VCO 14.318M SS0-570 X01

455-12227-H0 SMD RESISTOR FTR0603272JR R380

340-00289-00 SMD DIODE BAV99LT1 D2 340-00289-00 SMD DIODE BAV99LT1 D3 340-00289-00 SMD DIODE BAV99LT1 D4 340-00289-00 SMD DIODE BAV99LT1 D5 340-00289-00 SMD DIODE BAV99LT1 D6 340-00289-00 SMD DIODE BAV99LT1 D7 340-00289-00 SMD DIODE BAV99LT1 D8 340-00289-00 SMD DIODE BAV99LT1 D9 340-00372-00 SMD DIODE MMBD1204 D10 340-00372-00 SMD DIODE MMBD1204 D11 342-01380-00 *SMD TRANSISTOR BSS138LT1 Q10 342-01380-00 *SMD TRANSISTOR BSS138LT1 Q11 342-01440-10 SMD TRANSISTOR DTC144EKA Q1 342-01440-10 SMD TRANSISTOR DTC144EKA Q7 342-01440-10 SMD TRANSISTOR DTC144EKA V5 342-08470-90 SMD TRANSISTOR BC847AW V2 342-08470-90 SMD TRANSISTOR BC847AW V3 342-08470-90 SMD TRANSISTOR BC847AW V4

342-08570-90 SMD TRANSISTOR BC857 AW Q13 342-39040-00 SMD TRANSISTOR MMBT3904 Q4 342-39040-00 SMD TRANSISTOR MMBT3904 Q5 353-00120-40 SMD IC ATTINY12L-4SC U24 353-01390-10 *SMD IC SN74AHC139PW U5 353-02320-30 SMD ICMT48LC2M32B2TG-6 U14 353-02320-30 SMD ICMT48LC2M32B2TG-6 U19 353-02320-30 SMD ICMT48LC2M32B2TG-6 U20 353-03730-20 SMD IC SN74AHC373PWP (D) U1 353-03740-10 SMD IC SN74AHC374PWP (D) U9 353-03830-70 SMD IC DS90C 383A (D) U31 353-04030-10 SMD IC TFP403PZP (D) U15 353-08120-10 SMD IC IMP812JEUS-T (M) U8

353-0JAG0-00 SMD ICJAG-ASM (D) U12

353-11170-10 SMD IC B1117N-2.5 (D) U26

353-11170-D0 SMD IC LM1117 MPX-1.8 (M) U37

353-15010-30 SMD ICAP1501-33K5 U23 353-15010-50 SMD ICAP1501-50K5 U22 353-23100-00 SMD ICFLI2310BD U13 353-24160-60 *SMD IC 24LC16BSN U3 353-24210-50 SMD IC 24LC21A/SN U10 353-24210-50 SMD IC 24LC21A/SN U16 353-28300-60 SMD ICSPX1587AT-2.5 U25 353-32300-80 SMD IC VPC3230D (D) U29 353-40520-80 SMD IC HEF4052BT (M) U34 353-74140-30 SMD IC SN74AHC14PWP (D) U7 353-74140-30 SMD IC SN74AHC14PWP (D) U17 353-74320-40 SMD IC SN74AHC32PWP (D) U6 353-32570-10 SMD ICSN74CBT3257CDR N1 353-80251-10 SMD ICTSC80251G2D-16CB (D) U2 353-98830-30 SMD IC MST9883B-2-110 U30

353-99330-00 SMD IC SI9933ADY (O) U21 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C232 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C248 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C301 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C302 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C400 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C401 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C402 454-03622-MA SMD ELECTROLYTIC CAPACITOR CDPS-10V-22uF-M C410

454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C12 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C60 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C73 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C95 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C113 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C114 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C116 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C167 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C168 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C212 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C220 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C223 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C234 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C260 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C378

454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C392 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C524 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C525 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C526 454-03647-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-47uF-M C527 454-03710-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-100uF-M C105 454-03710-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-100uF-M C210 454-03710-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-100uF-M C213 454-03710-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-100uF-M C214 454-03710-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-100uF-M C217 454-03710-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-100uF-M C233

454-03710-MB SMD ELECTROLYTIC CAPACITOR CDPS-10V-100uF-M C261 454-03722-MD SMD ELECTROLYTIC CAPACITOR CDPS-10V-220uF-M C531 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C28 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C31 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C70 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C71 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C384 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C385 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C406 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C407 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C408 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C409 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C486 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C487 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C497 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C498 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C518 454-04610-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-10uF-M C519 454-04622-MA SMD ELECTROLYTIC CAPACITOR CDPS-16V-22uF-M C490

454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M C492

454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M C493

454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M C494

454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M C502

454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M C503

454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M C504

454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M C517

454-04710-MC SMD ELECTROLYTIC CAPACITOR CDPS-16V-100uF-M C366

454-04710-MC SMD ELECTROLYTIC CAPACITOR CDPS-16V-100uF-M C499

454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M C194

454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M C196

454-04747-ME *SMD ELECTROLYTIC CAPACITOR CDPS-16V-470uF-M C380 454-06547-MA SMD ELECTROLYTIC CAPACITOR CDPS-25V-4.7uF-M C404

455-10110-H9 SMD RESISTOR NCA4R101JR RP34 455-10310-H9 SMD RESISTOR NCA4R103JR RP42 455-10310-H9 SMD RESISTOR NCA4R103JR RP43 455-10022-H9 SMD RESISTOR NCA4R220JR RP3 455-10022-H9 SMD RESISTOR NCA4R220JR RP4 455-10022-H9 SMD RESISTOR NCA4R220JR RP5 455-10022-H9 SMD RESISTOR NCA4R220JR RP6 455-10022-H9 SMD RESISTOR NCA4R220JR RP7 455-10022-H9 SMD RESISTOR NCA4R220JR RP8 455-10022-H9 SMD RESISTOR NCA4R220JR RP9 455-10022-H9 SMD RESISTOR NCA4R220JR RP10 455-10022-H9 SMD RESISTOR NCA4R220JR RP11

455-10022-H9 SMD RESISTOR NCA4R220JR RP12 455-10022-H9 SMD RESISTOR NCA4R220JR RP13 455-10022-H9 SMD RESISTOR NCA4R220JR RP14 455-10022-H9 SMD RESISTOR NCA4R220JR RP15 455-10022-H9 SMD RESISTOR NCA4R220JR RP16 455-10022-H9 SMD RESISTOR NCA4R220JR RP17 455-10022-H9 SMD RESISTOR NCA4R220JR RP18 455-10022-H9 SMD RESISTOR NCA4R220JR RP19 455-10022-H9 SMD RESISTOR NCA4R220JR RP20 455-10022-H9 SMD RESISTOR NCA4R220JR RP21 455-10022-H9 SMD RESISTOR NCA4R220JR RP22 455-10022-H9 SMD RESISTOR NCA4R220JR RP23 455-10022-H9 SMD RESISTOR NCA4R220JR RP28 455-10022-H9 SMD RESISTOR NCA4R220JR RP29 455-10022-H9 SMD RESISTOR NCA4R220JR RP30 455-10022-H9 SMD RESISTOR NCA4R220JR RP31 455-10022-H9 SMD RESISTOR NCA4R220JR RP32 455-10022-H9 SMD RESISTOR NCA4R220JR RP33 455-10022-H9 SMD RESISTOR NCA4R220JR RP36 455-10022-H9 SMD RESISTOR NCA4R220JR RP37 455-10022-H9 SMD RESISTOR NCA4R220JR RP38 455-10022-H9 SMD RESISTOR NCA4R220JR RP39 455-10022-H9 SMD RESISTOR NCA4R220JR RP40 455-10022-H9 SMD RESISTOR NCA4R220JR RP41 455-10022-H9 SMD RESISTOR NCA4R220JR RP141 455-12000-H0 SMD RESISTOR FTR0603000XR R21 455-12000-H0 SMD RESISTOR FTR0603000XR R22 455-12000-H0 SMD RESISTOR FTR0603000XR R23 455-12000-H0 SMD RESISTOR FTR0603000XR R85 455-12000-H0 SMD RESISTOR FTR0603000XR R89 455-12000-H0 SMD RESISTOR FTR0603000XR R91 455-12000-H0 SMD RESISTOR FTR0603000XR R92 455-12000-H0 SMD RESISTOR FTR0603000XR R122 455-12000-H0 SMD RESISTOR FTR0603000XR R123 455-12000-H0 SMD RESISTOR FTR0603000XR R124 455-12000-H0 SMD RESISTOR FTR0603000XR R194 455-12000-H0 SMD RESISTOR FTR0603000XR R197 455-12000-H0 SMD RESISTOR FTR0603000XR R313 455-12000-H0 SMD RESISTOR FTR0603000XR R393 455-12000-H0 SMD RESISTOR FTR0603000XR R394 455-12000-H0 SMD RESISTOR FTR0603000XR R397 455-12000-H0 SMD RESISTOR FTR0603000XR R421 455-12000-H0 SMD RESISTOR FTR0603000XR R424 455-12012-H0 SMD RESISTOR FTR0603120JR R4 455-12012-H0 SMD RESISTOR FTR0603120JR R5 455-12012-H0 SMD RESISTOR FTR0603120JR R44 455-12012-H0 SMD RESISTOR FTR0603120JR R45 455-12012-H0 SMD RESISTOR FTR0603120JR R46 455-12012-H0 SMD RESISTOR FTR0603120JR R47 455-12012-H0 SMD RESISTOR FTR0603120JR R48 455-12012-H0 SMD RESISTOR FTR0603120JR R95 455-12012-H0 SMD RESISTOR FTR0603120JR R96 455-12012-H0 SMD RESISTOR FTR0603120JR R97 455-12022-H0 SMD RESISTOR FTR0603220JR R6 455-12022-H0 SMD RESISTOR FTR0603220JR R27

455-12022-H0 SMD RESISTOR FTR0603220JR R32 455-12022-H0 SMD RESISTOR FTR0603220JR R39 455-12022-H0 SMD RESISTOR FTR0603220JR R43 455-12022-H0 SMD RESISTOR FTR0603220JR R58 455-12022-H0 SMD RESISTOR FTR0603220JR R62 455-12022-H0 SMD RESISTOR FTR0603220JR R64 455-12022-H0 SMD RESISTOR FTR0603220JR R68 455-12022-H0 SMD RESISTOR FTR0603220JR R101 455-12022-H0 SMD RESISTOR FTR0603220JR R106 455-12022-H0 SMD RESISTOR FTR0603220JR R107 455-12022-H0 SMD RESISTOR FTR0603220JR R109 455-12022-H0 SMD RESISTOR FTR0603220JR R114 455-12022-H0 SMD RESISTOR FTR0603220JR R115 455-12022-H0 SMD RESISTOR FTR0603220JR R116 455-12022-H0 SMD RESISTOR FTR0603220JR R117 455-12022-H0 SMD RESISTOR FTR0603220JR R118 455-12022-H0 SMD RESISTOR FTR0603220JR R125 455-12022-H0 SMD RESISTOR FTR0603220JR R165 455-12022-H0 SMD RESISTOR FTR0603220JR R169 455-12022-H0 SMD RESISTOR FTR0603220JR R359 455-12022-H0 SMD RESISTOR FTR0603220JR R360 455-12022-H0 SMD RESISTOR FTR0603220JR R361 455-12068-H0 SMD RESISTOR FTR0603680JR R416 455-12075-F0 SMD RESISTOR FTM06030750FR R13 455-12075-F0 SMD RESISTOR FTM06030750FR R16 455-12075-F0 SMD RESISTOR FTM06030750FR R19 455-12075-H0 SMD RESISTOR FTR0603750JR R54 455-12075-H0 SMD RESISTOR FTR0603750JR R55 455-12075-H0 SMD RESISTOR FTR0603750JR R56 455-12075-H0 SMD RESISTOR FTR0603750JR R403 455-12075-H0 SMD RESISTOR FTR0603750JR R404 455-12075-H0 SMD RESISTOR FTR0603750JR R405 455-12082-H0 SMD RESISTOR FTR0603820JR R376 455-12082-H0 SMD RESISTOR FTR0603820JR R377 455-12082-H0 SMD RESISTOR FTR0603820JR R378 455-12082-H0 SMD RESISTOR FTR0603820JR R381 455-12082-H0 SMD RESISTOR FTR0603820JR R382 455-12082-H0 SMD RESISTOR FTR0603820JR R383 455-12110-H0 SMD RESISTOR FTR0603101JR R3 455-12110-H0 SMD RESISTOR FTR0603101JR R12 455-12110-H0 SMD RESISTOR FTR0603101JR R15 455-12110-H0 SMD RESISTOR FTR0603101JR R18 455-12110-H0 SMD RESISTOR FTR0603101JR R36 455-12110-H0 SMD RESISTOR FTR0603101JR R37 455-12110-H0 SMD RESISTOR FTR0603101JR R38 455-12110-H0 SMD RESISTOR FTR0603101JR R40 455-12110-H0 SMD RESISTOR FTR0603101JR R42 455-12110-H0 SMD RESISTOR FTR0603101JR R65 455-12110-H0 SMD RESISTOR FTR0603101JR R66 455-12110-H0 SMD RESISTOR FTR0603101JR R67 455-12110-H0 SMD RESISTOR FTR0603101JR R69 455-12110-H0 SMD RESISTOR FTR0603101JR R93 455-12110-H0 SMD RESISTOR FTR0603101JR R98 455-12110-H0 SMD RESISTOR FTR0603101JR R102 455-12110-H0 SMD RESISTOR FTR0603101JR R104

455-12110-H0 SMD RESISTOR FTR0603101JR R111 455-12110-H0 SMD RESISTOR FTR0603101JR R119 455-12110-H0 SMD RESISTOR FTR0603101JR R144 455-12110-H0 SMD RESISTOR FTR0603101JR R150 455-12110-H0 SMD RESISTOR FTR0603101JR R151 455-12110-H0 SMD RESISTOR FTR0603101JR R152 455-12110-H0 SMD RESISTOR FTR0603101JR R171 455-12110-H0 SMD RESISTOR FTR0603101JR R175 455-12110-H0 SMD RESISTOR FTR0603101JR R176 455-12110-H0 SMD RESISTOR FTR0603101JR R177 455-12110-H0 SMD RESISTOR FTR0603101JR R198 455-12110-H0 SMD RESISTOR FTR0603101JR R199 455-12110-H0 SMD RESISTOR FTR0603101JR R412 455-12110-H0 SMD RESISTOR FTR0603101JR R413 455-12110-H0 SMD RESISTOR FTR0603101JR R414 455-12110-H0 SMD RESISTOR FTR0603101JR R415 455-12113-F1 SMD RESISTOR FTM06031370FR R14 455-12113-F1 SMD RESISTOR FTM06031370FR R17 455-12113-F1 SMD RESISTOR FTM06031370FR R20 455-12115-H0 SMD RESISTOR FTR0603151JR R207 455-12118-H0 SMD RESISTOR FTR0603181JR R49 455-12147-H0 SMD RESISTOR FTR0603471JR R214 455-12147-H0 SMD RESISTOR FTR0603471JR R217 455-12147-H0 SMD RESISTOR FTR0603471JR R218 455-12156-H0 SMD RESISTOR FTR0603561JR R24

782-L37K7-560F CPU PCB

455-12210-H0 SMD RESISTOR FTR0603102JR R11 455-12210-H0 SMD RESISTOR FTR0603102JR R41 455-12210-H0 SMD RESISTOR FTR0603102JR R74 455-12210-H0 SMD RESISTOR FTR0603102JR R75 455-12210-H0 SMD RESISTOR FTR0603102JR R105 455-12210-H0 SMD RESISTOR FTR0603102JR R131 455-12210-H0 SMD RESISTOR FTR0603102JR R423 455-12210-H0 SMD RESISTOR FTR0603102JR R390 455-12239-H0 SMD RESISTOR FTR0603392JR R30 455-12247-H0 SMD RESISTOR FTR0603472JR R1 455-12247-H0 SMD RESISTOR FTR0603472JR R2 455-12247-H0 SMD RESISTOR FTR0603472JR R7 455-12247-H0 SMD RESISTOR FTR0603472JR R8 455-12247-H0 SMD RESISTOR FTR0603472JR R33 455-12247-H0 SMD RESISTOR FTR0603472JR R34 455-12247-H0 SMD RESISTOR FTR0603472JR R87 455-12247-H0 SMD RESISTOR FTR0603472JR R153 455-12247-H0 SMD RESISTOR FTR0603472JR R154 455-12247-H0 SMD RESISTOR FTR0603472JR R155 455-12247-H0 SMD RESISTOR FTR0603472JR R156 455-12247-H0 SMD RESISTOR FTR0603472JR R164 455-12247-H0 SMD RESISTOR FTR0603472JR R168 455-12247-H0 SMD RESISTOR FTR0603472JR R201 455-12247-H0 SMD RESISTOR FTR0603472JR R202 455-12268-H0 SMD RESISTOR FTR0603682JR R409 455-12268-H0 SMD RESISTOR FTR0603682JR R410 455-12268-H0 SMD RESISTOR FTR0603682JR R411 455-12275-H0 SMD RESISTOR FTR0603752JR R29 455-12310-H0 SMD RESISTOR FTR0603103JR R9

455-12310-H0 SMD RESISTOR FTR0603103JR R35 455-12310-H0 SMD RESISTOR FTR0603103JR R71 455-12310-H0 SMD RESISTOR FTR0603103JR R72 455-12310-H0 SMD RESISTOR FTR0603103JR R103 455-12310-H0 SMD RESISTOR FTR0603103JR R108 455-12310-H0 SMD RESISTOR FTR0603103JR R126 455-12310-H0 SMD RESISTOR FTR0603103JR R127 455-12310-H0 SMD RESISTOR FTR0603103JR R140 455-12310-H0 SMD RESISTOR FTR0603103JR R204 455-12310-H0 SMD RESISTOR FTR0603103JR R298 455-12310-H0 SMD RESISTOR FTR0603103JR R309 455-12310-H0 SMD RESISTOR FTR0603103JR R310 455-12310-H0 SMD RESISTOR FTR0603103JR R392 455-12310-H0 SMD RESISTOR FTR0603103JR R406 455-12310-H0 SMD RESISTOR FTR0603103JR R407 455-12310-H0 SMD RESISTOR FTR0603103JR R408 455-12310-H0 SMD RESISTOR FTR0603103JR R422 455-12347-H0 SMD RESISTOR FTR0603473JR R99 455-12347-H0 SMD RESISTOR FTR0603473JR R100 455-12347-H0 SMD RESISTOR FTR0603473JR R130 455-12410-H0 SMD RESISTOR FTR0603104JR R31 455-12410-H0 SMD RESISTOR FTR0603104JR R189 455-12410-H0 SMD RESISTOR FTR0603104JR R190 455-12410-H0 SMD RESISTOR FTR0603104JR R265 455-12410-H0 SMD RESISTOR FTR0603104JR R266 455-12410-H0 SMD RESISTOR FTR0603104JR R374 455-12410-H0 SMD RESISTOR FTR0603104JR R375 455-12410-H0 SMD RESISTOR FTR0603104JR R384 455-12410-H0 SMD RESISTOR FTR0603104JR R385 455-12410-H0 SMD RESISTOR FTR0603104JR R399 455-12410-H0 SMD RESISTOR FTR0603104JR R400 455-12410-H0 SMD RESISTOR FTR0603104JR R401 455-12410-H0 SMD RESISTOR FTR0603104JR R402 455-12410-H0 SMD RESISTOR FTR0603104JR R417 455-12410-H0 SMD RESISTOR FTR0603104JR R418 455-12413-H0 SMD RESISTOR FTR0603134JR R28 455-12418-H0 SMD RESISTOR FTR0603184JR R25 455-12418-H0 SMD RESISTOR FTR0603184JR R26

455-12447-H0 SMD RESISTOR FTR0603474JR R50 456-2468R-C1 SMD CAPACITOR 06032E684Z250BA C315 456-2468R-C1 SMD CAPACITOR 06032E684Z250BA C318 456-2468R-C1 SMD CAPACITOR 06032E684Z250BA C319

456-3068H-11 SMD CAPACITOR C1608CH1H680JT C508

456-3068H-11 SMD CAPACITOR C1608CH1H680JT C509

456-3068H-11 SMD CAPACITOR C1608CH1H680JT C510

456-2022H-11 SMD CAPACITOR 0603CG220J250BA C505

456-2022H-11 SMD CAPACITOR 0603CG220J250BA C506

456-2022H-11 SMD CAPACITOR 0603CG220J250BA C507

456-3033H-11 SMD CAPACITOR C1608CH1H330JT C5

456-3033H-11 SMD CAPACITOR C1608CH1H330JT C6

456-3033H-11 SMD CAPACITOR C1608CH1H330JT C68

456-3033H-11 SMD CAPACITOR C1608CH1H330JT C69 456-2368K-B1 *SMD CAPACITOR 06032R683K250BA C247 456-2368K-B1 *SMD CAPACITOR 06032R683K250BA C251 456-2368K-B1 *SMD CAPACITOR 06032R683K250BA C253

456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C1 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C2 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C3 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C4 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C7 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C8 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C9 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C10 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C11 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C13 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C15 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C16 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C17 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C18 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C19 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C20 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C21 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C29 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C30 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C32 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C35 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C37 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C40 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C41 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C42 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C43 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C49 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C50 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C51 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C52 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C53 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C54 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C55 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C56 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C57 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C58 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C59 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C62 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C63 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C64 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C66 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C67 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C72 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C74 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C75 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C76 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C77 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C78 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C79 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C80 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C81 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C82 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C83 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C84 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C85

456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C86 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C87 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C88 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C89 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C90 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C91 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C92 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C93 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C94 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C96 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C97 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C98 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C99 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C100 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C101 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C102 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C103 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C104 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C106 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C107 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C108 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C109 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C110 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C111 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C112 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C115 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C117 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C118 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C119 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C120 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C123 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C129 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C130 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C131 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C132 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C133 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C134 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C135 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C136 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C137 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C138 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C139 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C140 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C141 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C142 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C143 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C144 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C146 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C147 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C148 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C149 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C150 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C151 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C152 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C153

456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C154 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C155 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C156 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C157 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C158 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C159 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C160 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C161 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C162 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C163 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C164 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C165 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C166 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C169 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C170 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C171 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C172 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C173 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C174 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C175 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C176 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C177 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C178 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C179 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C180 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C181 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C182 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C183 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C184 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C185 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C186 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C188 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C195 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C199 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C206 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C208 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C215 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C216 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C222 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C238 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C244 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C259 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C267 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C268 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C278 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C279 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C280 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C281 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C282 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C283 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C284 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C285 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C286 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C287 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C288

456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C289 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C290 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C291 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C292 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C293 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C294 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C295 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C296 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C297 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C298 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C299 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C300 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C303 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C304 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C367 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C377 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C379 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C381 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C393 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C395 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C397 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C470 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C491 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C500 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C528 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C529 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C530 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C396 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT C534

456-2422M-C1 SMD CAPACITOR 06032E224M250BA C228 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C242 456-2422M-C1 SMD CAPACITOR 06032E224M250BA C245

456-2510R-C1 SMD CAPACITOR 06032E105Z250BA C22 456-2510R-C1 SMD CAPACITOR 06032E105Z250BA C24 456-2510R-C1 SMD CAPACITOR 06032E105Z250BA C26 456-2510R-C1 SMD CAPACITOR 06032E105Z250BA C46 456-2510R-C1 SMD CAPACITOR 06032E105Z250BA C48 456-2510R-C1 SMD CAPACITOR 06032E105Z250BA C190

456-3007D-11 SMD CAPACITOR C1608CH1H070DT C391

456-3007D-11 SMD CAPACITOR C1608CH1H070DT C398

456-3010H-11 SMD CAPACITOR C1608CH1H100JT C219

456-3110H-11 SMD CAPACITOR C1608CH1H101JT C33

456-3110H-11 SMD CAPACITOR C1608CH1H101JT C34

456-3110H-11 SMD CAPACITOR C1608CH1H101JT C36

456-3139H-11 SMD CAPACITOR 0603CG391J500BA C225

456-3139H-11 SMD CAPACITOR 0603CG391J500BA C389

456-3139H-11 SMD CAPACITOR 0603CG391J500BA C390

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C38

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C39

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C44

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C45

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C47

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C61

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C266

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C314

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C463

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C464

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C465

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C466

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C484

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C485

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C495

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C496

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C520

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C521

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C522

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C523

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C532

456-3210H-11 SMD CAPACITOR 0603CG102J500BA C533

456-3215H-11 SMD CAPACITOR 0603CG152J500BA C227

456-3215H-11 SMD CAPACITOR 0603CG152J500BA C237

456-3215H-11 SMD CAPACITOR 0603CG152J500BA C256

456-3215H-11 SMD CAPACITOR 0603CG152J500BA C387

456-3215H-11 SMD CAPACITOR 0603CG152J500BA C388 456-3310K-B1 SMD CAPACITOR 06032R103K500BA C65 456-3310K-B1 SMD CAPACITOR 06032R103K500BA C263 456-3310K-B1 SMD CAPACITOR 06032R103K500BA C264 456-3310K-B1 SMD CAPACITOR 06032R103K500BA C265 456-3310K-B1 SMD CAPACITOR 06032R103K500BA C405 456-3310K-B1 SMD CAPACITOR 06032R103K500BA C511 456-3310K-B1 SMD CAPACITOR 06032R103K500BA C512 456-3310K-B1 SMD CAPACITOR 06032R103K500BA C513 456-3310K-B1 SMD CAPACITOR 06032R103K500BA C514 456-3310K-B1 SMD CAPACITOR 06032R103K500BA C515 456-3310K-B1 SMD CAPACITOR 06032R103K500BA C516

456-3347H-11 SMD CAPACITOR 0603CG473J500BA C250

456-3347H-11 SMD CAPACITOR 0603CG473J500BA C255

456-3347H-11 SMD CAPACITOR 0603CG473J500BA C257 456-3382K-B1 SMD CAPACITOR 06032R823K500BA C269 456-3A33C-11 SMD CAPACITOR 0603CG3R3C500BA C23 456-3A33C-11 SMD CAPACITOR 0603CG3R3C500BA C25 456-3A33C-11 SMD CAPACITOR 0603CG3R3C500BA C27 456-3A33C-11 SMD CAPACITOR 0603CG3R3C500BA C243 456-3A33C-11 SMD CAPACITOR 0603CG3R3C500BA C246

477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 L1 477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 L2 477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 L3 666-12008-00 SMD FERRITE BEAD STBH2012-501PT L4 666-12008-00 SMD FERRITE BEAD STBH2012-501PT L5 666-12008-00 SMD FERRITE BEAD STBH2012-501PT FB1 666-12008-00 SMD FERRITE BEAD STBH2012-501PT FB37 666-12008-00 SMD FERRITE BEAD STBH2012-501PT FB52 666-12012-00 SMD FERRITE BEAD BG2012B300T L6 666-12012-00 SMD FERRITE BEAD BG2012B300T L7 666-12012-00 SMD FERRITE BEAD BG2012B300T L8 666-12012-00 SMD FERRITE BEAD BG2012B300T L9 666-12012-00 SMD FERRITE BEAD BG2012B300T FB2 666-12012-00 SMD FERRITE BEAD BG2012B300T FB3 666-12012-00 SMD FERRITE BEAD BG2012B300T FB4 666-12012-00 SMD FERRITE BEAD BG2012B300T L10

666-12012-00 SMD FERRITE BEAD BG2012B300T L11 666-12012-00 SMD FERRITE BEAD BG2012B300T L15 666-12012-00 SMD FERRITE BEAD BG2012B300T L16 666-12012-00 SMD FERRITE BEAD BG2012B300T L17 666-12012-00 SMD FERRITE BEAD BG2012B300T L18 666-12012-00 SMD FERRITE BEAD BG2012B300T L19 666-12012-00 SMD FERRITE BEAD BG2012B300T L20 666-12012-00 SMD FERRITE BEAD BG2012B300T L21 666-12012-00 SMD FERRITE BEAD BG2012B300T L22 666-12012-00 SMD FERRITE BEAD BG2012B300T L24 666-12012-00 SMD FERRITE BEAD BG2012B300T L25 666-12012-00 SMD FERRITE BEAD BG2012B300T FB32 666-12012-00 SMD FERRITE BEAD BG2012B300T FB33 666-12012-00 SMD FERRITE BEAD BG2012B300T FB45 666-12012-00 SMD FERRITE BEAD BG2012B300T FB46 666-12012-00 SMD FERRITE BEAD BG2012B300T FB61 666-12012-00 SMD FERRITE BEAD BG2012B300T FB62 666-12012-00 SMD FERRITE BEAD BG2012B300T FB63 666-12012-00 SMD FERRITE BEAD BG2012B300T FB64 666-12012-00 SMD FERRITE BEAD BG2012B300T FB65 666-12012-00 SMD FERRITE BEAD BG2012B300T FB66 666-12012-00 SMD FERRITE BEAD BG2012B300T FB67 666-12012-00 SMD FERRITE BEAD BG2012B300T FB72 666-12012-00 SMD FERRITE BEAD BG2012B300T FB73 666-12012-00 SMD FERRITE BEAD BG2012B300T FB77 666-12012-00 SMD FERRITE BEAD BG2012B300T FB78 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB5 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB6 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB7 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB8 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB9 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L12 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L13 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L14 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L23 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L26 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB10 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB11 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB12 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB13 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB14 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB15 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB16 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB17 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB18 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB19 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB20 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB21 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB24 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB25 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB26 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB27 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB34 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB35 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB36

666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB38 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB39 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB40 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB41 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB42 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB43 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB44 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB47 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB48 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB49 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB50 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB51 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB56 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB57 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB58 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB59 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB60 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB74 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB75 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB76 666-13207-00 SMD FERRITE BEAD STPB3216-380PT FB79

342-01440-10 SMD TRANSISTOR DTC144EKA V6 364-T3001-00 SMD 30-PINSFF-A1255-WRS P4 455-12310-H0 SMD RESISTOR FTR0603103JR R425 455-12147-H0 SMD RESISTOR FTR0603471JR R389 455-12310-H0 SMD RESISTOR FTR0603103JR R388 455-12268-H0 SMD RESISTOR FTR0603682JR R387

342-08470-90 SMD TRANSISTOR BC847AW V1

456-2422R-C1 SMD CAPACITOR 06032E224Z250BA C535

455-12047-H0 SMD RESISTOR FTR0603470JR R63 455-12000-H0 SMD RESISTOR FTR0603000XR R132 455-12000-H0 SMD RESISTOR FTR0603000XR RA07

* 454-04647-MB SMD ELECTROLYTIC CAPACITOR CDPS-16V-47uF-M CA01

* 340-00001-0S SMD DIODE LL4148 DA01 * 455-12310-H0 SMD RESISTOR FTR0603103JR RA01 * 455-12422-H0 SMD RESISTOR FTR0603224JR RA02 * 455-12433-H0 SMD RESISTOR FTR0603334JR RA03

* 342-08470-90 SMD TRANSISTOR BC847AW V7

* 342-01380-00 *SMD TRANSISTOR BSS138LT1 VA01 * 455-12310-H0 SMD RESISTOR FTR0603103JR RA05 * 455-12310-H0 SMD RESISTOR FTR0603103JR RA06

SL37K70-11A10 SOFTWARE FLASH AUDIOVOX

615-10508-03 WALL MOUNT ASS'Y ( MIDDLE )

605-L37K77-00 WALL MOUNT TIP( MIDDLE)

615-10445-00

WALL MOUNT ASS'Y (，LC-30X9 )

789-70032-00 WALL MOUNT COMPOSE BOLT M6X10 855-A0045-00 SCREW GB99-86 4X30 855-B0016-00 EXPANDING BOLT M8X72

870-10270-00 WALL MOUNT CONNECT BRACKET

886-31756-02 WALL MOUNT CARTON BOX ( MIDDLE )　

887-21199-00 PEARL COTTONPALSTIC BAG (420X350)

887-21167-00 WALL MOUNT ACCESSORY PACKING BAG ( MIDDLE )

667-L37K7-20 POWER PCB ASS'Y (37" LG)

667-L37K7-20\ POWER PCB ASS'Y (MANUAL INSERTION )

340-00291-00 DIODE TEU2YX D501

340-00406-00 DIODE EM2A D502

340-00400-00 DIODE SARS01 D509

340-00400-00 DIODE SARS01 D512

343-34690-00 TRANSISTOR 2SK3469-01MR V501

343-34690-00 TRANSISTOR 2SK3469-01MR V502

343-10130-60 TRANSISTOR 2SA1013-0 V505

343-09660-60 TRANSISTOR 2SA966-0 V504

343-22360-10 TRANSISTOR 2SC2236-Y V503

352-00240-10 *IC SE024 N507

352-04310-00 IC LM431A (M) N504

352-04210-10 IC TLP4214GR N503

352-04210-10 IC TLP4214GR N505

364-32101-00 2-PINS CONNECTORS TJC3-02A X504

364-33101-00 3-PINS CONNECTORS TJC3-03A X509

364-34101-00 4-PINS CONNECTORS TJC3-04A X503

364-37101-00 7-PINS CONNECTORS TJC3-07A X505

364-38101-00 8-PINS CONNECTORS TJC3-08A X510 459-6110H-00 CERAMIC CAPACITOR CT81-06C-Bn-1KV-101J C522 459-6147K-00 CERAMIC CAPACITOR DE0705B471K1k C521 459-6147K-00 CERAMIC CAPACITOR DE0705B471K1k C532 459-6147K-00 CERAMIC CAPACITOR DE0705B471K1k C540 459-6147K-00 CERAMIC CAPACITOR DE0705B471K1k C541 459-6168K-00 CERAMIC CAPACITOR DE0705B681K1k C523 459-6210K-00 CERAMIC CAPACITOR DE0705B102K1K C526 459-6210K-00 CERAMIC CAPACITOR DE0705B102K1K C551

459-B222M-20 CERAMIC CAPACITOR ECK-DNS222MEX ! C528 462-D5510-H1 POLYESTER CAPACITOR CBB21A-400V-1uF-J C501

464-60547-M0 ELECTROLYTIC CAPACITOR CD110-50V-4.7uF-M C524

464-08722-M0N ELECTROLYTIC CAPACITOR CD294-450V-220uF-M C519

464-6D810-M0 ELECTROLYTIC CAPACITOR CD110-16V-1000uF-M C547

464-RF822-T0 ELECTROLYTIC CAPACITOR CD110HR-35V-2200uF-T C542 464-RF822-T0 ELECTROLYTIC CAPACITOR CD110HR-35V-2200uF-T C543 464-RF822-T0 ELECTROLYTIC CAPACITOR CD110HR-35V-2200uF-T C554 464-RF822-T0 ELECTROLYTIC CAPACITOR CD110HR-35V-2200uF-T C555 464-RF822-T0 ELECTROLYTIC CAPACITOR CD110HR-35V-2200uF-T C556 464-RE833-T0 ELECTROLYTIC CAPACITOR CD110HR-25V-3300uF-T C533 464-RE833-T0 ELECTROLYTIC CAPACITOR CD110HR-25V-3300uF-T C536 464-RE833-T0 ELECTROLYTIC CAPACITOR CD110HR-25V-3300uF-T C549 464-R0710-T0 ELECTROLYTIC CAPACITOR CD110HR-50V-100uF-T C507 464-R0710-T0 ELECTROLYTIC CAPACITOR CD110HR-50V-100uF-T C511 464-61647-M0 *ELECTROLYTIC CAPACITOR CD110-100V-47uF-M C502

464-R0647-T0 ELECTROLYTIC CAPACITOR CD110HR-50V-47uF-T C527 467-1D022-H0 CARBON RESISTOR RT14-1/4W-22Ω-J R509 467-1D022-H0 CARBON RESISTOR RT14-1/4W-22Ω-J R510 467-1D033-H0 CARBON RESISTOR RT14-1/4W-33Ω-J R513 467-1D122-H0 CARBON RESISTOR RT14-1/4W-220Ω-J R514 467-2G047-H0 METAL RESISTOR 2W-47Ω-JL R525 467-2G047-H0 METAL RESISTOR 2W-47Ω-JL R534 467-2G368-H0 METAL RESISTOR 2W-68K-JL R524 467-2G368-H0 METAL RESISTOR 2W-68K-JL R532

467-2GB18-H0 METAL RESISTOR 2W-0.18Ω-JL R506 467-2GB18-H0 METAL RESISTOR 2W-0.18Ω-JL R529

467-2GB22-H0 METAL RESISTOR 2W-0.22Ω-JL R507 467-2GB39-H0 METAL RESISTOR 2W-0.39Ω-JL R526

467-4E022-H0 FUSIBLE RESISTOR 1/2W-22Ω-JL R537

467-4E022-H0 FUSIBLE RESISTOR 1/2W-22Ω-JL R540

467-4F010-H0 FUSIBLE RESISTOR 1W-10Ω-JL R530

467-8E510-H0 SOLID RESISTOR 1/2W-1MΩ-JL ! R516

467-8E510-H0 SOLID RESISTOR 1/2W-1MΩ-JL ! R517

467-8E539-H0A SOLID RESISTOR 1/2W-3.9MΩ-J ! R501 467-8E539-H0A SOLID RESISTOR 1/2W-3.9MΩ-J ! R502

470-00394-00 *SWITCHING TRANSFORMERSRW3220PQ-X22V002 L501 470-00394-00 *SWITCHING TRANSFORMERSRW3220PQ-X22V002 L502 470-00399-00 *SWITCHING TRANSFORMERSRW3225PQ-X01V015 T503 470-00400-00 *SWITCHING TRANSFORMERSRW3225PQ-X02V015 T504 470-00400-00 *SWITCHING TRANSFORMERSRW3225PQ-X02V015 T505 477-40031-00 FIXED COIL LG750 L503 477-40031-00 FIXED COIL LG750 L504 477-40031-00 FIXED COIL LG750 L505 775-60137-00 HOLLOW PILLAR φ2.36×14B 775-60137-00 HOLLOW PILLAR φ2.36×14B

459-6133K-00 CERAMIC CAPACITOR DE0405B331K1K C561

364-331CK-00 3-PINS CONNECTORS FF-A3963-WV-2 X511

852-23008-81 SCREW SJ2829 M3X8-D.Zn 852-23008-81 SCREW SJ2829 M3X8-D.Zn 340-00381-00 DIODE FFPF10U60S D503 340-00381-00 DIODE FFPF10U60S D504 340-00415-00 DIODE FME-220B D518 340-00415-00 DIODE FME-220B D519 340-00399-00 DIODE SF20JC10 D517 352-15650-10 IC STR-E1565 N501

352-64670-10 *IC STR-F6467 N502 706-B6004-01A HEAT SINK SRP501 706-B6006-01A HEAT SINK SRP502

706-BA402-01A HEAT SINK SRP503 706-BA604-01B HEAT SINK SRP504

851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) D503

851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) D504

851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) N502

851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) D518

851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) D517

851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) D519

851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) N508

851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) V501

851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) V502

851-33008-57 SCREW B(+)3X8G-D.Zn ( BLACK ) N501

851-33012-57 SCREW B(+)3X12G-D.Zn ( BLACK )

352-15010-70 *IC AP1501T5 N508

667-L37K7-20* POWER PCB ASS'Y (SMD )

340-00405-00 SMD DIODE D1FS4 D506

340-00405-00 SMD DIODE D1FS4 D508

340-00405-00 SMD DIODE D1FS4 D520

340-00001-0S SMD DIODE LL4148 D507 340-00001-0S SMD DIODE LL4148 D510 340-00001-0S SMD DIODE LL4148 D511

340-00001-0S SMD DIODE LL4148 D513 340-00001-0S SMD DIODE LL4148 D514 340-00001-0S SMD DIODE LL4148 D515 340-00001-0S SMD DIODE LL4148 D516 340-00001-0S SMD DIODE LL4148 D521

340-00296-00 SMD DIODE SK34 D522

342-01440-10 SMD TRANSISTOR DTC144EKA V506

455-22320-H0 SMD RESISTOR RC11-1/8W-20K-J R518 455-22110-H0 SMD RESISTOR RC11-1/8W-100-J R512 455-22110-H0 SMD RESISTOR RC11-1/8W-100-J R519 455-22110-H0 SMD RESISTOR RC11-1/8W-100-J R550 455-22151-H0 SMD RESISTOR RC11-1/8W-510-J R549 455-22168-H0 SMD RESISTOR RC11-1/8W-680-J R528 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R535 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R538 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R539 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R541 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R545 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R546 455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R547 455-22215-H0 SMD RESISTOR RC11-1/8W-1.5K-J R543 455-22215-H0 SMD RESISTOR RC11-1/8W-1.5K-J R552 455-22218-H0 SMD RESISTOR RC11-1/8W-1.8K-J R544 455-22220-H0 SMD RESISTOR RC11-1/8W-2K-J R536 455-22220-H0 SMD RESISTOR RC11-1/8W-2K-J R548 455-22233-H0 SMD RESISTOR RC11-1/8W-3.3K-J R527 455-22268-H0 SMD RESISTOR RC11-1/8W-6.8K-J R515 455-22310-H0 SMD RESISTOR RC11-1/8W-10K-J R521 455-22310-H0 SMD RESISTOR RC11-1/8W-10K-J R542 455-22313-H0 SMD RESISTOR RC11-1/8W-13K-J R553 455-22322-H0 SMD RESISTOR RC11-1/8W-22K-J R520 455-22322-H0 SMD RESISTOR RC11-1/8W-22K-J R533 455-22322-H0 SMD RESISTOR RC11-1/8W-22K-J R503 455-22333-H0 SMD RESISTOR RC11-1/8W-33K-J R504 455-22347-H0 SMD RESISTOR RC11-1/8W-47K-J R551 455-22356-H0 SMD RESISTOR RC11-1/8W-56K-J R505 455-22356-H0 SMD RESISTOR RC11-1/8W-56K-J R522 455-22368-H0 SMD RESISTOR RC11-1/8W-68K-J R523 455-22410-H0 SMD RESISTOR RC11-1/8W-100K-J R508 455-22410-H0 SMD RESISTOR RC11-1/8W-100K-J R511

456-1447K-B2 SMD CAPACITOR 08052R474K160BA C509

456-3004H-12 SMD CAPACITOR C2012CH1H040JT C503 456-3051H-12 SMD CAPACITOR C2012CH1H510JT C560 456-3115H-12 SMD CAPACITOR C2012CH1H151JT C513 456-3110H-12 SMD CAPACITOR C2012CH1H101JT C505 456-3110H-12 SMD CAPACITOR C2012CH1H101JT C515 456-3110H-12 SMD CAPACITOR C2012CH1H101JT C516 456-3147H-12 SMD CAPACITOR C2012CH1H471JT C512 456-3210H-12 SMD CAPACITOR C2012CH1H102JT C508 456-3210H-12 SMD CAPACITOR C2012CH1H102JT C520

456-3210H-12 SMD CAPACITOR C2012CH1H102JT C531 456-3310K-B2 SMD CAPACITOR C2012X7R1H103KT C504 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C506 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C510 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C514

456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C517 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C525 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C529 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C530 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C534 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C535 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C537 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C538 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C539 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C544 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C545 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C546 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C548 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C557 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C558 456-3410K-B2 SMD CAPACITOR C2012X7R1H104KT C559

782-L37K7-200C POWER PCB

353-97010-10 *SMD ICBD9701FP N506

301-UL27K6-38RC RC-U38R-0CREMOTE CONTROL UNIT (AUDIOVOX)

RC353-34282-30 SMD ICM34282M1-D48GP (M)

Xoceco LC37K7 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
