Xoceco LC-32K5 Schematic

LCD TELEVISION

LEC3205

(LC-32K5)

CONTENTS

Safety instructions………………………………………………………………………..…

Adjustment instruction …………………………….…….…………………………….…

Trouble shooting ……………………………………………………….……………………

Method of software upgrading ………………………………………….…….……………

LC-32K5 working principle analysis……………………………….………….………… .

LC-32K5 block diagram…………………………………..……………………….…………

IC block diagram………………………………………………………………………..……

Main assembly……………………………………………………………………………..…

Identification criteria for the bright spot and dark spot of the LCD screen………..….

Wiring diagram ……………………………………………………………..……………...

Troubleshooting charts………………………………………………………………..……

Exploded View …………………………………………………………………….…..

Part list ....................................................................................................................... 25

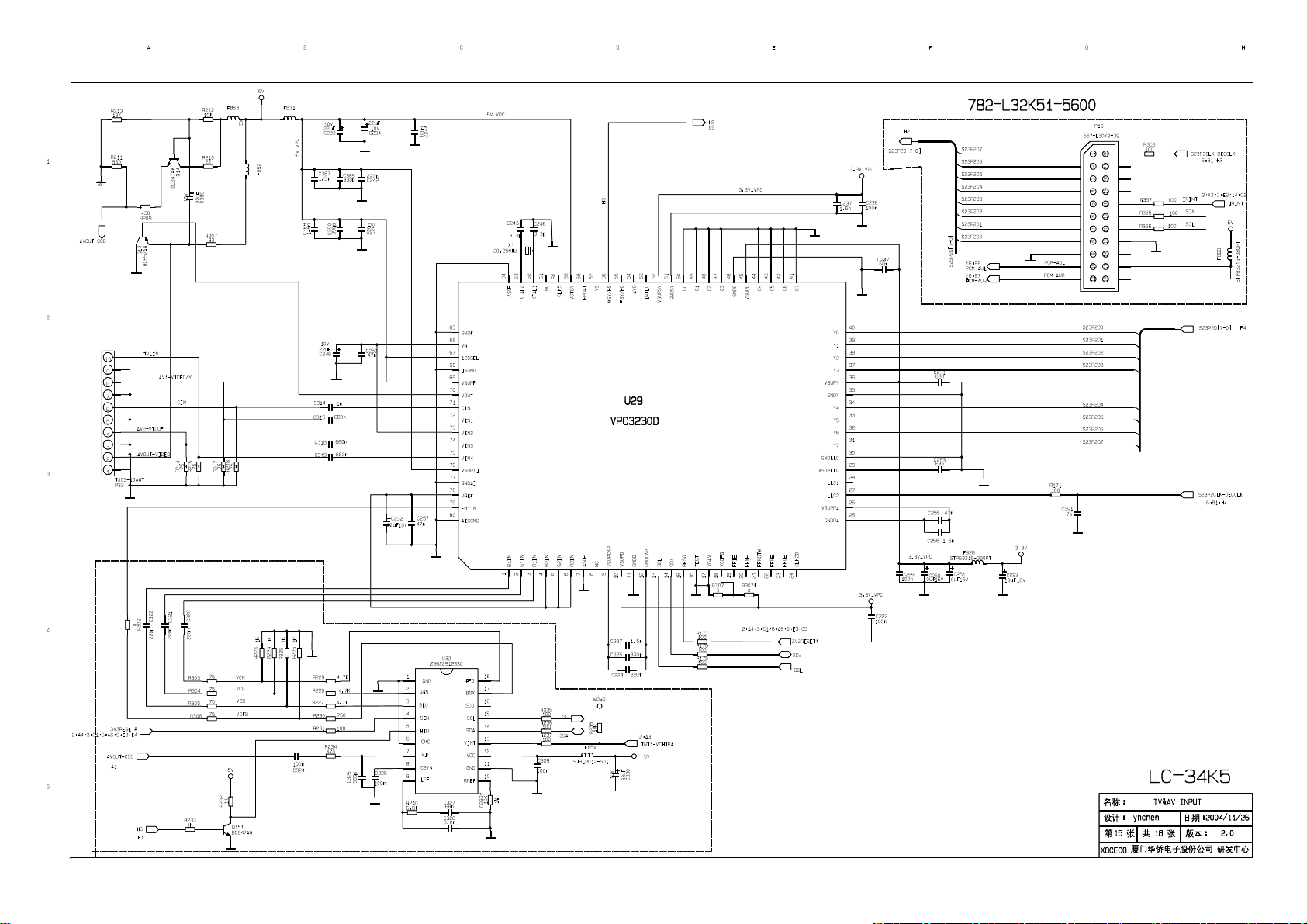

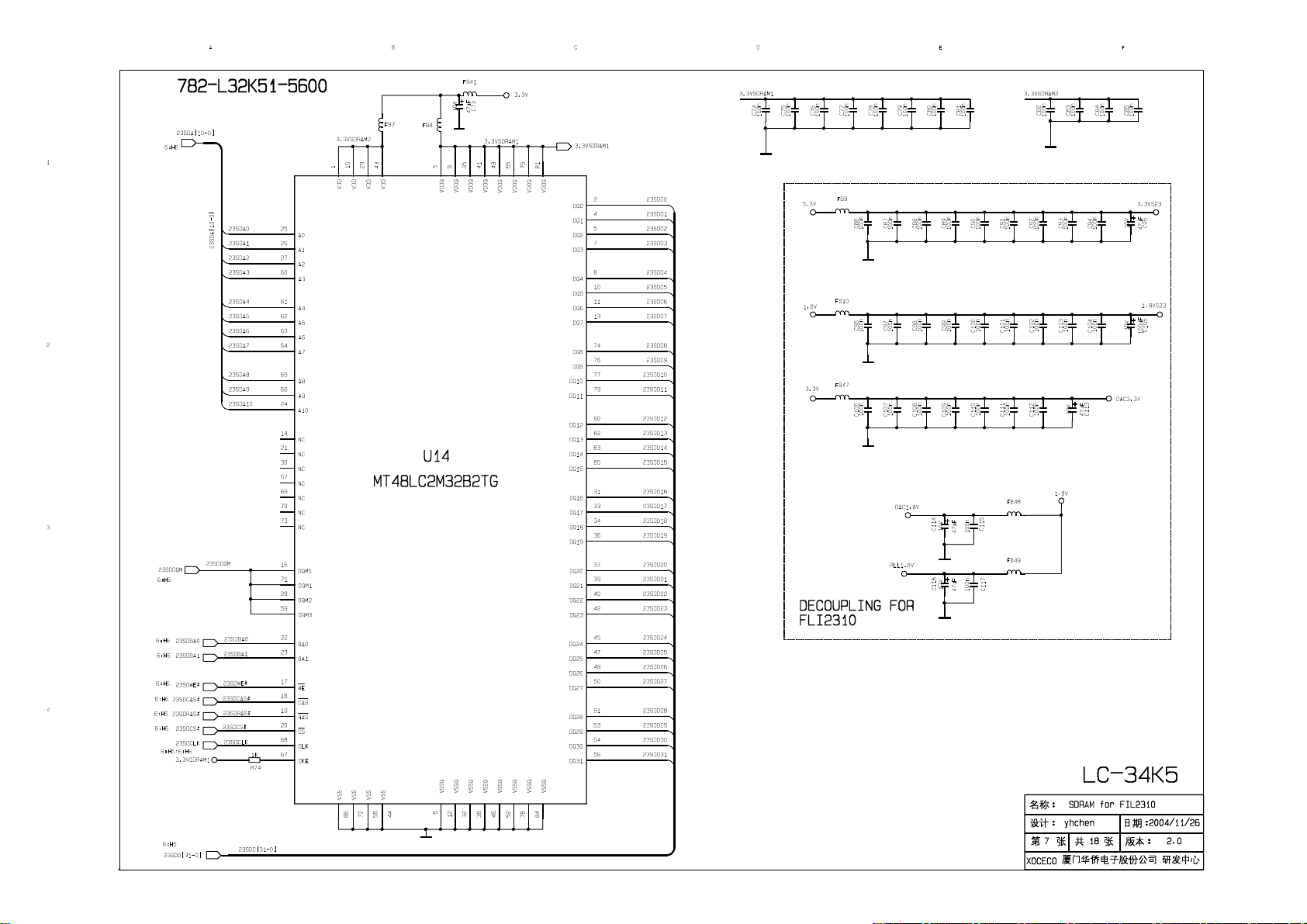

Schematic diagramm ..................................................................................................53

Attention: This service manual is only for service personnel to take reference with. Before

servicing please read the following points carefully.

Safety instructions

1. Instructions

Be sure to switch off the power supply before replacing or welding any components or inserting/plugging in connection wire Anti static measures to be taken (throughout the entire production process!): a) Do not touch here and there by hand at will; b) Be sure to use anti static electric iron; c) It’s a must for the welder to wear anti static gloves. Please refer to the detailed list before replacing components that have special safety requirements. Do not change the specs and type at will.

2. Points for attention in servicing of LCD

2.1 Screens are different from one model to another and therefore not interchangeable. Be sure to use the screen of the original model for replacement.

2.2 The operation voltage of LCD screen is 700-825V. Be sure to take proper measures in protecting yourself and the machine when testing the system in the course of normal operation or right after the power is switched off. Please do not touch the circuit or the metal part of the module that is in operation mode. Relevant operation is possible only one minute after the power is switched off.

2.3 Do not use any adapter that is not identical with the TV set. Otherwise it will cause fire or damage to the set.

2.4 Never operate the set or do any installation work in bad environment such as wet bathroom, laundry, kitchen, or nearby fire source, heating equipment and devices or exposure to sunlight etc. Otherwise bad effect will result.

2.5 If any foreign substance such as water, liquid, metal slices or other matters happens to fall into the module, be sure to cut the power off immediately and do not move anything on the module lest it should cause fire or electric shock due to contact with the high voltage or short circuit.

2.6 Should there be smoke, abnormal smell or sound from the module, please shut the power off at once. Likewise, if the screen is not working after the power is on or in the course of operation, the power must be cut off immediately and no more operation is allowed under the same condition.

2.7 Do not pull out or plug in the connection wire when the module is in operation or just after the power is off because in this case relatively high voltage still remains in the capacitor of the driving circuit. Please wait at least one minute before the pulling out or plugging in the connection wire.

2.8 When operating or installing LCD please don’t subject the LCD components to bending, twisting or extrusion, collision lest mishap should result.

2.9 As most of the circuitry in LCD TV set is composed of CMOS integrated circuits, it’s necessary to pay attention to anti statics. Before servicing LCD TV make sure to take anti static measure and ensure full grounding for all the parts that have to be grounded.

2.10 There are lots of connection wires between parts behind the LCD screen. When servicing or moving the set please take care not to touch or scratch them. Once they are damaged the screen

would be unable to work and no way to get it repaired.

2.11 Special care must be taken in transporting or handling it. Exquisite shock vibration may lead to breakage of screen glass or damage to driving circuit. Therefore it must be packed in a strong case before the transportation or handling.

2.12 For the storage make sure to put it in a place where the environment can be controlled so as to prevent the temperature and humidity from exceeding the limits as specified in the manual. For prolonged storage, it is necessary to house it in an anti-moisture bag and put them altogether in one place. The ambient conditions are tabulated as follows:

Temperature Scope for operation 0 ~ +50 oC

Scope for storage -20 ~ +60 oC

humidity Scope for operation 20% ~ 85%

Scope for storage 10% ~ 90%

2.13 Display of a fixed picture for a long time may result in appearance of picture residue on the screen, as commonly called “ghost shadow”. The extent of the residual picture varies with the maker of LCD screen. This phenomenon doesn’t represent failure. This “ghost shadow” may remain in the picture for a period of time (several minutes). But when operating it please avoid displaying still picture in high brightness for a long time.

3. Points for attention during installation

3.1 The front panel of LCD screen is of glass. When installing it please make sure to put it in place.

3.2 For service or installation it’s necessary to use specified screw lest it should damage the screen.

3.3 Be sure to take anti dust measures. Any foreign substance that happens to fall down between the screen and the glass will affect the receiving and viewing effect

3.4 When dismantling or mounting the protective partition plate that is used for anti vibration and insulation please take care to keep it in intactness so as to avoid hidden trouble.

3.5 Be sure to protect the cabinet from damage or scratch during service, dismantling or mounting.

Alignment instruction

1 Alignment equipment

PM5518 (video signal generator) K-7253 (VGA signal generator) CA210 (white balancer)

2 Alignment flow-chart

The alignment flow-chart is shown as fig-1

To produce CPU board and analog board

Check the CPU board and analog board

Connect with central signal source, then check each function of TV such as analog control etc., check the output of headphone and speaker

Input AV/S and HD signal, then check each function of all the terminals

Input VGA signal (one format), check if the displ ay is normal under PC condition, check each function such as analog control etc. , check ho rizo ntal /vertical center etc.

Check the accessories and pack t hem in box

Fig-1 adjustment flow-chart

3 Unit adjustment Connect CPU board and analog board according to wiring diagram of 203-L32K50-03JL, connect with power and observe the display. Method for entering factory menu: press “VOL+”, “MUTE” and “VIDEO” repeatedly to enter factory menu; press “ENTER” to select different items when the first line of each adjustment item just lights up; input VGA and DVI signal, then select the “mode” item; after that, you can press “enter” to select three kinds of color temperature namely 6500K, 9300K and 12000K press “MENU” to exit.

Note: the white balance adjustment should be done under “nature” picture mode.

Check DDC and FLASH

All testing

Preset ex-factory

3.1 EEPROM initialization Enter the first page of factory menu, select “clear eeprom” and then press “enter”, shut down the unit after “ok” appears.

3.2 VGA/DVI channel adjustment

3.2.1 Preset VGA channel mode Input VGA signal (PATTERN 5: Final Test) of K-7253, select TIME301(640*350/70Hz), press “AUTO” to do the auto adjustment until the screen is filled with picture. Use the same method to do auto adjustment for the following items:

TIME302 (720*400/70Hz) TIME303 (640*480/60Hz) TIME311 (800*600/60Hz) TIME313 (1024*768/60Hz) TIME315 (640*480/75Hz) TIME316 (800*600/75Hz)

TIME317 (1024*768/75Hz) TIME319 (1280*1024/75Hz) TIME339 (1280*1024/60Hz)

3.2.2 ADC adjustment of VGA channel Adjust ADC-gain to 15.

3.2.3 White balance adjustment VGA/DVI channel Input K-7253 8 level gray-scale signal of TIME311 and PATTERN474, enter white balance adjustment menu; adjust the third and seventh levels using white balance. Select 6500k of “mode”, adjustment offset_R, offset_G and offset_B, let the color coordinate of the third level be 308 and 316 and its brightness be 16nit more or less. Adjust gain_R, gain_G and gain_B, let the color coordinate of seventh level be 308 and 316. Adjustment offset_R, offset_G, offset_B, gain_R, gain_G and gain_B repeatedly until the value of the two levels gray-scale be 308 and 316. Select 9300k of “mode”, adjustment offset_R,offset_G and offset_B,let the color coordinate of the third level be 285 and 290 and its brightness be 16nit more or less. Adjust gain_R,gain_G and gain_B, let the color coordinate of seventh level be 285 and 290. Select 12000k of “mode”, adjustment offset_R, offset_G and offset_B, let the color coordinate of the third level be 270 and 283 and its brightness be 16nit more or less. Adjustment offset_R, offset_G, offset_B, gain_R, gain_G and gain_B repeatedly until the value of the two levels gray-scale be 270 and 283.

Note: gain_R, gain_G, gain_B is value not above 128 and let its value 128 at least.

3.3 Adjustment TV channel

3.3.1 Adjustment VCO, OPTION, sub-brightness and sub-contrast Input AV color bar signal (PM5518 COLOR BAR 100%) to VIDEO 1 terminal, enter the first page of factory menu, press “enter” selecting “auto color”, display “OK” after 2 seconds; then you can finish the VCO adjustment; set the value of “option” to 10, “Hor-width” to 32 and “s-bright” to 140 as well as S-contrast to 140. set the MaxVolume according to its product standard.

3.3.2 white balance adjustment of TV channel Input AV signal (PM5518, NTSC system, 8 level gray-scale signal), enter adjustment menu of white balance, adjust the third level and seventh level using white balance. Adjust offset_R, offset_G and offset_B to let color coordinate of the third level be 270 and 275 and its brightness be about 21nit. fixate gain_B to 128, adjust gain_R, gain_G to color coordinate of the seventh level be 280 and 280. adjust offset_R, offset_G,offset_B, gain_R and gain_G, repeatedly using the same method until

the value of the two levels gray-scale be the specified value.

3.4 white balance adjustment YPbPr channel input YpbPr signal of K-7253 to YPbPr-1 terminal, input TIME380(480i) PATTERN471 8 level gray-scale signal, set the value of Hor-width to 23, Ver-width to 5, S-bright to 120 and S-contrast to

140.Enter adjustment menu of white balance, adjust the third level using white balancer. Adjust offset_R, offset_G and offset_B, to let color coordinate of the third level be 270 and 275 and its brightness be about 15nit. Input 8 level gray-scale signal of TIME392(480p), TIME394(720p) and TIME396(1080i) separately, repeat the above operations to let color coordinate of the third level be 270 and 275 and its brightness be about 15nit.

4 Performance check

4.1 TV function Enter searching menu → auto search, connect RF-TV terminal with central signal source and check if there are channels be skipped

4.2 AV/S, YpbPr terminals Input AV/S, HD signal, check if it is normal.

4.3 VGA terminal Insert VGA terminal, input VGA format signal of 640 X 480@60 Hz, check if the display is normal. If interference exists, press the auto adjust button on remote control again and check if it is normal.

4.4 DVI terminal Insert DVI terminal, input signal of 640 X 480@60 Hz signal and check if the display is normal.

4.5 check sound channel Check the speaker and headphone of each channel.

4.6 presetting before ex-factory

item setting item setting item setting

Picture mode NATURE OSD language English BALANCE 50

Sound mode NEWS VGA color

N/R WEAK SPEAKER ON CCD OFF

SCREEN 16:9 HEAD PHONE ON Turn off TV

9300 SRS OFF

temperature

Trouble shooting

Before servicing please check to find the possible causes of the troubles according to the table below.

1.Antenna(signal):

Picture is out of focus or jumping  Bad status in signal receiving

 Poor signal  Check if there are failures with the electrical connector or

the antenna.

 Check if the antenna is properly connected.

Fringe in picture  Check if the antenna is correctly oriented.

 Maybe there is electric wave reflected from hilltop or

building. Picture is interfered by stripe shaped bright spots

There appear streaks or light color on the screen

 Possibly due to interference from automobile, train, high

voltage transmission line, neon lamp etc.

 Maybe there is interference between antenna and power

supply line. Please try to separate them in a longer

distance.

 Maybe the shielded-layer of signal wire is not connected

properly to the connector.

 Check if interfered by other equipment and if interfered

possibly by the equipment like transmitting antenna, non

professional radio station and cellular phone.

2.TV set:

Symptoms Possible cause Unable to switch the power on  Check to see if the power plug has been inserted

properly into the socket.

No picture and sound  Check to see if the power supply of liquid crystal TV

has been switched on. ( as can be indicated by the red LED at the front of the TV set)

 See if it’s receiving the signal that is transmitted from

other source than the station

 Check if it’s connected to the wrong terminal or if the

input mode is correct.

 Check if the signal cable connection between video

frequency source and the liquid crystal TV set is

correct. Deterioration of color phase or color tone

Screen position or size is not proper  Check is the screen position and size is correctly set

Picture is twisted and deformed  Check to see if the picture-frame ratio is properly set

Picture color changed or colorless  Check the “Component” or “RGB” settings of the

Picture too bright and there is distortion in the brightest area

Picture is whitish or too bright in the  Check if the setting for the brightness is too high

 Check if all the picture setups have been corrected.

up.

liquid crystal TV set and make proper adjustment

according to the signal types.

 Check if the contrast setting is too high.  Possibly the output quality of DVD broadcaster is set

too high.

 It maybe also due to improper terminal connection of

the video frequency signal in a certain position of the

system.

darkest area of the picture  Possibly the brightness grade of DVD player

(broadcaster) is set too high. No picture or signal produced from the displayer if “XXX in search” appears.

There appears an indication - “outside the receivable scope)

Remote control cannot work properly  Check if the batteries are installed in the reverse

No picture and sound, but only hash.  Check if the antenna cable is correctly connected, or

Blur picture  Check if the antenna cable is correctly connected.

No sound  Check if the “mute” audio frequency setting is

When playing VHS picture search tape, there are lines at the top or bottom of the picture.

 Check if the cable is disconnected.  Check if it’s connected to the proper terminal or if the

input mode is correct.

 Check if the TV set can receive input signal. The

signal is not correctly identified and VGA format is

beyond the specified scope.

order.

 Check if the battery is effective.  Check the distance or angle from the monitor.  Check if there is any obstruct between the remote

control and the TV set.

 Check if the remote control signal- receiving window

is exposed to strong fluorescence.

if it has received the video signal correctly.

 Of if it has received the right video signal.

selected.

 Check if the sound volume is set to minimum.  Make sure the earphone is not connected.  Check if the cable connection is loose.  When being played or in pause VHS picture search

tape sometimes can’t provide stable picture, which

may lead to incorrect display of the liquid crystal TV,

In this case please press “auto” key on the remote

control so as to enable the liquid crystal TV set to

recheck the signal and then to display correct picture

signal

Method of software upgrading

Steps of software upgrading are as follows:

1. Select a serial connection wire and a VGA connection wire and then connect them by means of a patch panel;

2. Use a serial wire to connect the PC to the patch panel and set TV set to off state; Open the software upgrade file holder and double click

FlashUpgraderNT (use under window 2000/XP/NT)

FlashUpgrader (use under window 98),

The following interfaces will show up after running the program:

Based on the computer features, set up the serial port (COM Port). Select corresponding serial port (if it’s unable to FLASH WRITE, change to another port). Baud is selected to be 115200. Then select Reset Target After Download. Click FLASH pushbutton, it’s ready to run. For other settings, please refer to the Fig. Above (already defaulted by the system, normally no need to change). Switch on TV set the FLASH write program begins to run;

After FLASH write is over, push button “cancel” will become flash. Then shut the main power supply

and it’s OK just switch it on again.

Note: Do not shut the power off or turn the TV set on during the FLASH write. Otherwise it may lead to no way for flash to rewrite.

LC-32K5 working pr inciple analysis

Please refer to LC-32K5 BLOCK DIAGRAM in order to know the working principle of LC-32K5 brief introduction to its signal flow is shown as follows:

RF signal produces composite color television signal through TUNER201, the signal together with AV1/SVHS(SVHS priority) and AV2 etc. are sent to U29 VPC3230D to decode and do switching selection. In addition to decode the selected video signal, part of the selected video signal is also sent to AV terminal and 21 line decoder U32 Z86229 which is exclusive to decode CCD/V-CHIP to decode. After decoded by U32, the signal will be sent back to U29 in the form of R G B and FB, then it will be added to the decoded picture and then it will be sent to U13 FL12310 in the form of ITU-R656 signal format of 8BIT to do line-by-line process.

Send two ways YPRPB signal to U30 MST9883 through selection by N2 PI5V330 in order to do the A/D conversion. After this, the signal will be converted into YUV signal of 24BIT, send it to FLI2310 also.

After a series of procedure such as matrix, chroma and tint etc. by FL12310, the two ways signal will be converted into RGB of 24bit, then send it to the main processing chip U12 JAG-ASM. send RGB signal it to the main processing chip U12 at the same time. There has another signal which should be sent to U12 together with he above two kinds of signal that is: RGB signal of 24BIT produced by DV1 through U15 TFP403/501. Do the picture format processing for the three kinds of signal in U12. Firstly do the A/D conversion for RGB signal of VGA, then do the switching selection together with the other two kinds of signal. And then they will be converted into 1024*768 format through digital display processing such as OSD and GAMMA correction etc. output it in the form of 24BIT RGB signal. Send it to LVDS convertor U31 DS90C383A, then it will be converted into signal format which can be accepted by LCD screen namely 3 low-voltage differential signal and 1 clock signal, finally send it to LCD screen to do the picture display PWM of U12 can also be used to control the brightness of back light-source.

Send SIF (the second IF) outputted by tuner to audio processor N201 MSP3420; send YPRPB and audio signal of DVI to N201 through switching selection by U34 HEF4052; Send AV1/SVHS, AV2 and audio signal of VGA to N201 also. Firstly SIF will be done the switching selection together with another four ways of audio signal, finally volume control and sound effect processing will be done. Output left-right sound channel signal R/L. one will be sent to SRS sound field processor N203 M62494 to do SRS processing and finally amplified by N213 and N214 MP7720 to drive the speaker, one will be used to drive the headphone through N212 TLE2142 and the last part will be outputted as R/L of AV OUT.

LC-32K5 Block diagram

RGB

RGB 24bit

U15 DVI

DRIVER TFP403

RGB RF 24bit SIF RGB V 24bit

ITU-R656 AV1-V/S-Y 8bit

SVHS-C

TUNER1

VIDEO DECODER

VPC3230

U29

U13

DEINTER LACER FLI2310

AV2 -V

U14

SDRAM

AV-V OUT I IC BUS

YprPb

YUV 24bit

U30

ADC

MST9883

EEPROM

MICROCONTROLER

TSC80251G2D

R/L

SIF AV1/SVHS-R/L AV2-R/L VGA-R/L R/LR/L

U34

HEF4052

R/L R/L

YprPb-R/L R/L R/L

AUDIO

PROCESSOR

MSP3410

SRS 3D STEREO CONTROLLER

M62494

DVI-R/L

AV-R/L OUT．

SCALER

JAG-ASM

U19

SDRAM

U12

U31

DS90C385

U20

SDRAM

FLASH

MEMORY

IR / KEYBOAD

TLE2142

N04 N05

AUDIO

AMPLIFIER

MPS7720

PANEL

LVDS

DRIVER

HEADPHONE

SPEAKER

IC block diagram

1.MSP3420

Pins description:

2,3 PIN: SCL,SDA applied for control the operation of IC .

27,28 PIN: output left and right sound channel R/L to speaker processor.

36,37 PIN:AV OUT of sound R/L.

47,48 PIN:D4-1/D4-2/PCMCIA selected input R/L.

50,51 PIN:Input of VGA. R/L

53,54 PIN:Input of AV1/SVHS and AV2 R/L.

56,57 PIN:Input R/L of BS

67 PIN: Input TV SIF.

2.VPC3230

Pins description:

4 PIN: Input U of PCMCIA.

5,73 PIN: Input Y of PCMCIA.

6 PIN: Input V of PCMCIA

31-34, 37-40 PIN: output format signal of. ITU-R656

70 PIN:Video of AV OUT

71 PIN:Input C of SVHS.

72 PIN:input Video (SVHS in priority) of Y or AV1 of SVHS.

74 PIN:input Video of AV2.

75 PIN:input Video of TV/BS.

3.AD9883

4.FLI2310-Simplified Internal Block Diagram

5.JAG-ASM

6.Z86229

Pins description:

7 PIN: VDIEO INPUT 2 PIN: G OUTPUT 3 PIN: B OUTPUT 18 PIN: R OUTPUT 17 PIN: FB OUTPUT

Main assembly

NAME NO. MAIN COMPONENT AND it’S NO.

AV processing board

CPU board

IR board Keypad board USB board

Power supply board 667-L32K7-20 Remote control (RC-U38R ) Panel (LTA320W2-L01)

667-L32K5N-40

667-L32K5N-56

667-L32K5-09 667-L32K5-05 667-L32K5-16

301-UL27K6-38R 335-32001-00

N201 N202 N204 N205

U12 U13 U15 U29 U30 U31

U2 U4

MSP3410 （353-34100-80） M62494FP （353-62494-20）

MPS7720 （353-77200-10）

JAG-ASM (353-0JAG0-00) FLI2310 (353-23100-00) TFP501 (353-05010-00) VPC3230D (353-32300-80) MST9883B (353-98830-10) DS90C385 (353-03850-20)

TSC80251G2D (353-80251-10) AT49F002NT (352-49002-70)

Identification criteria for the bright spot and dark spot of the LCD screen

Category criteria

One single

Bright

spo

Dark

spots

Total defected point ≤8 ≤7 ≤5 ≤4 /

spot

2 neighboring

spots

Total No. ≤5 ≤2 ≤5 ≤2 ≤3

One single

spot

Two

neighboring

spots

Total No. ≤6 ≤7 ≤5 ≤4 ≤10

15" 20" 22" 30" 40" 15" 20" 22" 30" 40"

≤5 ≤2 ≤5 ≤2 ≤3

≤2 ≤1 ≤2 ≤1 ≤1

≤6 ≤7 ≤5 ≤4 ≤10

≤2 ≤2 ≤2 ≤1 ≤5

Q’ty allowed Distance between two spots

≥15mm

≥10mm

≥5mm

Notes:

1. Definition of defected point (bright spot, dark spot): It is identified as a defected point if its area exceeds 1/2 of a single picture element (R,G,B).

2. Definition of bright spot: It is identified as a bright spot if it is bright in the state of dark field and its bright size remains unchanged

3. Definition of dark spot: It is identified as a dark spot if it is dark in the state of white field and its dark size remains unchanged

4. Definition of two neighboring points: Defects of a group of picture elements(RB,RG,GB).

Wiring diagram

AV processing board

To s p ea ke r

To earphone

Power supply board

CPU board

Keypad board

To IR board

Troubleshooting charts

1. No raster

Turn-on power supply, check if the red indicator is light in the STANDBY?

Check PIN7(12V output) of the power supply board CN904

Check if it’s melted of FUSE in the power supply board?

Replacing power supply board

yes

Check the indicator i turn-on condition

on-change color

Replacing CPU board

Replacing U22, U27

blue

Check if the indicator is flicke in the sensor control normal condition?

yes

Check if the CN905 outpu 24V

yes

Check if the PIN26-30 of P4 is high-level(5V)?

Check if it’s melted of F3?

Check if the B of Q7 is

high-level?

yes

Check if the pin 1, pin3 of U21

is high-level(5V)

yes

Replacing U21

+ 49 hidden pages
