Xoceco LC-27U16 Schematic

LCD TELEVISION

LC-27U16

America

CONTENTS

Safety instructions………………………………………………………………………..…

Adjustment instructions …………………………….…….…………………………….…

Trouble shooting ……………………………………………………….……………………

Working principle analysis……………………………………………………….………….

Block diagram…………………………………..……………….……………….…………

IC block diagram………………………………………………………………………..……

Main assembly……………………………………………………………………………..…

Identification criteria for the bright spot and dark spot of the LCD screen………..….

Wiring diagram ……………………………………………………………..……………...

Troubleshooting charts………………………………………………………………..……

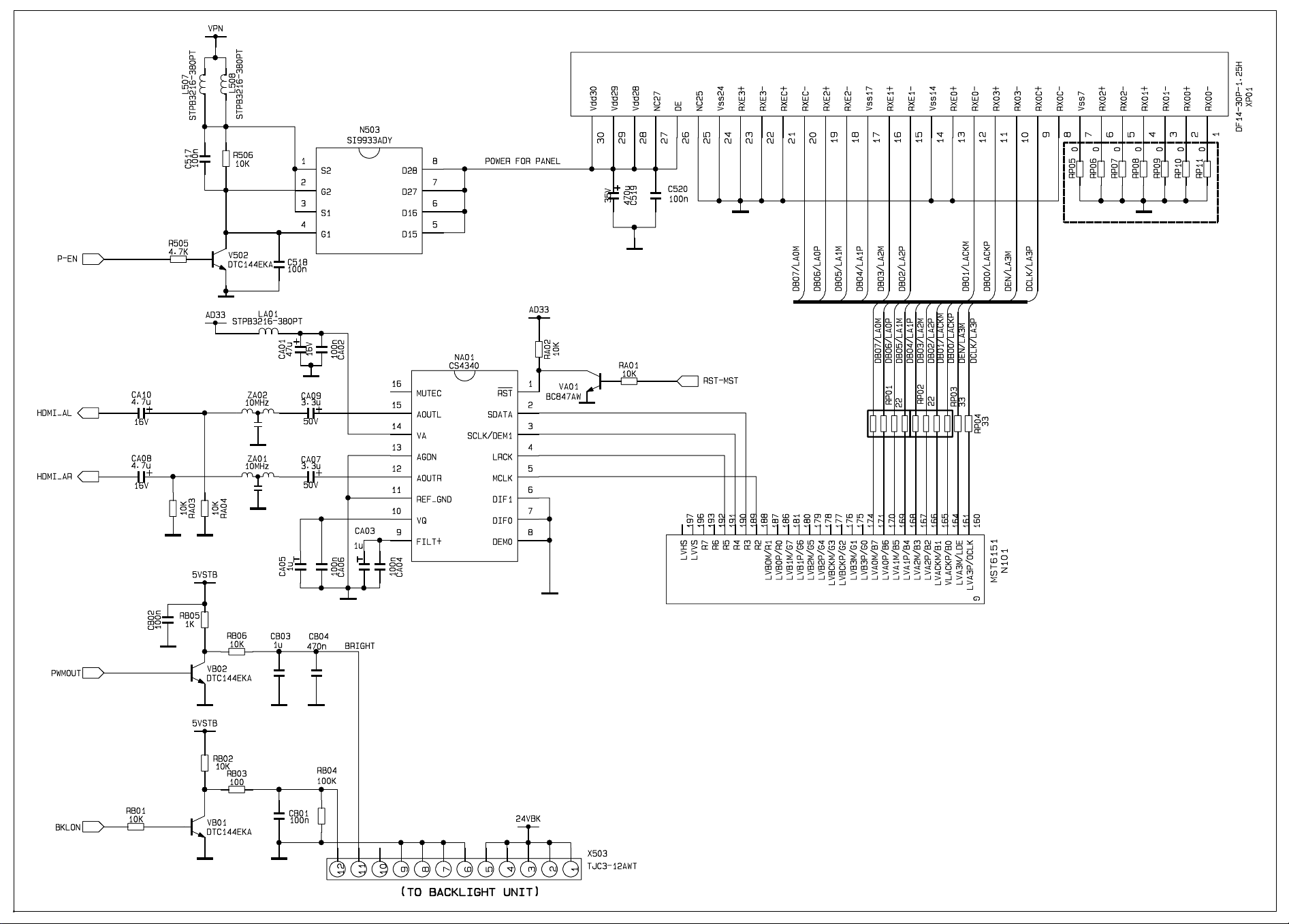

Schematic diagram ………................................…………………………………..……

APPENDIX: Exploded View

Part list

Attention: This service manual is only for service personnel to take reference with. Before

servicing please read the following points carefully.

Safety instructions

1. Instructions

Be sure to switch off the power supply before replacing or welding any components or inserting/plugging in connection wire Anti static measures to be taken (throughout the entire production process!): a) Do not touch here and there by hand at will; b) Be sure to use anti static electric iron; c) It’s a must for the welder to wear anti static gloves. Please refer to the detailed list before replacing components that have special safety requirements. Do not change the specs and type at will.

2. Points for attention in servicing of LCD

2.1 Screens are different from one model to another and therefore not interchangeable. Be sure to use the screen of the original model for replacement.

2.2 The operation voltage of LCD screen is 700-825V. Be sure to take proper measures in protecting yourself and the machine when testing the system in the course of normal operation or right after the power is switched off. Please do not touch the circuit or the metal part of the module that is in operation mode. Relevant operation is possible only one minute after the power is switched off.

2.3 Do not use any adapter that is not identical with the TV set. Otherwise it will cause fire or damage to the set.

2.4 Never operate the set or do any installation work in bad environment such as wet bathroom, laundry, kitchen, or nearby fire source, heating equipment and devices or exposure to sunlight etc. Otherwise bad effect will result.

2.5 If any foreign substance such as water, liquid, metal slices or other matters happens to fall into the module, be sure to cut the power off immediately and do not move anything on the module lest it should cause fire or electric shock due to contact with the high voltage or short circuit.

2.6 Should there be smoke, abnormal smell or sound from the module, please shut the power off at once. Likewise, if the screen is not working after the power is on or in the course of operation, the power must be cut off immediately and no more operation is allowed under the same condition.

2.7 Do not pull out or plug in the connection wire when the module is in operation or just after the power is off because in this case relatively high voltage still remains in the capacitor of the driving circuit. Please wait at least one minute before the pulling out or plugging in the connection wire.

2.8 When operating or installing LCD please don’t subject the LCD components to bending, twisting or extrusion, collision lest mishap should result.

2.9 As most of the circuitry in LCD TV set is composed of CMOS integrated circuits, it’s necessary to pay attention to anti statics. Before servicing LCD TV make sure to take anti static measure and ensure full grounding for all the parts that have to be grounded.

2.10 There are lots of connection wires between parts behind the LCD screen. When servicing or moving the set please take care not to touch or scratch them. Once they are damaged the screen

would be unable to work and no way to get it repaired.

2.11 Special care must be taken in transporting or handling it. Exquisite shock vibration may lead to breakage of screen glass or damage to driving circuit. Therefore it must be packed in a strong case before the transportation or handling.

2.12 For the storage make sure to put it in a place where the environment can be controlled so as to prevent the temperature and humidity from exceeding the limits as specified in the manual. For prolonged storage, it is necessary to house it in an anti-moisture bag and put them altogether in one place. The ambient conditions are tabulated as follows:

Temperature Scope for operation 0 ~ +50 oC

Scope for storage -20 ~ +60 oC

Humidity Scope for operation 20% ~ 85%

Scope for storage 10% ~ 90%

2.13 Display of a fixed picture for a long time may result in appearance of picture residue on the screen, as commonly called “ghost shadow”. The extent of the residual picture varies with the maker of LCD screen. This phenomenon doesn’t represent failure. This “ghost shadow” may remain in the picture for a period of time (several minutes). But when operating it please avoid displaying still picture in high brightness for a long time.

3. Points for attention during installation

3.1 The front panel of LCD screen is of glass. When installing it please make sure to put it in place.

3.2 For service or installation it’s necessary to use specified screw lest it should damage the screen.

3.3 Be sure to take anti dust measures. Any foreign substance that happens to fall down between the screen and the glass will affect the receiving and viewing effect

3.4 When dismantling or mounting the protective partition plate that is used for anti vibration and insulation please take care to keep it in intactness so as to avoid hidden trouble.

3.5 Be sure to protect the cabinet from damage or scratch during service, dismantling or mounting.

Alignment instruction

1 Alignment equipment

PM5518 (video signal generator) K-7253 (VGA signal generator) CA210 (white balancer)

2 Alignment flow-chart

The alignment flow-chart is shown as fig-1

Check DDC, HDCP KEY and CPU

Factory initialization setup

IF channel voltage of TV and AGC voltage adjustment

Support format of VGA pre-set

Adjustment for sub-brightness and white balance of VGA/HDMI (colo temperature 6500k, 9300k and 12000k)

Adjustment for sub-brightness and white balance of YPbPr/YcbCr channel

Adjustment fo r sub-brightness and white balance of VIDEO channel

Fig-1 adjustment flow-chart

3 Unit adjustments Connect digital board, CPU board and analog board according to wiring diagram, connect with power and observe the display. Method for entering factory menu: press “SLP”, “DSP”, “MENU” and “DSP” in turn to enter factory menu; press “CH+” and “CH-” to select adjustment items and press “VOL+” and “VOL-” to adjust value items, press “MENU” to exit.

Note: the white balance adjustment should be done under “nature” picture mode.

3.1 Initialization Enter factory menu, select “Factory settings” sub-menu, and adjustment for items of table1.

Preset ex-factory

Table1 sub-menu adjustment

Items Range Introduce

PW on LOGO ON/OFF Display 5s LOGO of turn on the TV

NO Sig LOGO ON/OFF If display LOGO in no signal

Black Screen BLUE/BLACK If display blue screen and white noise wave in no signal, setting

“BLUE”

MLK 120-159 Adjustment for clock frequency (MHz) of memorizer, setting “145”.

PIP Size Middle/Large Select two component of PIP: “SMALL AND MIDDLE” and “SMALL

AND BIG”, setting “MIDDLE”.

init EEprom Start? Eeprom Initialization (adjustment for EEprom data)

3.2 Adjustment for AFT voltage and AGC voltage of IF channel in TV Input frequency for 45.75MHz and IF signal for 80dBV of TP1, adjust L107 to value 2.4v of TP2; when increase 0.10MHz of TP1 input signal, the TP2 value 1.0v at least; but decrease 0.10MHz of TP1 input signal, the TP2 value 4.0v at least.

3.3 VGA/DVI channel adjustment

3.3.1 Preset VGA channel mode Input VGA signal (PATTERN: CROSS) of VG-849 or VG-848, select PROG850(640*400/85Hz), auto adjustment until the screen is filled with picture. Use the same method to do auto adjustment for the following items:

PROG851(640*480/72 Hz) PROG852(640*480/75 Hz) PROG853(800*600/56 Hz) PROG854(800*600/60 Hz) PROG855(800*600/72 Hz) PROG856(1024*768/60 Hz) PROG857(1024*768/70 Hz) PROG858(1280*768/75 Hz) PROG888(800*600/75 Hz)

PROG915(1152*870/75 Hz) PROG915 (1280*1024/60Hz)

3.3.2 Sub-brightness and White balance adjustment VGA/HDMI channel a. Input VG-849 or VG-848 signal of VGA: PROG852(640* 480/75Hz) and eighth level gray-scale signal of PATTERN. Use color analyzer CA210 to adjust sub-brightness and white balance. b. Enter submenu of COLOR TEMP., Select 9300k of color temperature, set auto value of R, G and B to 50. Enter submenu of white balance, preset value of offset_R, offset_G and offset_B to 125, and preset value of gain-R, gain-G and gain-B to 100. Adjustment for brightness let the second level brightness be 3nit at least. c. Fixed value of offset_B, adjust offset_R and offset_G, let the color coordinate of the second level be 285 and 293 and its brightness be 4-5nit more or less (it can not 3.5nit at least). Fixed value of gain_B, adjust gain_R, gain_G and gain_B, let the color coordinate of seventh level be 285 and 293. Adjustment offset_R, offset_G, offset_B, gain_R, gain_G and gain_B repeatedly until the value of the two levels gray-scale be 285 and 293. d. Select 6500k of color temperature, set auto value of R, G and B to 50. Fixed value of B to 50, adjust R and G, let the color coordinate of the sixth level be 313 and 329. Adjust R and G repeatedly until the color coordinate value to 313 and 329. e. Select 12000k of color temperature, set auto value of R, G and B to 50. Fixed value of B to 50, adjust R and G, let the color coordinate of the sixth level be 270 and 283. Adjust R and G repeatedly until the color coordinate value to 270 and 283.

f. Input PROG852(640*480/75Hz) and the eighth level gray-scale of PATTERN signal of VG-849 to HDMI, repeatedly the b-e course. In the HDMI channel, preset value of offset_R, offset_G and offset_B to 15, preset value of gain_R, gain_G and gain_B to 25.

3.4 Adjustment for sub-brightness and white balance of YPbPr channel a. Connect YPbPr signal of VG-849 and VG-848 to YPbPr terminal, input color signal of PROG973(1080i)PATTERN964. Select AUTOTUNE item, wait for it displays “OK”. NOTE: Don’t select AUTOTUNE item in other state. b. Switch YPbPR signal of VG-849 and VG-848 output to the eighth gray-scale signal of PROG973(1080i)PATTERN964. prset value of offset_R, offset_G and offset_B to 15 and gain-R, gain-G and gain-B to 25. adjust brightness, let second bright to 3nit at least. c. Fixed value of offset_B, adjust offset_R and offset_G, let the color coordinate of the second level be 285 and 293 and its brightness be 4-5nit more or less (it can not 3.5nit at least). Fixed value of gain_B to 25, adjust gain_R, gain_G and gain_B, let the color coordinate of seventh level be 285 and 293. Adjustment offset_R, offset_G, gain_R and gain_G repeatedly until the value of the two levels gray-scale be fixed. d. Input PROG977(720p), PROG978(480p) and PROG968(480i) mode for eighth level gray-scale signal, let the color coordinate of the second level and the seventh level 285 and 293.

3.5 VIDEO channel adjustment (TV/VIDEO/S-VIDEO) a. Connect color bar signal of AV (PM5518, NTSC , eight level gray-scale signal) to VIDEO1 terminal, enter factory menu, preset value of offset_R, offset_G and offset_B to 15 and gain-R, gain-G and gain-B to 25, adjust brightness, let second bright to 3nit at least. b. Fixed value of offset-B to 15, adjust offset_R and offset_G, let the color coordinate of the second level be 285 and 293 and its brightness be 4-5nit more or less (it can not 3.5nit at least). Fixed value of gain_B to 25, adjust gain_R, gain_G and gain_B, let the color coordinate of seventh level be 285 and 293. Adjustment offset_R, offset_G, gain_R and gain_G repeatedly until the value of the two levels gray-scale be fixed.

4 Performance check

4.1 TV function Enter searching menu → auto search, connect RF-TV terminal with central signal source and check if there are channels be skipped

4.2 AV/S, YpbPr terminals Input AV/S, HD signal, check if it is normal.

4.3 VGA terminal Insert VGA terminal, input VGA format signal of 640 X 480@60 Hz, check if the display is normal. If interference exists, press the auto adjusts button on remote control again and check if it is normal.

4.4 HDMI terminal Insert HDMI terminal, input signal of 640 X 480@60 Hz signal and check if the display is normal.

4.5 check sound channel Check the speaker and headphone of each channel.

4.6 presetting before ex-factory

Item Setting Item Setting Item Setting

Picture mode NATURE OSD language English CCD OFF

Sound mode NORMAL HALFTONE 50 STEREO ON

N/R WEAK DURATION 30 VGA/HDMI NORMAL

SCREEN FULL MAG.C ON ANTENNA CATV

Trouble shooting

Before servicing please check to find the possible causes of the troubles according to the table below.

1.Antenna(signal):

Picture is out of focus or jumping  Bad status in signal receiving

 Poor signal  Check if there are failures with the electrical connector or

the antenna.

 Check if the antenna is properly connected.

Fringe in picture  Check if the antenna is correctly oriented.

 Maybe there is electric wave reflected from hilltop or

building. Picture is interfered by stripe shaped bright spots

There appear streaks or light color on the screen

2.TV set:

Symptoms Possible cause

Unable to switch the power on  Check to see if the power plug has been inserted

No picture and sound  Check to see if the power supply of liquid crystal TV

 Possibly due to interference from automobile, train, high

voltage transmission line, neon lamp etc.

 Maybe there is interference between antenna and power

supply line. Please try to separate them in a longer

distance.

 Maybe the shielded-layer of signal wire is not connected

properly to the connector.

 Check if interfered by other equipment and if interfered

possibly by the equipment like transmitting antenna,

non-professional radio station and cellular phone.

properly into the socket.

has been switched on. (As can be indicated by the red LED at the front of the TV set)

 See if it’s receiving the signal that is transmitted from

other source than the station

 Check if it’s connected to the wrong terminal or if the

input mode is correct.

 Check if the signal cable connection between video

source and the liquid crystal TV set is correct.

Deterioration of color phase or color

 Check if all the picture setups have been corrected. tone Screen position or size is not proper  Check is the screen position and size is correctly set

up.

Picture is twisted and deformed  Check to see if the picture-frame ratio is properly set

up.

Picture color changed or colorless  Check the “Component” or “RGB” settings of the

liquid crystal TV set and make proper adjustment

according to the signal types. Picture too bright and there is distortion in the brightest area

 Check if the contrast setting is too high.  Possibly the output quality of DVD broadcaster is set

too high.

 It maybe also due to improper terminal connection of

the video signal in a certain position of the system. Picture is whitish or too bright in the darkest area of the picture

 Check if the setting for the brightness is too high  Possibly the brightness grade of DVD player

(broadcaster) is set too high. No picture or signal produced from the displayer if “XXX in search” appears.

 Check if the cable is disconnected.  Check if it’s connected to the proper terminal or if the

input mode is correct. There appears an indication - “outside the receivable scope)

 Check if the TV set can receive input signal. The

signal is not correctly identified and VGA format is

beyond the specified scope.

Remote control cannot work properly  Check if the batteries are installed in the reverse

order.

 Check if the battery is effective.  Check the distance or angle from the monitor.  Check if there is any obstruct between the remote

control and the TV set.

 Check if the remote control signal- receiving window

is exposed to strong fluorescence. No picture and sound, but only hash.  Check if the antenna cable is correctly connected, or

if it has received the video signal correctly. Blur picture  Check if the antenna cable is correctly connected.

 Of if it has received the right video signal.

No sound  Check if the “mute” audio frequency setting is

selected.

 Check if the sound volume is set to minimum.  Make sure the earphone is not connected.  Check if the cable connection is loose.

When playing VHS picture search tape, there are lines at the top or bottom of the picture.

 When being played or in pause VHS picture search

tape sometimes can’t provide stable picture, which

may lead to incorrect display of the liquid crystal TV,

In this case please press “auto” key on the remote

control so as to enable the liquid crystal TV set to

recheck the signal and then to display correct picture

signal

Working principle analysis

RF signal from the antenna to tuner, via high frequency amplifier and mix frequency to obtain IF signal, and then via pre-IF amplifier in V104, then it send to processed IF filter of SAW (Z103), obtain more idea IF speciality, it processed to IF amplifier, phase locked logic VCO and sync detection of N101 (M52760E) in the TV board to obtain VIDEO; IF via pre IF amplifier to send to processed filter of SAW (Z102), again send to processed IF amplifier of N101, decode second SIF. From M52760E output VIDEO, AV1 and AV2/S signal all send to video decoder N601 (TVP5147PFP), via video select, clamping, A/D transfer, comb filter and color decode, one way output AV OUT, another way output 8bit for CIR656 format signal and CLK signal, send to N101(MST6151) of CPU board, Also YPbPr, VGA and HDMI send to N101. N101(MST6151) is many function big dimension integrate circuit, it processed HDMI, A/D to DA switch, interlaced and non-interlaced processing, model switch and low voltage difference output functions and so on, it send to four ways difference signal and one way clock signal to LCD display. From HDMI input to MST6151contain sound signal, via processed MST6151, send to processed D/A switch for NA01(CS4340), output L/R of HDMI. Output SIF from M52760F and send to processed stereo demodulation for N201(LA72700), output L/R of TV. L/R of HDMI and Ypbpr from CS4340 output, L/R of VGA/DVI signal via sound switch NA02(HEF4052) to select, then send to sound processing N301(R2S15900SP); demodulate L/R signal of LA72700 send to N301, and L/R signal for AV1A and V2/S input send to N301. Via selected switch and processing sound, one way sound output for AV OUT, other way send to N401(TPA3008D2) of sound amplifier, via amplify for sound signal to speaker and earphone. The unit working is controlled N801(MTV412) of CPU, connect tuner, TVP5147, LA72700 and R2S15900SP to IIC bus; connect MST6151 to parallel BUS.

BLOCK DIAGRAM

802

803

AUDIO SW

A02

HEF4052

SAW Z102

SAW Z103

VIDEO DECORDER

601

TVP5147PFP

DAC

CS4340

A01

SIF DEC

201

LA72700

MCU

801

MTV412

IF AMP

101(TV)

M52760E

AUDIO

PROCESSO

301

R2S15900SP

SCALER A/D D/A DEINTERLACER LVDS HDMI

101(CPU)

MST6151DA

SDRAM

201

SDRAM

202

AUDIO AMP

401

TPA3008D2

SPEAKER

HEADPHONE

PANEL

AV1-A AV2/S-A YPbPr-A VGA/DVI-A L/R

HDMI-A

L/R

A AV OUT L/R SIF

V V IIC

VIDEO1 Y/VIDEO2 CCIR656 C 8bit

YPbPr VGA HDMI/DVI

L/R

BUS

TUNER

HDMI-A

EEPROM

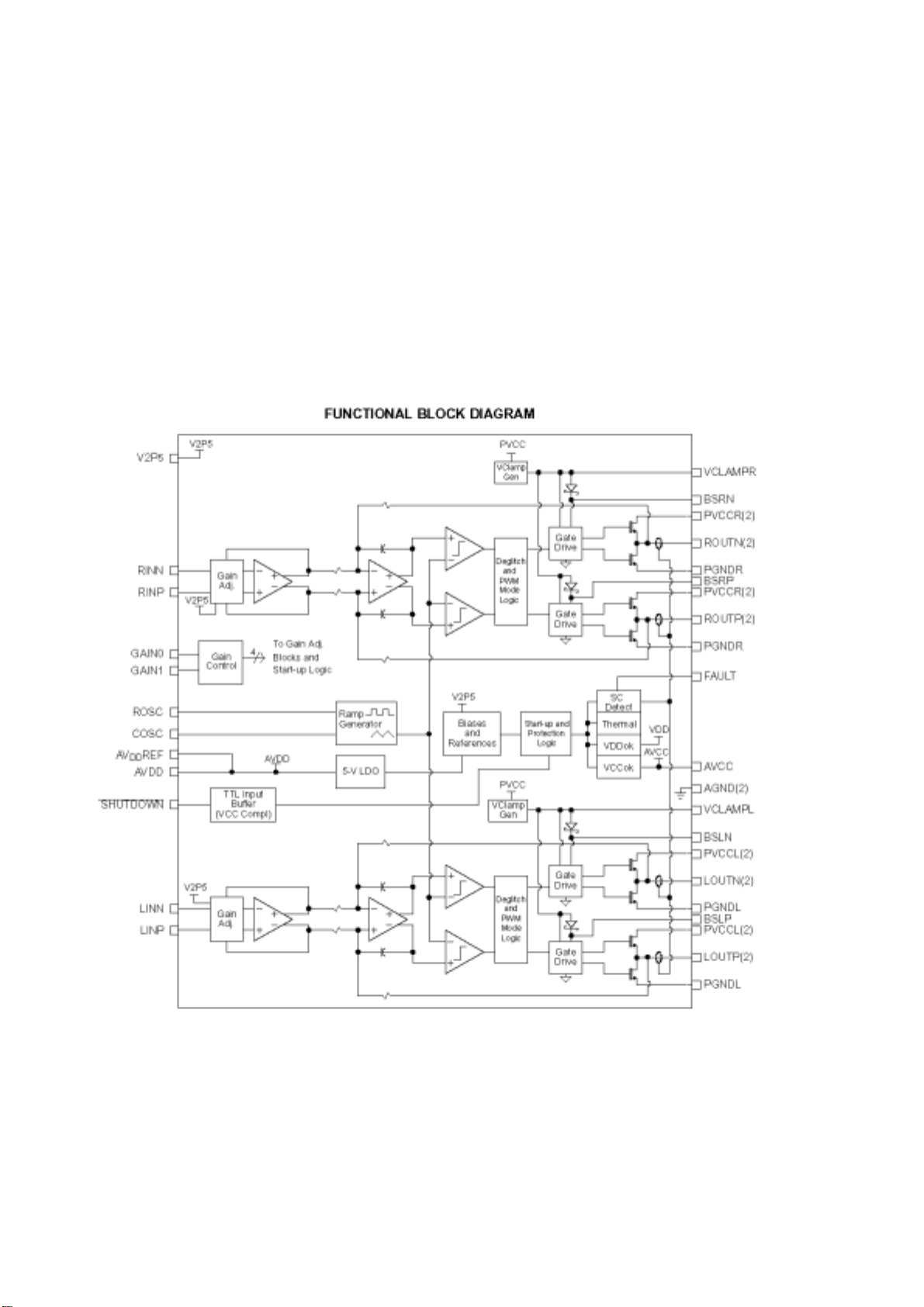

IC block diagram

TVP5147

CVBS/

C/Pb

CVBS/

C/Pr

CVBS/Y

VI_1_A VI_1_B

VI_1_C

VI_2_A VI_2_B

VI_2_C

VI_3_A VI_3_B

VI_3_C

VI_4_A

Analog

Front End

Clamping

AGC

2 11-Bit

ADC

Sampling Clock

Copy

Prot ection

Detector

M U X

Timing Proc es sor

With Sync Detector

CVBS/Y

C/CbCr

VBI

Data

Processor

Composite and S-Video Processor

Y/C

Separation

5-li ne

Adaptive

Comb

Luma

Processing

Chroma

Processin

YCbCr

Interface

Y[9:0]

Output

Formatter

C[9:0]

GPIO

Host

XTAL1

XTAL2

PWDN

AVID

RESETB

DAT ACLK

80: AV OUT 2: TV-V input 7: AV1-V input 9: AV2-V/S-Y input 18: S-C input 29: SDA 28: SCL 40: CLK output 43-47, 50-52: CCIR656 format signal output 4, 5, 20, and 21: 3.3V-A power supply 38, 48, 61: 3.3V-D power supply 11, 25, 76: 1.8V-A power supply 31, 41, 55, and 67: 1.8V-B power supply

FID

GLCO

HS/CS

VS/VBLK

SCL

SDA

M52760

2: AFT 3: AGC 4, 5: picture If input 7: sound IF input 13: SIF output 10: mono sound output 18: TV- VIDEO output 14, 17: +5V-1 power supply

LA72700

5: SIF input 25: TV sound -R output 26: TV sound- L output 11: SDA 12: SCL 31: +9Vpower supply

MST6151

207, 208: HDMI-R input 2, 3: HDMI-G input 5, 6: HDMI-B input 8, 9: HDMI-CLK input 14: HDMI-SDA 15: HDMI-SCL 20, 21: VGA-B input 22: VGA-G input 23, 24: VGA-G input 25, 26: VGA-R input 18: VGA H-sync input 19: VGA V-sync input 27, 28: PB input 29, 30: Y input 31: HDMI-G input 32, 33: PR input 54-61: CCIR656 format signal input 53: CLK input 164-171, 174: 4 difference signal output 160, 161: 1 clock signal output 188-191: HDMI sound output 200: PWW (brightness control switch) output 72-75: BUS (parallel communication signal) 49, 131, 195: 1.8V power supply 4,17,12,109,204,66,102: 3.3V power supply

PIN DIAGRAM (MST5151A)

GND

AVDD_MPLL

XIN

XOUT

PWM1

PWM0

AIWS

AISCK

VDDC

AISD

AIMCK

198

196

197

636566

GND

VDDC

GND

195

194

VDDP

HWRESET

GND

DVI_G+

DVI_G-

AVDD_DVI

DVI_B+

DVI_B-

GND

DVI_CK+

DVI_CK-

AVDD_DVI

REXT

AVDD_PLL

GND DDCD_DA DDCD_CK

GND

AVDD_ADC

HSYNC1 VYSNC1

BIN1P

BIN1M

SOGIN1

GIN1P

GIN1M

RIN1P RIN1M BIN0M

BIN0P GIN0M

GIN0P

SOGIN0

RIN0M

RIN0P

AVDD_ADC

GND HSYNC0 VSYNC0

RMID

REFP

REFM VI_DATA[8] VI_DATA[9]

VI_DATA[10] VI_DATA[11] VI_DATA[12] VI_DATA[13] VI_DATA[14] VI_DATA[15]

AVDD_APLL

GND GPO[5] GPO[4]

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

DVI_R-

DVI_R+

GND

208

207

206

205

Pin 1

5354555657

VI_CK

VI_DATA[0]

VI_DATA[1]

VI_DATA[2]

204

202

200

203

201

199

VCTRL

VI_DATA[3]

VI_DATA[4]

VI_DATA[7]

VI_DATA[5]

VI_DATA[6]

SPDIFO

AUWS

AUSD

LVB0M

VDDC

GND

AUMUTE

AUSCK

AUMCK

192

191

ALE

190

717274

RDZ

WRZ

188

189

187

DBUS[0]

DBUS[1]

DBUS[2]

193

INT

LVB0P

186

DBUS[3]

185

XXXXX

GPO[3]

VDDP

GND

184

182

183

XXXXXXXXXXX

777980

VDDC

GPO[2]

GPO[1]

MST5151A

LVB1M

LVB1P

LVB2M

LVB2P

LVBCKM

LVBCKP

LVB3M

LVB3P

VDDC

GND

LVA0M

LVA0P

LVA1M

LVA1P

LVA2M

LVA2P

LVACKM

LVACKP

GND

VDDP

LVA3M

LVA3P

GND

BYPASS

GND

181

179

177

175

173

170

168

180

178

176

174

172

171

GND

DQS[3]

MDATA[31]

MDATA[30]

878990

GND

VDDM

MDATA[29]

MDATA[28]

MDATA[27]

MDATA[26]

MDATA[25]

169

MDATA[24]

MDATA[23]

166

167

165

9496979899

MDATA[22]

MDATA[21]

MDATA[20]

MDATA[19]

164

163

162

161

159

158

157

160

156

VDDC

155

GND

154

VDDM

153

DQS[0]

152

MDATA[0]

151

MDATA[1]

150

MDATA[2]

149

MDATA[3]

148

MDATA[4]

147

MDATA[5]

146

MDATA[6]

145

MDATA[7]

144

MDATA[8]

143

MDATA[9]

142

MDATA[10]

141

MDATA[11]

140

GND

139

VDDM

138

MDATA[12]

137

MDATA[13]

136

MDATA[14]

135

MDATA[15]

134

DQS[1]

133

DQM[0]

132

GND

131

VDDC

130

MADR[11]

129

MADR[10]

128

MADR[9]

127

MADR[8]

126

GND

125

VDDM

124

MADR[7]

123

MADR[6]

122

MADR[5]

121

MADR[4]

120

MADR[3]

119

MADR[2]

118

MADR[1]

117

MADR[0]

116

WEZ

115

CASZ

114

GND

113

VDDM

112

RASZ

111

BADR[0]

110

BADR[1]

109

AVDD_PLL2

108

GND

107

MCLK

106

MCLKZ

105

MCLKE

100

102

103

104

101

GND

VDDM

MVREF

DQS[2]

DQM[1]

MDATA[18]

MDATA[17]

MDATA[16]

PIN DESCRIPTION

Schmitt Trigger Input

Schmitt Trigger Input w/

MCU Interface

Pin Name Pin Type Function Pin

HWRESET

w/ 5V-tolerant DBUS[3:0] I/O w/ 5V-tolerant MCU 4-bit DDR Direct bus; 4mA driving strength 75-72 ALE I w/ 5V-tolerant MCU Bus ALE, active high 69 RDZ I w/ 5V-tolerant MCU Bus RDZ, active high 70 WRZ I w/ 5V-tolerant MCU Bus WDZ, active high 71 INT Output MCU Bus Interrupt; 4mA driving strength 68

Hardware Reset, active high 67

Analog Interface

Pin Name Pin Type Function Pin

RMID Mid-Scale Voltage Bypass 38 REFP Internal ADC Top De-coupling Pin 39 REFM Internal ADC Bottom De-coupling Pin 40 REXT Analog Input External Resister 390 ohm to AVDD_DVI 11 HSYNC0

5V-tolerant VSYNC0

5V-tolerant BIN0M Analog Input Reference Ground for Analog Blue Input from Channel 0 27 BIN0P Analog Input Analog Blue Input from Channel 0 28 GIN0M Analog Input Reference Ground for Analog Green Input from Channel 0 29 GIN0P Analog Input Analog Green Input from Channel 0 30

SOGIN0 Analog Input Sync On Green Input from Channel 0 31

RIN0M Analog Input Reference Ground for Analog Red Input from Channel 0 32 RIN0P Analog Input Analog Red Input from Channel 0 33 HSYNC1

5V-tolerant VSYNC1

5V-tolerant BIN1P Analog Input Analog Blue Input from Channel 1 20 BIN1M Analog Input Reference Ground for Analog Blue Input from Channel 1 21 SOGIN1 Analog Input Sync On Green Input from Channel 1 22 GIN1P Analog Input Analog Green Input from Channel 1 23 GIN1M Analog Input Reference Ground for Analog Green Input from Channel 1 24 RIN1P Analog Input Analog Red Input from Channel 1 25 RIN1M Analog Input Reference Ground for Analog Red Input from Channel 1 26

Analog HSYNC Input from Channel 0 36

Analog VSYNC Input from Channel 0 37

Analog HSYNC Input from Channel 1 18

Analog VSYNC Input from Channel 1 19

DVI Interface

Pin Name Pin Type Function Pin

DVI_R+ Input DVI Input Channel Red + 207 DVI_R- Input DVI Input Channel Red - 208 DVI_G+ Input DVI Input Channel Green + 2 DVI_G- Input DVI Input Channel Green - 3 DVI_B+ Input DVI Input Channel Blue + 5 DVI_B- Input DVI Input Channel Blue - 60 DVI_CK+ Input DVI Input Clock + 8 DVI_CK- Input DVI Input Clock - 9

Video Interface

Pin Name Pin Type Function Pin

VI_CK Input w/ 5V-tolerant Digital Video Input Clock 66 VI_DATA[15:0] Input w/ 5V-tolerant Digital Video Input Data[15:0] 48-41, 61-54

Digital Audio Interface

Pin Name Pin Type Function Pin

AUMCK Output Audio Master Clock Output 188 AUSD Output Audio Serial Data Output; 4mA driving strength 189 AUSCK Output Audio Serial Clock Output; 4mA driving strength 190 AUWS Output Word Select Output; 4mA driving strength 191 AUMUTE Output Audio Output Mute Control 192 SPDIFO Output S/PDIF Audio Output; 4mA driving strength 193

AIMCK Input Audio Master Clock Input 196

AISD Input Audio Serial Data Input 197 AISCK Input Audio Serial Clock Input 198 AIWS Input Word Select Input 199

LVDS Interface

Pin Name Pin Type Function Pin

LVA0M Output A-Link Negative LVDS Differential Data Output 171 LVA0P Output A-Link Positive LVDS Differential Data Output 170 LVA1M Output A-Link Negative LVDS Differential Data Output 169 LVA1P Output A-Link Positive LVDS Differential Data Output 168

Pin Name Pin Type Function Pin

; 4mA driving

Reference Voltage for DDR SDRAM

DRAM Memory clock Complementary /Input

LVA2M Output A-Link Negative LVDS Differential Data Output 167 LVA2P Output A-Link Positive LVDS Differential Data Output 166 LVA3M Output A-Link Negative LVDS Differential Data Output 161 LVA3P Output A-Link Positive LVDS Differential Data Output 160 LVACKM Output A-Link Negative LVDS Differential Data Output 165 LVACKP Output A-Link Positive LVDS Differential Data Output 164 LVB0M Output B-Link Negative LVDS Differential Data Output 187 LVB0P Output B-Link Positive LVDS Differential Data Output 186 LVB1M Output B-Link Negative LVDS Differential Data Output 181 LVB1P Output B-Link Positive LVDS Differential Data Output 180 LVB2M Output B-Link Negative LVDS Differential Data Output 179 LVB2P Output B-Link Positive LVDS Differential Data Output 178

LVB3M Output B-Link Negative LVDS Differential Data Output 175

LVB3P Output B-Link Positive LVDS Differential Data Output 174 LVBCKM Output B-Link Negative LVDS Differential Data Output 177 LVBCKP Output B-Link Positive LVDS Differential Data Output 176

GPO Interface

Pin Name Pin Type Function Pin

PWM0 Output GPO with PWM Function; 4mA driving strength 200 PWM1 Output GPO with PWM Function; 4mA driving strength 201 GPO[1] I/O GPO / FIELD input; 4mA driving strength 78 GPO[2] I/O GPO / Digital VSYNC Input; 4mA driving strength 77

GPO[3] I/O GPO / DE Input; 4mA driving strength 76

GPO[4] I/O GPO / Secondary Video Clock Input

strength

GPO[5] I/O GPO / Digital HSYNC Input; 4mA driving strength 51

DRAM Interface

Pin Name Pin Type Function Pin

MVREF Input

MCLKE Output DRAM Memory Clock Enable 105 MCLKZ Output

104

Interface

106

Pin Name Pin Type Function Pin

99,

tal Oscillator

DDC data of DVI port; 4mA

3.3V Power (SDR SDRAM) /

86, 102, 113, 125, 139,

9, 131, 156, 173,

(for differential clocks) MCLK Output DRAM Memory Clock 107 RASZ Output Row Address Strobe, active low 112 CASZ Output Column Address Strobe, active low 115 WEZ Output Write Enable, active low 116 DQM[1:0] Output Data Mask Byte Enable 101, 133 DQS[3:0] Output Data Strobe 81, 100, 134, 153 BADR[1:0] Output Memory Bank Address 110, 111 MADR[11:0] Output Memory Address 130-127, 124-117 MDATA[31:0] I/O Memory Data 82-85, 88-

135-138, 141-152

Misc. Interface

Pin Name Pin Type Function Pin

XIN Crystal Oscillator Input Crystal Oscillator Input 203 XOUT Crys

Output

DDCD_DA I/O w/ 5V-tolerant HDCP Serial Bus Data /

DDCD_CK Input w/ 5V-Tolerant HDCP Serial Bus Clock / DDC Clock of DVI Port 15 BYPASS For External Bypass Capacitor 158 VCTRL Output Regulator Control 62

Crystal Oscillator Output 202

driving strength

Power Pins

Pin Name Pin Type Function Pin

AVDD_DVI 3.3V Power DVI Power 4, 10 AVDD_ADC 3.3V Power ADC Power 17, 34 AVDD_PLL 3.3V Power PLL Power 12 AVDD_PLL2 3.3V Power PLL Power 109 AVDD_APLL 1.8V Power Audio PLL Power 49 AVDD_MPLL 3.3V Power PLL Power 204 VDDM

2.5V Power (DDR SDRAM)

DRAM Interface Power

154 VDDP 3.3V Power Digital Output Power 66, 162, 182 VDDC 1.8V Power Digital Core Power 63, 7

185, 195

Pin Name Pin Type Function Pin

1, 7, 13, 16, 35, 50, 64,

65, 80, 87, 103, 108,

114, 126, 132, 140,

155, 157, 159, 163,

172, 183, 184, 194,

GND Ground Ground

205, 206

R2S15900

2: input L of AV1 27: input R of AV1 3: input L of AV2/S 26: input R of AV2/S 4: input L of YPBPR/VGA/HDMI 25: input R of YPBPR/VGA/HDMI

+ 51 hidden pages
