XOU15WGO
PANEL READY WINE COOLER
I worked really hard
on this manual so please read it...
UNDERCOUNTER
When buying any XO appliance
you can be confident you have chosen a
high quality, innovative and stylish product
from a company that cares about you!
If you require service or have questions,
Help is only a phone call away -
call: 973-403-8900
Talk to one of our undercounter experts.
CONGRATULATIONS
on purchasing your XO.
Before you proceed, take just
a moment to register your XO at:
www.xoappliance.com/register-your-product/
REGISTRATION HELPS YOU BY -
Ensuring warranty coverage should you need service
Providing ownership verification for insurance purposes
Let’s XO notify you in the event of product changes or recalls.
2
where things are
Before You Get Started
Installer Checklist
Find Your Model
Safety Instructions
Electrical and Grounding Instructions
Installation Instructions
Sizes and Installation Dimensions
Integrated Panel Dimensions
Leveling Your XO
Operating Instructions
Product Overview
Control System Overview
Setting the Temperature
Functions
Wine and Beverage Storage
Shelf Instructions
4 - 7
8 - 13
14 - 19
Care and Cleaning
Helpful Hints
Cleaning the Interior / Exterior
Changing the Carbon Air Purification Filter
FAQ’s
Before You Call For Service
Warranty
please read and follow
all safety instructions
20 - 21
22 - 23
It’s for your
own good...
Honest.
3
the job isn’t done until
To ensure that the installation process is successfully completed,
here are few things to review...
Is the unit plugged in?
O
Are the controls on? (Panel will illuminate.)
O
Are the controls operating correctly?
O
Has the unit been properly leveled - both side to side and front to back -
O
with all 4 leveling feet securely making contact with the floor?
This is an OVERLAY unit - have the panels been securely attached and properly aligned?
O
After installation, does the door open sufficiently to fully extend the shelves?
O
Is the door sealing properly?
O
Is the handle secure?
O
Have you thoroughly inspected all surfaces for any imperfections?
O
Have you reviewed this manual with the customer and explained the unit’s operation and care?
O
Has the customer received copies of the literature and keys?
O
Have you properly disposed of all packing materials properly (recycle, please)?
O
Is the custo
O
Remove door gaskets, latches, lids, lock and/or doors from unused or discarded appliances,
mer satisfied?
RISK OF CHILD ENTRAPMENT!
An empty refrigerator is a very dangerous attraction to children.
or take other actions to guarantee them harmless.
Always dispose of old appliances in accordance with local laws and regulations.
4
these are the models
2
covered in this
book
WINE COOLER
XOU15WGOR
XOU15WGOL
take a minute to circle your model above
and record your serial number
here in case you need it later
5
your safety matters
Please read through completely before using your XO Unit
To prevent damage to the door gasket, the door must be opened all the way before pulling shelves out.
The appliance must be positioned so that the plug is accessible.
Empty your XO unit before attempting to move the appliance. Moving while loaded may damage or
distort the frame.
The compressor will get HOT during operation / touching it may cause injury.
During installation follow all safety tips provided in this manual / appropriate safety equipment such as
safety glasses and work gloves should be worn.
Two people should move or lift your XO unit to prevent injury or damage.
Remov
Never cover the bottle racks with foil or other material which will impede internal air circulation.
For maximum efficiency, keep the door tightly shut unless loading or unloading and never overload your
XO unit.
Before installing, allow your XO unit to sit upright for 2 hours at the install site. This will allow the cooling
system to stabilize after transportation. Failure to follow this step may cause problems.
Never store perishable food products such as meat or cheese in your wine cooler or beverage center.
e all interior and exterior packing materials prior to installation and dispose of properly.
Location
Your XO unit should be located away from direct sunlight and heat sources (stove, heaters, etc.) which may
increase electrical consumption. High or low ambient temperature may cause units to work improperly.
The floor must be strong enough to support your XO unit fully loaded.
Your XO unit must not be installed in areas of where water or e
Your XO unit must not be installed near
where flammable, corrosive or hazardous materials are present.
xcessive moisture are present.
Your XO unit’s final installation must observe the correct minimum air clearances around and behind the
unit to ensure adequate ventilation. In addition, all ventilation openings must be kept clear and free of
obstructions, failure to do so will result in damage to the unit.
WARNING
NEVER use external heat sources to accelerate defrosting
NEVER permit unauthorized service or modifications to your XO unit
NEVER tamper with the sealed refrigerant system - this unit uses R600A Refrigerant which is flammable.
It should never be used in the vicinity of any flammable or explosive ignition sources.
ALWAYS FOLLOW THE ELECTRICAL SAFETY INSTRUCTIONS OUTLINED IN THIS MANUAL.
6
Failure To Follow All Electrical Safety Measures May Result in Serious Injury,
Fire Or Death
All electrical work should only be performed by an
experienced, licensed electrician.
All XO units MUST be grounded for safe operation and
come equipped with a
purpose.
NEVER remove or disable the 3rd prong with an adapter.
NEVER use an extension cord to operate your XO unit.
Your XO unit is built to operate on 115V 60Hz and
should be plugged
3 prong outlet. If you are uncertain as to the
voltage, amperage capacity or if the 3rd prong is
properly grounded - consult a licensed electrician.
To maximize the depth of the installation recess your outlet should be mounted flush with the wall.
Your XO unit should not share the circuit with any other
electrical devices as this may cause overloading,
overheating, blown fuses or tripping circuit breakers.
In a worst case this can pose a fire hazard.
3 Prong molded cord/plug for that
directly into a dedicated 15 amp
INDOOR USE ONLY:
XO Refrigerators, wine cellars and beverage
centers described in this manual are rated for
indoor use only.
Your XO Unit was designed to operate in a
room temperature ambient condition between
oo
60 F and 90 F.
Use in any area which is not temperature controlled
within that range, such as a garage or porch may
cause your XO unit to fail to function properly.
Use in any uncontrolled area or otherwise exposed
to the elements is hazardous and voids the warranty.
For outdoor installations - consult XO or your local
XO dealer regarding an outdoor rated model.
In regions where high humidity exists condensation
may appear on the glass and/or gasket seals.
For best operation, keeping the unit fully stocked
with product will reduce this.
SERVICE 115V - 60 Hz - 1 phase
AMPS 15 Amp Circuit Breaker
Requires a Dedicated Outlet
GFI required for Outdoor Installations
All electrical work must be performed by
a licensed electrician
NEVER handle your XO unit in wet conditions as this
can pose a severe danger of electric shock.
Exercise care when moving your XO unit to avoid
damage to the electrical cord. If the electrical cord of
your XO unit becomes worn or damaged it must be
replaced immediately by a qualified technician.
NEVER unplug your unit by pulling on the cord.
Unplug by gripping the plug firmly and pull out
straight from the outlet.
Serious injury, fire or death...
Okay -
7
a perfect fit
90°
Door Swing
WALL
Clearance
Gap
use free standing - or - install under counter
ALL XO UNDERCOUNTER
UNITS ARRIVE PRE-WIRED
WITH LOW PROFILE PLUGS
FOR EASY INSTALLATION
35 1/4” MAX
34 1/8” MIN
7"
4"
15”
WHEN INSTALLING WITH
THE HINGE SIDE NEXT TO A WALL LEAVE ADEQUITE SPACE FOR
CABINET HANDLES
DOOR MUST BE ABLE TO OPEN
A MINIMUM OF 90 .
o
THE DOOR STOP IS SET AT 110 - BUT CAN BE RESET TO 90 OR 140 IF NEEDED.
IF THE DOOR CAN’T OPEN FULLY - YOU CAN’T PULL THE SHELVES OUT.
If you need a little more space
when installing an overlay door unit,
you might use a recessed outlet or
cut the adjoining cabinet wall to
reach an outlet there...
o
oo
8

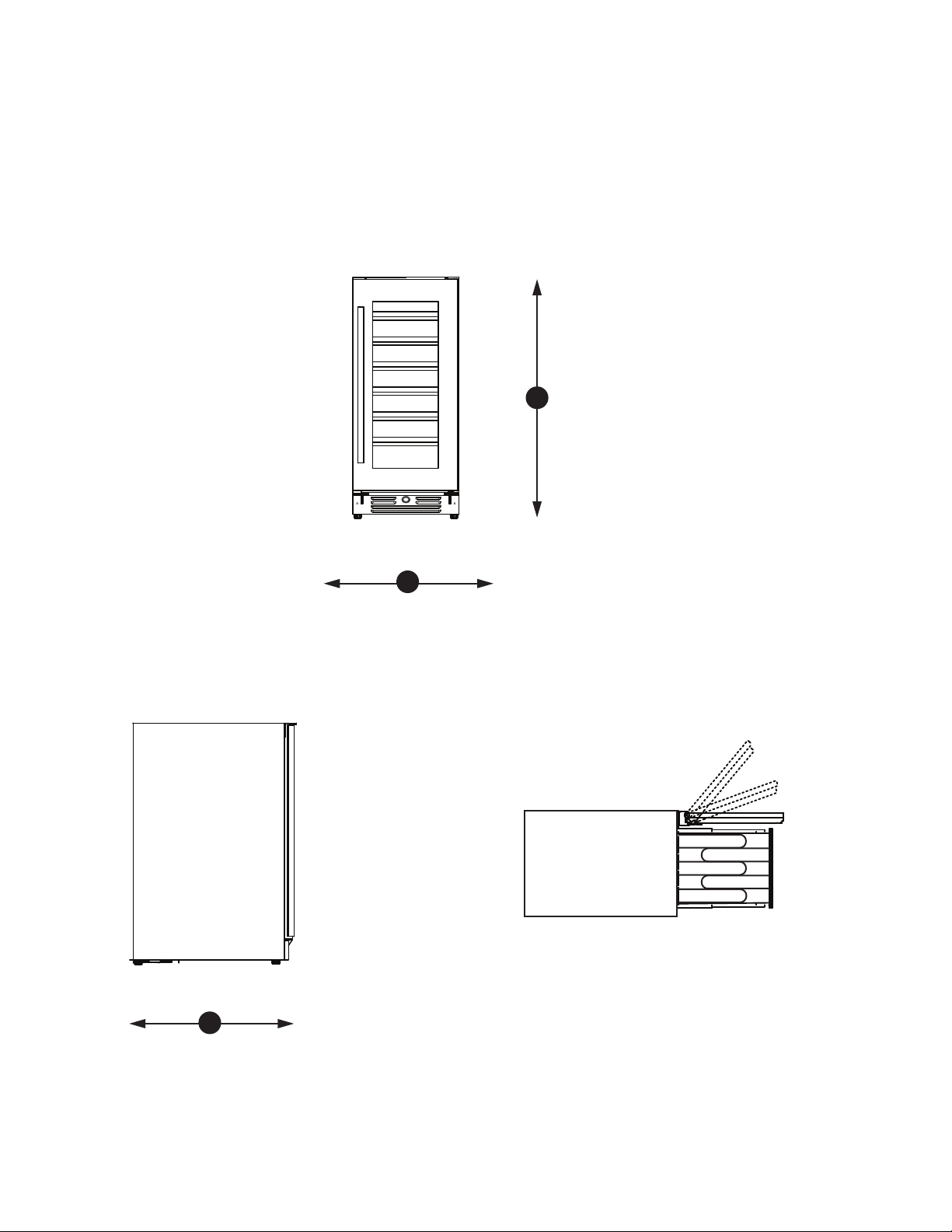

a perfect fit
your xo is this big (
height & width
XOU15WGOR & XOU15WGOL 15” WINE COOLER
or small, as the case would be
34
1/8”
H
HIGH
14 15/16” WIDE
W
)
depth
MODELS WITH OVERLAY DOORS
o
DOOR MUST BE ABLE TO OPEN
O
23 3/4”
D
90 MINIMUM TO ALLOW
RACKS TO EXTEND
WITH THE DOOR
OPEN AT 90
THE UNIT HAS A
DEPTH OF 37 5/16”
o
CUSTOM OVERLAY PANELS MAY ADD UP TO 3/4” IN OVERALL DEPTH
YOUR CHOICE OF CABINET HANDLES WILL ALSO ADD DEPTH
140
110
90
o
o
9

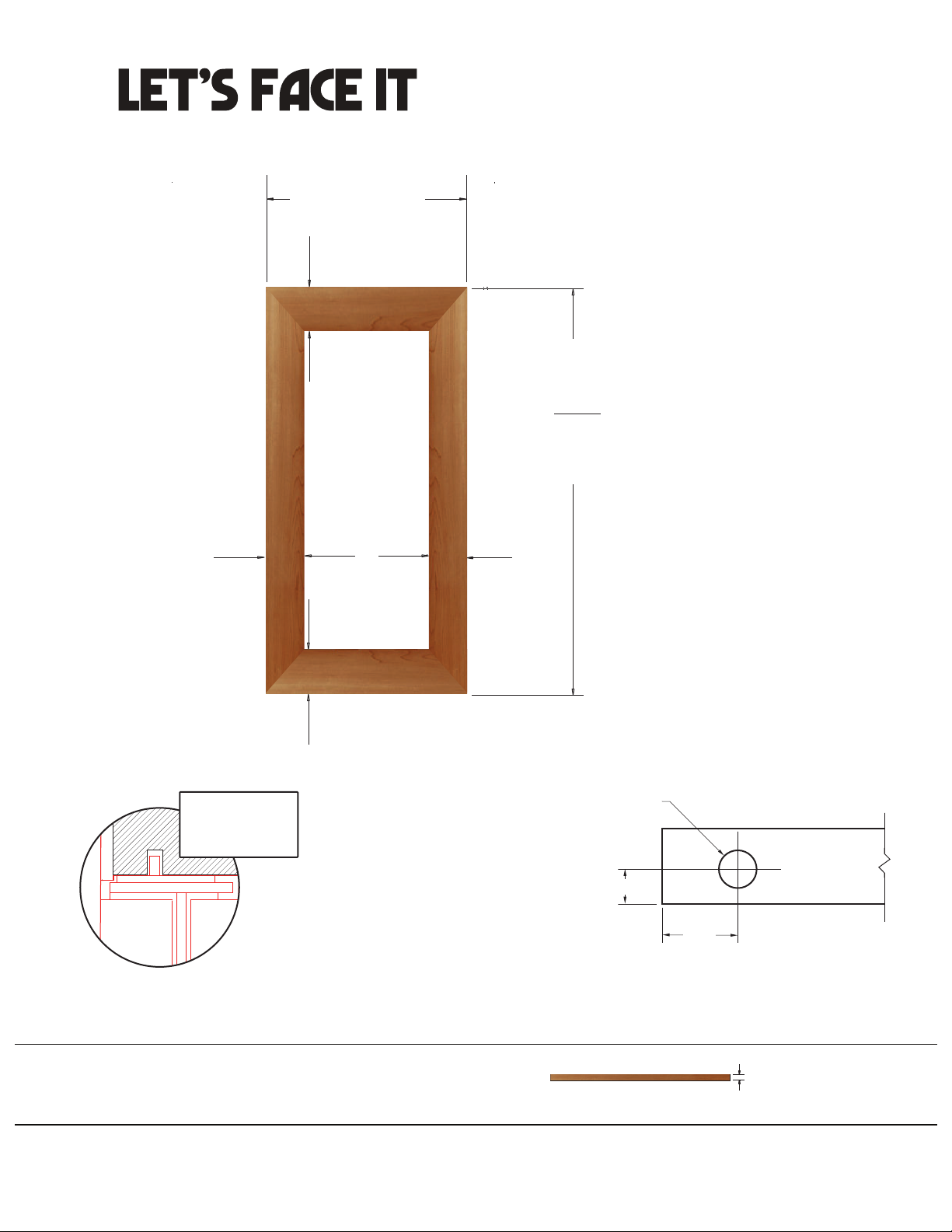

overlay panel dimensions xou15wgo
14 7/8” (378MM)
3 3/8” (86mm) min
5” (127mm) max
2 7/8”
(73mm)
min
2 7/8”
(73mm)
min
29 3/4”
(756mm)
min
30”
(762mm)
max*
* IF FRAME HEIGHT EXCEEDS 30”
ADDITIONAL STEPS MAY BE
REQUIRED.
CONSULT XO
5”
(127mm)
max
5”
(127mm)
max
3 3/8” (86mm) min
5” (127mm) max
CUTAWAY DETAIL
Showing pin in
hole.
TO ACCOMMODATE THE HINGE PINS
ON THE HINGE SIDE OF THE PANEL
Drill a hole at least 3/8” in diameter and
1/2” deep into the top and bottom of the
frame in the location shown.
9/16” in from the edge and 7/16” out from
the unfinisihed side facing the door.
AFTER INSTALLTION UNDER COUNTER, OVERLAY DOOR MUST BE ABLE TO OPEN 90 .
3/8” Dia.
OUTSIDE
7/16”
DOOR SIDE
9/16”
o
PANEL MAXIMUM WEIGHT: 20 lbs.
* FOR CABINET DOORS LONGER THAN 30” - CONSULT XO.
MAXIMUM PANEL THICKNESS 3/4”
10
let’s face it
3. Before the frame has been mounted to the door; To attach your handle hardware, at the
height of your choosing, within the same gasket slot, drill counter sunk screw holes to align with
your handle.
6) screw attachment
6.
using the ST4-30 self-tapping screws provided and a phillips head screwdriver, install one screw
into each of the ten holes and hand tighten flush with the frame.
DO NOT OVER TIGHTEN AS SCREWS MAY STRIP OUT.
6
door frame as a template,
6
S
SCREW
HOLE
LOCATIONS
11
7. Drill the handle attachment holes for the fasteners through the frame
(from step 3).
8. Remove the clamps (and/or tape)
9. Attach your handle using flat head or truss head bolts.
10. Re-install the rubber gasket by pressing it into the slot making sure it is evenly seated
and flat.
11. Reassemble the door back onto the hinges.

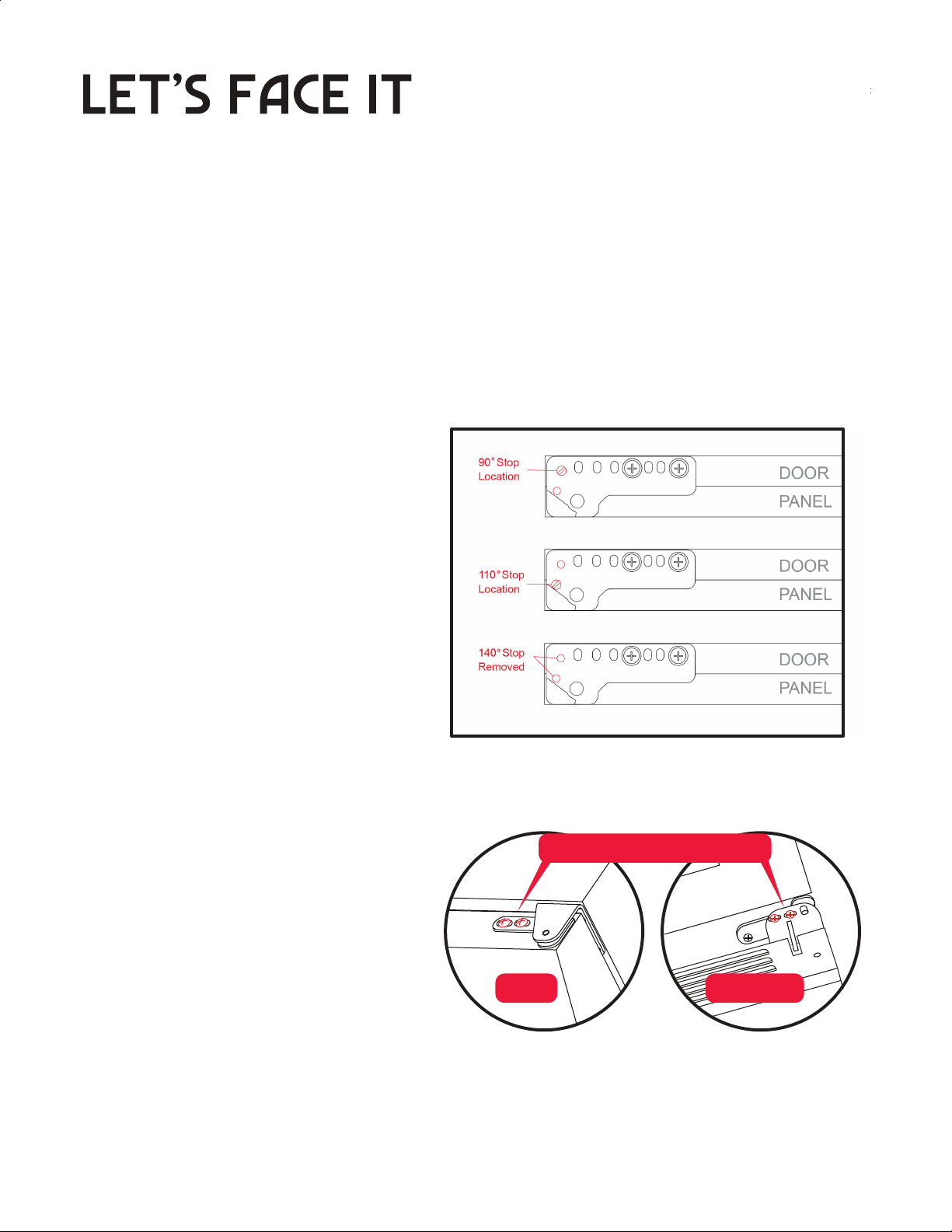

The door hinge stop is set at 110 .
Whille the door is o, you can
change it to either 90 or 140 .
oo
o
Simply change the position of
the stop screw in the lower hinge
plate as shown.
If the door requires adjustment,
the top and bottom hinge each
have adjustmet screws.
Loosen the screws,
then with the door open,
raise the handle side to level
and re-tighten the screws.
ADJUSTMENT SCREWS
TOP BOTTOM
12
it’s like zen - but cooler

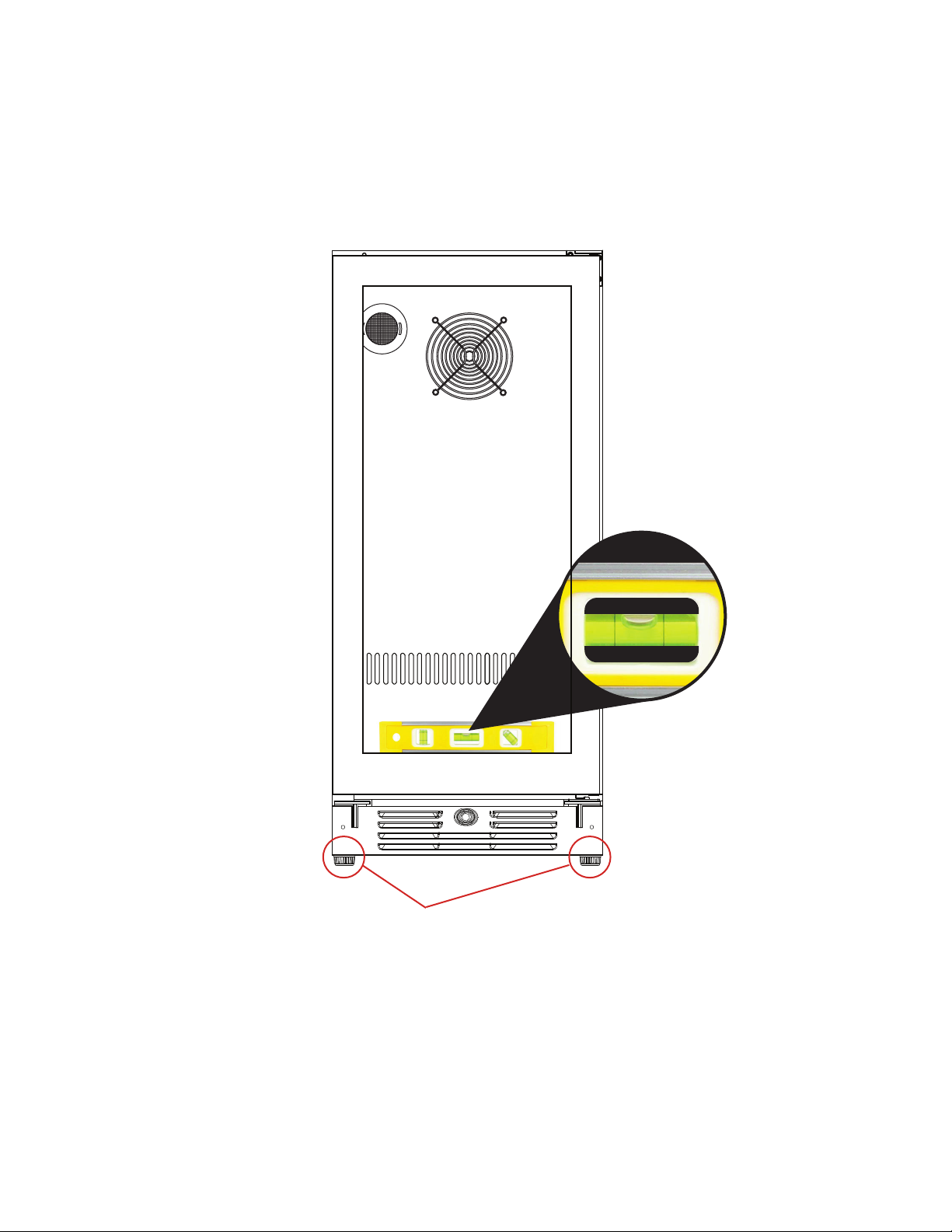

get your level out
DO NOT NEGLECT THIS IMPORTANT STEP
Rotate to raise or lower the LEVELING LEGS located at each of the four corners until all four legs
are seated firmly on the floor and the interior floor of the unit is level both front to back and
side to side.
Failure to follow this important step may cause problems with proper door operation, excessive
condensation, vibration and noise.
13
meet your xo
WINE COOLER
XOU24WGO_
CARBON FILTER
CARTRIDGE
(replace every 3 to 6 months)
C
ONTROL PANEL
(Hiding up here)
RECIRCULATION
FAN

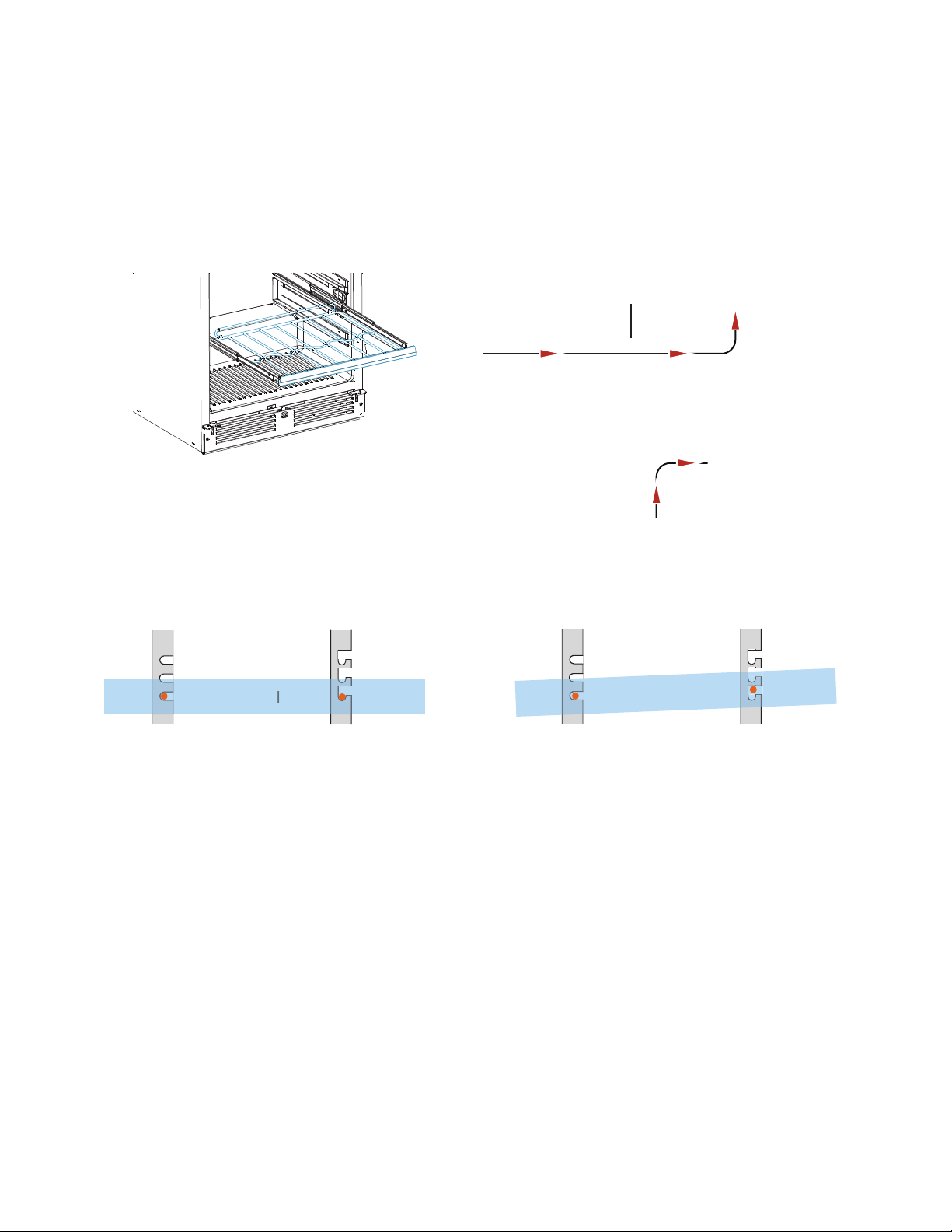

GLIDE OUT
RACKS
FRONT COOLING VENTS
LEVELING LEGS
LOCK
14
take control
temperature
Your XO Wine Cooler has and easy to use digital touch control panel.
Wine Cooler Temp. Settings Adjustable Range: 41 F to 64 F
Your XO wine cooler remembers your last temperature setting in case of a power
failure and automatically adjusts to the previous setting when power is restored.
When the +/- button is pressed, your wine cooler automatically enters set up mode.
The LED Display will begin flashing and display the temperature setting.
Each time you press the + button, the temperature setting will increase 1 Degree.
Each time you press the
Once you have reached the desired temperature setting, the display will continue
to flash for 5 seconds, then revert to showing the compartment temperature.
To view the real time temperature, press and hold the +/- button for 5 seconds.
The interior temperature will flash in the LED Display for 5 seconds.
If you wish to change the display from Fahrenheit to Celsius (or vice versa) press and
hold both “+” and “-” simultaneously for 5 seconds.
- button, the temperature setting will decrease 1 Degree.
oo
led lights
L1: When you turn on your wine cellar, the internal light will switch on when the door is opened,
and off when the door is closed.
L2: Press , the internal light will remain on continuously and dim after 3 minutes.
L3: Press twice, the internal light will remain on for 10 minutes and then shut off.
15
nd<é"UHUdH<6:n<O6
When you turn your XO wine cooler on, the interior lights will be white.
Press the icon and the lights will change to midnght blue.
Press the icon again and the lights will change to honey amber.
+"UMU'+
When you turn you XO Unit on, it is set to work in Standard Mode.
Press and ECO Mode is turned on, ECO Mode is an energy saver function.
Press again and ECO Mode is turned off, the unit returns to Standard Mode.
h!!n:MU'+
Sabbath Mode was designed for use on the Jewish Sabbath and Holidays.
The Sabbath Mode feature makes it possible to use your appliance during the
duration of the holiday. The Sabbath Mode overrides typical reactions caused
by interactions with the unit. While in Sabbath Mode your appliance will operate,
however it will not respond to your actions.
To initiate Sabbath Mode: Press and hold both + for 5 seconds.
The display will show either “Sb” or “Sb On” depending on the model you have to indicate
Sabbath Mode is engaged.
To turn Sabbath Mode off and return to Standard Mode, Press and hold both +
f
or 5 seconds again.
'+MUMU'+
Press for 5 seconds, DEMO mode is turned on.
Press for 5 seconds again, DEMO mode is turned off and your XO returns to standard
mode.
16
single zone control
wine coolers
ON /OFF Button
Press & Hold for 1 Second to turn ON
Press & Hold for 3 Seconds to turn OFF
Press to Silence Alarm
Light Function Button
Toggle Between 3 Light Functions
L1, L2, L3
TEMPERATURE DISPLAY
Press to raise temperature
Press to lower temperature
Changes interior light color
Indicator Light
Cooling Mode ON
Toggles between different
operating modes
The temperature setting can be adjusted from 41-64°F.
Your controls are simple and intuitive to operate.
17
54 F is usually
°
ideal for wine
storage.
how many
wine bottles can this hold
Wine bottles come in many shapes and sizes.
The following MAXIMUM capacities are based on two of the most popular types in 750 ml.
MODEL WIDTH ZONES BORDEAUX BURGUNDY
6 Shelves of 4 6 Shelves of 2
XOU15WGO
+ 4 +3
15” 1
Shelf capacities
15” Wide Wine Cellar Shelves
accommodate up to 4 Bottles Each
28 TOTAL 15 TOTAL
Store wine in sealed bottles only
Avoid overloading
Storing little or no product can cause excessive condensation
18
G
juggling space
is easy with xo
STEP 1: Remove the rack
FULLY EXTEND
STEP 2: Remove and re-position the rack glides
REAR RACK FRONT RACK
GLIDE SUPPORT GLIDE SUPPORT
RACK
SGLIDE
L
DE
LIFT
THE RACK
LIFT THE
FRONT
REAR RACK FRONT RACK
GLIDE SUPPORT GLIDE SUPPORT
RACK GLIDE
UP
PULL OUT
STRAIGHT
STEP 3: Reverse the steps.
Install the right and left RACK GLIDES in their new position by pushing the
pins into the slots and click the front of the glide down to secure.
Repl ace the rack.
ALL RACKS MUST BE PUSHED ALL THE WAY IN BEFORE CLOSING THE DOOR
DOOR MUST BE FULLY OPENED BEFORE PULLING RACKS OUT
Easy to change + more shelf positions give you more storage options with XO.
19
a little tlc
goes a long way
Cleaning the Inside:
Walls, floor, inside window, and shelves - Some water deposits and dust can be removed with a dry paper
towel, others may require a damp cloth.
Cleaning the Outside:
Outer case - It is important to keep the area clean where the door seals against the cabinet. Clean this area
with a soapy cloth. Rinse with a damp cloth and let dry.
Control Panel and Door - Wipe with a damp cloth and dry thoroughly. Do not use cleaning sprays, large
amounts of soap and water, abrasive, or sharp objects on the panel, they can damage it.
CAUTION: Some paper towels may also scratch the control panel and glass on the door.
Door Surface - Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth.
Rinse well with damp cloth.
NOTE: Do not use cleaners containing ammonia or alcohol on your XO unit. Ammonia or alcohol can
damage the appearance of the appliance.
NOTE: Never use any commercial/abrasive cleaners or sharp objects on any part of the wine cooler.
power failure
Most power failures are corrected within a few hours and should not affect the temperature of your appliance
if you minimize the number of times the door is opened.
If the power is off for a longer period of time, you need to take the proper steps to protect your contents.
vacation
Short vacations: Leave the XO unit operating during vacations of less than three (3) weeks.
Long vacations: If the appliance will not be used for an extended period, remove all items and turn off the
appliance.
Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking
it open if necessary.
ENERGY SAVING TIP
The unit should be located in the coolest area of the room, away from heat producing appliances,
and out of direct sunlight.
moving
Remove all items and securely tape down all loose items (shelves) inside your appliance
Turn the adjustable leveling legs all the way into the base to avoid damage
Tape the door shut and transport the XO unit securely in the upright position
Blanket wrap the exterior to help protect against scratches and other damage
20
a breathe of fresh air
for best results change every 3 to 6 months
Your Air Refresh
Charcoal Filter
I
s Located Here
P/N: XOUAIRFILTER
Rotate the filter 1/4 turn
to unlock
Pull straight out to remove
Align the tabs and
insert the new filter
Rotate filter 1/4 turn
to lock in place
21
faq’s
There doesn’t appear to be any power to the unit.
Q.
There are 3 easy to check common causes:
A.
(1) Check to see if a fuse has blown or circuit breaker has tripped & replace or reset.
(2) Check to ensure the plug is fully inserted into the outlet.
(3) A power surge may have caused the unit to shut down to protect itself - Unplug the unit,
wait 5 seconds and plug it back in.
The cabinet temperature is too high.
Q.
Check these 5 things:
A.
(1) Check the temperature setting and adjust as needed.
(2) Make certain the door is completely closed and the door gasket is sealing properly.
(3) Avoid opening the door frequently and/or leaving the door open for extended periods.
(4) Did you load a large quantity of warm bottles at once? It is better to add smaller quantities
in several loads.
(5) Make certain nothing is blocking the toe kick vents (including dust behind the vents).
The alarm is beeping and “HI” is displayed on the control panel.
Q.
See the question and answers above - if the door has been tightly closed and you have not
A.
recently added a large quantity of warm bottles, it may be a mechanical issue. Unplug the unit
and call for service.
The alarm is beeping and “LO” is displayed on the control panel.
Q.
This may be a sensor malfunction. Unplug the unit and call for service.
A.
more “q & a”
Why does condensation form on the inside or outside of my XO unit?
Q.
It may be that the door is either opened repeatedly or not closed completely. It may also be
A.
due to an excessive ambient humidity, in which case it will clear when the humidity drops.
There is warm air coming from the bottom of my unit.
Q.
This is normal. Cooling systems must vent the heat they remove from inside the cabinet.
A.
Why does the evaporator fan run all the time?
Q.
It continually recirculates air to ensure cabinet temperatures are consistent.
A.
How do I adjust temperature?
Q.
Refer to Pages 7 & 10.
A.
How do I adjust shelf height?
Q.
Refer to Page 20.
A.
When does the high temperature alarm sound?
Q.
If internal temperature exceeds 70 F for more than 60 minutes.
A.
If the door hinge is next to a wall, how much clearance do I need to open the door?
Q.
With the panel and hardware in place, the door must be able to open at leat 90
A.
°
°.
22
we’ve got your back
90 DAY LOVE IT or LEAVE IT. For 90 Days all our products are backed by our unique Love it or Leave it Guarantee.
TWO-YEAR PARTS & LABOR LIMITED WARRANTY. XO warrants to the original purchaser of every new XO refrigerated unit, the
cabinet and all parts thereof, to be free from defects in material or workmanship under normal and proper use and maintenance as
specified by XO and upon proper installation and start-up in accordance with the instruction packet supplied with each XO unit. XO’s
obligation under this warranty is limited to a period of two (2) years from the date of original purchase.
FIVE-YEAR COMPRESSOR LIMITED WARRANTY. XO warrants its compressor to be free from defects in both material and workmanship
under normal and proper use and maintenance service for a period of five (5) years from the date of original purchase. If the compressor
fails during that time period due to a defect in material or workmanship, XO will supply a replacement compressor free of charge. The
consumer will be responsible for all related transporation and labor costs. Product must be registered with XO to qualify for this warranty.
TERMS APPLICABLE TO EACH WARRANTY. Any part covered under the above warranties that is determined by XO to have been
defective within the time frame is limited to the repair or replacement, including labor charges, of defective parts or assemblies. The
labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by XO.
WARRANTY CLAIMS. All claims for labor or parts must be made directly through XO. All claims should include: model number and
serial number of cabinet, proof of purchase, and date of installation. In case of warranted compressor, the compressor model tag must
be returned to XO along with the above listed information.
WHAT IS NOT COVERED BY THIS WARRANTY. XO’s sole obligation under this warranty is limited to either repair or replacement of
parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other
than those expressly covered by this warranty. Open box, factory seconds, scratch and dent, floor models and commercial applications
are excluded from these warranties. Consumer shall be responsible for labor and transportation costs where noted above.
NO CONSEQUENTIAL DAMAGES. XO is not responsible for economic loss, profit loss; or special, indirect or consequential damages,
including without limitation, losses or damages arising from food or product spoilage claims whether or not on account or refrigeration
failure.
WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original purchaser/user at the
original installation location. Any such assignment or transfer shall void the warranties herein made and shall void all warranties,
express or implied, including any warranty or merchantability or fitness for a particular purpose.
IMPROPER USAGE. XO assumes no liability for parts or labor coverage for component failure or other damages resulting from
improper usage or installation or failure to clean and/or maintain product as set forth in the warranty packet provided with the unit.
ALTERATION OR NEGLECT. XO is not responsible for the repair or replacement of any parts that XO determines have been
subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood,
or act of God.
IMPROPER ELECTRICAL CONNECTIONS. XO is not responsible for the repair or replacement of failed or damaged components
resulting from electrical power failure, high or low voltage, use of extension cords, or improper grounding of the unit.
YOUR RIGHTS UNDER STATE LAW. This warranty gives you specific legal rights and you may have other rights that vary from state to
state. Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied warranty lasts,
so the above exclusion or limitation may not apply to you.
OUTSIDE U.S. This warranty does not apply to, and XO is not responsible for, any warranty claims made on products sold or used outside
the 48 continental United States.
To obtain service:
Call 973-403-8900 |email service@xoappliance.com | or submit a request on our website
www.xoappliance.com
23
25
PARTS + LABOR COMPRESSOR
WARRANTY
YEAR
WARRANTY
XOUBCGOMAN050520
YEAR
Loading...
