XM Satellite Radio SA10085 User Manual

SA10085

User Guide

Satellite Radio Receiver

Important: This manual contains important safety and operating information. Please read and follow the instructions in this manual. Failure to do so could result in personal injury, death, and/or damage to your Roady2 and/or to your vehicle.

FCC ID: RS2SA10085 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT: The FCC and FAA have not certified the Delphi XM Roady2 Satellite Radio Receiver for use in any aircraft (neither portable nor permanent installation). Therefore, Delphi cannot support this type of application or installation.

Welcome

Thank you for purchasing a Delphi XM®Roady2™Satellite Radio Receiver. Your Roady2 gives you access to over 120 XM Satellite Radio channels of music, news, and information from coast-to-coast.*

Your Roady2 must be used with the enclosed connecting devices (or other approved accessories) to ensure maximum performance and safety.

*XM subscription required for reception. Not available in Alaska or Hawaii.

Caution: Do not modify or alter wires or connections in any way. Shortening wires or connections may pr damage your receiver and will void your warranty.

oper functioning of the pr

event pr

otection cir

cuit. Doing so may

About Roady

Roady2 is the latest in the acclaimed line of portable devices from Delphi and XM Satellite Radio and represents the best in audio technology. The smallest and lightest satellite radio receiver currently available, Roady2 is always ready to go with you. Just plug it in and go! Roady2 now contains an integrated wireless FM modulator (that lets you play XM through an empty frequency on the FM dial of your car or home radio) for the ultimate in convenience, and a stock ticker that will let you track up to 20 of your favorite stocks while listening to any XM channel.

About Delphi

Delphi is a worldwide leader in mobile electronics and transportation components of audio technology. Delphi created the first in-dash car radio decades ago, and is responsible for many audio innovations through the years. Now Delphi technology has helped make satellite radio a reality, and Delphi continues to expand its in-vehicle and consumer electronics technologies. Delphi has a broad portfolio of products to answer a wide variety of information and entertainment needs.

About XM

One big idea can change everything. And XM Satellite Radio is one big idea: Radio to the Power of X®. America’s most popular satellite radio service offers over 120 digital channels of sheer variety: music, sports, talk, comedy, drama, news, traffic and weather, kids programming, and more. All 68 XM music channels are 100 percent commercial-free, and XM’s instant traffic and weather channels provide the most comprehensive, in-depth information on traffic incidents, delays, and road conditions available on radio. These services are available for a low monthly subscription, and additional devices may qualify for a reduced subscription fee through the XM Family Plan.

Contents

Section 1

Getting Started: Activating

Roady2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Section 2

Roady2 Receiver

Roady2 Display Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Roady2 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Section 3

Basic Operations

Turning Roady2 On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Basic Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Changing the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Save and Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Section 4

Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Section 5

Installation

Roady2 Kit Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Roady2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

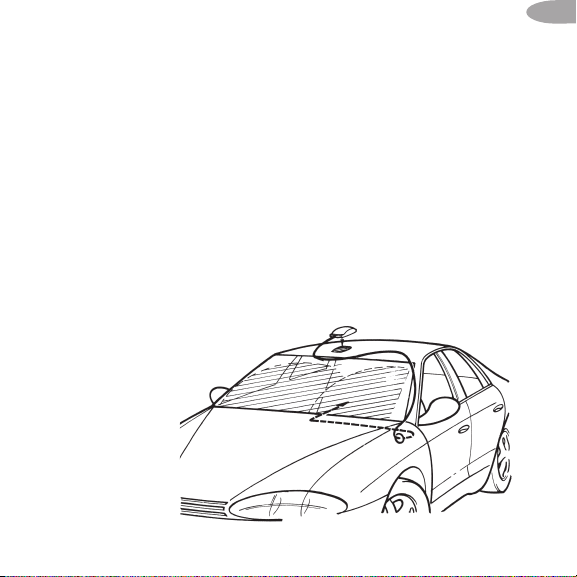

XM Antenna Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Section 6

Reference

Taking Care of Your Roady2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Contacting Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Section 7

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Section 1

Getting Started: Activating Roady2

To quickly begin enjoying Delphi XM Satellite Radio, follow these simple steps :

1. Set up your Roady2 using the installation instructions in Section 5 of this guide (see page 17) or with the help of a professional installer.

2. Press the power button to turn your Roady2 on and verify that it is playing Channel 1, the XM Preview Channel.

3. Select Channel 0. The receiver’s eight-character XM Satellite Radio ID number will appear on the display. Write the number here:

Note: Carefully check your XM Radio ID. The letters I, O, S, and F are not used.

4. Activate your XM Satellite Radio service. To subscribe, make sure you have a major credit card and your XM Satellite Radio ID number handy and contact XM at http://activate.xmradio.com. You can also activate your service by calling 1-800-852-9696.

Note: You will need to keep your Roady2 on for at least one hour after activation and installation to receive the full channel lineup.

Warning: When using this product it is always important to keep your eyes on the road and your hands on the wheel. Not doing so could result in injury to you or to others or in pr

operty damage.

Caution: Failure to properly follow all installation instructions may result in perso nal injury or damage to your Roady2 or to your vehicle.

Roady2 Receiver

Roady2 Display Screen

While tuned to an XM channel, the Roady2 default display contains information about that channel and the Roady2 settings. See figure 1.

Signal-strength indicator

(zero to three bars)

Channel name

and number

Artist name

Display mode

indicator

Category search

indicator

Direct/preset mode (Direct, Preset A, Preset B, or Preset C)

Figure 1. Roady2 display.

Section 2

Roady2 Controls

Power button

Number keys

Control keys

Category search

Infrared lens

e 2. Roady2 contr

Figur

Tuning Wheel

(inset on corner

of unit)

ols.

display

category

preset/direct

memory

Section 2

The Roady2 unit has seven function buttons, a Tuning Wheel, and 10 number keys.

Turns the Roady2 on or off.

The display button toggles between four display options:

1. Channel name, channel number, artist name

2. Channel name, channel number, song title

3. Artist name, song title

4. Artist name, stock ticker

Press Memory to save artist name and song title information. Press and hold memory key to recall information (or access this information from “Memory Recall” in the menu).

Press Menu to select and change receiver configuration options. Pressing Menu when in menu mode will allow the user to back out to the previous level.

Switches between Direct Entry, Preset A, Preset B, and Preset C.

Enters category search and displays channels grouped by category. Continued presses step through available categories. Use the Tuning Wheel to scroll through channels within a category; press the Tuning Wheel

in to select a channel. Category search times out

after approximately 8 seconds if no channels are selected.

Use the Tuning Wheel to scroll through channel or menu options. Pressing the Tuning Wheel

in selects a channel or menu option.

Number keys are used to select a channel directly (when in Direct Entry mode), and to select or set presets when in a Preset mode.

Basic Operations

preset/direct

Turning Roady2 On and Off

Press on the Roady2. When first turned on, the receiver will automatically tune in to the last channel listened to and recall the previous settings.

Basic Channel Selection

Select a channel by number

1. Make sure that Roady2 is in Direct Entry mode. “Direct” should appear in the upper right corner of the display. If A, B, or C appears, press until the display says “Direct.”

2. Enter channel number using the number keys,

Set/select channel presets

Your Roady2 can store up to 30 preset channels. They are organized into three different groups (Preset A, Preset B, and Preset C), each with 10 channels corresponding to the 10 number keys. For the tenth preset in each group, press the “0” key.

Selecting channel presets

Press until an A, B, or C appears in the upper right corner of the display. Press the number key corresponding to the desired preset.

Setting channel presets

1. Tune in the channel you want to register as a preset, making sure it is playing.

2. Select either Preset A, Preset B, or Preset C by pressing until an A, B, or C appears in the upper right corner of the display.

Warning: When using this product it is always important to keep your eyes on the road and your hands on the wheel. Not doing so could result in injury to you or to others or in property damage.

i.e., 5 then 0 for Channel 50.
