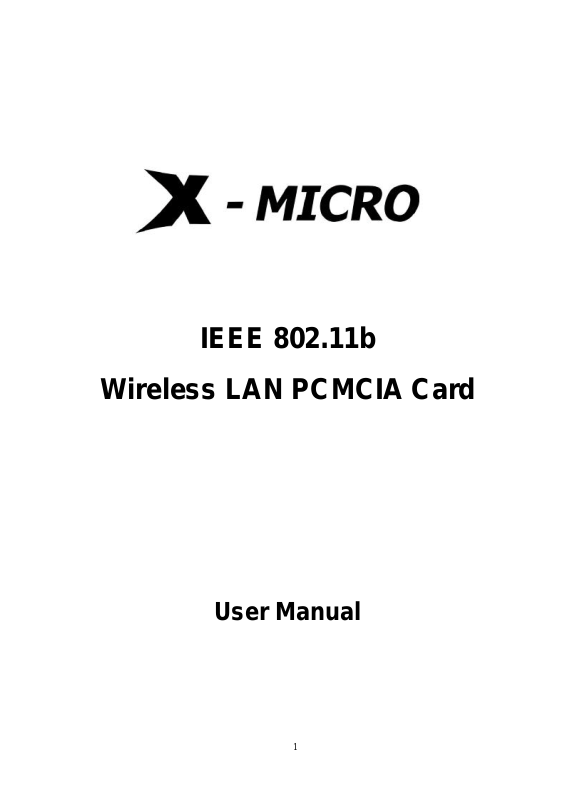

X Micro Technology XWL 11BPRG Users manual
IEEE 802.11b
Wireless LAN PCMCIA Card
User Manual
1
IEEE 802.11b
X-Micro WLAN PCMCIA Card
User’s Manual
Version 1.1
2
INFORMATION TO USER
FCC INFORMATION
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The equipment has been tested and found to comply with the limits for a Class B
Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction, may cause harmful interference
to radio communication. However, there is no grantee that interference will not occur in
a particular installation. If this equipment dose cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Notice: The Part 15 radio device operates on a non-interference basis with other
devices operating at this frequency. Any changes or modification not expressly
approved by the party responsible could void the user’s authority to operate the device.
3
REGULATORY INFORMATION
X-Micro Wireless LAN PCMCIA Card must be installed and used in strict accordance
with the instructions. This device complies with the following radio frequency and safety
standards.
USA - Federal Communications Commission (FCC)
This device complies with Part 15 of FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may cause undesired operation.
Europe - R&TTE Directive
This device complies with the specifications listed below
• ETS 300-826 General EMC requirements for Radio equipment.
• ETS 300-328 Technical requirements for Radio equipment.
• EN60950 Safety Requirements for Radio equipment
The channel identifiers, channel center frequencies, and regulatory domains of each 22MHz-wide channel are shown in following Table.
Channel
Identifier
1 2412
2 2417 ü ü ü
3 2422
4 2427
5 2432
6 2437 ü ü ü ü
7 2442
8 2447
9 2452
10 2457 ü ü ü ü ü
11 2462
12 2467
Center
Frequency
(MHZ)
Japan ETSI
ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü ü
ü ü ü
Regulatory Domains
North
America
Israel France Mexico
13 2472
14 2484 ü
ü ü ü
4
CONTENTS
1. INTRODUCTION …………………………………………………………. 5
2. Wireless LAN basics ……………………………………………………….. 6
3. Install Driver and Utility ……………………………………………………7
4. Configuration Utility…………………………………………………………. 8
4.1 Windows XP Wireless Network Connection Setting.
4.2 Other Connection Setting..
5. Technical Specifications of X-Micro WLAN PCMCIA Card .…………………… 12
6. Glossary ……………………………………………………………………… 13
5
1 Introduction
First of all, we deeply appreciated your purchasing X-Micro wireless LAN PCMCIA
Card. This powerful LAN card not only providing stable linking quality but also safe to
transmitting data. We supply several security authentication login to enhance your
safekeeping, as 802.1x and 802.11i standard.
This user manual will guide you to install X-Micro WLAN PCMCIA Card driver and
utility quickly!
Features
• Completely accordance with IEEE 802.11 and IEEE 802.11b standards
• Ultra low power consumption in sleep mode
• High throughput and long transmission range
• 128-pin LQFP, world's most compact size
• Requires 50% fewer discrete components
• Patented integrated Wireless LAN MAC and Direct Sequence Spread Spectrum
Baseband Processor in one chip
• On-chip A/D and D/A converters for I/Q Data, AGC, and Adaptive Power Control
• Multi-path Delay Spreads 250ns at 11Mbps
• Supports Antenna Diversity
• 1 Mbps, 2 Mbps, 5.5 Mbps, and 11 Mbps operation
• PCI local bus network interface controller
• Compliant to PCI Revision 2.2
• Supports ACPI, PCI power management
• Supports CardBus. The CIS can be stored in a 93C56
• Compliant to PC97, PC98, PC99 and PC2001 standards
• Supports auxiliary power-on internal reset, to be ready for remote wake-up when
main power remains off.
• Supports auxiliary power auto-detect, and sets the related capability of power
management registers in PCI configuration space
• Supports Short Preamble option
6
