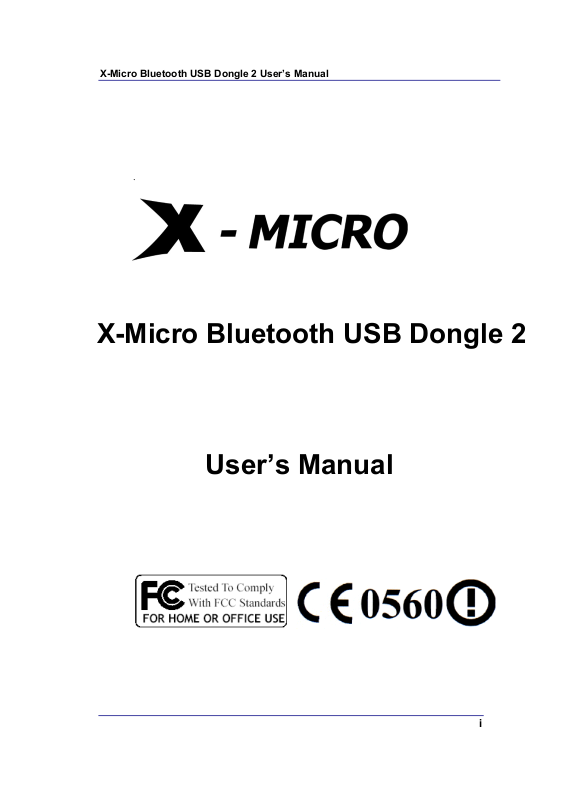

X-Micro Bluetooth USB Dongle 2 User’s Manual
.
X-Micro Bluetooth USB Dongle 2
User’s Manual
i
X-Micro Bluetooth USB Dongle 2 User’s Manual
REGULATION INFORMATION
The Bluetooth USB Dongle 2 must be installed and used in strict accordance with
the manufacturer’s instructions. This device complies with the following radio
frequency and safety standards.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Federal Communication Commission Interference Statemen
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
--- Reorient or relocate the receiving antenna.
--- Increase the separation between the equipment and receiver.
--- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--- Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT NOTE:
FCC Radiation Exposure Statement：
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with FCC RF exposure
compliance requirements, please avoid direct contact to the transmitting antenna
during transmitting.
Your device contains a low power transmitter. When device is transmitted it sends
out Radio Frequency (RF) signal.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
t
ii
X-Micro Bluetooth USB Dongle 2 User’s Manual
Installation and use of this Bluetooth USB Dongle 2 device must be in strict
accordance with the instructions included in the user documentation provided with
the product. Any changes or modifications (including the antennas) made to this
device that are not expressly approved by the manufacturer may void the user’s
authority to operate the equipment. The manufacturer is not responsible for any
radio or television interference caused by unauthorized modification of this device,
or the substitution of the connecting cables and equipment other than
manufacturer specified. It is the responsibility of the user to correct any
interference caused by such unauthorized modification, substitution or attachment.
Manufacturer and its authorized resellers or distributors will assume no liability for
any damage or violation of government regulations arising from failing to comply
with these guidelines.
CE Declaration of Conformity
For the following equipment：
Product name: X-Micro Bluetooth USB Dongle 2
Model name: XBT-DG3X / XBT-DG4X
Is herewith confirmed to comply with the requirements set out in the Council (European
parliament) Directive on the Approximation of the Laws of the Member States relating to
Electromagnetic Compatibility of Radio and Telecom device (1999/5/EC). For the
evaluation regarding this Directive, the following standards were applied:
EN 300 328-1 (2001-12), EN300 328-2 (2001-12)
EN 301 489-1 (2002-08), EN 301 489-17 (2002-08)
EN 60950 (2000-06)
EN 50371 (2002)
iii
X-Micro Bluetooth USB Dongle 2 User’s Manual
Copyright
Copyright 2004 by X-Micro Technology Corp., All rights reserved.
No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of X-Micro
Technology Corp.
Disclaimer
X-Micro Technology Corp., makes no representations or
warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties,
merchantability or fitness for any particular purpose. Any
software described in this manual is sold or licensed "as is".
Should the programs prove defective following their purchase,
the buyer (and not X-Micro Technology Corp, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair,
and any incidental or consequential damages resulting from any
defect in the software. Further, X-Micro Technology Corp.,
reserves the right to revise this publication and to make changes
from time to time in the contents hereof without obligation to
notify any person of such revision or change.
All brand and product names mentioned in this manual are
trademarks and/or registered trademarks of their respective
holders.
iv
X-Micro Bluetooth USB Dongle 2 User’s Manual
LICENSED SOFTWARE
© Copyright 2000 – 2004, WIDCOMM, Inc. (“WIDCOMM”). All rights reserved.
Warning: This software and accompanying documentation are protected by copyright law and
international treaties. Unauthorized reproduction or distribution of this software, or any portion of it, may
result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under the
law.
Use of this software is governed by the terms of the end user license agreement that accompanies or is
included with such software. Unless otherwise noted in the end user license agreement, or herein, no part of
the documentation accompanying this software, whether provided in printed or electronic form may be
reproduced in any form, or stored in a database or retrieval system, or transmitted in any form or by any
means, or used to make any derivative work (such as translation, transformation, or adaptation) without the
express, prior written consent of WIDCOMM.
Trademark(s) ™ and Registered Trademark(s) ®
WIDCOMM and the WIDCOMM logo are trademarks of WIDCOMM, Inc.
Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to
WIDCOMM, Inc.
Microsoft, Windows, Outlook are registered trademarks of Microsoft Corporation.
Other brand and product names may be registered trademarks or trademarks of their respective holders.
v
X-Micro Bluetooth USB Dongle 2 User’s Manual
Table of Contents
1 INTRODUCTION..................................................................................................................1
1.1 Bluetooth Technology ............................................................................................. 1
1.2 Bluetooth USB Adapter.......................................................................................... 1
2 SOFTWARE INSTALLATION ...........................................................................................2
2.1 System Requirements.............................................................................................. 2
2.2 Before Installation .................................................................................................. 2
2.3 Install Widcomm Bluetooth Software....................................................................... 2
2.4 Hardware Installation.............................................................................................. 7
3 INTRODUCTION..................................................................................................................8
3.1 Bluetooth Tray........................................................................................................ 8
3.2 Access My Bluetooth Places.................................................................................... 8
3.3 Icons Used for Bluetooth Devices and Services......................................................... 9
4 BASIC OPERATIONS........................................................................................................12
4.1 Start or Stop Bluetooth .......................................................................................... 12
4.2 Create a Connection From the Bluetooth Icon in the System Tray ............................ 12
4.3 Create a Connection Using the Bluetooth Setup Wizard .......................................... 12
4.4 Create a Connection From Entire Bluetooth Neighborhood...................................... 12
5 FIND BLUETOOTH DEVICES ........................................................................................13
5.1 Periodic Search for Devices................................................................................... 13
5.2 Find A Service...................................................................................................... 14
5.3 Bluetooth Connection Status.................................................................................. 15
5.4 Send to Bluetooth ................................................................................................. 16
6 CONFIGURE BLUETOOTH............................................................................................. 17
6.1 Access the Bluetooth Configuration Panel .............................................................. 17
6.2 Bluetooth Services versus Bluetooth Applications ................................................... 17
6.3 Bluetooth Exchange Folder.................................................................................... 17
6.4 General Configuration Settings.............................................................................. 18
6.5 Bluetooth Applications.......................................................................................... 18
6.5.1
6.5.2
6.5.3 Human Interface Device ........................................................................................19
6.5.4 Audio Gateway.......................................................................................................20
6.5.5
6.5.6
6.5.7
6.5.8 Headset .................................................................................................................. 24
6.5.9 File Transfer ..........................................................................................................25
6.5.10 Network Access ......................................................................................................26
6.5.11 PIM Synchronization .............................................................................................27
6.5.12 PIM Item Transfer..................................................................................................29
6.5.13 Printer.................................................................................................................... 31
6.6 Bluetooth Services ................................................................................................ 32
6.6.1
6.6.2
Overview ................................................................................................................18
General Configuration...........................................................................................18
Bluetooth Serial Port .............................................................................................21
Dial-up Networking ...............................................................................................22
Fax ......................................................................................................................... 23
Notifications...........................................................................................................33
Audio Gateway.......................................................................................................35
vi
X-Micro Bluetooth USB Dongle 2 User’s Manual
6.6.3
6.6.4 Dial-up Networking Service...................................................................................37
6.6.5 Fax Service.............................................................................................................37
6.6.6
6.6.7
6.6.8
6.6.9 PIM Item Transfer..................................................................................................42
6.6.10 PIM Synchronization .............................................................................................45
6.7 Hardware Settings................................................................................................. 46
6.7.1
6.8 Accessibility Settings ............................................................................................ 48
6.9 Discovery Settings ................................................................................................ 49
7 SECURITY...........................................................................................................................50
7.1 Authentication ...................................................................................................... 50
7.2 Authorization ....................................................................................................... 50
7.3 Bluetooth Device Identity...................................................................................... 50
7.4 Encryption............................................................................................................ 50
7.5 Link Key.............................................................................................................. 50
7.6 Pairing Devices..................................................................................................... 51
7.7 Passkey ................................................................................................................ 51
7.8 Secure Connection ................................................................................................ 51
7.9 Security Request Dialog Box ................................................................................. 51
8 TROUBLESHOOTING ...................................................................................................... 52
Bluetooth Serial Port .............................................................................................36
File Transfer Service..............................................................................................38
Headset Service......................................................................................................39
Network Access ......................................................................................................40
Advanced Settings .................................................................................................. 47
8.1 Cannot connect to a paired device .......................................................................... 52
8.2 Cannot discover services on an un-paired remote device.......................................... 52
8.3 Dial-up Networking service does not start .............................................................. 52
8.4 Determine the Bluetooth Device Address (BDA) of my hardware device.................. 52
8.5 Determine the version of the Host Controller Interface (HCI) .................................. 52
8.6 Determine the version of the Link Manager Protocol (LMP).................................... 52
8.7 Find information about the Bluetooth hardware attached to my computer ................. 52
8.8 Internet Connection Sharing Does Not Work .......................................................... 53
8.9 Test a Network Access connection ......................................................................... 53
8.10
8.11 Bluetooth Headset Doesn’t Always Function Under WIN 98 ............................... 53
9 PRODUCT SPECIFICATIONS.........................................................................................54
10
Unknown Port message when using a Bluetooth Serial Port ................................. 53
GLOSSARY......................................................................................................................55
vii
X-Micro Bluetooth USB Dongle 2 User’s Manual
Table of Figures
Figure 2-1: Preparing to Install Widcomm Bluetooth Software ........................2
Figure 2-2: License Agreement Window.............................................................3
Figure 2-3: Destination folder selection..............................................................3
Figure 2-4: Installation running window ............................................................4
Figure 2-5: Digital Signature dialog box.............................................................4
Figure 2-6: Bluetooth Device Insertion dialog box.............................................5
Figure 2-7: Installation finished window ............................................................6
Figure 2-8: Bluetooth icons .................................................................................6
Figure 2-9: Plug the Bluetooth USB Adapter into USB port on desktop PC.....7
Figure 2-10: Plug the Bluetooth USB Adapter into USB port on laptop PC.....7
Figure 3-1: Bluetooth Icon...................................................................................9
Figure 3-2: Device Icons for Windows 9x, Me and 2K.......................................9
Figure 3-3: Service Icons for Windows 9x, Me and 2K ...................................10
Figure 3-4: Device Icons for Windows XP ........................................................11
Figure 3-5: Service Icons for Windows XP .......................................................11
viii
X-Micro Bluetooth USB Dongle 2 User’s Manual
1 Introduction
1.1 BLUETOOTH TECHNOLOGY
Bluetooth Technology eliminates proprietary cables, allowing mobile users to connect to
mobile computing devices effortlessly and without wires. It is intended to be used for both
voice and data communications in local area within a range of 10 to 100 meters. Bluetooth
operates in the 2.4 GHz ISM (Industrial Scientific Medical) frequency band, which is
reserved for license-free operation in most countries. Its key features are robustness, low
complexity, low power and low cost. The technology also offers wireless access to LANs,
PSTN, the mobile phone network and the Internet for a host of home appliances and
portable handheld interfaces.
1.2 BLUETOOTH USB ADAPTER
The Bluetooth USB Adapter allows a computer with a USB port to communicate with
other Bluetooth-enabled devices. When used with the Bluetooth application software it can
perform wireless network applications such as information exchange, file transfer, network
access, dial-up networking, headset, audio gateway, printer application, and so on.
1
X-Micro Bluetooth USB Dongle 2 User’s Manual
2 Software Installation
2.1 SYSTEM REQUIREMENTS
It is necessary to install Bluetooth application software before starting to use the Bluetooth
USB Adapter. Therefore, please check your system in advance and ensure it meets the
minimum requirements as described below.
- Processor: Intel Celeron / Pentium III / Pentium IV; AMD Duron / Athlon
- Operating System: Microsoft Windows 98SE / ME / 2000 / XP
- System memory: 32MB at least
- Hard Drive Free Space: 11.5MB
2.2 BEFORE INSTALLATION
Don’t plug the Bluetooth USB Adapter into USB port on your PC before installation .
Please remove any previous version of Widcomm Bluetooth software existing in your
system. The remove procedures are as follows:
1. Click Start/Settings, then select Control Panel.
2. In the Control Panel window, double click
3. Find out the item
Widcomm Bluetooth Software x.x.x.x
Add/Remove programs
icon.
then remove it.
2.3 INSTALL WIDCOMM BLUETOOTH SOFTWARE
Insert the Bluetooth Software CD into CD-ROM drive. If the Auto-Run function of
CD-ROM is enabled (in Windows, the default setting of this function is usually enabled),
installation program will start automatically. If not, you can utilize the Windows Explorer
to browse CD content and run X-Micro.exe manually.
Figure 2-1: Preparing to Install Widcomm Bluetooth Software
I
When ensuing window appears, please click
installation.
NSTALL DRIVER
to continue the software
2
X-Micro Bluetooth USB Dongle 2 User’s Manual
Then in the License Agreement window, check the item
agreement
and click
Figure 2-2: License Agreement Window
Next
button to continue
.
I accept the terms in the license
The software default destination folder is located at
Bluetooth Software\
. If you want to change the folder, click Change… button then select
C:\ Program Files \ X-Micro \
one you prefer. If everything is ready and done, please click
Figure 2-3: Destination folder selection
Then click Next button to begin the installation.
Next
button.
3
X-Micro Bluetooth USB Dongle 2 User’s Manual
The software installation is processing now.
Figure 2-4: Installation running window
Note: During the processing of the Bluetooth Software installation under Windows 98SE or
Windows 2000, it is possible to meet Microsoft Digital Signature issues such as Bluetooth
Personal Area Network Driver, Bluetooth Communication Ports, Widcomm Bluetooth
Null Modem, Widcomm Bluetooth Modem, Widcomm Bluetooth Fax Modem, and
Unknown Software package. Please confirm them manually by pressing OK button in
these pop-up windows.
Figure 2-5: Digital Signature dialog box
4
X-Micro Bluetooth USB Dongle 2 User’s Manual
When the “Bluetooth device not found” window pops out, plug Bluetooth USB adapter
into laptop or PC and click “OK.”
Figure 2-6: Bluetooth Device Insertion dialog box
5
X-Micro Bluetooth USB Dongle 2 User’s Manual
Please reboot your system after the software installation is finished.
Figure 2-7: Installation finished window
After rebooting, when you log in Windows operating system there will be two new
Bluetooth icons appearing on the desktop and the Windows System Tray respectively.
Figure 2-8: Bluetooth icons
6
X-Micro Bluetooth USB Dongle 2 User’s Manual
2.4 HARDWARE INSTALLATION
The Bluetooth USB Adapter can be used by both desktop and laptop PC with USB port as
shown bellow:
Figure 2-9: Plug the Bluetooth USB Adapter into USB port on desktop PC
Figure 2-10: Plug the Bluetooth USB Adapter into USB port on laptop PC
7
X-Micro Bluetooth USB Dongle 2 User’s Manual
3 Introduction
3.1 BLUETOOTH TRAY
The Bluetooth tray resides in the Windows system tray, which is normally located in the
lower-right corner of the screen. The Bluetooth tray provides fast access to most Bluetooth
operations.
From the Bluetooth tray you can:
• Access My Bluetooth Places—double-click the Bluetooth icon, or right-click the
Bluetooth icon and then select Explore My Bluetooth Places.
Access the Bluetooth Setup Wizard
•
Configure how this computer accesses a service on another Bluetooth device
Locate remote Bluetooth devices
Configure the way that this computer provides services to remote Bluetooth
devices
Set the name and type of this Bluetooth device, e.g., “John's PC” and
“Desktop.”
• Access the Bluetooth Configuration Panel—right-click the Bluetooth icon, and
then select Advanced Configuration.
Access the Quick Connect option
•
Connect, and then select the type of service to which you wish to connect.
• Start/Stop Bluetooth on this computer.
. This wizard will help you:
—right-click the Bluetooth icon, select Quick
3.2 ACCESS MY BLUETOOTH PLACES
My Bluetooth Places is part of
There are multiple ways to access My Bluetooth Places:
• In the Windows system tray
Right-click the Bluetooth icon and select Explore My Bluetooth Places
or
Double-click the Bluetooth icon
•
On the desktop, double-click the Bluetooth icon
• Open Windows Explorer and select My Bluetooth Places in the Folders pane or
from the Address shortcut menu.
Windows Explorer
.
8
X-Micro Bluetooth USB Dongle 2 User’s Manual
3.3 ICONS USED FOR BLUETOOTH DEVICES AND SERVICES
Bluetooth icons provide at-a-glance feedback about a device or service's status by
changing appearance.
The Bluetooth icon in the Windows system tray provides feedback about Bluetooth status.
Bluetooth Icon Indicates Bluetooth Status
Enabled Disabled Connected
Blue with White
Figure 3-1: Bluetooth Icon
Device Icons for Windows 9x, Me and 2K
Name Normal Connected Paired
Audio Gateway
Camera
Desktop
Headset
Human Interface Device
Laptop
Modem
Network Access Point
Personal Digital Assistant
Printer
Blue with Red
Blue with Green
Telephone
Unknown
Figure 3-2: Device Icons for Windows 9x, Me and 2K
9
X-Micro Bluetooth USB Dongle 2 User’s Manual
Service Icons for Windows 9x, Me and 2K
Name Normal Connected Not Available*
Audio Gateway
Bluetooth Image Transfer
Dial-up Networking
Fax
Headset
Network Access
PIM Item Transfer
PIM Synchronization
Public Folder
Serial Port
*Services may be unavailable because they are in use or because the necessary hardware is not installed.
Figure 3-3: Service Icons for Windows 9x, Me and 2K
Device Icons for Windows XP
Name Normal Connected Paired
Audio Gateway
Camera
Desktop
Headset
Human Interface Device
Laptop
Modem
Network Access Point
Personal Digital Assistant
Printer
10
X-Micro Bluetooth USB Dongle 2 User’s Manual
Telephone
Unknown Device
Figure 3-4: Device Icons for Windows XP
Service Icons for Windows XP
Name Normal Connected Not Available*
Audio Gateway
Bluetooth Image Transfer
Dial-up Networking
Fax
Headset
Network Access
PIM Item Transfer
PIM Synchronization
Public Folder
Serial Port
*Services may be unavailable because they are in use or because the necessary hardware is not installed.
Figure 3-5: Service Icons for Windows XP
11
X-Micro Bluetooth USB Dongle 2 User’s Manual
4 Basic Operations
4.1 START OR STOP BLUETOOTH
To start Bluetooth:
Start the Bluetooth Device. The Bluetooth icon is blue in color with a white insert when
Bluetooth is running.
To stop Bluetooth:
Stop the Bluetooth Device. The Bluetooth icon is blue in color with a red insert when
Bluetooth is stopped.
4.2 CREATE A CONNECTION FROM THE BLUETOOTH ICON IN THE SYSTEM TRAY
In the Windows system tray, right-click the Bluetooth icon, select Quick Connect and then
the Bluetooth service that you wish to use.
If this computer has created a connection to the desired type of service in the past, the
options on the shortcut menu are:
•
The name(s) of any device(s) with which prior connections to this type of service
have been established. Select a name from the list to re-establish connection.
• Other Devices…Select this option to search for additional devices that potentially
provide the desired service, select a device from the list, and then click Connect.
If this computer has never created a connection to this type of service, the only option on
the shortcut menu is “Find Devices….” Select this option to search for devices that
potentially provide the desired service, select a device from the list, and then click Connect.
in the Windows system tray, right-click the Bluetooth icon and select
in the Windows system tray, right-click the Bluetooth icon and select
4.3 CREATE A CONNECTION USING THE BLUETOOTH SETUP WIZARD
•
From the Folders pane of Windows Explorer, right-click My Bluetooth Places and
select Bluetooth Setup Wizard
or
•
In Windows Explorer, with My Bluetooth Places selected, from the Bluetooth
menu, select Bluetooth Setup Wizard
or
•
From the Windows system tray: right-click the Bluetooth icon and select
Bluetooth Setup Wizard.
Follow the wizard's on-screen instructions.
4.4 CREATE A CONNECTION FROM ENTIRE BLUETOOTH NEIGHBORHOOD
From Windows Explorer:
•
In the Folders pane, select Entire Bluetooth Neighborhood, right-click a device
name and select “Connect …” the desired service.
or
• In the Folders pane, expand Entire Bluetooth Neighborhood, select a device, and
then, in the right pane, right-click a service provided by that device and select
“Connect to…”
NOTE: Only available services are displayed in the menus.
12
Loading...
