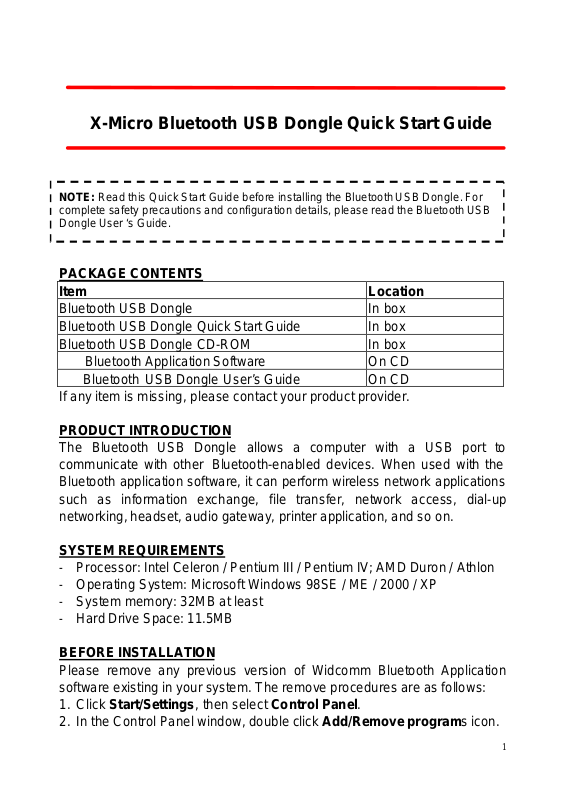

X-Micro Bluetooth USB Dongle Quick Start Guide
NOTE: Read this Quick Start Guide before installing the Bluetooth USB Dongle. For
complete safety precautions and configuration details, please read the Bluetooth USB
Dongle User ‘s Guide.
PACKAGE CONTENTS
Item Location
Bluetooth USB Dongle In box
Bluetooth USB Dongle Quick Start Guide In box
Bluetooth USB Dongle CD-ROM In box
Bluetooth Application Software On CD
Bluetooth USB Dongle User’s Guide On CD
If any item is missing, please contact your product provider.
PRODUCT INTRODUCTION
The Bluetooth USB Dongle allows a computer with a USB port to
communicate with other Bluetooth-enabled devices. When used with the
Bluetooth application software, it can perform wireless network applications
such as information exchange, file transfer, network access, dial-up
networking, headset, audio gateway, printer application, and so on.
SYSTEM REQUIREMENTS
- Processor: Intel Celeron / Pentium III / Pentium IV; AMD Duron / Athlon
- Operating System: Micros oft Windows 98SE / ME / 2000 / XP
- System memory: 32MB at least
- Hard Drive Space: 11.5MB
BEFORE INSTALLATION
Please remove any previous version of Widcomm Bluetooth Application
software existing in your system. The remove procedures are as follows:
1. Click Start/Settings, then select Control Panel .
2. In the Control Panel window, double click Add/Remove program s icon.
1
Page 2
3. Find out the item Widcomm Bluetooth Software x.x.x.x , then remove it
by clicking the Remove button.
Note: To prevent potential problems during installing the software, please do
NOT plug the Bluetooth USB Dongle into the computer until the Bluetooth
application software installation is finished.
INSTALLATION OF THE BLUETOOTH APPLICATION SOFTWARE
(Widcomm’s BTW)
1. Insert the Bluetooth Software CD into CD-ROM drive. If the Auto-Run
function of CD -ROM is enabled (in Windows, the default setting of this
function is usually enabled), then installation program will start
automatically. If not, you can utilize the Windows Explorer to browse CD
content and run Setup.exe manually.
2. When ensuing window appears, please click Next button to continue the
software installation.
3. Then in the License Agreement window, check the item I accept the
terms in the license agreement and click Next button to continue.
4. The sof tware default destination folder is located at C:\ Program Files \
Widcomm \ Bluetooth Software\ . If you want to change the folder, click
Change… button then select one you prefer. If everything is ready and
done, please click Next button.
5. Then click Install button to begin the installation. The software installation
is processing now.
NOTE: During the processing of the Bluetooth Software installation under
Windows 98SE or Windows 2000, it is possible to meet Microsoft Digital
Signature issues such as Bluetooth Personal Area Network Driver,
Bluetooth Communication Ports, Widcomm Bluetooth Fax Modem, and
Unkown Software package. Please confirm them manually by pressing
Yes button in those pop- up windows.
6. Please reboot your system after the software installation is finished.
7. After rebooting, when you log in Windows operating system there will be
two new Bluetooth icons appearing on the desktop and the Windows
System Tray respectively.
BASIC OPERATIONS
1. Double-click the Bluetooth icon in the Windows System Tray, which is
2
Page 3
normally located in the lower-right corner of the screen, to open the My
Bluetooth Places window.
2. Search for Devices looks for Bluetooth devices in the vicinity and displays
the devices it finds in My Bluetooth Places. To start the Search for
Devices:
a) In My Bluetooth Places, from the Folders pane, select (highlight)
Entire Bluetooth Neighborhood.
b) Open the Bluetooth menu and select Search for Devices.
3. After the searching process, devices found will appear in the right pane of
My Bluetooth Place window.
4. The process of determining the services that a device provides is called
Service Discovery. To initiate a Service Discovery:
In the Folders pane of My Bluetooth Places, right-click the device and
select Discovery Available Services from the shortcut menu.
5. After the discovering process, services found will appear in the right pane
of My Bluetooth Places window.
6. To use a service: Double-click the icon of the service in the right pane of
My Bluetooth Places window to use the service. The service s supported
by BTW are:
Bluetooth Serial Port — establishes a Bluetooth wireless connection
between two devices. The connection may be used by applications as
though a physical serial cable connected the devices.
Dial-up Networking — allows a Bluetooth client to use a modem that is
physically attached to the Bluetooth server.
Fax — allows a Bluetooth client to wirelessly send a fax using a device
that is physically attached the Bluetooth server.
File Transfer — establishes a Bluetooth wireless connection that allows
your computer to perform file system operations on another
Bluetooth-enabled device— browse, drag/drop, open, print, cut /copy,
paste, delete, rename, etc.
Headset — allows a Bluetooth client to use a Bluetooth headset as the
audio input and outpu t device for this client.
Information Exchange — establishes a Bluetooth wireless connection
between two devices so that they can exchange personal information
manager data such as business cards, calendar items, email messages,
and notes.
Information Synchronization — establishes a Bluetooth wireless
connection between two devices and uses the connection to syncronize
Personal Information Manager data between the two devices.
Network Access — establishes a Bluetooth wireless connection
3
Page 4
between the client and a server that is physically connected to the Local
Area Network. If the client has permission (user name and password for
the LAN), the wireless connection can be used as if the client were
hardwired to the LAN.
Audio Gateway — allows a remote Bluetooth device to use this
computer’s microphone and speakers as the remote device’s audio input
and output devices. .
Printer — allows a Bluetooth Client to use a Bluetooth printer.
LOCAL SERVICES
Local Services are those services that a Bluetooth server is capable of
providing. To display the local services provided : In My Bluetooth Places,
from the Folders pane, select (highlight) My Device . The service provided
by Bluetooth are Bluetooth Serial Port, Dial-up Networking, Fax, File
Transfer, Headset, PIM Item Transfer, PIM Synchronization, Network Access,
Audio Gateway, and so on.
Icons for services that are not available have a red “X” in their
lower-right corner. Services may be unavailable because they are in use or
because the necessary hardware (such as a modem for Dial-up Networking)
is not installed.
The names of all the services are displayed even though the server may not
be capable of supporting all services. For example, when a server provides
a service that is hardware -dependant, that server must be capable of local
action, i.e., a Dial-up Networking server have a working modem, a Fax
server must have a functional fax modem, and a Network Access server
must be physically connected to the Local Area Network. All services start
automatically by default when BTW is initialized.
75-143002-01 V1. 1
