Xmark TTG User Manual
980-000010-000R1.01
Replace only with
Tag Tester Functions
Rear View And Battery Replacement
Tag Read Range

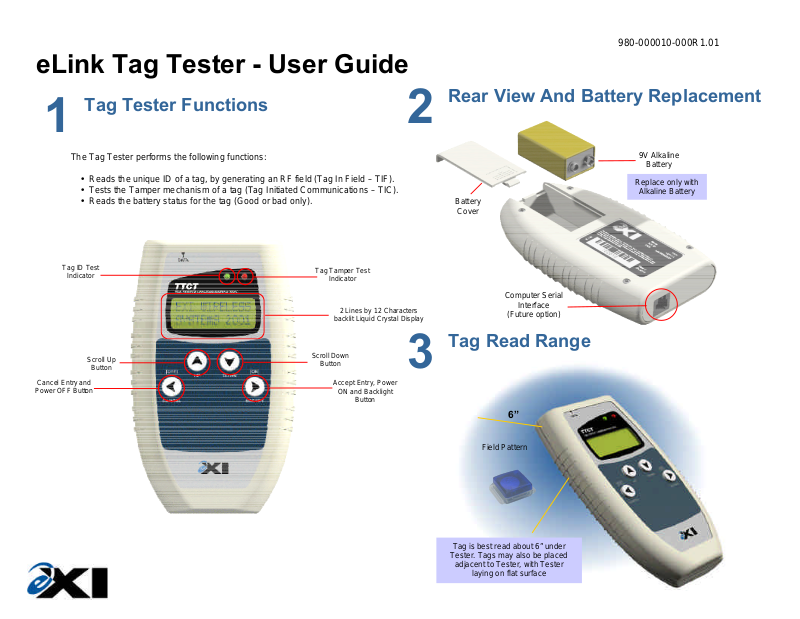

eLink Tag Tester - User Guide
2
1
The Tag Tester performs the following functions:
• Reads the unique ID of a tag, by generating an RF field (Tag In Field – TIF).
• Tests the Tamper mechanism of a tag (Tag Initiated Communications – TIC).
• Reads the battery status for the tag (Good or bad only).
Tag ID Test
Indicator
Cancel Entry and
Power OFF Button
Scroll Up
Button
Tag Tamper Test
Indicator
2 Lines by 12 Characters
backlit Liquid Crystal Display
Scroll Down
Button
Accept Entry, Power
ON and Backlight
Button
9V Alkaline
Battery
Alkaline Battery
Battery
Cover
Computer Serial
Interface
(Future option)
3
6”
Field Pattern
Tag is best read about 6” under
Tester. Tags may also be placed
adjacent to Tester, with Tester
laying on flat surface
980-000010-000R1.01
Tag Tester Operation
eXI Wireless Systems Inc.
If Tag is not detected in
If Tag is detected, and the
Approximately 2 seconds
The Tester automatically powers down after 60
button for 3 seconds also turns off the unit.
reported
screen will revert back to the previous function.
Holding down the “Accept” button for 3
eLink Tag Tester - User Guide
4
Hold down the “Accept”
button for one second
after power up
Press “Accept” for
testing a tag
seconds of inactivity. Pressing the “Cancel”
30 seconds
tag battery is low
Tamper Detected
Tag Tester 9V Battery low condition is
on the display for 2 seconds, after which the
seconds enables the display backlight.
NOTICE
Any changes or modifications to the eLink Tag
Tester that have not been approved by EXI
Wireless Systems Inc. could void the user’s
authority to operate this device.
2001 eXI Wireless Systems Inc. All rights reserved. eXI and the
eXI logo, RoamAlert, RoamAlert
trademarks or registered trademarks of eXI Wireless Systems inc.
Plus
and eLink! are either
Operate the Tamper
mechanism on the tag
Begin next Test
Tamper
mechanism failed
Suite 100 - 13551 Commerce Parkway
Richmond, BC Canada V6V 2L1
1-800-667-9689 (North America only)
