Xmark R4R Installation guide

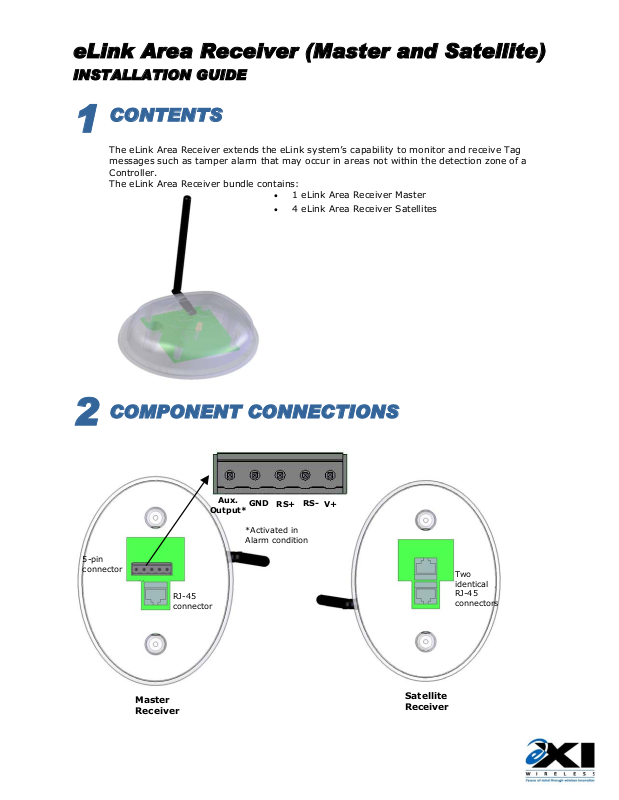

eLink Area Receiver (Master and Satellite)

INSTALLATION GUIDE

CONTENTS

1

2

The eLink Area Receiver extends the eLink system’s capability to monitor and receive Tag
messages such as tamper alarm that may occur in areas not within the detection zone of a
Controller.
The eLink Area Receiver bundle contains:

• 1 eLink Area Receiver Master

• 4 eLink Area Receiver Satellites

COMPONENT CONNECTIONS

5-pin
connector

Master

RJ-45
connector

Aux.

Output*

GND

*Activated in
Alarm condition

RS-

RS+

V+

Two
identical
RJ-45
connectors

Satellite

eLINK AREA RECEIVER INSTALLATION GUIDE

INSTALLATION

3

MOUNTING INSTRUCTIONS

Each Master Receiver supports up to seven Satellite Receivers. The Satellites are connected in a
daisy chain via the RJ-45 connectors.

981-000045-000R1.06
