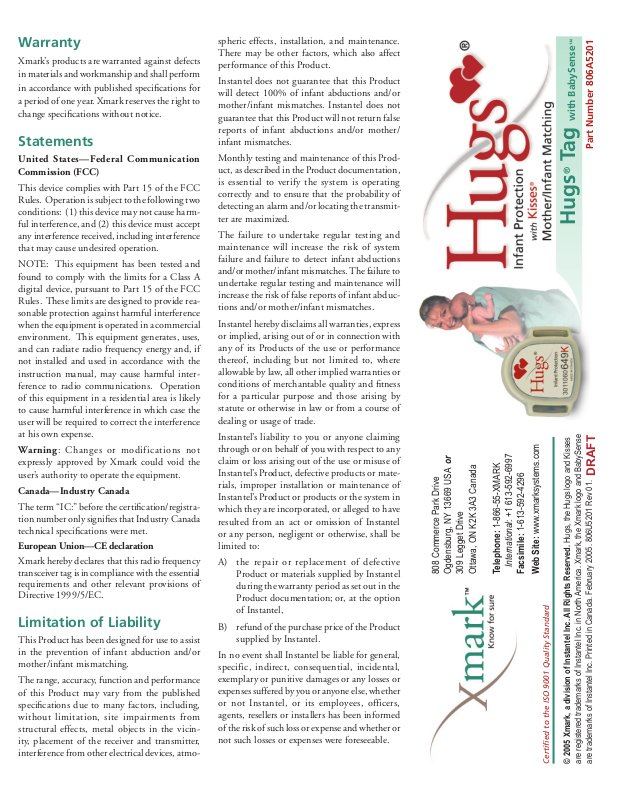

Warranty
Xmark’s products are warranted against defects
in materials and workmanship and shall perform
in accordance with published specifi cations for
a period of one year. Xmark reserves the right to
change specifi cations without notice.
Statements
United States—Federal Communication
Commission (FCC)
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference
that may cause undesired operation.
NOTE: This equipment has been tested and
found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial
environment. This equipment generates, uses,
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely
to cause harmful interference in which case the
user will be required to correct the interference
at his own expense.
Warning: Changes or modifications not
expressly approved by Xmark could void the
user’s authority to operate the equipment.
Canada—Industry Canada
The term “IC:” before the certifi cation/registration number only signifi es that Industry Canada
technical specifi cations were met.
European Union—CE declaration
Xmark hereby declares that this radio frequency
transceiver tag is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Limitation of Liability
This Product has been designed for use to assist
in the prevention of infant abduction and/or
mother/infant mismatching.
The range, accuracy, function and performance
of this Product may vary from the published
specifi cations due to many factors, including,
without limitation, site impairments from
structural effects, metal objects in the vicinity, placement of the receiver and transmitter,
interference from other electrical devices, atmo-
spheric effects, installation, and maintenance.
There may be other factors, which also affect
performance of this Product.
Instantel does not guarantee that this Product
will detect 100% of infant abductions and/or
mother/infant mismatches. Instantel does not
guarantee that this Product will not return false
reports of infant abductions and/or mother/
infant mismatches.
Monthly testing and maintenance of this Product, as described in the Product documentation,
is essential to verify the system is operating
correctly and to ensure that the probability of
detecting an alarm and/or locating the transmitter are maximized.
The failure to undertake regular testing and
maintenance will increase the risk of system
failure and failure to detect infant abductions
and/or mother/infant mismatches. The failure to
undertake regular testing and maintenance will
increase the risk of false reports of infant abductions and/or mother/infant mismatches.
Instantel hereby disclaims all warranties, express
or implied, arising out of or in connection with
any of its Products of the use or performance
thereof, including but not limited to, where
allowable by law, all other implied warranties or
conditions of merchantable quality and fi tness
for a particular purpose and those arising by
statute or otherwise in law or from a course of
dealing or usage of trade.
Instantel’s liability to you or anyone claiming
through or on behalf of you with respect to any
claim or loss arising out of the use or misuse of
Instantel’s Product, defective products or materials, improper installation or maintenance of
Instantel’s Product or products or the system in
which they are incorporated, or alleged to have
resulted from an act or omission of Instantel
or any person, negligent or otherwise, shall be
limited to:
A) the repair or replacement of defective
Product or materials supplied by Instantel
during the warranty period as set out in the
Product documentation; or, at the option
of Instantel,
B) refund of the purchase price of the Product
supplied by Instantel.
In no event shall Instantel be liable for general,
specific, indirect, consequential, incidental,
exemplary or punitive damages or any losses or
expenses suffered by you or anyone else, whether
or not Instantel, or its employees, officers,
agents, resellers or installers has been informed
of the risk of such loss or expense and whether or
not such losses or expenses were foreseeable.
808 Commerce Park Drive
Ogdensburg, NY 13669 USA or
309 Legget Drive
Ottawa, ON K2K 3A3 Canada
Telephone: 1-866-55-XMARK
International: +1 613-592-6997
Facsimile: 1-613-592-4296
™
Part Number 806A5201
Tag with BabySense
®
Hugs
DRAFT
Web Site: www.xmarksystems.com
© 2005 Xmark, a division of Instantel Inc. All Rights Reserved. Hugs, the Hugs logo and Kisses
are registered trademarks of Instantel Inc. in North America. Xmark, the Xmark logo and BabySense
Certifi ed to the ISO 9001 Quality Standard
are trademarks of Instantel Inc. Printed in Canada. February 2005. 806U5201 Rev 01.
Instructions for the Hugs® Tag with BabySense
™
Introduction
The Hugs® tag with BabySense™ functionality is part of the Hugs infant protection system. The tag is attached to the
infant using a tamper-proof strap. From
the moment of attachment, the infant is
automatically enrolled in the system, and
protected against abduction.
The Hugs tag incorporates a special sensor
to detect if:
• the tag is removed from the infant; or
• the strap is cut.
In addition, attempting to remove the infant
without authorization from the protected
area will immediately cause an alarm.
The Hugs tag is also used with the optional
®
Kisses
mother/infant matching component
of the Hugs system to confi rm that the
correct infant is matched with the correct
mother. The Hugs tag automatically emits
an audible beep to indicate an incorrect
match.
The Hugs tag is reusable, and does not
interfere with other hospital or personal
medical equipment.
The patented asymmetrical shape of the tag
ensures that it does not pinch or irritate the
baby’s skin, and also helps prevent it from
being kicked off, while still allowing the
ankle joint to move freely.
The tag is water proof which allows bathing
of the infant. It is also resistant to soiling
and UV light.
Note: The tag is not sterilized at the factory. You may wish to clean the tag prior
to fi rst use.
Items Required
• Hugs tag with BabySense (p/n
806A5201)
• Hugs tag straps (p/n 806A1401)
• Safety scissors
Attaching the Tag
1 Align strap with tag slot.
2 Make sure “This side out” is on the
outside.
3 Insert strap into tag slot starting
from bottom of tag.
4 Pull through until the brown
material extends beyond the slot.
1 Wrap tag around baby’s ankle, and
insert loose end of strap into second
tag slot.
2 Pull strap through until tag is snug
and won’t rotate. The bottom
(black) side of the tag and the strap
must be fi rmly in contact with the
baby’s skin.
3 Trim both ends of strap.
MAKE SURE BACK
OF TAG AND
STRAP TOUCH
BABY’S SKIN
Check the following:
• Tag wiggles, but won’t rotate easily.
• Back of tag and strap are touching
the baby’s skin.
• Tag has been admitted properly in
the system.
Cleaning the Tag
Follow these recommendations for cleaning
the tag.
• Use any standard hospital disinfectant
cleaner.
• Do not soak the tag or
cleaning
.
immerse it when
• Thoroughly rinse the tag with water
after cleaning
•
Do not use an autoclave to clean the tag
or serious damage may result.
Handling Information
Battery Handling - this device contains a
lithium battery. Do not force open, heat to
212°F (100°C), or dispose of in fi re.
X-rays - Do not directly expose the tag to
X-rays. (The tag is not affected by stray
radiation.)
Storage
Store Hugs tags at room temperature.
Specifi cations
Frequency 433.42 to 434.42 MHz
Supply Voltage 3.0 VDC
Battery Life Warranted for one year
RF Transmission
Rate
Temperature 32°F to 120°F (0°C to 49°C)
Humidity 0-85% RH @ 70°F (21°C), non-
Dimensions 1.2 x 0.52 x 1.4 in.
Weight 0.35 oz. (10 g)
0.2 sec in alarm mode, 10 sec at
other times (typical)
condensing
(29 x 13 x 34 mm)
