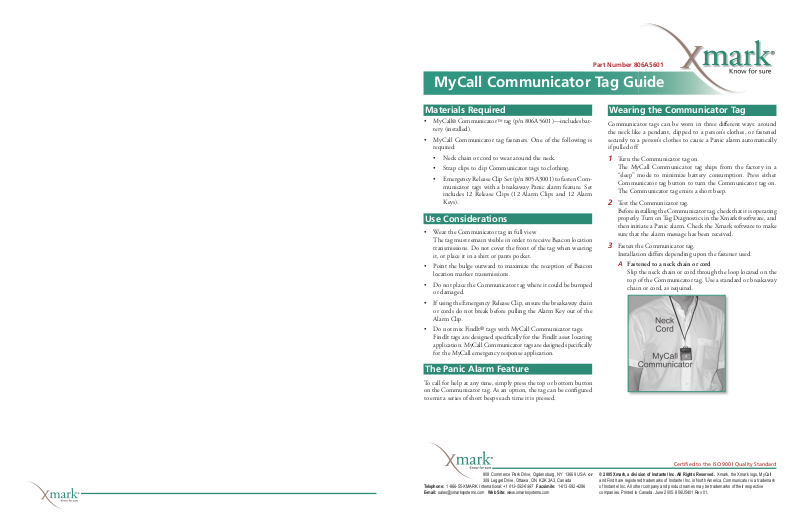

Xmark IMF User Manual
Part Number 806A5601
MyCall Communicator Tag Guide
Materials Required
Materials Required
• MyCall® Communicator™ tag (p/n 806A5601)—includes battery (installed).
• MyCall Communicator tag fasteners. One of the following is
required:
• Neck chain or cord to wear around the neck.
• Strap clips to clip Communicator tags to clothing.
• Emergency Release Clip Set (p/n 805A3001) to fasten Com-
municator tags with a breakaway Panic alarm feature. Set
includes 12 Release Clips (12 Alarm Clips and 12 Alarm
Keys).
Use Considerations
Use Considerations
• Wear the Communicator tag in full view.
The tag must remain visible in order to receive Beacon location
transmissions. Do not cover the front of the tag when wearing
it, or place it in a shirt or pants pocket.
• Point the bulge outward to maximize the reception of Beacon
location marker transmissions.
• Do not place the Communicator tag where it could be bumped
or damaged.
• If using the Emergency Release Clip, ensure the breakaway chain
or cords do not break before pulling the Alarm Key out of the
Alarm Clip.
• Do not mix FindIt® tags with MyCall Communicator tags.
FindIt tags are designed specifi cally for the FindIt asset locating
application. MyCall Communicator tags are designed specifi cally
for the MyCall emergency response application.
Installing the Tag
Wearing the Communicator Tag
Communicator tags can be worn in three different ways: around
the neck like a pendant, clipped to a person’s clothes, or fastened
securely to a person’s clothes to cause a Panic alarm automatically
if pulled off.
1 Turn the Communicator tag on.
The MyCall Communicator tag ships from the factory in a
“sleep” mode to minimize battery consumption. Press either
Communicator tag button to turn the Communicator tag on.
The Communicator tag emits a short beep.
2 Test the Communicator tag.
Before installing the Communicator tag, check that it is operating
properly. Turn on Tag Diagnostics in the Xmark® software, and
then initiate a Panic alarm. Check the Xmark software to make
sure that the alarm message has been received.
3 Fasten the Communicator tag.
Installation differs depending upon the fastener used.
A Fastened to a neck chain or cord
Slip the neck chain or cord through the loop located on the
top of the Communicator tag. Use a standard or breakaway
chain or cord, as required.
The Panic Alarm Feature
The Panic Alarm Feature
To call for help at any time, simply press the top or bottom button
on the Communicator tag. As an option, the tag can be confi gured
to emit a series of short beeps each time it is pressed.
808 Commerce Park Drive, Ogdensburg, NY 13669 USA or
Telephone: 1-866-55-XMARK International: +1 613-592-6997 Facsimile: 1-613-592-4296
E-mail: sales@xmarksystems.com Web Site: www.xmarksystems.com
309 Legget Drive, Ottawa, ON K2K 3A3, Canada
Certifi ed to the ISO 9001 Quality Standard
© 2005 Xmark, a division of Instantel Inc. All Rights Reserved. Xmark, the Xmark logo, MyCall
and FindIt are registered trademarks of Instantel Inc. in North America. Communicator is a trademark
of Instantel Inc.
companies.
All other company and product names may be trademarks of their respective
Printed in Canada. June 2005. 806U5401 Rev 01.
B Fastened to a strap clip
Slip the strap clip through the loop located on the top of the
Communicator tag and clip onto the person’s clothing.
C Fastened using the Emergency Release Clip (p/n 805A3001),
which consists of the Alarm Clip and Alarm Key. The Emergency Release Clip provides a breakaway alarm feature.
1 Insert the Alarm Key into the Alarm Clip.
Position the Key so that the hammer on the Clip sits in
the Key’s small slot. The large loop on the Key should
be at the bottom.
2 Remove the screw located on the back of the MyCall
Communicator tag.
3 Remove the backing from the adhesive tape on the back
of the Alarm Clip, and attach the Clip to the Communicator tag, with the round end pointing towards the loop
on the top of the Communicator tag. Make sure to align
the screw hole in the Alarm Clip with the screw hole on
the Communicator tag.
4 Insert the screw and secure being careful not to over-
tighten and risk damaging the Communicator tag.
Warning: Do not apply Locktite or other adhesives to
the Communicator tag or screw.
5 Slip a chain or cord through the Alarm Key’s larger loop.
Fasten the other end securely to the person. Slip a breakaway neck chain or cord through the Communicator tag’s
loop and place around the person’s neck.
6 Test the arrangement. Pull on the Communicator tag.
The Alarm Key should separate from the Alarm Clip and
cause a Panic alarm. The chain or cords used must not
break before this occurs.
Final Steps
Final Steps
Once the Communicator tag is attached, it must be enrolled in the
Xmark software.
Refer to the MyCall/FindIt System Manual for detailed information
on how to complete these steps.
Monthly Testing
Monthly Testing
Test the Communicator tag monthly by pressing the top and bottom
buttons, separately and at the same time, to cause a Panic alarm.
Check the Xmark software to ensure the Panic alarm was received
in each case.
Replacing the Battery
Replacing the Battery
The Controller PC monitors the battery level of all Communicator
tags, and displays a Low Battery alarm when the battery needs to
be replaced.
Use only these recommended battery types: Tadiran 3.6 VDC model
TL-2150/S) or Saft 3.6 VDC (model LS14250). Other battery types
may fail to perform or leak and cause damage to the device, voiding
the warranty. Do not use 7.6 VDC ½ AA lithium batteries.
Electrostatic discharge could damage the Communicator tag when
changing the battery—touch your hand to ground to discharge any
electrostatic charge before handling the components.
Dispose of batteries according to local legislative requirements. Do
not recharge, force open, heat, or dispose of in fi re. This may lead
to explosion or leakage, causing personal injury.
Handling Information
Handling Information
Cleaning: The tag my be wiped with a dry cloth. Do not wash,
expose to high pressure water, autoclave, or otherwise immerse the
tag in liquids.
Storage: The tag may be stored in normal offi ce environments. For
extended battery life, remove the battery. Avoid storing tags for
extended periods of time with temperatures above 85°F (30°C).
Handling: There are no user adjustments. Tampering with the
internal circuitry may cause component or system failure, or both,
and will void the warranty.
Reference Documents
Reference Documents
• MyCall/FindIt System Manual (805U0601)
• MyCall/FindIt Installation Manual (805I0401)
Specifi cations
Specifi cations
Frequency 433.42 to 434.42 MHz
Supply Voltage 3.6 VDC
Battery
(replaceable)
Battery Life
(typical)
RF Transmission Rate
(default)
Temperature 32° to 122° F (0° to 50° C)
Humidity 0 - 90% RH @ 70° F (21° C), non-condensing
Dimensions Approximately 2.4 x 1.9 x 0.44 in. (60 x 48 x 11 mm)
Weight (with battery) Approximately 1.2 oz. (34 g)
* Assuming eight hours of use per day with RF transmission rate of 10 seconds.
½ AA 3.6 VDC Only
(Tadiran 3.6 VDC p/n TL-2150/S or Saft 3.6 VDC p/n
LS14250)
Partial Beacon Location Marker Coverage = 1.2 years
typical*
Full Beacon Location Marker Coverage = 2.1 years
typical*
10 seconds when in motion, 30 seconds when at rest
Warranty
Xmark’s products are warranted against defects in materials and
workmanship and shall perform in accordance with published
specifi cations for a period of one year. Xmark reserves the right to
change specifi cations without notice.
Limitation of Liability
This Product has been designed for use to assist personnel in summoning help when they are under personal duress.
The range, accuracy, function and performance of this Product
may vary from the published specifi cations due to many factors,
including, without limitation, site impairments from structural
effects, metal objects in the vicinity, placement of the receiver and
transmitter, interference from other electrical devices, atmospheric
effects, installation, and maintenance. There may be other factors,
which also affect performance of this Product.
Xmark (a division of Instantel Inc.) does not guarantee that this
Product will detect 100% of the calls for personal assistance. Xmark
does not guarantee that this Product will not return false reports of
calls for personal assistance.
Monthly testing and maintenance of this Product, as described in the
Product documentation, is essential to verify the system is operating
correctly and to ensure that the probability of detecting an alarm
and/or locating the transmitter are maximized.
The failure to undertake regular testing and maintenance will increase
the risk of system failure and failure to report personal duress calls.
The failure to undertake regular testing and maintenance will increase
the risk of false reports of calls for personal assistance.
Xmark hereby disclaims all warranties, express or implied, arising out
of or in connection with any of its Products of the use or performance
thereof, including but not limited to, where allowable by law, all other
implied warranties or conditions of merchantable quality and fi tness
for a particular purpose and those arising by statute or otherwise in
law or from a course of dealing or usage of trade.
Xmark’s liability to you or anyone claiming through or on behalf of
you with respect to any claim or loss arising out of the use or misuse
of Xmark’s Product, defective products or materials, improper installation or maintenance of Xmark’s Product or products or the system
in which they are incorporated, or alleged to have resulted from an
act or omission of Xmark or any person, negligent or otherwise,
shall be limited to:
A) the repair or replacement of defective Product or materials sup-
plied by Xmark during the warranty period as set out in the
Product documentation; or, at the option of Xmark,
B) refund of the purchase price of the Product supplied by
Xmark.
In no event shall Xmark be liable for general, specifi c, indirect, consequential, incidental, exemplary or punitive damages or any losses
or expenses suffered by you or anyone else, whether or not Xmark, or
its employees, offi cers, agents, resellers or installers has been informed
of the risk of such loss or expense and whether or not such losses or
expenses were foreseeable.
Statements
United States—Federal Communication Commission (FCC)
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
Warning: Changes or modifi cations not expressly approved by Xmark
could void the user’s authority to operate the equipment.
Canada—Industry Canada
The term “IC:” before the certifi cation/registration number only
signifi es that Industry Canada technical specifi cations were met.
European Union—CE declaration
Xmark hereby declares that this radio frequency transceiver tag is
in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Loading...
