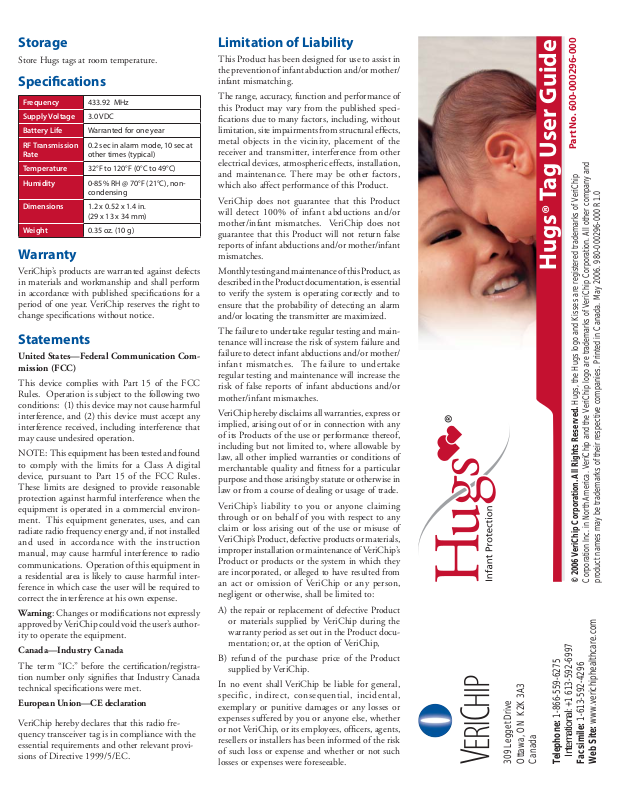

Xmark H2H User Manual

Storage

Store Hugs tags at room temperature.

Speci cations

Frequency 433.92 MHz

Supply Voltage 3.0 VDC

Battery Life Warranted for one year

RF Transmission
Rate

Temperature 32°F to 120°F (0°C to 49°C)

Humidity 0-85% RH @ 70°F (21°C), non-

Dimensions 1.2 x 0.52 x 1.4 in.

Weight 0.35 oz. (10 g)

0.2 sec in alarm mode, 10 sec at
other times (typical)

condensing

(29 x 13 x 34 mm)

Warranty

VeriChip’s products are warranted against defects
in materials and workmanship and shall perform
in accordance with published specifi cations for a
period of one year. VeriChip reserves the right to
change specifi cations without notice.

Statements

United States—Federal Communication Com­mission (FCC)

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.

NOTE: This equipment has been tested and found
to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial environ­ment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed
and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in
a residential area is likely to cause harmful inter­ference in which case the user will be required to
correct the interference at his own expense.

Warning: Changes or modifications not expressly
approved by VeriChip could void the user’s author­ity to operate the equipment.

Canada—Industry Canada

The term “IC:” before the certifi cation/registra­tion number only signifi es that Industry Canada
technical specifi cations were met.

European Union—CE declaration

VeriChip hereby declares that this radio fre­quency transceiver tag is in compliance with the
essential requirements and other relevant provi­sions of Directive 1999/5/EC.

Limitation of Liability

This Product has been designed for use to assist in
the prevention of infant abduction and/or mother/
infant mismatching.

The range, accuracy, function and performance of
this Product may vary from the published speci­fi cations due to many factors, including, without
limitation, site impairments from structural effects,
metal objects in the vicinity, placement of the
receiver and transmitter, interference from other
electrical devices, atmospheric effects, installation,
and maintenance. There may be other factors,
which also affect performance of this Product.

VeriChip does not guarantee that this Product
will detect 100% of infant abductions and/or
mother/infant mismatches. VeriChip does not
guarantee that this Product will not return false
reports of infant abductions and/or mother/infant
mismatches.

Monthly testing and maintenance of this Product, as
described in the Product documentation, is essential
to verify the system is operating correctly and to
ensure that the probability of detecting an alarm
and/or locating the transmitter are maximized.

The failure to undertake regular testing and main­tenance will increase the risk of system failure and
failure to detect infant abductions and/or mother/
infant mismatches. The failure to undertake
regular testing and maintenance will increase the
risk of false reports of infant abductions and/or
mother/infant mismatches.

VeriChip hereby disclaims all warranties, express or
implied, arising out of or in connection with any
of its Products of the use or performance thereof,
including but not limited to, where allowable by
law, all other implied warranties or conditions of
merchantable quality and fi tness for a particular
purpose and those arising by statute or otherwise in
law or from a course of dealing or usage of trade.

VeriChip’s liability to you or anyone claiming
through or on behalf of you with respect to any
claim or loss arising out of the use or misuse of
VeriChip’s Product, defective products or materials,
improper installation or maintenance of VeriChip’s
Product or products or the system in which they
are incorporated, or alleged to have resulted from
an act or omission of VeriChip or any person,
negligent or otherwise, shall be limited to:

A) the repair or replacement of defective Product

or materials supplied by VeriChip during the
warranty period as set out in the Product docu­mentation; or, at the option of VeriChip,

B) refund of the purchase price of the Product

supplied by VeriChip.

In no event shall VeriChip be liable for general,
specific, indirect, consequential, incidental,
exemplary or punitive damages or any losses or
expenses suffered by you or anyone else, whether
or not VeriChip, or its employees, offi cers, agents,
resellers or installers has been informed of the risk
of such loss or expense and whether or not such
losses or expenses were foreseeable.

Hugs® Tag User Guide

309 Legget Drive

Ottawa, ON K2K 3A3

Canada

Telephone: [phone]

International: [phone]

Part No. 600-000296-000

All other company and

.

980-000296-000 R1.0

.

registered trademarks of VeriChip

VeriChip Corporation

are trademarks of

Hugs, the Hugs logo and Kisses are

product names may be trademarks of their respective companies. Printed in Canada. May 2006

© 2006 VeriChip Corporation. All Rights Reserved.

Corporation Inc. in North America. VeriChip and the VeriChip logo

Facsimile: 1-613-592-4296

Web Site: www.verichiphealthcare.com

Instructions for the Hugs® Tag

Introduction

The Hugs® is part of the Hugs infant pro­tection system. The tag is attached to the
infant using a tamper-proof strap. From
the moment of attachment, the infant is
automatically enrolled in the system, and
protected against abduction.

The Hugs tag incorporates a special sensor
to detect if the strap is cut. In addition,
attempting to remove the infant without
authorization from the protected area will
immediately cause an alarm.

With optional with BabySense
ity, the Hugs tag can also detect when it is
not securely attached to the infant.

The Hugs tag may also be used with the
optional Kisses
component of the Hugs system to confi rm
that the correct infant is matched with the
correct mother. The Hugs tag automati­cally emits an audible beep to indicate an
incorrect match.

The Hugs tag is reusable, and does not
interfere with other hospital or personal
medical equipment.

The patented asymmetrical shape of the tag
ensures that it does not pinch or irritate the
baby’s skin, and also helps prevent it from
being kicked off, while still allowing the
ankle joint to move freely.

The tag is water proof which allows bathing
of the infant. It is also resistant to soiling
and UV light.

Note: The tag is not sterilized at the fac­tory. You may wish to clean the tag prior
to fi rst use.

®

mother/infant matching

™ functional-

Items Required

Attaching the Tag

1 Align strap with tag slot.

2 Make sure “This side out” is on the

outside.

3 Insert strap into tag slot starting

from bottom of tag.

4 Pull through until the brown

material extends beyond the slot.

1 Wrap tag around baby’s ankle, and

insert loose end of strap into second
tag slot.

2 Pull strap through, and listen for

the battery status chime (two short
beeps). Check that the tag is snug
and won’t rotate. The bottom

(black) side of the tag and the strap
must be fi rmly in contact with the
baby’s skin.

3 Trim both ends of strap.

Check the following:

• Tag wiggles, but won’t rotate easily.

• Back of tag and strap are touching
the baby’s skin.

• Tag has Auto Admitted in the Hugs
system software.

Cleaning the Tag

Follow these recommendations for cleaning
the tag.

• Use any standard hospital disinfectant
cleaner designed for plastics.

• Do not soak the tag or
cleaning

• Thoroughly rinse the tag with water
after cleaning

•

Do not use an autoclave to clean the tag
or serious damage may result.

.

immerse it when

Battery Status Information

The Hugs system software automatically
displays a Low Battery notifi cation if the
Hugs tag enters a low battery state during
use. However, depending on conditions, the
battery may expire between uses.

If you do not hear the battery status chime
(two short beeps) during tag attachment,
immediately dispose of the tag and attach
a new tag to the infant.

The front of the Hugs tag shows the war­ranty expiration date. The tag may have
many months of use after this date, but
you should exercise caution when using a
tag out of warranty. Always listen for the
battery status chime, and check that the
tag has Auto Admitted in the Hugs system
software.

• Hugs tag (p/n 600-000296-000)

• Hugs tag straps (p/n 806A1401)

• Safety scissors

MAKE SURE BACK
OF TAG AND
STRAP TOUCH
BABY’S SKIN

Handling Information

Battery Handling - this device contains a
lithium battery. Do not force open, heat to
212°F (100°C), or dispose of in fi re.

X-rays - Do not directly expose the tag to
X-rays. (The tag is not affected by stray
radiation.)

Certi ed to the ISO 9001 Quality Standard
