Xirgo Technologies XT6000 User Guide

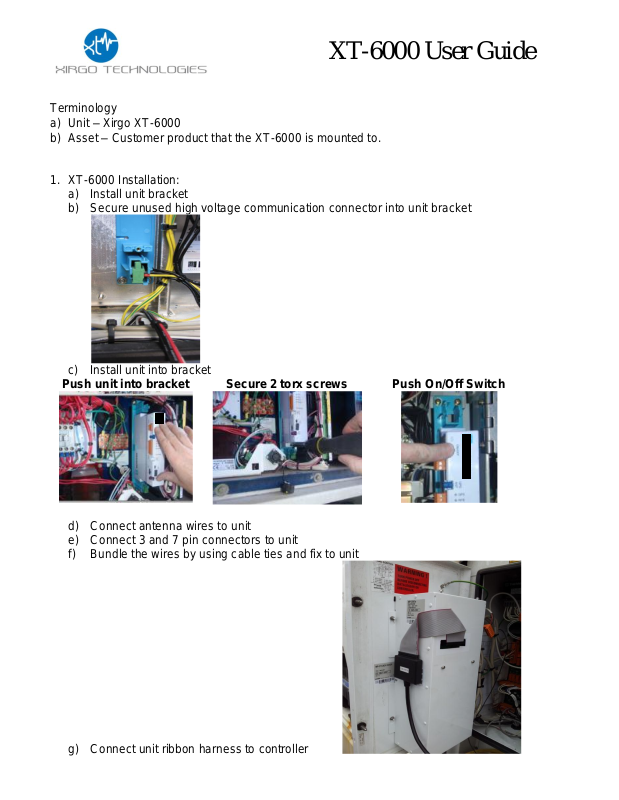

XT-6000 User Guide

Push unit into bracket

Secure 2 torx screws

Push On/Off Switch

Terminology
a) Unit – Xirgo XT-6000
b) Asset – Customer product that the XT-6000 is mounted to.

1. XT-6000 Installation:
a) Install unit bracket
b) Secure unused high voltage communication connector into unit bracket

c) Install unit into bracket

d) Connect antenna wires to unit
e) Connect 3 and 7 pin connectors to unit
f) Bundle the wires by using cable ties and fix to unit

g) Connect unit ribbon harness to controller

XT-6000 User Guide

h) Attach TK bracket to unit

i) Fit unit with bracket to TK controller and tighten upper screws
j) Connect antenna wires to unit
k) Connect Power Cable Harness X1 RED wire to Transformer X1 tap, and X2 BLACK wire

(with ground terminal) to Controller Chassis.

l) Connect 7 pin from unit ribbon harness to unit
m) Connect 3 pin harness to unit
n) Bundle the wires by using cable ties and fix to unit

XT-6000 User Guide

Test:

o) Connect power plug to power source
p) Put unit into install mode (on/off button) – see section below
q) Observe installer LED for green pass – see section below
r) If installer LED fail, refer to trouble shooting guide and fix issue
s) Take unit out of installer mode
t) Close the controller door.
u) Installation is complete.

LED Operation

1. GPS LED (Green):

 OFF – GPS OFF
 Blinking – GPS Lock (position obtained)
 ON solid – No GPS Lock

2. Asset LED (Red, disabled during install mode):

 OFF – Asset OFF
 Slow blink – Asset communications OK
 Med blink – Physical connect on 7 pin but no asset communications
 Fast blink – No physical connect on 7 pin
 ON solid – software upload in progress

3. CELL LED (Blue):

 OFF – Scanning for network or cell module is off
 Blinking – Registered on cellular network
 ON solid – Periods of network data transmission active

4. WLAN LED (Orange, disabled during install mode):

 OFF - Mesh OFF
 Slow blink – Mesh Bound
 Fast blink - Mesh searching for network
 ON solid - No battery detected

5. “INSTALL” LED
To use the “INSTALL” LED, use the following steps:

a. Enter Install mode

i. Make sure unit is powered on by applying asset AC or by pressing the unit

ON/OFF button (the unit is on when the GPS LED is flashing or on solid green).

ii. Press and hold ON/OFF button until “INSTALL” LED is blinking blue then

release

iii. Wait for unit to reboot, indicated by fast blinking green LED

b. Observe “INSTALL” LED

i. Testing in progress is indicated by fast blinking green LED (approx. 1-6 min)

ii. Testing is complete when solid LED is observed:

 Solid GREEN: All test conditions PASS
 Solid BLUE: No AC & No asset Communications but all others PASS
 Solid RED: Any other conditions (fails)
