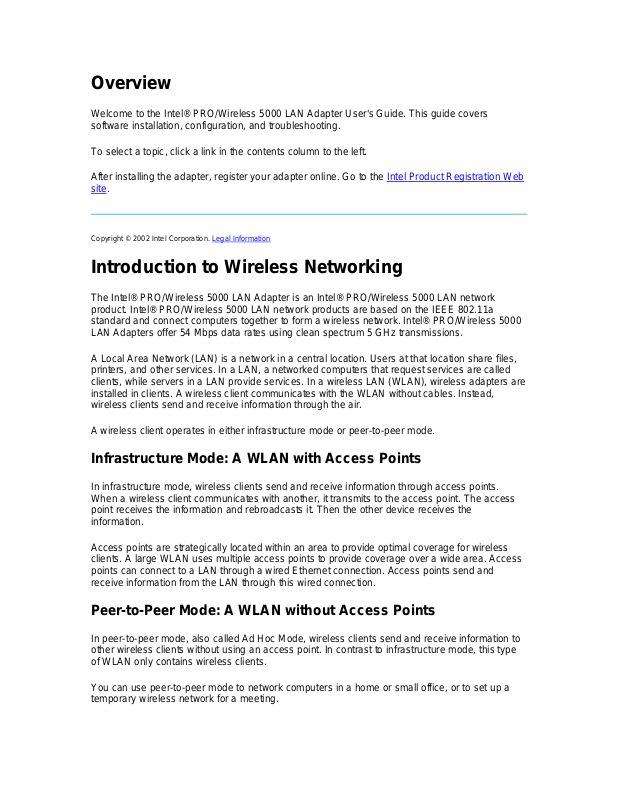

Overview

Welcome to the Intel® PRO/Wireless 5000 LAN Adapter User's Guide. This guide covers software installation, configuration, and troubleshooting.

To select a topic, click a link in the contents column to the left.

After installing the adapter, register your adapter online. Go to the Intel Product Registration Web

site.

Introduction to Wireless Networking

The Intel® PRO/Wireless 5000 LAN Adapter is an Intel® PRO/Wireless 5000 LAN network product. Intel® PRO/Wireless 5000 LAN network products are based on the IEEE 802.11a standard and connect computers together to form a wireless network. Intel® PRO/Wireless 5000 LAN Adapters offer 54 Mbps data rates using clean spectrum 5 GHz transmissions.

A Local Area Network (LAN) is a network in a central location. Users at that location share files, printers, and other services. In a LAN, a networked computers that request services are called clients, while servers in a LAN provide services. In a wireless LAN (WLAN), wireless adapters are installed in clients. A wireless client communicates with the WLAN without cables. Instead, wireless clients send and receive information through the air.

A wireless client operates in either infrastructure mode or peer-to-peer mode.

Infrastructure Mode: A WLAN with Access Points

In infrastructure mode, wireless clients send and receive information through access points. When a wireless client communicates with another, it transmits to the access point. The access point receives the information and rebroadcasts it. Then the other device receives the information.

Access points are strategically located within an area to provide optimal coverage for wireless clients. A large WLAN uses multiple access points to provide coverage over a wide area. Access points can connect to a LAN through a wired Ethernet connection. Access points send and receive information from the LAN through this wired connection.

Peer-to-Peer Mode: A WLAN without Access Points

In peer-to-peer mode, also called Ad Hoc Mode, wireless clients send and receive information to other wireless clients without using an access point. In contrast to infrastructure mode, this type of WLAN only contains wireless clients.

You can use peer-to-peer mode to network computers in a home or small office, or to set up a temporary wireless network for a meeting.

Identifying a WLAN

All adapters and access points in a WLAN use a Network Name, or Service Set Identifier (SSID) to identify the WLAN. The SSID indicates what WLAN you are communicating with.

Wireless Security

Wireless networking devices transmit information through the air. Without implementing security, it is easy for an unauthorized person to intercept the information.

A common way of implementing security and protecting information is encryption. Before sending information, the wireless client or access point encrypts or scrambles information using an encryption key. The device receiving the information uses the same key to decrypt or unscramble the information. The information is only readable to wireless devices that have the correct encryption key.

64-bit or 128-bit security

The IEEE 802.11 wireless LAN standard specifies the Wired Equivalent Privacy (WEP) encryption and decryption algorithm. The standard includes two levels of security, using a 64-bit key or a 128-bit key. Some vendors refer to 64-bit encryption as 40-bit. These are identical. A wireless device that claims to have 64-bit encryption interoperates with a device that claims to have 40-bit encryption.

To implement WEP, use either the 64-bit or 128-bit method. For better security, use a 128-bit key. A 128-bit key has several trillion times as many possible combinations as a 64-bit key. For added security, change your keys often.

The same device, host computer or front-end processor usually performs both encryption and decryption. The algorithm, like the pattern of a lock, is standardized and may be used by anyone, but the encrypted data is unreadable without the appropriate key, which is known only by the sender and receiver of the transmitted data. You should change your keys often for added security.

Installation

• Intel® PRO/Wireless 5000 LAN Adapter Features

• LED Descriptions

• Install Drivers Under Windows

• PROSet II Software

• Uninstall the Adapter and Utility Software

• Update a Wireless Driver

• Reinstall the Adapter and Utility Software

Intel® PRO/Wireless 5000 LAN Adapter Features

Unless otherwise specified, the information in this document applies to both the Intel®

PRO/Wireless 5000 LAN CardBus Adapter and the Intel® PRO/Wireless 5000 LAN PCI Adapter.

Features of the Intel® PRO/Wireless 5000 LAN Adapters include:

• IEEE 802.11a specification compatibility. This open architecture allows Intel® PRO/Wireless 5000 LAN devices to communicate with wireless devices from other vendors that comply with the IEEE 802.11a standard.

• Up to 54 Mbps data rate for high-capacity, fast operation, including superior speeds even at increased range

• Driver support for Microsoft Windows* XP, 98, Me, and 2000

• 128, 64 (called 40 by some vendors), and 0 bit Wired Equivalent Privacy (WEP) data

security and VPN compatibility

• Operation in 5 GHz UNII spectrum prevents interference from cordless phones, microwaves, Bluetooth* or 802.11b devices

• 802.1x authentication compatibility for Windows XP

Notes on the Intel® PRO/Wireless 5000 LAN CardBus Adapter

The Intel® PRO/Wireless 5000 LAN CardBus Adapter can only be installed in a CardBus PC Card slot in a suitably equipped computer. The adapter contains a built-in radio antenna that protrudes when inserted into the slot.

The Intel® PRO/Wireless 5000 LAN CardBus Adapter allows Personal Computer Memory Card International Association (PCMCIA) 3.3-volt Type II PC Card slot-equipped computers to configure, connect to and establish an Intel® PRO/Wireless 5000 LAN network.

The exposed end of the Intel® PRO/Wireless 5000 LAN CardBus Adapter is vulnerable to damage from scratching, snagging or striking other objects. Such contact may bend or break the adapter or the PC Card slot in which it resides.

Intel® PRO/Wireless 5000 LAN Adapters LED Descriptions

The LEDs on the Intel® PRO/Wireless 5000 LAN Adapter indicate the status of the adapter.

LED Function Green - link Yellow - activity Fast blink - data activity; slow blink - no data activity

ON - adapter is associated with an access point; OFF - not associated.

Hardware Installation

For general information on how to install and remove CardBus or PCI hardware, see the documentation provided with your computer.

Hardware installation instructions for Intel® PRO/Wireless 5000 LAN Adapters are provided in the printed Quick Installation Guide. This guide is also available online in Acrobat pdf format.

If you wish to install Acrobat Reader version 5.0 now to view the guide, click here.

If Adobe Acrobat Reader is already installed and you want to view the installation guide in pdf format, click here.

Install Drivers Under Windows

Review the following hardware installation guidelines before proceeding with Windows installation.

START HERE to install the CardBus Adapter

1. Turn on power to the computer and wait for Windows to load.

2. Insert the CardBus Adapter into the CardBus PC Card slot on your computer and proceed to Step 3 below to select your version of the Windows operating system.

START HERE to install the PCI Adapter

1. Install the PCI Adapter hardware according to the installation instructions in the printed Quick Installation Guide, then close and secure the computer case.

2. Turn on power to the computer and wait for Windows to load. Then proceed to Step 3 below to select your version of the Windows operating system.

Install Windows Drivers and Utilities

Notes for First-Time Client Installation

The instructions provided for installation with the Intel® PRO Intelligent Installer apply to a first-time installation of an Intel® PRO/Wireless 5000 LAN adapter on a system on which no other Intel® PRO wired or wireless adapter has been installed. If this is not the first installation of an Intel PRO adapter on your system, the utilities installation may be different from that described in the first-time installation instructions. See the Note on Previous Installations.

The instructions provided here apply to installation of a wireless client adapter using default installation parameters. If you are a network administrator and wish to also install the Wireless Administration Tools AP Discovery and Site Survey as part of the installation process, or at some other time, see the Note on Administration Tools.

After completing the hardware installation, proceed to Step 3 and select your version of the Windows operating system..

3. Click the link below for your version of the Windows operating system and continue the installation with Step 4.

§ Windows XP

§ Windows 2000

§ Windows Me (Millennium Edition)

§ Windows 98SE

Windows XP

Introductory Notes for Installation under Windows XP

Before proceeding, make sure that you are operating Windows XP with administrative rights. If you log in to Windows XP without administrative rights, you may run into problems during the installation.

The Intel® PROSet II configuration utility is installed during the Intel® PRO Intelligent Installer process described below. This utility is recommended for setting up profiles and performing other wireless network management tasks. However, in order to use PROSet II for this purpose, you have to turn off the built-in Windows XP wireless configuration feature. See

Turn Off Windows XP Wireless Configuration for instructions. For information on the Windows XP

feature, see your Windows XP documentation.

To install your PRO/Wireless 5000 Adapter under Windows XP, proceed as follows:

4. Complete steps 1-3 under Install Drivers under Windows for your type of adapter. The

Found New Hardware Wizard dialog appears. Verify that Automatic search for a better driver (Recommended) is checked.

5. Insert the Intel CD-ROM into your CD-ROM drive. The New Hardware Found Wizard searches for the correct driver files and copies them to your hard drive. If the Intel® PRO Network Connections menu screen appears, leave it open for future use and proceed to Step 6.

6. If a Windows Logo testing dialog appears, click Continue Anyway.

7. The My WLAN Places screen appears.

o click Next to install using a default profile or o click Configure to set up a profile using configuration information obtained from

your network administrator. On the My WLAN Places dialog, click the New button to create a new profile. Type a configuration name and the SSID for your wireless network. Set up security and other parameters if required. Consult your network administrator.. Click OK to close the dialog. Click OK to finish setting up the profile, then click Close.

8. On the Found New Hardware Wizard screen, click Finish.

9. On the Intel® PRO Network Connections screen, click the menu item Install Software. If the menu screen is not visible, remove and re-insert the Intel CD-ROM to display it, or run autorun.exe from the Intel CD-ROM.

10. On the Welcome to the InstallShield Wizard for Intel(R) PRO Intelligent Installer screen, click Next.

11. On the License Agreement screen, select I accept the terms in the license agreement and click Next.

12. On the Setup Type screen, select Typical and then click Next. This is the recommended setting for a first-time client installation. If you see a Program Maintenance screen instead of a Setup Type screen, see the Note on Previous Installations.

13. On the Ready to Install the Program screen click Install.

14. After the software is installed on your computer, click Finish. Click OK to close the log file.

Turn Off Windows XP Wireless Configuration

To turn off the Wireless Configuration feature of Windows XP so that you can use the Intel® PROSet II configuration utility to manage your wireless adapters, proceed as follows:

1. Click Start, Settings, and Control Panel.

2. Double-click Network Connections.

3. In the LAN or High-Speed Internet window select the Wireless Network Connection that is linked with your Intel® PRO/Wireless LAN Adapter.

4. Right-click and select Properties.

5. Click the Wireless Network tab.

6. Click to clear the check mark from Use Windows to configure my wireless network settings.

7. Click OK. You can now use PROSet II to set up profiles and perform other management functions on your wireless network.

The Windows XP installation of the Intel PRO/Wireless 5000 LAN Adapter software is complete. Proceed to PROSet II LAN Software for additional information.

Windows 2000

Before proceeding, make sure that you are operating Windows 2000 with administrative rights. If you log in to Windows 2000 without administrative rights, you may run into problems during the installation.

During initial adapter installation and configuration, it may take up to 2 minutes for adapter settings to be confirmed.

4. Complete steps 1-3 under Install Drivers under Windows for your type of adapter. Windows displays the Found New Hardware Wizard. Click Next. The Install Hardware Device Drivers dialog box appears.

5. Insert the Intel CD-ROM into your CD-ROM drive. If the Intel® PRO Network Connections menu screen appears, leave it open for future use and proceed to Step 6.

6. On the Install Hardware Device Drivers screen verify that Search for a suitable driver for my device (recommended) is selected, then click Next.

7. The Locate Driver Files dialog appears. Select Specify a location, select CD-ROM and click Next.

8. The Adapter Properties screen appears. On the Settings tab:

o click OK to install using a default profile or o click Configure to set up a profile using configuration information obtained from

your network administrator. On the My WLAN Places dialog, click the New button to create a new profile. Type a configuration name and the SSID for your wireless network. Set up security and other parameters if required. Consult your network administrator.. Click OK to close the dialog. Click OK to finish setting up the profile, then click Close.

9. On the Add New Hardware Wizard screen, click Finish.

10. On the Intel® PRO Network Connections screen, click the menu item Install Software. If the menu screen is not visible, remove and re-insert the Intel CD-ROM to display it, or run autorun.exe from the Intel CD-ROM.

11. On the Welcome to the InstallShield Wizard for Intel(R) PRO Intelligent Installer screen, click Next.

12. On the License Agreement screen, select I accept the terms in the license agreement and click Next.

13. On the Setup Type screen, select Typical and then click Next. This is the recommended setting for a first-time client installation. If you see a Program Maintenance screen instead of a Setup Type screen, see the Note on Previous Installations.

14. On the Ready to Install the Program screen click Install.

15. After the software is installed on your computer, click Finish.Click OK to close the log file.

The Windows 2000 installation of the Intel PRO/Wireless 5000 LAN Adapter software is complete. Proceed to PROSet II LAN Software for additional information.

Windows Me (Millennium Edition)

4. Complete steps 1-3 under Install Drivers under Windows for your type of adapter. Windows detects the CardBus or PCI adapter and the Add New Hardware Wizard dialog appears. DO NOT click Next yet. Verify that Automatic search for a better driver (Recommended) is checked.

5. Insert the Intel CD-ROM into your CD-ROM drive. Windows installs the driver from the CD-ROM. If the Intel® PRO Network Connections menu screen appears, leave it open for future use and proceed to Step 6.

6. The Adapter Properties screen appears. On the Settings tab:

o click OK to install using a default profile or o click Configure to set up a profile using configuration information obtained from

your network administrator. On the My WLAN Places dialog, click the New button to create a new profile. Type a configuration name and the SSID for your wireless network. Set up security and other parameters if required. Consult your network administrator.. Click OK to close the dialog. Click OK to finish setting up the profile, then click Close.

7. Click Finish on the Add New Hardware Wizard screen when the driver installation is complete.

8. When prompted to restart the computer, click No. You will restart it manually later.

9. On the Intel® PRO Network Connections screen, click the menu item Install Software. If the menu screen is not visible, remove and re-insert the Intel CD-ROM to display it, or run autorun.exe from the Intel CD-ROM.

10. On the Welcome to the InstallShield Wizard for Intel(R) PRO Intelligent Installer screen, click Next.

11. On the License Agreement screen, select I accept the terms in the license agreement and click Next.

12. On the Setup Type screen, select Typical and then click Next. This is the recommended setting for a first-time client installation. If you see a Program Maintenance screen instead of a Setup Type screen, see the Note on Previous Installations.

13. On the Ready to Install the Program screen click Install.

14. After the software is installed on your computer, click Finish.Click OK to close the log file.

15. Restart the computer.

The Windows Me (Millennium Edition) installation of the Intel PRO/Wireless 5000 LAN Adapter software is complete. Proceed to PROSet II LAN Software for additional information.

Windows 98SE

4. Complete steps 1-3 under Install Drivers under Windows for your type of adapter. Windows detects the CardBus or PCI adapter and the Add New Hardware Wizard dialog appears. Click Next.

5. Insert the Intel CD-ROM into your CD-ROM drive. If the Intel® PRO Network Connections menu screen appears, leave it open for future use and proceed to Step 6..

6. On the New Hardware Wizard screen to make it active, select Search for the best driver for you device (Recommended), and click Next, then select CD-ROM drive and click Next.

7. The Adapter Properties screen appears. On the Settings tab:

o click OK to install using a default profile or o click Configure to set up a profile using configuration information obtained from

your network administrator. On the My WLAN Places dialog, click the New button to create a new profile. Type a configuration name and the SSID for your wireless network. Set up security and other parameters if required. Consult your

network administrator.. Click OK to close the dialog. Click OK to finish setting up the profile, then click Close.

8. On the Add New Hardware Wizard screen, click Finish.

9. When prompted to restart the computer, click No. You will restart it manually later.

10. On the Intel® PRO Network Connections screen, click the menu item Install Software. If the menu screen is not visible, remove and re-insert the Intel CD-ROM to display it, or run autorun.exe from the Intel CD-ROM.

11. On the Welcome to the InstallShield Wizard for Intel(R) PRO Intelligent Installer screen, click Next.

12. On the License Agreement screen, select I accept the terms in the license agreement and click Next.

13. On the Setup Type screen, select Typical and then click Next. This is the recommended setting for a first-time client installation. If you see a Program Maintenance screen instead of a Setup Type screen, see the Note on Previous Installations.

14. On the Ready to Install the Program screen click Install.

15. After the software is installed on your computer, click Finish. Click OK to close the log file.

16. Restart the computer.

The Windows 98SE installation of the Intel PRO/Wireless 5000 LAN Adapter software is complete. Proceed to PROSet II LAN Software for additional information.

Note on Previous Installations

If this is not the first installation of an Intel PRO adapter on your system, the procedure for installing utilities may be different. Instead of the Setup Type screen displaying Typical and Custom options, a Program Maintenance screen appears with Modify, Repair, and Remove options. Follow the steps below to install the PRO/Wireless 5000 Adapter utilities from the Program Maintenance screen. The result will be the same as if you were doing a first-time install and had selected the Typical installation on the Setup Type screen in the Intel PRO Intelligent Installer.

1. On the Intel® PRO Network Connections screen, click the menu item Install Software. If the menu screen is not visible, remove and re-insert the Intel CD-ROM to display it, or run autorun.exe from the Intel CD-ROM.

2. On the Welcome to the InstallShield Wizard for Intel(R) PRO Intelligent Installer screen, click Next.

3. On the Program Maintenance screen, select Modify and click Next.

4. On the Custom Setup screen, accept the default settings and click Next.

5. On the Ready to Install the Program screen, click Install.

6. After the software is installed on your computer, click Finish. The result will be the same as if you had selected the Typical installation on the Setup Type screen.

Note on Administration Tools

If you are a network administrator and wish to install the Wireless Administration Tools AP Discovery and Site Survey as part of the installation process, or later, proceed as follows:

1. Insert the Intel CD and click Install Software on the Intel® PRO Network Connections menu screen, then click Next on the Welcome screen.

2. Proceed to the Custom Setup screen:

o For systems with no previous Intel PRO installations: Accept the software

license agreement and click Next. On the Setup Type screen, select Custom and click Next, then continue with Step 3.

o For systems with a previous Intel PRO installation: On the Program

Maintenance Screen, select Modify and click Next, then continue with Step 3.

3. On the Custom Setup screen, expand the Configuration Tools item by clicking the plus sign + at the left.

4. Click the X next to Wireless Administration Tools and select Install this feature and all subfeatures.

5. Click Next. On the Ready to Install the Program screen, click Install. Click OK to close the log file.

PROSet II Software

The PROSet II LAN Software utility is a Windows application that allows you to configure, manage, and set up security encryption for your PRO/Wireless 5000 LAN CardBus or PCI Adapter.

Once installed, PROSet II software can be accessed from the System Tray by clicking on the green icon. When you select your PRO/Wireless LAN Adapter, PROSet II displays the following tabs: General, Setting, Mobility, Network Driver, Statistics, and Diagnostics. For detailed information about each of these tabs, press F1 on your keyboard with PROSet II open for online Help, or view Configuring with Intel® PROSet II.

The Windows installation instructions above include the steps required for installation of PROSet II software.

Uninstalling Adapter and Utility Software

How to Uninstall CardBus or PCI Adapter Drivers Using Device Manager

Uninstall Drivers under Windows 2000 and Windows XP

1. Right-click My Computer and select Manage.

2. Select Device Manager from the list on the left.

3. Expand the Network Adapters item in the tree on the right.

4. Right-click Intel PRO/Wireless 5000 LAN CardBus Adapter or Intel PRO/Wireless

5000 LAN PCI Adapter and select Uninstall.

Uninstall Drivers under Windows 98SE and Windows Me

1. Right-click the My Computer icon and select Properties.

2. Select the Device Manager tab.

3. Under Network Adapters find and select the Intel PRO/Wireless 5000 LAN CardBus Adapter or Intel PRO/Wireless 5000 LAN PCI Adapter from the displayed list.

4. Click Remove. Windows removes the adapter.

How to Uninstall PROSet II Utility Software Using Add/Remove Programs

1. Open the Start menu, select Settings, and then select Control Panel.

2. Double-click Add/Remove Programs.

3. Find Intel(R) PROSet II.

4. Click Install/Uninstall or Change/Remove.

5. If you have installed the Access Point Administration Tools, repeat Steps 2 through 4 to uninstall those tools.

How to Uninstall Wired Drivers and PROSet II Software Using the Intel® PRO Intelligent Installer

The following instructions apply to drivers for Intel PRO wired adapters and PROSet software only. To remove the PRO/Wireless 5000 LAN CardBus Adapter or PCI Adapter drivers, use the instructions above under How to Uninstall CardBus or PCI Adapter Drivers Using Device Manager.

1. On the Intel® PRO Network Connections screen, click the menu item Install Software. If the menu screen is not visible, remove and re-insert the Intel CD-ROM to display it, or run autorun.exe from the Intel CD-ROM.

2. On the Program Maintenance screen, select Remove and click Next. Wired drivers and PROSet software will be removed.

3. On the next screen, click Finish. Click OK to close the log file.

Updating a Wireless Driver

How to Update CardBus or PCI Adapter Drivers

To update the driver in Windows 2000 and Windows XP

1. Right-click My Computer and click Properties.

2. Click the Hardware tab and click Device Manager.

3. Expand the Network Adapters and double-click Intel PRO/Wireless 5000 LAN CardBus Adapter or Intel PRO/Wireless 5000 LAN PCI Adapter.

4. Click the Driver tab and click Update Driver.

To update the driver in Windows Me, Windows 98, and Windows 95

1. Right-click the Network icon on the desktop and click Properties.

2. Select the old network adapter and click Remove.

3. Double-click My Computer, Control Panel, and Add New Hardware.

4. Follow the steps in the Add New Hardware Wizard to install the driver from the CD.

Reinstalling Adapter and Utility Software

To reinstall PRO/Wireless hardware and software, first uninstall the PRO/Wireless 5000 LAN CardBus Adapter or PCI Adapter driv ers and software as described under the heading

Uninstalling Adapter Drivers and Software. After uninstalling, reboot the computer, then reinstall

the PRO/Wireless 5000 LAN Adapter using the installation instructions in this document.

Configuring with Intel® PROSet II

Intel® PROSet II software allows you to configure and manage all Intel wired and wireless LAN connections.

The Intel® PROSet II configuration utility can be installed during the adapter installation process. This utility can be used to set up profiles and perform other wireless network management tasks.

Intel® PROSet II provides the following features:

• Wired and wireless auto-sensing and switching

• Network performance management

• Profile management

• Power management

• Diagnostics

• User-configurable settings

For Windows XP users: In order to use PROSet II as your configuration utility (recommended), you have to turn off the built-in Windows XP wireless configuration feature. See

Turn Off Windows XP Wireless Configuration for instructions. For information on the Windows XP

feature, see your Windows XP documentation.

Viewing and Changing Network Settings

Intel® PROSet II allows you to change two groups of network settings:

• Mobile unit settings are settings for your laptop. You configure a laptop to communicate with either an access point or other computers in a peer-to-peer network.

• Security settings allow you to protect data. Data in a wireless network is broadcast through the air. If the data is unprotected, anyone can intercept it.

To view or change the network settings:

1. Double click the Intel® PROSet II icon on the right side of the Windows taskbar. If the icon is not present, click Start, select Settings, and Control Panel, and then double-click the Intel® PROSet II icon. To display the PROSet II icon on the taskbar, make sure Show the tray icon is checked in the PROSet II main window.

2. Select the wireless adapter on the left side of the Intel® PROSet II window.

3. To view or change basic settings, click the Settings tab.

For more information about configuring wireless network settings, click Help on the PROSet II Help menu.

Connecting to the Network Using an Access Point

An infrastructure network consists of one or more access points and one or more laptops with wireless adapters installed. Each access point can have a wired connection to the Local Area Network (LAN). Laptops with an installed wireless adapter communicate with an access point.

1. Double click the Intel® PROSet II icon on the right side of the Windows taskbar.

2. Select the wireless adapter on the left side of the Intel® PROSet II window.

3. Click the Settings tab.

4. Click Network Settings.

5. For the operating mode, select Communicate with access point (802.11 Station).

6. Enter a Network Name (SSID) or select one from the list.

Use the Network Name (SSID) assigned to the access points in the wireless LAN (WLAN). The wireless adapter scans the access point and uses the channel selected by the access point. You cannot change the channel.

Connecting to a Peer-to-Peer Network

A peer-to-peer wireless network is a simple network of wireless computers that communicate directly with each other without using an access point.

To connect to a peer-to-peer network:

1. Double click the Intel® PROSet II icon on the right side of the Windows taskbar.

2. Select the wireless adapter on the left side of the Intel® PROSet II window.

3. Click the Settings tab.

4. Click Network Settings.

5. For the operating mode, select Peer to Peer (802.11 Ad Hoc).

6. Enter a Network Name (SSID) or select one from the list.

7. Select a Channel Number from the pull-down list.

The Network Name (SSID) and Channel Number must be the same for all the computers in a peer-to-peer network.

Protecting Your Network with WEP Encryption

You can prevent unauthorized reception of your wireless data using the IEEE 802.11 Wired Equivalent Privacy ( WEP). The standard includes two levels of security, using a 64-bit key (sometimes referred to as 40-bit) or a 128-bit key. For better security, use a 128-bit key. If you use encryption, all wireless devices on your WLAN must use the same encryption settings.

To set up 64-bit (40-bit) encryption:

1. Double click the Intel® PROSet II icon on the right side of the Windows taskbar.

2. Select the wireless adapter on the left side of the Intel® PROSet II window.

3. Click the Settings tab.

4. Click Network Settings.

5. Click WEP Keys.

6. If required, enter your WEP password.

7. Click OK . The WEP Key Configuration dialog box is displayed.

8. Enter Keys 1 through 4. Use numbers 0 through 9 and letters A through F. Only the first two columns are available for 64-bit (40-bit) encryption.

9. Select the key you want to use for encryption. The keys and selected key must be the same for the access point or for all other computers in a peer-to-peer network.

To set up 128-bit encryption:

1. Double click the Intel® PROSet II icon on the right side of the Windows taskbar.

2. Select the wireless adapter on the left side of the Intel® PROSet II window.

3. Click the Settings tab.

4. Click Network Settings.

5. Click WEP Keys.

6. If required, enter your WEP password.

7. Click OK . The WEP Key Configuration dialog box is displayed.

8. Enter Keys 1 through 4. Use numbers 0 through 9 and letters A through F .

9. Select the key you want to use for encryption. The keys and selected key must be the same for the access point or for all other computers in an Ad Hoc (peer-to-peer) network.

Using Wireless Profiles

A profile is a saved group of network settings. If you are moving from one wireless network to another, it is convenient to save the network settings for each wireless network as a profile. Then you can easily select the profile for the appropriate network.

Settings include but are not limited to the network name (SSID), channel, security settings, and TCP/IP settings. Intel® My WLAN Places allows you to edit profiles and create new profiles.

To set up a profile:

1. Double click the Intel® PROSet II icon on the right side of the Windows taskbar.

2. Select the wireless adapter on the left side of the Intel® PROSet II window.

3. Click the Settings tab.

4. Click My WLAN Places.

To edit a profile:

1. Click the Settings tab.

2. Click My WLAN Places.

To start using a profile:

1. Click the Settings tab.

2. From the pull-down menu, select the appropriate wireless LAN profile for your networking situation.

3. Click Activate Profile.

For more information about My WLAN Places, select Contents from the pull-down Help menu in the My WLAN Places window.

Switching Between Wired and Wireless Adapters

Adapter switching allows your computer to seamlessly switch between wired and wireless adapters. You also indicate what type of adapter you prefer to use. If this type of adapter is unavailable, your computer uses the type of adapter available.

To change the Adapter Switching settings:

1. Double click the Intel® PROSet II icon on the right side of the Windows taskbar.

2. Select the wireless adapter on the left side of the Intel® PROSet II window.

3. Click the Mobility tab.

4. Click Adapter Switching.

Limitations on the Adapter Switching Feature

• Adapter switching requires the use of DHCP. It cannot be used with fixed IP addressing.

• Only Intel wired and wireless adapters are supported.

• Adapter switching cannot be used on a Virtual Private Network (VPN).

• Adapter switching should not be applied while an active data transfer is in progress.

Setting the Adapter's Power Consumption

If your notebook computer is operating on battery power, you can adjust the power settings to extend battery life.

1. Double click the Intel® PROSet II icon on the right side of the Windows taskbar.

2. Select the wireless adapter on the left side of the Intel® PROSet II window.

3. Click the Settings tab.

4. Click Power Settings.

5. Make sure that the Switch power mode based on power source check box is not checked.

6. Make sure that Let adapter manage power is checked.

For more information about the power settings, click the Help button.

Managing the Adapter from the Control Panel

After you install the driver for the Intel® PRO/Wireless 5000 LAN Adapter, you can access the Intel® PRO/Wireless 5000 LAN Adapter property pages from the Networking icon in the Windows Control Panel and configure the wireless settings for the adapter. For driver installation instructions, click here.

To display the adapter properties in Windows ME and 98:

1. Double-click My Computer, and then double-click Control Panel.

2. Double-click Network.

3. Select the Intel® PRO/Wireless 5000 LAN Adapter and click Properties.

To display the adapter properties in Windows 2000 and XP:

1. Double-click My Computer, and then double-click Control Panel.

2. Double-click Network .

3. Right-click the Local Area Connection for the wireless adapter and click Properties.

Updating the Driver and Firmware Version

Verify that the Intel® PRO/Wireless 5000 LAN Adapter driver and firmware is the most recent version to ensure optimal functionality.

Verifying the Driver and Firmware Versions

In Windows XP, 2000, ME, and 98, use PROSet II to view driver and firmware versions.

To view the driver and firmware version:

1. Double click the Intel® PROSet II icon on the right side of the Windows taskbar.

2. Select the wireless adapter on the left side of the Intel® PROSet II window.

3. Click the Network Driver tab.

4. If you have a newer firmware file from Intel, you can click the Update button and update the Firmware.

Troubleshooting

Except for the lack of a wired network connection, the Intel® PRO/Wireless 5000 LAN Adapter is just like any mobile network adapter. The troubleshooting techniques that apply to mobile network adapters in general also apply to the Intel® PRO/Wireless 5000 LAN Adapter.

For an adapter to communicate with an access point:

• The Network Name (SSID) of the adapter and access point must match.

• If the WEP encryption option is enabled on the access point, the adapter must support

this option and the adapter and access point must use the same encryption keys.

Windows 98 and Me Troubleshooting Tips

For additional troubleshooting information on Windows 98SE, click here.

Use the tools provided by Windows 98 and LAN analyzers (FTP Software NETXRAY, Novell LAN analyzer) to diagnose problems. Some common problems exhibited when the Intel® PRO/Wireless 5000 LAN Adapter has not been properly installed include:

• Windows 98/Me does not recognize the Intel® PRO/Wireless 5000 LAN Adapter when installed.

Verify that Windows 98/Me PC Card support is installed.

Verify the computer has a Plug and Play BIOS.

• The driver fails to load.

A resource conflict could exist. Use the Device Manager to resolve resource conflicts. Select the System applet from the Control Panel . Select the Device Manager tab.

• The workstation cannot associate to the Intel® PRO/Wireless 5000 LAN Access Point.

Verify the adapter Network Name (SSID) matches the Network Name of the access point. Refer to the Intel® PRO/Wireless 5000 LAN Adapter Quick Installation Guide for details on how to configure the WLAN access point and adapter.

• Degraded performance from the Intel® PRO/Wireless 5000 LAN Adapter is detected.

Verify that the adapter is firmly seated in a PC Card slot.

Verify that the protruding end containing the adapter antenna is not damaged.

Associate the adapter with a different access point.

• Network drive mappings disappear when the laptop suspends or the adapter is removed then reinserted. Windows 98/Me does not restore NetWare network drive mappings under these conditions.

Log out and log in again, or restart the machine to restore the connections.

• Non-functioning adapter LEDs.

Verify that the adapter Network Name (SSID) matches the Network Name of the access point.

Windows 2000 and XP Troubleshooting Tips

To diagnose problems, use the tools provided by Windows 2000 or Windows XP.

• The workstation cannot associate to the Intel® PRO/Wireless 5000 LAN Access Point.

Verify the adapter Network Name (SSID) matches the Network Name of the access point. Refer to the Intel® PRO/Wireless 5000 LAN Adapter Quick Installation Guide for details on how to configure the WLAN access point and adapter.

• Degraded performance from the Intel® PRO/Wireless 5000 LAN Adapter is detected.

Verify that the adapter is firmly seated in a PC Card slot.

Verify that the protruding end containing the adapter antenna is not damaged.

• Non-functioning adapter LED.

Verify that the adapter SSID matches the SSID of the access point.

Wireless Configuration Feature (Microsoft Windows XP only)

Microsoft Windows XP provides a built-in wireless configuration utility. It is recommended that the XP utility be disabled and that Intel PROSet II be used to configure your wireless adapter. If the XP utility is enabled and PROSet II is also loaded under Windows XP, the Windows XP utility overrides PROSet II. The PROSet II main screen displays the current status and signal strength information, but profiles in PROSet II are disabled and cannot be activated.

General Troubleshooting Guidelines Use the Latest Release of Your Intel Installation CD-ROM

If you have more than one Intel Installation CD-ROM for your Intel PRO/Wireless 5000 LAN products, use the CD-ROM with the highest version number.

Use the Latest Version of PROSet II

The Intel® PRO/Wireless LAN software (PROSet II) included in this release supports the following:

• Intel® PRO/Wireless 5000 LAN CardBus Adapter

• Intel® PRO/Wireless 2011/2011B LAN Adapters

• Intel® PRO/100 Adapters

Previous versions of PROSet II will NOT support the Intel® PRO/Wireless 5000 LAN

CardBus Adapter. Use the version of PROSet II that is included in this release.

Intel® PRO/Wireless 2011B LAN PCI Carrier

Do not use the Intel® PRO/Wireless 5000 LAN CardBus Adapter with the Intel® PRO/Wireless 2011 LAN PCI Carrier model WPCR2011. If you insert the CardBus adapter into the PCI Carrier, it will not function, and it could damage the PCI Carrier.

CardBus Installation in Windows* 98SE

In Windows 98SE, if certain conditions are true when a CardBus adapter is initially installed via a hot insertion, the laptop may hang on the first subsequent reboot. This condition has been verified with various CardBus adapters, not just the Intel® PRO/Wireless 5000 LAN CardBus Adapter. The problem will only occur when all of the following conditions exist:

• The laptop did not ship with 98SE - the 98SE installation is either an upgrade, or has been installed in place of the laptop factory image.

• Another network adapter has previously been installed.

• The new CardBus adapter is not recognized upon insertion, causing the new hardware

dialog window to be displayed.

• A reboot prompt is displayed when installation is complete.

This condition only occurs during a hot insert installation. To avoid or resolve this problem, use the following options used:

• Insert the adapter prior to powering up the system, and then install normally.

• If a hot insert installation is desired, select NO when prompted for reboot, and wait until

the hourglass is no longer displayed before rebooting.

If the lockup condition has already occurred:

• Reboot without the adapter. Uninstall the adapter, reboot, then hot insert the adapter and install the drivers.

• Another method is to re-install the IP protocol and reboot. By doing a re-install of the protocol, the bindings are renewed properly and the problem is resolved.

For more detailed information about this issue, refer to Microsoft* Knowledge Base article

KB#Q271367.

Additional Sources of Information

Consult your computer and network documentation as needed. For the latest technical notes on PRO/Wireless 5000 LAN products, see the Wireless Release Notes on the Intel CD.

See Intel Support Services for additional information.

Customer Support

Intel support is available on the Web or by phone. The services contain the most up-to-date information about Intel products. You can access installation instructions, troubleshooting information, and general product information.

Web and Internet Sites

Support: http://support.intel.com

Network Products: http://www.intel.com/network

Gigabit Products: http://www.intel.com/network/solutions/gigabit.htm

Corporate: http://www.intel.com

Telephone Support

US and Canada: 1-916-377-7000 (7:00 - 17:00 M-F Pacific Time)

Worldwide access: Intel has technical support centers worldwide. Many of the centers are staffed by technicians who speak the local languages. For a list of all Intel support centers, the telephone numbers, and the times they are open, visit http://www.intel.com/support/9089.htm.

Intel® PRO/Wireless 5000 LAN Products Specifications

Specifications by Model

Models

Access Point Physical Specifications

Intel® PRO/Wireless 5000 LAN Access Point model WSAP5000 Intel® PRO/Wireless 5000 LAN CardBus Adapter model WCB5000 Intel® PRO/Wireless 5000 LAN PCI Adapter model WPCI5000

Form Factor Access Point Dimensions 8.6" x 5.6" x 3.3" (22 cm x 14 cm x 8 cm) Weight 27 oz (765 g) Connector Interface RJ-45 LEDs See LED Indicators Power 100-240 Volt AC Adapter

CardBus Adapter Physical Specifications

PCI Adapter Physical Specifications

Form Factor CardBus Type II Extended Dimensions 2.2" x 4.4" x 0.19" (54 mm x 112 mm x 5

Weight 1.5 oz (43 g) Connector Interface 68-pin CardBus LEDs See LED Indicators Power 3.3 V Form Factor PCI Adapter

Dimensions 8.4" x 4.8" x 0.8" (21 cm x 12 cm x 2 cm) Weight 3.4 oz (96 g) Connector Interface PCI LEDs See LED Indicators Power 3.3 V

General Specifications

Frequency and modulation

Frequency band 5.15 GHz to 5.35 GHz Modulation BPSK, QPSK, 16 QAM, 64 QAM

mm) 1" (25 mm) on extended portion

Orthogonal Frequency Division Multiplexing

Network

Wireless Medium

(OFDM) 5 GHz UNII

Channels 8 Non-overlapping (4 non-overlapping in

some countries) WLAN Standard IEEE 802.11a Wired Standard 10/100BTx Architecture Infrastructure, ad-hoc (peer-to-peer) Roaming

Wired-to-wireless switching Intel® PROSet II software

802.11a compliant for seamless roaming

between access points

Security

802.11i (802.1x, Radius, EAP):

QOS

Range and Throughput

Power

Encryption 64-bit and 128-bit WEP

enhanced wireless authentication security

DCF CSMA/CA

Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps Indoor Range

Outdoor Range

Output Power 50 mW to 200 mW, depending on

Transmit 450-480 mA Receive 420-440 mA Idle 420 mA

Pending IEEE ratification in 2002

• 40 feet @ 54 Mbps

• 300 feet @ 6 Mbps

• 100 feet @ 54 Mbps

• 1000 feet @ 6 Mbps

frequency channel

Standby 30 mA

Operating Temperature

Humidity

Compatibility

CardBus and PCI Adapters 0 to 65 degrees Celsius Access Point 0 to 45 degrees Celsius 10 to 90% non-condensing

OS Microsoft Windows* 98SE*, Me*, 2000*,

WECA Pending ratification of interoperability test

XP*

and logo program by WECA (when 5 GHz

standard is available)

WHQL Yes

Regulatory and Safety

Safety UL, C-UL United States FCC Part 15.249 Canada Industry Canada RSS 210 Japan VCCI, JATE, Telec Singapore IDA

Japan A-tick

Intel® PRO/Wireless 2011B LAN Products Specifications

Specifications by Model

Models

Access Point Physical Specifications

Adapter Physical Specifications

Intel® PRO/Wireless 2011B LAN Access Point models WEAP2011BAK WEAP2011BRW WEAP2011BJP

Intel® PRO/Wireless 2011B LAN Adapter model WPC2011BWW WPC2011BJP

Form Factor Access Point Dimensions 1.75” x 6” x 8.5” (4.4 cm x 15.2 cm x 21.6 cm)

Weight (w/power supply) 1 lb (454 g) Connector Interface RJ-45 LEDs See LED indicators.

Power 110 Volt AC Adapter Form Factor CardBus Type II, 3.3V Dimensions 3.3" x 2.1" x 0.2" (85 mm x 54 mm x 5 mm)

Weight 1.6 oz (45.4 g) Connector Interface LEDs See LED indicators. Power

General Specifications

Frequency and modulation

Frequency band country dependent, typically 2412 MHz to 2462 MHz

Modulation Binary GFSK Wireless Medium Channels 3 Non-overlapping

Network

Security QOS

Range and Throughput

WLAN Standard IEEE 802.11b Wired Standard 10/100B Tx Architecture Infrastructure, ad-hoc (peer-to-peer) Roaming

Wired-to-wireless switching

Encryption 64-bit and 128-bit WEP DCF

Data Rates 11 Mbps - Optional

Indoor Range

Outdoor Range

• 802.11b compliant for seamless roaming between access points

• International roaming (802.11d)

Intel® PROSet II software

5.5 Mbps - Optional 2 Mbps - Required 1 Mbps - Required

• 30 to 50 feet @ 11 Mbps

• 100 feet @ 11 Mbps

Power

Operating Temperature

Humidity

Compatibility

Throughput Up to 11 Mbps

Output Power Transmit Receive Idle Standby Voltage 3.3 V 0 to 55° Celsius

10 to 95% non-condensing

OS Windows 95C, 98SE, Me, 2000 WECA Yes

WHQL Yes

Regulatory and Safety

Safety UL, C-UL United States FCC part 15.247 Canada Industry Canada RSS 210 Europe ETS 300 320 Japan RCR STD-33

Intel® PRO/Wireless LAN Products Safety and Regulatory Notices

This document contains regulatory notices for the following products:

• Intel® PRO/Wireless 5000 LAN Products

• Intel® PRO/Wireless 2011B LAN Products

Intel® PRO/Wireless 5000 LAN Products

This section provides the following safety and regulatory notices covering the following products: Intel® PRO/Wireless 5000 LAN Access Point and Intel® PRO/Wireless 5000 LAN CardBus Adapter.

Safety Notices

The Intel® PRO/Wireless 5000 LAN CardBus Adapter has been tested and complies with the FCC & Industry Canada SAR (Specific Absorption Rate) requirements operating in a typical laptop configuration. In order to comply with the FCC and Industry Canada RF exposure limits the low gain integrated antennae should be located at a minimum distance of 5 cm (2 inches) or more from the body of all persons.

The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified equipment. The Intel PRO/Wireless 5000 LAN products meet the Human Exposure limits found in OET Bulletin 65, 2001, and ANSI/IEEE C95.1, 1992. Proper operation of this radio according to the instructions found in this manual will result in exposure substantially below the FCC’s recommended limits.

• Do not touch or move antenna while the unit is transmitting or receiving.

• Do not hold any component containing the radio such that the antenna is very close or

touching any exposed parts of the body, especially the face or eyes, while transmitting.

• Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.

• Use in specific environments:

o The use of wireless devices in hazardous locations is limited by the constraints

posed by the safety directors of such environments.

o The use of wireless devices on airplanes is governed by the Federal Aviation

Administration (FAA).

o The use of wireless devices in hospitals is restricted to the limits set forth by each

hospital.

• Antenna use: (Excluding the Intel® PRO/Wireless 5000 LAN CardBus Adapter)

o In order to comply with FCC RF exposure limits, low gain integrated antennas

should be located at a minimum distance of 7.9 inches (20 cm) or more from the body of all persons.

o High-gain, wall-mount, or mast-mount antennas are designed to be

professionally installed and should be located at a minimum distance of 12 inches (30 cm) or more from the body of all persons. Please contact your professional installer, VAR, or antenna manufacturer for proper installation requirements.

• Explosive Device Proximity Warning (see below)

• Antenna Warning (see below)

• Use on Aircraft Caution (see below)

• Other Wireless Devices (see below)

• Power Supply (Access Point) (see below)

Explosive Device Proximity Warning

Warning: Do not operate a portable transmitter (such as a wireless network device) near

unshielded blasting caps or in an explosive environment unless the device has been modified to be qualified for such use.

Antenna Warning (Excluding the Intel® PRO/Wireless 5000 LAN CardBus Adapter)

Warning: To comply with the FCC and ANSI C95.1 RF exposure limits, it is recommended when

using a wireless device with an integrated antenna (whether an Access Point or a PCI or MiniPCI card installed in a desktop computer), that the antenna should not be positioned closer than 7.9 inches (20 cm) from your body or other persons for extended periods of time while it is transmitting (or operating). If the antenna is positioned less than 7.9 inches (20 cm) from the user, it is recommended that the user limit exposure time.

Use On Aircraft Caution

Caution: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless

devices because their signals could interfere with critical aircraft instruments.

Other Wireless Devices

Safety Notices for Other Devices in the Wireless Network: Refer to the documentation

supplied with wireless Ethernet adapters or other devices in the wireless network.

Power Supply (Access Point)

Use manufacturer-provided power supply with output rating 5.0 VDC and 2.5 A.

FCC Regulations

FCC Regulations Part 15 Declaration of Conformity (DoC)

Intel Corporation declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below:

Title 47 Part 15, Subpart B, Class B for a digital device.

This declaration is based upon the compliance of the Intel® PRO/Wireless 5000 LAN Access Point model WSAP5000, the Intel PRO/Wireless CardBus Adapter model WCB5000, and the Intel PRO/Wireless PCI Adapter model WPCI5000 to the above standards. Intel has determined that the models listed have been shown to comply with the applicable technical standards if no unauthorized change is made in the equipment and if the equipment is properly maintained and operated.

These units are identical to the units tested and found acceptable with the applicable standards. Records maintained by Intel continue to reflect that units being produced under this Declaration of Conformity, within the variation that can be expected due to quantity production and tested on a statistical basis, continue to comply with the applicable technical standards.

FCC Rules and Regulations - Part 15

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and,

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Intel could void the user's authority to operate this device.

Canadian Department of Communications Industry Canada (IC) Notice

These digital apparatuses do not exceed the Class B limits for radio noise emissions from digital apparatuses set out in the Radio Interference Regulations of the Canadian Department of Communications.

Les présents appareils numériques n'ément pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada.

These devices comply with Class B Limits of Industry Canada. Operation is subject to the following two conditions:

1. The device may not cause harmful interference, and

2. The device must accept any interference received, including interference that may cause undesired operation.

These devices are certified to the requirements of ANSI/IEEE C95.1-1992 and RSS-210 for 5 GHz UNII band devices. The use of these devices in a system operating either partially or completely outdoors may require the user to obtain a license for the system according to the Canadian regulations. For further information, contact your local Canada Industry office.

Japan Regulatory Notices

TELEC

This equipment has been certified to conform with the technical regulations of the specified radio equipment under the radio law of Japan. If you open the case to modify the circuit, you may be punished by law.

This equipment is for indoor use only under the Radio Wave law.

JATE

Refer to the JATE approval number on the equipment.

Intel® PRO/Wireless 2011B LAN Products

Radio Frequency Interference Requirements – USA

This device uses, generates and radiates radio frequency energy. The radio frequency energy produced by this device is well below the maximum exposure allowed by the Federal Communications Commission (FCC).

This device complies with the limits for a Class B digital device pursuant to Part 15 subpart C of the FCC Rules and Regulations. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

The FCC limits are designed to provide reasonable protection against harmful interference when the equipment is installed and used in accordance with the instruction manual and operated in a commercial environment. However, there is no guarantee that interference will not occur in a particular commercial installation, or if operated in a residential area.

If harmful interference with radio or television reception occurs when the device is turned on, the user must correct the situation at the user’s own expense. The user is encouraged to try one or more of the following corrective measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit different from that on which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Radio Frequency Interference Requirements – Canada

This Class B digital apparatus complies with Canadian ICES-003, Issue 2, and RSS-210, Issue 4 (Dec. 2000).

“To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.”

Cet appareil numérique de la classe B est conforme à la norme NMB-003,

No. 2, et CNR-210, No. 4 (Dec. 2000).

« Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une licence. »

Radio Frequency Interference Requirements – European Union

CE Marking & European Union Compliance

Products intended for sale within the European Union are marked with the Conformite Europeene (CE) Marking, which indicates compliance with the applicable Directives and European Normes, and amendments, identified below.

This equipment also carries the Class 2 identifier.

English

This product follows the provisions of the European Directive 1999/5/EC.

Danish

Dette produkt er i overensstemmelse med det europæiske direktiv 1999/5/EC

Dutch

Dit product is in navolging van de bepalingen van Europees Directief 1999/5/EC.

Finnish

Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.

French

Ce produit est conforme aux exigences de la Directive Européenne 1999/5/EC.

German

Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie 1999/5/EC.

Greek

?? p????? a?t? p????? t?? p??ß???e?? t?? ????pa???? ?d???a? 1999/5/EC.

Icelandic

Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 1999/5/EC.

Italian

Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.

Norwegian

Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 1999/5/EC.

Portuguese

Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.

Spanish

Este producto cumple con las normas del Directivo Europeo 1999/5/EC.

Swedish

Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.

Applicable Directives

Electromagnetic Compatibility Directive 89/336/EEC Low Voltage Directive 73/23/EEC Radio and Telecommunication Terminal Equipment 1999/5/EC

Applicable Standards

EN 50 082-1 – 1997 Electromagnetic Compatibility – Generic Immunity Standard, Part 1: Residential, Commercial, Light Industry

EN61000-4-2 – Electromagnetic Compatibility for Industrial Process Measurement and Control Equipment, Part 2: Electrostatic Discharge Requirements

EN61000-4-3 – Electromagnetic Compatibility for Industrial Process Measurement and Control Equipment, Part 3: Radiated Electromagnetic Field Requirements

EN61000-4-4 – Electromagnetic Compatibility for Industrial Process Measurement and Control Equipment, Part 4: Electrical Fast Transients Requirements

EN61000-4-5 – Surge Immunity Tests Basic EMC Standard EN61000-4-6 – Immunity to Conducted Disturbances, Induced by Radio Frequency Fields EN61000-4-11 – Voltage Dips, Short Interruptions and Voltage Variations EN 300 328-2 V1.1.1 (2000-07) – Radio Equipment and Systems (RES); Wideband

transmission systems; Technical characteristics and test conditions for data transmission equipment operating in the 2.4 GHz ISM band and using spread spectrum modulation techniques

ETS 300 826:1997 – Electromagnetic compatibility and Radio spectrum Matters (ERM); Electromagnetic Compatibility (EMC) standard for

2.4 GHz wideband transmission systems and High Performance Radio Local Area Network (HIPERLAN) equipment. This is a basic standard called out by EN 301 489-17.

EN 301 489-17 v1.1.1 (2000-09) – Electromagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for Wideband data and HIPERLAN equipment.

EN 55022:1998 – Information technology equipment – Radio disturbance characteristics – Limits and methods of measurement

EN 55024:1998 – Information technology equipment – Immunity characteristics – Limits and methods of measurement

EN 61000-3-2:1995 +A14 – Electromagnetic compatibility (EMC) Part 3-2: Limits – Limits for harmonic current emissions (equipment input current up to and

including 16 A per phase) EN 61000-3-3:1995 – Electromagnetic compatibility (EMC), Part 3-3: Limits – Limitation of voltage fluctuations and flicker in low-voltage supply systems

for equipment with rated current up to 16 A EN 60950:1992 + A1 – A4, A11 – Safety of Information Technology Equipment, including

Electrical Business Equipment

European Economic Area Restrictions

The European variant is intended for use throughout the European Economic Area; however, authorization for use is restricted as follows:

European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400 to 2.4835 GHz.

In France, the equipment must be restricted to the 2.4465 to 2.4835 GHz frequency range and must be restricted to indoor use.

In Belgium when used outside, the equipment must be restricted to the 2.460 to 2.4835 GHz frequency range.

Operation in Italy requires a user license. In Hungary, Processing gain minimum 10 dB, integral or external antenna with maximum 6 dBi

gain. In the Netherlands, 10 mW indoor and outdoor with no license. 100 mW indoor with no

license. 100 mW with license outdoor within 2451 - 2471 MHz.

Japanese Notices

RF Devices

Intel Radio Frequency (RF) products are designed to be compliant with the rules and regulations in the locations where they are sold and are locally labeled as required. The majority of Intel RF devices are type-approved and do not require the user to obtain license or authorization before using the equipment. However, any changes or modifications to Intel equipment not expressly approved by Intel could void the user’s authority to operate the equipment.

Caution: Do not attempt to operate this device with a modified or damaged antenna.

Warning: To comply with FCC rules for RF exposure, maintain a minimum separation distance of 20 cm (8 inches) between the Intel® PRO/Wireless 2011B LAN Access Point radiating elements and nearby persons.

Intel® PRO/Wireless LAN Products Hardware Warranties

• Intel® PRO/Wireless LAN Adapters - Limited Lifetime Hardware Warranty

• Intel® PRO/Wireless LAN Access Point - Limited Hardware Warranty (3 Years)

Intel® PRO/Wireless LAN Adapters - Limited Lifetime Hardware Warranty

Intel warrants to the original owner that the hardware product delivered in this package will be free from defects in material and workmanship. This warranty does not cover the product if it is damaged in the process of being installed. Intel recommends that you have the company from whom you purchased this product install the product. Intel reserves the right to fill your order with a product containing new or remanufactured components.

THE ABOVE WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF NONINFRINGEMENT OF INTELLECTUAL PROPERTY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE ARISING OUT OF ANY PROPOSAL, SPECIFICATION, OR SAMPLE.

This warranty does not cover replacement of hardware products damaged by abuse, accident, misuse, neglect, alteration, repair, disaster, improper installation, or improper testing.

If the hardware product is found to be otherwise defective, Intel, at its option, will replace or repair the hardware product at no charge except as set forth below, provided that you deliver the hardware product along with a Return Material Authorization (RMA) number (see below), either to the company from whom you purchased it or to Intel (North America only). If you ship the hardware product, you must assume the risk of damage or loss in transit. You must use the original container (or the equivalent) and pay the shipping charge.

Intel may replace or repair the hardware product with either new or remanufactured product or parts, and the returned hardware product becomes Intel's property. Repaired or replaced products will be returned at the same revision level as received or higher, at Intel's option. Intel reserves the right to replace discontinued product with an equivalent current generation product.

This warranty gives you specific legal rights and you may have other rights which vary from state to state. All parts or components contained in this hardware product are covered by Intel’s limited warranty for this product; the product may contain fully tested, recycled parts, warranted as if new. For warranty information call the number below.

Returning a defective product

From North America:

Before returning any hardware product, contact Intel Customer Support to obtain a Return Material Authorization (RMA) number by calling +1 916-377-7000.

If the Customer Support Group verifies that the hardware product is defective, they will have the RMA department issue you an RMA number to place on the outer package of the hardware product. Intel cannot accept any product without an RMA number on the package.

All other locations:

Return the hardware product to the place of purchase for a refund or replacement.

Limitation of Liability and Remedies

INTEL'S SOLE LIABILITY HEREUNDER SHALL BE LIMITED TO DIRECT, OBJECTIVELY MEASURABLE DAMAGES. IN NO EVENT SHALL INTEL HAVE ANY LIABILITY FOR ANY INDIRECT OR SPECULATIVE DAMAGES (INCLUDING, WITHOUT LIMITING THE FOREGOING, CONSEQUENTIAL, INCIDENTAL, AND SPECIAL DAMAGES) INCLUDING, BUT NOT LIMITED TO, INFRINGEMENT OF INTELLECTUAL PROPERTY, REPROCUREMENT COSTS, LOSS OF USE, BUSINESS INTERRUPTIONS, LOSS OF GOODWILL, AND LOSS OF PROFITS, WHETHER ANY SUCH DAMAGES ARISE OUT OF CONTRACT NEGLIGENCE, TORT, OR UNDER ANY WARRANTY, IRRESPECTIVE OF WHETHER INTEL HAS ADVANCE NOTICE OF THE POSSIBILITY OF ANY SUCH DAMAGES. NOTWITHSTANDING THE FOREGOING, INTEL'S TOTAL LIABILITY FOR ALL CLAIMS UNDER THIS AGREEMENT SHALL NOT EXCEED THE PRICE PAID FOR THE PRODUCT. THESE LIMITATIONS ON POTENTIAL LIABILITIES WERE AN ESSENTIAL ELEMENT IN SETTING THE PRODUCT PRICE. INTEL NEITHER ASSUMES NOR AUTHORIZES ANYONE TO ASSUME FOR IT ANY OTHER LIABILITIES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

Critical Control Applications

Intel specifically disclaims liability for use of the hardware product in critical control applications (including, for example only, safety or health care control systems, nuclear energy control systems, or air or ground traffic control systems) by you or your customers, and such use is entirely at the user's risk. You agree to defend, indemnify, and hold Intel harmless from and against any and all claims arising out of use of the hardware product in such applications by you or your customers.

Software

Software provided with the hardware product is not covered under the hardware warranty described above. See the applicable software license agreement which shipped with the hardware product for details on any software warranty.

Intel® PRO/Wireless LAN Access Point - Limited Hardware Warranty (3 Years)

Intel warrants to the original owner that the hardware product delivered in this package will be free from defects in material and workmanship for three (3) years following the latter of: (i) the date of purchase only if you register by returning the registration card as indicated thereon with proof of purchase; or (ii) the date of manufacture; or (iii) the registration date if by electronic means provided such registration occurs within thirty (30) days from purchase. This warranty does not cover the product if it is damaged in the process of being installed. Intel recommends that you have the company from whom you purchased this product install the product. Intel reserves the right to fill your order with a product containing new or remanufactured components.

THE ABOVE WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF NONINFRINGEMENT OF INTELLECTUAL PROPERTY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE ARISING OUT OF ANY PROPOSAL, SPECIFICATION, OR SAMPLE.

This warranty does not cover replacement of hardware products damaged by abuse, accident, misuse, neglect, alteration, repair, disaster, improper installation, or improper testing.

If the hardware product is found to be otherwise defective, Intel, at its option, will replace or repair the hardware product at no charge except as set forth below, provided that you deliver the hardware product along with a Return Material Authorization (RMA) number (see below), either to the company from whom you purchased it or to Intel (North America only). If you ship the hardware product, you must assume the risk of damage or loss in transit. You must use the original container (or the equivalent) and pay the shipping charge.

Intel may replace or repair the hardware product with either new or remanufactured product or parts, and the returned hardware product becomes Intel’s property. Intel warrants the repaired or replaced hardware product to be free from defects in material and workmanship for a period of the greater of: (i) ninety (90) days from the return shipping date; or (ii) the period of time remaining on the original three (3) year warranty.

This warranty gives you specific legal rights and you may have other rights which vary from state to state. All parts or components contained in this hardware product are covered by Intel’s limited warranty for this product; the product may contain fully tested, recycled parts, warranted as if new. For warranty information call the number below.

Returning a defective product

From North America:

Before returning any hardware product, contact Intel Customer Support to obtain a Return Material Authorization (RMA) number by calling +1 916-377-7000.

If the Customer Support Group verifies that the hardware product is defective, they will have the RMA department issue you an RMA number to place on the outer package of the hardware product. Intel cannot accept any product without an RMA number on the package.

All other locations:

Return the hardware product to the place of purchase for a refund or replacement.

Limitation of Liability and Remedies

INTEL'S SOLE LIABILITY HEREUNDER SHALL BE LIMITED TO DIRECT, OBJECTIVELY MEASURABLE DAMAGES. IN NO EVENT SHALL INTEL HAVE ANY LIABILITY FOR ANY INDIRECT OR SPECULATIVE DAMAGES (INCLUDING, WITHOUT LIMITING THE FOREGOING, CONSEQUENTIAL, INCIDENTAL, AND SPECIAL DAMAGES) INCLUDING, BUT NOT LIMITED TO, INFRINGEMENT OF INTELLECTUAL PROPERTY, REPROCUREMENT COSTS, LOSS OF USE, BUSINESS INTERRUPTIONS, LOSS OF GOODWILL, AND LOSS OF PROFITS, WHETHER ANY SUCH DAMAGES ARISE OUT OF CONTRACT NEGLIGENCE, TORT, OR UNDER ANY WARRANTY, IRRESPECTIVE OF WHETHER INTEL HAS ADVANCE NOTICE OF THE POSSIBILITY OF ANY SUCH DAMAGES. NOTWITHSTANDING THE FOREGOING, INTEL'S TOTAL LIABILITY FOR ALL CLAIMS UNDER THIS AGREEMENT SHALL NOT EXCEED THE PRICE PAID FOR THE PRODUCT. THESE LIMITATIONS ON POTENTIAL LIABILITIES WERE AN ESSENTIAL ELEMENT IN SETTING THE PRODUCT PRICE. INTEL NEITHER ASSUMES NOR AUTHORIZES ANYONE TO ASSUME FOR IT ANY OTHER LIABILITIES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

Critical Control Applications

Intel specifically disclaims liability for use of the hardware product in critical control applications (including, for example only, safety or health care control systems, nuclear energy control systems, or air or ground traffic control systems) by you or your customers, and such use is entirely at the user's risk. You agree to defend, indemnify, and hold Intel harmless from and against any and all claims arising out of use of the hardware product in such applications by you or your customers.

Software

Software provided with the hardware product is not covered under the hardware warranty described above. See the applicable software license agreement which shipped with the hardware product for details on any software warranty.

Intel® PRO/Wireless LAN Products Software License Agreement

IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING.

Do not use or load this software and any associated materials (collectively, the "Software") until you have carefully read the following terms and conditions. By loading or using the Software, you agree to the terms of this Agreement. If you do not wish to so agree, do not install or use the Software.

LICENSE. You may copy the Software onto a single computer for your personal, non-commercial

use, and you may make one back-up copy of the Software, subject to these conditions:

1. This Software is licensed for use only in conjunction with Intel®

component products. Use of the Software in conjunction with non-Intel component products is not licensed hereunder.

2. You may not copy, modify, rent, sell, distribute or transfer any part of the Software except as provided in this Agreement, and you agree to prevent unauthorized copying of the Software.

3. You may not reverse engineer, decompile, or disassemble the Software.

4. You may not sublicense or permit simultaneous use of the Software by more than one user.

5. The Software may contain the software or other property of third party suppliers, some of which may be identified in, and licensed in accordance with, any enclosed "license.txt" file or other text or file.

OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Software remains with Intel or its suppliers. The Software is copyrighted and protected by the laws of the United States and other countries, and international treaty provisions. You may not remove any copyright notices from the Software. Intel may make changes to the Software, or to items referenced therein, at any time without notice, but is not obligated to support or update the Software. Except as otherwise expressly provided, Intel grants no express or implied right under Intel patents, copyrights, trademarks, or other intellectual property rights. You may transfer the Software only if the recipient agrees to be fully bound by these terms and if you retain no copies of the Software.

LIMITED MEDIA WARRANTY. If the Software has been delivered by Intel on physical media, Intel warrants the media to be free from material physical defects for a period of ninety (90) days after delivery by Intel. If such a defect is found, return the media to Intel for replacement or alternate delivery of the Software as Intel may select.

EXCLUSION OF OTHER WARRANTIES. EXCEPT AS PROVIDED ABOVE, THE SOFTWARE IS PROVIDED "AS IS" WITHOUT ANY EXPRESS OR IMPLIED WARRANTY OF ANY KIND INCLUDING WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, OR FITNESS FOR A PARTICULAR PURPOSE. Intel does not warrant or assume responsibility for the

accuracy or completeness of any information, text, graphics, links or other items contained within the Software.

LIMITATION OF LIABILITY. IN NO EVENT SHALL INTEL OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, LOST PROFITS, BUSINESS INTERRUPTION, OR LOST INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE THE SOFTWARE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS PROHIBIT EXCLUSION OR LIMITATION OF LIABILITY FOR IMPLIED WARRANTIES OR CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. YOU MAY ALSO HAVE OTHER LEGAL RIGHTS THAT VARY FROM JURISDICTION TO JURISDICTION.

TERMINATION OF THIS AGREEMENT. Intel may terminate this Agreement at any time if you

violate its terms. Upon termination, you will immediately destroy the Software or return all copies of the Software to Intel.

APPLICABLE LAWS. Claims arising under this Agreement shall be governed by the laws of California, excluding its principles of conflict of laws and the United Nations Convention on Contracts for the Sale of Goods. You may not export the Software in violation of applicable export laws and regulations. Intel is not obligated under any other agreements unless they are in writing and signed by an authorized representative of Intel.

GOVERNMENT RESTRICTED RIGHTS. The Software is provided with "RESTRICTED RIGHTS." Use, duplication, or disclosure by the Government is subject to restrictions as set forth in FAR52.227-14 and DFAR252.227-7013 et seq. or their successors. Use of the Software by the

Government constitutes acknowledgment of Intel's proprietary rights therein. Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95052.

Xircom WCB5000A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
