Wireless USB Adapter Set
Guide
Reviewer Reference
WWW.CABLESUNLIM ITED. COM
925-609-7550
PAGE 1
C
ONTENTS
Contents .................................................................................. 2
Introduction ............................................................................. 3
Installation and Setup .............................................................. 4
Performance ............................................................................ 5
Use Cases and User Experience ............................................... 7
Multi function Printer .............................................................. 7
External Hard Disk Drive .......................................................... 8
USB Hub ................................................................................... 9
Digital Still Camera (DSC) ....................................................... 10
External DVD/CD Writer ........................................................ 10
iPod ........................................................................................ 11
Card Reader ........................................................................... 11
Digital SLR Camera ................................................................. 12
Multi-Device Connectivity ..................................................... 13
Tested Devices ....................................................................... 14
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 2
I
NTRODUCTION
The Wireless USB adapter set provides wireless access to existing USB devices. This allows you to place USB devices
anywhere in the room, free up your table from cable clutter, and enjoy the freedom of wireless mobility with
access to devices.
This document provides a reference review of the adapter set, providing information regarding installation and
setup, the usage scenarios with different USB devices, and the expected performance and range.
Wireless USB PC and device adapters
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 3
I
NSTALLATION AND SETUP
The initial set up of the Wireless USB adapter
set is a standard Windows installation process,
similar to driver installation of USB devices. It
does not require any technical skills or
understanding of wireless technology, and can
be easily performed with the help of the
“Getting Started” leaflet (on the right). The
entire process setup takes 5-7 minutes.
1. The package includes the two adapters, a
table adapter, CD, and power supply.
2. Enter CD and follow instructions to install
drivers & software.
3. Connect the PC adapter to PC.
4. Perform association (pairing) between the PC
adapter and the device adapter. Pairing is
done for security purposes, and is performed
by attaching both adapters simultaneously to
the PC. After a few seconds a message is
displayed that pairing is complete.
5. Remove the device adapter from the PC and
place it in the table adapter.
6. Attach a USB cable to connect a USB device
(e.g, printer, hard disk drive) to the table
adapter.
7. Connect the power supply to the table
adapter.
8. Wireless USB communication is enabled and
the PC can communicate with the USB device.
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 4
P
ERFORMANCE
The Wireless USB adapter set is based on Ultra-wideband technology, which is a personal area network (PAN)
technology, designed to provide wireless coverage in the range of 10 meters (30 feet). As such, the adapter set
provides full room coverage, both with line of site and with no line of site (note that it is not designed to operate
across rooms). This allows you to locate USB devices in the room without the limitation of the USB cable length.

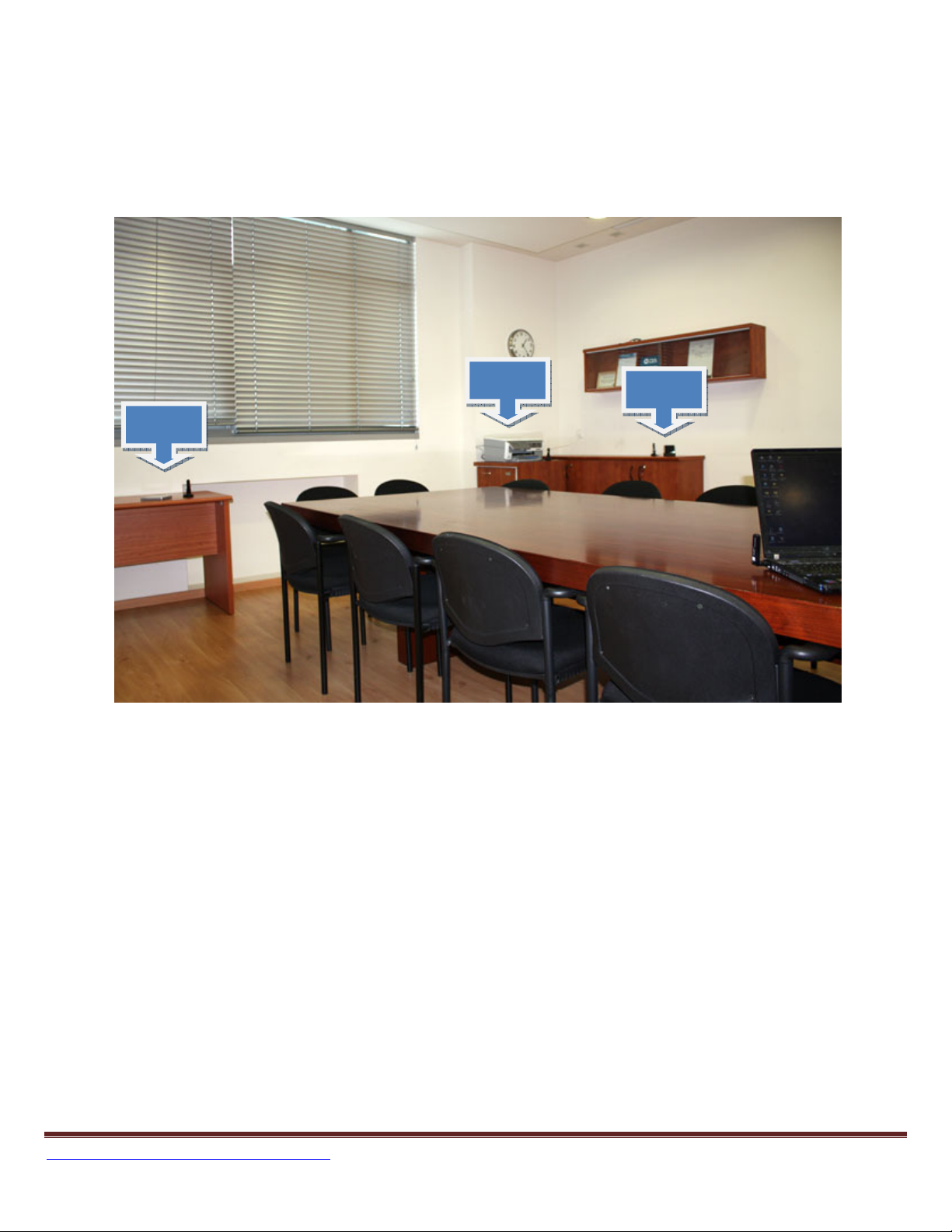

To test performance, the adapter set was used in a large meeting room measuring 10x4 meters (30x12 feet). The
laptop and PC adapter were placed in one side of the room, and each time a different device was placed in the
other side of the room. To verify line of site, and non-line of site behavior, devices were sometimes placed on a
shelf or within a closet, and people were sitting and passing within the wireless link. Performance was not affected
by increasing the range, or by a lack of line of site between adapters.
USB device
USB device
location 1
Link establishment was tested by exiting the room with the laptop to intentionally break the wireless link between
the notebook and an external hard disk drive. Then, once returning to the room, the wireless link was
automatically re-established, enabling connectivity to the hard drive, without requiring any involvement. This
simulates a common scenario where your notebook is connected to a peripheral device and you leave the room
with the notebook, returning after a while. With wired USB you have to disconnect and connect devices, while
with Wireless USB the adapter set automatically re-connects you to the device once back in range, with no further
action.
location 2
USB device
location 3
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 5
Link robustness was tested using a thumb drive (flash), as it proved as a stable device. Testing was performed
ausing a variety of methods, as described below:
• Blocking inside the link. Device adapter was blocked for 30 seconds by placing both hands over the
adapter to break the link. After removing hands, the connection recovered automatically. Same was
performed with the PC adapter.
• The PC adapter was taken out of the PC and then plugged back. The link was re-established automatically.
• The device adapter was taken out of its table stand and then returned after several seconds. The link was
re-established automatically.
• The device power cable was removed from the table stand and then returned after several seconds. The
link was re-established automatically.
• The PC was switched each time to a different power management state - shut down, reset, hibernate and
standby. After returning back to operating mode, the wireless link was established automatically in each
of these scenarios.
Data rate was measured with a variety of USB devices:
• With the majority of devices (such as camcorders, digital cameras), Wireless USB achieved at least 45% of
wired connection.
• With some devices, such as printers and DSLR cameras, Wireless USB provided a throughput that was
almost identical to wired USB. (Printers: 80-90% of wired, DSLR: 81% of wired).
• Hard Drives were the fastest USB 2.0 type of devices. The measured throughput with Wireless USB was
close to ~ 70Mbs which was roughly ~ 28% of the wired throughput.

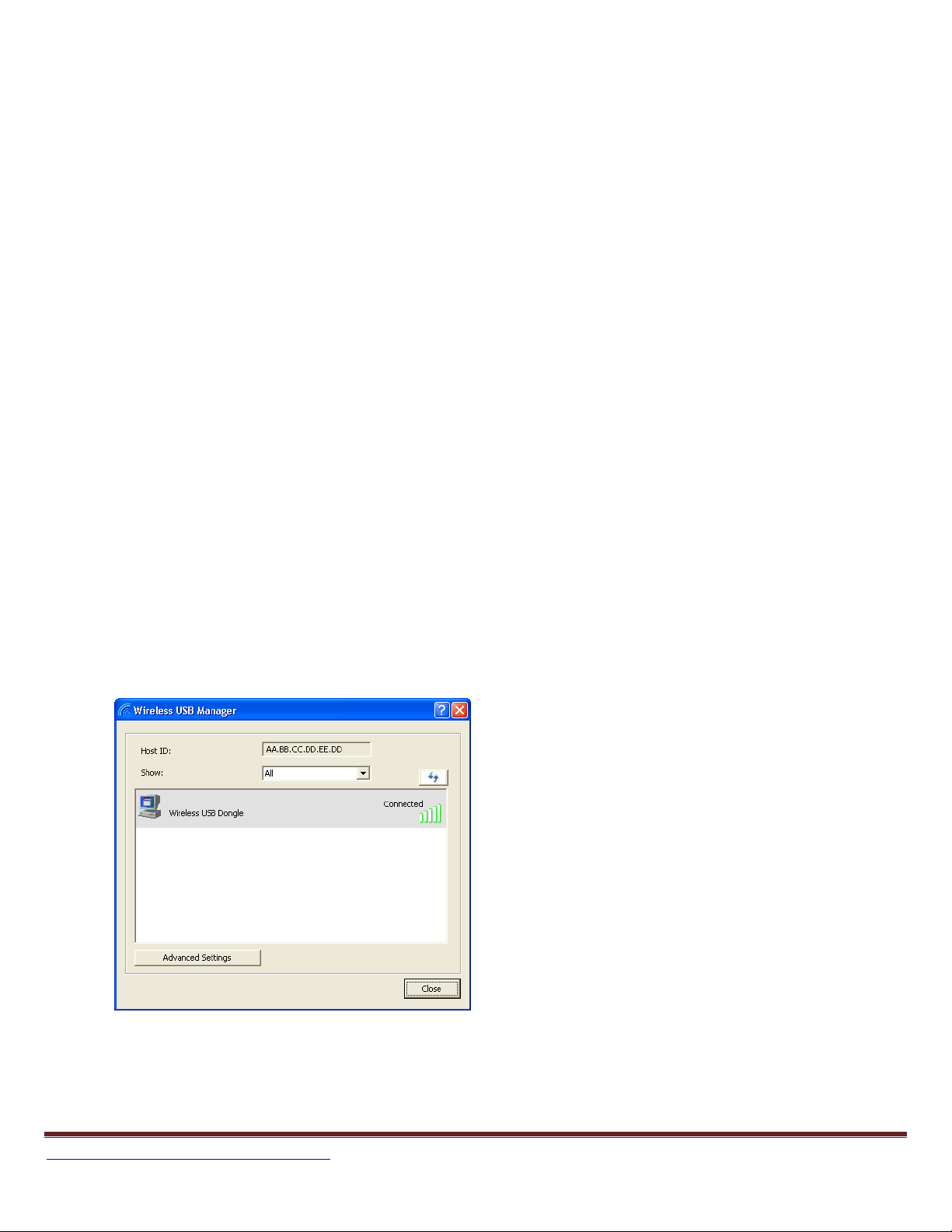

Wireless USB Management screen displaying link connectivity
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 6
U
SE CASES AND USER EXPERIENCE
The following section outlines the testing performed with different types of USB devices, illustrating the use case
and describing the measured performance.
M
ULTI FUNCTION PRINTER

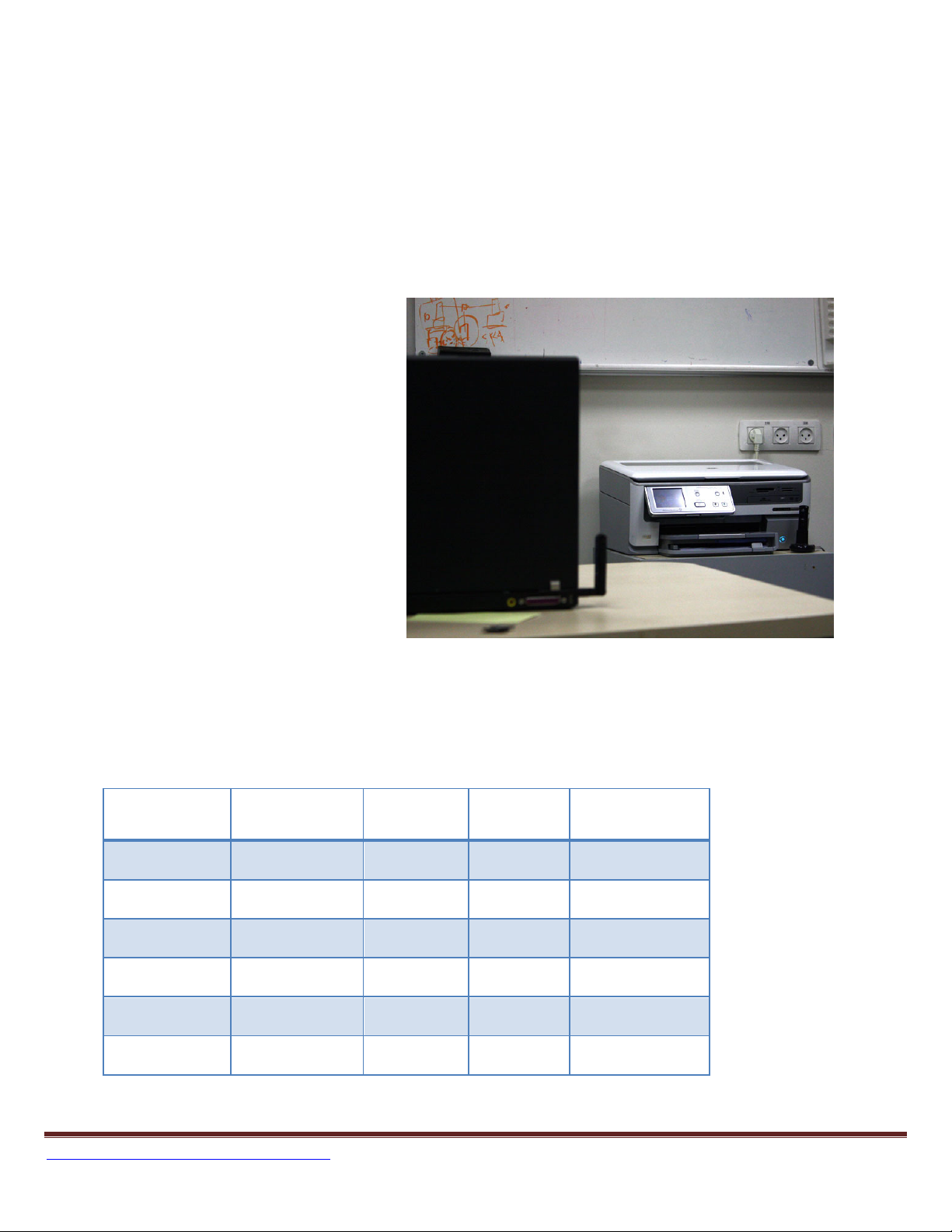

Testing was performed first with a USB
cable, then with the adapter set, connected
to an HP All-in-One printer (model C8180).
For wireless, the printer was placed in one
side of a meeting room, and files were sent
to print from a laptop, while sitting at the
other side of the room. In addition, testing
was performed for wirelessly scanning and
reading data from the printer’s built-in card
reader.
Two measurements, commonly used by the
print industry, were used: first page out
(measuring the time from sending the file
from the printer till the first page completes
printing) and Pages per Minute (PPM).
The table below shows that there was hardly any difference in user experience between wired and Wireless USB
connectivity. Also note that wireless performance remains the same when increasing the distance from 3 meters
to 8-10 meters.
M
UL TI-FUNCTION PRI NTE R
(HP ALL-IN-O
NE
C8180) T
EST R ESU LTS
Test file Wired / Wireless First Page
out [Sec]
Color wired 11 27.5 14.55
wireless (3m) 11.4 28.8 13.79
Wireless (8m) 12.3 29.5 13.95
Black/White wired 10.5 52.8 12.77
wireless (3m) 11.3 54.8 12.41
Wireless (8m) 12.2 58.5 11.66
Total Print
Time [Sec]
Pages Per Minute
(PPM)
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 7
The multi-function printer was also tested with wireless scanning and reading data from the built-in card reader.
E
XTERNAL HARD DISK DRIVE
A Maxtor OneTouch™ Mini III hard
drive was connected to the Wireless
USB device adapter and the following
scenarios were tested:
Wired vs. Wireless throughput
comparison. Moving 1GB of data (a
folder containing video files) from the
PC to the hard drive took 180 seconds
with the adapter set over the Wireless
USB link, vs. 48 seconds with wired
USB.
Link disconnect/connect. Exiting the
room with the laptop forced the
wireless link to disconnect. Then, after
entering the room, the link was automatically re-established and the disk was again available—without any user
involvement.

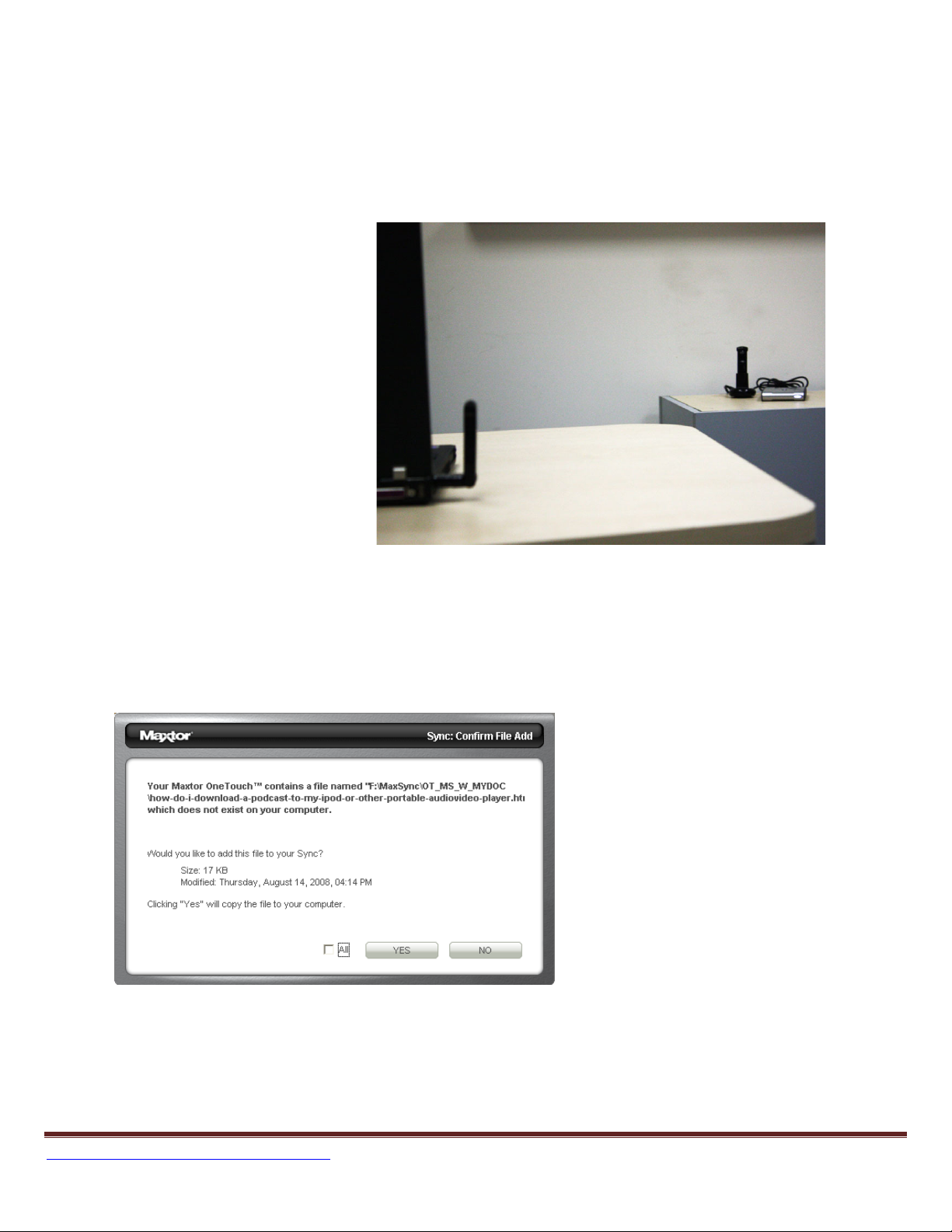

Automatic backup. The EasyManage™ software provided with the Maxtor disk, together with the OneTouch
backup, enabled entering the room with the laptop, automatically being connected to the hard disk drive, and
receiving a popup message on the need to backup a new file that was added to the PC but was not moved yet to
the hard disk.
In this usage scenario, the wireless connectivity enables a more user friendly backup process, which is initiated
automatically. In addition, backup is performed in small increments, each time new data is added to the PC,
without the need to physically connect to the hard disk each time.
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 8
USB HUB

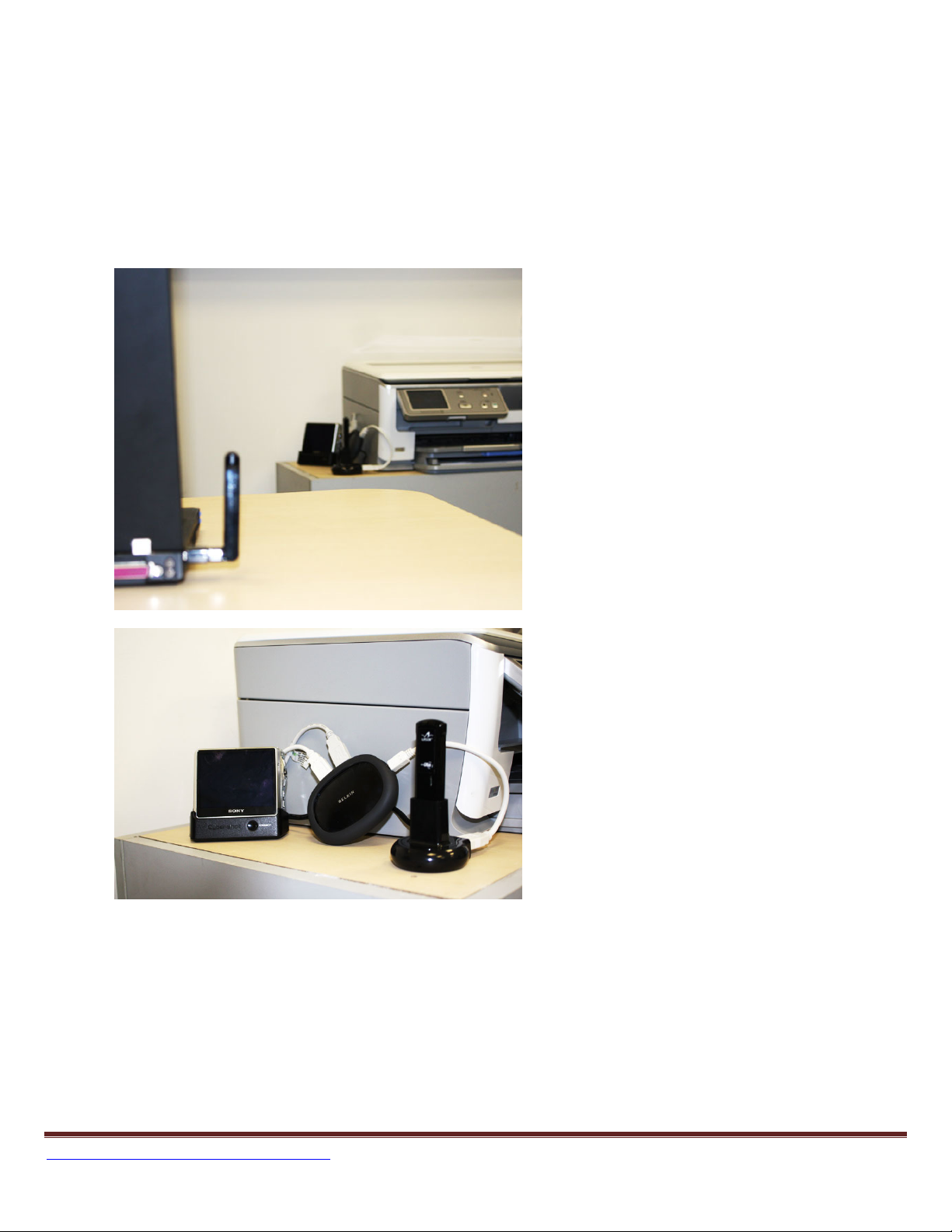

USB hub testing was performed by attaching the device adapter to the upstream port of a Belkin 4-port hub, as can
be seen in the photos below.
Then, a multi-function printer and digital camera were attached to the hub. This provided wireless access to all
devices from a laptop. When existing and returning back to the room, all devices became available for access.
Performance was not affected by the existence of multiple devices, and depended on the specific type of device
connected. Since wireless connectivity was already established with the ‘wireless hub’, different devices could be
attached each time to the hub for wireless access.
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 9
D
IGITAL STILL CAMERA
A Sony Cyber-shot DSC-G1 digital camera
was placed in its cradle in one side of the
room. The Wireless USB device adapter
was then connected to the cradle.
Using a laptop with an adapter, photos
were uploaded from the camera.
Transferring 400 Mb took 140 seconds
over the wireless connection vs. 65
seconds with the cradle connected with
a USB cable.
E
XTERNAL
DVD/CD W
(DSC)
RITER
With new laptops being sold without a
built-in CD/DVD, Wireless USB enables
placing the external CD/DVD player
anywhere in the room with wireless
access.
Testing was done with a Panasonic LFP968C portable DVD with read/write
operations performed wirelessly.
Reading 1GB of data from the player took
5:15 minutes with wireless, compared to
4 minutes with a wired USB connection.
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 10

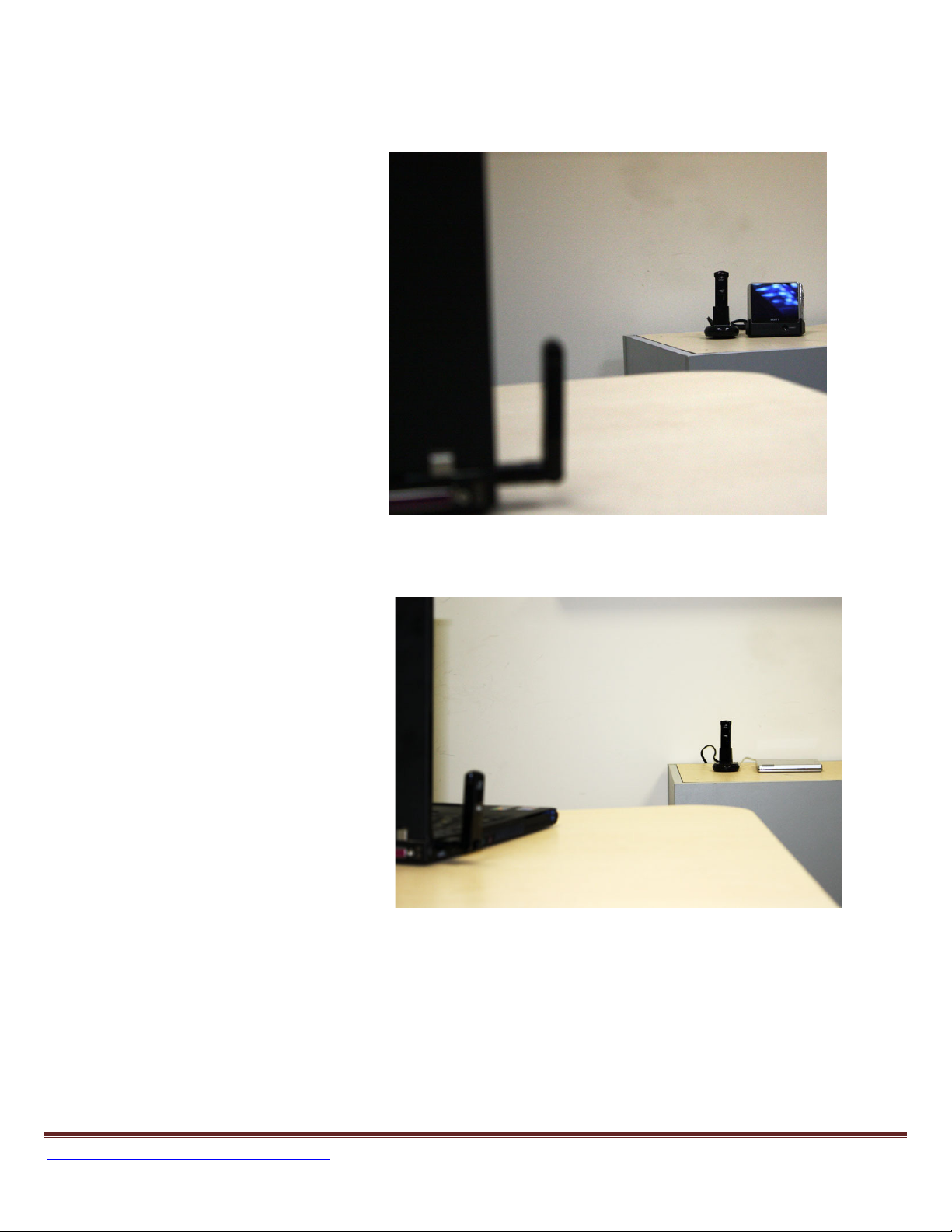

IPOD
Using the adapter set, music files
or podcasts can be synchronized
wirelessly while the iPod is placed
away from the computer.
For instance, when the iPod is
placed in a docking station,
music/podcasts can be played from
speakers, while the iPod is charged.
At the same time, content can be
synchronized wirelessly with
iTunes installed on a PC placed at
the other side of the room.
To test iPod connectivity, 100 MB
of MP3 music files (23 songs) were
downloaded from the web to
iTunes and were synched to the
iPod.
C
ARD READER
With a card reader connected to
the device adapter, content can be
read or written from multiple
memory cards.
Reading 250 MB from an SD-card
placed in an Elcom MR-DU2A7BK
card reader took 111 seconds with
a wireless connection compared to
42.5 seconds with the wired
connection.
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 11
D
IGITAL

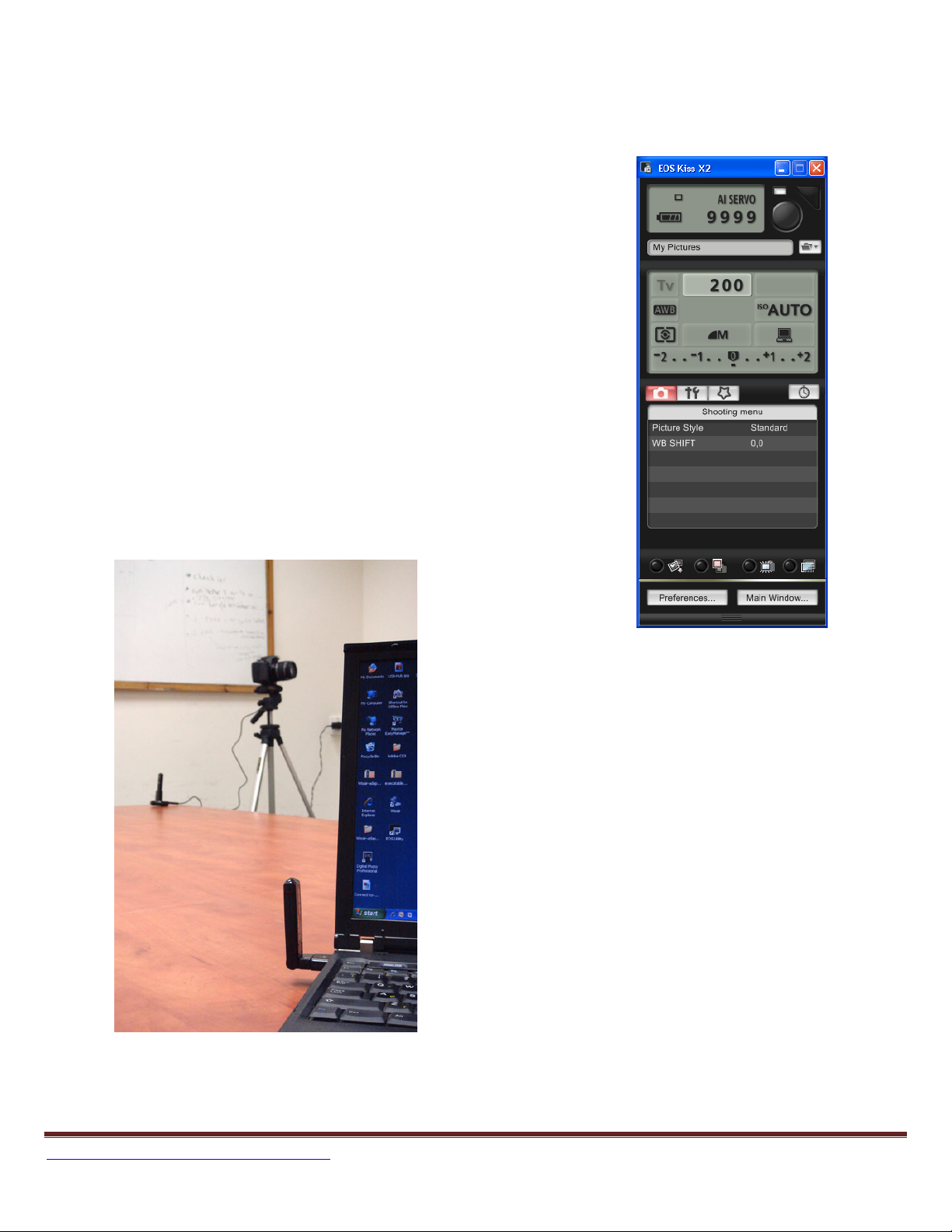

With Wireless USB the camera can be placed on a shelf, away from the desk or
laptop, and be wirelessly accessed for downloading photos. In addition, Wireless
USB can be used for remote shooting. DSLR cameras like Canon or Nikon are
supplied with software that allows shooting remotely from the PC (see image on
right). The limitation of this scenario with standard USB is the short USB cable
connecting the PC to the camera.
By connecting the camera to the device adapter, shooting and photo transfer
can be done wirelessly, with the PC placed up to 10 meters from the camera.
To test this with Wireless USB, a Canon EOS KissX2/ 450D camera was placed on
a tripod in one side of a meeting room, connected to a device adapter. A laptop
with the PC adapter was then used in the other side of the room to wirelessly
take photos and instantly view the photo on the PC.
Viewing photos wirelessly is instant, without any noticeable difference between
wired and wireless. Downloading larger data chunks (200 MB) took 120 seconds
with a wireless connection and 98 seconds with a wired connection (translating
to 81% when comparing wireless data throughput to wired).
SLR C
AMERA
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 12
M
ULTI-DEVICE CONNECTIVITY
The adapter set supports simultaneous connectivity to up to 3 devices - for example, a printer, hard drive, and
camera. This requires each of the devices to be connected to a device adapter – as can be seen in photo below.
Printer
CD/DVD
In testing performed with 3 external disk drives connected simultaneously, each of the disks provided a throughput
of 35 Mbps, for a total of over 100 Mbps.
Camera
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 13
T
ESTED DEVICES
The following lists some of the devices that were tested with the Wireless USB adapter set.
Printers
HL-5250DN Laser Printer Brother Printer PRI021/SW Hewlett Packard 980Cxi
PIXMA iP4200 Canon Printer PRT001/SW Hewlett Packard 995c
Canon PIXUS 560i Canon Printer PRT016/SW DELL Photo Printer 720
i905D Canon Printer SWT DELL LaserPrinter 1110
i475D Canon Printer PRI014/SW Canon S100
Stylus Photo 915 Epson Printer PRT024/ECO EPSON C66 Inkjet Printer
PictureMate Epson Printer PRT025/ECO EPSON Stylus Photo R200 Inkjet Printer
PM-970C Epson Printer PRI019 Hewlett Packard Photosmart D7260
OfficeJet 7210 Printer Hewlett Packard Printer ECO Epson Stylus Color 880
HP Deskjet 5160 HP Printer ECO Samsung ML-1750
Officejet 7140xi HP Printer ECO Hewlett Packard Photosmart C4340
Officejet 7130 HP Printer ECO Hewlett Packard Deskjet D1530
Photosmart 7960 HP Printer HP LaserJet 1000 Series
PSC 2410 HP Printer HP 930C
LaserJet 1020 HP Printer DELL Photo All In One 962
P707 Color Jetprinter LEXMARK Printer HP Color Laser 3600n
SCX-4100 SamSung Printer ECO EPSON Stylus Color 740 (110V)
Z816 Color Jetprinter LEXMARK Printer PRT003 Hewlett Packard 3320
ML-2250 SamSung Printer Hewlett Packard PRT018/SW 825C
Hewlett Packard HWT LaserJet 3390 PRT019/SW Hewlett Packard 845C
Hewlett Packard PRT018/SW 825C ECO EPSON Stylus Color 740 (110V)
PRT003 Hewlett Packard 3320
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 14
Hard Disk Drives
HDH-U250S I-O DATA USB HDD External USB HDD Eminent EM7053 300GB
HD-H250U2 Buffalo USB HDD iomega LPHD080-C
EDGDC-196318-PE DiskGO Edge USB HDD Iomega MiniMax HD
HDC-U250 I-O DATA USB HDD Freecom Classic SL Network Drive 160G
HAD-iU40 I-O DATA USB HDD Fujitsu Dynadisq
Zipper Black KZD-4U Kanguru Solutions USB HDD SimpleTech
Safe Mobile Hard Drive fingerprint access
LACIE USB HDD Maxtor One Touch
d2 Hard Drive Extreme with Triple Interface
(300790U) LACIE USB HDD I-O DATA HDPG
ST3160026A-RK Seagate USB HDD Verbatim HDD 250G
ST940801U2-RK Seagate USB HDD HDC-UXW320 I-O DATA USB HDD
ST650211 USB 2.0 Pocket Hard Drive
Seagate USB HDD Western Digital Passport 160GB
ST3200823A-RK Seagate USB HDD LACIE 80GB
MyBook Premium ES Edition WD3200F032 Western
Digital USB HDD
HDMK3006GAL-EXS Toshiba USB HDD
MP3 Player s
Flash Stick Advanced MP3 1GB Acer Media Player LYRA PDP6512K THOMSON Media Player
YP-U2X SamSung Media Player F-Drive MP3 512MB GEMBIRD Media Player
MEGA Player 549 MSI Media Player DMP FX200 Creative Media Player
NW-E003 SONY Media Player T20MT 1GB iriver Media Player
MP-350 TEAC Media Player YP-Z5Z SamSung Media Player
SV-SD300 Panasonic Media Player FY800 MPIO Media Player
SA1100 PHILIPS Media Player POCKETDV M2 AIPTEK Media Player
MyBook Pro Edition WD2500E32
Western Digital USB HDD
Hubs
Adaptec USB 4-port AUH-4000 STD
Xircom USB 4-port PGHUB4
Peracom USB 4-port USB Quad Hub
Compaq USB 4-port / Firewire Hub CPQUSBFW
Entrega USB 2-port Hub2U1S1P + parallel/serial ports
Peracom USB 4-port USB Quad Hub
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 15
Digital Still Cameras
CMEDIA C-2 Zoom OLYMPUS Digital Camera Aiptek PocketCam X
CMEDIA C-4040 Zoom OLYMPUS Digital Camera BTC DSC 3312X
Optio S5i Pentax Digital Camera SeaLife ReefMaster
LUMIX DMC-FX500 Panasonic Digital Camera
DSLR-A350 SONY Digital Camera
PA3615U-1ETC TOSHIBA Digital Photo Frame
Other Devices
USB CD/DVD ROM & FLOPPY drives Freecom USB DVDROM drive FreecomC Classic
USB CD/DVD ROM & FLOPPY drives Iomega ZIP Drive ZIP250
Keyboard Packerd Bell 9201
Keyboard Apple
Mouse Fujitsu SIEMENS M-U69
Mouse Kensington ORBIT USB Trackball 64224
USB - SATA Bridges Oxford Semiconductor USB To SATA
USB - SATA Bridges Oxford Semiconductor USB To 2xSATA (2xFirewire B / 1xFirewire A /
SATA RAID incl.)
Card Reader Dazzle* USBHS SD Reader (swivel)
Card Reader MSAC-US20 Sony MagicGate Pro
Other Canon CanoScan
Home access gateway FastWeb HomeAccesGateway (HAG)
Smartcard Reader Athena Smartcard Reader
Other Q-stor IR - Dongle QIRA2
Keyboard TK-UP01MALBK Elecom Keyboard
Mouse M-N2UGY Elecom Mouse
Mouse BBMU-SSV Buffalo Mouse
Pen Drive MF-AU2 Series USB 2.0 Flash Drive Elecom Pen Drive
Pen Drive Dragonstick Hama Pen Drive
Card Reader Reader/Writer(F5U249) Belkin Card Reader
Card Reader USB 2.0 Card Reader MCR-6U/U2 Buffalo Card Reader
Card Reader USB CF&MD&SM Card Reader USB-3BRW I-O DATA Card Reader
Game Device DUAL ACTION 2 Logitech Game Device
Storage Drive DVDRW16XU2 Iomega DVD+-RW (DVD-Multi)
Storage Drive USB-FDX1 I-O DATA Floppy
Wired Wirless LAN LUA-TX Buffalo Wired Lan
Game Pad no strama SpeedPad52
Card Reader MediaGear USB2.0 Bay Reader (multi card reader)
Mobile phone Nokia E61
Mobile phone Nokia N95
SATA to USB Bridges Coolgear SATA to USB 2.0
DVD writer Buffalo DVD writer
Card Reader I-O Multi card reader
Card Reader Multi Memory Card USB 2.0 Reader Writer
WWW.CABLESUNLIM ITED. COM 925-609-7550 PAGE 16
Loading...
