Micro-IP Camera type cube
XIP-Q01 LEOPARD
User’s Manual
Ver. 1.2
1
Table of Contents
1. Overview ................................................................................................................................ 2
1.1 Features ...................................................................................................................... 2
1.2 Package Contents ....................................................................................................... 3
1.3 Dimensions .................................................................................................................. 4
1.4 Connectors .................................................................................................................. 5
2. Camera Cabling ..................................................................................................................... 6
2.1 Connect Power ............................................................................................................ 6
2.2 Connect Ethernet Cable............................................................................................... 6
2.3 Connect Alarm I/O ....................................................................................................... 6
3. System Requirements .......................................................................................................... 7
4. Access Camera ..................................................................................................................... 8
5. Setup Video Resolution ...................................................................................................... 11
6. Configuration Files Export / Import ................................................................................... 12
Appendix A: Technical Specifications ................................................................ ...................... 13
Appendix B: Delete the Existing DC Viewer .............................................................................. 17
Appendix C: Setup Internet Security ......................................................................................... 18
2
1. Overview
The Micro-camera IP type bucket full HD LEOPARD, Camera is an easy setup
camera with PoE supported to reduce complicate cabling. The IP Camera has
built-in microphone and speaker which allows two-way audio communication.
2 Megapixel Resolution is supported for providing high definition images. Quad
Streams Compression (H.264 Baseline / Main / High Profile + MJPEG) are
available for efficient bandwidth and storage management. For low light
situations, the IP Camera has incorporated Day/Night ICR technologies to
capture clear images.
1.1 Features
Progressive Scan CMOS Sensor
2M Resolution
Quad Stream Support
Dual stream- Full HD 1080P Real-Time + D1 Real-Time
Quad Stream Compression- H.264 Baseline / Main / High Profile + MJPEG
Multi-language Support
Wide Dynamic Range
Built-In Microphone and Speaker*
Motion Detection
Privacy Masks
Smart Picture Quality / 3D Noise Reduction
Smart IR Mode
Day/Night (ICR)
IR LED Module (working distance up to 5m)*
microSD Support
ONVIF Support
(*) Optional
3
1.2 Package Contents
Please check the package contains the following items listed below.
Full HD Multiple Stream
Micro-camera IP LEOPARD (PoE)
Quick Guide
CD
(bundled software and documentation)
4
1.3 Dimensions
The dimensions of the IP Camera are shown below.
5
1.4 Connectors
The diagrams below show the connectors of the IP Camera. Definition for each
connector is also given as follows.
No.
Connector
Definition
1
PoE NETWORK
For Ethernet cable and PSE connection
2
Network LEDs
Network connection and activity indication
3
DC 12V Connector
For power connection
4
Alarm I/O
1
Alarm Output +
2
Alarm Output −
3
Alarm Input +
4
Alarm Input −
5
microSD Card Slot
For videos and snapshots storage
6
Default Button
Press the button with a proper tool for at least 20 seconds to
restore the system.
6
2. Camera Cabling
Please follow the instructions below to complete IP Camera connection.
2.1 Connect Power
For power connection, please refer to section Connectors. Alternatively, users
can power the camera by PoE. Use an Ethernet cable and connect it to the
camera and a PoE switch.
NOTE: If PoE is used, make sure Power Sourcing Equipment (PSE) is in
used in the network.
2.2 Connect Ethernet Cable
To have best transmission quality, cable length shall not exceed 100 meters.
Connect one end of the Ethernet cable to the PoE Network connector of the IP
Camera, and plug the other end of the cable to the network switch or PC.
NOTE: In some cases, Ethernet Crossover cable might be needed when
connecting the IP Camera directly to the PC.
Check the status of the link indicator and activity indicator LEDs. If the LEDs are
unlit, please check the LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
2.3 Connect Alarm I/O
The camera equips one alarm input and one relay output for alarm application.
Refer to alarm pin definition below to connect alarm devices to the IP Camera if
needed.
PIN 1: Output +
PIN 2: Output −
PIN 3: Input +
PIN 4: Input −
7
3. System Requirements
To perform the IP Camera via web browser, please ensure the PC is in good
network connection, and meet system requirements as described below.
Items
System Requirement
Personal Computer
1. Intel® Pentium® M, 2.16 GHz or
Intel® CoreTM2 Duo, 2.0 GHz
2. 2 GB RAM or more
Operating System
Windows VISTA / Windows XP / Windows 7
Web Browser
Microsoft Internet Explorer 6.0 or later
Firefox
Chrome
Safari
Network Card
10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation
Viewer
ActiveX control plug-in for Microsoft IE
8
4. Access Camera
For initial access to the IP Camera, users can search the camera through the
installer program: DeviceSearch.exe, which can be found in “DeviceSearch”
folder in the supplied CD.
Accessing the Camera by Device Search Software
Step 1: Double click on the program Device Search.exe.
Step 2: After its window appears, click on the <Device Search> button on the
top. All the finding IP devices will be listed in the page.
Step 3: Find the camera in the list by its IP address and click on it. The default
IP address of the camera is: 192.168.0.250.
Step 4: The default IP address of the camera may not be in the same LAN as
the IP address of the PC. If so, the IP address of the camera needs to
be changed. Right click on the camera and click <Network Setup>.
Meanwhile, record the MAC address of the camera, for future
identification.
Step 5: The <Network Setup> page will come out. Select <DHCP> and click
<Apply> down the page. The camera will be assigned with a new IP
address.
Step 6: Click <OK> on the Note of setting change. Wait for one minute to
re-search the camera.
Step 7: Click on the <Device Search> button to re-search all the devices. Find
the camera in the list by its MAC address. Then double click or right
click and select <Browse> to access the camera directly via a web
browser.
9
Step 8: A prompt window requesting for default username and password will
appear. Enter the default username and password shown below to
login to the camera.
Login ID
Password
Admin
1234
NOTE: ID and password are case sensitive.
NOTE: It is strongly advised that administrator’s password be
altered for the security concerns. Refer to Full HD Multiple
Streams IP Camera Menu Tree for further details.
Installing DC Viewer Software Online
For initial access to the IP Camera, a client program, DC Viewer, will be
automatically installed on the PC when connecting to the IP Camera.
If the Web browser does not allow DC Viewer installation, please check the
Internet security settings or ActiveX controls and plug-ins settings (refer to
chapter Appendix C: Setup Internet Security) to continue the process.
The Information Bar (just below the URL bar) may come out and ask for
permission to install the ActiveX Control for displaying video in browser. Right
click on the Information Bar and select <Install ActiveX Control…> to allow the
installation.
The download procedure of DC Viewer software is specified as follows.
Step 1: In the DC Viewer installation window, click on <Next> to start
installation.
Step 2: The status bar will show the installation progress. After the installation
is completed, click on <Finish> to exit the installation process.
Step 3: Click on <Finish> to close the DC Viewer installation page.
10

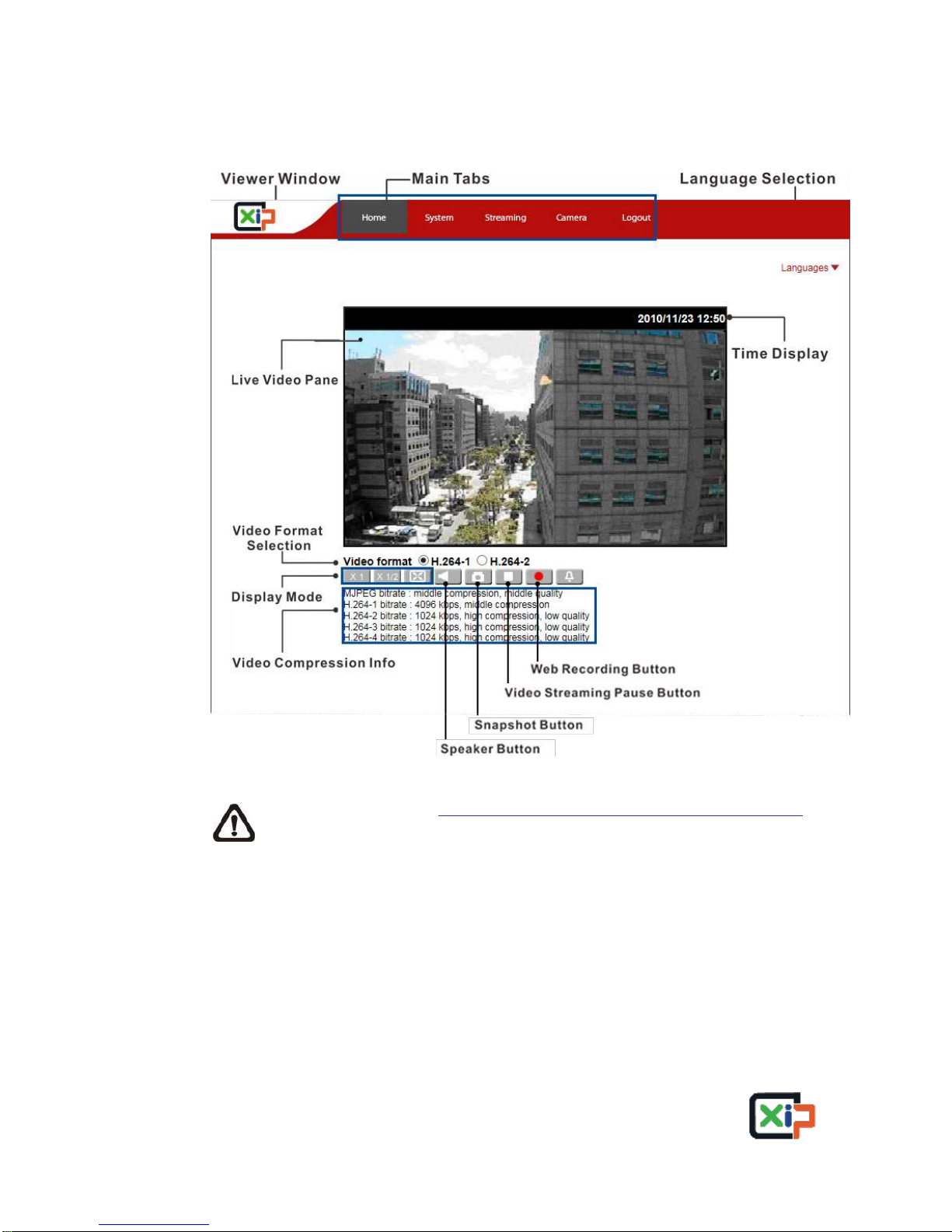

Once the DC Viewer is successfully installed, the IP Camera’s Home page will
be able to correctly display as the figure below.
Note: Please refer to Full HD Multiple Stream IP Camera Menu Tree for
more button function detail.
11
5. Setup Video Resolution
Users can setup video resolution on the Video Format page of the user-friendly
browser-based configuration interface.
Video Format can be found under this path: Streaming> Video Format.
The default value of video resolution is as below.
2M
H.264- 1920 x 1080 (30 fps) + H.264- 720 x 480 (30 fps)
For more video resolution combination details, please refer to Full HD Multiple
Stream IP Camera Menu Tree.
12
6. Configuration Files Export / Import
To export / import configuration files, users can access the Maintenance page
on the user-friendly browser-based configuration interface.
The Maintenance setting can be found under this path: System> Maintenance.
Users can export configuration files to a specified location and retrieve data by
uploading an existing configuration file to the IP Camera. This is especially
convenient to make multiple cameras having the same configuration.
Export
Users can save the system settings by exporting the configuration file (.bin) to a
specified location for future use. Click on the <Export> button, and the popup
File Download window will come out. Click on <Save> and specify a desired
location for saving the configuration file.
Upload
To upload an existing configuration file to the IP Camera, please first click on
<Browse> to select the configuration file, and then click on the <Upload> button
for uploading.
13
Appendix A: Technical Specifications
Camera
2M
Image Sensor
1/2.7” Progressive CMOS
Effective Pixels
1920 (H) x 1080 (V)
Minimum Illumination
TBD
White Balance
Manual / AWB / ATW
Shutter Speed
1 ~ 1/10000 sec.
Lens
Focal Length
2.8 mm / 3.6 mm / 4.0 mm
F Number
2.8 mm- F2.0 / 3.6 mm- F1.8 / 4.0 mm- F1.5
Operation
Multiple Languages
English / French / German / Italian / Korean / Simplified Chinese /
Traditional Chinese / Russian / Portuguese / Spanish / Japanese
Image Setting
Backlight Compensation
On / Off
White Balance
Auto / Manual / ATW / One Push
Noise Reduction (3D)
On / Off
Wide Dynamic Range
On / Off
Privacy Mask
On / Off
Brightness
Manual
Exposure
Auto / Manual
Sharpness
Manual
Contrast
Manual
Saturation
Manual
Hue
Manual
Digital Zoom
Support
Motion Detection
On / Off / By Schedule
Privacy Mask Type
Color
ICR
Auto / On / Off / Smart
ICR + IR LED*
Auto / LED On / LED Off / Smart IR / Light Sensor
Tampering Alarm
On / Off / By Schedule
Audio
Two-way Audio
Built-In Microphone and Speaker*
Compression
G.711 / G.726
Network
Interface
RJ-45, 10/100 Mbps
Video Compression
H.264 (MJPEG-4 Part 10 / AVC) / MJPEG
Video Streaming
Dual Streams- H.264 + H.264 / H.264 + MJPEG
Quad Streams- H.264 x 4 / H.264 x 3 + MJPEG
Video Resolution
H.264- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
MJPEG- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
Frame Rate
Single Stream- 1080P (25/30 fps)
Dual Streams- 1080P (13/15 fps) + 720P (25/30 fps)
Protocol
IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP,
DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF, ARP
Security / Authorization
HTTPS / IP Filter / IEEE 802.1X
Alarm
Input
1 Set, 5V 10kΩ pull up
Output
1 Set, Photo Relay Output 300V DC/AC
Event Notification
HTTP / FTP / SMTP
microSD
microSDHC 32GB support
Supported Web Browser
Internet Explorer (6.0+) / Chrome / Firefox / Safari
User Account
20
Password Levels
User and Administrator
Mechanical
Built-in IR
Illuminator*
Working distance
up to 5 m
Wavelength
850 nm
Number of LEDs
2
Power Connection
PoE / DC Jack
LED Indicator
Power / Link / ACT
Connectors
Alarm
4 Pin Terminal Block (Female)
14
Power
DC Jack
Ethernet
RJ-45
General
Operating Temperature
-10°C ~ 50°C (14°F ~ 122°F)
Humidity
10% ~ 90%, No Condensation
Dimension
96.5 x 56.0 x 61.4 mm (3.8 x 2.2 x 2.4 in.)
Weight
120 g
Power Source
PoE / DC 12V
Power
Consumption
System
3 W
Built-In IR Illuminator
+0.8 W
Regulatory
CE / FCC / RoHS
(*) Optional
15
Camera
2M Real-Time
Image Sensor
1/2.7” Progressive CMOS
Effective Pixels
1920 (H) x 1080 (V)
Minimum Illumination
TBD
White Balance
Manual / AWB / ATW
Shutter Speed
1 ~ 1/10000 sec.
Lens
Focal Length
2.8 mm / 3.6 mm / 4.0mm
F Number
2.8mm- F2.0 / 3.6 mm- F1.8 / 4.0mm- F1.5
Operation
Multiple Languages
German / English / Spanish / French / Italian / Japanese / Korean /
Portuguese / Russian / Simplified Chinese / Traditional Chinese
Image Setting
Backlight Compensation
On / Off
White Balance
Auto / Manual / ATW / One Push
Noise Reduction (3D)
On / Off
Wide Dynamic Range
On / Off
Privacy Mask
On / Off
Brightness
Manual
Exposure
Auto / Manual
Sharpness
Manual
Contrast
Manual
Saturation
Manual
Hue
Manual
Digital Zoom
Support
Motion Detection
On / Off / By Schedule
Privacy Mask Type
Color
ICR
Auto / On / Off / Smart
ICR + IR LED*
Auto / LED On / LED Off / Smart IR / Light Sensor
Tampering Alarm
On / Off / By Schedule
Audio*
Two-way Audio
Built-In Microphone and Speaker*
Compression
G.711 / G.726
Network
Interface
RJ-45, 10/100 Mbps
Video Compression
H.264 / MJPEG
Video Streaming
Dual Streams- H.264 + H.264 / H.264 + MJPEG
Quad Streams- H.264 x 4 / H.264 x 3 + MJPEG
Video Resolution
H.264- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
MJPEG- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
Frame Rate
Dual Streams- 1080P (30/25 fps) + D1 (30/25 fps)
Protocol
IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP,
DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF, ARP
Security / Authorization
HTTPS / IP Filter / IEEE 802.1X
Alarm
Input
1 Set, 5V 10kΩ pull up
Output
1 Set, Photo Relay Output 300V DC/AC
Event Notification
HTTP / FTP / SMTP
microSD
microSDHC 32GB support
Supported Web Browser
Internet Explorer (6.0+) / Chrome / Firefox / Safari
User Account
20
Password Levels
User and Administrator
Mechanical
Built-in IR
Illuminator*
Working distance
up to 5m
Wavelength
850 nm
Number of LEDs
2
Power Connection
PoE / DC Jack
LED Indicator
Power / Link / ACT
Connectors
Alarm
4 Pin Terminal Block (Female)
Power
DC Jack
Ethernet
RJ-45
16
General
Operating Temperature
-10°C ~ 50°C (14°F ~ 122°F)
Humidity
10% ~ 90%, No Condensation
Dimension
96.5 x 56.0 x 61.4 mm (3.8 x 2.2 x 2.4 in.)
Weight
120 g
Power Source
PoE / DC 12V
Power
Consumption
System
3 W
Built-In IR Illuminator
+0.8 W
Regulatory
CE / FCC / RoHS
(*) Optional
17
Appendix B: Delete the Existing DC Viewer
For users who have installed DC Viewer in the PC previously, please first remove the
existing DC Viewer from the PC before accessing to the IP Camera.
Deleting the DC Viewer
In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or
Remove Programs>. In the <Currently installed programs> list, select <DCViewer> and
click on the button <Remove> to uninstall the existing DC Viewer.
Deleting Temporary Internet Files
To improve browser performance, it is suggested to clean up all the files in the Temporary
Internet Files. The procedure is as follows.
Step 1: In the web browser, click on the <Tools> tab on the menu bar and select <Internet
Options>.
Step 2: Click on the <Delete> button under <Browsing history> section. In the appeared
window, tick the box beside the <Temporary Internet Files>.
Step 3: Click on <Delete> to start deleting the files.
18
Appendix C: Setup Internet Security
If ActiveX control installation is blocked, please either set Internet security level to default or
change ActiveX controls and plug-ins settings.
Internet Security Level: Default
Step 1: Start the Internet Explorer (IE).
Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>.
Step 3: Click on the <Security> tab, and select <Internet> zone.
Step 4: Down the page, click on the <Default Level> button, and click on <OK> to confirm
the setting. Close the browser window, and restart a new one later to access the IP
Camera.
ActiveX Controls and Plug-ins Settings
Step 1: Repeat Step 1 to Step 3 of the previous section above.
Step 2: Down the page, click on the <Custom Level> button to change ActiveX controls
and plug-ins settings. The Security Settings window will pop up.
Step 3: Under <ActiveX controls and plug-ins>, set ALL items (as listed below) to
<Enable> or <Prompt>. Please note that the items vary by IE version.
ActiveX controls and plug-ins settings:
1. Binary and script behaviors.
2. Download signed ActiveX controls.
3. Download unsigned ActiveX controls.
4. Allow previously unused ActiveX controls to run without prompt.
5. Allow Scriptlets.
6. Automatic prompting for ActiveX controls.
7. Initialize and script ActiveX controls not marked as safe for scripting.
8. Run ActiveX controls and plug-ins.
9. Only allow approved domains to use ActiveX without prompt.
10. Script ActiveX controls marked safe for scripting*.
11. Display video and animation on a webpage that does not use external media player.
Step 4: Click on <OK> to accept the settings. A prompt window will appear for confirming
the setting changes, click <Yes(Y)> and close the Security Settings window.
Step 5: Click on <OK> to close the Internet Options screen.
Step 6: Close the browser window, and restart a new one later to access the IP Camera.
Loading...
