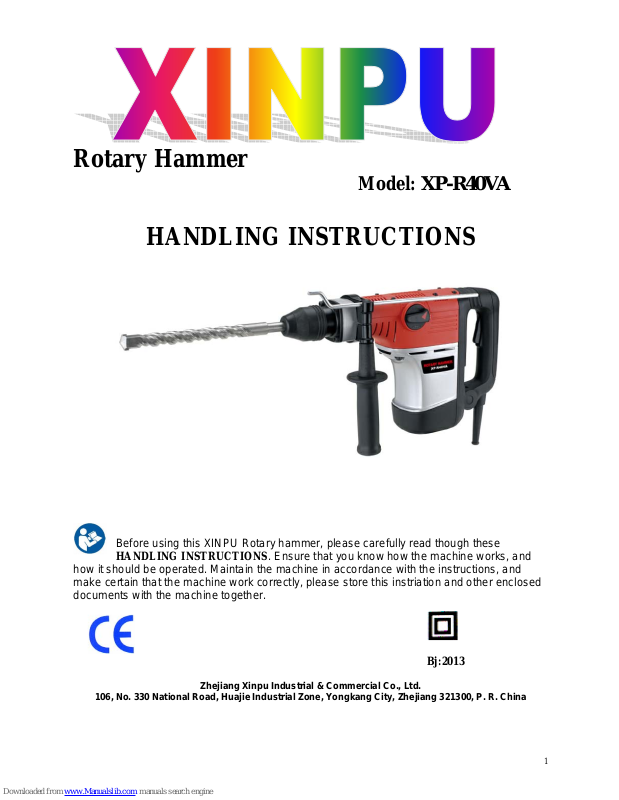

Xinpu XP-R40VA Handling Instructions

1

Rotary Hammer

Model: XP-R40VA

HANDLING INSTRUCTIONS

Before using this XINPU Rotary hammer, please carefully read though these

HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and
how it should be operated. Maintain the machine in accordance with the instructions, and
make certain that the machine work correctly, please store this instriation and other enclosed
documents with the machine together.

Bj:2013

Zhejiang Xinpu Industrial & Commercial Co., Ltd.

106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China

2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

3

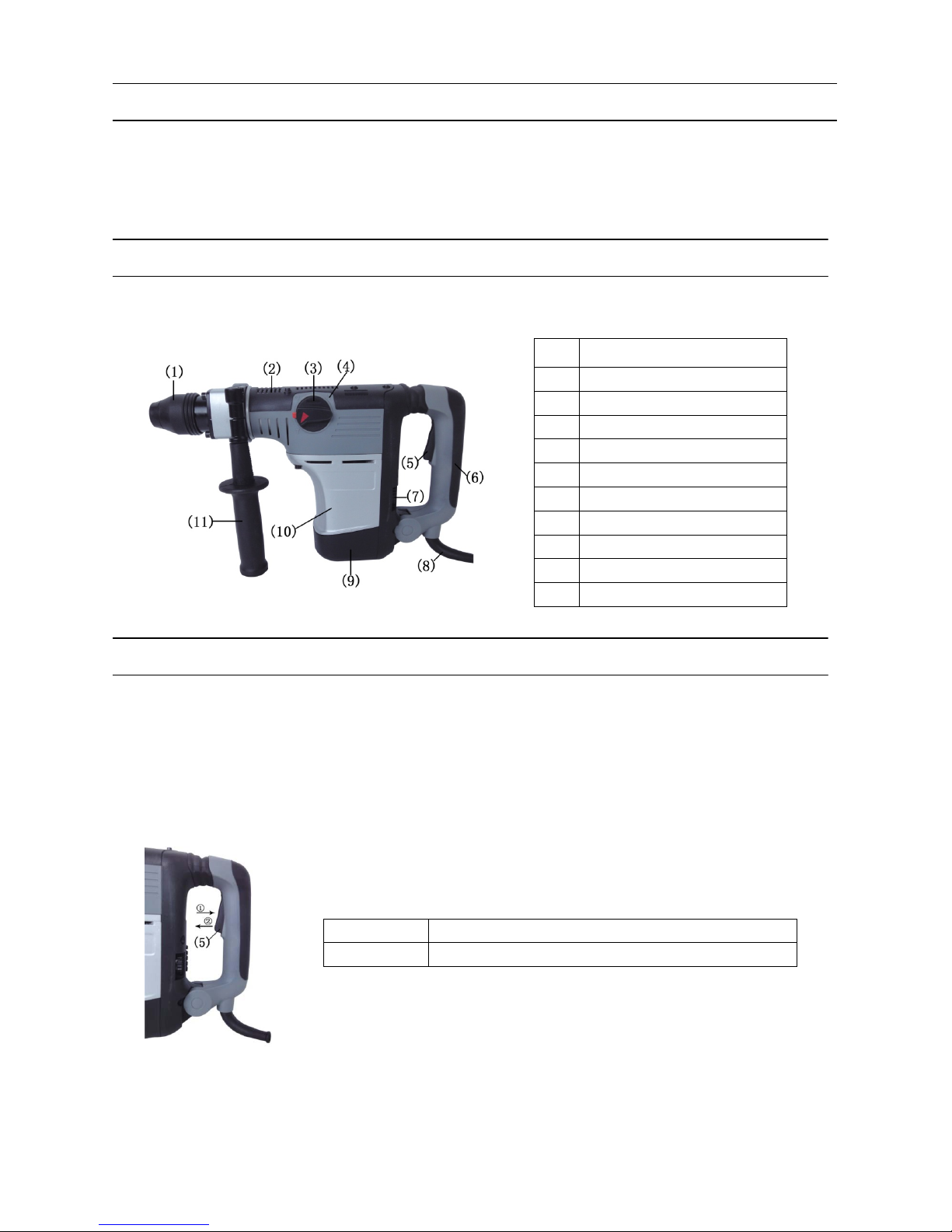

(1) Tool
(2) Part of SDS max shank
(3) Turn Staff Armor
(4) Flex Sheath
(5) Speed Adjuster Knob
(6) locked Pushbutton
(7) Function Knob
(8) Left Cover
(9) Orientation Staff Guage
(10) Side handle
(11) Core bit
(12) Core bit shank
(13) Drill bit
(14) Core bit tip
(15) Oil Tank Cover

4

In this operator's manual/or machine’s labels following symbols are used:

Read the manual carefully.

Accordance with essential applicable safety of European directives.

Double insulation.

Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance
of the instruction in this manual.

Indicate electrical shock hazard.

Immediately unplug the plug from the main electricity in the case that the cord gets
damage and during maintenance.

Wear ear and eye protection.

Faulty and /or discarded electrical or electronic apparatus have to be collected at the
appropriate recycling location.

The guaranteed Noise Value according to Noise Directive.

Safety instructions

5

General Power Tool Safety Warnings

WARNING：

Read all safety warnings and all instructions. Failure to follow all warnings and instructions

may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery

operated (cordless) power tool.

1) Work area

a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or

fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause

you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching

outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges

and refrigerators. There is an increased risk of electric shock if your body is earthed or

grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled

cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tools in a damp location is unavoidable, use a residual current

device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious
personal injury.
