Xinje VB3, VB5, V5 User Manual

Xinje Electronic Co.,Ltd.

VB3/VB5/V5 frequency inverter

User manual

No. INV C 01 20081130 204

VB3/VB5/V5 seires inverter

2

VB3/VB5/V5

Series Inverter

User Manual

Table of Contents

Preface

———————————————

Safty Precautions

———————————————

Product Introductions

———————————————

Installation and Wiring

———————————————

Operation Descriptions

———————————————

Function Parameters

———————————————

Fault Diagnosis and Disposal

———————————————

Maintenance

———————————————

Communication Protocol

———————————————

VB3/VB5/V5 series inverter

This manual includes the basic caution items that you should obey to ensure your personal safety, as well as to protect the
product and the connected equipments. These items are highlighted in the manual by a warning triangle. Please comply
with the essential electric operation `rules that are not indicated in this manual.

Please comply with these items, incorrect operation may cause the system error working even abnormal.
More serious would cause possession loss.

The device and its components can only be used in the applications described in the catalog and the
technical manuals, can only be connected with devices or components from other manufacturers which
have been approved or recommended by Xinje.
The products will run normally in the condition of been transported, stored, configured and installed
correctly, been operated and maintained as recommended.

Xinje Electronic Co., Ltd. Copyright reserved
Without written authority, please do not copy, transfer or use this document and its content. Anyone who disobeys this
should take responsibility for the loss.

Obligation Declare
We have checked and confirmed that the contents in this manual were compatible with the hardware and software de­scribed. Since mistakes are hard to avoid, we cannot promise total accordant. This manual is subject to change without no­tices.

2010.01

Correct Applications

Installing Precautions

VB3/VB5/V5 series inverter

i

CATALOG

PREFACE .......................................................................................................................................1

SAFETY PRECAUTIONS ...............................................................................................................2

1 PRODUCT INSTRUCTION ..........................................................................................................6

1-1. Product overview .............................................................................................................................................................. 6

1-2. Product technical specification ......................................................................................................................................... 7

1-3. Product appearance .......................................................................................................................................................... 9

1-4. Product dimension .......................................................................................................................................................... 12

2 INSTALLATION AND WIRING ..................................................................................................15

2-1. Installation environment ................................................................................................................................................ 15

2-1-1. Environment requirement .......................................................................................................................................... 15

2-1-2. Mounting location and space ..................................................................................................................................... 15

2-1-3. Mounting and removing............................................................................................................................................. 15

2-2. Wiring ............................................................................................................................................................................. 16

2-3. Wiring of main circuit terminals .................................................................................................................................... 16

2-3-1. Wiring diagram ......................................................................................................................................................... 16

2-3-2. Terminal assignment and description .......................................................................................................................... 17

2-4. Basic running wiring ...................................................................................................................................................... 18

2-5. Setting and wiring of control circuit ............................................................................................................................... 18

2-5-1.Position and function of terminals and jumpers on control panel .................................................................................. 18

2-5-2.Terminals on control panel .......................................................................................................................................... 20

2-5-3. Analog I/O terminal wiring ........................................................................................................................................ 22

2-5-4. Connection of communication terminals .................................................................................................................... 23

2-6. Mounting guide according with EMC ............................................................................................................................ 24

2-6-1. Control the noise ....................................................................................................................................................... 24

2-6-2. Local wiring and grounding ....................................................................................................................................... 25

3 OPERATING INSTRUCTIONS ..................................................................................................26

3-1. Run the inverter.............................................................................................................................................................. 26

3-1-1. Command channel of inverter .................................................................................................................................... 26

3-1-2. Frequency setting channel .......................................................................................................................................... 26

3-1-3. Running state ............................................................................................................................................................ 26

3-1-4. Running modes ......................................................................................................................................................... 27

3-2. Use the keyboard ............................................................................................................................................................ 28

VB3/VB5/V5 seires inverter

ii

3-2-1. Keyboard layout ........................................................................................................................................................ 28

3-2-2. Keyboard function ..................................................................................................................................................... 28

3-2-3. Fucntion description of LED and indicator ................................................................................................................. 29

3-2-4. Display of the operation panel.................................................................................................................................... 29

3-2-5. Panel operation method ............................................................................................................................................. 31

3-3. Power on the inverter ..................................................................................................................................................... 33

3-3-1. Checking after power on ............................................................................................................................................ 33

3-3-2. Power on the inverter for the first time ....................................................................................................................... 33

4 FUNCTION PARAMETERS .......................................................................................................35

4-1. Function code .................................................................................................................................................................. 35

4-2. Function code description ............................................................................................................................................... 51

4-2-1. Basic operating function parameters (Group P0) ........................................................................................................ 51

4-2-2. Parameters of frequency setting (Group P1) ............................................................................................................... 56

4-2-3. Starting and braking parameters (Group P2) ............................................................................................................... 57

4-2-4. Auxiliary running parameters (Group P3) ................................................................................................................... 59

4-2-5. Function parameters of terminal (Group P4)............................................................................................................... 64

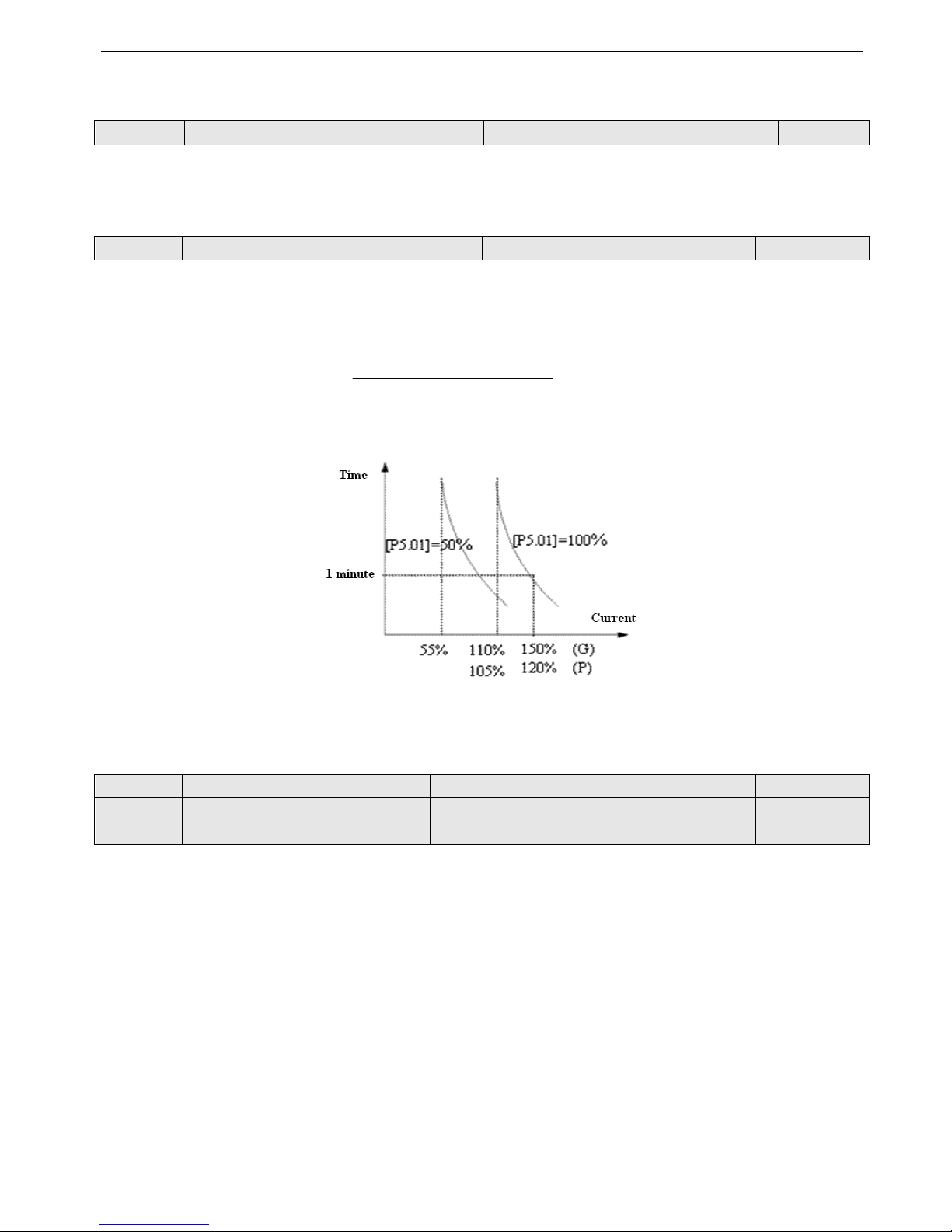

4-2-6. Protection function parameters (Group P5)................................................................................................................. 73

4-2-7. Fault recording parameters (Group P6) ...................................................................................................................... 75

4-2-8. Close-loop control parameters (Group P7) ................................................................................................................. 75

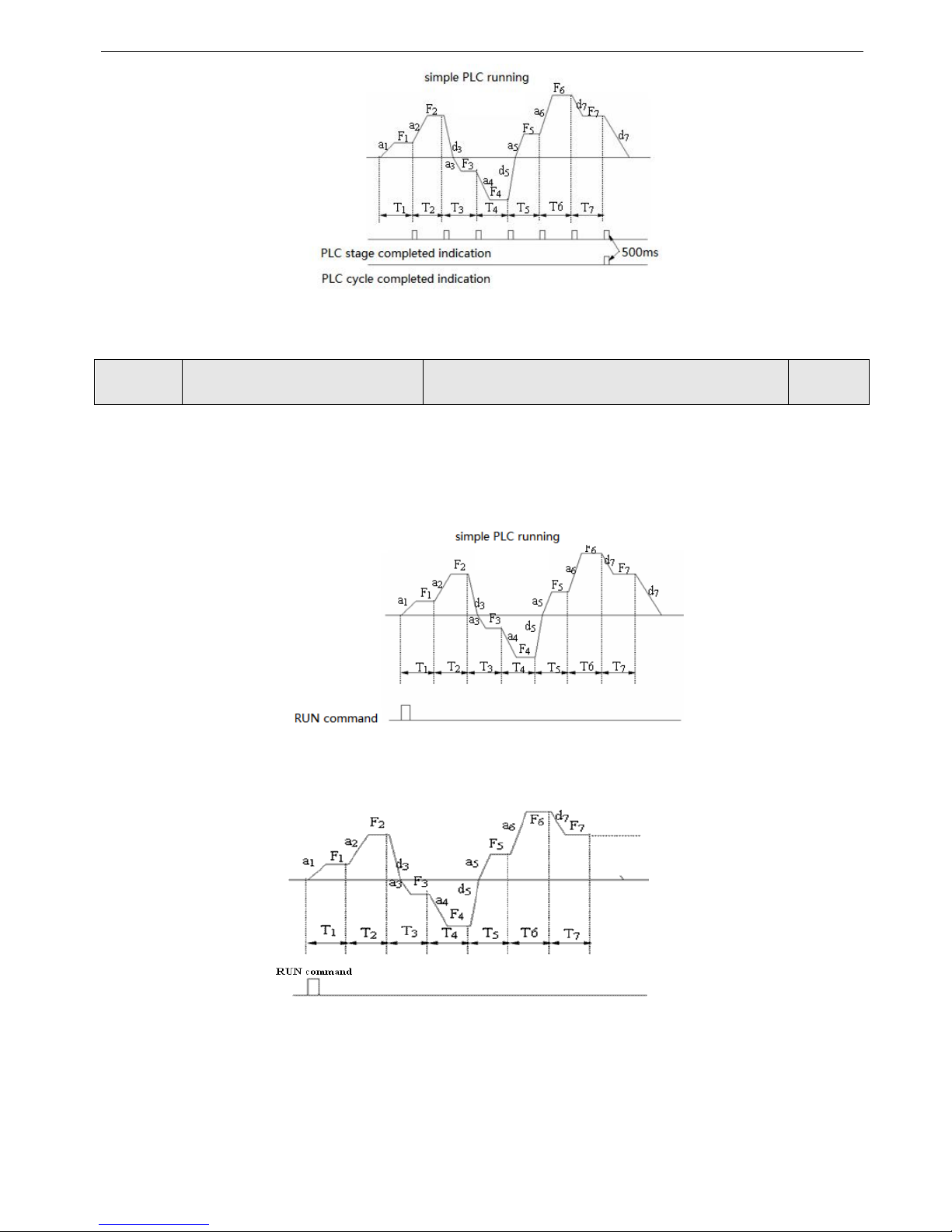

4-2-9. Simple PLC operation parameters (Group P8) ............................................................................................................ 78

4-2-10. Swing frequency function parameters (Group P9) .................................................................................................... 81

4-2-11. Vector control parameters (Group PA) ...................................................................................................................... 83

4-2-12. Special application function parameters (Group PB) ................................................................................................. 84

4-2-13. Default setting and password (Group PF) ................................................................................................................. 85

5 FAULT DIAGNOSIS AND SOLUTION.......................................................................................86

5-1. Fault diagnosis and solution ........................................................................................................................................... 86

5-2. Check the fault records ................................................................................................................................................... 88

5-3. Fault reset ....................................................................................................................................................................... 88

6 MAINTENANCE ........................................................................................................................89

6-1. Maintenance ................................................................................................................................................................... 89

6-1-1. Routine maintenance ................................................................................................................................................. 89

6-2. Periodical care and maintenance .................................................................................................................................... 89

6-2-1.Periodical care ............................................................................................................................................................ 89

6-2-2. Periodical maintenance .............................................................................................................................................. 89

6-3. Warranty of the inverter................................................................................................................................................. 90

7 COMMUNICATION PROTOCOL ...............................................................................................91

7-1. Overview of communication protocol............................................................................................................................. 91

VB3/VB5/V5 series inverter

iii

7-2. Communication protocal ................................................................................................................................................ 91

7-2-1. Communication networking mode ............................................................................................................................. 91

7-2-2. Communication protocol modes................................................................................................................................. 92

7-2-3. Communication port .................................................................................................................................................. 92

7-3.Modbus-RTU communication protocol ........................................................................................................................... 92

7-3-1. Character structure .................................................................................................................................................... 92

7-3-2. Communication information ...................................................................................................................................... 92

7-3-3.Communication parameter .......................................................................................................................................... 95

APPENDIX A ACCESSORIES .....................................................................................................97

A-1. Brake resistor ................................................................................................................................................................. 97

A-2. Operate panel ................................................................................................................................................................. 98

A-3. Extension cable of operate panel ................................................................................................................................... 98

APPENDIX B FUNCTION CONFIGURATION LIST .....................................................................99

1

——Essential introduction for this manual

Preface

Thank you for purchasing Xinje inverter, this manual should be read and understood before attempting relevant operations.

1. Purpose of this manual

This manual offers guidance and introductions about how to use and maintains the inverter correctly, including functions,
usages, installation, maintenance, etc.

2. Qualified personnel
This manual is intent for the following personnel:

 Inverter installation personnel
 Project technical personnel(electric engineer, electrician)

 Design personnel

The above personnel should read and understand this manual carefully before operating and debugging.

3. Validity of this manual

This manual may only be used for inverters made by Xinje.

4. Electronic Documents

In addition to our written manuals, we offer electronic documentations of our products by the following ways.

 User CD

There are software, user manual and application tip of relevant products.

 Website

Please visit www.xinje.com to obtain all variable electronic documents.

VB3/V5/VB5 series inverter

2

——Essential introduction about product operation

Safety Precautions

Upon unpacking, please confirm that: Check whether the model and the rated values on the nameplate of the inverter are in
accordance with your order. Check if there is any damage occurred during transportation; pleases contact us or the distrib­utor if you find any missing or damage of the products.

In order to use this product correctly, the user who uses the product for the first time must read this manual carefully and
pay close attention to the safety precautions.

Please keep this manual properly, hand it to the terminal user and lay it on the place where the operators can read it easily.

Confirmations Upon Delivery

Notice

1． Never install an inverter that is damaged or missing components. Doing so can result in injury.

 Installation

Notice

1. Always hold the bottom of the inverter when carrying it. If the inverter is held by the front cover, the main body
of the inverter may fall, possible resulting in injury.

2. Attach the inverter to metal or other noncombustible materials. Fire can result if the inverter is attached to a
combustible material.

3. Install a cooling fan or other cooling device when installing more than one inverter in the same enclosure so that

the temperature of the air entering the inverters is below 45℃. Overheating can result in fires or other accidents.

 Wiring

Danger

1. Always turn off the input power supply before wiring. Otherwise, an electric shock or fire may occur.

2. Wiring must be operated by an authorized person qualified in electrical work. Otherwise, an electric shock or
fire may occur.

3. Make sure to ground the ground terminals. Otherwise, an electric shock or fire may occur.

4. Always check the operation of any emergency stop circuits after they are wired. Otherwise, possibly result in
injury ( user responsibility for the wiring).

5. Never touch the output terminal directly by your hands or let the output terminals to come into contact with the
inverter case. Never short the output terminals. Otherwise, an electric short or ground short may occur.

6. Never touch the internal circuit or the zero-component until power off and the charge indicator is off as
there may still be high voltage inside the AC motor dirver.

Notice

◎ Safty Precautions ◎

VB3/V5/VB5 series inverter

3

1． Confirm that the voltage of the main AC power supply satisfies the rated voltage of the Inverter. Injury and fire

may occur if the voltage is not right.

2． Do not perform voltage withstand tests on the Inverter. Otherwise, semiconductor elements and other devices

can be damaged.

3． Connect braking resistors, Braking Resistor Units, and Braking Units as shown in the I/O wiring examples.

Otherwise, a fire may occur.

4. Tighten all terminal screws to the specified tightening torque.
Otherwise, a fire may occur.

5. Do not connect AC power to output terminals U, V, and W.

The interior parts of the Inverter will be damaged if voltage is applied to the output terminals.

6. Do not connect phase-advancing capacitors or LC/RC noise filters to the output circuits.The Inverter may be
damaged or internal parts burnt if these devices are connected.

7. Do not connect electromagnetism switch, electromagnetism contactor to output circuit. When the inverter is
running with load, the electromagnetism switch and electromagnetism contactor will generate inrush current
which will cause inverter’s over current protection.

8. Do not disassemble the whole front cover as disassembling the top front while wiring is ok. Otherwise, inverter
internal parts may be damaged.

 Maintenance and Inspection

Danger

1． Do not touch the inverter terminals, as they may carry high voltage.

Otherwise, an electric short may occur.

2． Make sure to have protective cover .Always have the protective cover in place when power is being supplied to

the Inverter. When attaching the cover, please with the power turns off.
Otherwise, an electric short may occur.

3． Maintenance, inspection, must be performed only by authorized personnel.

Otherwise, an electric short may occur.

Notice

1. A CMOS IC is used in the control board. Handle the control board and CMOS IC carefully. The CMOS IC can
be destroyed by static electricity if touched directly.

2．Do not change the wiring, or remove connectors or the Digital Operator, during operation.

Otherwise, The devices may be damaged.

 Constant torque low speed running

When the inverter outputs to a common motor at low speed for a long term, the output rated torque should be derated due
to the worsening radiating effect. If low speed constant torque long term running is required, then a special variable fre­quency motor is needed.

 Motor insulation

When using the V5/F5 series inverter, make sure to confirm the insulation of the motor which will be used to avoid device
damage. Besides, do the periodic check for the insulation condition of the motor located in the bad environment to guaran­tee the system can operate safely.

 Negative torque load

If in the case of improving load, negative torque may occur. Braking units should be connected with the inverter, or over
current and over voltage fault may happen.

◎ Usage Precautions ◎

VB3/V5/VB5 series inverter

4

 Mechanical resonance point of load

The inverter may encounter the mechanical resonance point of load within certain output frequency range. Jump frequen­cies have to be set to avoid it.

 Capacitor and resistor

Because the inverter output pulse wave, capacitor and resistors shouldn't be connected with the output terminals of the in­verter, or the inverter may trip or components may be damaged; Besides, don’t connect switch components such as air
switch and contactor with the output terminals is recommended, as shown in Fig.0-1(If switch components need to be
connected with the output terminals, make sure output current of the inverter is zero when switch is acting).

Fig.0-1 Capacitor is prohibited to be connected with

output terminals of inverter

 Derate according to basic frequency setting

When the basic frequency is lower than the reference frequency, please consider duration for the motor so as to avoid mo­tor’s damage caused by overheating.

 Running at frequency above 50Hz

If running at frequency above 50Hz, besides the increment of vibration and noise, the ranges of running speed of motor
shaft and mechanical device have to be guaranteed. Be sure to make an enquiry first.

 The electro-thermal protective value of motor

If the applicable motor is selected as per requirements, the inverter can perform the thermal protection to the motor. If the
ratings of applied motor are not in compliance with the inverter, be sure to adjust the protective value or adopt other pro­tective measures to guarantee the safe running of motor.

 Altitude and derate

When the altitude is higher than 1000m, the cooling effect of inverter is deteriorated because of the rareness of air, deration
must be considered, shown in Fig.0-2 which indicates the relationship between the altitude and rated current of frequency
inverter.

Fig. 0-2 The relationship between the altitude and rated

current of frequency inverter

VB3/V5/VB5 series inverter

5

 About protection classes

The protection class of V5/F5 series inverter IP20 is reached in the case of status display unit or keyboard.

When you scrap the inverter, please pay attention to:
Explosion risk of capacitor: The capacitors in the main circuits may explode when they are burned.
Waste gas when plastic parts are burned: Poisonous gas may be generated when front panel is burned.
Dispose method: Please dispose as industrial rubbish.

◎ Note For Scrap ◎

VB3/V5/VB5 series inverter

6

1 Product Instruction

1-1. Product overview

VB3/VB5/V5 series inverter is produced by Xinje Co., Ltd with high performance, easy operating and low noise. It is a
innovative product with a series advanced and practical running and control functions such as practical PI, flexible input
and output terminals, parameter modification online, fixed length control, traverse operation, RS485 control, bus-mastering.
It provides OEM customers with high integrated, reliable, cost-effective solution.

V5 only has 380V level types; VB3/VB5 series frequency inverter has 220V and 380V voltage levels. Suitable motor ca­pability is from 0.4KW to 55KW.

Please note 220V level types have no vector control.

Voltage level Type Rated capacity (KVA) Rated output current (A) Match motor (kW)

220V

Single-phase

VB3-20P7 1.5 4.7 0.75
VB5-20P7 1.5 4.7 0.75
VB5-21P5 2.8 7.5 1.5
VB5-22P2 4.5 10.0 2.2

380V

3-phase

VB3-40P7 2.1 2.5 0.75
VB3-41P5 2.5 4.0 1.5
VB3-42P2 3.0 6.0 2.2
VB3-43P7 5.9 9.6 3.7
VB5-40P7 2.1 2.5 0.75
VB5-41P5 2.5 4.5 1.5
VB5-42P2 3.0 6.0 2.2
VB5-43P7 5.9 9.6 3.7

VB5-45P5

8.5 14.0 5.5

VB5-47P5 11 17.0 7.5

V5-4011 15 25 11
V5-4015 20 33 15
V5-4018 25 38 18.5

Name Designation Rules

VB 5

-

4 3 P 7

Max Suitable Motor's Capacity
011: 11KW
1P5: 1.5KW
And so on
( P: Stands for radix Point)

Voltage Level
2：220V
4：380V

Type

Inverter Series
V5: VVVF/vector control
VB5: VVVF/vector control
VB3: VVVF control, mini type

VB3/V5/VB5 series inverter

7

1-2. Product technical specification

1. Technical specification

220V

Type VB3-20P4 VB3-20P7 VB5-20P7 VB5-21P5 VB5-22P2

Output Match Motor (kW) 0.4 0.75 0.75 1.5 2.2

Output Current (A) 3.0 4.7 4.7 7.5 10.0
Voltage (V) AC 200
Frequency Range (Hz) 0~500
Frequency Resolution (Hz) 0.01
Overload Ability 150%Rated Current for 1 minutes，180% Rated Current for 1 second

Input Rated Voltage/Frequency Single-phase 220V,50/60Hz

AC voltage permit fluctuate range Voltage: -20% ~ +20%

Voltage Unbalance Rate: < 3%
Frequency fluctuate Range Frequency：±5%
Power Capacity (kVA) 0.9 1.5 1.5 2.8 4.5

380V

V5-4022 30 46 22
V5-4030 40 60 30
V5-4037 50 75 37
V5-4045 60 90 45
V5-4055 75 110 55

VB3-4_ _ _ 0P7 1P5 2P2 3P7

output

Suitable motor (kW) 0.75 1.5 2.2 3.7
Rated current (A) 2.5 4.0 6.0 9.6
Rated voltage ( V) AC 380
frequency range (Hz) 0~500
frequency accuracy (Hz) 0.01
Overload Ability 150% Rated Current for 1 minute, 180% Rated Current for 1 second

Input

Rated voltage

/Frequency

Three phase 380V; 50Hz/60Hz

AC voltage fluctuate range Voltage：-20% ~ +20%

Voltage Unbalance Rate：<3%

Frequency fluctuate range

Frequency: ±5%

Power Capacity (kVA) 2.1 2.5 3.0 5.9

VB5-4_ _ _ 0P7 1P5 2P2 3P7 5P5 7P5

Suitable motor (kW) 0.75 1.5 2.2 3.7 5.5 7.5

VB3/V5/VB5 series inverter

8

Common characteristics

Environment Application environment In-door, free from direct sunlight, dust, corrosive gas, oil mist, steam, water drop etc

Elevation Lower than 1000m (The inverter should be derated when the elevation is higher than

1000m )

Ambient Temperature -10

℃

~ +40℃

Humidity Less than 90% RH, No condensation

Vibration Less than 5.9 m/s2 (0.6M)

Storage Temperature -20

℃

~ +60℃

Structure Protect Configuration IP20 (In the state of state display units or keyboard)

Cooling Manner Fan cooling

Installation Wall mounted or install inside cabinet

2. General Specification

Modulation mode

Optimized space voltage vector SVPWM modulation

Control mode SVPWM control (dead zone compensation for optimized low-frequency)

Frequency precision

Digital Setting: max frequency × ±0. 01%;
Analog Setting: max frequency × ±0.2%

output Rated current (A) 2.5 4.0 6.0 9.6 14.0 17.0

Rated voltage ( V) AC 380
frequency range (Hz) 0~500
frequency accuracy (Hz) 0.01
Overload Ability 150% Rated Current for 1 minute, 180% Rated Current for 1 second

Input

Rated voltage

/Frequency

Three phase 380V; 50Hz/60Hz

AC voltage fluctuate range Voltage：-20% ~ +20%

Voltage Unbalance Rate：<3%

Frequency fluctuate range

Frequency: ±5%

Power Capacity (kVA) 2.1 2.5 3.0 5.9 8.5 11

V5-4_ _ _ 011 015 018 022 030 037 045 055

output

Suitable motor (kW) 11 15 18.5 22 30 37 45 55
Rated current (A) 25 33 38 46 60 75 90 110
Rated voltage ( V) AC 380
frequency range (Hz) 0~500
frequency accuracy (Hz) 0.01
Overload Ability 150% Rated Current for 1 minute, 180% Rated Current for 1 second

Input

Rated voltage

/Frequency

Three phase 380V; 50Hz/60Hz

AC voltage fluctuate range Voltage：-20% ~ +20%

Voltage Unbalance Rate：<3%

Frequency fluctuate range

Frequency: ±5%

Power Capacity (kVA) 15 20 25 30 40 50 60 75

VB3/V5/VB5 series inverter

9

Main Control

Function

Frequency resolution Digital Setting: 0.01Hz; Analog Setting: max frequency × 0.1%

Start frequency 0.40Hz ~ 20.00Hz

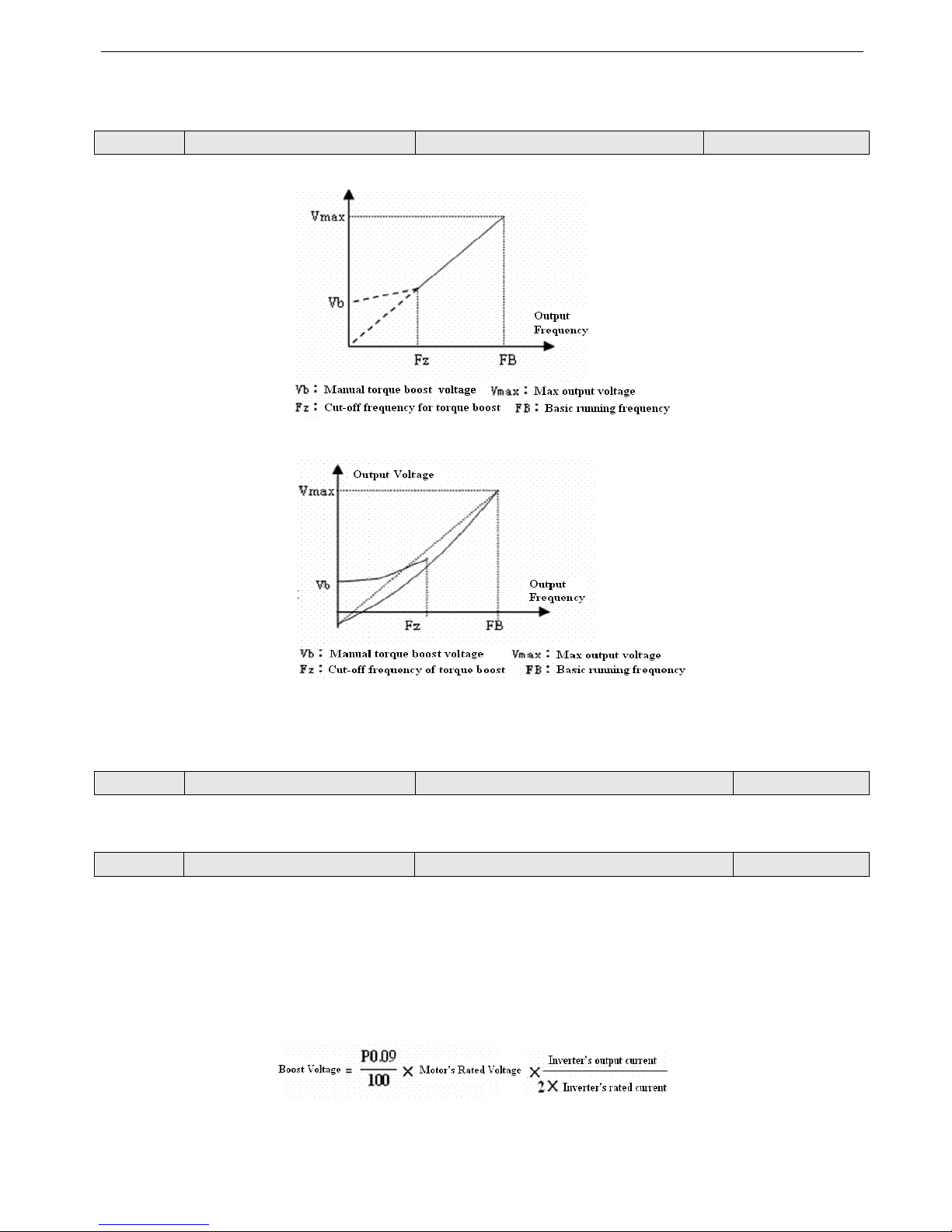

Torque boost Auto torque boost, manual torque boost 0.1% ~ 30.0%

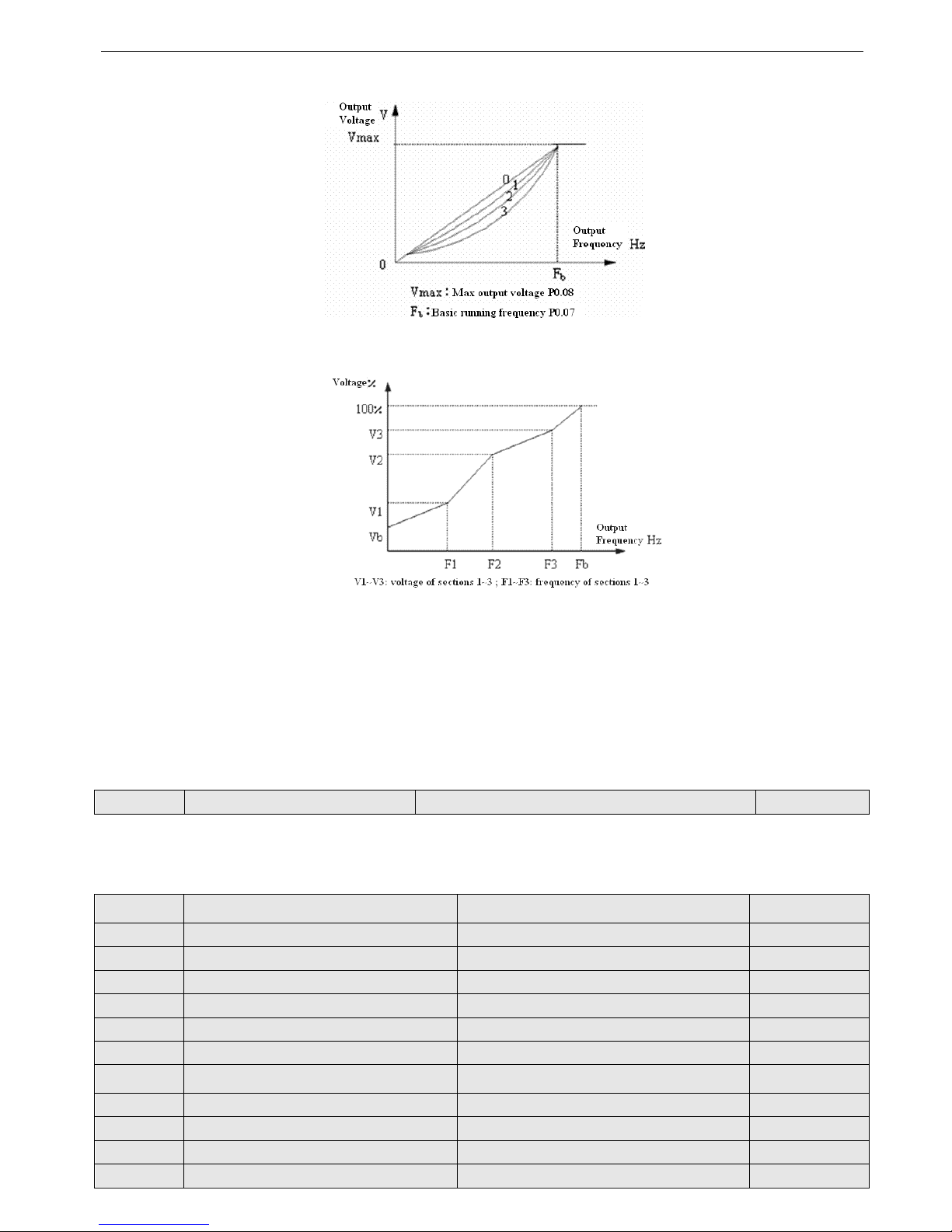

V/F curve

Five modes: constant torque V/F curve, 1 V/F curve mode by user and 3 kinds of
torque-derating modes (2nd power, 1.7th power, 1.2nd power)

Accelerate/Decelerate curve

Two modes: linear Acc/Dec, S curve Acc/Dec; seven kinds of Acc/Dec time,
Maximum: 6000 minutes, the time unit (minute or second) is selectable

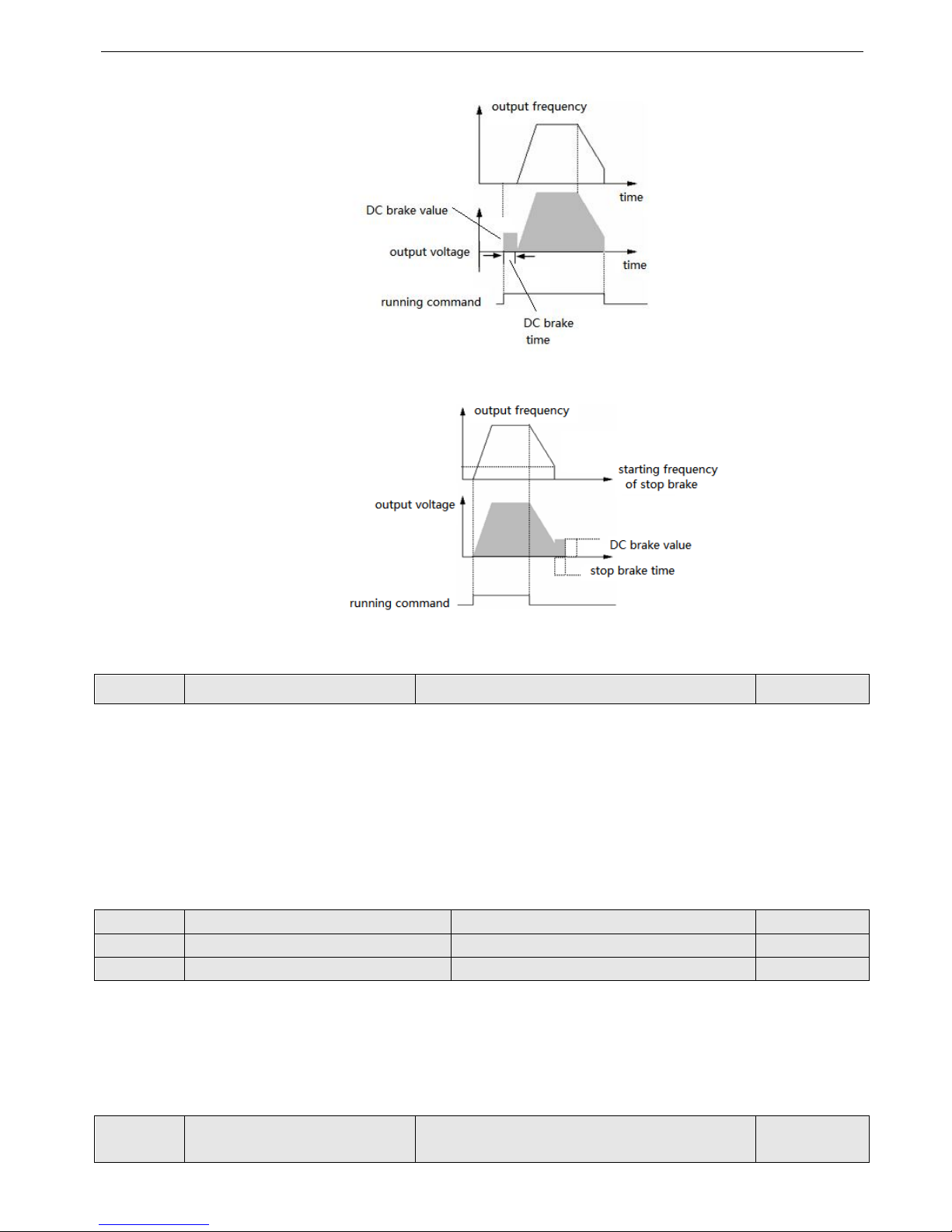

DC brake

Initial frequency of DC braking: 0~15.00Hz
Braking time: 0~60.0 s
Braking current: 0~80%

Power consumption brake Built-in brake unit, can connect external brake resistor

Jog Range of jog frequendy: 0.1Hz~50.00Hz, Acc/Dec time of jog 0.1~60.0s

Built-in PI Easy to form close loop control system

Multi-step speed running Multi-step speed work through built-in PLC or control terminals

Textile wobble frequency Adjustable preset frequency and center frequency
Auto voltage regulation
(AVR)

When the power system voltage changes, maintain the constant of output voltage

Auto energy saving running

Auto-optimize V/F curve according to the load condition to realize energy saving

operation
Auto current limit Auto-limit running current to avoid trip caused by overcurrent
Fix-length control The frequency inverter will stop running when reaching the fixed length

Communication

function

With RS485 port, support Modbus-RTU protocol. Be with master-slave mul-

ti-device linkage function

Operate function

Command channel

Operation panel setting；control terminals setting；serial port setting; three modes

are exchangeable

Frequency channel

Keyboard analog potentiometer setting; , keys setting；function code

digital setting; serial port setting；UP/DOWN terminal setting；analog voltage

setting；analog current setting; pulse setting；combination setting; different setting

modes can be switched

Digital input channel

Forward/Reverse running command；6 channels programmable digital input，can

set 35 kinds of function，X6 support 0~20KHz pulse input

Analog input channel 2 channels analog input , 4~20mA and 0~10V can be selected

Analog output channel

1 channel analog output: 0~10V/4~20mA, can output setting frequency, output

frequency

Digital/pulse output channel

1 channel programmable open-collector output; 1 channel relay output; 1 channel

0~20KHz pulse output

Operation panel

LED Display Can display setting frequency, output voltage, output current and other parameters

External meter Display

Display output frequency, output current, output voltage and other physical quan-

tities

Button Lock

Lock all the buttons

Protection Function

Over current protection；over voltage protection；under voltage protection；over

heat protection；over load protection

Optional parts

Brake parts, operation panel, extension cable of operation panel

1-3. Product appearance

VB3 series 0.4~0.75KW

VB3/V5/VB5 series inverter

10

MENU
ESC

JOG
REV

ENT

DATA

FWD

STOP
RESET

FWD REV ALM HZ V A

LED

Control
terminals

Power
terminals

Mounting hole

4 bits LED display

Buttons

Analog potentiometer

VB3/V5/VB5 series inverter

11

VB5 series single-phase 0.75~2.2KW

VB3/VB5 series 3-phase 0.75~3.7KW

VB5 series 5.5KW~7.5KW

V5 series 11~18.5KW V5 series 22~55KW

MENU

ESC

FWD

ENT

DATA

JOG
REV

STOP

RESET

FWD REV ALM HZ V A

WARNING

！

* STORED CHARGE DO NOT TOUCH

UNTIL 10 MIN. AFTER DISCO-

* RISK OF ELECTRIC SHOCK-DUAL

SUPPLY DISCONNECT MAINS AND

* DO NOT CONNECT AC POWER TO

OUTPUT TERMINALS OF "U V W"

LOADSHARING BEFORE SERVICE

NNECTION

MENU

ESC

FWD

ENT

DATA

JOG
REV

STOP

RESET

FWD REV ALM HZ V A

MENU
ESC

ENTER

DATA

FWD

JOG
REV

STOP

RESET

FWD REV ALM HZ V A

MENU
ESC

ENTER

DATA

FWD

JOG
REV

STOP

RESET

FWD REV ALM HZ V A

VB3/V5/VB5 series inverter

12

1-4. Product dimension

 VB3 series 0.4~0.75KW (Unit: mm)

 VB3, VB5 series 0.75~3.7KW (Unit: mm)

The details of the dimension:

Type W D1 L D2 H
VB5-20P7

70 56 170 160 162 VB5-21P5
VB5-22P2
VB3/VB5-40P7

80 56 200 190 162
VB3/VB5-41P5

VB3/V5/VB5 series inverter

13

VB3/VB5-42P2
VB3/VB5-43P7

 VB5 series 3-phase 5.5~7.5KW (Unit: mm)

 V5 series 3-phase 11~55KW (Unit: mm)

MENU
ESC

FWD

ENT
DATA

JOG
REV

STOP
RESET

FWD REV ALM HZ V A

180.0

167.0

260.0

247.5

171.8

?5.0

MENU

ESC

ENTER
DATA

FWD

JOG
REV

STOP
RESET

FWD REV AL M HZ V A

L

W

D2

D3

D1

L

H

* STORED CHARGE DO NOT TOUCH UNTIL

10 MIN. AFTER DISCONNECTION

* RISK OF ELECTRIC SHOCK-DUAL SUPPLY

DISCONNECT MAINS AND LOADSHARING

WARNING

！

* DO NOT CONNECT AC POWER TO OUTPUT

TERMINALS OF "U V W"

BEFORE SERVICE

H

VB3/V5/VB5 series inverter

14

The details of the dimension:

Type W D1 L D2 H D3

V5-4011

230 120 420 160 218 400 V5-4015
V5-4018
V5-4022

290 180 450 210 217 430
V5-4030

V5-4037

375 230 581 230 261 551 V5-4045
V5-4055

V5 series inverter

15

2 Installation and Wiring

2-1. Installation environment

2-1-1. Environment requirement

 Ambient tempeature: -10ºC~40ºC. The inverter should be derated when the temperature over 40ºC, at the same time

ventilation and heat dissipation should be enhanced.

 Far away from the location with direct sunlight, dust, floating fiber or metal powder.
 Mount in the location free of corrosive gas and combustible gas.
 Mount in the location free of condensation, and the humidity should less then 95%RH.
 Mount in the location where vibration less than 5.9m/s²(0.6G)
 Far away from electramagnetism interfere source and other electric instruments sensitive with electramagnetism in-

terfere.

2-1-2. Mounting location and space

 Mount the inverter vertically under general condition.
 The mounting space and distance are shown in Fig. 2-1.
 When several inverters are mounted up and down, air diversion plate should be fixed in the middle as shown in Fig.

2-2.

Fig. 2-1 Mounting Space Fig.2-2 Mounting of Multi-Inverters

2-1-3. Mounting and removing

 Removing: Romove the four screws on the cover with phillips screwdriver
 Mounting: Allign the mounting holes and then fix the screws.

Air diverting
plate

V5 series inverter

16

2-2. Wiring

 Wiring after power off for at least 10 minutes, otherwise, an electronic short may occur.
 Do not connect AC power to output terminals U, V and W.
 Both the inverter and the motor should be safety grounded as there is leakage current inside the inverter.The diameter

of grounding copper cable must be more than 3.5mm², grounding resistor must be less than 10ohm.

 Withstand voltage test of the inverter has been done in the factory, users would better not do it again.
 Do not install electromagnetic contactor, absorption capacitor or other resistance-capacitance absorption devices, as

shown in Fig2-3.

 In order to make the input over-current protection and power off maintenance easily, the inverters should connect

power supply via braker.

 The connection cable of relay I/O circuit (X1~X6, FWD, REV, OC, DO) should select the twisted-pair or shield cable

with diameter over 0.75 mm². One terminal of the shield layer should be hung in the air and the other terminal should
be connected with the inverter’s grounding terminal E, the cable length should be less than 50m.

2-3. Wiring of main circuit terminals

2-3-1. Wiring diagram

Fig. 2-3 Wiring of main circuit

Caution

Danger

 Before layout operation, make sure the power supply of inverter is cut off, all the LED on the operate panel is black out

and delay for more than 10 minutes.

 Wiring work can be performed after the voltage between internal electrolesis capacity “+” and “–” is below DC36V.
 Wiring work can only be done by trained and professional personnel.
 Before power on, please check if the power supply voltage is consistent with the inverter voltage level, otherwise

device damage, human injuries and deaths may occur.

V5 series inverter

17

2-3-2. Terminal assignment and description

Fig. A

Fig. B

Fig. C

Fig. D

Fig. E

Fig. F

Fig. G

Fig.H

The relationship between main circuit terminals and product types:

Voltage level Power (KW) Figure Series

220V

0.4~0.75 Fig. A VB3

0.75~2.2 Fig. B VB5

380V

0.75~3.7 Fig. C VB3

0.75~3.7 Fig. D VB5

5.5~7.5 Fig. E VB5

11~18.5 Fig. F V5

22~30 Fig. G V5
37~55 Fig. H V5

I/O terminals of main circuit:

Table 2-1 main circuit I/O terminals

Voltage

Terminal Function

VB3, VB5 series

Single phase 220V

L, N Single phase AC 220V input

U, V, W Three phases AC output

PE G

round

VB3, VB5 series

Three phases 380V

L1, L2, L3 T

hree phase

s AC 380V input

(fit for power below 3.7KW )

R, S, T Three phase

s AC 380V input

(fit for power below 3.7KW )

P+, PB Brake

resistor

(some types don’t have brake unit)

P+, P- G

eneratrix + and

- U, V, W T

hree phase

s AC output

PE Ground

V5 series

Three phases 380V

R, S, T Three phases AC 380V input

U, V, W T

hree phase

s AC output

P+, P- Generatrix + and -

P1, PB Brake resistor

PE Ground

V5 series inverter

18

2-4. Basic running wiring

Note:

(1) P- terminal is only used in 5.5KW and larger inverters.
(2) L, N terminals are suitable for 220V single phase inverters.
(3) L1, L2, L3 terminals are suitable for VB5 series 0.75~3.7KW three phases types.
(4) VB5 series 0.75~3.7KW three phases have no digital input X5, analog input VI and digital output DO.
(5) VB3/VB5 series single phase have no X4~X6, VI, AO, DO, OC, P+, P-, PB.
(6) VB3 series 0.75~3.7KW three phases have no terminal X5, X6 and VI, DO, P+, P-, PB.

2-5. Setting and wiring of control circuit

2-5-1.Position and function of terminals and jumpers on control panel

Please open the front cover of inverter, there is the PCB board inside. The jumper is on the board.

0.4 ~0.75KW VB3 series inverter jumper position

Fig 2－4(a) jumper position on control board

V5 series inverter

19

0.75~2.2KW VB5 series single phase inverter jumper position

Fig 2－4 (b) jumper position

0.75~3.7KW VB3, VB5 series three phases inverter jumper position

Fig 2－4 (c) jumper position

5.5~7.5KW VB5 series three phases inverter jumper position

Fig 2－4 (d) jumper position

11~55KW V5 series inverter jumper position

Fig 2－4 (e) jumper position

The position of jumpers are shown in Fig. 2-4, the function of jumper terminals are shown in Table 2-3 and the function de­scriptions of jumpers and their setting method are shown in Table2-2. Before running the inverter, make sure terminals wiring
and jumpers setting have been done, more than 1mm2 cables are recommended to use.

V5 series inverter

20

Table 2-2 Function of jumpers

Jumper Function Setup Default Setup

JP1

Pulse output terminal
DO power selection

1－2 connect: External power supply
2－3 connect: Inverter’s internal 24V power supply

External power

supply

JP2

Analog output terminal
AO output

1－2 connect: 4~20mA, AO terminal outputs current signal
2－3 connect: 0~10V, AO terminal outputs voltage signal

0~10V

JP3

CI current/voltage input
modes selection

1－2 connect : V side: 0~10V voltage signal
2－3 connect : I side: 4~20mA current signal

4~20mA

2-5-2.Terminals on control panel

1. Functions of CN1 terminal are shown in Table 2-3:

Table 2-3 Function of CN1

Type

Terminal

Mark

Name Function Description Specification

Relay output

terminal

TA

Multi-function
relay output
terminals

Multi-functional relay output
terminals. Please refer to func­tion parameters P4.11 and de­scription of output terminals

TA-TC: normal close
TA-TB: normal open
Contactor Capacity:
AC250V/2A (COSΦ=1)
AC250V/1A (COSΦ=0.4)
DC30V/1A

TB

TC

2. Control circuit terminals CN2
VB3 3-phase

0.4~0.75KW

VB5 1-phase

0.75~2.2KW

VB3 3-phase

0.75~3.7KW

VB5 3-phase

0.75~3.7KW

VB5 3-phase

5.5~7.5KW

V5 3-phase

11~55KW

Fig. 2-5 Terminals on control panel

V5 series inverter

21

3. CN2 terminals’ function description are shown as below：

Table 2-4 CN2 terminals’ function description

Type Terminal Name Terminal Function Description Specification

Communication

A

RS485 port

RS485 difference signal +

standard RS485 port, please use
twisted cable or shielded cable

B RS485 difference signal -

Multifunction

output terminal

OC

Open collector output

terminal 1

Multi-function digital

output terminal,

refer to P4.10 for details

(common

terminals: COM)

optical coupling isolation output
voltage range: 9~30V
max output current: 50mA
please refer to P4.10 for details

Pulse output

terminal

DO

Open collector pulse

output terminal

Multi-functional pulse output termin­al, refer to P4.20, P4.21 for details
(common terminals: COM)

Output frequency range: set
P4.21, the max is 20KHz

Analog input

VI Analog input VI

analog voltage input
(reference ground: GND)

Input voltage range:

0~10V (input

resistance：47KΩ)
Resolution: 1/1000

CI Analog input CI

Analog current/voltage input, vol-

tage and current are selected by

jumper JP3 and the default is cur­rent.

(reference ground: GND)

Input voltage range:

0~10V (input

resistance: 47KΩ)
Input current range:

4~20mA

(input resistance: 500Ω)
Resolution: 1/1000

Analog output AO Analog output AO

Analog voltage/current ouput, they
are selected by jumper JP2 and the
default is voltage which can indi­cate 7 values. (reference ground:
GND)

Voltage output range: 0~10V
Current output range: 4~20mA

Running control

terminal

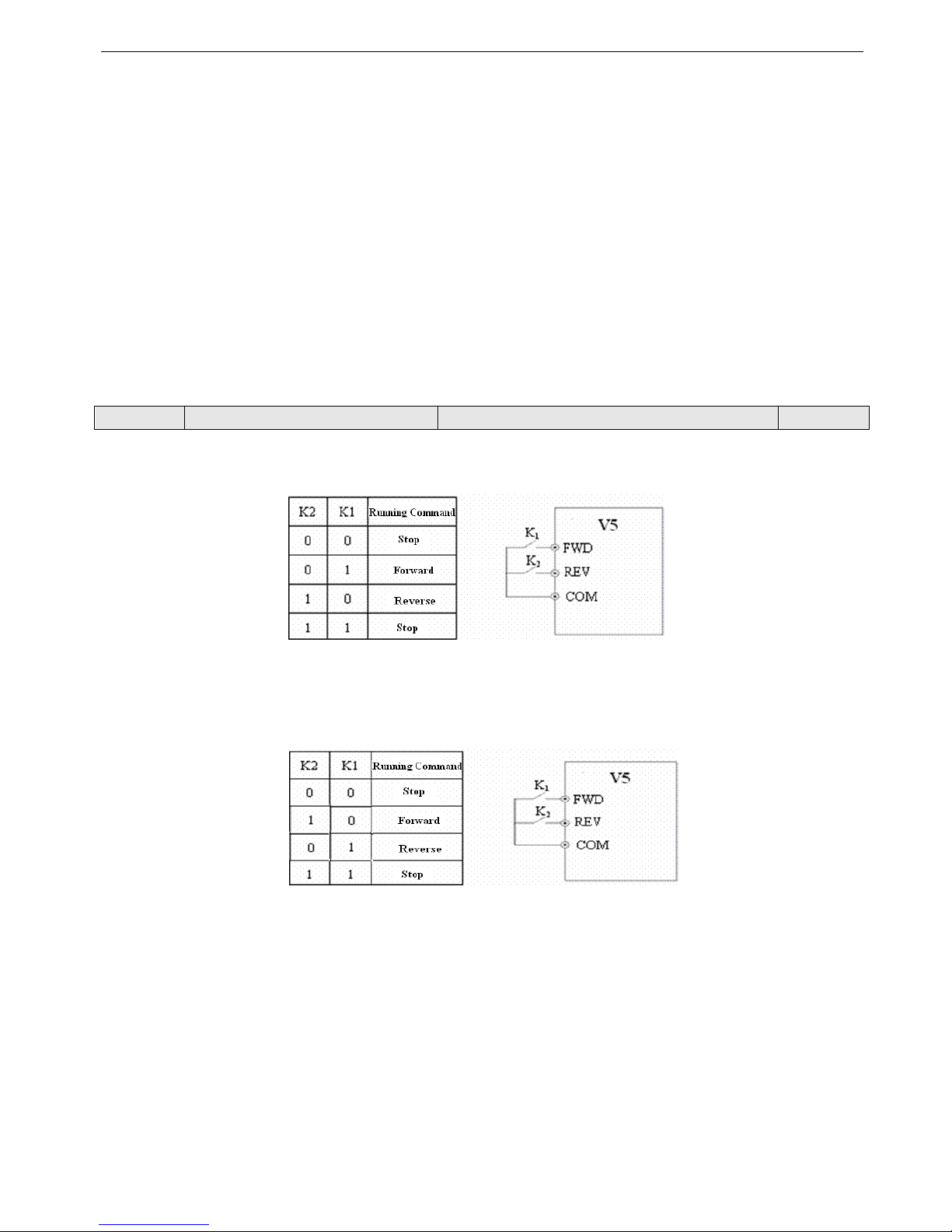

FWD

Forward running com-

mand

Forware/reverse digital command.
Refer to P4.08 for details (instruc­tion about 2-wire and 3-wire con­trol function).

Optical coupling isolation input
Input resistance: R=2KΩ
Highest input frequency: 200Hz
Input voltage range: 9~30V

REV

Reverse running com-

mand

Multifunction

input terminal

X1 Multifunction input 1

Multi-function digital input termin­als, refer to parameter P4.
(common terminal: COM)

X2 Multifunction input 2
X3 Multifunction input 3
X4 Multifunction input 4
X5 Multifunction input 5
X6 Multifunction input 6

Power supply

24V +24V power supply

Supply +24V power supply
(negative terminal: COM)

-

10V +10V power supply

Supply +10V power supply
(negative terminal: GND)

Max output current: 50mA

GND

+10V

power supply common

terminal

Reference ground of analog signal and
+10V power supply

COM is isolated with GND

inside

inverter

COM

+24V power supply

common terminal

Digital signal I/O common terminal

Shield PE Shield terminal

V5 series inverter

22

2-5-3. Analog I/O terminal wiring

1. The wiring of VI terminal voltage signal input

Fig. 2-6 VI terminal wiring diagram

2. CI terminal analog input, jumper select voltage input(0~10V) or current input(4~20mA):

Fig. 2-7 CI terminal wiring

3. Wiring for analog ouput terminal AO

Analog output terminal AO can display various physical quantities. The output voltage is 0~10V, output current is
4~20mA.

Fig. 2-8 Analog output wiring

Note:

(1) When using analog input, you can connect filter capacitor or common mode choke between VI and GND, or CI and GND.
(2) Because analog input signal is easily interfered by outside, the shield cable is required, the cable length must be short

and the shield layer must be grounded well.

V5 series inverter

23

2-5-4. Connection of communication terminals

The communication port of this inverter is standard RS485 port.
With the following wiring methods, you can build up control system of one-host-one-slave or one-host-multi-slaves. Also,
the superior device (PC or PLC) can realize the functions such as real time monitor inverter, remote control, highly auto­mated motion control.
 Connection of inverter RS485 port and superior device:

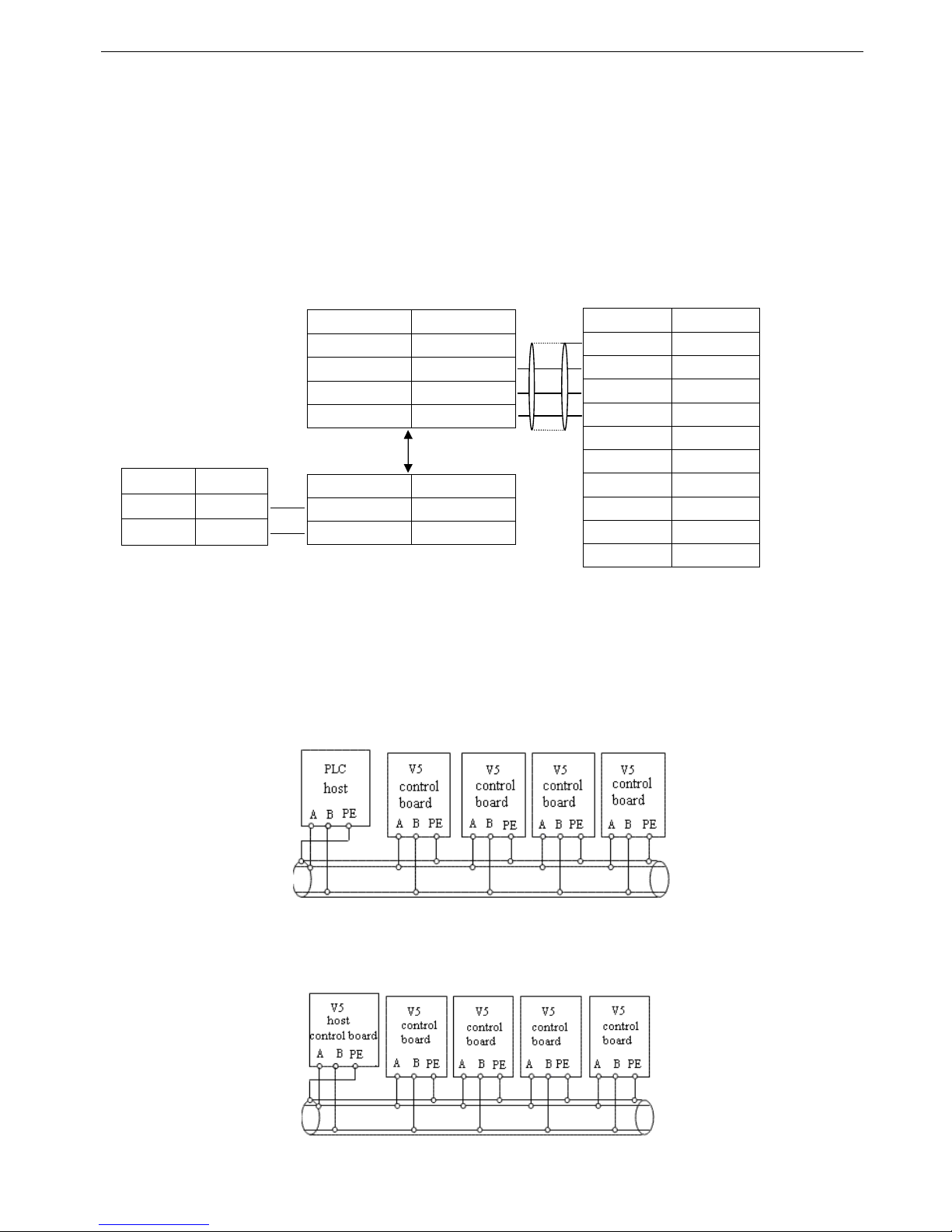

Fig. 2-9 RS485-(RS485/232)-RS232 cable connection

 Many inverters can be connected together through RS485, the PLC(or PC) is the host device, as shown in Fig.2-10;

Also, you can select one inveter as host and the other inverters are slaves, as shown in Fig.2-11.The more inverters are
connected, the communication system will be interfered seriously, the following wiring is recommended.

Fig. 2-10 Connection of PLC and inverters

(Inverters and motors are all grounded well)

Fig. 2-11 Connection of several inverters

Shield
cable

Inverter

RS485/RS232 converter

Terminal Name

5V power + +5V

Send data TXD

Receive data RXD

5V power - GND

Terminal Name

A Signal -

B Signal +

Terminal Name

Signal - A

Signal + B

Superior device
RS232(DB9)

Signal Pin

PE Cover
RXD 2
TXD 3
GND 5
DTR 4

DSR 6

RI 9

CD 1
RTS 7
CTS 8

V5 series inverter

24

(Inverters and motors are all grounded well)

If the communication is still failed with the above connection methods, you can adopt the following methods:
(1) Use separate power supply for PLC or isolate its power supply.
(2) Use magnetism ring for the cable and reduce the inverter’s carrier frequency.

2-6. Mounting guide according with EMC

As the inverter output wave is PWM, electromagnetic noise will generate while it is working. To reduce the inverter inter­ference for other devices, this chapter introduces the EMC mounting method in the following aspects: control the noise,
local wiring, grounding, leak current, power supply filter.

2-6-1. Control the noise

1. Noise type
The noise made by inverter may affect the neaby equipments and the effection is related to inveter’s control system, anti­noise and anti-jamming ability of the devices, wiring environment, safety distance, grounding method and other fac­tors.The noise contains the following types: electrostatic induction, circuit transmit, space transmit, electro magnetic in­duction and so on.

2. Essential countermeasure for suppressing noise

Table 2-5 solution for control noise

Noise transmit

path

Solution

2

When the ground cable of external equipment forms a loop with the inverter, the equipment may operate incor­rectly caused by leakage current of inverter grounding cable. The problem can be solved if the equipment is not
grounded.

3

If the external equipment shares the same AC supply with the inverter, the inverter’s noise may be transmitted
along its input power supply cables, which may cause interference to other external equipments. Take the follow­ing actions to solve this problem: Install noise filter at the input side of the inverter, and use an isolation trans­former or power filter to prevent the noise from disturbing the external equipment.

Noise types

Circuit
transmission

Space
transmission

Electromagnetic
induction

Leakage current
grounding circuit

Power supply
transmission

Path 2 Path 3

Path 7, 8

Motor
cable
RF

Power
cable
RF

Inverter
radia­tion

Path 4 Path 6

Electrostatic
induction

Path 1

Path 5

V5 series inverter

25

4,5,6

(1)The equipment and the signal cables should be far away from the inverter. The signal cables should be
shielded and the shielding layer should be grounded. The signal cables should be located far away from the in­put/output cables of the inverter. If the signal cables must cross over the power cables, they should be placed at
right angle to one another.
(2) Install high-frequency noise filter (ferrite common-mode choke) at the input and output of the inverter to pre­vent the RF interfere of power lines.
(3) Motor cables should be placed in a tube thicker than 2mm or buried in a cement slot. Power cables should be
placed inside a metal tube and be grounded by shielding layer (Motor cable should use 4-core cable, one of the
cores should be grounded near the inverter and another point should be connected to the motor’s cover).

1,7,8

Don’t put the strong and weak electricity cables in parallel or bundle these cables together. Other devices should
also be away from the inverter.The devices wire should be away from the I/O of the inverter. The signal cables
and power cables should be shielded cables. Devices with strong electric field and magnetic field should be away
and orthogonal from the inverter.

2-6-2. Local wiring and grounding

(1) The cable connected inverter and motor (cables from U, V, W points) should not parallel with power supply calbe (R, S,

T or L, N terminal input wire). The distance should be more than 30cm.
(2) Inverter’s output cables from U, V, W terminals is recommend to put in metal tube or slot.
(3) Control signal cables should be shield and the shield layer should be connected with inveter’s PE terminal, then ground

the point near the inverter.
(4) The grounding cable of inverter’s PE terminal should be connected to ground directly.It can’t connect to other devices’

grounding cables.

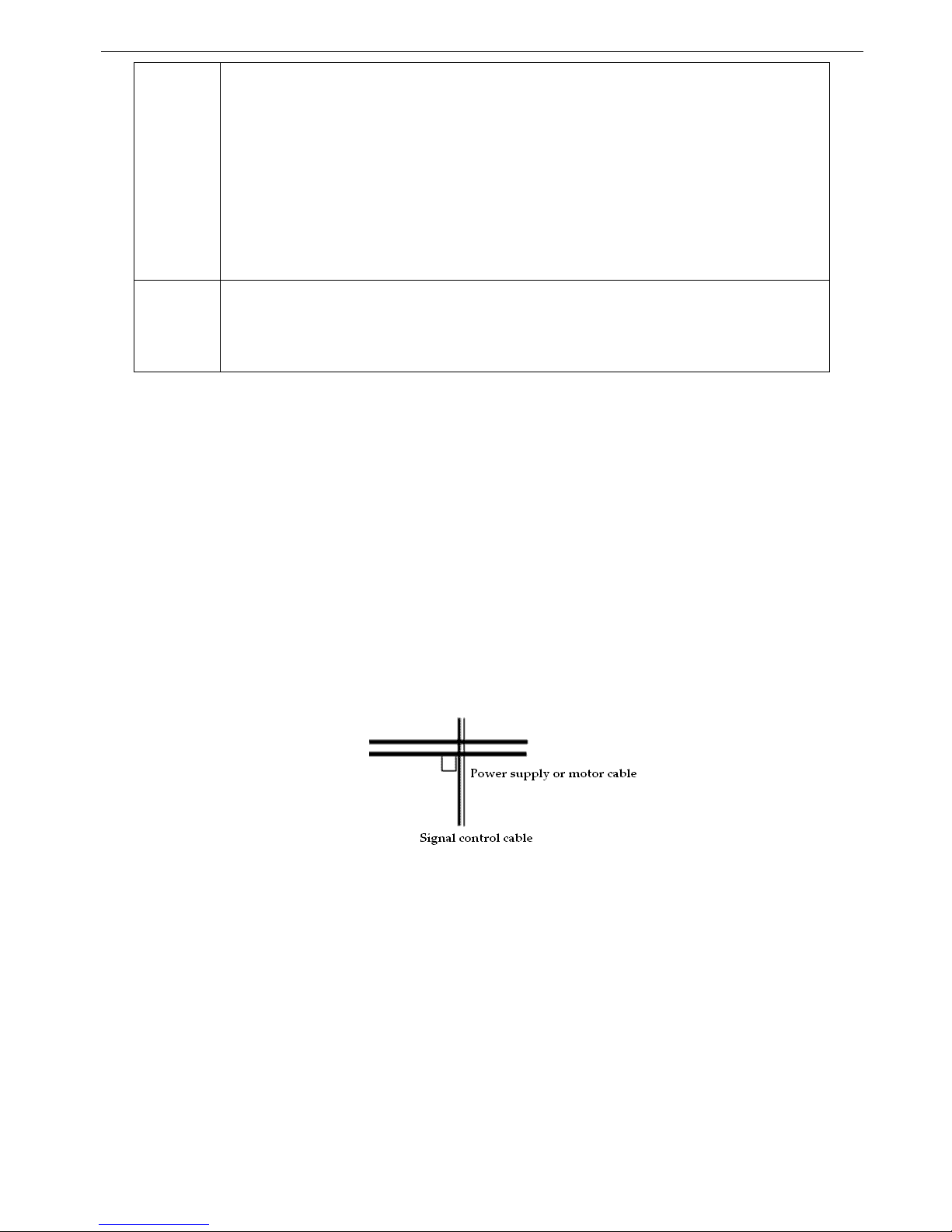

(5) Don’t put the signal cables in parallel with the power cables (R, S, T or L, N with U, V, W) or bundle these cables to­gether, at least 20~60 cm distance shoule be kept (related with power current), If the signal cables and power cables
needed to be intersected, they should be vertical to each other, as shown in Fig2-12.

Fig. 2-12 Wiring requirement of system

(6) The weak electricity grounding cable such as control signal and sensors should be separated with strong electricity

grounding cable.
(7) Do not connect other devices to inverter’s power input terminals (R, S, T or L, N).

V5 series inverter

26

3 Operating Instructions

3-1. Run the inverter

3-1-1. Command channel of inverter

We can control the inverter’s START, STOP, JOG and other running actions by three command channels.

1. Operation panel

Control by , and keys on the operation panel (default setting)

2. Control terminals
FWD, REV, COM can form 2-wire control; one terminal of X1~X6 and FWD, REV can form 3-wire control.

3. Serial port
The operations such as START, STOP can be controlled by other devices which can communicate with the inverter.

You can select the command channels via parameter P0.03 or via multi-functional input terminal (P4.00~ P4.07 function
23, 24).
Warning: The user must debug the system after changing the command channel to make sure it can meet the system re­quirement, otherwise device damage and physical injury will happen.

3-1-2. Frequency setting channel

In common operating mode, there are 8 channels to set the frequency:

0: keyboard analog potentiometer
1: a and keys on the operate panel
2: Function code on the operate panel
3: Terminals UP/DOWN
4: Serial port
5: Analog VI
6: Analog CI
7: Pulse terminal（PULSE）
8: Combination

3-1-3. Running state

There are two running state: stopping and running.
Stopping state: After the inverter powered on and initialized, if no operating command is input, the inverter will enter

standby state.

Running state: The inverter enters running state after it receives running command.

V5 series inverter

27

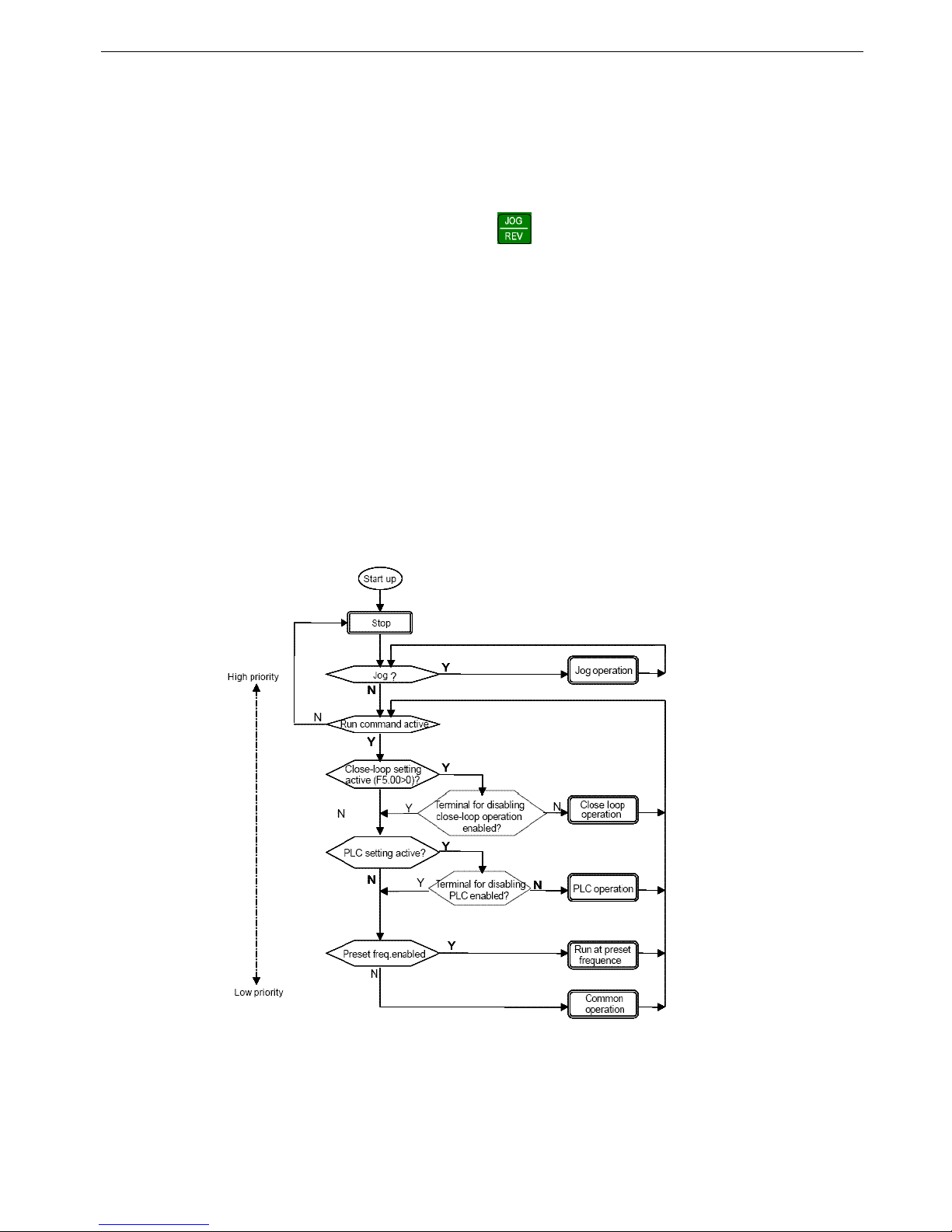

3-1-4. Running modes

V5 inverter has 5 kinds of running modes which can be sequenced according to the priority: Jog running→Close loop run­ning→PLC running→Multi-speed running→Simple running, as shown in Fig. 3-1.

0: Jog running

When the inverter is in the stopp state, it will running according to jog frequency (refer to P3.06~P3.08 for details) af­ter receiving jog running command (e.g after pressing key)

1: Close loop

If the close loop running function is enabled (P7.00=1), the inverter will enter close loop running mode, that is, ad-

justing PI according to the reference and feedback value (see parameter P7), PI adjuster output is the essential com-

mand of inverter output frequency. Close loop running can be disabled by multi-function terminal (function No.27)

and the inverter will switch to a lower priority running mode.

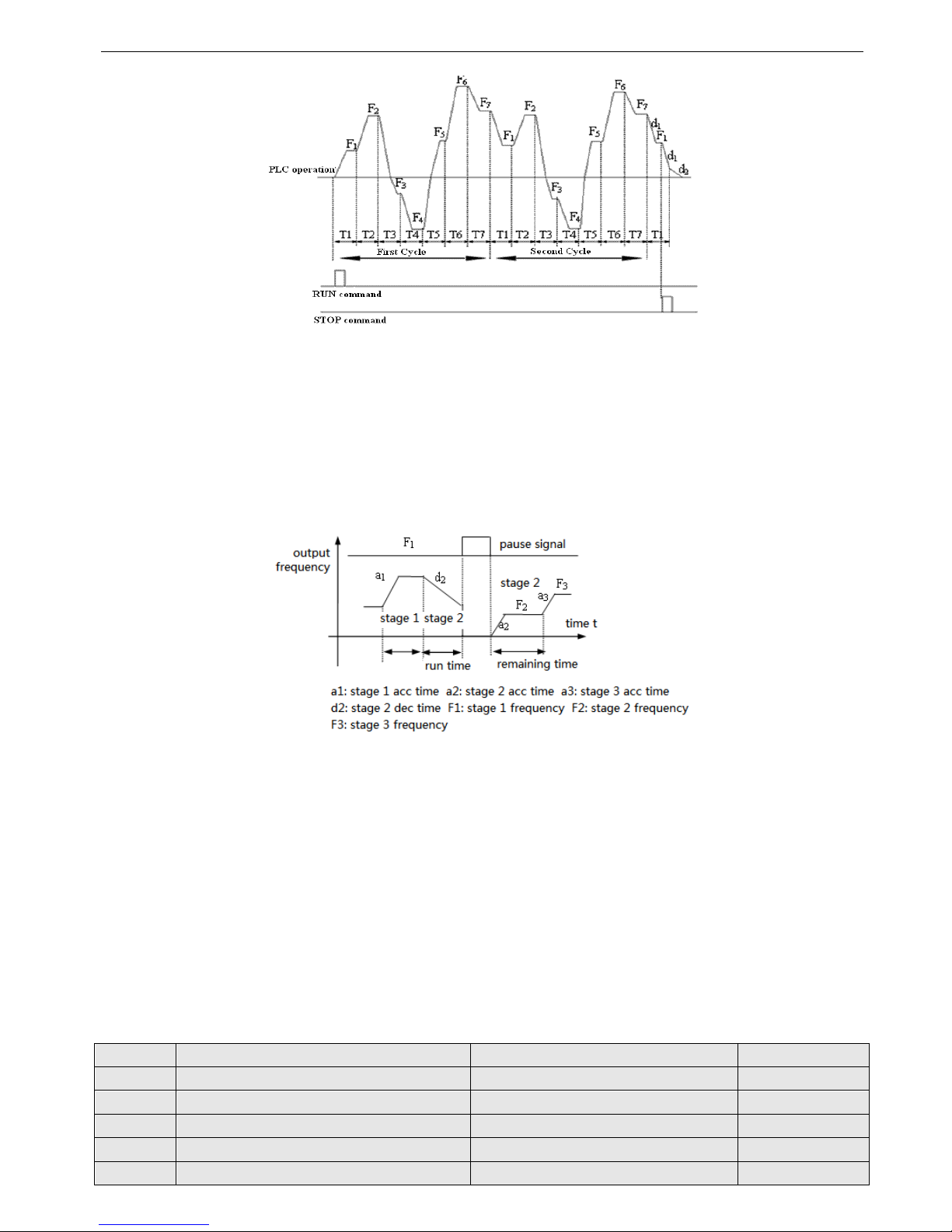

2: PLC running

If PLC function is enabled (the lowest bit of P8.00≠0), the inverter will enter PLC running mode and run in the

pre-defined mode (refer to parameter P8). PLC running can be disabled by multi-function terminal (funcition No.29)

and the inverter will switch to a running mode with low priority.
3: Multi-speed running

Select Multi-frequency 1~7 (P3.26～P3.32) to realize multi-speed running by no-zero combination of multi-function

terminal (function No.1, 2, 3)
4: Common running

Common running is open loop running mode.

Fig. 3-1 Running state

Except “Jog running”, other 4 kinds of running modes can be enabled with multi-frequency. Besides, “PLC running”,

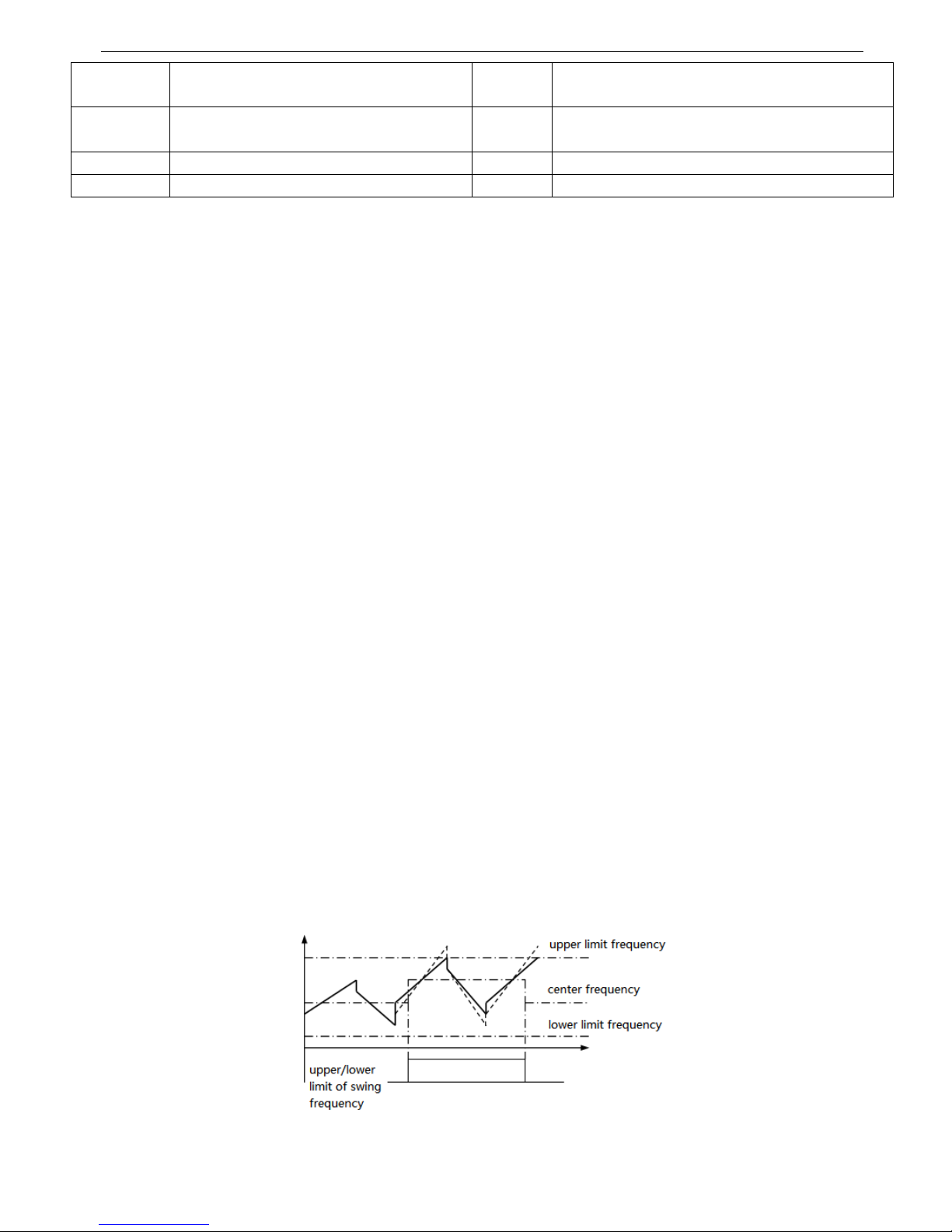

“multi-speed running”, “common running” can be used as swing frequency.

V5 series inverter

28

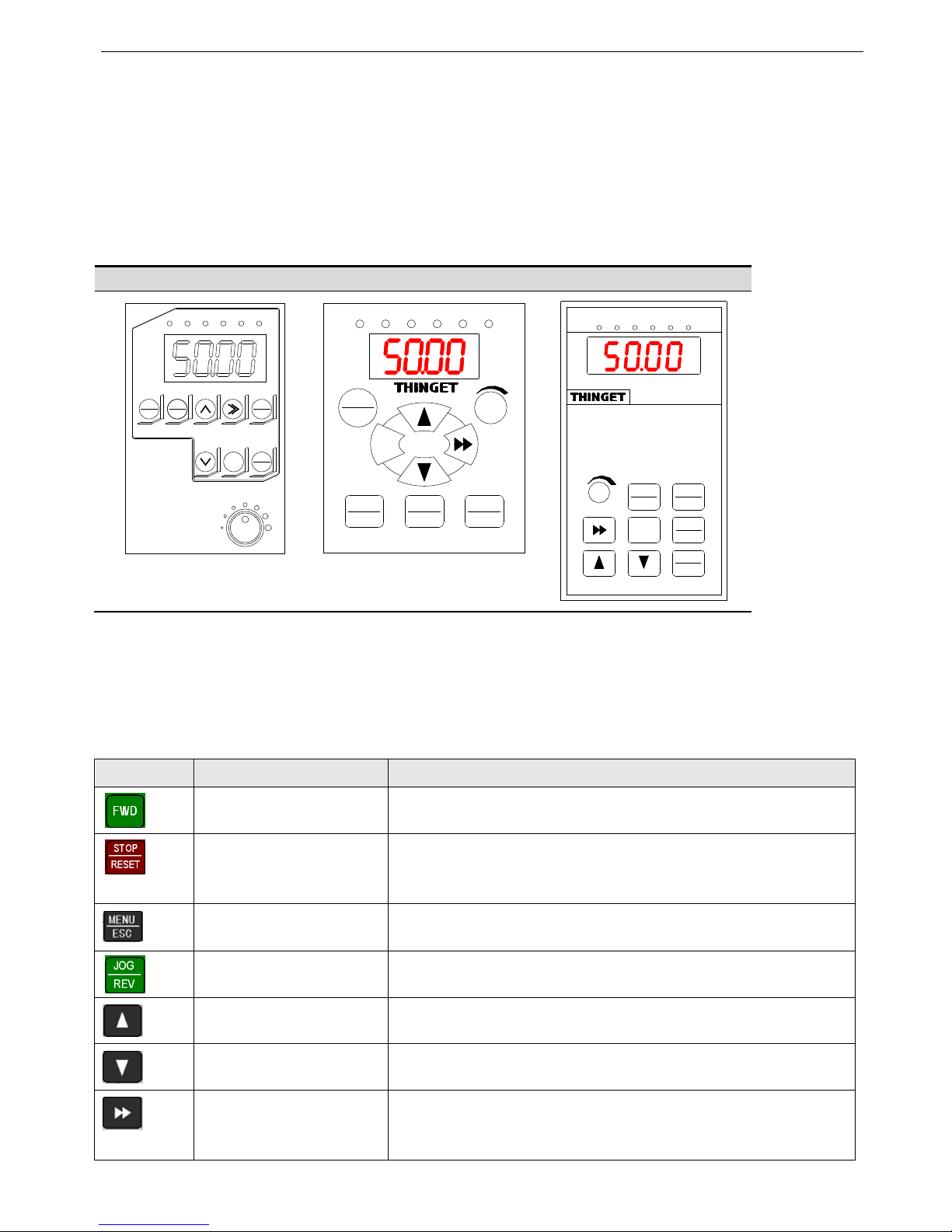

3-2. Use the keyboard

3-2-1. Keyboard layout

Start, speed, stop, brake, running parameter setting and control of the peripheral can be performed by inverter’s operation
panel and control terminals; operation panel is shown in Fig.3-2.

VB3 0.4~0.75KW VB5-OPU-01 V5-OPU-03

Fig. 3-2 Illustration of operation panel

3-2-2. Keyboard function

There are 8 keys and 1 potentiometer on the operate panel and the functions are shown in the following table.

Key Name Function

Forward running In operate panel control mode, press this key to run forward

Stop/Reset

In operate panel control mode, press this key to stop running. In error mode, press it to
return to normal state.

Program/Exit Enter or exit programming state

Jog/Reverse run

P3.45=0, jog running
P3.45=1, reverse running

Increase Increase data or function code

Decrease Decrease data or function code

Shift

In editing state, press this key to select the bit to be changed; in other state, press this
key to see the monitor parameters.

MENU

ESC

JOG
REV

ENT

DATA

FWD

STOP
RESET

FWD REV ALM HZ V A

MENU

ESC

FWD

ENT

DATA

JOG

REV

STOP

RESET

FWD REV ALM HZ V A

MENU

ESC

ENTER

DATA

FWD

JOG
REV

STOP

RESET

FWD R EV ALM HZ V A

V5 series inverter

29

Save/switch In program state, press this key to enter the next menu or save the parameters.

Analog potentiometer

When P0.01=0, adjust potentiometer to change the inverter’s output frequency.

3-2-3. Fucntion description of LED and indicator

The operation panel consists of 4-bit 8-segment LED, 3 unit indicators and 3 state indicators. The three unit indicators have
6 different combinations and each combination corresponds to one unit while settting parameters.The relationship between
the combination of the indicators and the unit are shown in Fig.3-3.

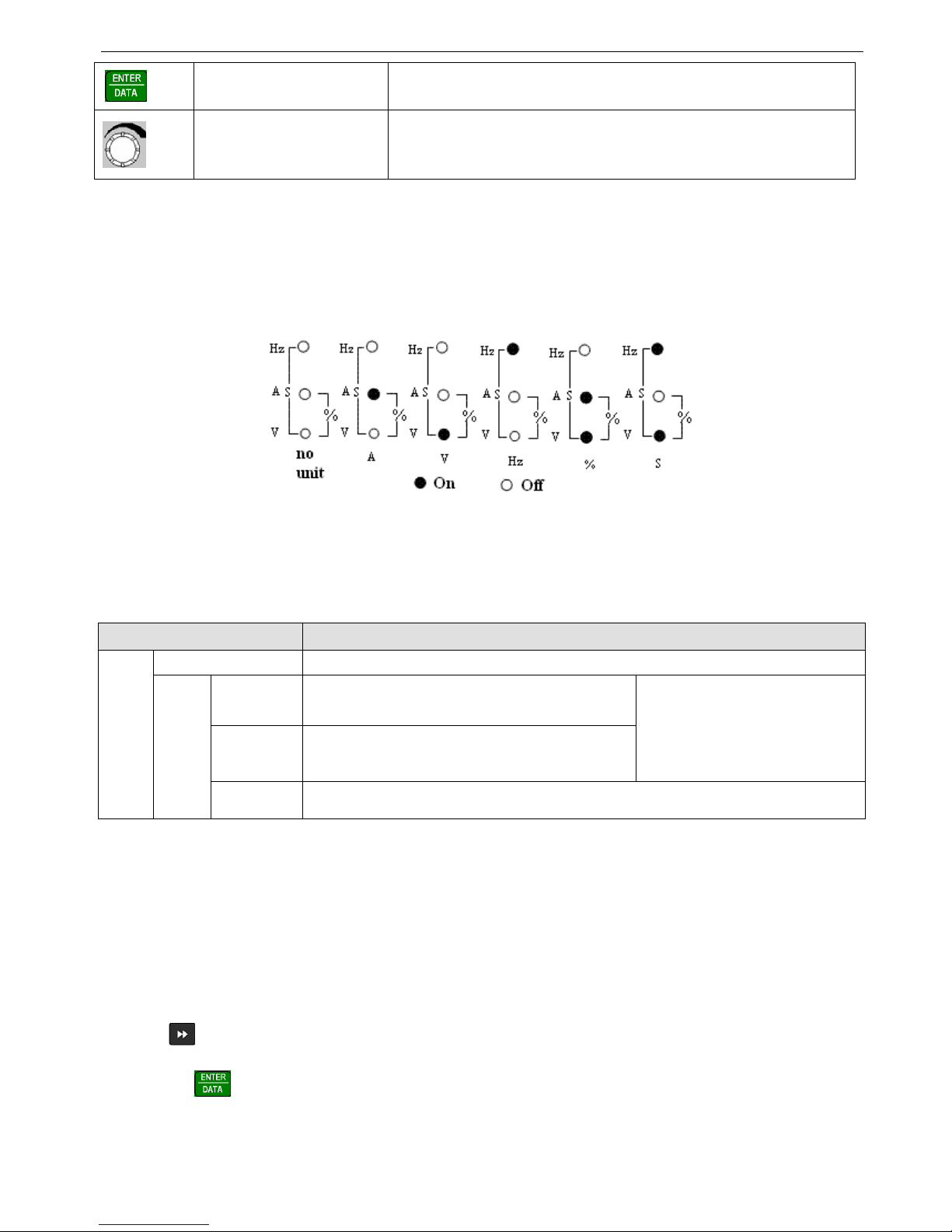

Fig. 3－3 Unit represted by combination of the indicators

3 state indicators locate above the LED in the operate panel. From left to right: forward indicator FWD, reverse indicator
REV, alarm indicator ALM. The functions of these indicators are shown in Table3-1

Table 3-1 Functions of status indicators

Item Function

Display function

LED Display inverter’s current status parameters and setting parameters

State indicator

FWD

Forward running indicator, inverter outputs positive phase,
the motor will run forward after connecting to the inverter

If FWD and REV indicators all light, it
means that the inverter are in DC braking
mode

REV

Reverse running indicator, inverter outputs negative
phase.The motor will run reverse after connecting to the
inverter

ALM This indicator will light when the inverter is alarming.

3-2-4. Display of the operation panel

The inverter’s operation panel can display four parameters in stopping, editing, alarming and running.

1. Stop display

When the inverter stop, operation panel displays monitor parameters. Generally, it will display setting frequency (b-01
monitor parameter). As shown in Fig.3-4 B, the indicator on the top right displays the unit.
Pressing key can cycle display other monitor parameters in stopping status (the first seven parameters in B group
are fault displayed and the other parameters can be defined by function code P3.41 and P3.42, please refer to Chapter 5 for
details).Press to enter default display parameter b-01(setting frequency), otherwise it will always display the last
monitor parameter.

V5 series inverter

30

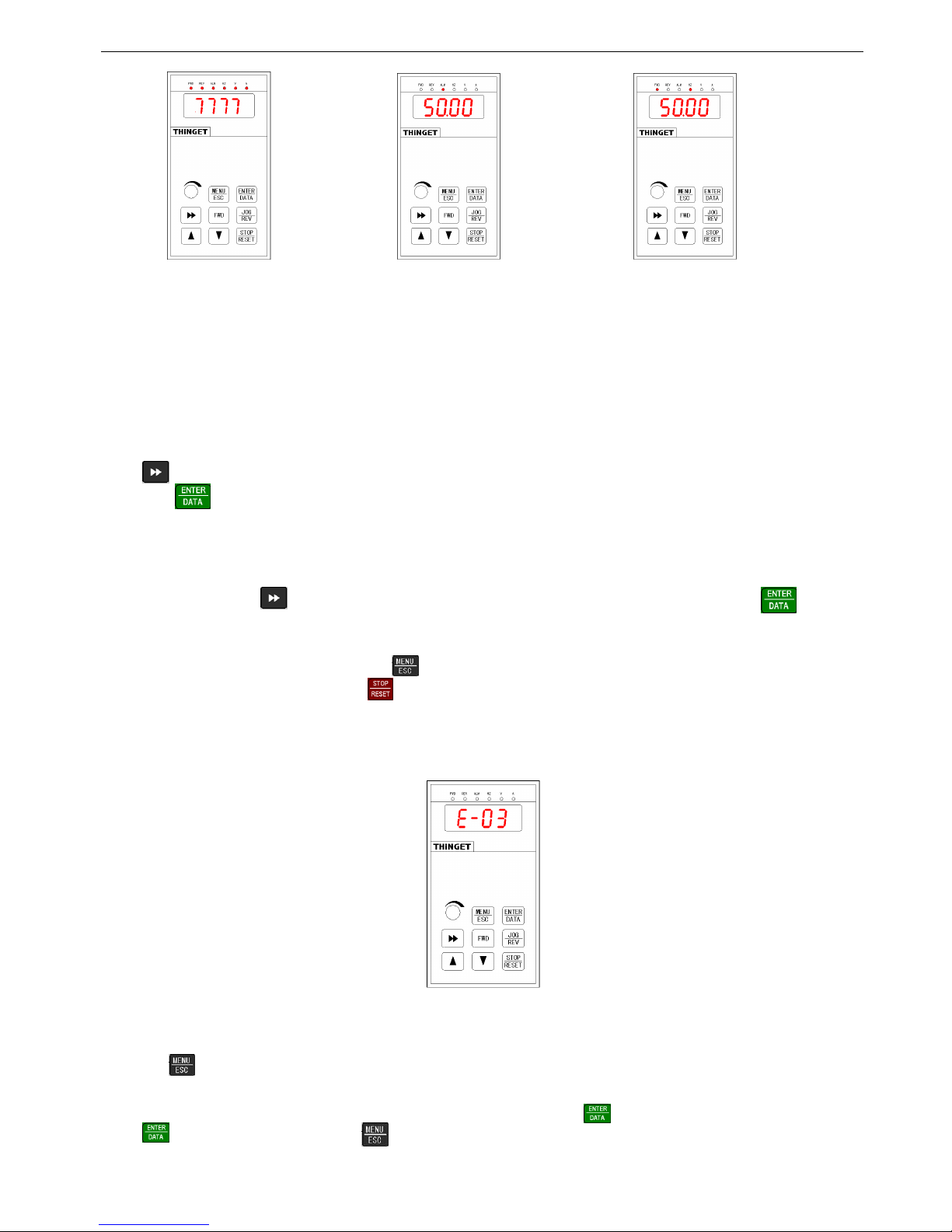

Fig. 3-4 Display during initialize, stop and run

2. Parameters displayed in running status

When the inverter receive running command, it starts to enter running status and operation panel will display running mon­itor parameters, the default parameter is output frequency (b-00),as shown in Fig.3-4 C, the unit indicator on the top right
indicates the unit.
Press key can cycle display parameter in running status (defined by function code P3.41 and P3.42).While display­ing, press key to shift to the default parameter b-00 (output frequency), Otherwise, the operation panel will dis­play the last monitor parameter constantly.

3. Alarm information

When then inverter detects error signal, the panel will display error code, the code will flicker to catch your attention as
shown in Fig.3-5; Press key to view the relative error parameters in stopping status, and then press to switch
to error code display.

If you want to view error information, press to view P6 parameter in editing status.After you finding out and solve
the problem, the inverter can be reset by key or control terminals or communication command. The error code will
not disappear until the error is solved.
Note: For some serious error such as over current, over voltage etc, please do not reset the inverter and run until you solve

the problem, otherwise the inverter may be damaged.

Fig.3-5 Alarming display status

4. Editing status

pressing key to enter editing status in stopping ,running or alarming status (if set password, you should input correct
password to enter, refer to P0.00 and Fig 3-9 for details).This status can be displayed in three classes menu, they are: code
group→code No. →code parameter, you can enter the sub-menu by pressing .In code parameter status,
press to save parameter and press to exit without saving.

Fig.A Fig. B Fig. C

Power on and
initialize, display
the dynamic picture

S

top status, display

the stop parameters

running status,

display the running

parameters

V5 series inverter

31

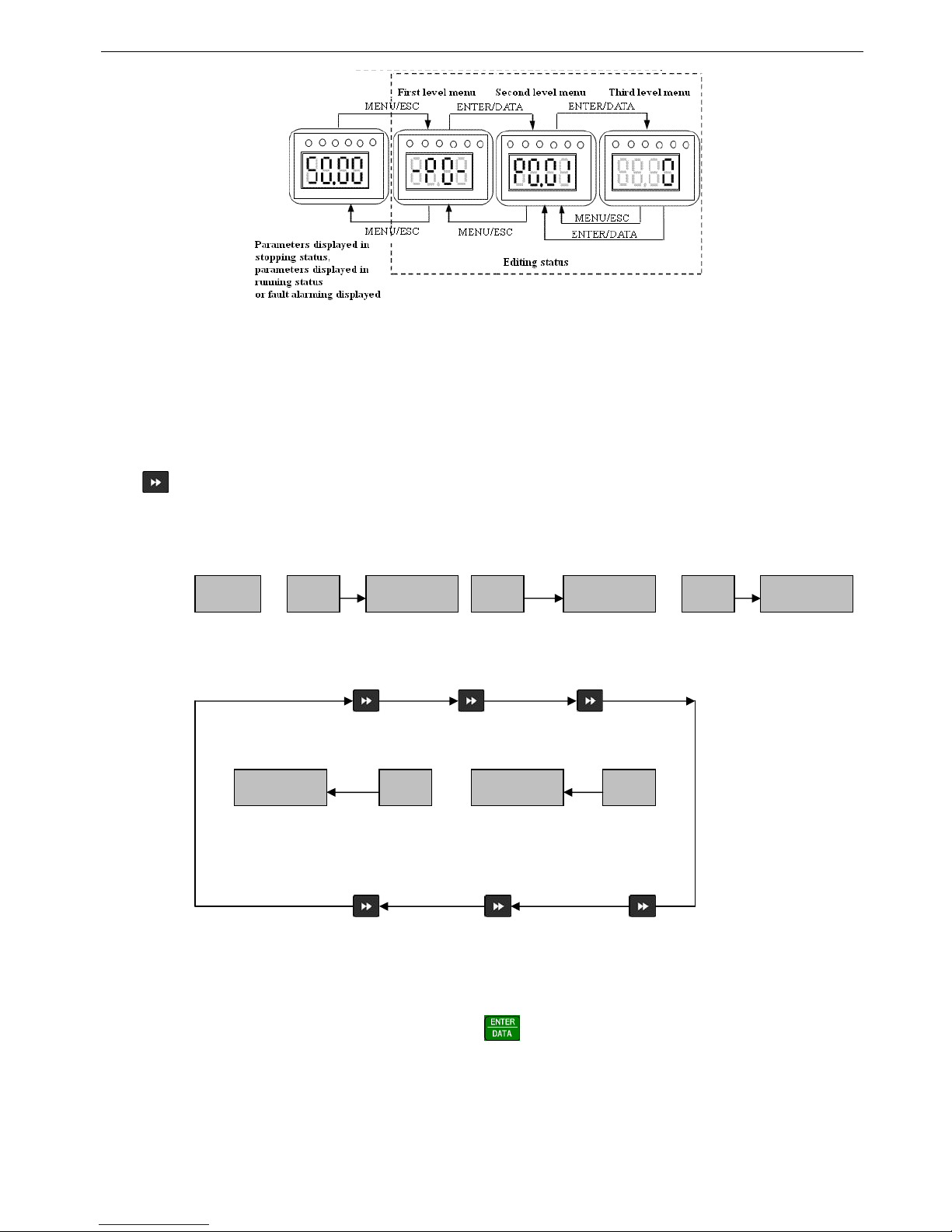

Fig. 3-6 Editing status

3-2-5. Panel operation method

The following show how to do various operations through the operation panel.

1. Parameter Display

Press key to display parameter group b. First display the parameter No, then display parameter value after one
second. The shift method is shown below in Fig 4-7

1s 1s 1s

1s 1s

Fig. 3-7 Setting the parameters in running status

1) The default setting is to display parameter b-00~b-06, you can view other status parameters by changing P3.41 and

P3.42.

(2) When you want to view status monitor parameter, press to enter default monitor parameter display status.The

default monitor parameter in stopping states is setting frequency and in running states is output frequency.

2. Function parameter

Take the following as an example: change function parameter P3.06 from 5.00Hz to 8.50Hz.

LED
display

50.00 b-01 parameter b-02 parameter b-03 parameter

parameter b-14 parameters b-04

Output frequency

Button
operation

Set
frequency

Output
voltage

Output
current

Generatrix
voltage Set length

V5 series inverter

32

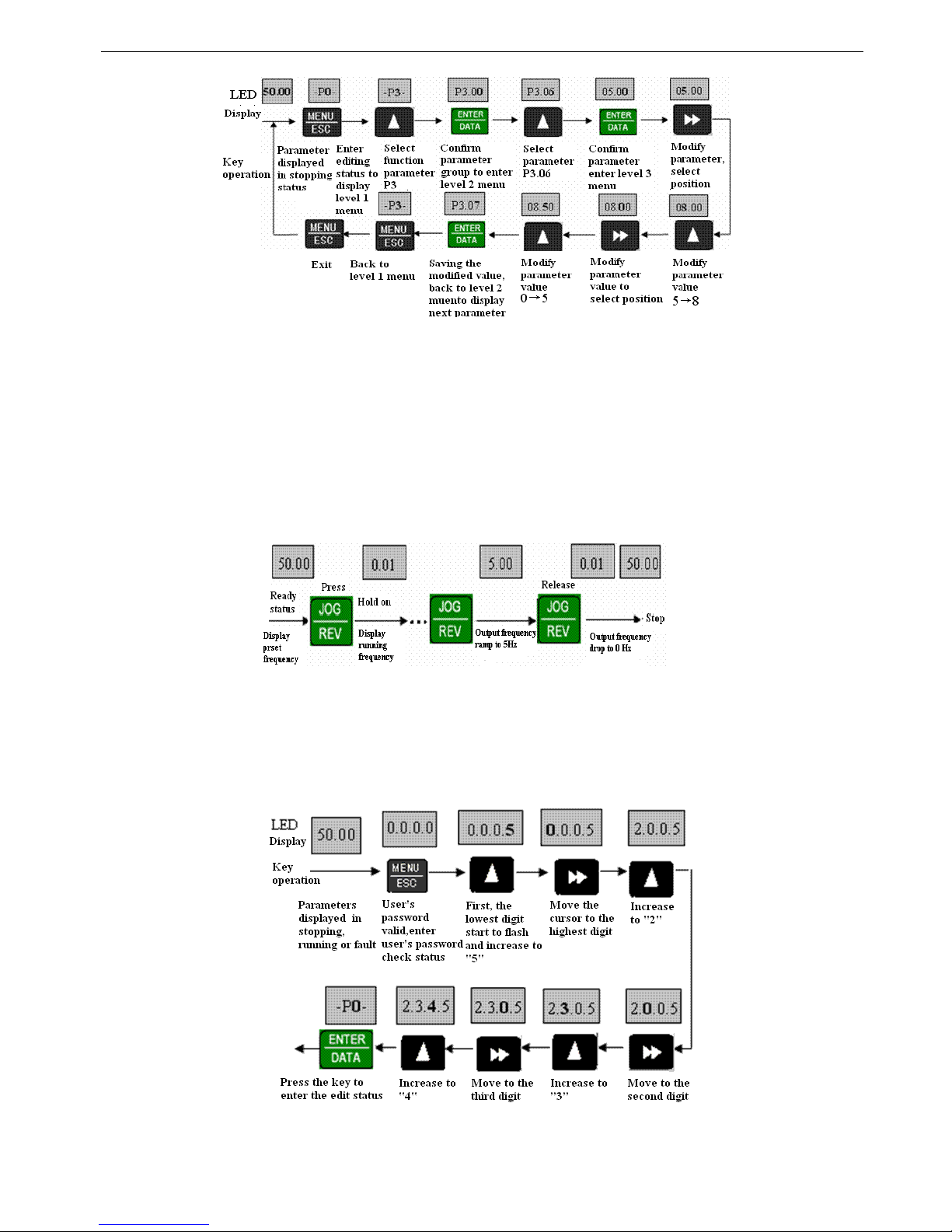

Fig. 3-8 Parameter editing

In the third level menu, the parameter can’t be changed if no bit is flashing, the possible reasons are:
(1) The setting of this parameter can not be changed, such as the actural detected parameters or recorded parameters.
(2) This parameters can only be changed in stopping state and can not be changed in running state.
(3) Parameters have been protected. If the lowest bit of P3.01 is set to 1 or 2, all the parameters can not be changed. If you
really want to change the setting, please set P3.01 to 0 in advance.

3. Jog

Suppose the current running command channel is operate panel, machine is standby, jog frequency is 5Hz:

Fig. 3-9 Jog Operation

4. Set user password

Set password PF.01 as “2345”. The bold bit indicates flashing digit.

Fig. 3-10 Input user’s password

LED Dispaly

Key Operation

V5 series inverter

33

5. Check error parameters:

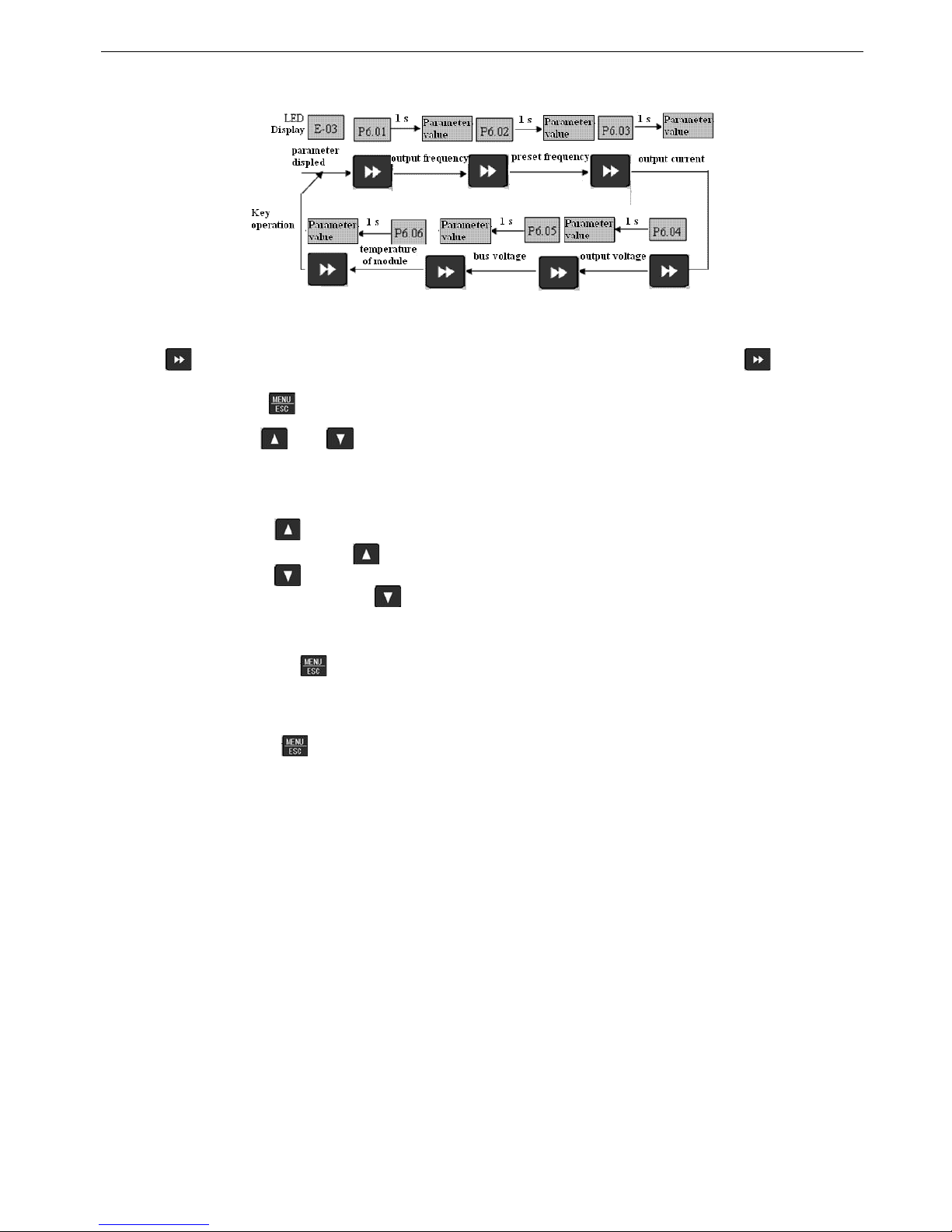

Fig. 3-11 Check operation in error status

Note：
(1) Press key to check parameter P6 in error code display mode, the range is P6.01~P6.06, press key,
parameter No. will firstly displayed and the parameter value will be displayed after 1s.
(2)While checking, press key to back to error code display.

6. Setting freuqnecy via and

Suppose it is in stopping parameter display mode, P0.01=1, the operation mode is shown below:
(1)Frequency adjustment adopt integral mode;

(2)When always pressing , the digital increases from lowest bit of LED, then ten bit starts to increase, so does hun­dred bit and thousand bit. If you release and press it again, it increases from the lowest bit again.
(3) When always pressing , the digital decreases from lowest bit of LED, then ten bit starts to decrease, so does
hundred bit and thousand bit. If you release and press it again, it decreases from the lowest bit again.

7. Lock the panel

If the panel is unlocked, press key for five seconds to lock the panel.

8. Unlock the panel

If the panel is locked, press key for five seconds to unlock the panel.

3-3. Power on the inverter

3-3-1. Checking after power on

Please wire the inverter according to “Wiring”in this manual.

3-3-2. Power on the inverter for the first time

After checking the wiring and AC power, switch on the AC power supply to electrify the inverter.The inverter’s panel will

display dynamic screen and then the contactor closes. When the LED displays preset frequency, the inverter initialization is

completed.The procedure is shown as in Fig3-12.

V5 series inverter

34

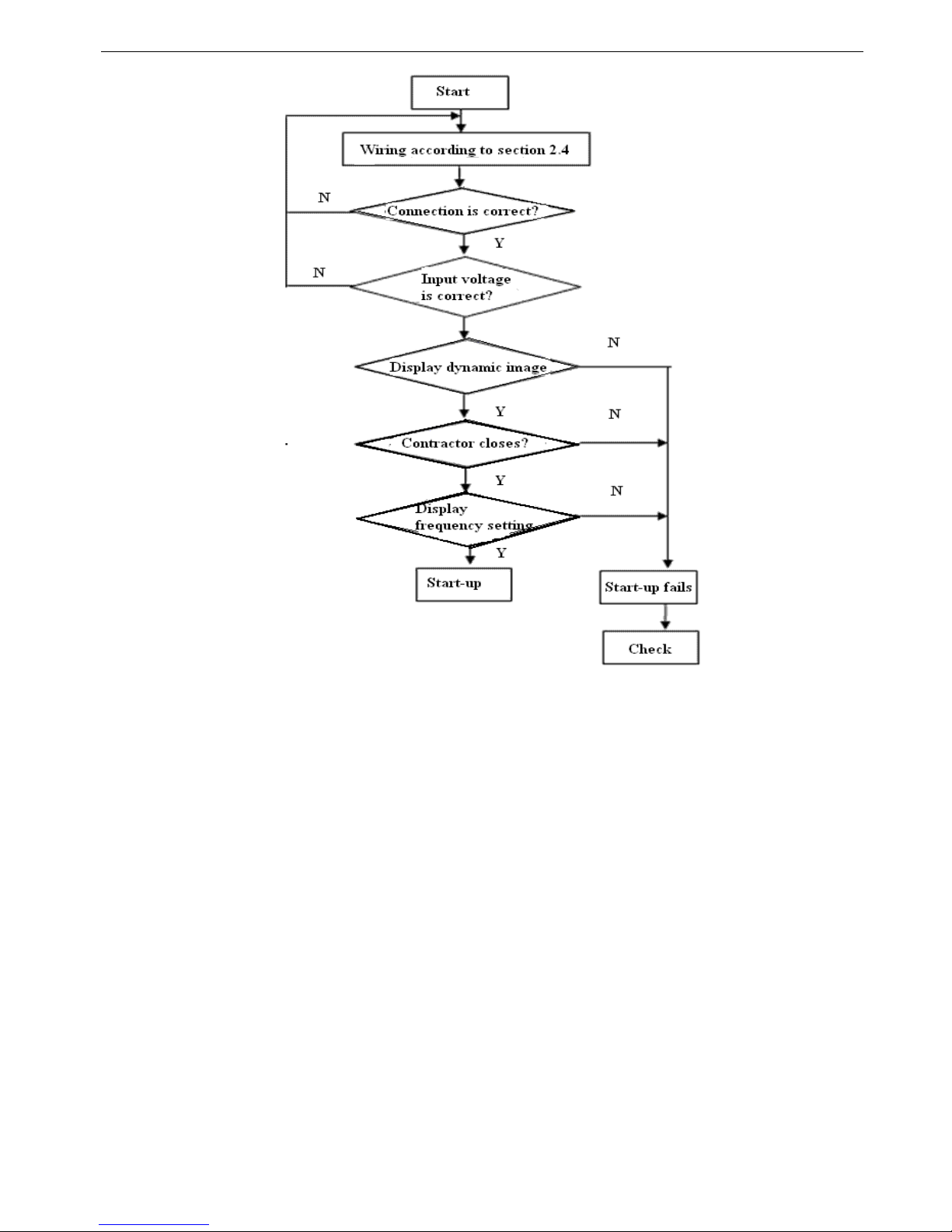

Fig. 3-12 Procedures of starting the inverter for the first time

V5 series inverter

35

4 Function Parameters

4-1. Function code

○: Parameters can be changed while running
×: Parameters can not be changed while running
* : Parameters can only be read, can not be changed

1. Basic running parameters (Group P0)

Group P0: Basic running parameters

Parameter Name Setting Range

Minmum

unit

Default setting Change

P0.00 Control mode

selection

0: V/F control
1: open-loop vector control

1 0 ×

P0.01 Frequency setting

mode

0: potentiometer on the panel
1: Increase/Decrease key
2: digital setting 1, via keys on the
panel
3: digital setting 2, via terminal
UP/DOWN
4: digit setting 3, via serial port
5: VI analog input (VI-GND)
6: CI analog input (CI-GND)
7: Pulse input (PULSE)
8: Combined setting mode (refer
to P3.00)

1 0 ○

P0.02 Digital set the

running frequency

P0.19 max frequency ~ P0.20 min
frequency limit

0.01HZ 50.00HZ ○

P0.03 Running command

selection

0: operation panel
1: Teminal
2: serial port

1 0 ○

P0.04 Running direction

setting

Lowest bit:
0: jog forward via panel
1: jog reverse via panel
Ten bit:
0: enable to reverse running
1: prohibit reverse running

1 00 ○

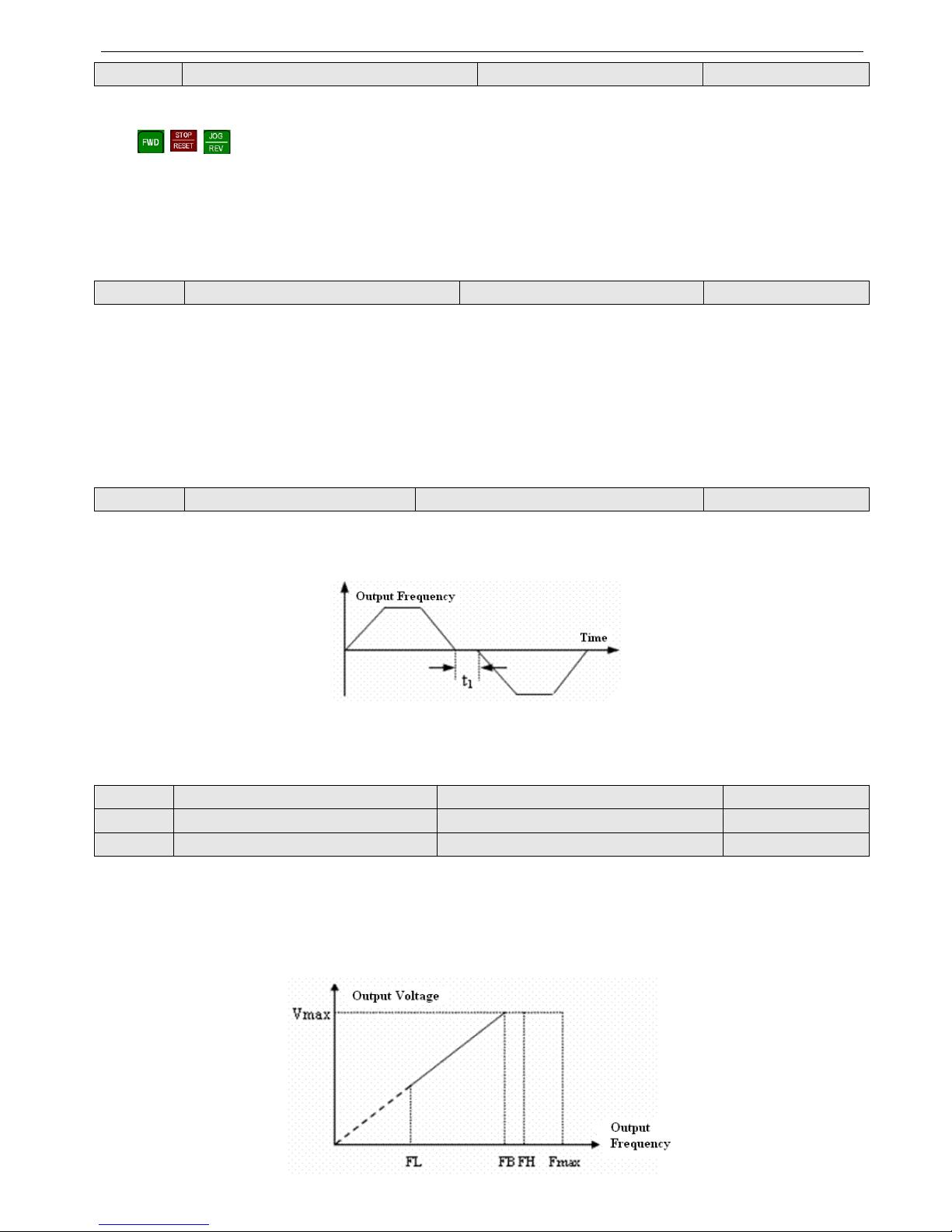

P0.05 Run forward/reverse

dead zone time

0.0~120.0s 0.1s 0.1s ○

P0.06 Highest ouput

frequency

50.00Hz~500.00Hz 0.01Hz 50.00Hz ×

P0.07 Basic running

frequency

1.00Hz~500.00Hz 0.01Hz 50.00Hz ×

P0.08 Highest output

voltage

1~480V 1V Inverter rated

voltage

×

P0.09 Torque boost 0.0%～30.0% 0.1% 2.0% ○
P0.10 Cut-off frequency

for torque boost

0.00Hz~basic running frequency
P0.07

0.00 25.00Hz ○

P0.11 Torque boost mode 0: manual

1: automatic

1 0 ○

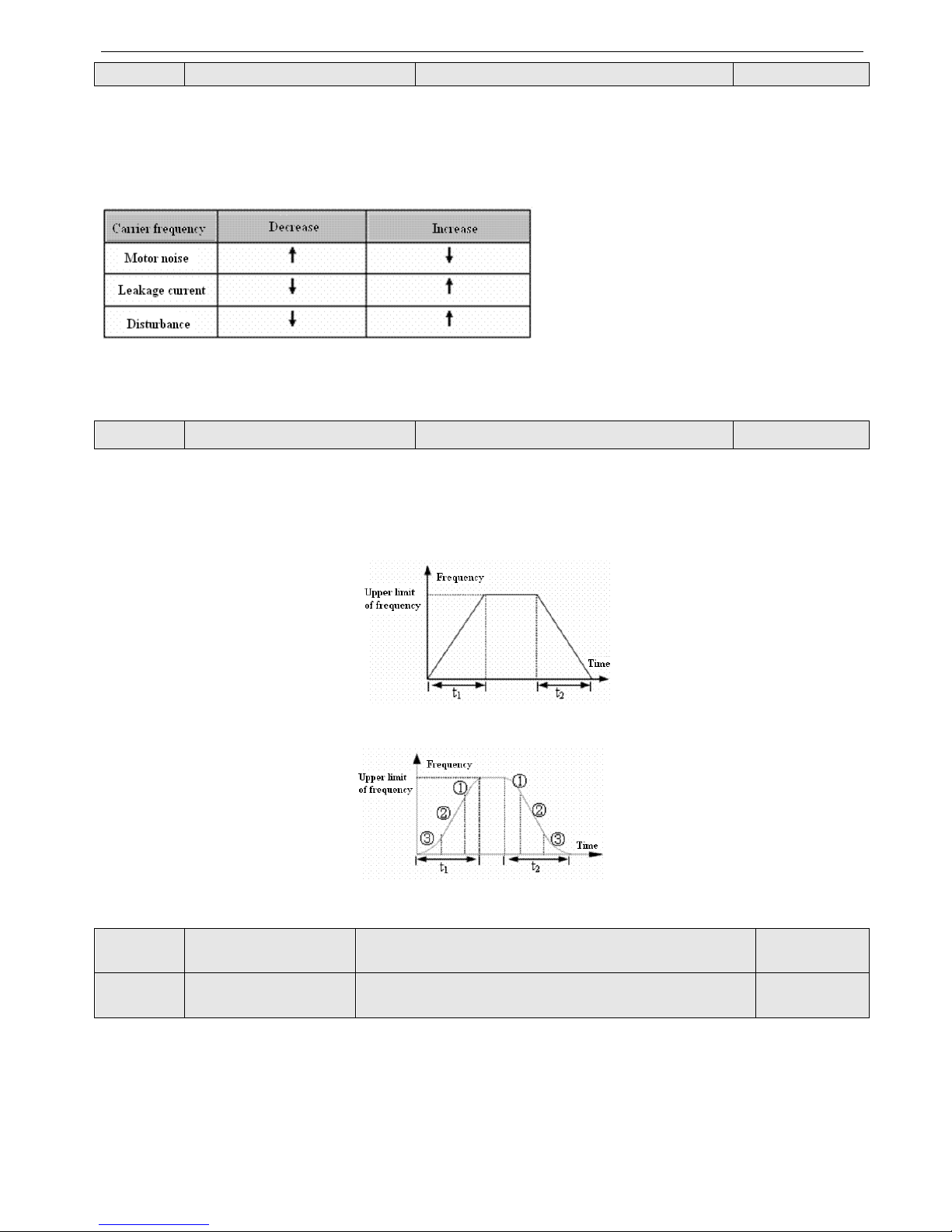

P0.12 Carrier frequency 1.0K~14.0K 0.1K 8.0K ×
P0.13 Acc/Dec mode

selection

0: linear Acc/Dec
1: S curve Acc/Dec

1 0 ×

P0.14 Low speed time of

S curve

10.0%~50.0% (Acc/Dec time)
P0.14＋P0.15＜90%

0.1% 20.0% ○

V5 series inverter

36

P0.15 Linear time of S

curve

10.0%~80.0%（Acc/Dec time）
P0.14＋P0.15＜90%

0.1% 60.0% ○

P0.16 Acc/Dec time unit 0: second

1: minute

0 0 ×

P0.17 Accerlate time 1 0.1~6000.0 0.1 10.0 ○
P0.18 Decerlate time 1 0.1~6000.0 0.1 10.0 ○
P0.19 High limit frequency Lowest frequency ~highest output

frequency P0.06

0.01Hz 50.00Hz ×

P0.20 Low limit frequency 0.00Hz~highest frequency 0.01Hz 0.00Hz ×
P0.21 Running mode of

lowest frequency

0: running at lowest frequency
1: stop

1 0 ×

P0.22 V/F curve setting 0: constant torque curve

1: torque-reducing curve 1 (1.2
powers)
2: torque-reducing curve 2 (1.7
powers)
3: torque-reducing curve 3 (2.0
powers)
4: multi-segment V/F curves

1 0 ×

P0.23 V/F frequency value

P1

0.00~P0.25 0.01Hz 0.00Hz ×

P0.24 V/F voltage value

V1

0~ P0.26 0.1% 0.0% ×

P0.25 V/F frequency value

P2

P0.23 ~ P0.27 0.01Hz 0.00Hz ×

P0.26 V/F voltage value

V2

P0.24 ~ P0.28 0.1% 0.0% ×

P0.27 V/F frequency value

P3

P0.25 ~ P0.07 basic running
frequency

0.01Hz 0.00Hz ×

P0.28 V/F voltage value

V3

P0.26 ~ 100.0% 0.1% 0.0% ×

2. Frequency parameter (Group P1)

Group P1: reference frequency parameter

Parameter Name Setting range

Minmum

unit

Default setting

Change

P1.00 Time constant of

analog filter

0.01~30.00s 0.01s 0.20s ○

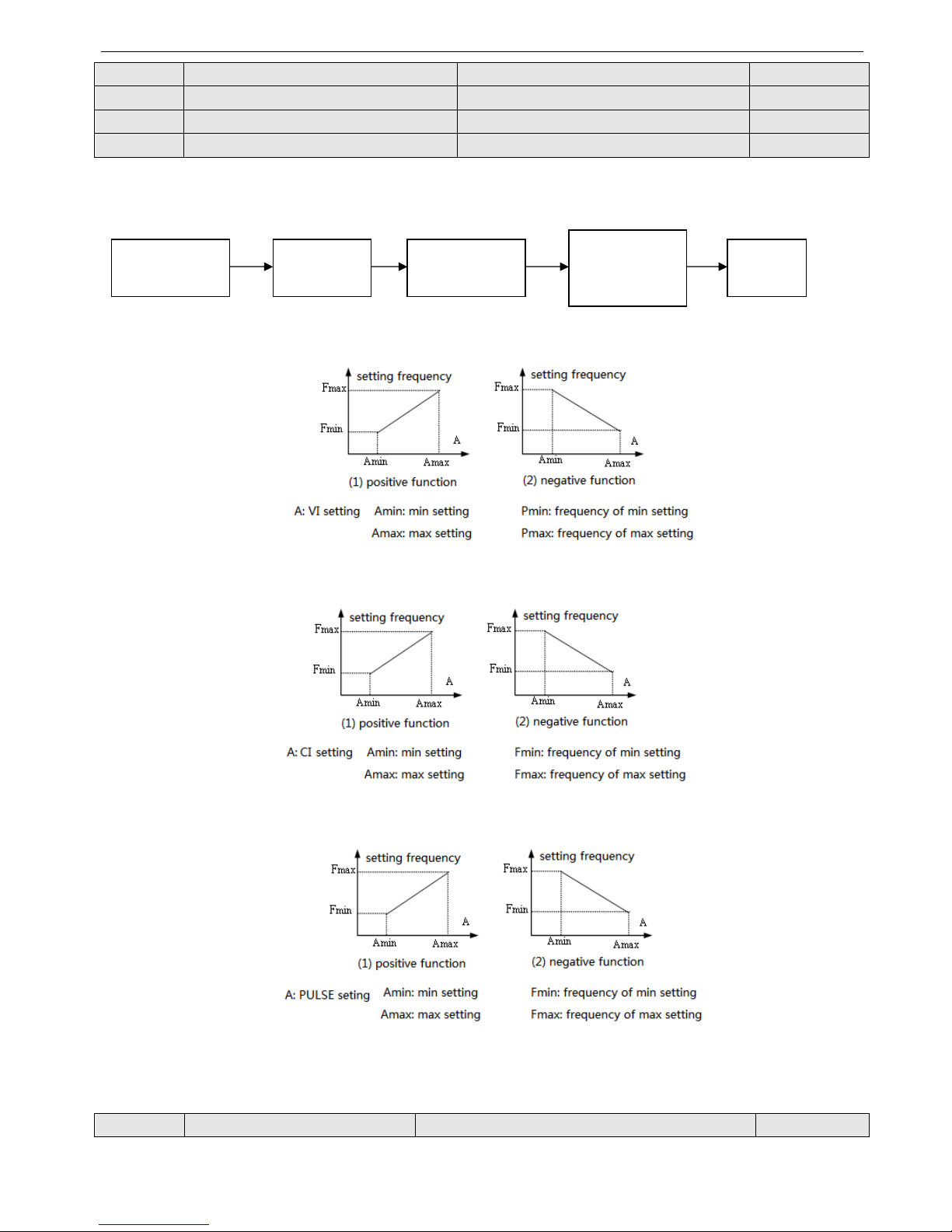

P1.01 The gain of VI

channel

0.01~9.99 0.01 1.00 ○

P1.02 min setting value of

VI

0.00~P1.04 0.01V 0.00V ○

P1.03 Frequency of the

min setting of VI

0.00~highest frequency 0.01Hz 0.00Hz ○

P1.04 Max setting of VI P1.04~10.00V 0.01V 10.00V ○
P1.05 Frequency of the

max setting of VI

0.00~highest frequency 0.01Hz 50.00Hz ○

P1.06 The gain of CI

channel

0.01~ 9.99 0.01 1.00 ○

P1.07 Min setting of CI 0.00~ P1.09 0.01V 0.00V ○
P1.08 Frequency of the

min setting of CI

0.00~highest frequency 0.01Hz 0.00Hz ○

V5 series inverter

37

P1.09 Max setting of CI P1.07 ~10.00V 0.01V 10.00V ○
P1.10 Frequency of the

max setting of CI

0.00~highest frequency 0.01Hz 50.00Hz ○

P1.11 Max input pulse

frequency of
PULSE

0.1~20.0K 0.1K 10.0K ○

P1.12 Min setting of

PULSE

0.0~P1.14
(Max setting of PULSE)

0.1K 0.1K ○

P1.13 Frequency of the

min setting of
PULSE

0.00~highest frequency 0.01Hz 0.00Hz ○

P1.14 Max setting of

PULSE

P1.12 (Min setting of PULSE) ~ P1.11
(Max input frequency)

0.1K 10.0K ○

P1.15 Frequency of the

max setting of
PULSE

0.00~highest frequency 0.01Hz 50.00Hz ○

P1.16 Input mode of CI 0: 4~20mA

1: 0~10V

- 0 ○

3. Starting and Braking Prameters (Group P2)

Group P2: Starting and Braking Prameters

Parameter Name Range

Minmum

unit

Factory setting Change

P2.00 Starting mode 0: Start from the starting

frequency
1: Brake first and then start
from the starting frequency
2: detect current speed then
startup

1 0 ×

P2.01 Starting frequency 0.20~20.00Hz 0.01Hz 0.50Hz ○
P2.02 Holding time of starting

frequency

0.0~30.0s 0.1s 0.0s ○

P2.03 DC brake current when

startup

0.0~80.0% 0.1% 0% ○

P2.04 DC brake time when startup 0.0~60.0s 0.1s 0.0s ○

P2.05 Stopping mode

0: Decelerate
1: Free stop
2: Decelerate + DC brake

1 0 ×

P2.06 DC brake startup frequency

when stop

0.0~15.00Hz 0.0Hz 3.00Hz ○

P2.07 DC brake time when stop 0.0~60.0s 0.1s 0.0s ○
P2.08 DC brake current when stop 0.0~80.0% 0.1% 0.0% ○

V5 series inverter

38

4. Auxiliary running parameters (Group P3)

Group P3: Auxiliary running parameters

Parameter Name Range

Minmum

unit

Factory

setting

Change

P3.00 Combination of

frequency input

0: VI＋CI
1: VI－CI
2: External pulse＋VI＋
Increase/Decrease key
3: External pulse－VI－
Increase/Decrease key
4: External pulse＋CI
5: External pulse －CI
6: RS485 ＋VI＋Increase/Decrease
key
7: RS485－VI－Increase/Decrease
Key
8: RS485＋CI＋Increase/Decrease
key
9: RS485－CI－Increase/Decrease
key
10: RS485＋CI＋External pulse
11: RS485－CI－External pulse
12: RS485＋VI＋External pulse
13: RS485－VI－External pulse
14: VI＋CI＋Increase/Decrease key
＋Digital setting
15: VI＋CI－Increase/Decrease key
＋Digital setting
16: MAX (VI, CI)
17: MIN (VI, CI)
18: MAX (VI, CI, PULSE)
19: MIN (VI, CI, PULSE)
20: VI, CI none-zero value is valid, VI
is priority

1 0 ×

P3.01 Parameter initialization

Lock

Lowest bit:
0: All parameters can be modified
1: Only P3.01 can be modified
2:Only P0.02 and P3.01 can be
modified
ten bit:
0: disabled
1: Restore to default setting
2: Clear fault record

1 00 ×

P3.02 Parameter copy 0:disabled

1:parameter upload
2:parameter download
Note:Function is still in developing

1 0 ×

P3.03 Auto energy-saving func- 0: disabled 1 0 ×

V5 series inverter

39

tion 1: Enabled

P3.04 AVR function 0: disabled

1: enable all the time
2: Disabled when decelerating

1 0 ×

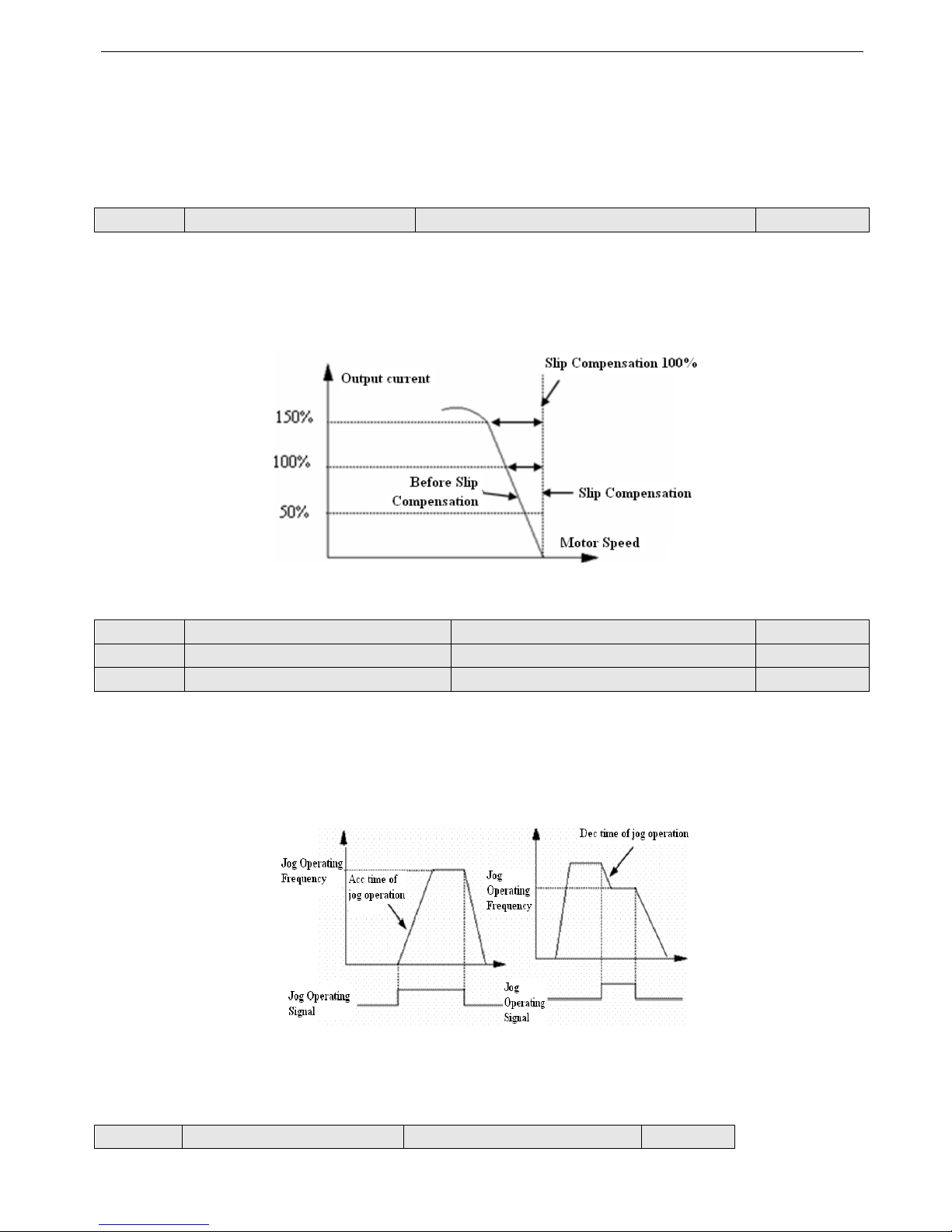

P3.05 Slip frequency compen-

sation

0~150%

1% 0%

×

P3.06 Jog frequency 0.10~50.00Hz 0.01Hz 5.00Hz ○

P3.07 Accelerate time of jog 0.1~60.0s 0.1s 5.0s ○

P3.08 Decelerate time of jog 0.1~60.0s 0.1s 5.0s ○

P3.09 Communication

configuration

LED lowest bit: baud rate
0: 1200BPS
1: 2400BPS
2: 4800BPS
3: 9600BPS
4: 19200BPS
5: 38400BPS
LED ten bit: data format
0: 1－7－2 foramt, no parity
1: 1－7－1 format, Odd
2: 1－7－1 format, Even
3: 1－8－2 format, None
4: 1－8－1 format, Odd
5: 1－8－1 format, Even
6: 1－8－1 format, None
(When use Modbus-RTU communica­tion mode, please select data mode
3~6)
LED hundred bit: undefined

1 054 ×

P3.10 Inverter address 0~248

0: broadcast address
248: inverter as the host address
(function is developing)

1 1 ×

P3.11

Communication timeout
detect time

0.0~1000.0s

0.0: Detection disabled

0.1s 0.0s ×

P3.12 Inverter answer delay 0~1000ms 1 5ms ×

P3.13 Proportion of communi-

cation frequency

0.01~1.00 0.01 1.00 ×

P3.14 Accerlate time 2 0.1~6000.0 0.1 10.0 ○

P3.15 Decerlate time 2 0.1~6000.0 0.1 10.0 ○

P3.16 Accerlate time 3 0.1~6000.0 0.1 10.0 ○

P3.17 Decerlate time 3 0.1~6000.0 0.1 10.0 ○

P3.18 Accerlate time 4 0.1~6000.0 0.1 10.0 ○

P3.19 Decerlate time 4 0.1~6000.0 0.1 10.0 ○

P3.20 Accerlate time 5 0.1~6000.0 0.1 10.0 ○

P3.21 Decerlate time 5 0.1~6000.0 0.1 10.0 ○

P3.22 Accerlate time 6 0.1~6000.0 0.1 10.0 ○

P3.23 Decerlate time 6 0.1~6000.0 0.1 10.0 ○

P3.24 Accerlate time 7 0.1~6000.0 0.1 10.0 ○

V5 series inverter

40

P3.25 Decerlate time 7 0.1~6000.0 0.1 10.0 ○

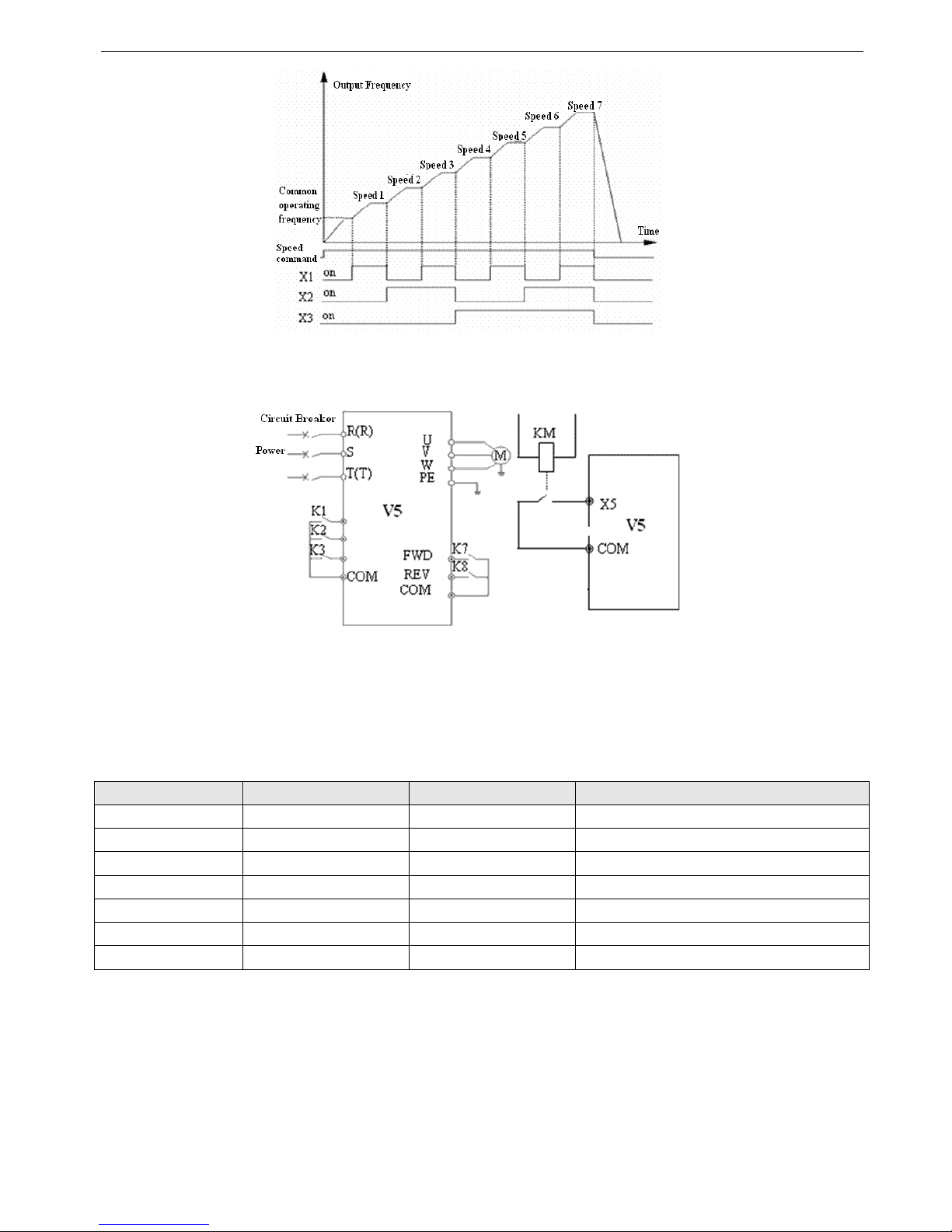

P3.26 Multi-frequency 1 Min frequency~max frequency 0.01Hz 5.00Hz ○

P3.27 Multi-frequency 2 Min frequency~max frequency 0.01Hz 10.00Hz ○

P3.28 Multi-frequency 3 Min frequency~max frequency 0.01Hz 20.00Hz ○

P3.29 Multi-frequency 4 Min frequency~max frequency 0.01Hz 30.00Hz ○

P3.30 Multi-frequency 5 Min frequency~max frequency 0.01Hz 40.00Hz ○

P3.31 Multi-frequency 6 Min frequency~max frequency 0.01Hz 45.00Hz ○

P3.32 Multi-frequency 7 Min frequency~max frequency 0.01Hz 50.00Hz ○

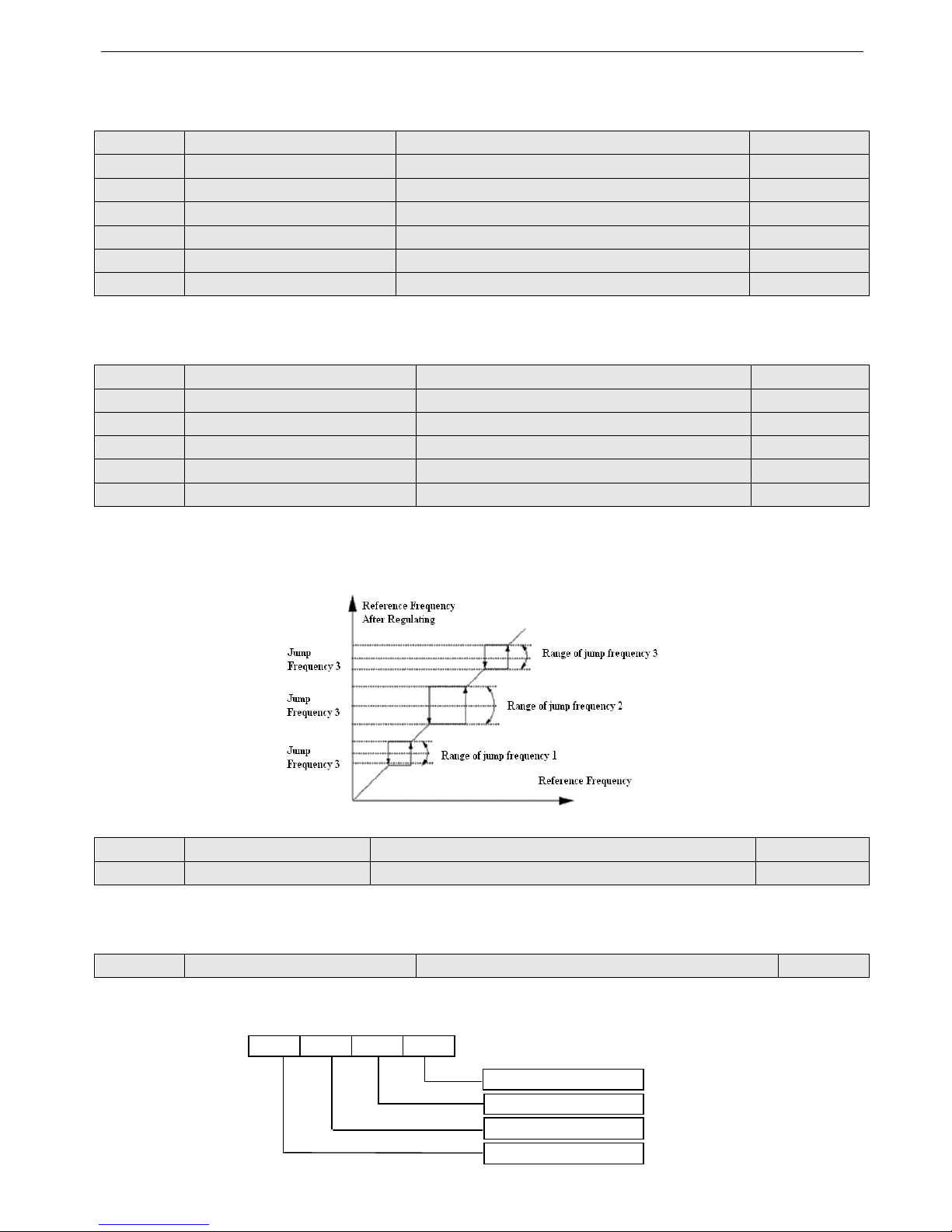

P3.33 Jump frequency 1 0.00~500.00Hz 0.01Hz 0.00Hz ×

P3.34 Range of jump frequency 1 0.00~30.00Hz 0.01Hz 0.00Hz ×

P3.35 Jump frequency 2 0.00~500.00Hz 0.01Hz 0.00Hz ×

P3.36 Range of jump frequency 2 0.00~30.00Hz 0.01Hz 0.00Hz ×

P3.37 Jump frequency 3 0.00~500.00Hz 0.01Hz 0.00Hz ×

P3.38 Range of jump frequency 3 0.00~30.00Hz 0.01Hz 0.00Hz ×

P3.39 Set running time 0~65.535K hour 0.001K 0.000K ○

P3.40 Accumulate running time 0~65.535K hour 0.001K 0.000K *

P3.41 Display parameters

selection 1

0000~FFFF
Lowest bit: b-09~b－12
Ten bit: b-13~b－16
Hundred bit: b-17~b－20
Thousand bit: b-21~b－24

1 0000 ○

P3.42 Display parameters

selection 2

0000~FFFF
Lowest bit: b-25~b－28
Ten bit: b-29~b-32
Hundred bit: b-33~b-36
Thousand bit: b-37~b-40

1 0000 ○

P3.43 Display parameters

selection 3

0000~4040
Ten bit, lowest bit: stop displayed
parameter selection
Thousand bit, hundred bit: run dis­played parameter selection

1 0001 ○

P3.44 Display

coefficient without unit

0.1~60.0 0.1 1.0 ○

P3.45 JOG/REV shift control

mode

0: Jog running
1: reverse running

1 0 ×

5. Function parameters of terminal (Group P4)

Group P4: Function Parameters of Teriminal

Parameter Name Range

Minmum

unit

Factory

setting

Change

P4.00 Function selection of

input terminal X1

0: Control terminal is idle
1: Multi-speed control
terminal 1
2: Multi-speed control

1 1 ×

V5 series inverter

41

terminal 2
3: Multi-speed control
terminal 3
4: Exteral forward jog in­put
5: Exteral reverse jog input
6: Acc/Dec time terminal 1
7: Acc/Dec time terminal 2
8: Acc/Dec time terminal 3
9: 3-wire operation control
10: Free stop (FRS)
11: External stop command
12: DC brake input com­mand DB
13: Inverter running prohi­bition
14: Frequency up (UP)
15: Frequency down
(DOWN)
16: Acc/Dec prohibition
17: External reset (clear
fault)
18: External fault signal
(normal open)
19: Frequency setting
channel 1
20: Frequency setting
channel 2
21: Frequency setting
channel 3
22: command switch to
terminal
23: running command
channel 1
24: running command
channel 2
25: swing frequency selec­tion
26: Reset swing frequency
state
27: Close-loop disabled
28: simple PLC pause
command
29: PLC disabled
30: Reset PLC stopping
status
31: Frequency switch to CI
32: Counter trigger signal
input

V5 series inverter

42

33: Counter reset input
34: External interrupt input
35: Pulse frequency input
(only valid for X6)
36: Actual length reset
input

P4.01 Function selection of

input terminal X2

Ditto

1 2 ×

P4.02 Function selection of

input terminal X3

Ditto

1 3 ×

P4.03 Function selection of

input terminal X4

Ditto

1 10 ×

P4.04 Function selection of

input terminal X5

Ditto

1 17 ×

P4.05 Function selection of

input terminal X6

Ditto

1 18 ×

P4.06 Function selection of

input terminal X7 FWD

Ditto

1 0 ×

P4.07 Function selection of

input terminal X8 REV

Ditto

1 0 ×

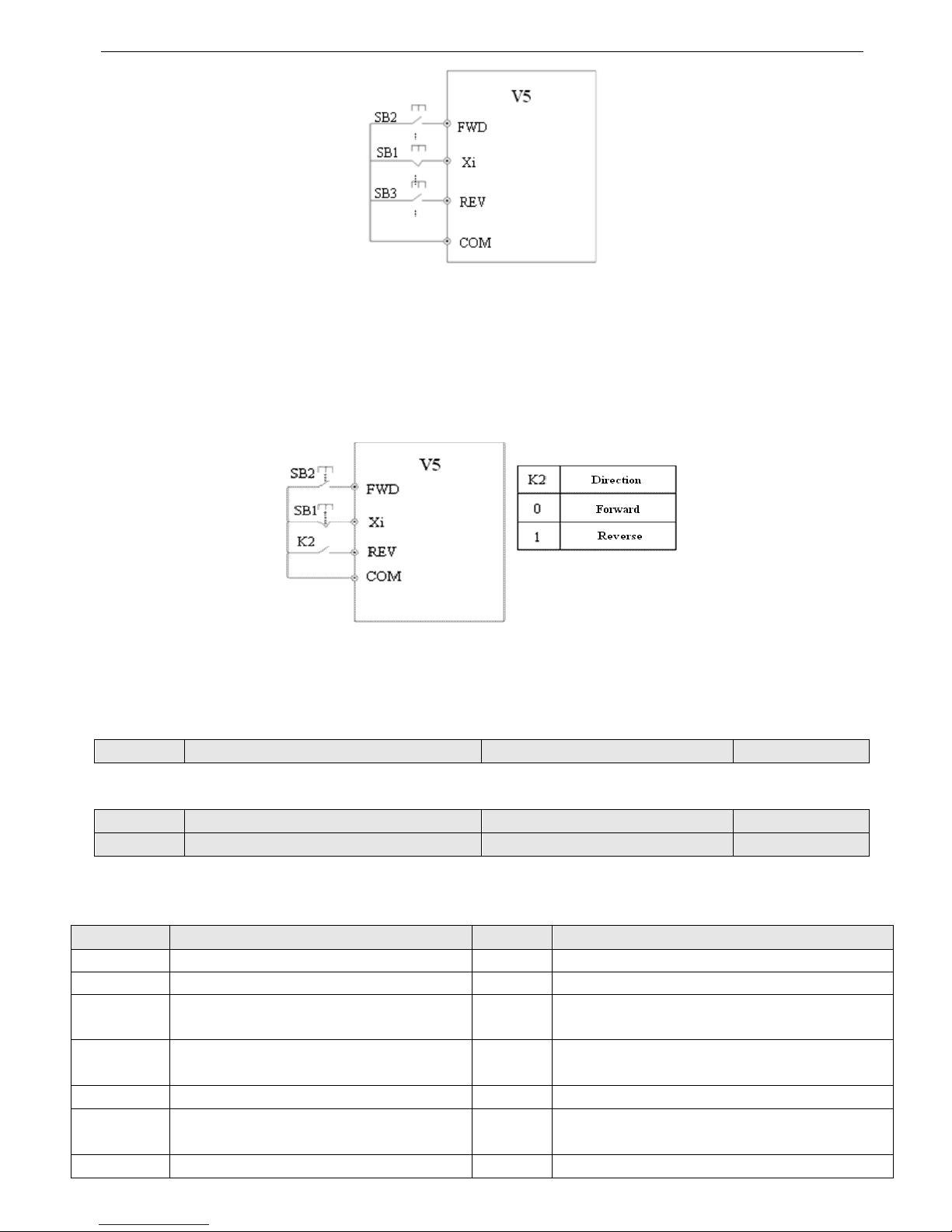

P4.08 FWD/REV

Operation mode selection

0: 2-wire control mode 1
1: 2-wire control mode 2
2: 3-wire control mode 1
3: 3-wire control mode 2

1 0 ×

P4.09 UP/DOWN speed 0.01－99.99Hz/s 0.01 1.00Hz/s ○
P4.10 Bi-direction

open-collector output
terminal OC

0: Inverter running (RUN)
1: Frequency arriving sig­nal (FAR)
2: Frequency level detec­tion (FDT1)
3: Frequency level detec­tion (FDT2)
4: Overload pre-alarm (OL)
5: Inverter under voltage
blockade and stop (LU)
6: External fault stop
(EXT)
7: Output frequency arrive
upper limit (FH)
8: Output frequency arrive
lower limit (FL)
9: Inverter zero speed run­ning
10: Simple PLC running
finished
11: PLC one period run­ning is completed
12:reach the setting count
value

1 0 ×

V5 series inverter

43

13: Mid counting value
arrived
14: Inverter running prepa­ration is finished (RDY)
15: Inverter fault
16: Running with start
frenquence
17: DC brake when startup
18: brake when stop
19: High and low limit of
swing frequency

20: set running time arrived
P4.11 Relay output selector Ditto 1 15 ×

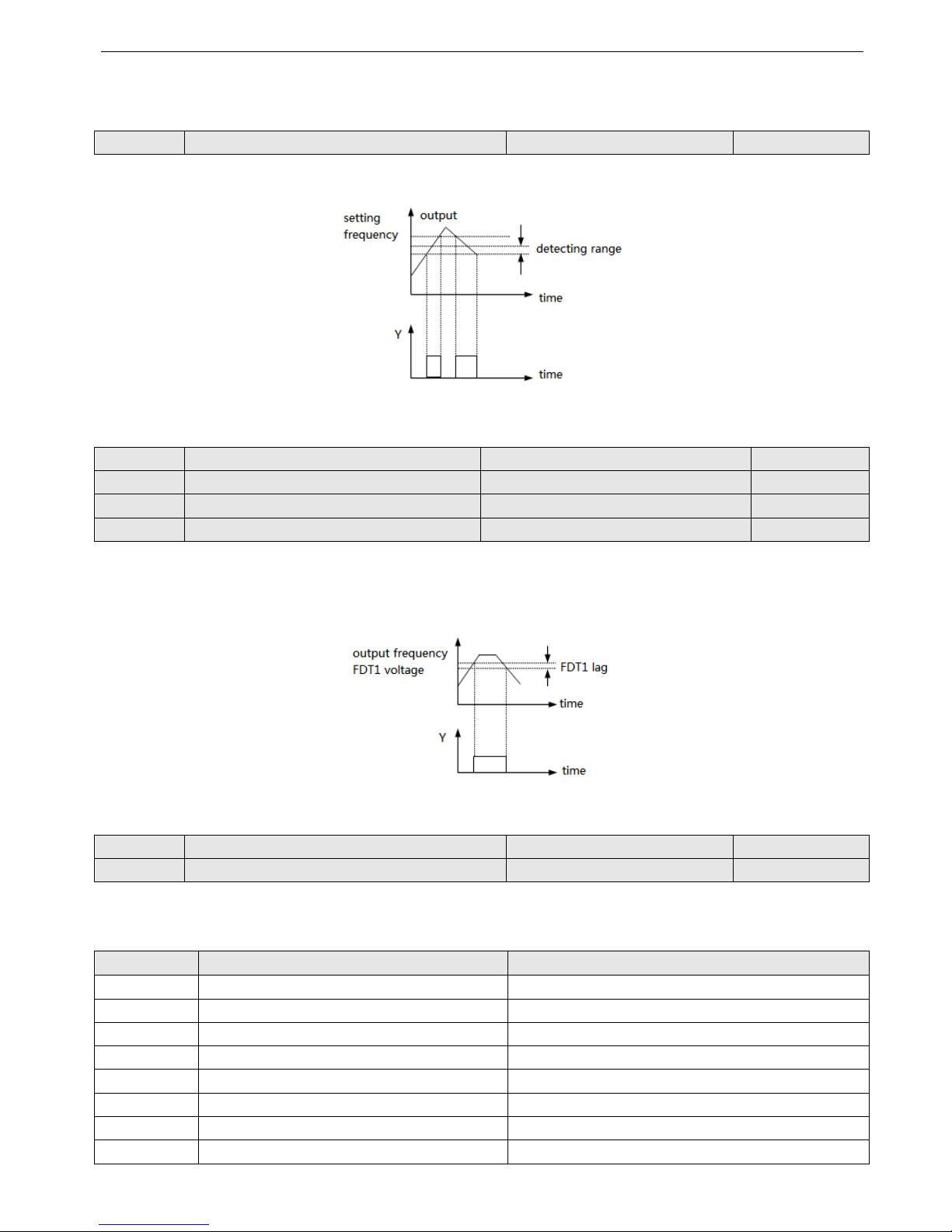

P4.12 Detecting range of fre-

quency arrived (FAR)

0.00~50.00Hz

0.01Hz 5.00Hz ○

P4.13 FDT1 (frequency) vol-

tage

0.00~upper limit of of fre-

quency

0.01Hz 10.00Hz ○

P4.14 FDT1 lag 0.00~50.00Hz 0.01Hz 1.00Hz ○
P4.15 FDT2 (frequency) vol-

tage

0.00~upper limit of of fre-

quency

0.01Hz 10.00Hz ○

P4.16 FDT2 lag 0.00~50.00Hz 0.01Hz 1.00Hz ○
P4.17 Analog output (AO) 0: Output frequency

(0~max frequency)

1: Output current (0~2

times of rated current)

2: Output voltage (0~1.2

inverter rated voltage)

3: Bus voltage (0~800V)

4: PID setting

5: PID feedback

6: VI (0~10V)

7: CI (0~10V/4~20mA)

1 0 ○

P4.18 Analog output (AO) gain 0.50~2.00 0.01 1.00 ○

P4.19 AO output mode 0: 4~20mA

1: 0~10V

- 1 ○

P4.20 DO output terminal 0: Output frequency

(0~upper limit frequency)

1: Output current (0~2

times motor rated current)

2: Output voltage (0~1.2

inverter rated voltage)

3: Bus voltage (0~800V)

4: PID setting

5: PID feedback

6: VI (0~10V)

7: CI (0~10V/4~20mA)

100: inverter is running

(RUN)

1 0 ○

V5 series inverter

44

101: frequency reach signal

(FAR)

102: frequency level detect

signal (FDT1)

103: frequency level detect

signal (FDT2)

104: overload pre-alarm

(OL)

105: inverter under voltage

blockade and stop (LU)

106: external error stop

(EXT)

107: output frequency

reach upper limit (FH)

108: output frequency

reach lower limit (FL)

109: inverter zero-speed

running

100: simple PLC running is

completed

111: PLC complete one

period running

112: reach the setting count

value

113: reach the middle count

value

114: inverter running prep-

aration (RDY)

115: inverter error

116: run with startup fre-

quency

117: DC brake when star-

tup

118: brake when stop

119: swing frequency

up/down limit

120: reach the preset run-

ning time
P4.21 DO max pulse output

frequency

0.1K~20.0K (Max: 20KHz)

0.1KHz 10.0KHz ○

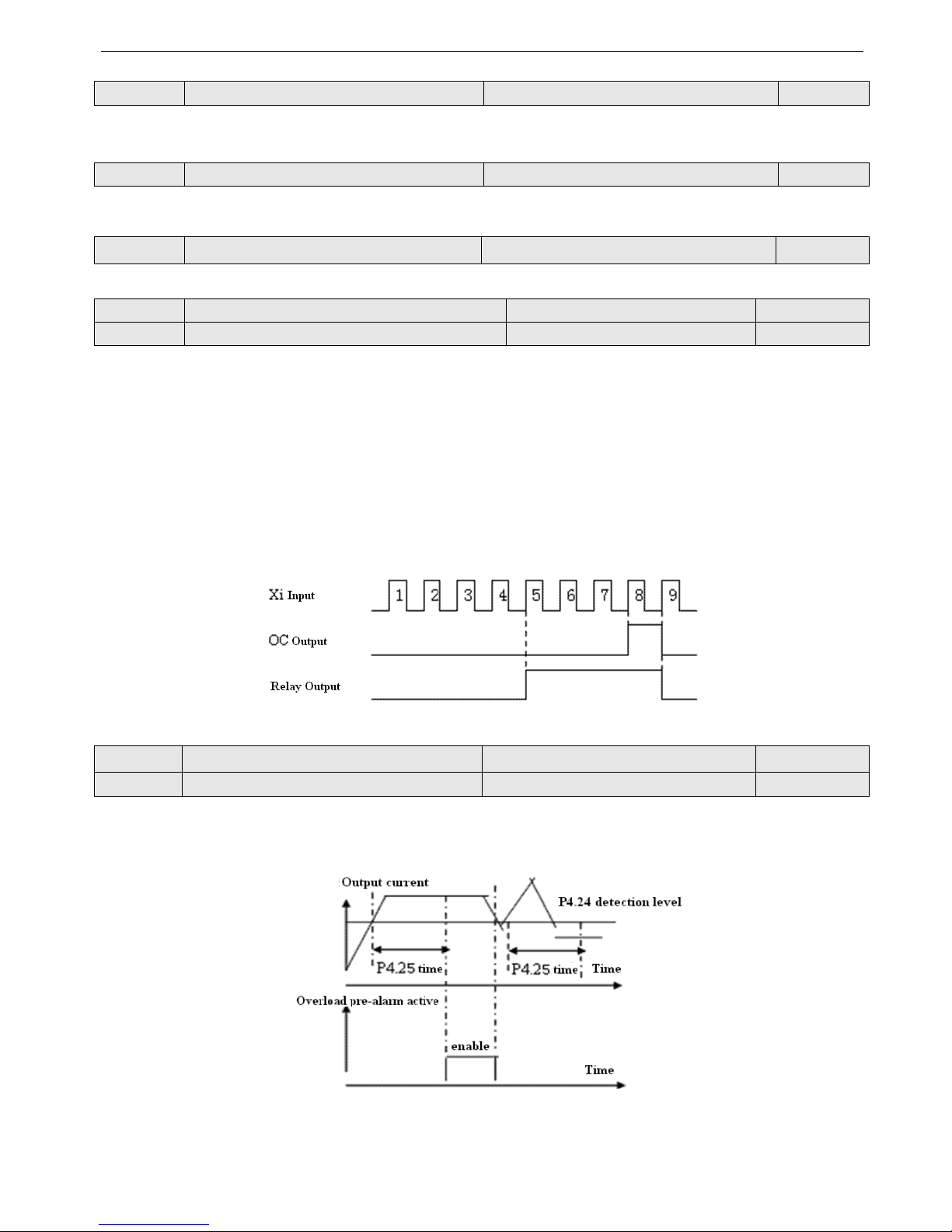

P4.22 preset counting value

arrived

P4.23~9999 1 0 ○

P4.23

Mid counting value ar­rived

0~P4.22 1 0 ○

P4.24

Overload pre-alarm de­tection level

20%~200% 1 130% ○

P4.25

Delay time of over load
pre-alarm

0.0~20.0s 0.1s 5.0s ○

V5 series inverter

45

6. Protective function parameters (Group P5)

Group P5: Protective function parameters

Parameter Name Range

Minmum

unit

Default setting

Change

P5.00 Motor overload protection

mode selection

0: Inverter lock the output
1: Disabled

1 0 ×

P5.01 Motor overload protection

coefficient

20~120%

1 100% ×

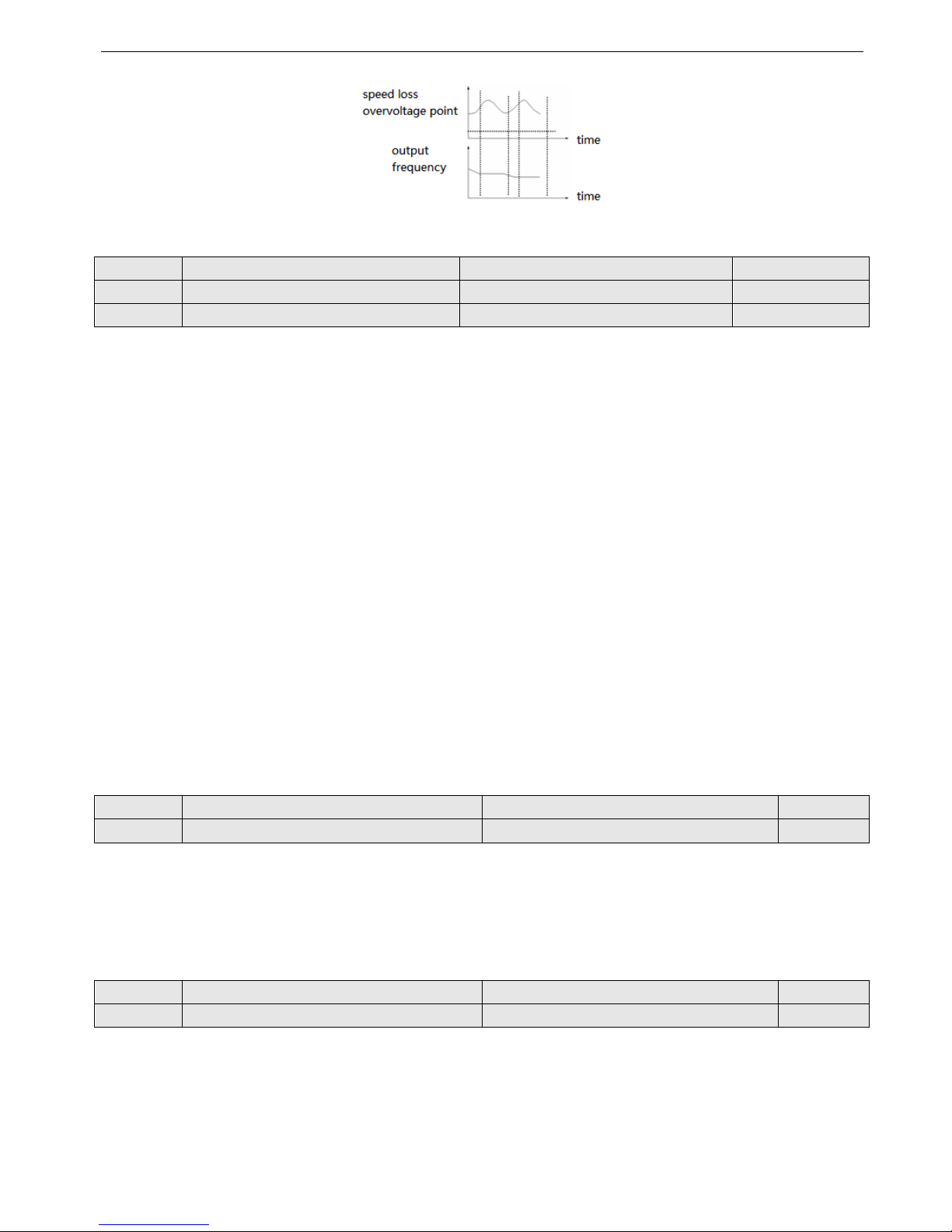

P5.02 Over-voltage speed loss

selection

0: Disabled
1: Enabled

1 1 ×

P5.03 Speed loss over-voltage

point

380V: 120~150%
220V: 110~130%

1% 140%

120%

○

P5.04 Auto current limiting 110%~200% 1% 150% ×
P5.05 Frequeny decrease rate

when current limiting

0.00～99.99Hz/s 0.01Hz/s 10.00Hz/s ○

P5.06 Auto current limiting se-

lection

0: constant speed invalid
1: constant speed valid
Note: Acc/Dec is valid

1 1 ×

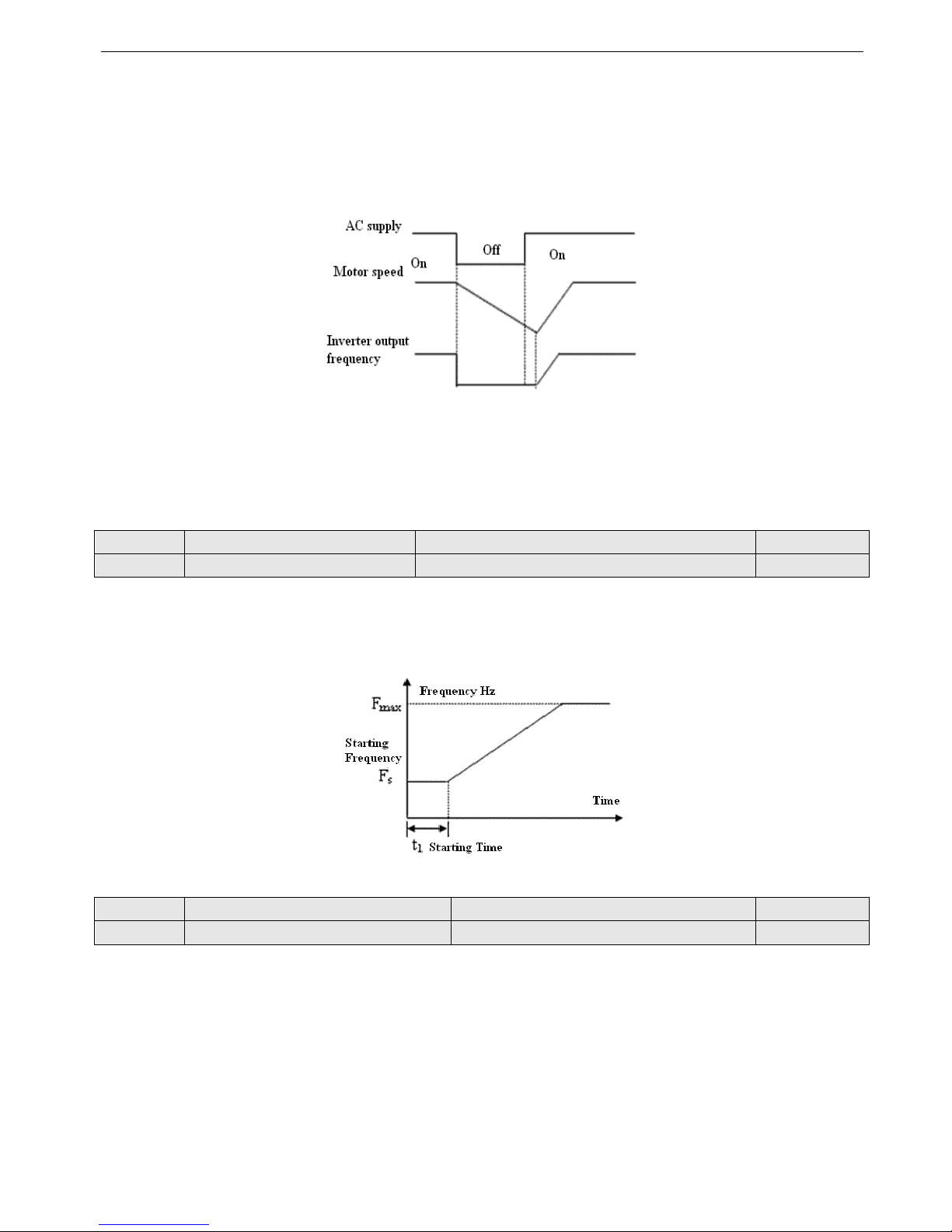

P5.07 Restart after power off 0: no action

1: action

1 0 ×

P5.08 wait time of restart after

power off

0.0~10.0s

0.1s 0.5s ×

P5.09 Error auto recover times 0~10

0: No auto recover function
(Note: overload and overheat
have no recovery function)

1 0 ×

P5.10 Error auto recover interval

time

0.5~20.0s 0.1s 5.0s ×

7. Fault recording parameter (Group P6)

Group P6: Fault recording parameter

Parameter Name Description

Minmun unit Default

setting

Change

P6.00 Previous fault record Previous fault record 1 0 *
P6.01 Output frequency of pre-

vious fault

Output frequency of previous fault

record

0.01Hz 0 *

P6.02 Setting frequency of pre-

vious fault

Setting frequency of previous fault

record

0.01Hz 0 *

P6.03 Output current of previous

fault

Output current of previous fault

0.1A 0 *

P6.04 Output voltage of previous

fault

Output voltage of previous fault

1V 0 *

P6.05 DC bus voltage of pre-

vious fault

DC bus voltage of previous fault

1V 0 *

P6.06 Module temperature of

previous fault

Module temperature of previous

fault

10C 0 *

V5 series inverter

46

P6.07 First 2 times fault records First 2 times fault records 1 0 *
P6.08 First 3 times fault records First 3 times fault records 1 0 *
P6.09 First 4 times fault records First 4 times fault records 1 0 *
P6.10 First 5 times fault records First 5 times fault records 1 0 *
P6.11 First 6 times fault records First 6 times fault records 1 0 *

8. Close-loop control parameters (Group P7)

Group P7: Close-loop control parameters

Parameter Name Range

Minmum

unit

Default

setting

Change

P7.00

Close-loop function selection

0: Disabled
1: Enabled

1 0 ×

P7.01 Channel selection 0: Digital input

1: VI (0~10V) analog voltage
2: CI analog

1 1 ○

P7.02 Feedback channel selection 0: VI (0~10V) voltage input

1: CI analog input
2: VI+CI
3: VI-CI
4: Min{VI, CI}
5: Max {VI, CI}

1 1 ○

P7.03 Appointetd channel filter 0.01~50.00s 0.01s 0.50s ○
P7.04 Feedback channel filter 0.01~50.00s 0.01s 0.50s ○
P7.05 Digital setting 0.00~10.00V 0.01V 0.00V ○
P7.06 Min setting value 0.0~Max P7.08 0.1％ 0.0％ ○
P7.07 Feedback value corresponding to

min setting value

0.0~100.0% 0.1％ 0.0％ ○

P7.08 Max setting value Min P7.06~100.0% 0.1％ 100.0％ ○
P7.09 Feedback value corresponding to

max setting value

0.0~100.0% 0.1％ 100.0％ ○

P7.10 Proportional KP 0.000~9.999 0.001 0.050 ○
P7.11 Integral KI 0.001~9.999 0.001 0.050 ○
P7.12 Sampling cycle T 0.01~10.00S 0.01 1.00 ○
P7.13 Limits of deviation 0.0~20.0% 1％ 2.0％ ○

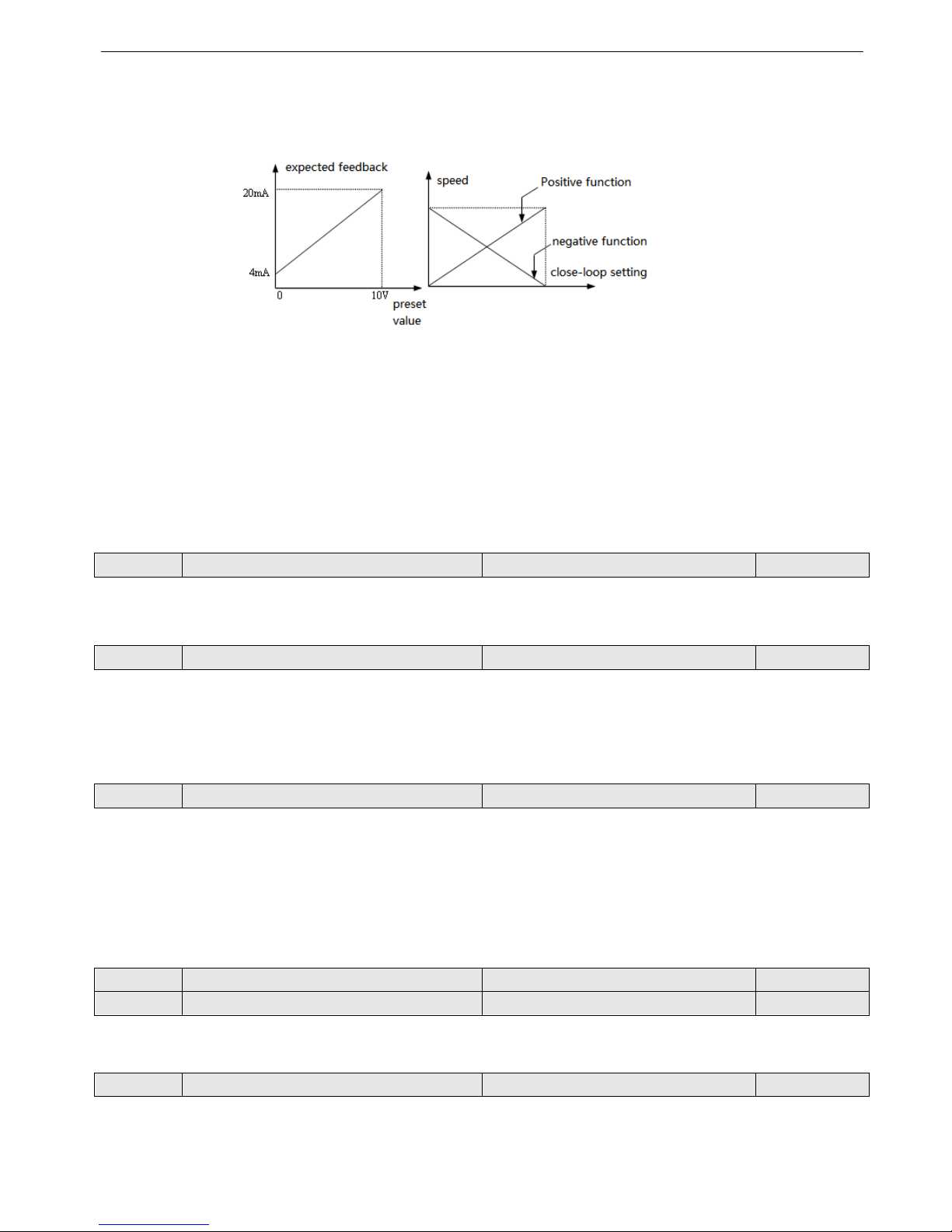

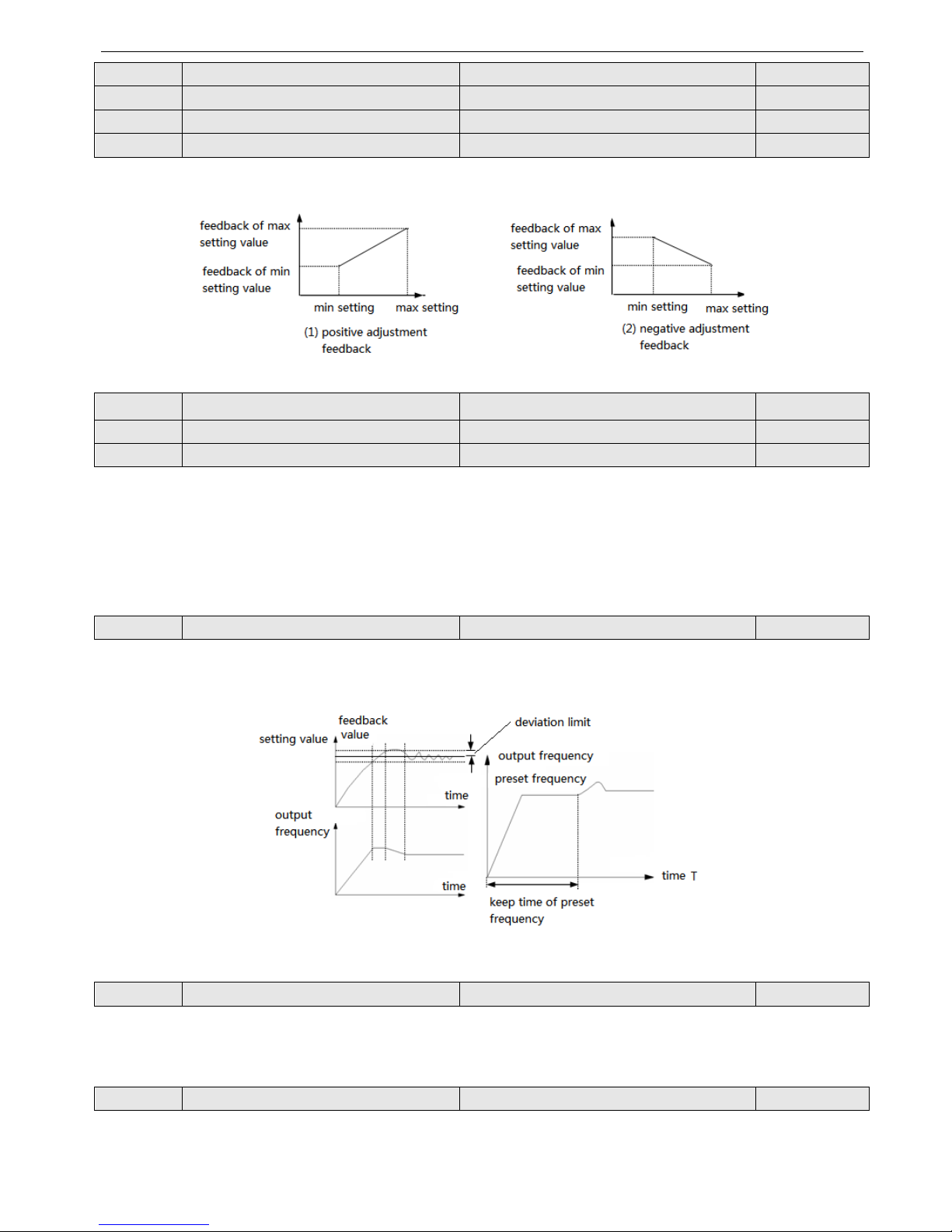

P7.14 Close loop adjustment characte-

ristic

0: Forward
1: Reverse
Note: relationship between setting value and speed

1 0 ×

P7.15 Integral adjustment selection

0: Stop integral adjustment when the frequency
reaches upper limit or lower limit
1: Continue the integral adjustment when the fre­quency reaches high limit or lower limit

1 0 ×

P7.16 Close loop preset frequency 0~upper limit of of frequency 0.01Hz 0.00Hz ○

P7.17

Holding time of close-loop preset
frequency

0.0~250.0s

0.1s 0.1s ×

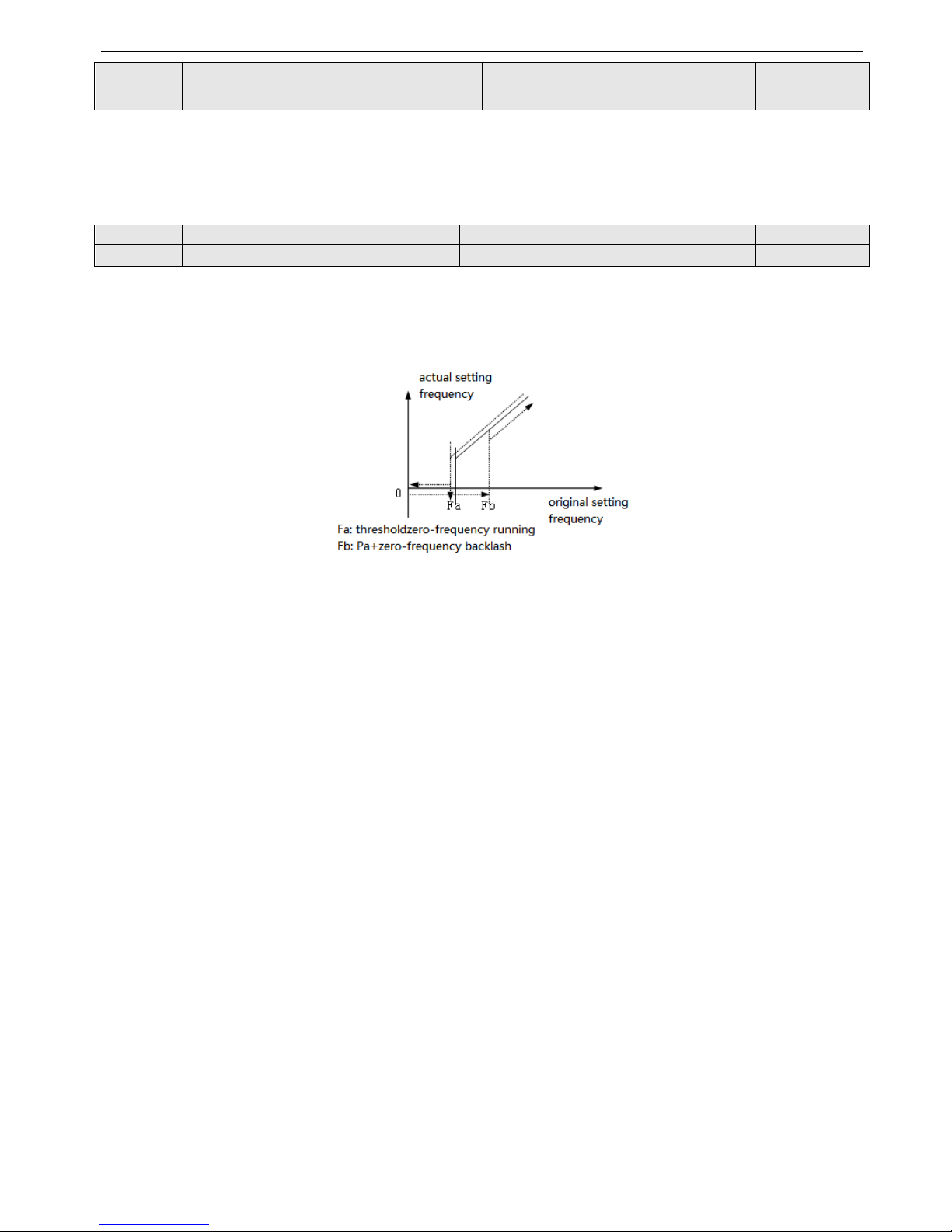

P7.18 Awakening threshold 0.00~500.00Hz 0.01Hz 0.01Hz ×
P7.19 backlash of zero-frequency 0.00~500.00Hz 0.01Hz 0.01Hz ×

V5 series inverter

47

9. Simple PLC operation parameters (Group P8)

Group P8: Simple PLC operation parameters

Parameters Name Range

Minmum

unit

Default

setting

Change

P8.00 Simple PLC operation

mode selection

0000~1113
Lowest bit: mode selection
0: Disabled
1: Stop after single cycle
2: keep the final value after single cycle
3: continuous cycle
Ten bit: PLC pause and restartup mode selection
0: Run again from stage 1
1: Continue running from the pause frequency
Hundred bit: save PLC parameter when power off
0: Not saving
1: Save the frequency when power off
Thousand bit: time unit of stage running
0: second
1: minute

1 0000 ×

P8.01 Stage 1 setup 000~621

Lowest bit: frequency setup
0: Multi I (i＝1~7)
1: Frequency P0.01
Ten bit: Operating direction selection
0: Run forward
1: Run reverse
2: Decided by operating instructions
Hundred bit: Acc/Dec time selection
0: Acc/Dec time 1
1: Acc/Dec time 2
2: Acc/Dec time 3
3: Acc/Dec time 4
4: Acc/Dec time 5
5: Acc/Dec time 6
6: Acc/Dec time 7

1 000 ○

P8.02 Operating time of stage 1 0.1~6000.0 0.1 10.0 ○
P8.03 Stage 2 setup 000~621 1 000 ○
P8.04 Operating time of stage 2 0.1~6000.0 0.1 10.0 ○
P8.05 Stage 3 setup 000~621 1 000 ○
P8.06 Operating time of stage 3 0.1~6000.0 0.1 10.0 ○
P8.07 Stage 4 setup 000~621 1 000 ○
P8.08 Operating time of stage 4 0.1~6000.0 0.1 10.0 ○
P8.09 Stage 5 setup 000~621 1 000 ○
P8.10 Operating time of stage 5 0.1~6000.0 0.1 10.0 ○
P8.11 Stage 6 setup 000~621 1 000 ○
P8.12 Operating time of stage 6 0.1~6000.0 0.1 10.0 ○
P8.13 Stage 7 setup 000~621 1 000 ○
P8.14 Operating time of stage 7 0.1~6000.0 0.1 10.0 ○

V5 series inverter

48

10. Swing frequency and measurement functions parameters (Group 9)

Group P9: Swing frequency and measurement function parameters

Parameters Name Range

Minmum unit Default

setting

Change

P9.00 Swing frequency selection 0: Disabled

1: Enabled

1 0 ×

P9.01 Swing frequency mode 00~11

Lowest bit: input mode
0: Auto input mode
1: Manual input mode
Ten bit: Amplitude control
0: Variable amplitude
1: Fixed amplitude

1 00

×

P9.02 Preset swing frequecncy 0.00~500.00Hz 0.01Hz 0.00Hz ○

P9.03

Waiting time of preset swing
frequency

0.0~3600.0s 0.1s 0.0s ○

P9.04 Swing frequency amplitude 0.0~50.0% 0.1% 0.0% ○
P9.05 Jitter frequency 0.0~50.0%

(with reference to P9.04)

0.1% 0.0% ○

P9.06 Swing frequency cycle 0.1~999.9s 0.1s 10.0s ○
P9.07 Rising time of trangle wave 0.0~98.0%

(with)

0.1% 50.0% ○

P9.08 Setting length 0.000 ~ 65.535(km) 0.001km 0.000km ○
P9.09 Actual length 0.0~65.535km

（Saving at power off ）

0.001km 0.000km ○

P9.10 Rates of length 0.001~30.000 0.001 1.000 ○

P9.11 Correction coefficient of

length

0.001~1.000 0.001 1.000 ○

P9.12 Perimeter of shaft 0.01~100.00cm 0.01cm 10.00cm ○
P9.13 Number of pulses per revolu-

tion

1~9999 1 1 ○

11. Vector control parameters

(Group PA)

Group PA: Vector Control Parameters

Parameter Name Range

Minmum

unit

Factory setting

Change

PA.00 Motor auto-tune 0: No tune

1: auto tune

1 0 ×

PA.01 Rated voltage of motor 0~400V 1 Dependent on in-

verter’s model

×

PA.02 Rated current of motor 0.01~500.00A 0.01A Dependent on in-

verter’s model

×

PA.03 Rated frequency of motor 1~99Hz 1Hz Dependent on in-

verter’s model

×

PA.04 Rated speed of motor 1~9999 r/min 1r/min Dependent on in-

verter’s model

×

V5 series inverter

49

PA.05 Poles of motor 2~48 1 Dependent on in-

verter’s model

×

PA.06 Stator inductance of motor 0.1~5000.0mH 0.1mH Dependent on in-

verter’s model

×

PA.07 Rotor inductance of motor 0.1~5000.0mH 0.1mH Dependent on in-

verter’s model

×

PA.08 Mutual induction of stator and

rotor

0.1~5000.0mH 0.1mH Dependent on in­verter’s model

×

PA.09 Stator resistance of motor 0.001~50.000Ω 0.001Ω Dependent on in-

verter’s model

×

PA.10 Rotor resistance of motor 0.001~50.000Ω 0.001Ω Dependent on in-

verter’s model

×

PA.11 Over current protection coeffi-

cient of torque current

0~15 1 15 ×

PA.12 Proportion adjustment coeffi-

cient of speed loop

50~120 1 85 ×

PA.13 Integral adjustment coefficient

of speed loop

100~500 1 360 ×

PA.14 Vector torque boost 100~150 1 80 ×
PA.15 Reversed 0 0 0 ×
PA.16 Reversed 1~5 1 4 ×
PA.17 Excitation 100~150 1 100 ×
PA.18 Slip compensation factor 150 1 150 ×
PA.19 Reversed 0~2 1 0

12. Special Application parameters (Group PB)

Group PB: Special Application parameters

Parameter Name Range Minmum unit

Default

setting

Change

PB.00 Jog frequency source 0~4

0: P3.06
1: Panel potentiometer
2: P0.02
3: VI
4: CI

0 0 ○

PB.01 selection of forward/

reverse dead time

0: Dead time is enabled (Min 0.1s)
1: dead time can be set to 0 (set
P0.05=0.0S, P0.20≥0.5Hz )

1 0 ○

PB.02 Inverter type selection 0: G type(normal)

1: P type(wind machine,water pump,
power improves 1 level)
Note:if set to 1, P0.22 must set to 3

1 0 ×

PB.03 Short the run terminal

before power on and set
the run mode

0: after inverter is power on, run im­mediately
1: after inverter is power on, cut off
the terminal and connect again then
run

1 1 ×

V5 series inverter

50

13. Default setting (Group PF)

Group PP: Default Setting

Parameter Name Range

Minmum

unit

Default

setting

Change

PF.00 Default password - - - *
PF.01 User’s password 0：No password

0001－9999: passwor protection

1 0000 ○

PF.02 Software version - - - *

PF.03～PF.10 Reversed - - - *

14. B Monitor function parameters

B-Monitor function parameters

Code Name Description

Minmum

unit

Factory

setting

Change

b-00 Output frequency Present output frequency 0.01Hz *
b-01 Setting frequency Present setting frequency 0.01Hz *
b-02 Output voltage Valid value of present output voltage 1V *
b-03 Output current Valid value of present output current 0.1A *
b-04 Bus voltage Present DC bus voltage 1V *
b-05 Module temperature IGBT radiator temperature 10C *
b-06 Motor speed Present motor speed 1r/min *
b-07 Operating time Continuous operating time of inverter 1 hour *
b-08 Input/output terminal status Digital input/output terminal status —— *
b-09 Analog input VI Value of analog input VI 0.01V *
b-10 Analog input CI Value of analog input CI 0.01V *
b-11 External pulse input Input value of external pulse width 1ms *
b-12 Inverter rated current Inverter rated current 0.1A *
b-13 Inverter rated voltage Inverter rated voltage 1V *
b-14 no unit dispaly no unit dispaly 1 *
b-15 Inverter power class Inverter power class - *
b-16 Display present counter

value

Display present counter value - *

b-17 Reversed - - *

…… Reversed - - *

b-40 Reversed - - *

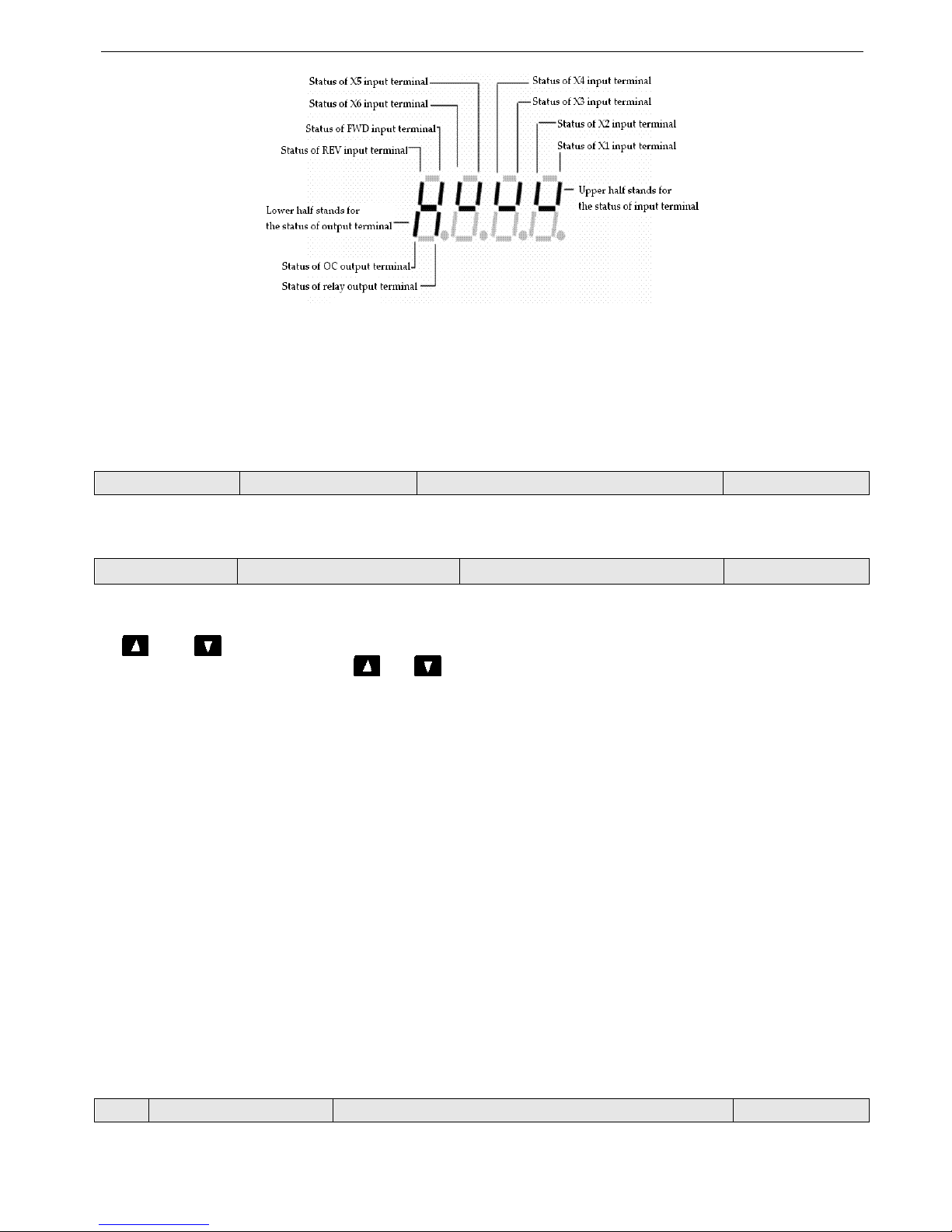

Note: The relationship of monitor parameter input/output terminals and their status are shown below:

“ ” means invalid（light is off）， “ ”means valid (light is on)

V5 series inverter

51

4-2. Function code description

4-2-1. Basic operating function parameters (Group P0)

P0.00 Control mode selection Range: 0~1 0

0: V/F control
1: Open loop vector control

P0.01 Frequency setting channel selection Range: 1~8 0

0: Panel analog potentiometer setting

1: and keys on the panel

You can set the reference frequency via and keys on the panel.
2: Keyboard digital setting
Initial frequency is the value of P0.02, change the value in P0.02 by operate panel.

3: Terminal UP/DOWN

Initial frequency is the value of P0.02, set the frequency via terminal UP/DOWN.

4: Serial port (remote control)

Initial frequency is the value of P0.02, set the frequency via serial port.

5: VI analog input (VI－GND)

The frequency is set by analog voltage input via terminal VI, the input voltage range is DC 0~10V. The relationship be­tween frequency and VI is decided by parameters P1.00~P1.05.

6: CI analog input (CI－GND)

The frequency is set by analog voltage/current of terminal CI and the input range is DC 0~10V (jumper JP3 select “V”
side), DC: 4~20mA (jumper JP3 select “A” side). The relationship between frequency and CI input is decided by parameter
P1.06~P1.10.

7: Pulse input (PLUSE)

The frequency is set by pulse input via pulse terminal (can only be input via terminal X6). The relationship between fre­quency and PLUSE input is decided by parameters P1.11~P1.15.

8: Combination

Please refer to P3.00, set the frequency via the combination of each channel.

P0.02 Digital frequency setting Range: Upper limit of frequncy~lower limit of frequency 50.00Hz

When the frequency is set in digital mode（P0.01＝1, 2, 3, 4）, the value of P0.02 is the inverter’s initial frequency.

V5 series inverter

52

P0.03 Running command channel selection Range: 0, 1, 2 0

0: Panel control

Use to stop, start the inverter.

1: Terminal control

Use external terminal FWD, REV, X1~X6 to start or stop the inverter.

2: Serial port control

To start or stop the inverter via RS485 port.

Note: The control modes can be set by P0.03, please be careful to use this method during operating.

P0.04 Set running direction Range: 00~11 00

The lowest bit of this parameter is valid only for panel jog command channel.
Lowest bit of LED:
0: Jog forward in panel control mode

1：Jog reverse in panel control mode

Ten bit of LED:
0: Reverse running is permissible.

1: Reverse running is suppressed. The inverter will stop output when there is reverse command.

P0.05 Run forward/reverse dead time Range: 0.0~120.0s 0.1s

It is the transition time when output zero frequency during the inverter switch from forward to reverse or reverse to for­ward, as shown in Fig.4-1 t1.

Fig. 4-1 Run forward/reverse dead time

P0.06 Max output frequency Range: 50.00Hz~500.0Hz 50.00Hz

P0.07 Basic running frequency Range: 1.00Hz~500.00Hz 50.00Hz

P0.08 Max output voltage Range: 1~480V Rated

The max output frequency is the highest frequency of the inverter, as shown in Fig.4-2.
Basic running frequency is the lowest frequency when the inverter output the highest voltage and it is usually the rated
frequency of the motor, as shown in Fig4-2 FB.

The max output voltage is the relevant output voltage when the inverter output basic running frequency and it is usually the
rated voltage of the motor, as shown in Fig.4-2 Vmax.

V5 series inverter

53

Fig. 4－2 Characteristic parameter

FH(highest frequency), FL(lowest frequency) are defined by P0.19 and P0.20 .

P0.09 Torque boost Range: 0.0%~30.0% 2.0%

Improve inverter low frequency torque characteristics, boost-compensate the output voltage.

(a) Torque boost of constant torque curve

（b）Torque boost of square torque curve

Fig. 4—3 Torque boost

P0.10 Cutoff frequency of torque boost Range: 0.00Hz~Basic running frequency 25.00Hz

This function defines the cut-off frequency of torque boost, as shown in Fig. 4-3 Fz. Then cut-off frequency is suitable for
any V/F curve defined by P0.02.

P0.11 Torque boost mode Range: 0, 1 0

0: Manual torque boost

Torque boost voltage is defined by parameter P0.09. The boost voltage is fixed while motor will be easily magnetism satu­ration with light load.

1: Auto torque boost

Torque boost voltage will change with the motor stator’s current changes. The bigger the stator is, the higher the boost vol­tage.

V5 series inverter

54

P0.12 Carrier frequency Range: 1.0K~14.0K 8.0K

The default carrier frequency below 3.7kW inverter is 5.0 kHz; it is 3.0 kHz for 5.5kW and larger inverters.

Carrier frequency will effects the motor’s noise and heat loss.The relationship among carier frequency, motor noise, leak
current, and interference are shown below:

Note：(1) In order to achieve better performances, the ratio of carrier
Note: (1) to obtain the best control features, the ratio of carrier frequency and highest running frequency must more than

36.

(2) When the carrier frequency is low, the current display value may be error.

P0.13 Acc/Dec mode Range: 0, 1 0

0: Linear Accerlate/Decelerate mode

Output frequency increases or decreases as a constant slope, see Fig. 4-4.

1: S curve Accerlate/Decelerate mode

Output frequency increases or decreases as S-curve, see Fig.4-5.

Fig.4-4 Linear Acc/Dec

Fig.4-5 S-curve

P0.14 Low speed time of S curve Range: 10.0%~50.0% (Acc/Dec time), P0.14＋P0.15<90% 20.0%

P0.15 Linear time of S curve Range: 10.0%~80.0％ (Acc/Dec time), P0.14＋P0.15<90％ 60.0%

P0.14 and P0.15 are only valid when Acc/Dcc mode is S curve Acc/Eec mode (P0.13 ＝1) and P0.14+P0.15 < 90%.
Low speed time of S curve is shown in Fig.4-5 ③, the output frequency slope increases from 0.
Linear time of S curve is shown in Fig.4-5 ②, the output frequency slope is constant.
High speed time of S curve is shown in Fig.4-5 ①, the output frequency slope decreases to 0.
High speed time＝100%－P0.14－P0.15.
Note: S curve Acc/Dec mode is suitable for the start/stop of elevator, conveying belt, conveying load and so on .

V5 series inverter

55

P0.16 Acc/Dec time unit Range: 0, 1 0

This function defines Acc/Dec time unit

0: second

1: minute
Note: (1) This function is valid for all the Acc/Dec mode except jog running.

(2) Second unit is recommended.

P0.17 Acc time 1 Range: 0.1~6000.0 10.0

P0.18 Dec time 1 Range: 0.1~6000.0 10.0

Acc time is the time accelerating from 0 Hz to highest frequency, see t1 in Fig.4-6; Dec time is the time decelerating from
highest frequency to 0 Hz, see t2 in Fig.4-6.

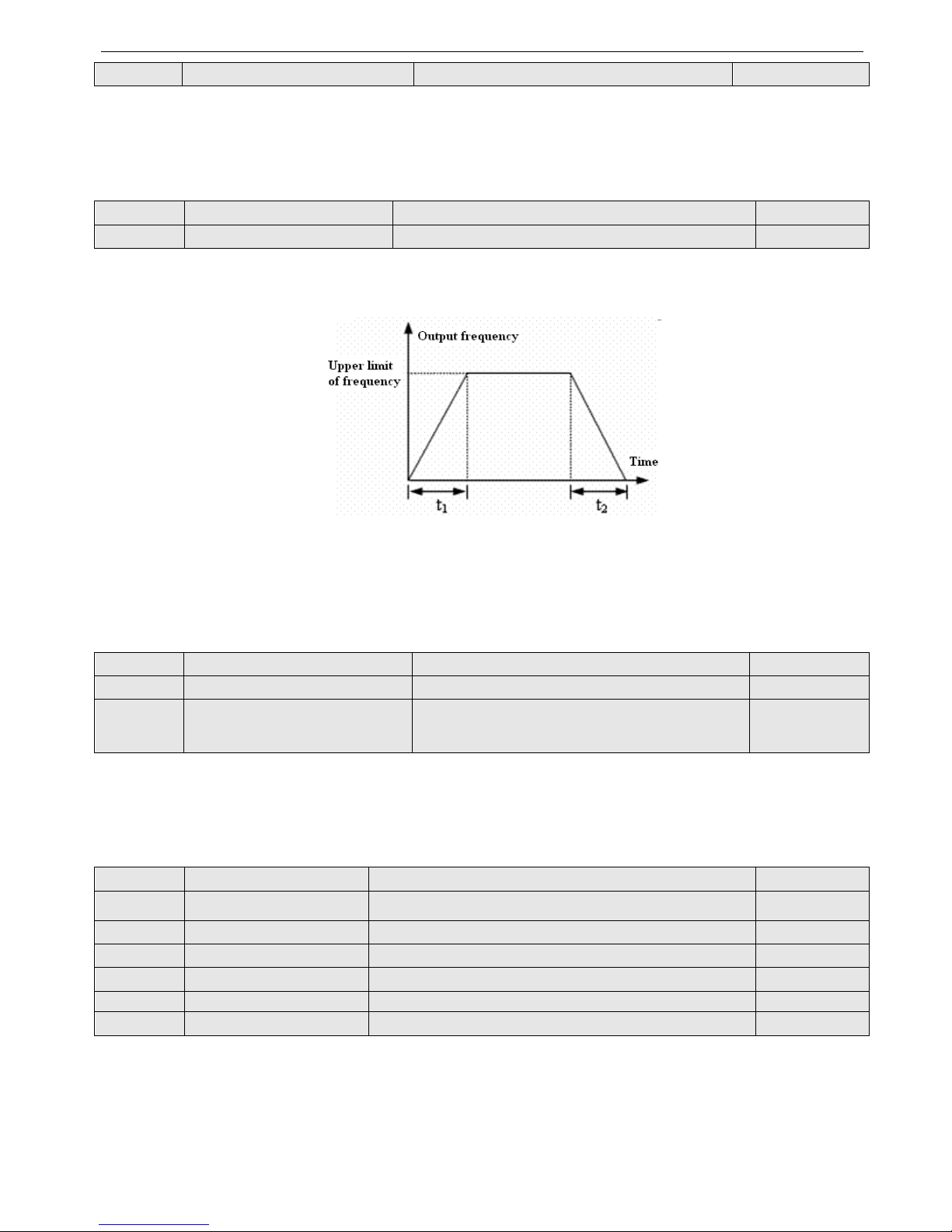

Fig.4-6 Acc/Dec time

Note: (1) This series inverter defines seven kinds of Acc/Dec time. Here only defines Acc/Dec time 1, Acc/Dec time 2~7

are defined in P3.14~P3.25.

(2) Define the Acc/Dcc time unit in P0.16 (minute, second, default is second).

P0.19 Highest frequency Range: lowest frequency~max output frequency 50.00Hz

P0.20 Lowest frequency Range: 0.00Hz~highest frequency 0.00HZ

P0.21 Lowest frequency running mode

Range:

0: run with lowest frequency

1: stop

0

P0.19 and P0.20 define the upper and lower frequency, see Fig.4-2 FH(highest frequency) and FL(lowest frequency).

If the actual setting frequency is lower than lowest frequency, inverter will decelerate the output frequency. When it reach
the lowest frequency, if the lowest frequency running mode is 0, inverter will run with lowest frequency. If the lowest
frequency running mode is 1, inverter will decrease the output frequency to 0.

P0.22 V/F curve setting Range: 0~4 0

P0.23 V/F frequency value F1 Range: 0.00~P0.25 0.00Hz

P0.24 V/F voltage valueV1 Range: 0~P0.26 0.0%

P0.25 V/F frequency value F2 Range: P0.23~P0.27 0.00Hz

P0.26 V/F voltage value V2 Range: P0.24~P0.28 0.0%

P0.27 V/F frequency value F3 Range: P0.25~P0.07 basic running frequency 0.00Hz

P0.28 V/F voltage value V3 Range: P0.26~ 100.0% 0.0%

This group of parameters defines the flexible V/F setting modes of this inverter to satisfy the requirement of different loads.
Four fixed curves and one user-defined curve can be selected in P0.22.
P0.22=0, V/F curve is constant torque curve, as shown in Fig.4-7 curve 0.
P0.22=1, V/F cuve is 1.2 powers torque-reducing curve, as shown in Fig. 4-7 curve 1.
P0.22=2, V/Fcuve is 1.7 powers torque-reducing curve, as shown in Fig.4-7 curve 2.
P0.22=3, V/Fcuve is 2.0 powers torque-reducing curve, as shown in Fig.4-7 curve 3.

V5 series inverter

56

To obtain the best energy-saving effect, user can select V/F curve 1, 2, 3 for fan, pump load.

Fig.4-7 V/F curve

Fig. 4-8 User-defined V/F curve

When P0.22 = 4, you can define V/F curve via modifying (V1, F1), (V2, F2), (V3, F3) to satisfy the special load require­ment, as shown in Fig.4-8. Torque boost is suitable for user-defined V/F curve. In Fig.4-8.

Vb ＝Torque boost（P0.09）× V1

4-2-2. Parameters of frequency setting (Group P1)

P1.00 Time constant of analog filter Range: 0.01~30.00s 0.20s

The inverters filter time for sample value when set the frequency by analog channel. If the wiring is too long or noise is too
serious, increase this parameter to improve the frequency stability. The longer the filter time, the stronger the noise immun­ity ability. However, the reponse will be slower.

P1.01 The gain of VI channel Range: 0.01~9.99 1.00

P1.02 Min setting of VI Range: 0.00~P1.04 0.00V

P1.03 Frequencyof VI min setting Range: 0.00~upper limit of frequency 0.00Hz

P1.04 Max setting of VI Range: P1.04~10.00V 10.00V

P1.05 Frequency of VI max setting Range: 0.00~upper limit of frequency 50.00Hz

P1.06 Gain of CI channel Range: 0.01~ 9.99 1.00

P1.07 Min setting of CI Range: 0.00~ P1.09 0.00V

P1.08 Frequency of CI min setting Range: 0.00~upper limit of frequency 0.00Hz

P1.09 Max setting of CI Range: P1.07 ~10.00V 10.00V

P1.10 Frequency of CI max setting Range: 0.00~upper limit of frequency 50.00Hz

P1.11 Max input pulse frequency of PULSE Range: 0.1~20.0K 10.0K

P1.12 Min setting of PULSE Range: 0.0~P1.14 0.1K

V5 series inverter

57

P1.13 Frequency of PULSE min setting Range: 0.00~upper limit of frequency 0.00Hz

P1.14 Max setting of PULSE Range: P1.12~P1.11 10.0K

P1.15 Frequency of PULSE max setting Range: 0.00~upper limit of frequency 50.00Hz

P1.16 Input mode of CI Range: 0, 1 0

When VI, CI and PULSE are selected as open loop frequency setting channel, the relationship between setting and the
present frequency is shown below:

The relationship between VI and setting frequency:

The relationship between CI and setting frequency:

The relationship between PULSE and setting frequency:

4-2-3. Starting and braking parameters (Group P2)

P2.00 Starting mode Range: 0, 1, 2 0

0: Start from the starting frequency

Channel selection
P0.01

Channel filter
P1.00

Channel gain
P1.01/P1.06

Setting frequency
characteristics
curve

Setting
frequency

V5 series inverter

58

Inverter starts at the starting frequency (P2.01) within the lasting time of starting frequency (P2.02).

1: Brake first and then start from the starting frequency

Brake with DC braking current (P2.03) within braking time (P2.04) and then start at starting frequency.

2: Track the speed then start

When P2.00=2, it is valid for repowering after instantaneous power off or restarting after external fault. As shown in
Fig.4-9.

Fig.4-9 Speed track then start

Note: (1) Starting mode 0: It is recommended for general application or when the inverter drives synchromous motor.

(2) Starting mode 1: It is suitable for small inertial load that motor no driving but there is forward or reverse rotation,

and it is not recommended for big inertial load.

(3) Starting mode 2: It is suitable for motor startin during free stop or restarting after instantaneous power off.

P2.01 Starting frequency Range: 0.20~20.00Hz 0.50 Hz

P2.02 Lasting time of starting frequency Range: 0.0~30.0S 0.0S

Starting frequency points to the initial frequency when inverter starts; see Fig.4-10 Fs. Lasting time of starting frequency
points to the time while inverter is running at the starting frequency, see Fig.4-10 t1.

Note: Starting frequency is not limited by the lowest frequency.

Fig.4-10 Starting frequency and starting time

P2.03 DC brake current when starting Range: 0~80(%) 0(%)

P2.04 DC brake time when starting Range: 0.0~60.0s 0.0s

When P2.00 =1, P2.03 and P2.04 are valid, as shown in Fig. 4-11.
The setting of DC brake current is the percentage of rated current.

V5 series inverter

59

Fig.4-11 Starting mode 1

Fig. 4-12 Decelerate stop+DC brake

P2.05 Stopping mode Range: 0,1,2 0

0: Decelerate stop

After receiving the stopping command, the inverter reduces its output frequency within decelerate time and stops when the
frequency becomes 0.

1: Free stop

After receiving the stopping command, the inverter stops immediately and the motor stops according to mechanical inertia.

2: Decelerate stop+DC brake

After receiving the stopping command, the inverter reduces its output frequency according to decelerate time and then start
to DC brake when reach P2.06 (stop brake starting frequency).

P2.06 Starting frequency of stop brake Range: 0.0~15.00Hz 3.00Hz

P2.07 DC brake time when stopping Range: 0.0~60.0s 0.0s

P2.08 DC brake current when stopping Range: 0~80 (%) 0(%)

P2.08 is the percentage value of DC brake current and inverter rated current.There is no DC braking when the braking time
is 0.0, as shown in Fig.4-12.

4-2-4. Auxiliary running parameters (Group P3)

P3.00

Combination of frequency setting

channel

Range: 0~20 0

V5 series inverter

60

When P0.01（Frequency setting chanel）= 8, set the frequency setting channel combination via P3.00.

0: VI＋CI

1: VI－CI
2: External pulse ＋VI＋Increase/Decrease key
3: External pulse－VI－Increase/Decrease key
4: External pulse＋CI
5: External pulse－CI

6: RS485＋VI+Increase/Decrease key

7: RS485－VI－Increase/Decrease key

8: RS485＋CI+Increase/Decrease key

9: RS485－CI-Increase/Decrease key

10: RS485＋CI＋External pulse

11: RS485－CI－External pulse

12: RS485＋VI＋External pulse

13: RS485－VI－External pulse

14: VI＋CI＋Increase/Decrease key＋Digital setting P0.02
15: VI＋CI－Increase/Decrease key＋Digital setting P0.02

16: MAX (VI, CI)

17: MIN (VI, CI)

18: MAX (VI, CI, PLUSE)

19: MIN (VI, CI, PLUSE)

20: VI, CI is avalid, VI is priority

P3.01 Parameter initialization lock

Range: lowest bit 0~2, ten bit ~2

00

LED lowest bit:

0: All the parameters can be modified.

1: other parameters cannot be modified except this parameter.

2: Only P0.02 and P3.01 can be modified.

LED ten bit:

0: invalid

1: Restore to default setting

2: Clear fault record

Note: (1) The default setting of P3.01 is 0 and allows all the parameters to be modified. Please set it to 0 before you want

to modify function code. If it is need to protect the parameters, please set this parameter to required protection
level.

(2) P3.01 will be changed to 0 automatically after restoring to default setting.

P3.02 Parameter copy (this function is developing) Range: 0, 1, 2 0

0: Disabled
1: Parameter upload: Upload the parameters from inverter to remote opration panel.
2: Parameter download: Download the parameters from remote operation panel to inverter.

Note: This function is still in developing.

P3.03 Auto energy-saving running Range: 0, 1 0

0: Disabled

1: Enabled

Inverter can saves the energy through detecting the load current; adjust output voltage when motor has no load or light load
running. This function is used to the situation of stable load and speed.

P3.04 AVR funciton Range: 0, 1, 2 0

V5 series inverter

61

AVR is auto voltage regulation.When the input voltage of inverter fluctuates, AVR function can keep it stable.
When decelerating stop, if AVR is disabled, the decelerate time is short and the running current is large; if AVR is enabled,
the motor will stable decelerate, the running current is small and the decelerate time is longer.

0: Disabled

1: Enabled

2: Disabled in Dec process

P3.05 slip frequency compensation Range: 0~150(%) 0(%)

This function can make suitable regulation for inverter’s output frequency according to the load changing, and control the
speed at a certain value by dynamic compensating the slip frequency of asynchronism motor. If auto-torque boost function
is used together, better low speed torque characteristic can be obtained. As shown in Fig.4-13.

Fig.4-13 Slip Compensation

P3.06 Jog operating frequency Range: 0.10~50.00Hz 5.00Hz

P3.07 Accerlate time of jog operation Range: 0.1~60.0s 5.0s

P3.08 Dec time of jog operation Range: 0.1~60.0s 5.0s

Jog operating frequency has the highest priority. No matter what status the inverter is, once there is a jog operating com­mand input, the inverter will jog within Acc/Dec time of jog operation, as shown in Fig.4-14.
Acc time of jog operation means the time accelerate from 0 Hz to max frequency, Dec time of jog operation means the
time decelerate from max frequency to 0 Hz.

Fig 4-14 Jog operation

Note: (1) Jog operation can be controlled by panel, terminal and serial port.

(2) If jog operation command has been canceled, the inverter will decelerate and stop.

P3.09 Communication configuration Range: 000~155 054

You can change baud rate, digital format and communication mode by setting the lowest bit, ten bit, and hundred bit of

V5 series inverter

62

P3.09.
Lowest bit of LED: Set baud rate, the values are shown below:

0: 1200BPS
1: 2400BPS
2: 4800BPS
3: 9600BPS
4: 19200BPS
5: 38400BPS

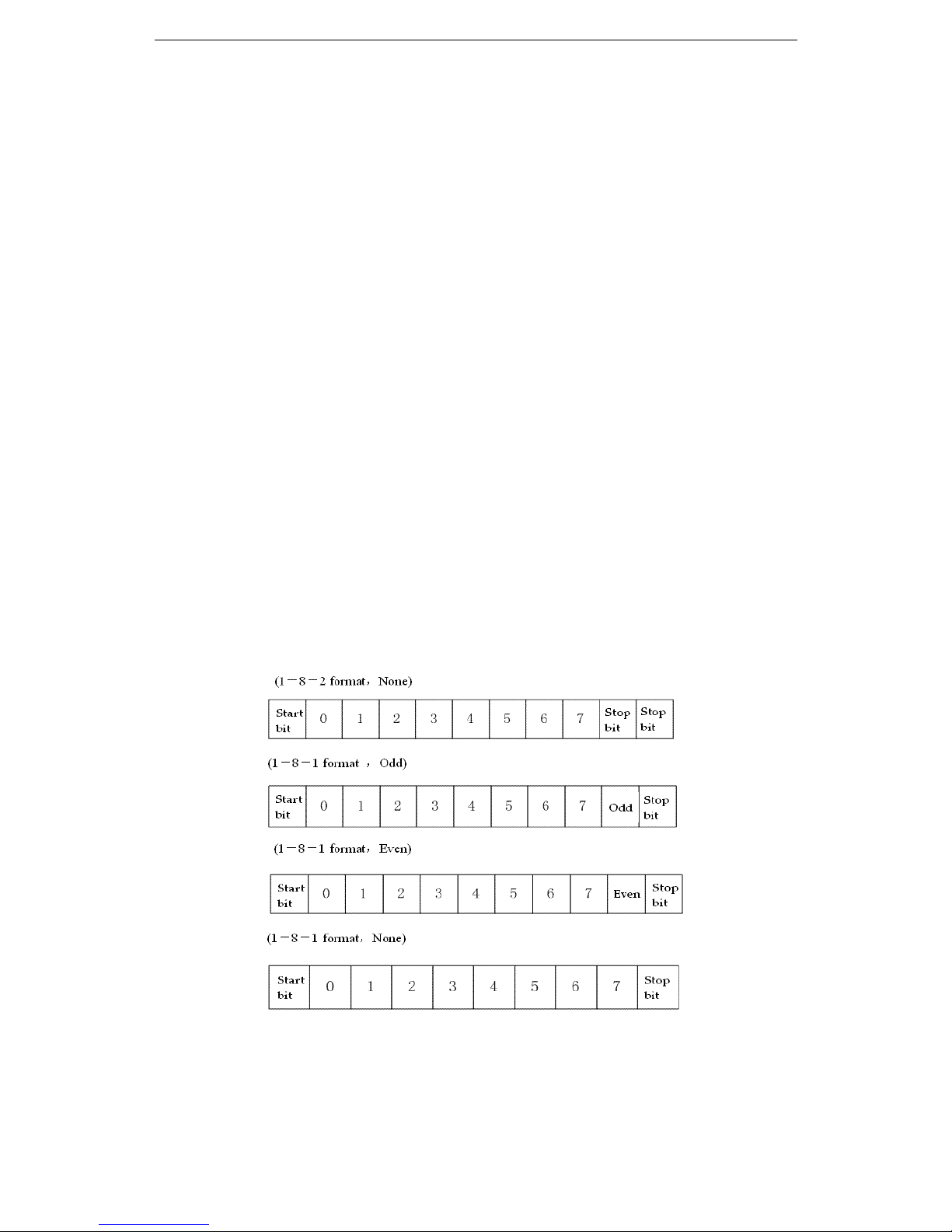

Ten bit of LED: Set digital format, the values are show below:

0: 1－7－2 format, no parity check; 1 stop bit, 7 data bits, 2 stop bits, no parity.
1: 1－7－1 format, odd; 1 stop bit, 7 data bits, 1 stop bits, odd
2: 1－7－1 format, even; 1 stop bit, 7 data bits, 1 stop bit, even
3: 1－8－2 format, no parity check; 1 stop bit, 8 data bits, 2 stop bits, no parity.
4: 1－8－1 format, odd；1 stop bit, 8 data bits, 1 stop bit, odd
5: 1－8－1 format, even；1 stop bit, 8 data bits, 1 stop bit, even
6: 1－8－1 format, no parity check; 1 stop bit, 8 data bits, 1 stop bit, no parity.

Hundred bit of LED: undefined
Note: when choose Modbus-RTU communication mode, you should select digital format 3~6.

P3.10 Inverter address Range: 0~248 1

This parameter is used for identify the inverter’s address in serial communication.
0 is the broadcast address. If inverter is a slave, it doesn’t have to answer the 0 command.
248 is inverter host address. If set P3.10 to 248, it can send broadcast command to other inverters to realize multi-machine
working.

P3.11 Communicate overtime checking time Range: 0.0~1000.0S 0.0s

When serial port communication failed and the lasting time is over this parameter, the inverter is considered as communi­cation error.
When set the value to 0, the inverter will not detect the serial communication port and this function is disabled.

P3.12 Inverter response delay Range: 0~1000ms 5ms

It refers to time from inverter’s serial port receiving and executing the command of host PC to returning response to it.

P3.13 Proportion of communication frequency Range: 0.01~1.00 1.00

The real running frequency= the proportion * frequency command receiving from RS485 port.
This parameter can also set running frequency proportion of several inverters in multimachine linkage mode.

P3.14 Accerlate time 2 Range: 0.1~6000.0 10.0

P3.15 Decelerate time 2 Range: 0.1~6000.0 10.0

P3.16 Accerlate time 3 Range: 0.1~6000.0 10.0

P3.17 Decelerate time 3 Range: 0.1~6000.0 10.0

P3.18 Accerlate time 4 Range: 0.1~6000.0 10.0

P3.19 Decelerate time 4 Range: 0.1~6000.0 10.0

P3.20 Accerlate time 5 Range: 0.1~6000.0 10.0

P3.21 Decelerate time 5 Range: 0.1~6000.0 10.0

P3.22 Accerlate time 6 Range: 0.1~6000.0 10.0

P3.23 Decelerate time 6 Range: 0.1~6000.0 10.0

P3.24 Accerlate time 7 Range: 0.1~6000.0 10.0

P3.25 Decelerate time 7 Range: 0.1~6000.0 10.0

V5 series inverter

63

Seven kinds of Acc/Dec time can be defined, and the inverter’s Acc/Dec time 1~7 can be selected by different combination of
control terminals. Please refer to the introductions of P4.00~P4.05 for the definitions of terminals used to select Acc/Dec time,
also, you can refer to Acc/Dec time defined in P0.17 and P0.18.

P3.26 Multi-frequency 1 Range: lower limit of frequency~upper limit of frequency 5.00Hz

P3.27 Multi-frequency 2 Range: lower limit of frequency~upper limit of frequency 10.00Hz

P3.28 Multi-frequency 3 Range: lower limit of frequency~upper limit of frequency 20.00Hz

P3.29 Multi-frequency 4 Range: lower limit of frequency~upper limit of frequency 30.00Hz

P3.30 Multi-frequency 5 Range: lower limit of frequency~upper limit of frequency 40.00Hz

P3.31 Multi-frequency 6 Range: lower limit of frequency~upper limit of frequency 45.00Hz

P3.32 Multi-frequency 7 Range: lower limit of frequency~upper limit of frequency 50.00Hz

These frequencies will be used in multi-step speed operation and simple PLC operation, please refer to the introductions of
P4.00~P4.05 and P8.

P3.33 Jump frequency 1

Range: 0.00－500.00Hz

0.00Hz

P3.34 Range of jump frequency 1

Range: 0.00－30.00Hz

0.00Hz

P3.35 Jump frequency 2

Range: 0.00－500.00Hz

0.00Hz

P3.36 Range of jump frequency 2

Range: 0.00－30.00Hz

0.00Hz

P3.37 Jump frequency 3

Range: 0.00－500.00Hz

0.00Hz

P3.38 Range of jump frequency 3

Range: 0.00－30.00Hz

0.00Hz

P3.33~P3.38 define the functions that will avoid resonant point of mechnical load.The frequency of the inverter can do
jump operation near some jump frequency point, as shown in Fig. 6-15, you can define three ranges of jump frequency at
most.

Fig.4-15 Jump frequency and range

P3.39 Set running time Range: 0~65.535K hour 0.000K

P3.40 Accumulate running time Range: 0~65.535K hour *

If accumulated running time reach the setting time (P3.39), the inverter will output signal, refer to function P4.08~P4.09.
P3.40 refers to the accumulating running time from out of factory till now.

P3.41 Display parameters selection 1 Range: 0000~FFFF 0000

P3.41 uses the 4 bits of this parameter (hex value) to control the displaying of b-09~b-24. Please transform the parameter
to binary value when using. Each binary bit controls the displaying of one monitor parameter b. See Fig 4-16.

P3.41 binary value:

Fig.4－16 Display parameters selection 1

b-09 ~ b-12

b-13 ~ b

-16

b-17 ~ b-20

b-21 ~ b-24

0000 0000

0000 0000

V5 series inverter

64

P3.42 Display parameters selection 2 Range: 0000~FFFF 0000

P3.42 uses the 4 bits of this parameter (hex value) to control the displaying of b-25~b-40. Please transform the parameter
to binary value when using. Each binary bit controls the displaying of one monitor parameter b. See Fig4-17.

P3.42 binary value:

Fig.4－17 Display parameters selection 2

P3.43 Display parameters selection 3 Range: 0000~4040 0001

Ten bit, lowest bit: used to set stop status
Thousand bit, hundred bit: used to set running status
Example: display current value in running status and display DC bus voltage value in stop mode, please set P3.43=0304.
You can also press the key to view other monitor parameters.

P3.44 Display coefficient without unit Range: 0.1~60.0 1.0

Display value of b-14 = Output frequency of inverter×P3.44 (proportion)

P3.45 JOG/REV switching Range: 0, 1 0

P3.45 is used to select the working mode of JOG/REV key on the operate panel:

0: JOG
1: REV

4-2-5. Function parameters of terminal (Group P4)

P4.00 Function selection of input terminal X1 Range: 0~37 1

P4.01 Function selection of input terminal X2 Range: 0~37 2

P4.02 Function selection of input terminal X3 Range: 0~37 3

P4.03 Function selection of input terminal X4 Range: 0~37 10

P4.04 Function selection of input terminal X5 Range: 0~37 17

P4.05 Function selection of input terminal X6 Range: 0~37 18

P4.06 Function selection of input terminal X7 Range: 0~37 0

P4.07 Function selection of input terminal X8 Range: 0~37 0

Multi-function input terminals X1~X8 support various functions. You can define the function of X1~X8 by setting
the value of P4.00~P4.07, refer to Table 4-1. Among these terminals, X7 corresponds to FWD and X8 corresponds to
REV.

Table 4-1 Multi-function selection

Setting Functions Setting Functions

0 Control terminals are idle 19 Frequency setting channel 1

b-25 ~ b-28 b-29

~ b-32

b-33 ~ b-36
b-37 ~ b-40

0000 0000 0000 0000

V5 series inverter

65

1 Multi-speed choice terminal 1 20 Frequency setting channel 2

2 Multi-speed choice terminal 2 21 Frequency setting channel 3

3 Multi-speed choice terminal 3 22 Command switch to terminal

4 Exteral forward jog input 23 Running command channel selection 1

5

Exteral reverse jog input

24 Running command channel selection 2

6 Acc/Dec time terminal 1 25 Swing frequency input
7 Acc/Dec time terminal 2 26 Swing frequency reset
8 Acc/Dec time terminal 3 27 Close-loop is invalid

9 3-wire operation control 28 Pause the simple PLC operation command
10 Free stop input (FRS) 29 PLC is invalid
11 External stop command 30 Reset PLC stopping status

12 DC brake input command DB 31

Frequency switch to CI

13 Inverter running prohibition 32 Counter trigger signal input

14 Frequency increase (UP) 33 Counter reset signal input

15 Frequency decrease (DOWN) 34 External interrupt input

16 Acc/Dec prohibition 35 Pulse frequency input (only valid for X6)

17 External reset signal (clear the fault) 36 Autual length reset

18

External fault input (normal open)

37

Introductions of the functions shown in Table4-1:
1~3: Multi-speed control terminals. Up to 7 kinds of speed can be set by different ON/OFF (open/close) combination of
the function terminals, at the same time, you can select corresponding Acc/Dec time.

Table 4-2 On/Off combination of function terminals

K3 K2 K1 Frequency setting Acc/Dec time

OFF OFF OFF

Common running frequency

Acc/Dec time 1

OFF OFF ON

frequency 1

Acc/Dec time 1

OFF ON OFF frequency 2 Acc/Dec time 2

OFF ON ON frequency 3 Acc/Dec time 3

ON OFF OFF frequency 4 Acc/Dec time 4

ON OFF ON frequency 5 Acc/Dec time 5

ON ON OFF frequency 6

Acc/Dec time 6

ON ON ON frequency 7 Acc/Dec time 7

The above frequencies can be used in multi-speed running and simple PLC running, please see below example:
The definition of X1, X2 and X3 are shown below:
P4.00=1, P4.01=2, P4.03=3，X1, X2 and X3 are used to achieve multi-speed operation, as shown in Fig.4-18.

V5 series inverter

66

Fig.4-18 Multi-speed operation

In Fig.4-19 terminal control is selected, the running direction is controlled by K7, K8. In Fig.4-18, inverter can run at mul­ti-speed 1~7 or normal speed by controlling the ON/OFF of K1, K2, K3.

Fig.4－19 Wire of multi-speed Fig.4-20 External device fault input

4~5: External jog input JOGP/JOGR. When choose terminal control (P0.03=1), JOGP is forward jog operation, JOGR
is reverse jog operation. Jog operating frequency and jog Acc/Dec time are defined in P3.06~P3.08.

6~8: Acc/Dec time selection

Table 4-3 Acc/Dec time selection

Terminal 3 Terminal 2 Terminal1 Acc/Dec time selection

OFF OFF OFF Acc time 1/Dec time 1
OFF OFF ON Acc time 2/ Dec time 2
OFF ON OFF Acc time 3/ Dec time 3
OFF ON ON Acc time 4/ Dec time 4

ON OFF OFF Acc time 5/ Dec time 5
ON OFF ON Acc time 6/ Dec time 6
ON ON OFF Acc time 7/ Dec time 7

Through the ON/OFF combination of the terminal, you can select acc/dec time 1~7.

9: 3-wire operation control. Refer to the introduction of P4.08.
10: Free stop（FRS）. This function has the same meaning as the description in P2.05, while here it is controlled by ter-

minal controlling for remote application.
11: External stop command. This command is valid for all the running command channels and it can stop the inverter
according to the setting mode in P2.05.
12: DC braking command DB. DC brake the motor through the terminal in stop mode, to realize urgent stop or precision po­sitioning. Brake starting frequency, brake current and time are defined in P2.06~P2.08. Brake time is the bigger one between
P2.07 and terminal lasting time.

V5 series inverter

67

13: Inverter running prohibition. When the terminal is enabled, the inverter in running mode will free stop and prohibit to
restart in standby mode. This function is sutiable for safe linkage.
14~15: Frequency up (UP)/Frequency down (DOWN). The terminal can be used to increase or decrease the frequency.
Its function is the same with operating keys on the panel, which enables remote control. This terminal is enabled when
P0.01=3. Increase or decrease rate is determined by P4.09.
16: Acc/Dec prohibition. The terminal can make the motor keep current speed without being influenced by external signal.
It is invalid when normal decelerate stop.
17: External reset signal. The inverter can be reset via this terminal when the inverter has a fault. The function of this terminal
is the same to on the panel.

18: External fault signal input. The fault signal of external equipment can be input via the terminal, which is convenient
for the inverter to monitor the external equipment. Once the inverter receives the fault signal, it will display “E-13”. Refer
to Fig.4-20.

19~21: Frequency setting channel 1. Different ON/OFF combination of terminals 19, 20 and 21 can select frequency as
shown in Table 4-4. The priority of terminal setting and function code P0.01 setting: the final setting is valid.

Table 4-4 Frequency selection

Frequency setting

terminal 3

Frequency setting

terminal 2

Frequency setting

terminal 1

Frequency setting channel

OFF OFF OFF Keep the frequency setting

OFF OFF ON Function code setting
OFF ON OFF Terminal UP/DOWN setting
OFF ON ON Serial port setting

ON OFF OFF VI
ON OFF ON CI
ON ON OFF PULSE

ON ON ON

Combination setting

(refer to P3.01)

22: Command switch to the terminal.When this terminal is enabled, the running command channel will switch to ter­minal command channel.
23~24: Select the comman channel by terminal. Select the command channel by terminal ON/OFF combination. Please
see table 4-5. The priority of terminal and P0.03: the final setting is valid.

Table 4-5 running command channel

Terminal 2 Terminal 1 Control mode

OFF OFF Keep running command channel

OFF ON Panel command channel

ON OFF Terminal command channel
ON ON Serial port command channel

25: Swing frequency input. When the swing frequency mode is manual input, the swing frequency function is valid when
this terminal is valid, refer to the introductions of P9.
26: Reset swing frequency. No matter the swing frequency mode is “Manual” or “Auto”, when this terminal is ON, the
status of swing frequency in the inverter will be cleared. Disconncet this terminal can restart the swing frequency. Refer to
P9.
27: Close-loop disabled. Switch between the close-loop operation and low level operation. When switching to low level
operation mode, start/stop, direction and acc/dec time are accord to the setting of related running mode.
Note: Switching between close-loop operation and low level operation can be realized only when close-loop is enabled
(P7.00 =1).
28: Pause the PLC operation. Pause the running PLC. Inverter run at 0 frequency when this terminal is valid, PLC run­ning time is not counted. When the terminal is invalid, PLC will auto-track the speed and continue to run. Please refer to
P8.

V5 series inverter

68

29: PLC disabled. This terminal can be used to flexible switch the PLC operation and low level operation.
Note: The switching between PLC operation and low level operation are valid only when PLC is running (the lowest bit of

P8.00 is not 0)
30: Reset PLC stopping status. When PLC is in stopping status, the enabled terminal can clear PLC running stage, run­ning time, running frequency and other informations of PLC stopping memory. Refer to P8 for instructions.

31: Frequency switches to CI. The frequency setting channel switches to CI when this terminal is valid. If it is invalid, the
frequency setting channel will restore.

32: Counter trigger signal input. Counter pulse input of internal counter, the max frequency is 200Hz. The count value is
latched. Refer to P4.21, P4.22.

33: Counter reset input. Reset the internal counter of inverter. Use with function No.32 (counter trigger signal input).
34: External interrupt input. After receiving external interrupt input signal, inverter will lock output and run at 0 Hz,

once the interrupt input signal release, the inverter will auto-track speed and continue to run.
35: Pulse frequency input (only valid for X6). Set frequency via this terminal. The relationship between input pulse and
setting frequency please refer to P1.11~P1.15.

36: Actual length reset input. If this terminal is enabled, the actual length parameter P9.09 will be set to 0.

P4.08 FWD/REV operation mode selection Range: 0~3 0

This parameter defineds four operaion modes controlled by external terminal.

0: 2-wire control mode 1

Fig.4-21 2-wire operation mode 1

1: 2-wire control mode 2

Fig.4-22 2-wire operation mode 2

2: 3-wire control mode 1

SB1: Stop button
SB2: Forward button
SB3: Reverse button

V5 series inverter

69

Fig. 4-23 3-wire operation mode 1

Xi is the multi-function input terminal of X1~X6; here you should define its function to No.9 “3-wire control mode”.

3: 3-wire control mode 2

SB1: Stop button
SB2: Running button

Fig.4-24 3-wire control mode 2

Xi is the multi-function input terminal of X1~X6, here you should define its function to No.9 “3-wire control mode”.
Note: When the inverter alarming stop, if the running command channel is terminal and terminal FWD/REV is valid, in-

verter will reset the error and restart immediately.

P4.09 UP/DOWN speed rate Range: 0.01~99.99Hz/s 1.00 Hz/s

This parameter defines the changing rate of setting frequency changed by UP/DOWN terminal.

P4.10 Bi-direction open-collector output terminal OC Range: 0~20 0

P4.11 Relay output function selection Range: 0~20 15

Bi-direction open-collector output terminal OC, the options of this parameter are shown in Table 4-6.

Table 4-6 Functions of output terminals

Setting Functions Setting Functions

0 Inverter is running (RUN) 11 PLC one period running is completed
1 Frequency arriving signal (FAR) 12 Reach the setting counter value

2 Frequency level detection signal (FDT1) 13

Reach the middle counter value

3 Frequency level detection signal (FDT2) 14 Inverter running preparation finished (RDY)

4 Overload pre-alarm (OL) 15 Inverter fault

5 Inverter under voltage locking (LU) 16 Running at start frequency

6 External fault stop (EXT) 17 DC braking when startup

V5 series inverter

70

7 Upper limit of output frequency (FH) 18

DC brake when stop

8 Lower limit of output frequency (FL) 19

High and lower limit of swing frequency

9 Inverter zero speed running 20 Reach the preset running time

10 Simple PLC running completed 21

Instructions of the functions shown in Tabel 4-6:
0: Inverter is running（RUN）. Inverter is running and the terminal outputs indication signal.

1: Frequency arriving signal (FAR）. Refer to P4.12.
2: Frequency level detection（FDT1）. Refer to P4.11~ P4.12.
3: Frequency level detection（FDT2）. Refer to P4.13~P4.14.
4: Overload pre-alarm（OL）. If the output current is higher than the value in P4.24 and the time is longer than the value in

P4.25, the inverter will output indicate signals. This function is mainly used in pre-alarm.
5: Inverter under voltage lock and stop（LU）. While inverter is running, if the bus voltage is lower than setting level,
LED will show E-11.

6: External fault stop（EXT）. Inverter outputs indication signal when it show E-13 alarm (error trip) .
7: Output frequency arrive upper limit（FH）. An indicate signal will be output if setting frequency≥upper limit of
frequency and the running frequency arrives the upper limit of frequency.
8: Output frequency arrive lower limit（FL）. An indicate signal will be output if setting frequency≤lower limit of

frequency and the running frequency is lower than low limit of frequency.
9: Inverter zero speed running. An indicate signal will be output when inverter output frequency is 0 and is still in run­ning status.
10: Simple PLC running completed. An indicate signal (single pulse signal, 500ms width) will be output if the simple
PLC running is completed.
11: PLC one period running is completed. An indicate signal (single pulse signal, 500ms width) will be output if one
cycle running of simple PLC is finished.

12: Reach the setting counter value

13: Reach the setting middle counter value

12, 13 refer to P4.22~P4.23 for details.
14: Inverter running preparation is completed（RDY）. This signal outputting means inverter bus voltage is normal,
running prohibition terminal is invalid, enable to accept startup command.

15: Inverter fault. If there is fault when inverter is running, indicate signal will be output.

16: Running at start frequency

17: DC brake when startup

18: DC brake when stop
19: Upper and lower limit of swing frequency. An indicate signal will be output if the swing frequency range calculated

by center frequency exceeds the upper/lower limit frequency. See Fig 4-25.

Fig.4-25 Upper and lower limit of swing frequency

V5 series inverter

71

20: Reach the setting running time.When the accumulating running time（P3.40）arrive the setting time (P3.39), an
indication signal will be output.

P4.12 Detecting range of frequency arrive (FAR) Range: 0.00~50.00Hz 5.00Hz

This parameter is the additional definition of No. 1 function in Table 4-6. As shown in Fig.4-26, when the output frequency
of inverter is in the detecting range of setting frequency, pulse signal will be output.

Fig 4-26 Frequency arriving signal

P4.13 FDT1 (frequency level) voltage Range: 0.00~upper limit of frequency 10.00Hz

P4.14 FDT1 lag Range: 0.00~50.00Hz 1.00Hz

P4.15 FDT2 (frequency level) voltage Range: 0.00~upper limit of frequency 10.00Hz

P4.16 FDT2 lag Range: 0.00~50.00Hz 1.00Hz

P4.13~P4.14 is the additional definition of No.2 function in Table.4-6, P4.15~P4.16 is the additional definition of No.3
function in Table.4-6, their using method are the same. The following takes P4.13~P4.14 as an example to introduce.When
the output frequency is over one frequency(FDT1 voltage), indication signal will be output until the output frequency de­creasing below one frequency of FDT1(FDT1 voltage－FDT1 lag), as shown in Fig. 4-27.

Fig.4-27 FDT level

P4.17 Analog output selection (AO) Range: 0~7 0

P4.18 Analog output gain (AO) Range: 0.50~2.00 1.00

Table 4-7 Output terminals

No. Function Range

0 Output frequency 0~upper limit frequency
1 Output current 0~2 × rated current

2

Output voltage 0~1.2 × rated voltage of load motor

3

Bus voltage 0~800V

4

PID setting 0~10V

5

PID feedback 0~10V
6 VI 0~10V
7 CI 0~10V/4~20mA

V5 series inverter

72

For analog output AO, you can adjust the output gain to change the measuring range or calibrate the meter.

P4.19 AO output mode Range: 0, 1 1

0: 4 ~20mA

1: 0 ~10V

P4.20 DO output terminal Range: 0~120 0

Refer to Table 4-7 and 4-6 for function selection of DO output terminal.

P4.21 DO max pulse output frequency Range: 0.1~20.0 (max 20K) 10.0K

This parameter defines the max output frequency of DO terminal.

P4.22 Counter value setting Range: P4.23~9999 0

P4.23 Middle counter value setting Range: 0~P4.22 0

P4.22, P4.23 are the additional definition of No.12, 13 functions in table 4-6.

Counter value setting: when Xi receives certain quantity pulses, OC or relay will output a indicator signal.

For example: as shown in Fig. 4-28, when the eighth pulse is received by terminal Xi, OC outputs an indicating signal and
P4.22=8.

Middle counter value setting: When Xi receives certain quantity pulses, OC or relay will keep output a signal until the
counter value arrives.

As shown in Fig. 4-28, when Xi receives the 5th pulse, the realy outputs an indication signal. It keeps outputting until
counter value 8 arrived. At this time, P4.23=5. The middle counting value will be disabled if it is bigger than preset count­ing value.

Fig.4—28 Preset counting value arrived and Middle counting value arrived

P4.24 Overload pre-alarm detection level Range: 20~200 (%) 130(%)

P4.25 Overload pre-alarm delay time Range: 0.0~20.0s 5.0s

If output current is over the current detecting level P4.24 continuously (Actual detecting current level＝P4.24×inverter’s
rated current), Bi-direction open-collector will output valid signal (refer to Fig.4-29 and P4.11 for details).

Fig.4-29 Overload pre-alarm

V5 series inverter

73

4-2-6. Protection function parameters (Group P5)

P5.00 Motor overload protection mode selection Range: 0,1 0

This parameter defines the protection mode when overload or overheat occurs.

0: Inverter locks the output. When overload or overheat occurs, inverter will lock output and the motor will free stop.
1: Disabled. Motor has no overload protection. (Be careful to use)

P5.01 Motor overload protection coefficient Range: 20(%) ~120(%) 100(%)

This parmeter is used to set sensitivity of thermal relay protection for inverter load motor. When the output current value of
load motor can not match the rated current of the inverter,the motor can be thermal protected, as shown in Fig.4-30.
Use the following coefficient to calculate.

[P5.01] = × 100

Fig.4-30 Thermal relay protection

Note: When one inverter run with multi-motors, inverter’s thermal relay protection will be disabled. Therefore, please install

thermal relay in the input wire of each motor to protect motor more efficiently.

P5.02 Over-voltage speed loss selection Range: 0, 1 1

P5.03 Speed loss overvoltage point Range: 380V: 120~150 (%)

220V: 110~130 (%)

140(%)

120(%)

0: disable
1: enable

During deceleration, the motor’s decelerate rate may be lower than that of inverter’s output frequency due to the load iner­tia. At this time, the motor will feedback the energy to the inverter, it will cause the inverter DC bus voltage too high. If no
measures are taken, the inverter will be overvoltage protected.

During the deceleration, the inverter detects the bus voltage and compares it with the speed loss over voltage point defined
by P5.03. If the bus voltage exceeds the speed loss overvoltage point, the inverter output frequency will not decrease.
When the bus voltage is lower than the point again, it continues to decelerate run, as shown in Fig.4-31.

Motor rated current

Inverter rated output current

V5 series inverter

74

Fig. 4-31 Overvoltage speed loss function

P5.04

Auto current limiting level

Range: 110~200(%) 150(%)

P5.05

Frequeny decrease rate when current limiting

Range: 0.00~99.99Hz/s 10.00Hz/s

P5.06

Auto current limiting selection

Range: 0, 1 1

Auto current limiting function is used to limit the load current smaller than the value defined in P0.54. Therefore the in­verter will not trip due to surge over-current. This function is especially useful for the applications with big load inertia or
big change of load.

Auto current limiting level (P5.04) defines the threshold of auto current limiting.The range of it the percentage of the in­verter rated current.

Frequency decrease rate when current limiting (P5.05) defines the rate of output frequency when the inverter is in auto
current limiting status.

If the decrease rate is too small, auto current limiting status may not change and overload fault may occur. If it is set too
big, the frequency will change too sharply and thus the inverter may be in generating status for long time, which may result
in overvoltage protection.

Auto current limiting functions is always enabled in accerlate or decelerate process. P5.06 (auto current limiting) will de­cide if the auto current limiting function is enable when constant speed running.

P5.06＝0, Auto current limiting function is disabled in constant speed operating process;

F5.06＝1, Auto current limiting function is enabled in constant speed operating process;

In auto current limiting process, the inverter output frequency may change; therefore, when the inverter output fre-

quency is required to be stable, this function is not recommended.

P5.07 restart after power off Range: 0,1 0

P5.08 waiting time of restart after power off Range: 0.0~10.0s 0.5s

P5.07 = 0, Restart after instantaneous power off is disabled.
P5.07 = 1, Restart after instanteaneous power off is enabled.

If instantaneous power off (LED shows E-11) occurs when inverter is in running status, after repowering, it will detect
speed automatically and then restart after the waiting time (P5.08). During the waiting time, the inverter will not start even
you input running command. If input stop command, the inverter will release the speed checking and restart status.

P5.09 Auto reset fault times Range: 0~10 0

P5.10 Interval of auto reset fault Range: 0.5~20.0s 5.0s

When the inverter is in running process, it may has fault and stop output by accident for overload fluctuating.To avoid the
pause of the device, you can use auto fault reset function. In the reseting process, inverter will restart after auto-checking
the speed. If the inverter can not reset successfully in auto reset fault times, fault protection will be enabled and output will
be stop. This function will be OFF when auto reset times is 0.
Note: (1) When use this function, make sure inverter has no substantiality fault.

(2) This function is invalid for the fault caused by overload and overheat.

V5 series inverter

75

4-2-7. Fault recording parameters (Group P6)

P6.00 last fault record Range: 0~23 0

P6.07 Last 2 fault record Range: 0~23 0

P6.08 Last 3 fault record Range: 0~23 0

P6.09 Last 4 fault record Range: 0~23 0

P6.10 Last 5 fault record Range: 0~23 0

P6.11 Last 6 fault record Range: 0~23 0

0: no fault

1~17: E-01~E-17 fault, refer to chapter 5.

P6.01 Output frequency of last fault Range: 0~upper limit of frequency 0

P6.02 Setting frequency of last fault Range: 0~upper limit of frequency 0

P6.03 Output current of last fault Range: 0~999.9A 0

P6.04 Output voltage of last fault Range: 0~999V 0

P6.05 DC bus voltage of last fault Range: 0~800V 0

P6.06 Module temperature of last fault Range: 0~100 0

4-2-8. Close-loop control parameters (Group P7)

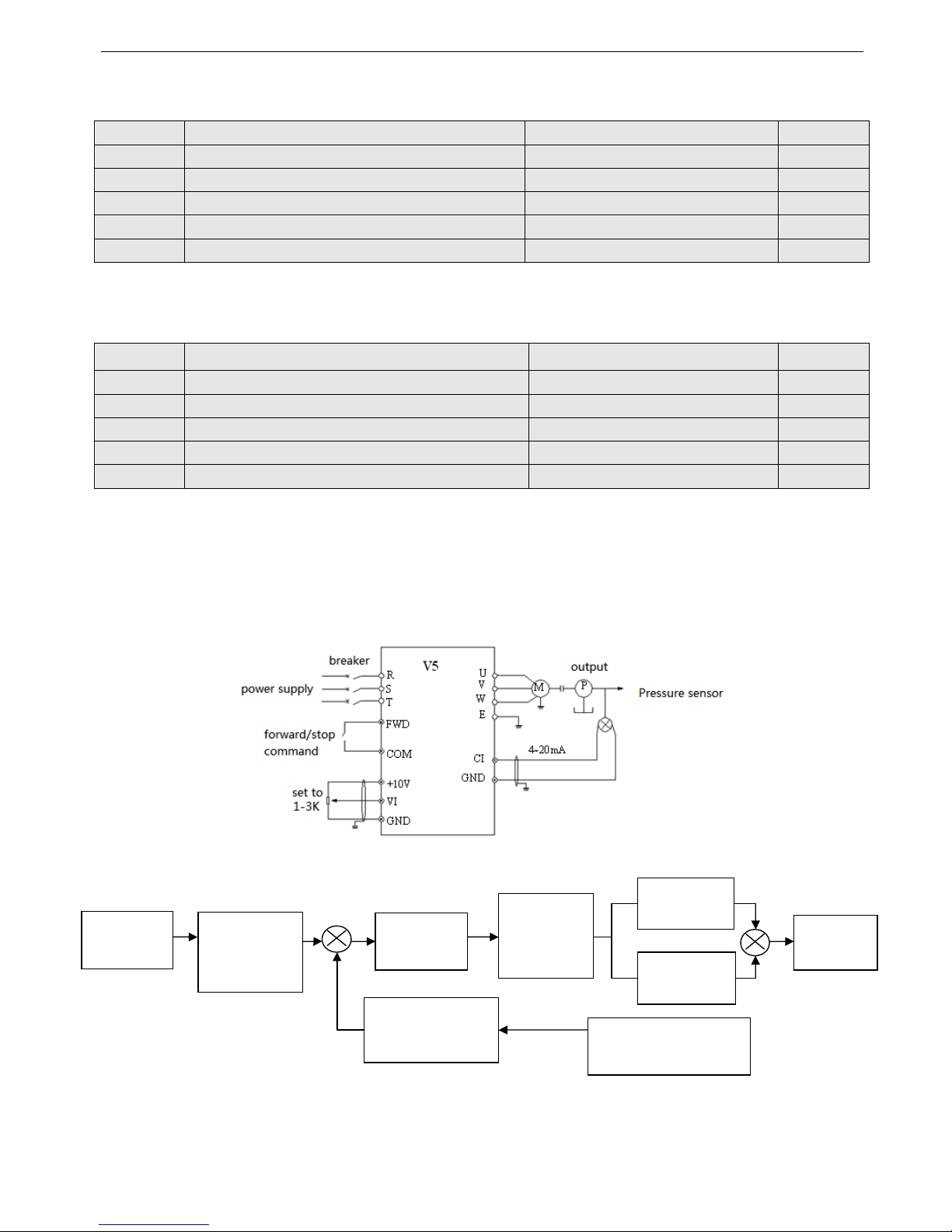

Analog feedback control system:
Pressure value is input in VI, and feedback value (4～20mA) of pressure sensor is input to inverter CI then pass through
the internal PI adjustor to form analog close-loop control system, as shown in Fig4-32.

Fig.4-32 Analog feedback control system with internal PI

Principle diagram of inverter’s internal PI adjustor is shown below:

+ +

- +

Fig. 4-33 PI control principle diagram

The definition of close-loop value, feedback value, difference limit and proportion/integral parameter in Fig 4-33 are the
same to normal PI definition. Please refer to P7.01~P7.11. The relationship between preset value and expect feedback val­ue is shown in Fig 4-34. The preset value is based on 10V; the feedback value is based on 20mA.
The aim of preset value adjustment and feedback value adjustment is to confirm the their relationship and size, as shown in

Close-loop
preset value

Preset value
adjustment
(P7.06,P7.08)

Difference
limit (P7.13)

Close-loop
adjust feature
(P7.14)

Proportion

gain

(P7.10)

Integral gain

(P7.11)

Feedback value ad­just (P7.07, P7.09)

Close-loop
output

Close-loop feedback value

V5 series inverter

76

Fig.4-33.
In actual applications, if the motor speed increases with the preset value increasing, it is positive feature; if the motor speed
decreases with the preset value increasing, it is negative features.
The two close-loop features can be set via P7.14, as shown in Fig4-35.

Fig.4-34 Preset and Fig.4-35 Close-loop adjustment

expected feedback feature diagram

After confirming the system, the procedure of setting close-loop parameters is shown below:
(1) Confirm the close-loop setting and feedback channel (P7.01, P7.02).
(2) The relationship between close-loop setting and feedback value (P7.06~P7.09).
(3) Confirm the close-loop adjustment features (P7.14=1 negative function; 0 is positive function), as shown in Fig4-35.
(4) Set the close-loop preset frequency (P7.16~ P7.17).
(5) Set close-loop filter time, sampling cycle, difference limit and gain coefficient (P7.03, P7.04, P7.12, P7.13).

P7.00 Close-loop function selection Range: 0, 1 0

0: Close-loop control is disabled

1: PI close-loop control is enabled

P7.01 Close-loop setting channel Range: 0, 1, 2 1

0: Digital setting

1: VI (0~10V) voltage setting
2: CI analog setting. 0~10V voltage or 4~20mA current are available. For speed close-loop, 10V corresponds to the syn-

chronized speed of the motor’s max output frequency.

P7.02 Feedback channel selection Range: 0~6 1

0: VI (0~10V) voltage input

1: CI analog input

2: VI +CI

3: VI - CI
4: Min｛VI, CI｝
5: Max｛VI, CI｝

P7.03 Setting channel filter Range: 0.01~50.00s 0.50s

P7.04 Feedback channel filter Range: 0.01~50.00s 0.50s

External setting channel and feedback channel have noise. To filter the channel by setting the filter time P7.03 and P7.04. the
longer the time, the stronger the noise immunity ability. But the reponse will be slow.

P7.05 Digital setting Range: 0.00~10.00V 0.00V

If P7.01=0, the value of P7.05 will be considered as the setting value of close-loop control system. Therefore, modify the value
of P7.05 to change the system setting value when controlling the close-loop system by operate panel or serial port.

V5 series inverter

77

P7.06 Min setting value Range: 0.0~Max setting value 0.0%

P7.07 Feedback value corresponding to min setting Range: 0.0~100.0 (%) 0.0%

P7.08 Max setting value Range: min reference~100.0 (%) 100.0%

P7.09 Feedback value corresponding to max setting Range: 0.0%~100.0 (%) 100.0%

P7.06~P7.09 defines the relationship curve of analog close-loop setting value and expected feedback. See Fig4-36.

Fig. 4-36 setting and feedback curve

P7.10 Proportional gain KP Range: 0.000~9.999 0.050

P7.11 Integral gain KI Range: 0.000~9.999 0.050

P7.12 Sampling cycle T Range: 0.01~10.00s 1.00s

The bigger the proportion gain KP, the quicker the response, but too big may lead to surge easily.
Only adjust with proportiaon gian KP, deviation can not be eliminated, integral gain KI can be used to form PI control to
eliminate the deviation. The bigger the Ki, the quicker the response of changing deviation, but too big of the Ki may lead to
surge easily.
Sampling cycle T is the sampling cycle of feedback value. PI regulator calculates once in every sampling cycle, the longer
the cycle, the slower the response.

P7.13 Limit of deviation Range: 0.0~20.0(%) 2.0(%)

The max deviation value of close-loop setting is shown in Fig.4-37, if the feedback value is in this range, PI regulator will stop adjusting.
This function is useful to improve accuracy and stability of the system.

Fig.4-37 Limit of deviation Fig.4-38 close-loop preset frequency running

P7.14 Close loop adjustment characteristic Range: 0, 1 0

0: Positive. The motor speed increases with the increasing of setting value.
1: Negative. The motor speed decreases with the increasing of setting value.

Note: Define the relationship between setting value and speed.

P7.15 Integral adjustment selection Range: 0, 1 0

0: Stop integral adjustment when the frequency reaches upper limit or lower limit.

1: Continue the integral adjustment when the frequency reaches upper limit or lower limit.

For the system need quick response, it is better to cancel the continue integral adjustment.

V5 series inverter

78

P7.16 Close-loop preset frequency Range: 0~upper limit of frequency 0.00Hz

P7.17 Holding time of close-loop preset frequency Range: 0.0~250.0s 0.1s

This function can make the close-loop adjustment enter stable status.
When inverter is in close-loop running mode, it accelerates to close-loop preset frequency P7.16 in acc time, and is running for a
while (P7.17), then runs according to close-loop features. Refer to Fig 4-38.

Note: If no need the function of close-loop preset frequency, please set the preset frequency and holding time to 0.

P7.18 Threshold of PI zero frequency wakeup Range: 0.00~500.0Hz 0.01Hz

P7.19 Backlash of PI zero frequency wakeup Range: 0.00~500.0Hz 0.01Hz

The two function parameters are used to set PI threshold and backlash of zero-frequency wakeup.

If you set the frequency to 0 Hz, PI threshold of zero-frequency wakeup will be disabled.

For example: Fig 4-39:

Fig.4-39 zero-frequency backlash

Start process:

After start command is sent, the motor will start and accelerate to the preset frequency in the Acc time when the setting
frequency reaches or exceeds Fb.

Stop process:

The inverter will not stop immediately if the setting frequency is lower than Fb, only when the setting frequency reaches
Fa, the inverter will stop output.

Fa points to zero-frequency wakeup threshold (P7.18), Fb-Fa points to zero-frequency wakeup backlash (P7.19).

This function can realize domant function and save the energy, besides, the inverter will not frequent start at threshold fre­quency by defining the backlash width.

4-2-9. Simple PLC operation parameters (Group P8)

Simple PLC function is a multi-speed generator, inverter can auto-change frequency and direction according to the running
time to satisfy the technical requirements. See Fig4-40.

V5 series inverter

79

Fig.4-40 Simple PLC running

In Fig 4-40, a1~a7, d1~d7 are the Acc/Dec time of each stage and they are set by Acc/Dec time parameters P0.17, P0.18 and
P3.14~P3.2. F1~F7, T1~T7 are the running frequency and running time and they are set by P8.01~P8.14.

P8.00 Simple PLC running

Range: LED lowest bit: 0~3; ten bit: 0, 1; hundred bit: 0, 1;
Thousand bit: 0, 1.

0000

Lowest bit of LED: PLC running mode selection
0: Disabled. PLC running mode is invalid.
1: Stop after one cycle. As shown in Fig.4-41. If inverter stops after single cycle operation, running command should be

input once again to start the inverter.

Fig. 4-41 PLC stop mode after single cycle

2: Keep the final value after single cycle. As shown in Fig.4-42，Inverter will keep the running frequency, direction of the
last stage after single cycle is completed, then it will stop in dec time if stop command is input.

Fig. 4-42 PLC holding mode after single cycle

V5 series inverter

80

Fig. 4-43 PLC continuous running mode

3: Continuous cycle. See Fig.4-43, inverter start next cycle after one cycle finished, it will stop when stop command is

input.

LED Ten bit: restart after pause
0: restart from stage 1. Stop caused by stop command, fault or power-off, restart from the first stage.
1: Continue to run from the frequency of stopping stage. Stop caused by stop command or fault, inverter auto-records

current stage running time. It will enter this stage after restarting and continue running, see Fig 4-44.

Fig.4-44 PLC start mode 1

Hundred bit: PLC status parameter storage selection when power-off
0: Not save. The inverter doesn’t save the PLC status. It restarts from stage 1 when power on.
1: Save. The inverter saves the PLC status including stage frequency and running time when power-off. It restart according

to the running mode defined by LED ten bit(restart after pause).
Thousand bit: the unit of PLC running time
0: second
1: minute
This unit is only valid for the definition of PLC running time. The unit of Acc/Dec time durning PLC is running is set by
P0.16.
Note: (1) This stage is invalid when the PLC running time is set to 0.

(2) You can control pause, invalid, run and others of the PLC process via terminals, refer to P4 for details.

P8.01 Stage 1 setup Range: 000~621 000

P8.02 Running time of stage1 Range: 0.1~6000.0 10.0

P8.03 Stage 2 setup Range: 000~621 000

P8.04 Running time of stage 2 Range: 0.1~6000.0 10.0

P8.05 Stage 3 setup Range: 000~621 000

P8.06 Running time of stage 3 Range: 0.1~6000.0 10.0

V5 series inverter

81

P8.07 Stage 4 setup Range: 000~621 000

P8.08 Running time of stage 4 Range: 0.1~6000.0 10.0

P8.09 Stage 5 setup Range: 000~621 000

P8.10 Running time of stage 5 Range: 0.1~6000.0 10.0

P8.11 Stage 6 setup Range: 000~621 000

P8.12 Running time of stage 6 Range: 0.1~6000.0 10.0

P8.13 Stage 7 setup Range: 000~621 000

P8.14 Running time of stage 7 Range: 0.1~6000.0 10.0

P8.01~P8.14 use the lowest bit, ten bit and hundred bit of LED to define the PLC running frequency, direction and acc/dec
time.

Lowest bit of LED: frequency setting
0: Multi-frequency i, i=1~7, defined by P3.26~P3.32.

1: Frequency is set by P0.01
Ten bit of LED：Operating direction selection

0: Run forward

1: Run reverse
2: Decided by operating instructions
Hundred bit of LED：Acc/Dec time selection

0: Acc/Dec time 1

1: Acc/Dec time 2

2: Acc/Dec time 3
3: Acc/Dec time 4

4: Acc/Dec time 5

5: Acc/Dec time 6

6: Acc/Dec time 7

4-2-10. Swing frequency function parameters (Group P9)

Swing frequency is widely used in textile and chemical fiber industry which need to horizontal move and winding. The
typical application is shown in Fig. 4-45. The swing frequency process: accelerate to the preset frequency of swing fre­quency (P9.02), wait for a while (P9.03), decelerate to center frequency of swing frequency, cycle run according to the
preset swing frequency width (P9.04), jump frequency (P9.05), swing frequency period (P9.06) and up time (P9.07) unitl
the stop command is input.

The center frequency is the preset frequency of normal running, multi-speed running or PLC running.

Auto-cancel the swing frequency when jog or close-loop operation.

PLC runs with the swing frequency, the swing frequency will be invalid when PLC switches the stages. It enters the swing
frequency after accelerating or decelerating to preset frequency according to the acc/dec setting of PLC stage. Stop ac­cording to the acc/dec time setting of PLC stage.

V5 series inverter

82

Fig.4－45 swing frequency

P9.00 Swing frequency function Range: 0, 1 0

0: Disabled

1: Enabled

P9.01 Swing frequency running mode Range: 00~11 0

Lowest bit of LED：input mode
0: Auto input mode. The inverter will run at preset frequency (P9.02) for a while (P9.03), and then enter the swing fre-
quency status.
1: Terminal manual input mode. If the multi-function terminal (Xi is set to No.25 function) is enabled, the inverter will

enter swing frequency status. If the terminal is disabled, the inverter will quit swing frequency and run at preset swing fre­quency (P9.02).

Ten bit of LED: swing frequency width
0: Variable width. Width AW changes with the center frequency and the changing rate is defined by P9.04.
1: Fixed width. Width AW is decided by max frequency and P9.04.

P9.02 Preset swing frequency Range: 0.00~650.00Hz 0.00Hz

P9.03 Waiting time of preset swing frequency Range: 0.0~6000.0s 0.0s

P9.02 is used to set running frequency before entering swing frequency.
If you select auto start mode, P9.03 is used to set the running lasting time at preset swing frequency before the inverter
enter swing frequency; if you select manual start mode, P9.03 is disabled. Refer to Fig. 4-45.

P9.04 The width of swing frequency Range: 0.0~50.0% 0.0%

Variable width: Aw＝Center frequency×P9.04
Fixed width: Aw＝Max running frequency P0.06×P9.04
Prompt: The swing frequency is limited by upper/lower frequency, it will work abnormal if set uncorrect.

P9.05 Jump frequency Range: 0.0~50.0% 0.0%

As shown in Fig4-45, there is no jump frequency if P9.05 = 0.

P9.06 Swing frequency period Range: 0.1~999.9s 10.0s

It defines the complete period of swing frequency up/down process.

V5 series inverter

83

P9.07 Up time of triangle wave Range: 0.0~98.0% 50.0%

Running time of swing frequency up stage ＝P9.06×P9.07(s), Time of down stage＝P9.06×（1－P9.07）(s). Refer to
Fig.4－45.

Note: You can select S-curve Acc/Dec mode along with swing frequency, the swing frequency will run more smoothly.

P9.08 set length Range: 0.000~65.535km 0.000(km)

P9.09 Actual length Range: 0.000~65.535km 0.000(km)

P9.10 Times of length Range: 0.001~30.000 1.000

P9.11 Calibration coefficient of length Range: 0.001~1.000 1.000

P9.12 Perimeter of shaft Range: 0.01~100.00(cm) 10.00(cm)

P9.13 pulses per revolution Range: 1~9999 1

These parameters are used to realize fixed length control.
The counting pulses is input via terminal (X6, defined as function 35), and calculate the length according to the pulses per
revolution (P9.13) and perimeter of shaft (P9.12).
Calculated length＝counting pulses÷ pulses per revolution×perimeter of shaft
The length can be corrected through times of length (P9.10) and calibration coefficient of length (P9.11), and the length is
the actual length.
Actual length ＝calculated length×calibration coefficient of length÷calibration coefficient of length
When actual length(P9.09)≥preset length(P9.08), the inverter will send out STOP command.When the inverter restarts, it
needs to clear the actual length (P9.09) or make the actual length (P9.09) less than preset length (P9.08), otherwise the in­verter will not start.
Note: (1) The actual length (terminal Xi is defined to function 36) can be cleared by multi-function input terminal. The
actual length can be calculated only after this terminal is disconnected.
(2) Actual length (P9.09) will be saved after power off.
(3) The fixed length stop function is disabled if P9.08 = 0, but the calculated length is still effective.

4-2-11. Vector control parameters (Group PA)

PA.00 Motor auto-tune Range: 0, 1 0

0: No tune

1: Tune when static

Operating process of auto-tune:
(1) Set motor label parameter PA.01~PA.05
(2) Set panel operation P0.03=0
(3) Set PA.00=1, enter auto-tune
(4) Press , the screen will show RUN
(5) Press , start the auto-tune
(6) After a while, the screen show PA which means the auto-tune is finished
(7) Please check PA.09 (stator resistor) which is modified.

PA.01 Rated voltage of motor Range: 0~400V Model confirmation

PA.02 Rated current of motor Range: 0.01~500.00A Model confirmation

PA.03 Rated frequency of motor Range: 1~99Hz Model confirmation

PA.04 Rated speed of motor Range: 1~9999 r/min Model confirmation

PA.05 Polarity of motor Range: 2~48 Model confirmation

PA.06 Stator inductance of motor Range: 0.1~5000.0mH Model confirmation

FWD

V5 series inverter

84

PA.07 Rotor inductance of motor Range: 0.1~5000.0mH Model confirmation

PA.08

Mutual inductance of motor

rotor and stator

Range: 0.1~5000.0mH

Model confirmation

PA.09 Stator resistance of motor Range: 0.001~50.000Ω Model confirmation

PA.10 Rotor resistance of motor Range: 0.001~50.000Ω Model confirmation

PA.01~PA.10 are motor parameters which have default setting according to inverter model, you can reset these parameters
according to the motor parameters. PA.01~PA.10 are used to vector control, which should be input correctly to realize the
expecting effect.

PA.11 Over current protection coefficient of torque current Range: 0~15 15

In vector control, this parameter is used to control torque current to avoid over current, 0~15 correspond to 50% ~ 200%.

PA.12 Proportion adjustment coefficient of speed-loop Range: 50~120 85

PA.13 Integral adjustment coefficient of speed-loop Range: 100~500 360

In vector control, PA.12~PA.13 are used to control the motor speed. Adjust the two parameters can realize better effect for motor
speed control.

PA.14 Vector torque boost Range: 100~150 110

In vector control, this parameter is used to boost the motor output torque. You can increase this parameter to boost motor output
torque for large load.

PA.17 Excitation Range: 100~150 120

In vector control mode, this parameter is used to adjust the stator flux intensity. It can improve the vector torque output perfor­mance by setting this parameter. Please don’t set it too large avoid flux supersaturated.

PA.18 Slip compensation coefficient Range: 0%~150% 100%

In vector control mode, this parameter is used to adjust the slip frequency of vector control. It can improve the accuracy of speed
control. It can suppress the speed static error.

4-2-12. Special application function parameters (Group PB)

PB.00 The source of jog frequency Range: 0~4 0

0: P3.06

1: Panel potentiometer

2: P0.02

3: VI

4: CI

V5 series inverter

85

PB.01 Dead zone time of forward/reverse running Range: 0,1 0

0: Always valid. Based on the value set in P0.05, the minimum value is 0.1s.
1: The time can be set to 0（no dead time）.You should set P0.05=0.0s, P0.20≥0.5Hz.

This function is usually used to the continuous to-and-for control. If swift turn-around is needed, reduce the Acc/Dec time and
increase the lower limit frequency/start frequency.（P0.17≤0.5s, P0.18≤0.5s, P0.20≥2.0Hz, P2.01≥2.0Hz）.

PB.02 Inverter type select Range: 0, 1 0

0: G type (general type), fit for normal situation.
1: P type (fans,water pump), fit for fans, water pump and other small load situation. In this mode, power will improve 1

level, if the machine power is 2.2KW, in P type mode, the power will improve to 3.7KW. Please note P0.22 should be set to 3.

PB.03 Run mode Range: 0,1 1

0: before power on, if the terminal is short, run the inverter immediately.

1: before power on, if the terminal is short, run the inverter after cut off the terminal and connect it again.

4-2-13. Default setting and password (Group PF)

PF.00 Default password

－ －

PF.01 User password Range: 0000~9999 0000

This parameter can prohibit the unauthorized personnel from viewing or modifing function parameters.
Please set it to 0000 if don’t need user password.
If usre password is needed, input four figures as password, then press to confirm, the password will be valid im­mediately.

Modification: Press key to validate password, input correct password to enter parameter editing status. Choose

PF.01 (PF.01=0000), input new password and press to confirm, then the password will be valid immediately. The

password for super user is 2644.

PF.02 Software version

－ －

Software version is set by Xinje company, cannot be changed.

MENU

ESC

V5 series inverter

86

5 Fault Diagnosis and solution

5-1. Fault diagnosis and solution

When fault occurs, the error code will show in LED display, the inverter stops outputting and the fault relay contactor is acti­vated. If the motor is running when the fault occurs, motor will free stop. Table 5-1 is the fault inverter may happen. Please
check the fault according to the table or contact us for service.

Table 5-1 Fault and solution

Fault Code

Fault Type Possible reason Solution

E-01

Over-current
when
accelerating

Too heavy the load and too short the Acc time Increase the accerlation time

V/F curve is not suitable Adjust V/F curve setting

Restart the motor when it is running Set to restart after speed detection

torque boost value is too large

Adjust the value of manual torque boost or change to auto

torque boost

Inverter power is too low Select higher power inverter

E-02

Over-current when
decelerating

Too short Dec time Increase the Dec time

Potential or big inertia load Increase the brake power of external brake unit

Inverter power is too low Select higher power inverter

E-03

Over-current when
constant speed run­ning

Sudden change of load Check and reduce the change of load

Too short Acc/Dec time Increase the Acc/Dec time

Abnormal load Check the load
AC supply voltage is low Check AC supply voltage
Inverter power is too low Select higher power inverter

E-04

Over-voltage when
accelerating

Abnormal input voltage Check input power supply

Too short Acc time Increase the Acc time

The rotating motor restarts after stop Set to restart after speed detection

E-05

Over-voltage when
decelerating

Too short Dec time Prolong Dec time

Potential or big inertia load Increase the brake power of external brake unit

E-06

Over-voltage

when constant speed

running

Abnormal input voltage Check input power supply

Too short Acc/Dec time Increase the Acc/Dec time

Abnormal change of input voltage Install input reactor

Too big the load inertia Connect suitable braking unit

E-07

Inverter power supply

over-voltage

Abnormal input voltage Check input power or ask for service

E-08

Inverter overheat

Duct blockage Clean the duct and improve ventilation condition

Ambient temperature too high

Improve ventilation condition and decrease carrier fre-

quency

Fan is broken Change the fan

IGBT module is abnormal Ask for help

E-09

Inverter overload

Too short Acc time Increase the Acc time

DC braking current is too big Reduce DC braking current and increase braking time

V/F curve is not suitable Adjust V/F curve and torque boost value

V5 series inverter

87

Restart the motor when it is running Set to restart after speed detection

Low AC supply voltage Check AC supply voltage

Too heavy load Select higher power inverter

E-10

Motor overload

V/F curve is not suitable

Adjust V/F curve and torque boost value

Low AC supply voltage Check AC supply voltage

Common motor is running with heavy load at

low speed for a long time

Please choose frequency conversion motor

Unsuitable motor overload protection coeffi-

cient

Set motor overload protection coefficient correctly

The motor is blocked or the load change too

much

Check load

E-11

Under-voltage

when

running

Too low AC supply voltage Check AC supply voltage

E-12

Inverter module pro­tection

Instant over current of inverter Refer to solution of over current

3-phase output is short together or ground short Rewiring

Duct is blocked or fan is damaged Clean the duct or change the fan

Ambient temperature is too high Reduce environment temperature

Wires or connectors of control board are loose

Check and rewiring

Current waveform distorted due to output phase

loss

Check wiring

Auxiliary power is damaged and inverter vol-

tage is low

Ask factory or agent for service

Abnormal control board Ask factory or agent for service

E-13

Peripheral equipment

fault

Emergency stop terminal of peripheral equip-

ment is close

Solve the external fault and cut off the terminal

E-14

Current
detection circuit
is error

Wires or connectors of control board are loose

Check and rewiring

Auxiliary power supply is damaged Ask factory or agent for service

Hall part is damaged Ask factory or agent for service

Amplifying circuit is abnormal Ask factory or agent for service

E-15

RS485
Communication error

Baud rate is not suitable Set suitable baud rate

Serial port communication error

Press key to reset, or ask for service

Unsuitable alarm parameter Modify the setting of P3.09~P3.12

Host PC does not work Check host PC, check the wiring

E-16 System interference

Serious interference

Press key to reset or install power filter at the

input side of the inverter

W/R error of DSP in main control board Press keys to reset, ask for service

E-17

E2PROM

W/R error

W/R error of control parameter

Press key to reset or ask for service

E-18

DC brake overcurrent Set wrong current of DC brake Decrease the percentage of brake current

V5 series inverter

88

E-24

POFF

Main circuit under
voltage,the electro­magnetic contactor

action error

Lack of phase when input current, momenta

ry

power off, power supply terminals are

loose,

power supply voltage fluctuates serious,

the

main circuit contactor is open

Check the reason and reset
Check the power supply
Ask the factory or agent for help

E-30/31

Lack of phase when

inverter running or

stop

I

nput power supply lack of phase, momentary

power off, power supply terminals are

loose,

power supply voltage fluctuates serious,

the

voltage between phases is unbalance

Check the reason then reset

EEEE

Operate panel com-

munication error

O

perate panel and CPU board connection is not

good, the control circuit of inverter is not good

U

ninstall the operate panel and install again, ask the

factory for help

5-2. Check the fault records

The inverter records the last 6 times fault code and the running parameter of last fault. Checking these information can help
to solve the problem. The fault records are stored in P6.

5-3. Fault reset

Once the fault occurs, select one of the following operations to restart the inverter:
(1) When fault code displayed in the operation panel, press key after you confirm the inverter can be reset.
(2) After setting one terminal among X1~X8 as external RESET input (P4.00~P4.07=17), connect it with COM terminal

and then disconnect.

(3) Cut off the power supply

(1) Please make sure you know the reason of the fault and get rid of it before resetting, otherwise the inverter may be
damaged permanently.
(2) If the inverter can not be reset or fault reoccurred after resetting, please check the reason as the inverter may be dam­aged by resetting continuously.
(3) Delay 5 minutes to reset when overload and overheat protection are enabled.

Note:

V5 series inverter

89

6 Maintenance

6-1. Maintenance

Environment effections such as ambient temperature, humidity, fog, internal component aging and other factors will give
rise to the occurrence of potential faults. Therefore, it is necessary to daily check and routine maintain the inverters.

6-1-1. Routine maintenance

Please confirm the following items when start the inverter.

（1）If there is abnormal noise and vibration with the motor.
（2）If the inverter and motor heat unusually.
（3）If the environment temperature is too high.
（4）If the value of load amperometer is as usual.
（5）If the fan of inverter can operate normally.

6-2. Periodical care and maintenance

6-2-1.Periodical care

Before checking and maintaining the inverter, please make sure that the inverter is power off, monitor has no display con­tent and the indication lamp of main circuit power is off.The checking contents are shown in Tabel 6-1.

Table 6-1 periodical maintenance

Items Contents Countermeasures

The screw of main circuit terminals,
control circuit terminals

If the screws are loose Tighten the screws with screw drivers

Heatsink If there is dust

Use dry compressed air with 4~6kgcm2

pressure

PCB board If there is dust

Use dry compressed air with 4~6kgcm2

pressure

Cooling fan

There is abnormal noise, vibration, or if it has run for

more than 20 000 hours.

Change cooling fan

Power component If there is dust

Use dry compressed air with 4~6kgcm2

pressure

Aluminium electrolytic capacitor If it has changed color , particular smell or bubble Change aluminium electrolytic capacitor

6-2-2. Periodical maintenance

To make the inverter work normally for long time, periodical care and maintenance for inverter’s internal electronic com­ponent should be done. The electronic component’s lifetime depends largely on their application environment and preser­vation. The reference lifetime are shown in table 6-2:

V5 series inverter

90

Table 6-2 Lifetime of inverter components

Component Life

Cooling fan 2~3 year

Electrolytic capacitors 4~5 year

Print circuit board 5~8 year

Fuse 10 year

The usage conditions of the above components are shown below:

（1）Environmental temperature: 30℃ in average.
（2）Load coefficient: below 80%.
（3）Running time : below 12 hours per day.

6-3. Warranty of the inverter

Xinje Company will offer warranty service in the case of the following situations:
(1) The warranty range only points to the inverter;
(2) We will take the responsibility of 15 months defects liability period for any faults or damages under the normal opera­tion conditions. After15 months, maintenance will be charged;
(3) Even within 15 months, maintenance would be charged under the following conditions:
Inverter is damaged due to incorrect operation, which are not in compliance with “User Manual”;
Inverter is damaged due to fire, flood, abnormal voltage and so on;
Inverter is damaged due to wiring fault.
Inverter is damaged due to the improper use of drive functions;
(4) Service fee will be charged according to the actual costs. If there are any maintenance contracts, the contract has prior­ity.

V5 series inverter

91

7 Communication Protocol

7-1. Overview of communication protocol

The inverters supply RS485 communication port and adopt MODBUS startded communication proto­col. Therefore, the inverter can be set as a slave to communicate with the marter (such as PLC and PC)
which has the same communicatin port and protocol; also, user can use a inverter as the master to
communicate with several inverters produced by our company via RS485 port to realize multi-machine
linkage. Besides, you can connect the RS485 port to remote keyboard to realize remote operation.

This inverter support MODBUS-RTU, the following is the particular instruction for the inverter’s
communication protocol.

7-2. Communication protocal

7-2-1. Communication networking mode

Inverter as a slave

OR

RS232 RS232

RS485 RS485

Fig.7－1 Networking diagram of inverter

Multi-device linkage

RS485

Fig 7-2 Networking diagram of multi-device linkage

Master PC

RS232-485
converter

Master PLC

Master PC

RS232-485
converter

Inverter

Inverter

Inverter Inverter

Inverter

One master multi-slave

One master one slave

Master inverter

Slave inverter

Slave inverter

Slave inverter

Slave inverter

V5 series inverter

92

7-2-2. Communication protocol modes

The inverter can be master and slave in RS485 network. If it is master, it can control other inverters

made by our company to realize multi-machine linkage.If it is slave, PC or PLC (master) can control it.

The concrete communication modes are shown below:

(1) The inverter is slave, master-slave point-to-point mode. The slave devices will not response when

master sends requires by broadcast address.

(2) The inverter is master. The slave devices will not response when master sends requires by broadcast

address.

(3) Users can set the inverter address, baud rate and data format via the keypad or serial port.

(4) The slave report the current fault information in the latest response frame.

7-2-3. Communication port

RS485 port is asynchronous serial, half-duplex transmission. Default data format: 1 start bit, 8 data bits,

1 stop bit.

Default baud rate 19200bps, the communication parameters please refer to P3.09~P3.12.

7-3.Modbus-RTU communication protocol

7-3-1. Character structure

7-3-2. Communication information

1. RTU mode:
