XC-DPG603
Twin WAN DNS IP
VPN Gateway
→
Chapter 1 - Introduction
The XiNCOM XC-DPG603 is a revolutionary DNS to IP VPN Gateway that provides advanced networking services most commonly found in enterprise class infrastructures at a fraction of the cost. XiNCOM tailors these services with innovative features such as inbound/outbound load balancing, auto-failover, and a built-in VPN endpoint. The XC-DPG603’s primary features are full VPN Load Balancing with Automatic Failover and the Authorative DNS fucntion with Inbound Load Balancing. The VPN capability will allow for two concurrent VPN tunnels that will load balance both inbound and outbound traffic requests. Full redundancy is assured when establishing a VPN tunnel on each WAN port. The authoritative DNS feature load balances inbound traffic requests to the respective IP address on a network infrastructure that hosts content on multiple servers. High throughput of inbound and outbound requests are managed by dual WAN ports that utilize the combined bandwidth of two separate concurrent broadband connections including DSL, Cable, and/or T1.
Chapter Contents
• Introduction
• Features
• Physical Details
Use TWO ISPs for expanded bandwidth and redundancy
Using two separate ISPs provides redundant connectivity to the Internet. In the event that one ISP goes down, the XC-DPG603 auto-fails over to the other ISP service. Redundancy to the Internet provides a truly uninterrupted connection for a business’s customers while maintaining uptime and productivity for its employees.
Robust Security Features
The XC-DPG603 also features NAT, a Stateful Packet Inspection (SPI) Firewall, DHCP server, Access Filters, and a built-in VPN endpoint to secure a business’s network services. The Quality of Service (QoS) feature schedules and directs a network’s traffic to take advantage of available bandwidth. The XC-DPG603 UPnP support can dynamically open and close ports required by certain software automatically. Increased bandwidth and redundant connectivity to the Internet provides cost-effective bandwidth solutions to expensive leased telecommunication lines for your network infrastructure.
Package Contents
The following items should be included:
• XC-DPG603 Twin WAN DNS to IP VPN Gateway
• Power Adapter (5V)
• Quick Installation Guide
• CD-ROM containing the on-line manual.
• Two CAT RJ-45 Ethernet Cables
• Rack Mounts for a standard 19” server rack
4
Features
Figure 1. How it works
1
A client computer makes a request to access www.(yourdomain).com.
2
The request goes to the ISP’s DNS server and the DNS server replies with the IP address of the DNS responsible for that domain.
3
Internet
The request is then processed by the Authoritative DNS of that domain and provides the IP address of the specified server.
4
The client can then access the web server.
Figure 2. Load Balancing
Load Balance two concurrent broadband connections in any combination to expand a network’s bandwidth to the Internet. The XC-DPG603 supports T1, xDSL, Cable, and Satillite broadband connections.
Active connection from the ISP
The XC-DPG603 load balances both inbound and outbound traffic requests.

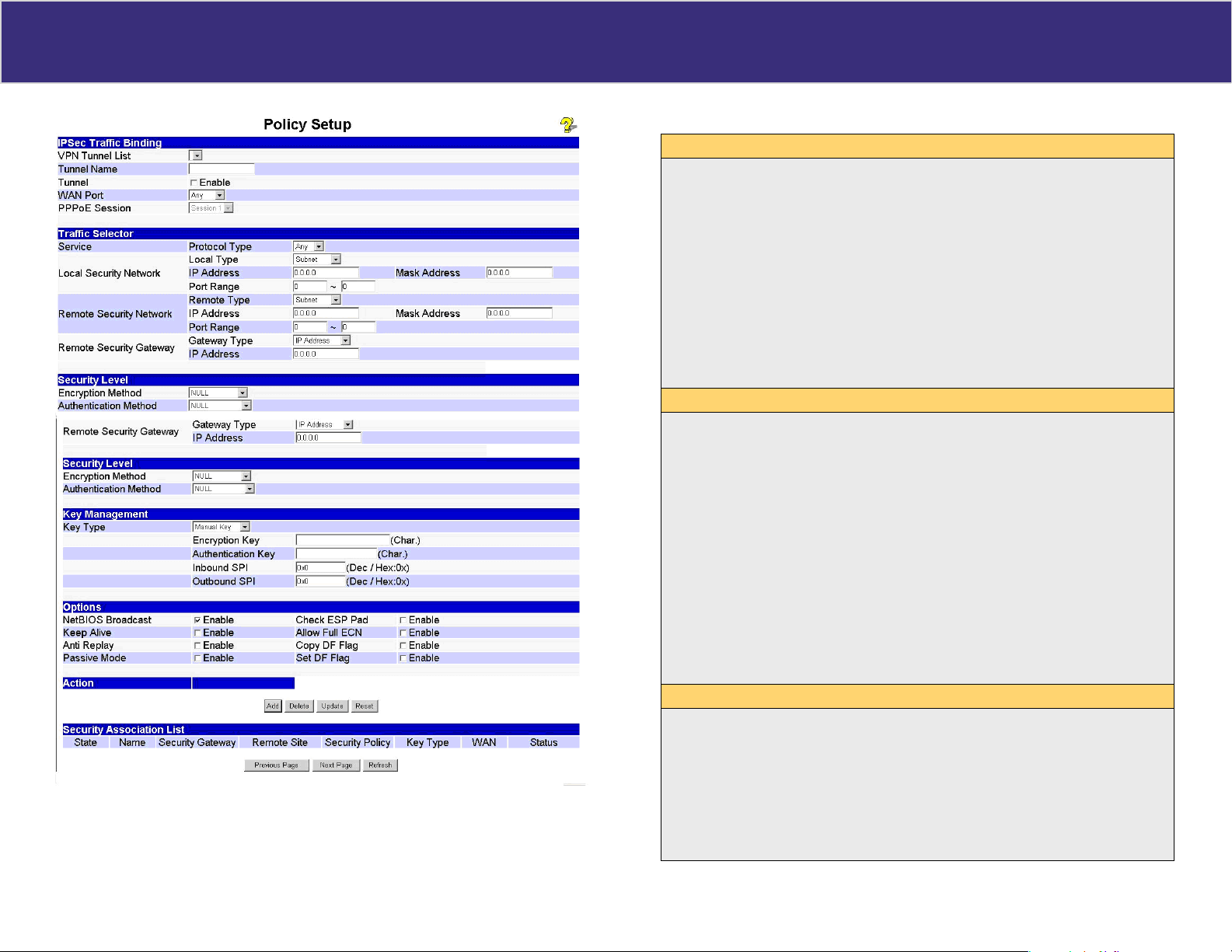

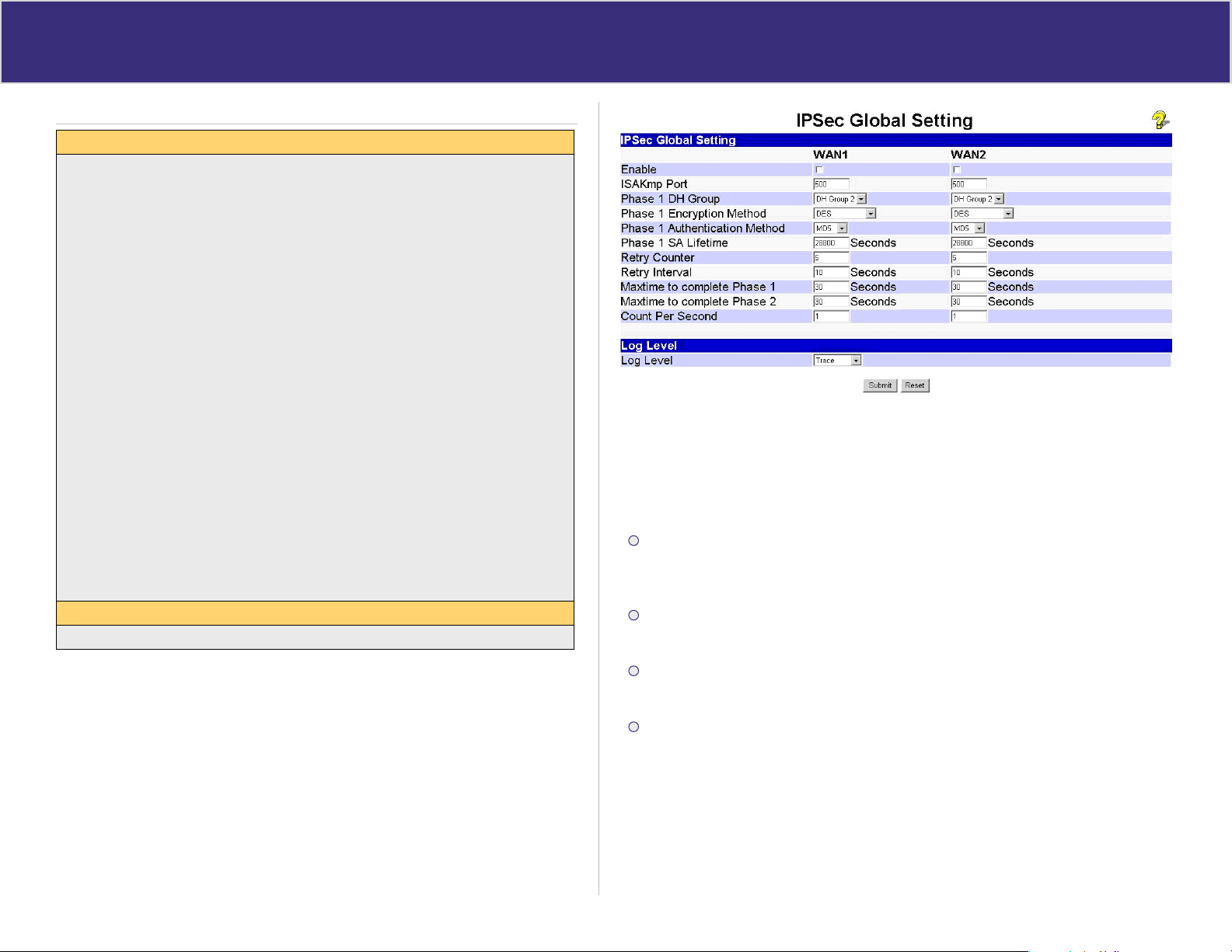

Built-in VPN Endpoint
Full VPN Endpoint with support for up to 50 VPN tunnels using the IPsec encryption protocol.

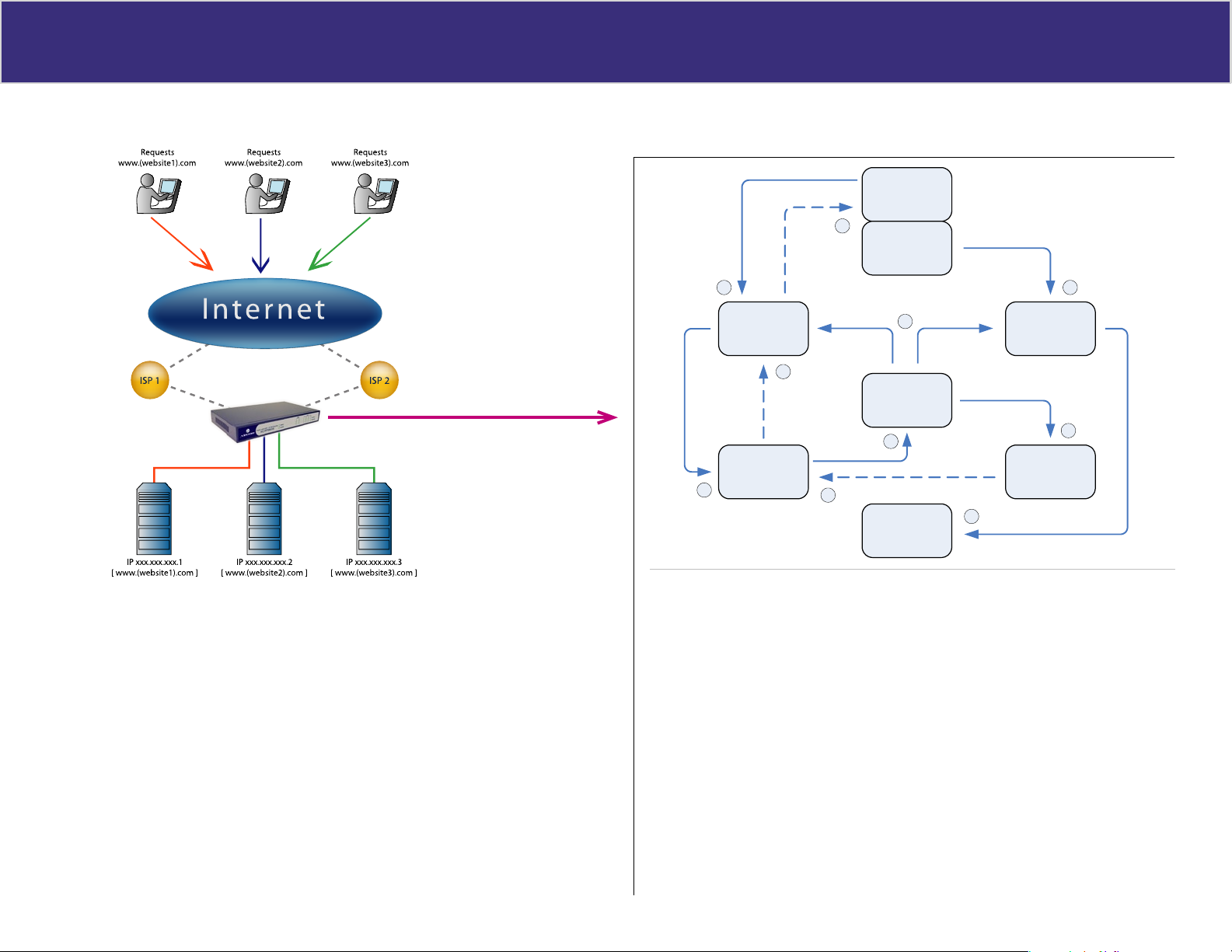

Authoritative DNS to IP Gateway
The XC-DPG603 is an authoritative DNS to IP gateway that resolves a domain name to its respective IP addresses. This new capability allows for inbound failover and load balancing for servers located behind the gateway. Using dual WAN ports simultaneously increases available bandwidth for both uploads and download requests. You can set load balance type by Packets, Bytes rx+tx and Sessions.
Multiple Connection Methods
All popular DSL and Cable Modems and connection methods are supported, including Fixed IP, Dynamic IP, PPPoE, even multiple-session PPPoE.
2 x 10/100 WAN Ports
The XC-DPG603 incorporates dual 10/100 WAN ports, complete with auto-crossover for easy connection to an existing network. All popular DSL and Cable Modems and connection methods are supported, including Fixed IP, Dynamic IP, PPPoE, even multiple-session PPPoE.
4-Port 10/100 Switch
The XC-DPG603 incorporates a 4-port 10/100 N-Way Ethernet Switch, complete with auto crossover for easy connection to an existing network.
Automatic Fail-over
If one broadband connection goes down all traffic is automatically re-routed through the second broadband connection.

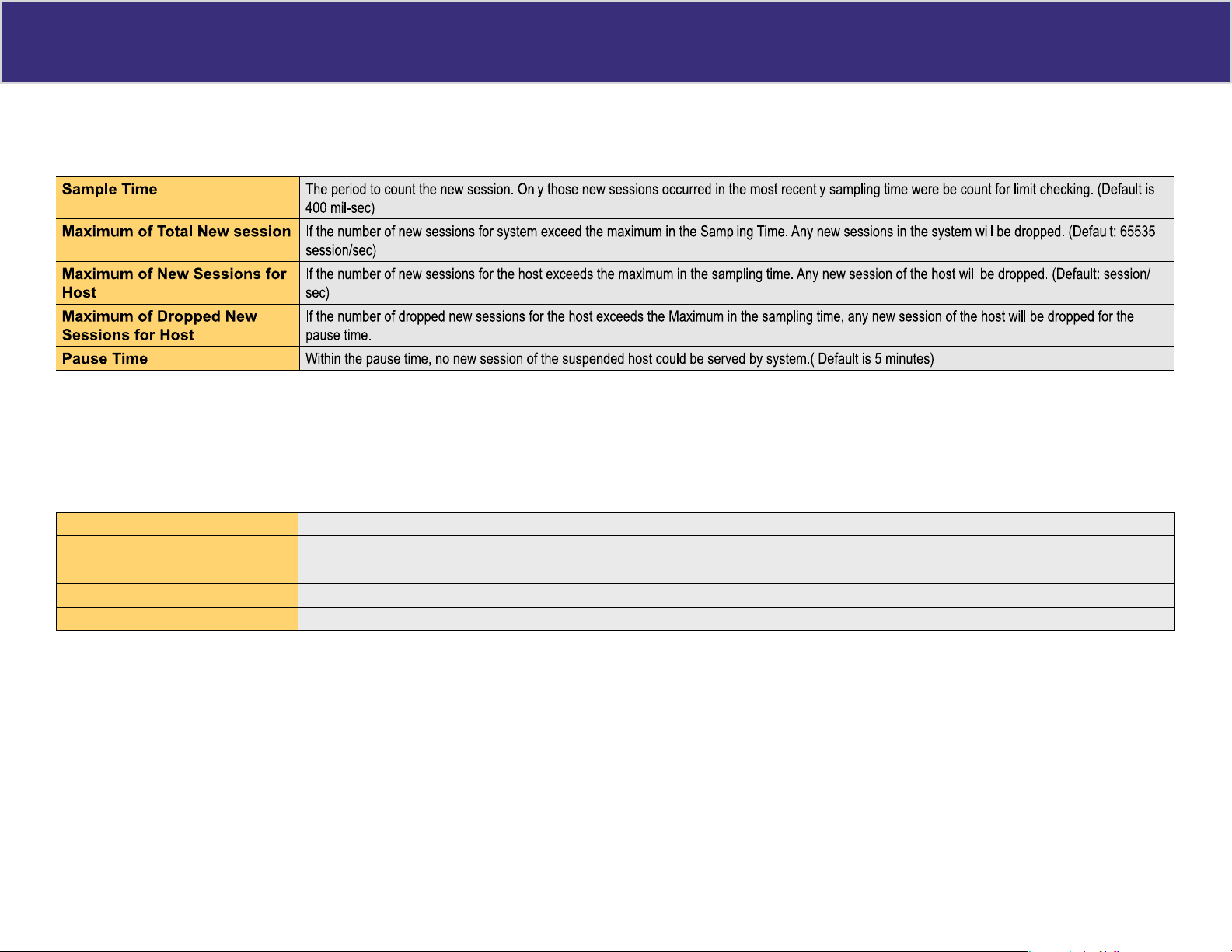

Stateful Packet Inspection (SPI) Firewall
Protects your network using advanced SPI against malicious and DDoS attacks.
Figure 3. Automatic Fail-over
In the event of one connection going down, all traffic is re-routed to the second WAN port utilizing the live broadband connection from the second ISP. This provides true redundancy to ensure a network remains connected to the Internet.
Active connection from the ISP Inactive connection from the ISP
All incoming and outgoing traffic from a LAN has an uninterrupted connection to the Internet when one of the two connections fail.
Advanced NAT features

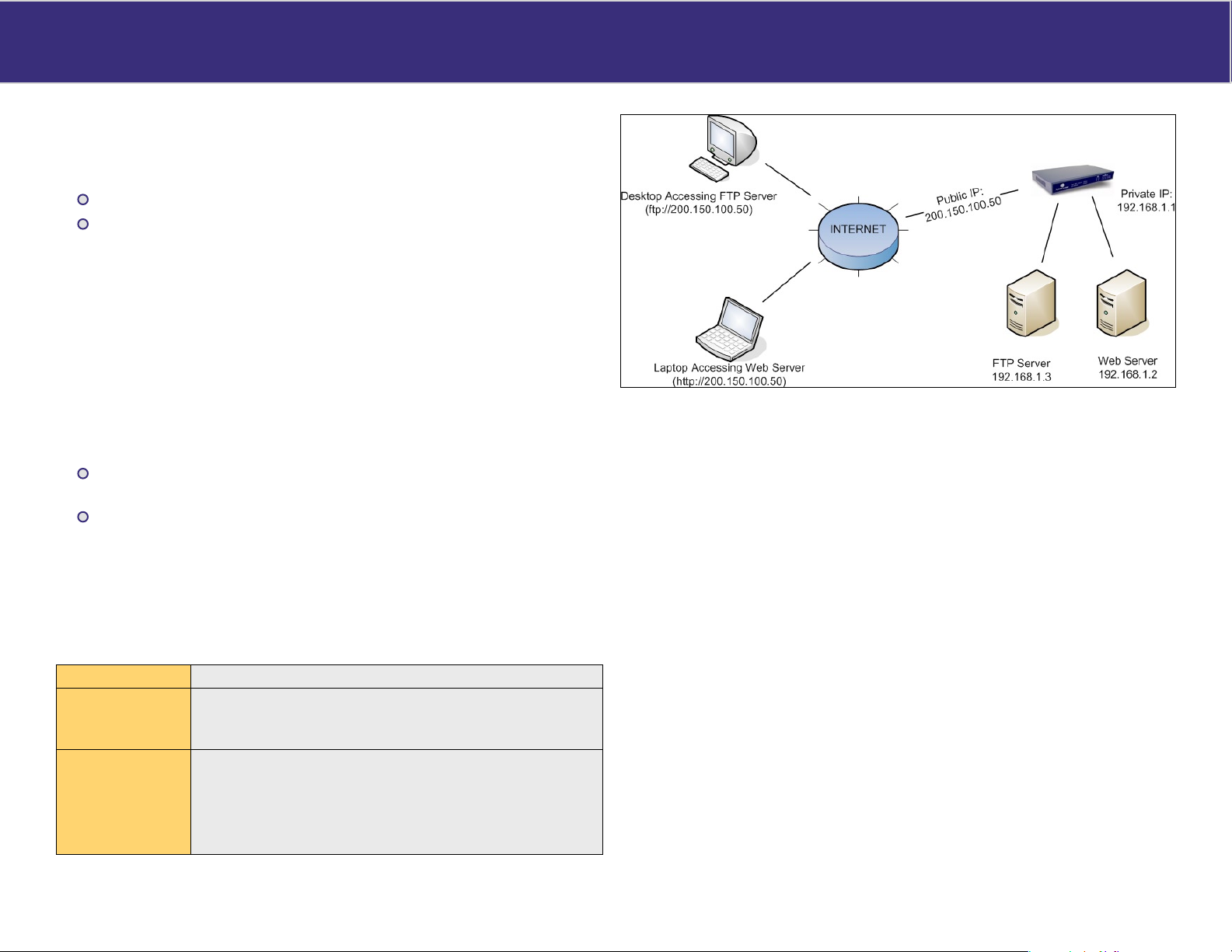

Access Filters, DMZ, DDNS, Remote Management, Dynamic or Static Routing, Special Applications, Virtual Servers, SNMPv1.
Access Filter
Gain fine control over the Internet access and applications available to LAN users with a powerful URL Blocking Engine. Five (5) user groups are available, and each group can have different access rights.
Block URL
Use this feature to block access to undesirable Web sites by LAN users. You can even have different settings for different groups of PCs.
5
Features
Other Features:
DHCP Server Support
Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and other devices upon request. The XC-DPG603 can act as a DHCP Server for devices on your local LAN.

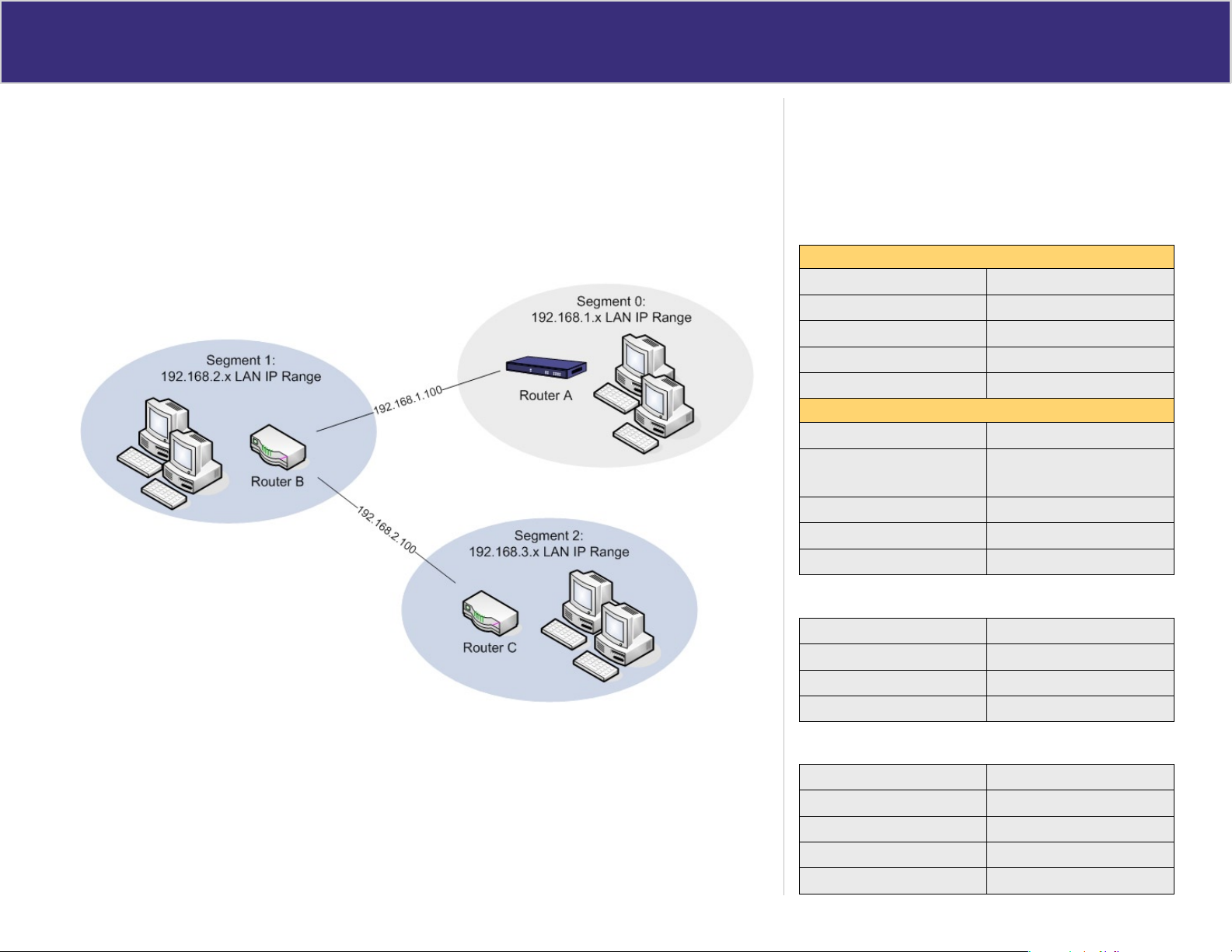

Multi Segment LAN Support
LANs containing one or more segments are supported via the XC-DPG603’s built-in static routing table.
ARP proxy
The ARP proxy feature allows you to assign an external (Internet) IP address to the XC-DPG603’s LAN port. This allows Servers on your LAN to have external (Internet) IP addresses.
Easy Setup
Use your favorite WEB browser for configuration.
Remote Management
The XC-DPG603 can be managed from any PC on your LAN. If the Internet connection exists, the XC-DPG603 can be setup to be configured remotely via the Internet.
Password Protected Configuration
Optional password protection is provided to prevent unauthorized users from modifying the XC-DPG603’s configuration data and settings.
DNS Configuration
This sets the inbound load balancing features for the XC-DPG603. Users have to construct a DNS server in order to enable the inbound load balancing cababilities.

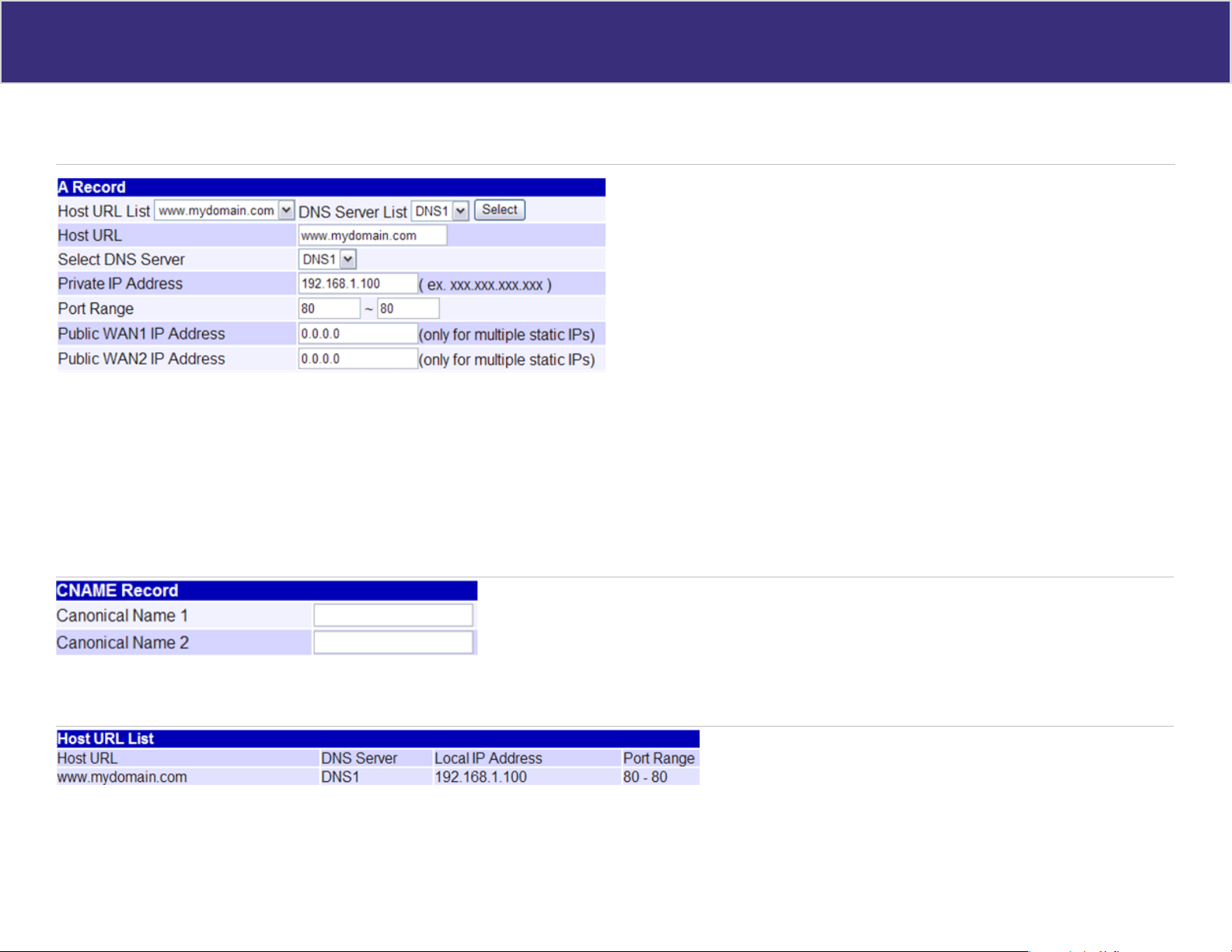

Map Host URL
In addition to the DNS configuration, Map Host URL allows for users to select a URL to map to the IP address of a local host.
QoS Configuration
You will be able to schedual and direct your network traffic to take advantage of your available bandwidth. This function allows for specified packets with higher priority to pass­through such as Internet phone, video conference, and other real-time applications.
UPnP
UPnP dynamically opens and close ports required by certain software automatically.

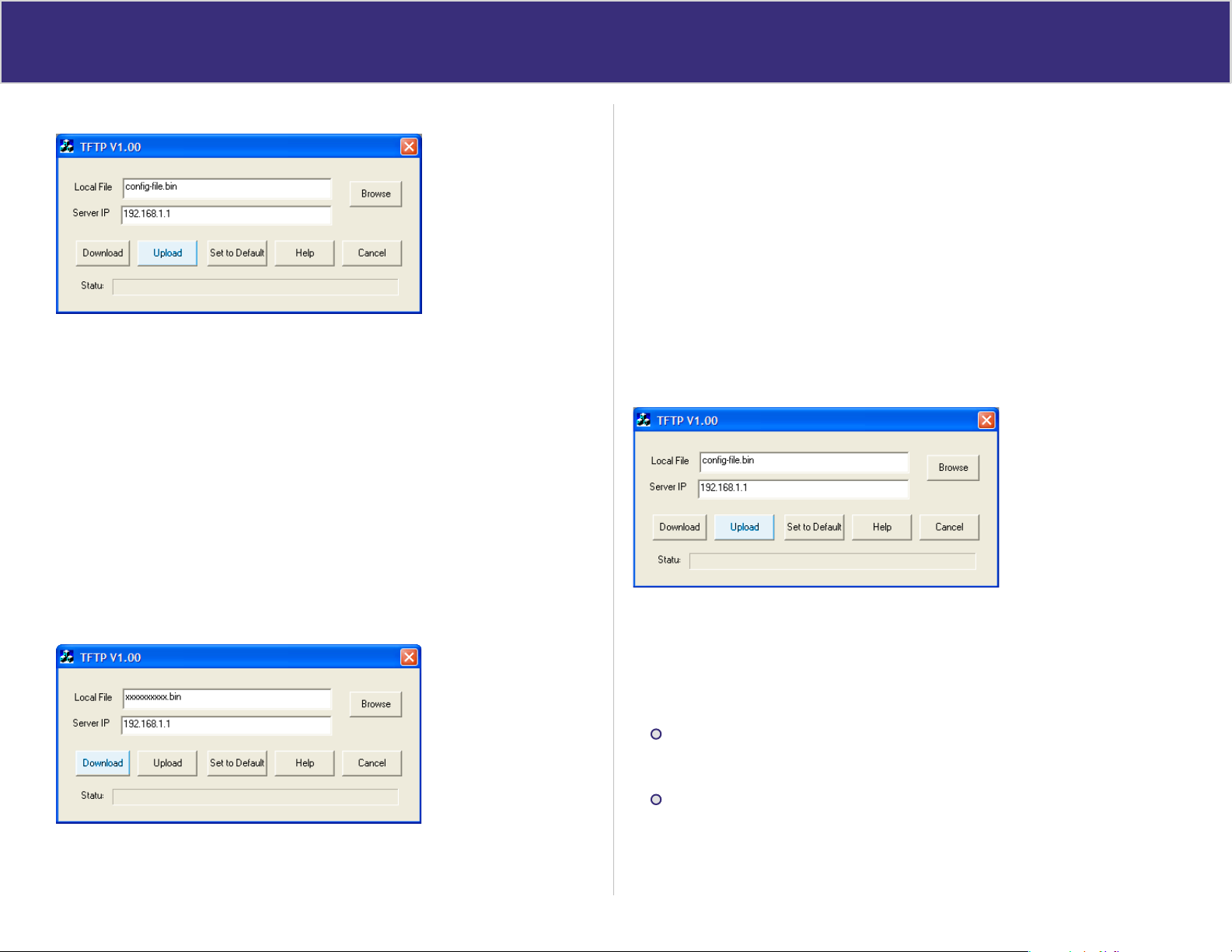

HTTP Firmware Upgrade and backup
The web management feature allows you to use HTTP to upgrade new firmware and backup system configuration from local or remote locations.
Email Alert
The XC-DPG603 will send an alert via email to the system administrator in the event a single or both WAN connections go down.
Syslog
Generates real time system information on the web page or sends to a particular computer. This is used for monitoring and diagnosis purposes.
6
Twin WAN DNS IP VPN Gateway
XC-DPG603
Physical Details
Front Panel:
Operation of the Front Panel LEDs is as follows:
System:
Power
OFF - No Power. ON - Normal Operation
Status
OFF - Normal Operation ON - Firmware not loaded or Hardware Error Blinking - Data in/out
WAN:
LINK/ACT
10M/100M
LAN:
LINK/ACT
10M/100M
ON - Physical connection to the Broadband modem on WAN port 1/2 established. OFF - No physical connection on WAN port 1/2.
ON - Physical connection using 100BaseT on WAN port 1/2 established. OFF - 10BaseT connection or no connection on WAN port 1/2.
ON - Physical connection or data in/out. OFF - No physical connection.
ON - The corresponding LAN port is using 100BaseT. OFF - 10BaseT connection on the corresponding LAN port or no connection.
7
Physical Details
Front Panel Status and Error conditions
LED Action Condition
WAN1 LINK/ACT & 10M/100M LEDs flash alternatively. Firmware Download in progress. WAN1 LINK/ACT & 10M/100M LEDs flash concurrently. MAC address not assigned. WAN1 LINK/ACT & 10M/100M LEDs solid On SDRAM error WAN2 LINK/ACT & 10M/100M LEDs solid On Timer/Interrupt error LAN1 LINK/ACT & 10M/100M LEDs solid On LAN/WAN error
Rear Panel:
LAN Ports WAN1WAN2 ResetDC 5V
Reset Button
WAN Ports
Connect the primary Broadband Modem to WAN 1 and the second Broadband Modem on WAN 2.
Press the Reset button once for a warm reboot. To reset the XC-DPG603 to default settings, press and hold the reset button for 30 seconds.

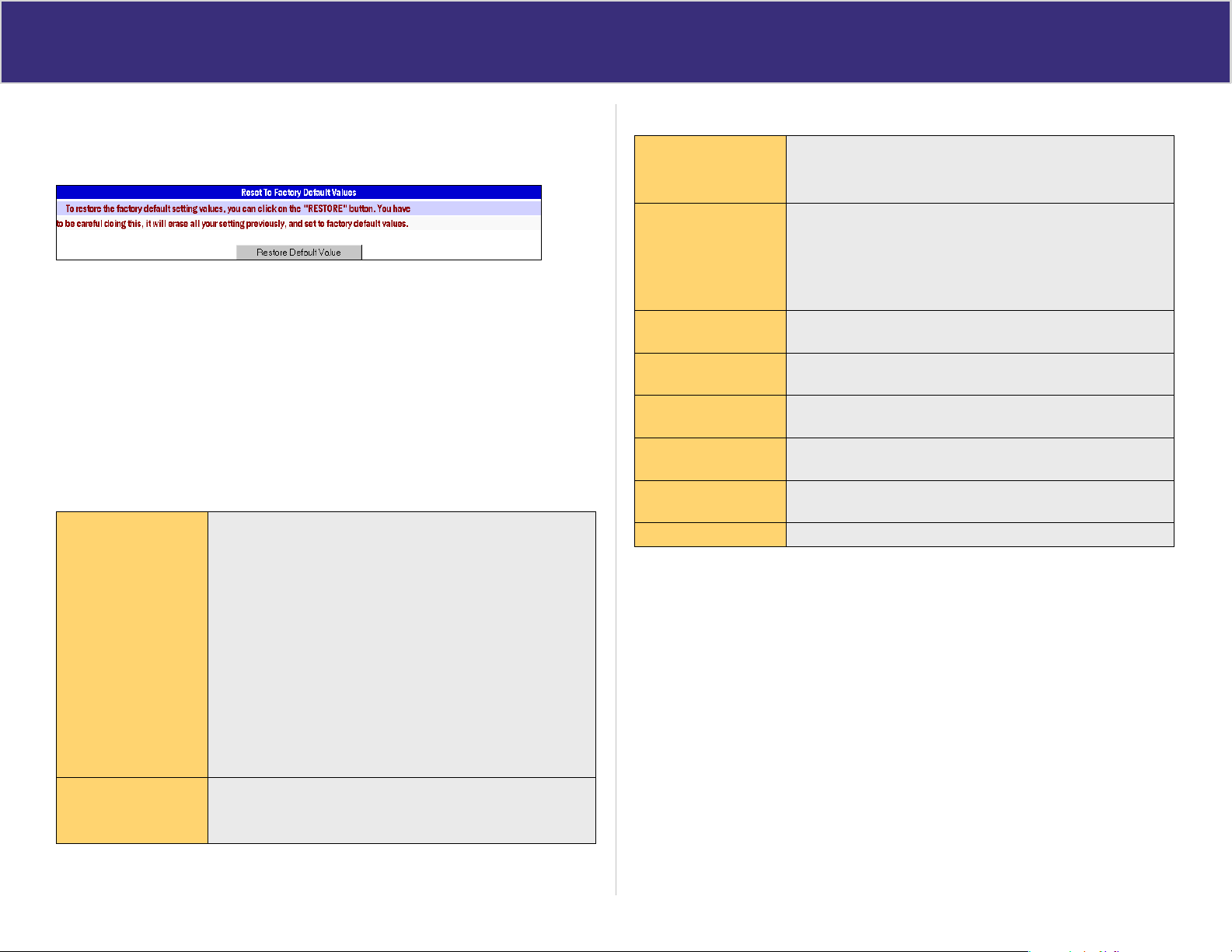

Default Settings
When the XC-DPG603 has finished booting, all configuration settings will be set to the factory defaults, including:
• The IP Address is set to its default value of 192.168.1.1 with a Network Mask of 255.255.255.0
• DHCP Server is enabled
• User Name: admin
• Password cleared (no password)
LAN Ports
Connect the PCs to these ports. Both 10BaseT and 100BaseT connections can be used simultaneously.
Note: Any port will automatically operate as an “Uplink” port if required. Use a standard RJ-45 Ethernet cable to connect to any port to another hub or switch.
8
XC-DPG603
Chapter 2 - Basic Setup
Twin WAN DNS IP
→
VPN Gateway
Chapter Contents
• Overview
• Procedure
1. Configuring your LAN
2. Connecting Broadband Modems
3. Configuring for Internet Access
4. Configuring your LAN PCs
Overview
Basic setup of your XC-DPG603 wil involve the following steps:
1. Connect the XC-DPG603 to one (1) PC and configure it to your existing LAN.
2. Connecting one or two Broadband Modems to your XC-DPG603.
3. Configuring the XC-DPG603 for Interent Access.
4. Configuring all PCs on your LAN to use the XC-DPG603.
Requirements:
• One or two Broadband modems (T1, xDSL, Cable, and Satillite) with an active account from your ISP(s).
• Two standard 10/100BaseT network (UTP) cables with RJ-45 connectors.
• TCP/IP network protocol must be installed on all PCs.
Broadband ModemsCAT5 Ethernet Cables
TCP/IP Enabled PCs
9
Configuring the XC-DPG603 for your LAN
a
Procedure
1.
Use a standard LAN cable to connect your PC to any LAN port on the XC-DPG603.
2.
Connect the power adapter and power up the XC-DPG603. Only use the power adapter provided with the product; using a different one may cause hardware damage.
3.
Start your PC or restart your PC if it is already running. Once restarted, the PC will then obtain an IP address from the XC-DPG603.
4.
Start your WEB browser.
5.
In the Address or Location box enter: HTTP://192.168.1.1
6.
You will be prompted for the User Name and password, as shown in Figure 1.
7.
Enter admin for the “User Name” and leave the “Password” blank.
• The User Name is always set to admin
• You can and should set a password, using the following Admin Password screen
No Response?
Is your PC using a Fixed IP address?
If so, you must configure your PC to use an IP address within the range
192.168.1.2 to 192.168.1.254, with a Network Mask of 255.255.255.0. See Appendix B – Windows TCP/IP Setup for details.
Be sure to check for the following:
• the XC-DPG603 is properly installed
• the Ethernet cable to the XC-DPG603 is properly attached
• the XC-DPG603 is powered ON

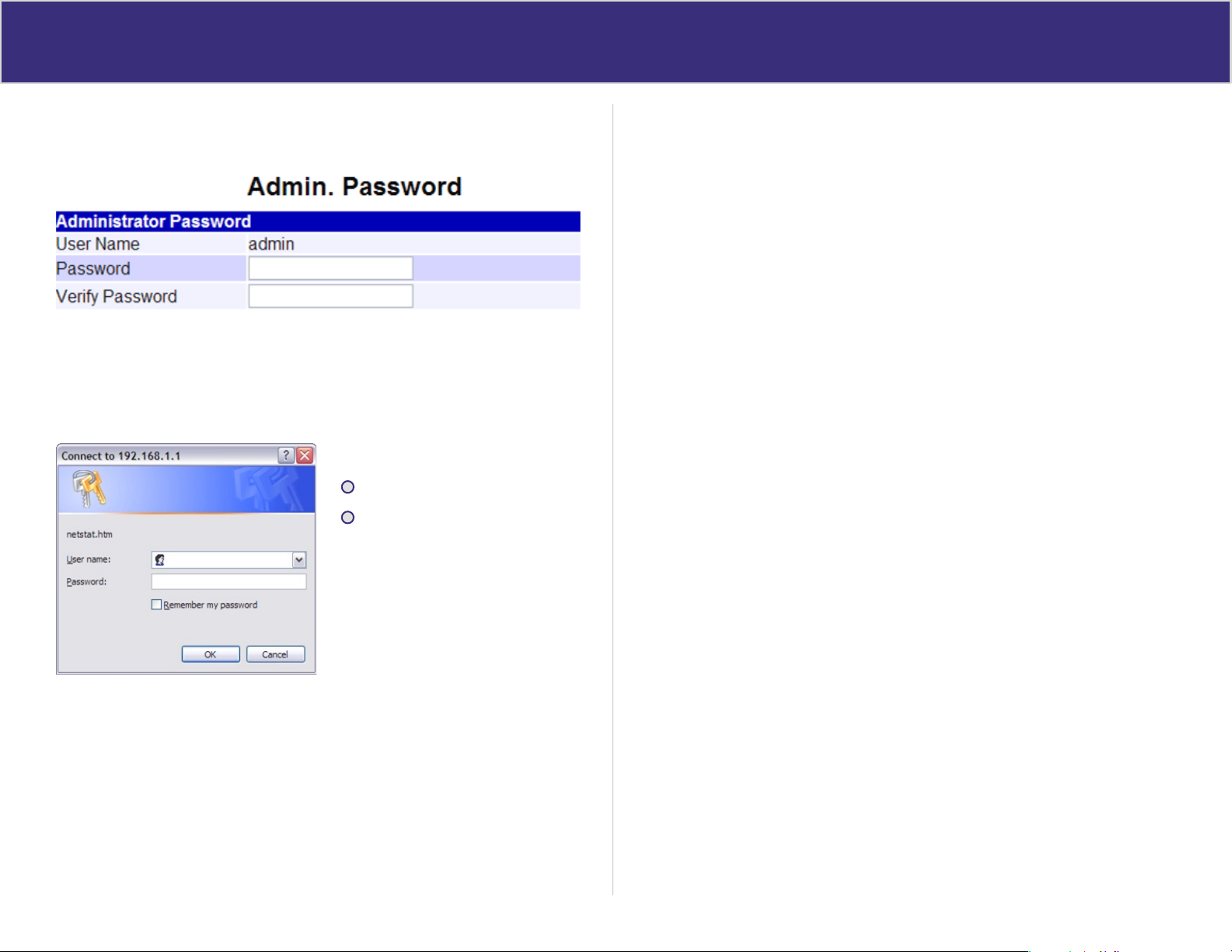

Figure 1. Password Dialog
Figure 2. Admin Password
Twin WAN Gateway
XC-DPG603
8.
After the login, you will then see the Admin Password screen, as shown in Figure 2. Assign a password in both the Password and Verify Password fields and press the Submit button.
9.
From the setup menu, select Basic Setup and then LAN & DHCP from the submenu. You will see a screen like the example in Figure 3.
10
Configuring the XC-DPG603 for your LAN
This is the IP address for the XC-DPG603 when seen from the local LAN. Use the defualt value unless the address is already in use or your LAN is using a different IP addres range. In the latter case, enter an unused IP Address from within the range used by you LAN
DPG603 is attached (the same value as the PCs on that LAN segment).
DHCP Server Setup - If Enabled, the XC-DPG603 will allocate IP Addresses to PCs (DHCP clients) on your LAN when they start up. The default and
provide the IP address of the XC-DPG603 as the
Default Gateway
.
Figure 3. LAN & DHCP
Ensure these settings are suitable for your LAN:
• The default settings are suitable for many situations.
• See the following table for details of each setting.
11
Connecting two broadband modems
a
Procedure
1.
Ensure the XC-DPG603 and the DSL/Cable modem are powered OFF. Leave the modem or modems connected to their data line.
2.
Connect the Broadband modem(s) to the XC-DPG603. If using only one (1) Broadband modem, connect it to the “WAN 1” port.
3.
Use standard LAN cables to connect PCs to the LAN ports on the XC-DPG603.
Both 10BaseT and 100BaseT connections can be used simultaneously.
Use a standard CAT-5 Ethernet cable to connect any port on the XC-DPG603 to a standard port on another hub. Any LAN port on the will automatically act as an “Uplink” port when required.
4.
Power Up
Power on the Cable or DSL modem(s).
Connect the supplied power adapter to the XC-DPG603 and power up.
5.
Check the LEDs
The Power LED should be ON.
The WAN – Link LED should be ON when the corresponding WAN port is connected toa broadband modem.
For each PC connected to the LAN ports, the corresponding LAN LED (either 10 or
100) should be ON.
Figure 4. Installation Diagram for XC-DPG603
LAN Ports WAN1WAN2 ResetDC 5V
Broadband Modem Broadband Modem
Local Area Network
12
Configuring for Internet Access
Figure 5. Primary Setup Screen
Select Primary Setup from the menu.
Configure WAN 1 and/or WAN 2 as required.
1.
For any of the following situations, refer to Chapter 3: Advanced Port Setup
2. for any further configuration which may be required such as:
• Using both ports
• Multiple IP addresses on either port
• Multiple PPPoE sessions
• PPTP connection method
Settings - Primary Setup
Connection Mode Select the appropriate setting:
• Enable – Select this if you have connected a broadband modem to this port.
• Disable – Select this if there is no broadband modem connected to this port.
• Backup – Select Enable for the primary port, and Backup for the secondary port. The Backup port will only be used if the primary port fails.
Connection Type Check the requirements supplied by your ISP, and select the appropriate option.
• Static IP – Select this if your ISP has provided a Fixed or Static IP address. Then enter the data into the Address Info fields.
• Dynamic IP – Select this if your ISP provides an IP address automatically, when you connect. You can ignore the Address Info fields.
• PPPoE – Select this if your ISP uses this method (PPPoE software that is usually provided by your ISP is not required to be used when selecting this method). If this method is selected, you must complete the PPPoE dialup fields.
Note: If using the PPTP connection method, select Static IP or Dynamic IP to correspond to the IP address method used by your ISP.
Address Info This is for Static IP users only. Enter the address information provided by your ISP. If your ISP provided multiple IP address, you can use the Multi-DMZ screen to
assign the additional IP addresses.
PPPoE / PPTP Dialup This is for PPPoE and PPTP users only.
• Enter the Username and Password provided by your ISP.
• If using PPTP, enable the PPTP Connection checkbox and enter the IP address of the PPTP server.
• Host name (Optional For PPPoE) - This field is used by a Host to uniquely associate an access concentrator to a particular Host request.
Note: There are additional PPPoE/PPTP options on the Port Options screen. To use multiple PPPoE sessions on either port, configure the Advanced PPPoE screen.
DNS If using a Fixed IP address, you MUST enter at least 1 DNS address. If using Dynamic IP or PPPoE, the DNS information is optional.
Optional
• Host name – This is required by some ISPs. If your ISP provided a Host Name, enter it here. Otherwise, you can use the default value.
• Domain name – This is required by some ISPs. If your ISP provided a Domain Name, enter it here. Otherwise, you can use the default value.
• MAC address – Some ISP’s record your MAC address (also called “Physical address” or “Network Adapter address”).
Setup of the XC-DPG603 is now complete. PCs on your LAN must now be configured. See the following section for details.
13

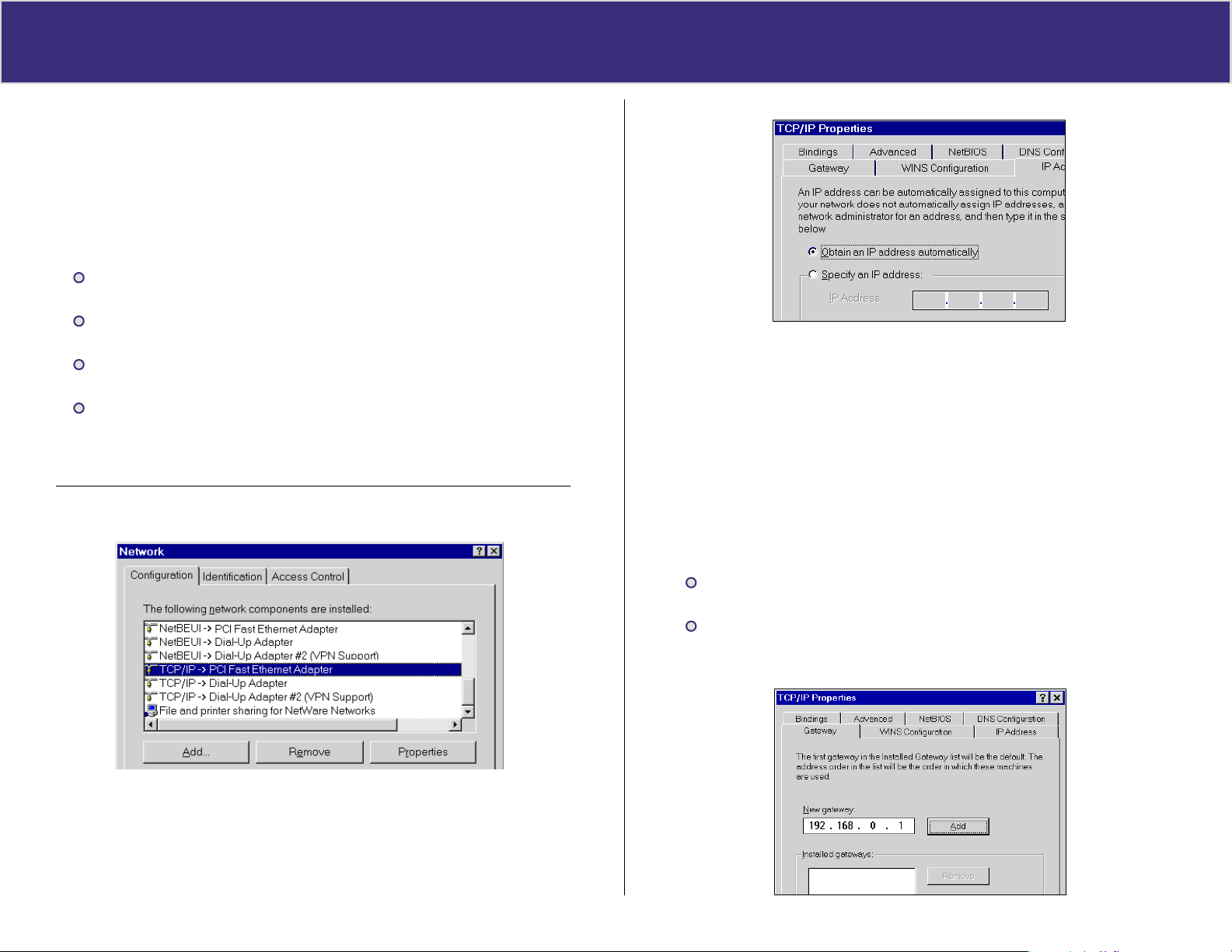

Configure PCs on your LAN
Overview
For each PC, the following may need to be configured:
TCP/IP network settings
Internet Access configuration
TCP/IP Settings
When using Windows 95/98/ME/2000/XP and the XC-DPG603’s TCP/IP default settings, no changes need to be made. Just start or reboot your PC.
By default, the XC-DPG603 will act as a DHCP Server, automatically providing a suitable IP Address (and related information) to each PC when the PC boots up.
For all non-Server versions of Windows, the default TCP/IP setting is to act as a DHCP client. In Windows, this is called Obtain an IP address automatically. Just start (or restart) your PC, and it will obtain an IP address from the XC-DPG603.

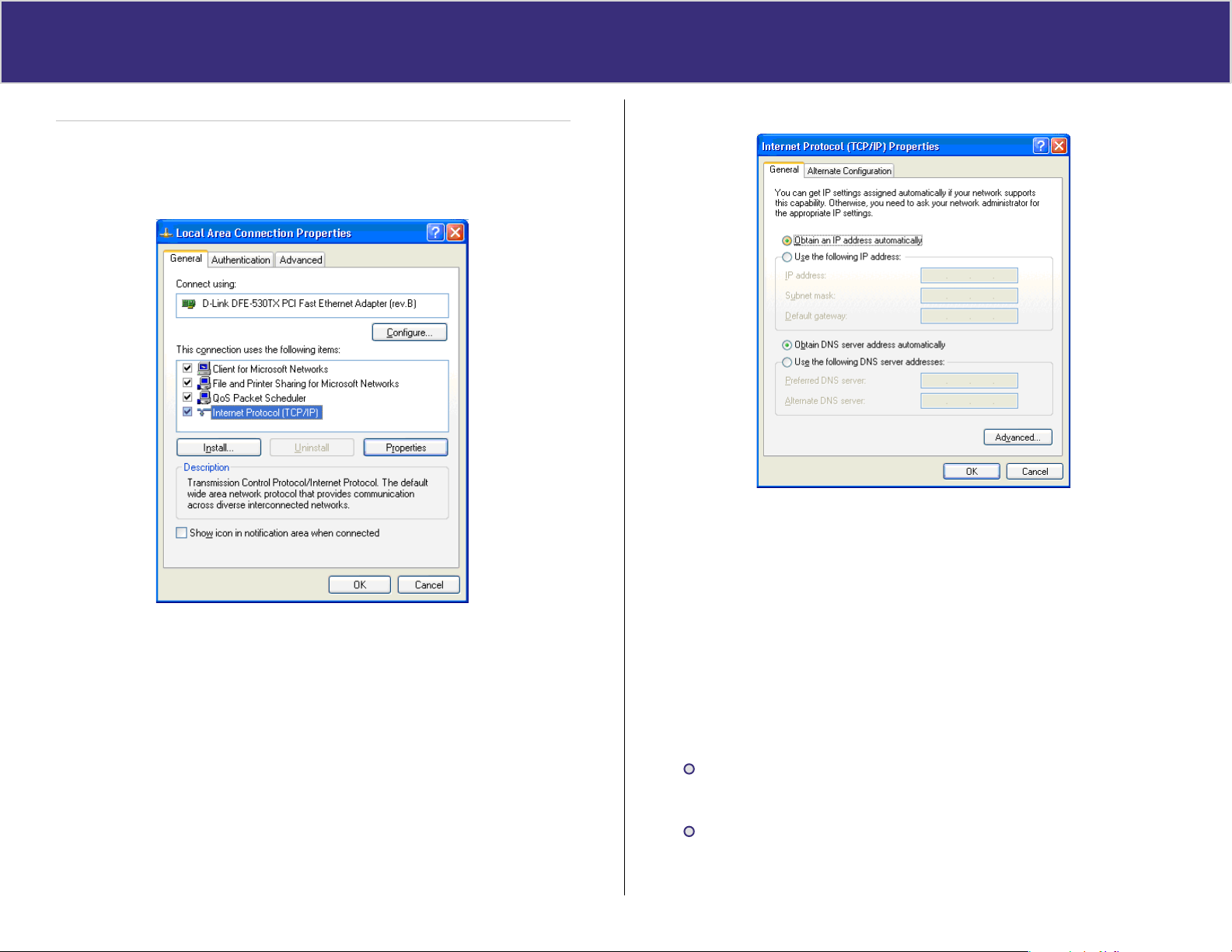

If using fixed IP addresses on your LAN, or you wish to check your TCP/IP settings, refer to Appendix B – Windows TCP/IP Setup.
Internet Access
To configure your PCs to use the XC-DPG603 for Internet access, follow this procedure:
For Windows 9x/2000
Select Start Menu > Settings > Control Panel > Internet Options.
1.
Select the Connection tab, and click the Setup button.
2.
Select I want to set up my Internet connection manually or I want to connect
3. through a local area network (LAN) and click Next.
If I connect through a local area network (LAN) is selected, ensure all of the
4. boxes on the following Local area network Internet Configuration screen are unchecked.
Check the No option when prompted Do you want to set up an Internet mail
5. account now?.
Click Finish to close the Internet Connection Wizard.
6.
Setup is now completed.
For Windows XP
1.
Select Start Menu > Control Panel > Network and Internet Connections.
2.
Select Set up or change your Internet Connection.
3.
Select the Connection tab, and click the Setup button.
4.
Cancel the pop-up Location Information screen.
5.
Click Next on the New Connection Wizard screen.
6.
Select Connect to the Internet and click Next.
7.
Select Set up my connection manually and click Next.
8.
Check Connect using a broadband connection that is always on and click Next.
9.
Click Finish to close the New Connection Wizard.
Setup is now completed.
Accessing AOL
To access AOL (America On Line) through the XC-DPG603, the AOL for Windows software must be configured to use TCP/IP network access, rather than a dial-up connection. The configuration process is as follows:
Start the AOL for Windows communication software. Ensure that it is Version
2.5, 3.0 or later. This procedure will not work with earlier versions.
Click the Setup button.
Select Create Location, and change the location name from “New Locality” to “XC-DPG603”.
Click Edit Location. Select TCP/IP for the Network field. (Leave the Phone Number blank.)
Click Save, then OK. Configuration is now complete.
Before clicking “Sign On”, always ensure that you are using the “XC-DPG603” location.
14
Configure PCs on your LAN
For Apple Clients
Open the TCP/IP Control Panel.
1.
Select Ethernet from the Connect via pop-up menu.
2.
Select Using DHCP Server from the Configure pop-up menu. The DHCP Client ID
3. field can be left blank.
Close the TCP/IP panel, saving your settings.
4.
Note: If using manually assigned IP addresses instead of DHCP, the required changes are:
• Set the Router Address field to the XC-DPG02’s IP Address.
• Ensure your DNS settings are correct.
For Linux Clients
To access the Internet via the XC-DPG603, it is only necessary to set the XC-DPG603 as the “Gateway” and ensure your Name Server settings are correct. Make sure you are
logged in as “root” before attempting any changes.
Fixed IP Address
By default, most Unix installations use a fixed IP Address. If you wish to continue using a fixed IP Address, make the following changes to your configuration.
Set your Default Gateway to the IP Address of the XC-DPG603.
Ensure your DNS (Name server) settings are correct
To act as a DHCP Client (recommended): The procedure below may vary according to your version of Linux and X -windows shell.
1.
Start your X Windows client.
2.
Select Control Panel - Network
3.
Select the “Interface” entry for your Network card. Normally, this will be called “eth0”.
4.
Click the Edit button, set the protocol to DHCP, and save this data.
5.
To apply your changes use the Deactivate and Activate buttons, if available OR restart your system.
15
XC-DPG603
Chapter 3 - Advanced Port
Twin WAN DNS IP
VPN Gateway
Chapter Contents
• Overview
• Port Options
• Load Balance
• Advanced PPPoE
• Advanced PPTP
→
Overview
Port Options contains some options which can be set on either or both WAN ports. For most situations, the default values are satisfactory.

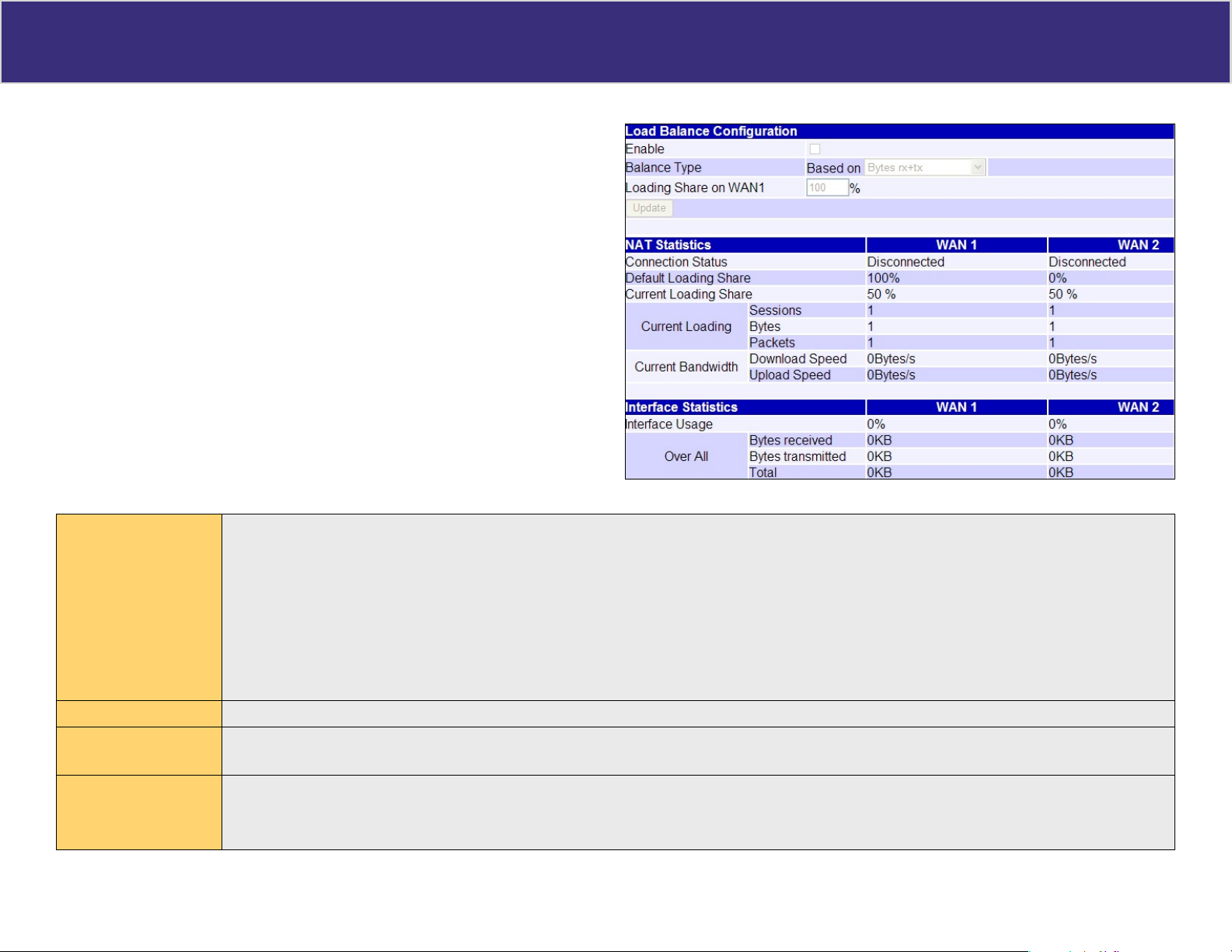

Load Balance screen is only functional if you are using both WAN ports. It allows you to determine the proportion of WAN traffic sent through each port.

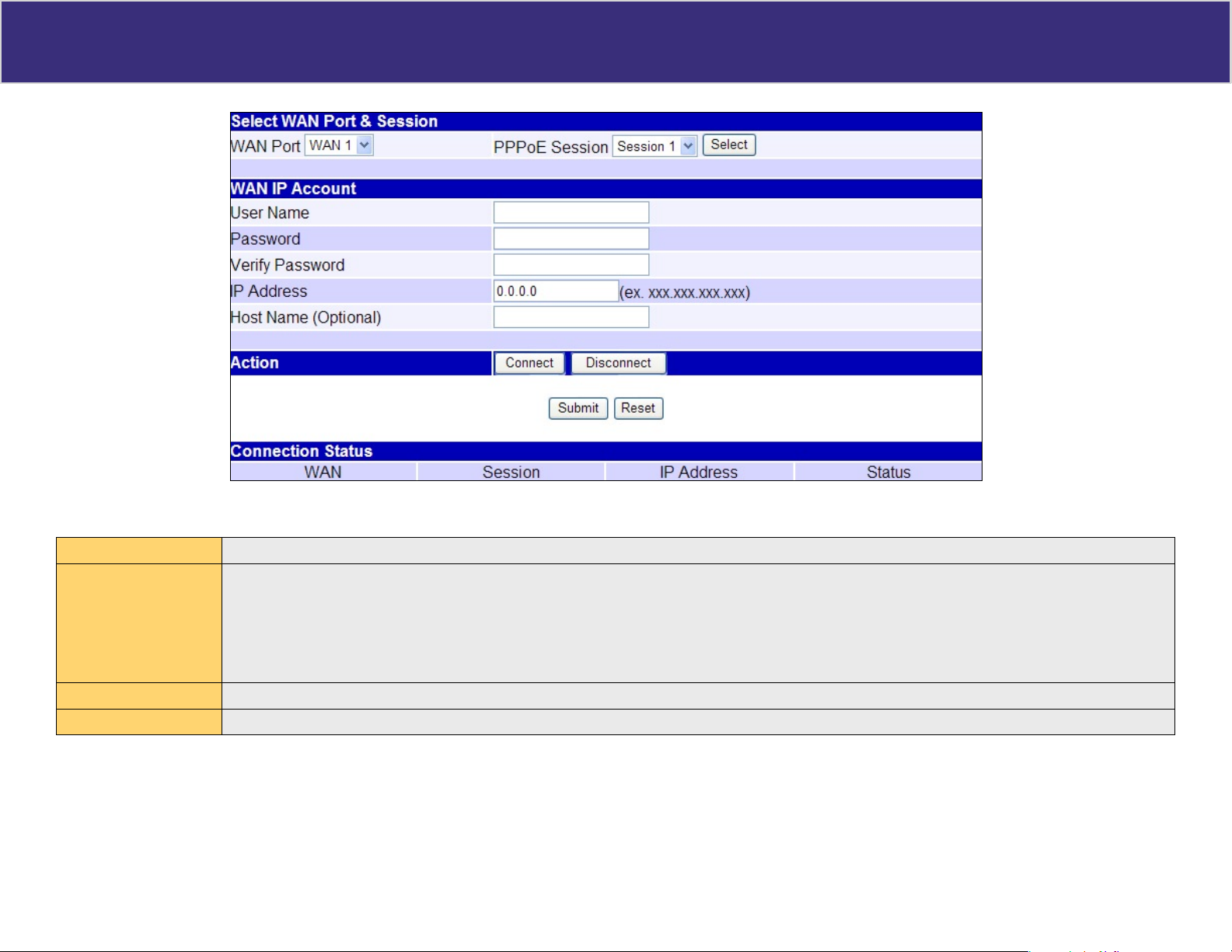

Advanced PPPoE setup is required if you wish to use multiple sessions on one or both of the WAN ports. It can also be used to manually connect or disconnect a PPPoE session. Otherwise, this screen can be ignored.
Advanced PPTP setup is required if using the PPTP connection method.
16
Port Options
Figure 6. Port Options
Connection Validation PPPoE / PPtP Connection Options Transparent Bridge Mode
Health Check
Use this field to select the type of connection validation to perform. When set to ICMP, the XC-DPG603 sends out ICMP echo requests. When set to HTTP, the XC­DPG603 requests web pages.
Alive Indicator
This is the IP address used to check if the WAN connection is operational. When using HTTP, put in a valid IP address of a web server. When this field is blank, the ISP gateway IP address is used. Note: This is not used for PPPoE connections.
MTU
The Maximum Transmission Unit is used when determining the packet size to be used on the WAN interface. Normally, this does not need to be changed, but if your ISP advises you to use a particular MTU, enter it here.
Auto Dialup
When set to Enable a connection will be established whenever outgoing WAN traffic is detected. If not Enabled, you must establish a connection manually.
Auto Disconnect
This determines when an idle connection will be terminated. Enter the required time period.
Echo Time
This determines how often an Echo request is sent to the PPPoE server. The Echo request is used to determine if the connection is still valid. Normally, there is no need to change the default value.
Echo Retry
The number of time the Echo request will be sent if there is no response to the first request. Normally, there is no need to change the default value.
Bridge Mode
When set to Enable, this WAN port does not use NAT & Load Balance function when LAN/WAN IP have the real IP addresses on the same network segment.
Traffic Management
Strict Binding - When a WAN port connection is
disconnected, the packets will not go to another WAN port.
Loose Binding - When the WAN port connection is connected, the packets will go another WAN port.
Load Balancing - This will mix real and private IP’s on the LAN side doing the load balancing.
17
Loading...
+ 39 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
