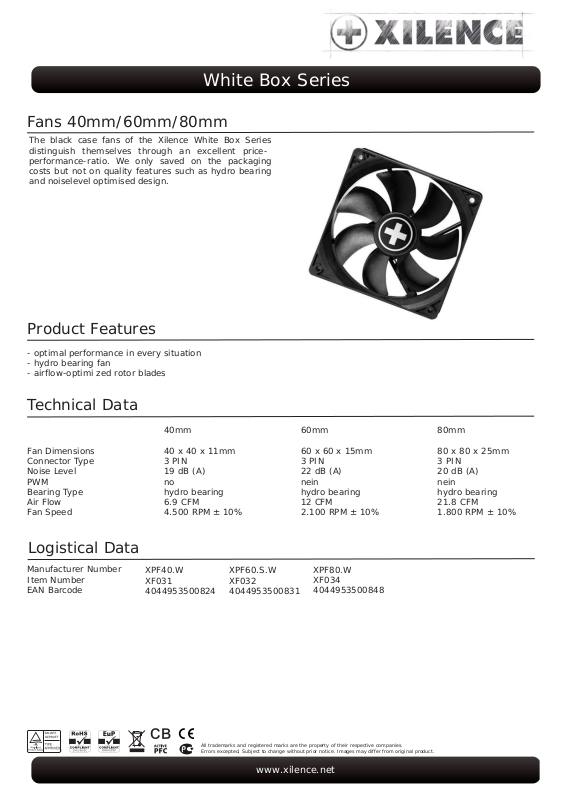

Xilence COO-XPF40.W User Manual

White Box Series

Fans 40mm/60mm/80mm

The black case fans of the Xilence White Box Series
distinguish themselves through an excellent price­performance-ratio. We only saved on the packaging
costs but not on quality features such as hydro bearing
and noiselevel optimised design.

Product Features

- optimal performance in every situation

- hydro bearing fan

- airflow-optimi zed rotor blades

Technical Data

40mm 60mm 80mm
Fan Dimensions 40 x 40 x 11mm 60 x 60 x 15mm 80 x 80 x 25mm

Connector Type 3 PIN 3 PIN 3 PIN
Noise Level 19 dB (A) 22 dB (A) 20 dB (A)
PWM no nein nein
Bearing Type hydro bearing hydro bearing hydro bearing
Air Flow 6.9 CFM 12 CFM 21.8 CFM
Fan Speed 4.500 RPM ± 10% 2.100 RPM ± 10% 1.800 RPM ± 10%

Logistical Data

Manufacturer Number
Item Number
EAN Barcode

XPF40.W
XF031
4044953500824

XPF60.S.W
XF032
4044953500831

XPF80.W
XF034
4044953500848

All trademarks and registered marks are the property of their respective companies.
Errors excepted. Subject to change without prior notice. Images may differ from original product.
