X1M

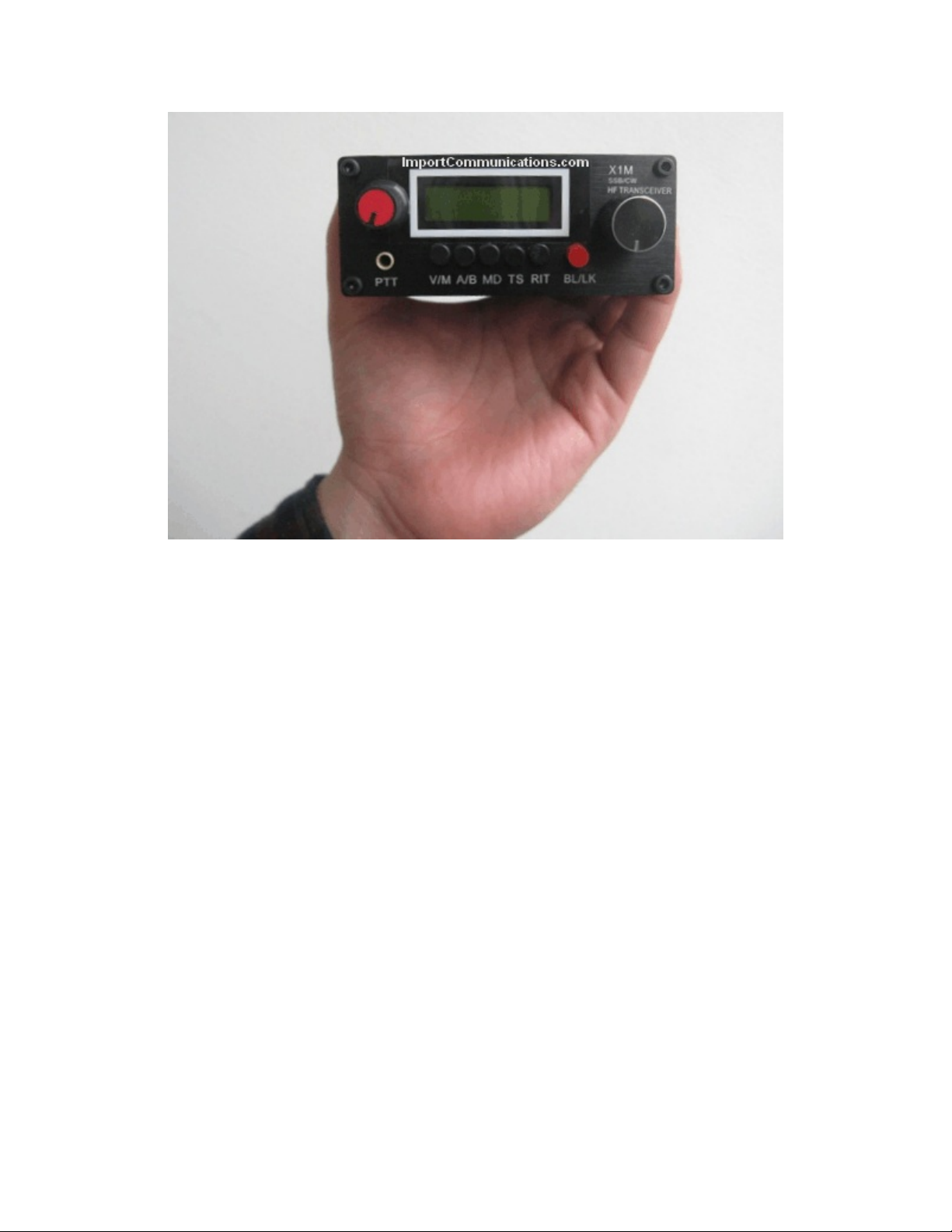

QRP TRANSCEIVER
All Bands
0.5 - 30 MHZ
USB, LSB & CW
5 Watts / 100 Memories
Controllable by Computer
Chongqing Xiegu Technology Co. Ltd - Manufacturer
Import Communications - North American Distributor
Technical Specifications
Import Communications
Frequency Range RX & TX 0.1 - 30 MHZ*
Modes USB, LSB & CW
Power Output 5 Watts
Operating Voltage 9.6 - 14.5 vdc
Operating Current 0.35 - 1.2 amps
Receiver Preamplifier Yes
Memory Channels 100
RIT Function Yes
Automatic Internal CW Keyer Yes
Backlight On/Off Yes
Keyboard Lock Yes
Dimensions 3-13/16 x 1-9/16 x 6-1/8 inches
Weight 0.65 kg ~ 1.43 lbs
PTT Microphone Included
Computer Control via Ham Radio Deluxe
* 5 ham Bands configured separately with optimized filters
Band 1 3.5 ~ 3.9 MHZ
Band 2 7.0 ~ 7.15 MHZ
Band 3 14.0 ~ 14.5 MHZ
Band 4 21.0 ~ 21.45 MHZ
Band 5 28.0 ~ 29.7 MHZ
*Other Bands via main VFO
Receiving Sensitivity better than 0.45uV
RF Output Power 4.5 ~ 5.0 watts
Frequency Stability better than 0.5 ppm
Frequency Accuracy better than 0.5 ppm
Receiver Standby Current 0.5 amps
Transmit Current 1.5 amps max
Chongqing Xiegu Technology Co. Ltd - Manufacturer
Import Communications - North American Distributor
Main Features
Import Communications
The X1M is a small, easy to carry, all-band transceiver with high receive sensitivity and low
noise floor. Using surface mount technology, its three military grade printed circuit boards
are attached with BTB (back-to-back) connections, guaranteeing the X1M to provide
reliable, excellent performance.
The X1M can be operated via computer using the Ham Radio Deluxe program with Icon IC718 settings.
Operating Controls
PWR / VOL Power Switch / Volume Control
PTT Microphone Jack
V / M VFO / Memory Mode Switch
Short press cycles between VFO mode and Memory Mode
Long press transfers current settings to memory channel storage
A / B Switch between VFO “A” and VFO “B” with short press
Long press operates “split frequency”
MD Selects operating modes of LSB / USB / CW
TS Changes tuning steps with short press
Long press turns on receiver pre-amplifier
RIT Receiver Incremental Tuning On / Off
Long press of button enters system menu settings
BL / LK Locks Keyboard with short press
Long press of button turns backlight on/off
TUNING Rotate knob to change frequency
Press knob and rotate to select frequency step.
Press again to accept and store.
Chongqing Xiegu Technology Co. Ltd - Manufacturer
Import Communications - North American Distributor
Systems Menu
Import Communications
Enter Systems Menu Press RIT button
Select Systems Option Rotate Encoder knob
Enter a Systems Option Press Encoder knob
Select desired row with VM (move left) & RIT (move right)
Select value within row with Encoder knob (value up/down)
Save a Systems change Press BL/Lock button. System displays “SAVE CHANGES”
Choose YES or NO. Display returns to normal operating.
Systems Menu Options
1 - RCLK Ratio DDS frequency setting
2 - DDS Clock DDS clock frequency setting
3 - USB/LSB BFO USB/LSB IF offset setting
4 - CW BFO CW mode IF offset setting
5 - IF Offset IF offset setting
6 - KEY Mode CW automatic keyer / button to select manual keyer
7 - A-Key Speed Automatic keyer mode bitrate adjustment
8 - CW Delay CW mode send delay adjustment
9 - CW Tone CW sidetone pitch
10 - RstSetting Restore the factory settings
Screen Icons
R / T Receive mode / Transmit mode
USB Current operating mode
PRE Receive pre-amplifier is ON
SPL Split-Frequency transmit mode is ON
RIT 0.000 RIT fine tuning is turned ON
CH00 Memory mode operating channel being used
14.270.000 VFO mode current operating frequency
V-B VFO B in use
April 06, 2013
This is my best translation of the Chinese Manual, done without a radio in hand. Please send
corrections / additions / how-to’s to info@ImportCommunications.com.
Chongqing Xiegu Technology Co. Ltd - Manufacturer
Import Communications - North American Distributor
Import Communications
Changing Frequency
1 - Press V/M to select VFO mode.
2 - Turn tuning knob to underline digit to change. Press knob.
3 - Change digit by turning the tuning knob. Press knob to accept.
4 - Repeat with other digits as needed.
5 - Select USB, LSB or CW mode by pressing MD button.
Storing into Memory
1 - Set VFO frequency and transmit mode as described above.
2 - Press and hold the V/M button.
3 - Display will show the highest stored memory channel.
4 - Rotate tuning knob to show next empty channel number. Channel number flashes if empty.
5 - Long press of V/M button will store information in the selected channel.
Chongqing Xiegu Technology Co. Ltd - Manufacturer
Import Communications - North American Distributor
Import Communications
Here is information from a review of version 1
by VE3FAL
1. Rig Overview and Rig Control Functions:
BL/LOCK Button (RED): When this button is momentarily pressed it will LOCK all buttons and main
tuning control. If pressed again it will UNLOCK (You will see the KEY symbol on left hand side of display
screen)
If same button is pressed for 2 seconds, this will disable the backlight of the display. Hold for 2 seconds
again to turn backlight on.
BAND Button: When pressed for 2 seconds this will bring you too the SYSTEM MENU display-from here
you have 2 options- YES or NO. By pressing the button directly underneath either option will make the
choice. If YES is pushed you will see these default settings.
Button Default setting when radio received
1. RCLK Ratio x6* x1
2. DDS Clock 032768131*
3. LSB BFO 08988750*
4. USB BFO 09000850*
5. CW BFO 09001380*
6. IF OFFSET +08999830*
7. KEY MODE MANUL* AUTO
8. KEY SPEED A-KEY-SPEED 060* (adjustable)
9. CW DELAY 1000* (adjustable from 0000-5000)
To make any changes to the menu values push main tuning knob in and if value can be changed you will
see 2 arrows on either side of the setting, it then can be changed. Once changed quickly press main
tuning button again to exit menu.
When all settings are adjusted-momentarily press and release RED BL/LOCK button- It will then ask if
you want to SAVE CHANGES? YES or NO
Press the black button directly under the option you wish to choose. You will then be directed back to
the VFO/MEMO setting when all is saved.
RIT BUTTON: When quickly pressed this will allow you to go into RIT mode on receive. It is the
adjustable from the MAIN TUNING knob and the offset can be seen on the screen. To get out of RIT
Import Communications
mode press RIT button quickly one more time.
If RIT button is held for 2 seconds it will turn the PREAMP ON or OFF, when on you will see PRE in the
display.
MODE BUTTON: When MODE button is quickly pressed it will allow you to change modes between CW,
LSB and USB
VFO A/B BUTTON: This button when quickly pressed allows you to toggle between VFO A and B. From
here separate bands and modes can be selected in either VFO.
When the VFO A/B BUTTON is pushed for 2 seconds it allows you to enter SPLIT (SPL) mode as displayed
on the screen. This allows you to transmit and receive on 2 different frequencies. To EXIT SPL mode push
in VFO A/B BUTTON for 2 seconds.
VFO/MEMO BUTTON: This button when quickly pressed will toggle you between VFO and PRESET
MEMORIES. Memories are labeled from 00-99. When in VFO mode you will see on the bottom left of
the display RV-A. This means you are receiving in VFO A, when you transmit the R will turn into a T.
If you press the VFO/MEMO button again it will go to MEMO mode. You will then see CH## in the right
hand corner of the display. In VFO mode choose the frequency and mode you wish to save. Then push
VFO/MEMO BUTTON, choose CH## you want to save setting in, the CH## will flash if nothing in it. Turn
MAIN TUNING DIAL to choose desired memory channel. Once channel is chosen push and hold
VFO/MEMO button until CH## stops flashing and you hear a warble sound.
PWR/VOL BUTTON: This button TURNS your unit ON and OFF and also adjusts your volume level.
PTT: This is microphone jack
A/M KEY: This is for your straight key or iambic keyer. In the System menu settings you can set this for
MANUAL or AUTO detection of KEY type.
DATA/AAT: This is for using DIGITAL modes using computers and various modems and soundcard
devices.
