X25C02

2K X25C02 256 x 8 Bit

SPI Serial E2PROM

FEATURES

• 1MHz Clock Rate

• 256 X 8 Bits

—4 Byte Page Mode

• Low Power CMOS

—150µA Standby Current
—2mA Active Current

• 5V Power Supply

• Built-in Inadvertent Write Protection

—Power-Up/Power-Down protection circuitry
—Write Latch
—Write Protect Pin

• Self-Timed Write Cycle

—5ms Write Cycle Time (Typical)

• High Reliability

—Endurance: 100,000 cycles per byte
—Data Retention: 100 Years
—ESD protection: 2000V on all pins

• Available Packages

—8-Lead MSOP
—8-Lead PDlP
—8-Lead SOIC

DESCRIPTION

The X25C02 is a CMOS 2048-bit serial E2PROM, inter­nally organized as 256 x 8. The X25C02 features a serial
interface and software protocol allowing operation on a
simple three-wire bus. The bus signals are a clock input
(SCK) plus separate data in (SI) and data out (SO) lines.
Access to the device is controlled through a chip select
(CS) input, allowing any number of devices to share the
same bus.

The X25C02 also features two additional inputs that
provide the end user with added flexibility. By asserting
the HOLD input, the X25C02 will ignore transitions on its
inputs, thus allowing the host to service higher priority
interrupts. The WP input can be used as a hardwire input
to the X25C02 disabling all write attempts, thus provid­ing a mechanism for limiting end user capability of
altering the memory.

The X25C02 utilizes Xicor’s proprietary Direct Write™
cell, providing a minimum endurance of 100,000 cycles
per byte and a minimum data retention of 100 years.

FUNCTIONAL DIAGRAM

SO

SI

SCK

CS

HOLD

WP

Direct Write™ is a trademark of Xicor, Inc.

©Xicor, Inc. 1994, 1995, 1996 Patents Pending Characteristics subject to change without notice
3843-1.6 6/10/96 T5/C1/D1 NS

COMMAND

DECODE

AND

CONTROL

LOGIC

WRITE

CONTROL

AND

TIMING

LOGIC

X

DECODE

LOGIC

1

64

256 BYTE ARRAY

(64 X 32)

48

Y DECODE

DATA REGISTER

3843 FHD F01

X25C02

PIN DESCRIPTIONS
Serial Output (SO)

SO is a push/pull serial data output pin. During a read
cycle, data is shifted out on this pin. Data is clocked out
by the falling edge of the serial clock.

Serial Input (SI)

SI is the serial data input pin. All data, opcodes, byte
addresses, and data to be written to the memory are
input on this pin. Data is latched by the rising edge of the
serial clock.

Serial Clock (SCK)

The Serial Clock controls the serial bus timing for data
input and output. Opcodes, addresses, or data present
on the SI pin are sampled or latched on the rising edge
of the clock input, while data on the SO pin change after
the falling edge of the clock input.

Chip Select (CS)

When CS is HIGH, the X25C02 is deselected and the
SO output pin is at HIGH impedance and unless an
internal write operation is underway, the X25C02 will be

in the standby power mode. CS LOW enables the
X25C02, placing it in the active power mode. It should be
noted that after power-up, a HIGH to LOW transition on
CS is required prior to the start of any operation.

Write Protect (WP)

When WP is LOW, nonvolatile writes to the X25C02 are
disabled, but the part otherwise functions normally.
When WP is held HIGH, all functions, including nonvola-
tile writes operate normally. WP going LOW while CS is
still LOW will interrupt a write to the X25C02. If the
internal write cycle has already been initiated, WP going
LOW will have no affect on a write.

Hold (HOLD)
HOLD is used in conjunction with the CS pin to select the

device. Once the part is selected and a serial sequence is
underway, HOLD may be used to pause the serial
communication with the controller without resetting
the serial sequence. To pause, HOLD must be brought
LOW while SCK is LOW. To resume communication,
HOLD is brought HIGH, again while SCK is LOW. If the
pause feature is not used, HOLD should be held HIGH
at all times.

PIN CONFIGURATION

MSOP/DIP/SOIC

CS

1

SO

2

WP

V

SS

3
4

X25C02

8

V

CC

7

HOLD

6

SCK

5

SI

3843 FHD F02.2

PIN NAMES

Symbol Description

CS Chip Select Input
SO Serial Output
SI Serial Input
SCK Serial Clock Input
WP Write Protect Input
V

SS

V

CC

Ground
Supply Voltage

HOLD Hold Input

3843 PGM T01

2

X25C02

PRINCIPLES OF OPERATION

The X25C02 is a 256 x 8 E2PROM designed to interface
directly with the synchronous serial peripheral interface
(SPI) of many popular microcontroller families.

The X25C02 contains an 8-bit instruction register. It is
accessed via the SI input, with data being clocked in on
the rising SCK. CS must be LOW and the HOLD and WP
inputs must be HIGH during the entire operation.

Table 1 contains a list of the instructions and their
opcodes. All instructions, addresses and data are trans­ferred MSB first.

Data input is sampled on the first rising edge of SCK after
CS goes LOW. SCK is static, allowing the user to stop

the clock and then resume operations. If the clock line is
shared with other peripheral devices on the SPI bus, the
user can assert the HOLD input to place the X25C02 into
a “PAUSE” condition. After releasing HOLD, the X25C02
will resume operation from the point when HOLD was
first asserted.

Write Enable (WREN) and Write Disable (WRDI)

The X25C02 contains a “write enable” latch. This latch
must be SET before a write operation will be completed
internally. The WREN instruction will set the latch and
the WRDI instruction will reset the latch. This latch is
automatically reset upon a power-up condition and after
the completion of a byte or page write cycle. The latch is
also reset if WP is brought LOW.

Table 1. Instruction Set

Instruction Name Instruction Format* Operation

WREN 0000 0110 Set the Write Enable Latch (Enable Write Operations)

WRDI 0000 0100 Reset the Write Enable Latch (Disable Write Operations)

READ 0000 0011

WRITE 0000 0010

*Instructions are shown MSB in leftmost position. Instructions are transferred MSB first.

Read Data from Memory Array beginning at selected ad­dress

Write Data to Memory Array beginning at Selected Address
(1 to 4 Bytes)

3843 PGM T02

3

X25C02

DEVICE OPERATION
Clock and Data Timing

Data input on the SI line is sampled and latched on the
rising edge of SCK. Data is output on the SO line by the
falling edge of SCK.

Read Sequence

The CS line is first pulled LOW to select the device. The
8-bit read opcode is transmitted to the X25C02, fol­lowed by the 8-bit address. After the READ opcode and
byte address are sent, the data stored in the memory
at the selected address is shifted out on the SO line.
The data stored in memory at the next address can be
read sequentially by continuing to provide clock pulses.
The byte address is automatically incremented to the
next higher address after each byte of data is shifted
out. When the highest address is reached ($FF) the
address counter rolls over to address $00 allowing the
read cycle to be continued indefinitely. The read opera­tion is terminated by taking CS HIGH. Refer to the read
operation sequence illustrated in Figure 1.

Write Sequence

Prior to any attempt to write data into the X25C02, the
“write enable” latch must first be set by issuing the
WREN instruction (See Fig. 2). CS is first taken LOW,
then the instruction is clocked into the X25C02. After all
eight bits of the instruction are transmitted, CS must then
be taken HIGH. If the user continues the write operation
without taking CS HIGH after issuing the WREN instruc­tion, the write operation will be ignored.

Once the “write enable” latch is set, the user may
proceed by issuing the write instruction, followed by the
address and then the data to be written. This is minimally
a twenty-four clock operation. CS must go LOW and
remain LOW for the duration of the operation. The host
may continue to write up to four bytes of data to the
X25C02. The only restriction is the four bytes must
reside on the same page. A page address begins with
address XXXX XX00 and ends with XXXX XX11. If the
byte address counter reaches XXXX XX11 and the clock
continues the counter will “roll over” to the first address
of the page and overwrite any data that may have been
written.

For the write operation (byte or page write) to be
completed, CS can only be brought HIGH after the
twenty-fourth, thirty-second, fourtieth or fourty-eighth
clock. If it is brought HIGH at any other time, the write
operation will not be completed. Refer to Figure 4 for a
detailed illustration of the page write sequence and time
frames in which CS going HIGH are valid.

Hold Operation

The HOLD input should be HIGH (at VIH) under normal
operation. If a data transfer is to be interrupted HOLD
can be pulled LOW to suspend the transfer until it can be
resumed. The only restriction is the SCK input must be
LOW when HOLD is first pulled low and SCK must also
be LOW when HOLD is released.

The HOLD input may be tied HIGH either directly to V
or tied to VCC through a resistor.

CC

4

X25C02

Operational Notes

The X25C02 powers-up in the following state:

• The device is in the low power standby state.

• A HIGH to LOW transition on CS is required to
enter an active state and receive an instruction.

• SO pin is high impedance.

• The “write enable” latch is reset.

Figure 1. Read Operation Sequence

CS

012345678910111213141516171819202122

SCK

INSTRUCTION BYTE ADDRESS

SI

Data Protection

The following circuitry has been included to prevent
inadvertent writes:

• The “write enable” latch is reset upon power-up.

• A WREN instruction must be issued to set the “write
enable” latch.

• CS must come HIGH at the proper clock count in
order to start a write cycle.

The “write enable” latch is reset when WP is brought LOW.

SO

HIGH IMPEDANCE

Figure 2. Set Write Enable Latch Sequence

CS

01234567

SCK

SI

HIGH IMPEDANCE

SO

DATA OUT

76543210

MSB

3843 FHD F04.1

3843 FHD F05.1

5

X25C02

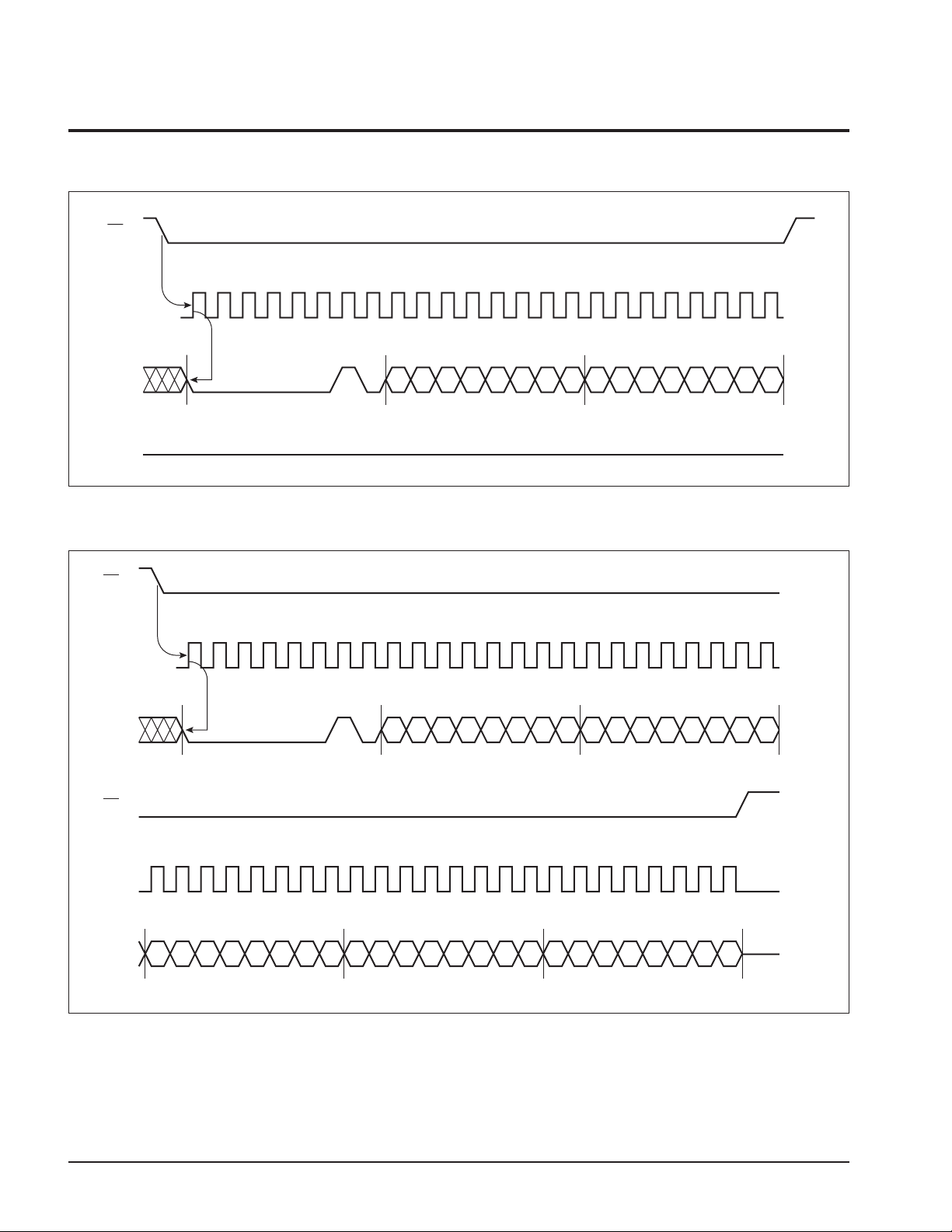

Figure 3. Byte Write Operation Sequence

CS

01234567891011121314151617181920212223

SCK

INSTRUCTION BYTE ADDRESS

SI

SO

HIGH IMPEDANCE

Figure 4. Page Write Operation Sequence

CS

01234567891011121314151617181920212223

SCK

INSTRUCTION BYTE ADDRESS

SI

CS

76543210

76543210

DATA BYTE

76543210

3843 FHD F06.2

DATA BYTE 1

76543210

SCK

24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

DATA BYTE 2

SI

76543210

76543210

DATA BYTE 3

40 41 42 43 44 45 46 47

DATA BYTE 4

76543210

3843 FHD F07.2

6

X25C02

ABSOLUTE MAXIMUM RATINGS*

Temperature under Bias .................. –65°C to +135°C

Storage Temperature ....................... –65°C to +150°C

Voltage on any Pin with Respect to V

SS

.........

–1V to +7V

D.C. Output Current ............................................. 5mA

Lead Temperature

(Soldering, 10 seconds).............................. 300°C

*COMMENT

Stresses above those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device.
This is a stress rating only and the functional operation of
the device at these or any other conditions above those
listed in the operational sections of this specification is
not implied. Exposure to absolute maximum rating con­ditions for extended periods may affect device reliability.

RECOMMENDED OPERATING CONDITIONS

Temp Min. Max.

Commercial 0°C +70°C
Industrial –40°C +85°C

Supply Voltage Limits

X25C02 5V ±10%

3843 PGM T04.1

Military –55°C +125°C

3843 PGM T03.1

D.C. OPERATING CHARACTERISTICS (Over the recommended operating conditions unless otherwise specified.)

Limits

Symbol Parameter Min. Max. Units Test Conditions

I

CC

VCC Supply Current (Active) 2 mA SCK = VCC x 0.1/VCC x 0.9 @ 1MHz,

SO = Open
I
I
I
V
V
V
V

SB
LI
LO

IL
IH
OL
OH

VCC Supply Current (Standby) 150 µA CS = V

Input Leakage Current 10 µAVIN = VSS to V
Output Leakage Current 10 µAV

(1)

Input LOW Voltage –1 V

(1)

Input HIGH Voltage V

CC

x 0.7 V

x 0.3 V

CC

+ 0.5 V

CC

OUT

Output LOW Voltage 0.4 V IOL = 2mA
Output HIGH Voltage VCC–0.8 V IOH = –1mA

CC, VIN

CC

= VSS to V

= VSS or VCC – 0.3V

CC

3843 PGM T05.3

POWER-UP TIMING

Symbol Parameter Min. Max. Units

(1)

t

PUR

t

PUW

(1)

Power-up to Read Operation 1 ms
Power-up to Write Operation 5 ms

CAPACITANCE TA = +25°C, f = 1MHz, VCC = 5V.

Symbol Test Max. Units Conditions

(2)

C

OUT

(2)

C

IN

Notes: (1) VIL min. and VIH max. are for reference only and are not tested.

(2) This parameter is periodically sampled and not 100% tested.

Output Capacitance (SO) 8 pF V
Input Capacitance (SCK, SI, CS, WP, HOLD)6 pF V

7

OUT

IN

3843 PGM T09

= 0V

= 0V

3843 PGM T06.1

X25C02

EQUIVALENT A.C. LOAD CIRCUIT

5V

A.C. TEST CONDITIONS

Input Pulse Levels VCC x 0.1 to VCC x 0.9
Input Rise and Fall Times 10ns

OUTPUT

2.16KΩ

3.07KΩ

100pF

3843 FHD F12.1

Input and Output Timing Level VCC x 0.5

A.C. CHARACTERISTICS (Over recommended operating conditions, unless otherwise specified)
Data Input Timing

Symbol Parameter Min. Max. Units

f

SCK

t

CYC

t

LEAD

t

LAG

t

WH

t

WL

t

SU

t

H

t

RI

t

FI

t

HD

t

CD

t

CS

t

WC

(3)

Clock Frequency 0 1 MHz
Cycle Time 1000 ns

CS Lead Time 500 ns
CS Lag Time 500 ns

Clock HIGH Time 400 ns
Clock LOW Time 400 ns
Data Setup Time 100 ns
Data Hold Time 100 ns
Data In Rise Time 2 µs
Data In Fall Time 2 µs

HOLD Setup Time 200 ns
HOLD Hold Time 200 ns
CS Deselect Time 500 ns

Write Cycle Time 10 ms

3843 PGM T07

3843 PGM T08.2

Data Output Timing

Symbol Parameter Min. Max. Units

f

SCK

t

DIS

t

V

t

HO

(1)

t

RO

(1)

t

FO

t

LZ

t

HZ

Notes: (3) tWC is the time from the rising edge of CS after a valid write sequence has been sent to the end of the self-timed internal

nonvolatile write cycle.

Clock Frequency 0 1 MHz
Output Disable Time 500 ns
Output Valid from clock Low 400 ns
Output Hold Time 0 ns
Output Rise Time 300 ns
Output Fall Time 300 ns

HOLD HIGH to Output in Low Z 100 ns
HOLD LOW to Output in High Z 100 ns

3843 PGM T09.1

8

X25C02

Serial Output Timing

CS

SCK

SO

SI

ADDR
LSB IN

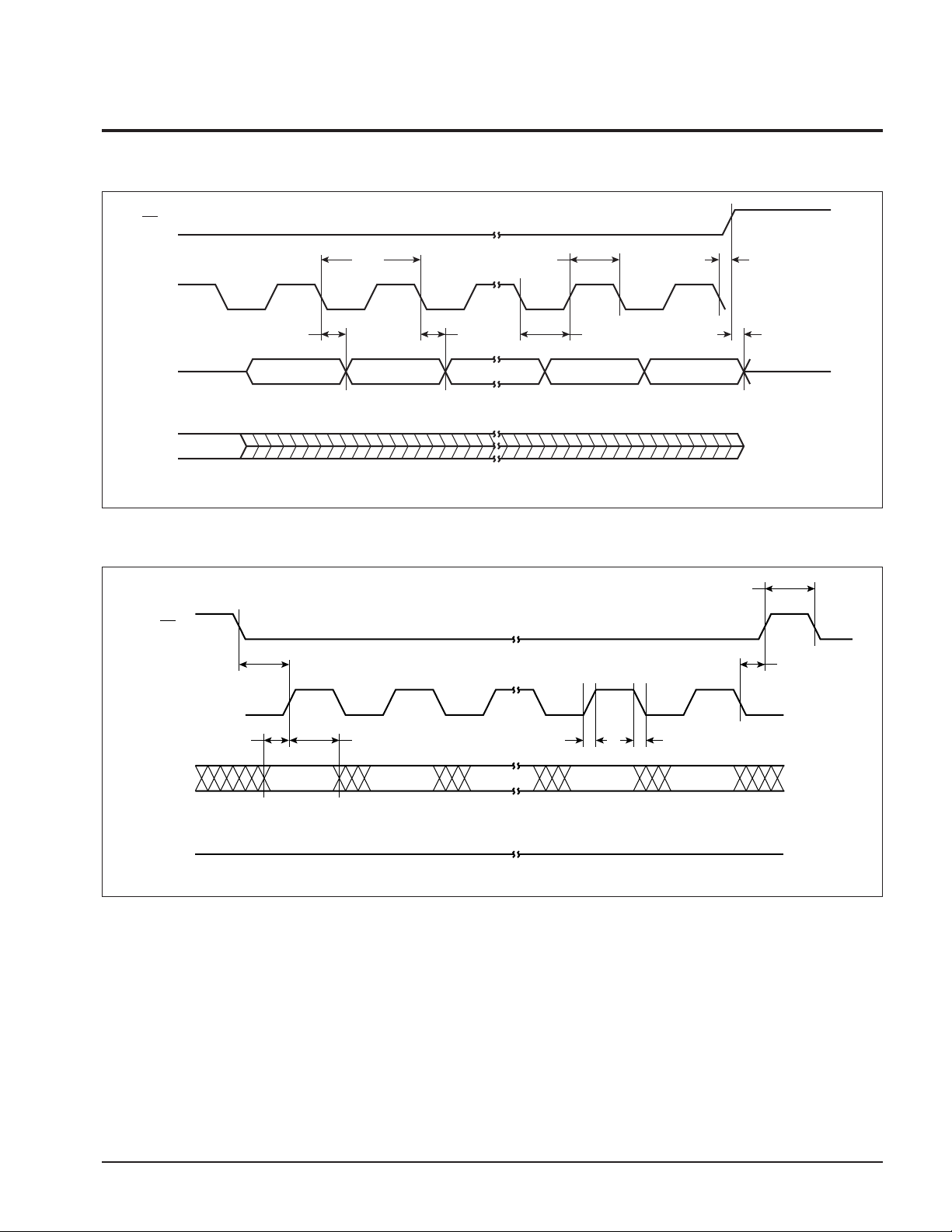

Serial Input Timing

CS

SCK

t

CYC

t

V

t

HO

t

WH

t

WL

MSB OUT MSB–1 OUT LSB OUT

t

LEAD

t

LAG

t

DIS

3843 FHD F09.1

t

CS

t

LAG

SO

t

SU

SI

MSB IN

t

H

t

RI

t

FI

LSB IN

HIGH IMPEDANCE

3843 FHD F10

9

X25C02

Hold Timing

CS

SCK

SO

HOLD

t

HD

t

HZ

t

CD

t

CD

t

HD

t

LZ

SI

3843 FHD F11

SYMBOL TABLE

WAVEFORM

INPUTS

Must be
steady

OUTPUTS

Will be
steady

May change
from LOW
to HIGH

May change
from HIGH
to LOW

Don’t Care:
Changes
Allowed

N/A

Will change
from LOW
to HIGH

Will change
from HIGH
to LOW

Changing:
State Not
Known

Center Line
is High
Impedance

10

X25C02

PACKAGING INFORMATION

8-LEAD MINIATURE SMALL OUTLINE GULL WING PACKAGE TYPE M

0.012 + 0.006 / -0.002
(0.30 + 0.15 / -0.05)

0.118 ± 0.002
(3.00 ± 0.05)

0.030 (0.76)

0.118 ± 0.002
(3.00 ± 0.05)

0.0256 (0.65) TYP

R 0.014 (0.36)

0.0216 (0.55)

0.036 (0.91)

0.032 (0.81)

0.040 ± 0.002
(1.02 ± 0.05)

0.007 (0.18)

0.005 (0.13)

NOTE:

1. ALL DIMENSIONS IN INCHES AND (MILLIMETERS)

7° TYP

0.008 (0.20)

0.004 (0.10)

0.150 (3.81)

0.193 (4.90)

REF.
REF.

3926 ILL F49

11

X25C02

PACKAGING INFORMATION

8-LEAD PLASTIC DUAL IN-LINE PACKAGE TYPE P

0.430 (10.92)

0.360 (9.14)

0.260 (6.60)

0.240 (6.10)

PIN 1 INDEX

PIN 1

0.300

(7.62) REF.

0.060 (1.52)

0.020 (0.51)

HALF SHOULDER WIDTH ON

ALL END PINS OPTIONAL

SEATING

PLANE

0.150 (3.81)

0.125 (3.18)

0.015 (0.38)
MAX.

TYP. 0.010 (0.25)

0.110 (2.79)

0.090 (2.29)

0.325 (8.25)

0.300 (7.62)

0.065 (1.65)

0.045 (1.14)

0.020 (0.51)

0.016 (0.41)

NOTE:

1. ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

2. PACKAGE DIMENSIONS EXCLUDE MOLDING FLASH

0.145 (3.68)

0.128 (3.25)

0.025 (0.64)

0.015 (0.38)

0°

15°

12

X25C02

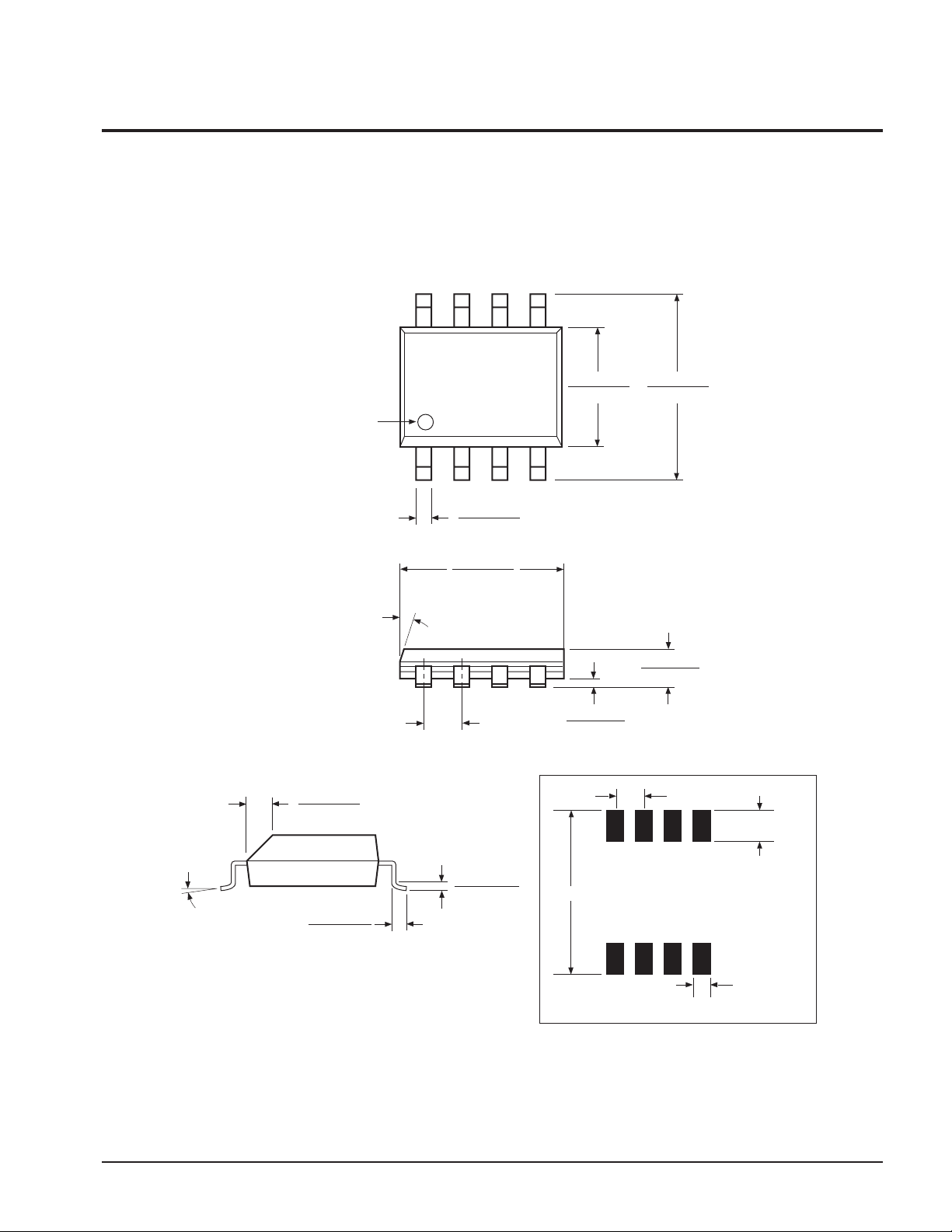

PACKAGING INFORMATION

8-LEAD PLASTIC SMALL OUTLINE GULL WING PACKAGE TYPE S

PIN 1 INDEX

(4X) 7°

0.050 (1.27)

0.010 (0.25)

0.020 (0.50)

X 45°

PIN 1

0.014 (0.35)

0.019 (0.49)

0.188 (4.78)

0.197 (5.00)

0.150 (3.80)

0.158 (4.00)

0.004 (0.19)

0.010 (0.25)

0.228 (5.80)

0.244 (6.20)

0.053 (1.35)

0.069 (1.75)

0.050" TYPICAL

0° – 8°

0.0075 (0.19)

0.010 (0.25)

0.016 (0.410)

0.037 (0.937)

0.250"

FOOTPRINT

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

13

0.050"
TYPICAL

0.030"

TYPICAL

8 PLACES

X25C02

ORDERING INFORMATION

X25C02 P T -V

Device

Part Mark Convention

X25C02 X

VCC Limits

Blank = 5V ±10%

Temperature Range

Blank = Commercial = 0°C to +70°C
I = Industrial = –40°C to +85°C
M = Military = –55°C to +125°C

Package

M = 8-Lead MSOP
P = 8-Lead Plastic DIP
S = 8-Lead SOIC

Blank = 8-Lead SOIC
P = 8-Lead Plastic DIP

X

Blank = 5V ±10%, 0°C to +70°C
I = 5V ±10%, –40°C to +85°C
M = 5V ±10%, –55°C to +125°C

LIMITED WARRANTY

Devices sold by Xicor, Inc. are covered by the warranty and patent indemnification provisions appearing in its Terms of Sale only. Xicor, Inc. makes no warranty,
express, statutory, implied, or by description regarding the information set forth herein or regarding the freedom of the described devices from patent infringement.
Xicor, Inc. makes no warranty of merchantability or fitness for any purpose. Xicor, Inc. reserves the right to discontinue production and change specifications and
prices at any time and without notice.

Xicor, Inc. assumes no responsibility for the use of any circuitry other than circuitry embodied in a Xicor, Inc. product. No other circuits, patents, licenses are
implied.

U.S. PATENTS

Xicor products are covered by one or more of the following U.S. Patents: 4,263,664; 4,274,012; 4,300,212; 4,314,265; 4,326,134; 4,393,481; 4,404,475;
4,450,402; 4,486,769; 4,488,060; 4,520,461; 4,533,846; 4,599,706; 4,617,652; 4,668,932; 4,752,912; 4,829, 482; 4,874, 967; 4,883, 976. Foreign patents and
additional patents pending.

LIFE RELATED POLICY

In situations where semiconductor component failure may endanger life, system designers using this product should design the system with appropriate error
detection and correction, redundancy and back-up features to prevent such an occurence.

Xicor’s products are not authorized for use in critical components in life support devices or systems.

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and whose
failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant
injury to the user.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.

14
