XICOR X24C44S, X24C44PM, X24C44PI, X24C44P, X24C44DM Datasheet

APPLICATION NOTES

AVAILABLE

AN3 • AN7 • AN8 • AN15 • AN16 • AN25 • AN29

• AN30 • AN35 • AN36 • AN39 • AN56 • AN69

X24C44

256 Bit X24C44 16 x 16 Bit

Serial Nonvolatile Static RAM

FEATURES

• Advanced CMOS Version of Xicor’s X2444

• 16 x 16 Organization

• Single 5 Volt Supply

• Ideal for use with Single Chip Microcomputers

—Static Timing
—Minimum I/O Interface
—Serial Port Compatible (COPS™, 8051)
—Easily Interfaced to Microcontroller Ports

• Software and Hardware Control of Nonvolatile

Functions

• Auto Recall on Power-Up

• TTL and CMOS Compatible

• Low Power Dissipation

—Active Current: 10mA Maximum
—Standby Current: 50µA Maximum

• 8-Lead PDIP, Cerdip, and 8-Lead SOIC Packages

• High Reliability

—Store Cycles: 1,000,000
—Data Retention: 100 Years

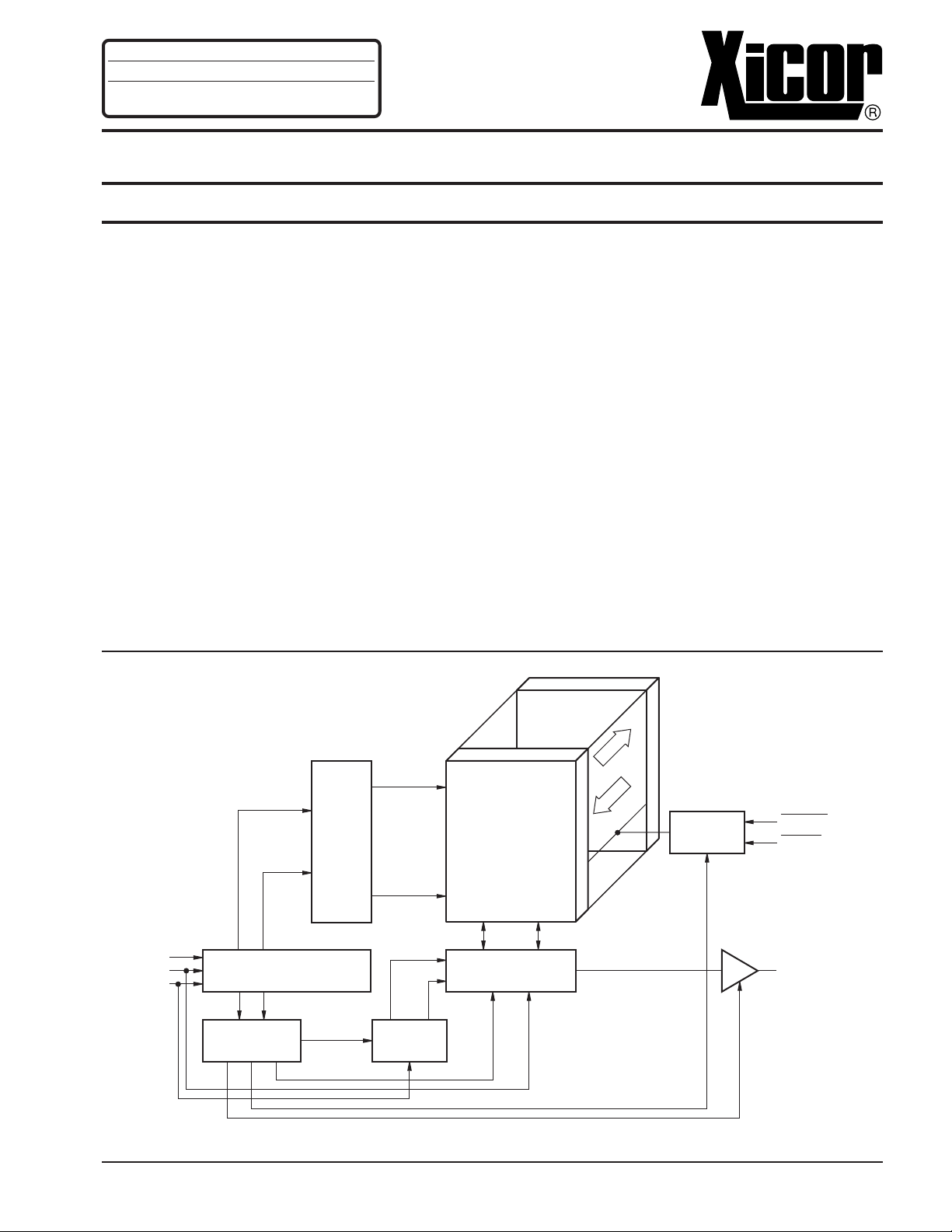

FUNCTIONAL DIAGRAM

DESCRIPTION

The Xicor X24C44 is a serial 256 bit NOVRAM featuring
a static RAM configured 16 x 16, overlaid bit-by-bit with
a nonvolatile E2PROM array. The X24C44 is fabricated
with Xicor’s Advanced CMOS Floating Gate technology.

The Xicor NOVRAM design allows data to be transferred
between the two memory arrays by means of software
commands or external hardware inputs. A store opera­tion (RAM data to E2PROM) is completed in 5ms or less
and a recall operation (E2PROM data to RAM) is com­pleted in 2µs or less.

Xicor NOVRAMs are designed for unlimited write opera­tions to RAM, either from the host or recalls from
E2PROM and a minimum 1,000,000 store operations.
Inherent data retention is specified to be greater than
100 years.

NONVOLATILE

E2PROM

STORE

STATIC

ROW

DECODE

CE (1)

DI (3)

SK (2)

COPS is a trademark of National Semiconductor Corp.
© Xicor, Inc. 1991, 1995, 1996 Patents Pending Characteristics subject to change without notice

3832-1.5 6/19/96 T2/C1/D1 NS

INSTRUCTION

REGISTER

INSTRUCTION

DECODE

4-BIT

COUNTER

RAM

256-BIT

COLUMN
DECODE

1

RECALL

CONTROL

LOGIC

RECALL (6)
STORE (7)

DO (4)

3832 FHD F01

X24C44

Chip Enable (CE)

The Chip Enable input must be HIGH to enable all read/
write operations. CE must remain HIGH following a
Read or Write command until the data transfer is com­plete. CE LOW places the X24C44 in the low power
standby mode and resets the instruction register. There­fore, CE must be brought LOW after the completion of an
operation in order to reset the instruction register in
preparation for the next command.

Serial Clock (SK)

The Serial Clock input is used to clock all data into and
out of the device.

PIN CONFIGURATIONPIN DESCRIPTIONS

PDIP/CERDIP/SOIC

CE
SK

DO

1
2
3
4

X24C44

DI

8

V

7

STORE

6

RECALL

5

V

3832 FHD F02.2

CC

SS

Data In (DI)

Data In is the serial data input.

Data Out (DO)

Data Out is the serial data output. It is in the high
impedance state except during data output cycles in
response to a READ instruction.

STORE
STORE LOW will initiate an internal transfer of data from

RAM to the E2PROM array.

RECALL
RECALL LOW will initiate an internal transfer of data

from E2PROM to the RAM array.

PIN NAMES

Symbol Description

CE Chip Enable
SK Serial Clock
DI Serial Data In
DO Serial Data Out

RECALL Recall Input
STORE Store Input

V

CC

V

SS

+5V
Ground

3832 PGM T01

2

X24C44

DEVICE OPERATION

The X24C44 contains an 8-bit instruction register. It is
accessed via the DI input, with data being clocked in on
the rising edge of SK. CE must be HIGH during the entire
data transfer operation.

Table 1. contains a list of the instructions and their
operation codes. The most significant bit (MSB) of all
instructions is a logic one (HIGH), bits 6 through 3 are
either RAM address bits (A) or don’t cares (X) and bits
2 through 0 are the operation codes. The X24C44
requires the instruction to be shifted in with the MSB first.

After CE is HIGH, the X24C44 will not begin to interpret
the data stream until a logic “1” has been shifted in on DI.
Therefore, CE may be brought HIGH with SK running
and DI LOW. DI must then go HIGH to indicate the start
condition of an instruction before the X24C44 will begin
any action.

In addition, the SK clock is totally static. The user can
completely stop the clock and data shifting will be stopped.
Restarting the clock will resume shifting of data.

RCL and RECALL

Either a software RCL instruction or a LOW on the
RECALL input will initiate a transfer of E2PROM data
into RAM. This software or hardware recall operation
sets an internal “previous recall” latch. This latch is reset
upon power-up and must be intentionally set by the user
to enable any write or store operations. Although a recall
operation is performed upon power-up, the previous
recall latch is not set by this operation.

operations to the E2PROM. The WREN instruction sets
the latch and the WRDS instruction resets the latch,
disabling both RAM writes and E2PROM stores, effec­tively protecting the nonvolatile data from corruption. The
write enable latch is automatically reset on power-up.

STO and STORE

Either the software STO instruction or a LOW on the
STORE input will initiate a transfer of data from RAM to
E2PROM. In order to safeguard against unwanted store
operations, the following conditions must be true:

• STO instruction issued or STORE input is LOW.

• The internal “write enable” latch must be set
(WREN instruction issued).

• The “previous recall” latch must be set (either a
software or hardware recall operation).

Once the store cycle is initiated, all other device func­tions are inhibited. Upon completion of the store cycle,
the write enable latch is reset. Refer to Figure 4 for a
state diagram description of enabling/disabling condi­tions for store operations.

WRITE

The WRITE instruction contains the 4-bit address of the
word to be written. The write instruction is immediately
followed by the 16-bit word to be written. CE must remain
HIGH during the entire operation. CE must go LOW
before the next rising edge of SK. If CE is brought LOW
prematurely (after the instruction but before 16 bits of data
are transferred), the instruction register will be reset and
the data that was shifted-in will be written to RAM.

WRDS and WREN

Internally the X24C44 contains a “write enable” latch. This
latch must be set for either writes to the RAM or store

If CE is kept HIGH for more than 24 SK clock cycles (8-bit
instruction plus 16-bit data), the data already shifted-in will
be overwritten.

Table 1. Instruction Set

Instruction Format, I2 I1 I

0

Operation

WRDS (Figure 3) 1XXXX000 Reset Write Enable Latch (Disables Writes and Stores)
STO (Figure 3) 1XXXX001 Store RAM Data in E2PROM
Reserved 1XXXX010 N/A
WRITE (Figure 2) 1AAAA011 Write Data into RAM Address AAAA
WREN (Figure 3) 1XXXX100 Set Write Enable Latch (Enables Writes and Stores)
RCL (Figure 3) 1XXXX101 Recall E2PROM Data into RAM
READ (Figure 1) 1AAAA11X Read Data from RAM Address AAAA

X = Don't Care
A = Address

3

3832 PGM T13

X24C44

READ

The READ instruction contains the 4-bit address of the
word to be accessed. Unlike the other six instructions, I
of the instruction word is a “don’t care”. This provides two
advantages. In a design that ties both DI and DO
together, the absence of an eighth bit in the instruction
allows the host time to convert an I/O line from an output
to an input. Secondly, it allows for valid data output
during the ninth SK clock cycle.

D0, the first bit output during a read operation, is trun­cated. That is, it is internally clocked by the falling edge
of the eighth SK clock; whereas, all succeeding bits are
clocked by the rising edge of SK (refer to Read Cycle
Diagram).

LOW POWER MODE

When CE is LOW, non-critical internal devices are
powered-down, placing the device in the standby power
mode, thereby minimizing power consumption.

SLEEP

Because the X24C44 is a low power CMOS device, the
SLEEP instruction implemented on the first generation
NMOS device has been deleted. For systems convert­ing from the X2444 to the X24C44 the software need not
be changed; the instruction will be ignored.

WRITE PROTECTION

The X24C44 provides two software write protection
mechanisms to prevent inadvertent stores of unknown
data.

SYSTEM CONSIDERATIONS
Power-Up Recall

0

The X24C44 performs a power-up recall that transfers
the E2PROM contents to the RAM array. Although the
data may be read from the RAM array, this recall does
not set the “previous recall” latch. During this power-up
recall operation, all commands are ignored. Therefore,
the host should delay any operations with the X24C44 a
minimum of t

after VCC is stable.

PUR

Power-Down Data Protection

Because the X24C44 is a 5V only nonvolatile memory
device it may be susceptible to inadvertent stores to the
E2PROM array during power-down cycles. Power-up
cycles are not a problem because the “previous recall”
latch and “write enable” latch are reset, preventing any
possible corruption of E2PROM data.

Software Power-Down Protection

If the STORE and RECALL pins are tied to VCC through
a pull-up resistor and only software operations are
performed to initiate stores, there is little likelihood of an
inadvertent store. However, if these two lines are under
microprocessor control, positive action should be em­ployed to negate the possibility of these control lines
bouncing and generating an unwanted store. The safest
method is to issue the WRDS command after a write
sequence and also following store operations. Note: an
internal store may take up to 5ms; therefore, the host
microprocessor should delay 5ms after initiating the
store prior to issuing the WRDS command.

Power-Up Condition

Upon power-up the “write enable” latch is in the reset
state, disabling any store operation.

Unknown Data Store

The “previous recall” latch must be set after power-up.
It may be set only by performing a software or hardware
recall operation, which assures that data in all RAM
locations is valid.

Hardware Power-Down Protection

(when the “write enable” latch and “previous recall” latch
are not in the reset state):

Holding either RECALL LOW, CE LOW or STORE
HIGH during power-down will prevent an inadvertent
store.

4

X24C44

Figure 1. RAM Read

CE

SK

1

2345678

9 101112222324

DI

DO

1A 1AAA 1X*

*Bit 8 of Read Instructions is Don’t Care

Figure 2. RAM Write

CE

SK

DI

1

1A 1AAA 1

HIGH Z

2345678

0

D

0

D

D

2

1

D

3

D

2

D12D

1

9 101121222324

D

D

0

D14D

D

13

13D14D15

D

15

0

3832 FHD F07.1

3832 FHD F08.1

Figure 3. Non-Data Operations

CE

SK

DI

1

2345678

1X I

XXX I

2

5

1

I

0

3832 FHD F09.1

X24C44

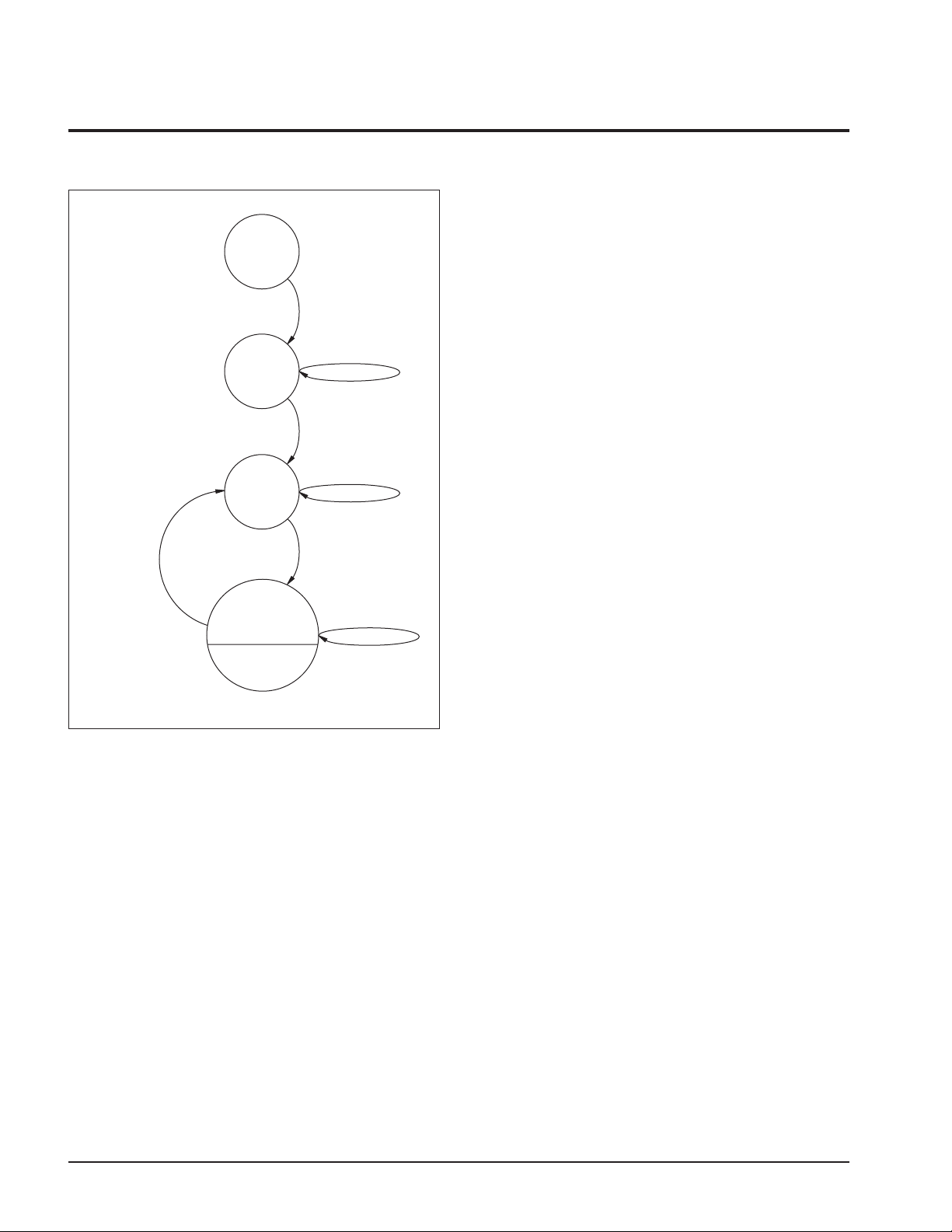

Figure 4. X24C44 State Diagram

POWER

ON

POWER-UP
RECALL

STO OR

WRDS CMD

OR STORE

RAM

READ

ENABLED

RAM

READ

ENABLED

RAM

READ &

WRITE

STORE

ENABLED

RAM READ

RCL COMMAND
OR RECALL

RAM READ

WREN
COMMAND

RAM READ

OR WRITE

3832 FHD F10.1

6

X24C44

ABSOLUTE MAXIMUM RATINGS*

Temperature under Bias .................. –65°C to +135°C

Storage Temperature ....................... –65°C to +150°C

Voltage on any Pin with

Respect to V

............................................ –1V to +7V

SS

D.C. Output Current ............................................. 5mA

Lead Temperature

(Soldering, 10 seconds).............................. 300°C

*COMMENT

Stresses above those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device.
This is a stress rating only and the functional operation of
the device at these or any other conditions above those
indicated in the operational sections of this specification is
not implied. Exposure to absolute maximum rating condi­tions for extended periods may affect device reliability.

RECOMMENDED OPERATING CONDITIONS

Temperature Min. Max.

Commercial 0°C +70°C
Industrial –40°C +85°C

Supply Voltage Limits

X24C44 5V ±10%

3832 PGM T03.1

Military –55°C +125°C

3832 PGM T02.1

D.C. OPERATING CHARACTERISTICS (Over recommended operating conditions unless otherwise specified.)

Limits

Symbol Parameter Min. Max. Units Test Conditions

l

CC

I

SB1

I

SB2

VCC Supply Current 10 mA SK = 0.4V/2.4V Levels @ 1MHz,
(TTL Inputs) DO = Open, All Other Inputs = V

VCC Standby Current 1 mA DO = Open, CE = VIL,
(TTL Inputs) All Other Inputs = V

VCC Standby Current 50 µA DO = Open, CE = V

IH

SS

IH

(CMOS Inputs) All Other Inputs = VCC – 0.3V

I

LI

I

LO

(1)

V

lL

V

IH

V

OL

V

OH

Input Load Current 10 µAVIN = VSS to V
Output Leakage Current 10 µAV
Input LOW Voltage –1 0.8 V

(1)

Input HIGH Voltage 2 VCC + 1 V
Output LOW Voltage 0.4 V IOL = 4.2mA
Output HIGH Voltage 2.4 V IOH = –2mA

= VSS to V

OUT

CC

CC

3832 PGM T04.3

ENDURANCE AND DATA RETENTION

Parameter Min. Units

Endurance 100,000 Data Changes Per Bit
Store Cycles 1,000,000 Store Cycles
Data Retention 100 Years

CAPACITANCE TA = +25°C, f = 1MHz, VCC = 5V

Symbol Parameter Max. Units Test Conditions

(2)

C

OUT

(2)

C

IN

Notes: (1) VIL min. and VIH max. are for reference only and are not tested.

(2) This parameter is periodically sampled and not 100% tested.

Output Capacitance 8 pF V
Input Capacitance 6 pF V

7

OUT
IN

= 0V

3832 PGM T05

= 0V

3832 PGM T06.1

X24C44

EQUIVALENT A.C. LOAD CIRCUIT

A.C. CONDITIONS OF TEST

Input Pulse Levels 0V to 3V

5V

Input Rise and
Fall Times 10ns

919Ω

Input and Output
Timing Levels 1.5V

OUTPUT

497Ω

100pF

3832 FHD F11

A.C. CHARACTERISTICS (Over the recommended operating conditions unless otherwise specified.)
Read and Write Cycle Limits

Symbol Parameter Min. Max. Units

(3)

F
t

SKH

t

SKL

t

DS

t

DH

t

PD1

t

PD

t

Z

t

CES

t

CEH

t

CDS

SK

SK Frequency 1 MHz
SK Positive Pulse Width 400 ns
SK Negative Pulse Width 400 ns
Data Setup Time 400 ns
Data Hold Time 80 ns
SK to Data Bit 0 Valid 375 ns
SK to Data Valid 375 ns
Chip Enable to Output High Z 1 µs
Chip Enable Setup 800 ns
Chip Enable Hold 350 ns
Chip Deselect 800 ns

POWER-UP TIMING

3832 PGM T07.1

3832 PGM T08.1

Symbol Parameter Max. Units

(4)

t

PUR

(4)

t

PUW

Notes: (3) SK rise and fall times must be less than 50ns.

(4) t

and t

PUR

are periodically sampled and not 100% tested.

Power-up to Read Operation 200 µs
Power-up to Write or Store Operation 5 ms

are the delays required from the time VCC is stable until the specified operation can be initiated. These parameters

PUW

8

3832 PGM T09

X24C44

Write Cycle

SK CYCLE #

1/F

t

SKH

SK

t

SKL

Read Cycle

SK CYCLE #

SK

CE

SK

CE

x12n

t

t

CEH

PD

t

CES

t

DS

DI

678910 n

V

IH

t

DH

t

CDS

3832 FHD F03

DO

I2 I1

DI

DON’T CARE

t

PD1

HIGH Z HIGH Z

D0 D1 Dn

t

Z

3832 FHD F04

9

X24C44

NONVOLATILE OPERATIONS

Software Write Enable Recall Latch

Operation STORE RECALL Instruction Latch State State

Hardware Recall 1 0 NOP
Software Recall 1 1 RCL X X
Hardware Store 0 1 NOP
Software Store 1 1 STO SET SET

ARRAY RECALL LIMITS

Symbol Parameter Min. Max. Units

(5)

(5)

XX

SET SET

Previous

3832 PGM T10

t

RCC

t

RCP

t

RCZ

Recall Cycle Time 2 µs
Recall Pulse Width

(6)

Recall to Output in High Z 500 ns

Recall Timing

t

RCC

t

RCP

RECALL

t

RCZ

DO

Notes: (5) NOP designates when the X24C44 is not currently executing an instruction.

(6) Recall rise time must be <10µs.

HIGH Z

500 ns

3832 PGM T11

3832 FHD F05

10

X24C44

STORE CYCLE LIMITS

Symbol Parameter Min. Typ.

(7)

Max. Units

t

ST

t

STP

t

Z

V

CC

Store Time 2 5 ms
Store Pulse Width 200 ns
CE to Output in High Z 1 µs
Store Inhibit 3 V

Store Timing

CE

STORE

t

Z

DO

Note: (7) Typical values are for TA = 25°C and nominal supply voltage.

t

STP

t

3832 PGM T12

ST

HIGH Z

3832 FHD F06

SYMBOL TABLE

WAVEFORM

INPUTS

Must be
steady

May change
from LOW
to HIGH

May change
from HIGH
to LOW

Don’t Care:
Changes
Allowed

N/A

OUTPUTS

Will be
steady

Will change
from LOW
to HIGH

Will change
from HIGH
to LOW

Changing:
State Not
Known

Center Line
is High
Impedance

11

X24C44

PACKAGING INFORMATION

8-LEAD PLASTIC DUAL IN-LINE PACKAGE TYPE P

0.430 (10.92)

0.360 (9.14)

0.092 (2.34)
DIA. NOM.

PIN 1 INDEX

PIN 1

0.300

(7.62) REF.

0.255 (6.47)

0.245 (6.22)

0.060 (1.52)

0.020 (0.51)

HALF SHOULDER WIDTH ON

ALL END PINS OPTIONAL

SEATING

PLANE

0.150 (3.81)

0.125 (3.18)

0.110 (2.79)

0.090 (2.29)

0.015 (0.38)
MAX.

TYP. 0.010 (0.25)

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

0.140 (3.56)

0.130 (3.30)

0.020 (0.51)

0.015 (0.38)

0.062 (1.57)

0.058 (1.47)

0.020 (0.51)

0.016 (0.41)

0.325 (8.25)

0.300 (7.62)

0°

15°

12

3926 FHD F01

X24C44

PACKAGING INFORMATION

8-LEAD HERMETIC DUAL IN-LINE PACKAGE TYPE D

0.405 (10.29)
––

0.310 (7.87)

0.220 (5.59)

SEATING

PLANE

0.150 (3.81) MIN.

PIN 1

0.200 (5.08)

0.125 (3.18)

0.110 (2.79)

0.090 (2.29)

TYP. 0.100 (2.54)

0.300 (7.62)
REF.

0.320 (8.13)

0.290 (7.37)

TYP. 0.311 (7.90)

0.005 (0.13) MIN.

0.055 (1.40) MAX.

0.200 (5.08)

0.140 (3.56)

0.060 (1.52)

0.015 (0.38)

0.065 (1.65)

0.038 (0.97)

TYP. 0.060 (1.52)

0.023 (0.58)

0.014 (0.36)

TYP. 0.017 (0.43)

0.015 (0.38)

0.008 (0.20)

0°

15°

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

3926 FHD F05

13

X24C44

PACKAGING INFORMATION

8-LEAD PLASTIC SMALL OUTLINE GULL WING PACKAGE TYPE S

PIN 1 INDEX

(4X) 7°

0.050 (1.27)

0.010 (0.25)

0.020 (0.50)

X 45°

PIN 1

0.014 (0.35)

0.019 (0.49)

0.188 (4.78)

0.197 (5.00)

0.150 (3.80)

0.158 (4.00)

0.004 (0.19)

0.010 (0.25)

0.228 (5.80)

0.244 (6.20)

0.053 (1.35)

0.069 (1.75)

0.050" TYPICAL

0° – 8°

0.0075 (0.19)

0.010 (0.25)

0.016 (0.410)

0.037 (0.937)

0.250"

FOOTPRINT

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

3926 FHD F22.1

14

0.050"
TYPICAL

0.030"

TYPICAL

8 PLACES

X24C44

ORDERING INFORMATION

X24C44 P T -V

Device

VCC Limits

Blank = 5V ±10%

Temperature Range

Blank = Commercial = 0°C to +70°C
I = Industrial = –40°C to +85°C
M = Military = –55°C to +125°C

Package

P = 8-Lead Plastic DIP
D = 8-Lead Ceramic DIP
S = 8-Lead SOIC

LIMITED WARRANTY

Devices sold by Xicor, Inc. are covered by the warranty and patent indemnification provisions appearing in its Terms of Sale only. Xicor, Inc. makes
no warranty, express, statutory, implied, or by description regarding the information set forth herein or regarding the freedom of the described
devices from patent infringement. Xicor, Inc. makes no warranty of merchantability or fitness tor any purpose. Xicor, Inc. reserves the right to
discontinue production and change specifications and prices at any time and without notice.

Xicor, Inc. assumes no responsibility for the use of any circuitry other than circuitry embodied in a Xicor, Inc. product. No other circuits, patents,
licenses are implied.

US. PATENTS

Xicor products are covered by one or more of the following U.S. Patents: 4,263,664; 4,274,012; 4,300,212; 4,314,265; 4,326,134; 4,393,481;
4,404,475; 4,450,402; 4,486,769; 4,488,060; 4,520,461; 4,533,846; 4,599,706; 4,617,652; 4,668,932; 4,752,912; 4,829,482; 4,874,967;
4,883,976. Foreign patents and additional patents pending.

LIFE RELATED POLICY

In situations where semiconductor component failure may endanger life, system designers using this product should design the system with
appropriate error detection and correction, redundancy and back-up features to prevent such an occurrence.

Xicor’s products are not authorized for use as critical components in life support devices or systems.

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life,
and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected
to result in a significant injury to the user.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure
of the life support device or system, or to affect its satety or effectiveness.

15
