X24C08

1

© Xicor, 1991 Patents Pending Characteristics subject to change without notice

Serial E2PROM

Preliminary Information

TYPICAL FEATURES

• 2.7V to 5.5V Power Supply

• Low Power CMOS

—Active Read Current Less Than 1 mA
—Active Write Current Less Than 3 mA
—Standby Current Less Than 50 µA

• Internally Organized 1024 x 8

• 2 Wire Serial Interface

—Bidirectional Data Transfer Protocol

• Sixteen Byte Page Write Mode

—Minimizes Total Write Time Per Byte

• Self Timed Write Cycle

—Typical Write Cycle Time of 5 ms

• High Reliability

—Endurance: 100,000 Cycles
—Data Retention: 100 Years

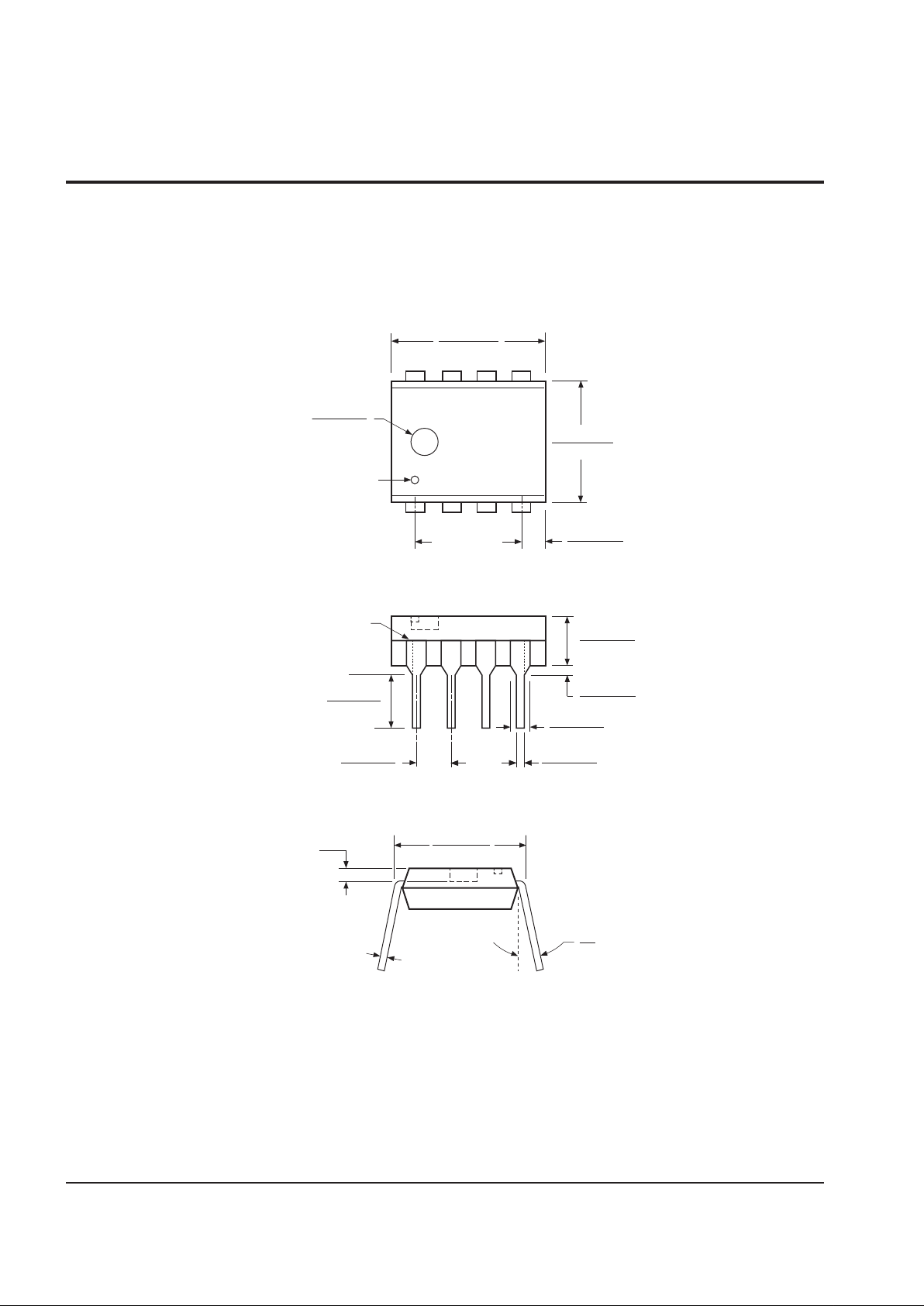

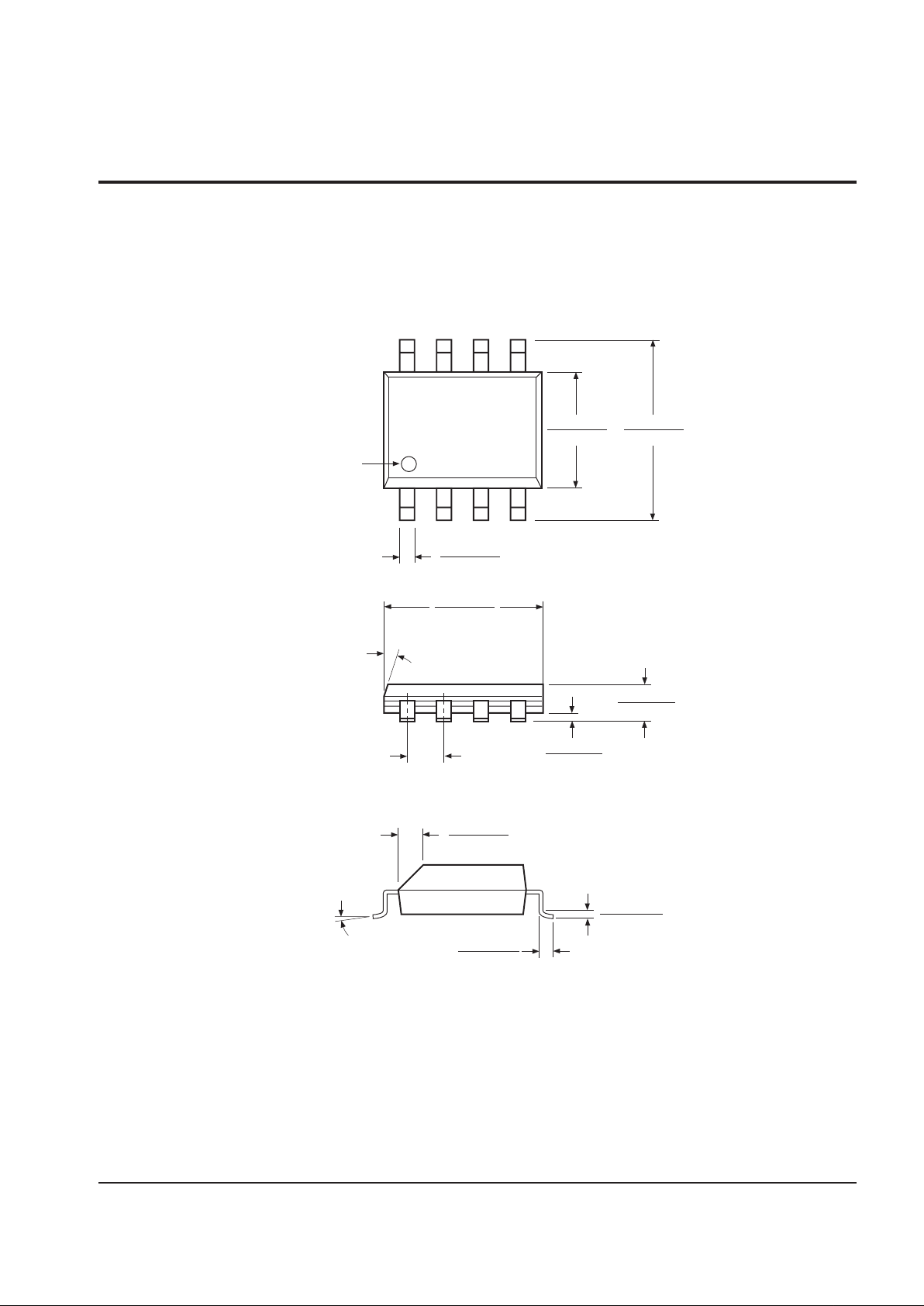

• 8 Pin Mini-DlP, 8 Pin SOIC and 14 Pin

SOIC Packages

DESCRIPTION

The X24C08 is a CMOS 8,192 bit serial E2PROM,
internally organized 1024 x 8. The X24C08 features a
serial interface and software protocol allowing operation
on a simple two wire bus.

The X24C08 is fabricated with Xicor’s advanced CMOS
Textured Poly Floating Gate Technology.

The X24C08 utilizes Xicor’s proprietary Direct Write™
cell providing a minimum endurance of 100,000 cycles
and a minimum data retention of 100 years.

8K X24C08 1024 x 8 Bit

FUNCTIONAL DIAGRAM

3842 FHD F01

START

STOP

LOGIC

CONTROL

LOGIC

SLAVE ADDRESS

REGISTER

+COMPARATOR

H.V. GENERATION

TIMING

& CONTROL

WORD
ADDRESS
COUNTER

XDEC

YDEC

D

OUT

ACK

E

2

PROM

64 X 128

DATA REGISTER

START CYCLE

(8) V

CC

R/W

PIN

(4) V

SS

(5) SDA

(6) SCL

(3) A

2

(2) A

1

(1) A

0

D

OUT

LOAD INC

CK

8

(7) TEST

3842-1

X24C08

2

PIN DESCRIPTIONS
Serial Clock (SCL)

The SCL input is used to clock all data into and out of the
device.

Serial Data (SDA)

SDA is a bidirectional pin used to transfer data into and
out of the device. It is an open drain output and may be
wire-ORed with any number of open drain or open
collector outputs.

An open drain output requires the use of a pull-up
resistor. For selecting typical values, refer to the Pull-Up
Resistor selection graph at the end of this data sheet.

Address (A0, A1)

A0 and A1 are unused by the X24C08; however, they
must be tied to VSS to insure proper device operation.

Address (A2)

The A2 input is used to set the appropriate bit of the
seven bit slave address. This input can be used static or
actively driven. If used statically, it must be tied to VSS or
VCC as appropriate. If actively driven, it must be driven
to VSS or to VCC.

PIN CONFIGURATION

SOIC

DIP/SOIC

3842 FHD F03

PIN NAMES

Symbol Description

A0–A

2

Address Inputs
SDA Serial Data
SCL Serial Clock
TEST Hold at V

SS

V

SS

Ground
V

CC

Supply Voltage
NC No Connect

3842 PGM T01

NC

A

0

A

1

NC

A

2

V

SS

NC

1
2
3
4
5
6
7

14
13
12
11
10

9
8

NC
V

CC

TEST
NC
SCL
SDA
NC

X24C08

V

CC

TEST
SCL
SDA

A

0

A

1

A

2

V

SS

1
2
3
4

8
7
6
5

X24C08

3842 FHD F02

X24C08

3

DEVICE OPERATION

The X24C08 supports a bidirectional bus oriented pro­tocol. The protocol defines any device that sends data
onto the bus as a transmitter, and the receiving device
as the receiver. The device controlling the transfer is a
master and the device being controlled is the slave. The
master will always initiate data transfers, and provide
the clock for both transmit and receive operations.
Therefore, the X24C08 will be considered a slave in all
applications.

Clock and Data Conventions

Data states on the SDA line can change only during SCL
LOW. SDA state changes during SCL HIGH are re­served for indicating start and stop conditions. Refer to
Figures 1 and 2.

Start Condition

All commands are preceded by the start condition,
which is a HIGH to LOW transition of SDA when SCL is
HIGH. The X24C08 continuously monitors the SDA and
SCL lines for the start condition and will not respond to
any command until this condition has been met.

Stop Condition

All communications must be terminated by a stop con­dition, which is a LOW to HIGH transition of SDA when
SCL is HIGH. The stop condition is also used by the
X24C08 to place the device into the standby power
mode after a read sequence. A stop condition can only
be issued after the transmitting device has released the
bus.

Figure 1. Data Validity

SCL

SDA

DATA STABLE DATA

CHANGE

3842 FHD F06

Figure 2. Definition of Start and Stop

SCL

SDA

START BIT STOP BIT

3842 FHD F07

X24C08

4

Acknowledge

Acknowledge is a software convention used to indicate
successful data transfers. The transmitting device will
release the bus after transmitting eight bits. During the
ninth clock cycle the receiver will pull the SDA line LOW
to acknowledge that it received the eight bits of data.
Refer to Figure 3.

The X24C08 will respond with an acknowledge after
recognition of a start condition and its slave address. If
both the device and a write operation have been se-

lected, the X24C08 will respond with an acknowledge
after the receipt of each subsequent eight bit word.

In the read mode the X24C08 will transmit eight bits of
data, release the SDA line and monitor the line for an
acknowledge. If an acknowledge is detected and no
stop condition is generated by the master, the X24C08
will continue to transmit data. If an acknowledge is not
detected, the X24C08 will terminate further data trans­missions. The master must then issue a stop condition
to return the X24C08 to the standby power mode and
place the device into a known state.

Figure 3. Acknowledge Response From Receiver

SCL FROM

MASTER

DATA

OUTPUT

FROM

TRANSMITTER

1

89

DATA

OUTPUT

FROM

RECEIVER

START

ACKNOWLEDGE

3842 FHD F08

X24C08

5

The next bit addresses a particular device. A system
could have up to two X24C08 devices on the bus (see
Figure 10). The two addresses are defined by the state
of the A2 input.

The next two bits of the slave address field are an
extension of the array’s address and are concatenated
with the eight bits of address in the word address field,
providing direct access to the whole 1024 x 8 array.

DEVICE ADDRESSING

Following a start condition the master must output the
address of the slave it is accessing. The most significant
four bits of the slave address are the device type
identifier (see Figure 4). For the X24C08 this is fixed as
1010[B].

Figure 4. Slave Address

The last bit of the slave address defines the operation to
be performed. When set to one a read operation is
selected, when set to zero a write operation is selected.

Following the start condition, the X24C08 monitors the
SDA bus comparing the slave address being transmit­ted with its slave address (device type and state of A

2

input.) Upon a correct compare the X24C08 outputs an
acknowledge on the SDA line. Depending on the state
of the R/W bit, the X24C08 will execute a read or write
operation.

WRITE OPERATIONS
Byte Write

For a write operation, the X24C08 requires a second
address field. This address field is the word address,
comprised of eight bits, providing access to any one of
1024 words in the array. Upon receipt of the word
address the X24C08 responds with an acknowledge,
and awaits the next eight bits of data, again responding
with an acknowledge. The master then terminates the
transfer by generating a stop condition, at which time the
X24C08 begins the internal write cycle to the nonvolatile
memory. While the internal write cycle is in progress the
X24C08 inputs are disabled, and the device will not
respond to any requests from the master. Refer to
Figure 5 for the address, acknowledge and data transfer
sequence.

3842 FHD F09

Figure 5. Byte Write

BUS ACTIVITY:
MASTER

SDA LINE

BUS ACTIVITY:
X24C08

S
T
A
R
T

SLAVE

ADDRESS

S

S
T
O
P

P

A
C
K

A
C
K

A
C
K

WORD

ADDRESS DATA

3842 FHD F10

1 0

A2 A1 A0

R/W

DEVICE TYPE

IDENTIFIER

DEVICE

ADDRESS

10

HIGH

ORDER

WORD

ADDRESS

X24C08

6

Page Write

The X24C08 is capable of a sixteen byte page write
operation. It is initiated in the same manner as the byte
write operation, but instead of terminating the write cycle
after the first data word is transferred, the master can
transmit up to fifteen more words. After the receipt of
each word, the X24C08 will respond with an acknowl­edge.

After the receipt of each word, the four low order address
bits are internally incremented by one. The high order six
bits of the word address remain constant. If the master
should transmit more than sixteen words prior to gener­ating the stop condition, the address counter will “roll
over” and the previously written data will be overwritten.
As with the byte write operation, all inputs are disabled
until completion of the internal write cycle. Refer to
Figure 6 for the address, acknowledge and data transfer
sequence.

Acknowledge Polling

The disabling of the inputs can be used to take advan­tage of the typical 5 ms write cycle time. Once the stop
condition is issued to indicate the end of the host’s write
operation the X24C08 initiates the internal write cycle.
ACK polling can be initiated immediately. This involves
issuing the start condition followed by the slave address
for a write operation. If the X24C08 is still busy with the
write operation no ACK will be returned. If the X24C08
has completed the write operation an ACK will be
returned and the host can then proceed with the next
read or write operation. Refer to Flow 1.

Flow 1. ACK Polling Sequence

3842 FHD F11

Figure 6. Page Write

3842 FHD F12

BUS ACTIVITY:
MASTER

SDA LINE

BUS ACTIVITY:
X24C08

S
T
A
R
T

SLAVE

ADDRESS

S

S
T
O
P

P

A
C
K

A
C
K

A
C
K

A
C
K

A
C
K

WORD ADDRESS n DATA n DATA n+1 DATA n+15

NOTE: In this example n = xxxx 000 (B); x = 1 or 0

WRITE OPERATION

COMPLETED

ENTER ACK POLLING

ISSUE

STAR T

ISSUE SLAVE

ADDRESS AND R/W = 0

ACK

RETURNED?

NEXT

OPERATION

A WRITE?

ISSUE BYTE

ADDRESS

PROCEED

ISSUE STOP

NO

YES

YES

PROCEED

ISSUE STOP

NO

X24C08

7

READ OPERATIONS

Read operations are initiated in the same manner as
write operations with the exception that the R/W bit of the
slave address is set to a one. There are three basic read
operations: current address read, random read and
sequential read.

It should be noted that the ninth clock cycle of the read
operation is not a “don’t care.” To terminate a read
operation, the master must either issue a stop condition
during the ninth cycle or hold SDA HIGH during the ninth
clock cycle and then issue a stop condition.

Current Address Read

Internally the X24C08 contains an address counter that
maintains the address of the last word accessed,
incremented by one. Therefore, if the last access (either
a read or write) was to address n, the next read operation
would access data from address n + 1. Upon receipt of
the slave address with R/W set to one, the X24C08
issues an acknowledge and transmits the eight bit word.

The read operation is terminated by the master; by not
responding with an acknowledge and by issuing a stop
condition. Refer to Figure 7 for the sequence of address,
acknowledge and data transfer.

Random Read

Random read operations allow the master to access any
memory location in a random manner. Prior to issuing
the slave address with the R/W bit set to one, the master
must first perform a “dummy” write operation. The mas­ter issues the start condition, and the slave address
followed by the word address it is to read. After the word
address acknowledge, the master immediately reissues
the start condition and the slave address with the R/W bit
set to one. This will be followed by an acknowledge from
the X24C08 and then by the eight bit word. The read
operation is terminated by the master; by not responding
with an acknowledge and by issuing a stop condition.
Refer to Figure 8 for the address, acknowledge and data
transfer sequence.

Figure 7. Current Address Read

3842 FHD F13

BUS ACTIVITY:
MASTER

SDA LINE

BUS ACTIVITY:
X24C08

S
T
A
R
T

SLAVE

ADDRESS

S

S

T
O
P

P

A
C
K

DATA

Figure 8. Random Read

3842 FHD F14

BUS ACTIVITY:
MASTER

SDA LINE

BUS ACTIVITY:
X24C08

S
T
A
R
T

SLAVE

ADDRESS

S

A
C
K

S
T
A
R
T

S

WORD

ADDRESS n

A
C
K

SLAVE

ADDRESS

DATA n

A
C
K

S
T
O
P

P

X24C08

8

Sequential Read

Sequential reads can be initiated as either a current
address read or random access read. The first word is
transmitted as with the other read modes; however, the
master now responds with an acknowledge, indicating it
requires additional data. The X24C08 continues to out­put data for each acknowledge received. The read
operation is terminated by the master; by not responding
with an acknowledge and by issuing a stop condition.

The data output is sequential, with the data from address
n followed by the data from n + 1. The address counter
for read operations increments all address bits, allowing
the entire memory contents to be serially read during
one operation. At the end of the address space (address

1023) the counter “rolls over” to address 0 and the
X24C08 continues to output data for each acknowledge
received. Refer to Figure 9 for the address, acknowl­edge and data transfer sequence.

Figure 9. Sequential Read

3842 FHD F15

Figure 10. Typical System Configuration

MASTER

TRANSMITTER/

RECEIVER

SLAVE

RECEIVER

SLAVE

TRANSMITTER/

RECEIVER

MASTER

TRANSMITTER

MASTER

TRANSMITTER/

RECEIVER

PULL-UP
RESISTORS

SDA

SCL

V

CC

3842 FHD F16

BUS ACTIVITY:
MASTER

SDA LINE

BUS ACTIVITY:
X24C08

SLAVE

ADDRESS

A
C
K

A
C
K

DATA n+x

S
T
O
P

P

DATA n

A

C

K

DATA n+1

A
C
K

DATA n+2

X24C08

9

D.C. OPERATING CHARACTERISTICS (Over recommneded operating conditions, unless otherwise specified.)

Limits

Symbol Parameter Min. Max. Units Test Conditions

l

CC1

VCC Supply Current (Read) 1 SCL = VCC x 0.1/VCC x 0.9 Levels @ 100

KHz, SDA = Open,

l

CC2

VCC Supply Current (Write) 3 mA All Other Inputs = GND or VCC – 0.3V

I

SB1

(1)

VCC Standby Current 150 µA SCL = SDA = VCC – 0.3V, All Other

Inputs = GND or VCC, VCC = 5.5V

I

SB2

(1)

VCC Standby Current 50 µA SCL = SDA = VCC – 0.3V, All Other

Inputs = GND or VCC, VCC = 3V

I

LI

Input Leakage Current 10 µAVIN = GND to V

CC

I

LO

Output Leakage Current 10 µAV

OUT

= GND to V

CC

V

lL

(2)

Input Low Voltage –1.0 VCC x 0.3 V

V

IH

(2)

Input High Voltage VCC x 0.7 VCC + 0.5 V

V

OL

Output Low Voltage 0.4 V IOL = 3 mA

3842 PGM T02

*COMMENT

Stresses above those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device.
This is a stress rating only and the functional operation of
the device at these or any other conditions above those
indicated in the operational sections of this specification is
not implied. Exposure to absolute maximum rating condi­tions for extended periods may affect device reliability.

ABSOLUTE MAXIMUM RATINGS*

Temperature Under Bias................. –65°C to +135°C

Storage Temperature ...................... –65°C to +150°C

Voltage on any Pin with

Respect to VSS.................................–1.0V to +7V

D.C. Output Current ...........................................5 mA

Lead Temperature

(Soldering, 10 Seconds) .............................. 300°C

RECOMMENDED OPERATING CONDITIONS

Temperature Min. Max.

Commercial 0°C70°C
Industrial –40°C +85°C
Military –55°C +125°C

Supply Voltage Limits

X24C08 4.5V to 5.5V
X24C08-3.5 3.5V to 5.5V
X24C08-3 3V to 5.5V
X24C08-2.7 2.7V to 5.5V

CAPACITANCE TA = 25°C, F = 1.0MHZ, VCC = 5V

Symbol Test Max. Units Conditions

C

I/O

(3)

Input/Output Capacitance (SDA) 8 pF V

I/O

= 0V

C

IN

(3)

Input Capacitance (A0, A1, A2, SCL) 6 pF V

IN

= 0V

3842 PGM T04

Notes: (1) Must perform a stop command prior to measurement.

(2) VIL min and VIH max. are for reference only and are not 100% tested.
(3) This parameter is periodically sampled and not 100% tested.

X24C08

10

EQUIVALENT A.C. LOAD CIRCUITA.C. CONDITIONS OF TEST

Input Pulse Levels VCC x 0.1 to VCC x 0.9
Input Rise and

Fall Times 10ns
I/O Timing Levels VCC x 0.5

3842 PGM T05

5.0V

1533Ω

100pF

Output

3842 FHD F18

A.C. CHARACTERISTICS LIMITS (Over recommended operating conditions, unless otherwise specified.)
Read & Write Cycle Limits

Symbol Parameter Min. Max. Units

t

SCL

SCL Clock Frequency 0 100 KHz

t

I

Noise Suppression Time Constant at SCL, SDA Inputs 100 ns

t

AA

SCL Low to SDA Data Out Valid 0.3 3.5 µs

t

BUF

Time the Bus Must Be Free Before a 4.7 µs
New Transmission Can Start

t

HD:STA

Start Condition Hold Time 4.0 µs

t

LOW

Clock Low Period 4.7 µs

t

HIGH

Clock High Period 4.0 µs

t

SU:STA

Start Condition Setup Time 4.7 µs

t

HD:DAT

Data In Hold Time 0 µs

t

SU:DAT

Data In Setup Time 250 ns

t

R

SDA and SCL Rise Time 1 µs

t

F

SDA and SCL Fall Time 300 ns

t

SU:STO

Stop Condition Setup Time 4.7 µs

t

DH

Data Out Hold Time 300 ns

3842 PGM T06

POWER-UP TIMING

Symbol Parameter Max. Units

t

PUR

(4)

Power-Up to Read Operation 1 ms

t

PUW

(4)

Power-Up to Write Operation 5 ms

3842 PGM T07

Bus Timing

t

SU:STA

t

HD:STAtHD:DAT

t

SU:DAT

t

LOW

t

SU:STO

t

R

t

BUF

SCL

SDA IN

SDA OUT

t

DH

t

AA

t

F

t

HIGH

3842 FHD F04

Note: (4) t

PUR

and t

PUW

are the delays required from the time VCC is stable until the specified operation can be initiated. These param-

eters are periodically sampled and not 100% tested.

X24C08

11

WRITE CYCLE LIMITS

Symbol Parameter Min. Typ.

(5)

Max. Units

t

WR

(6)

Write Cycle Time 5 10 ms

3842 PGM T08

The write cycle time is the time from a valid stop
condition of a write sequence to the end of the internal
erase/program cycle. During the write cycle, the X24C08

bus interface circuits are disabled, SDA is allowed to
remain high, and the device does not respond to its slave
address.

3842 FHD F05

Write Cycle Timing

Notes: (5) Typical values are for TA = 25°C and nominal supply voltage (5V).

(6) tWR is the minimum cycle time from the system perspective when polling techniques are not used. It is the maximum time the

device requires to perform the internal write operation.

SYMBOL TABLE

Must be
steady

Will be
steady

May change
from Low to
High

Will change
from Low to
High

May change
from High to
Low

Will change
from High to
Low

Don’t Care:
Changes
Allowed

Changing:
State Not
Known

N/A

Center Line
is High
Impedance

OUTPUTSINPUTSWAVEFORM

Guidelines for Calculating Typical Values of Bus
Pull-Up Resistors

3842 FHD F17

120
100

80

40

60

20

20 40 60 80

100

120

0

0

RESISTANCE (KΩ)

BUS CAPACITANCE (pF)

MIN.
RESISTANCE

MAX.
RESISTANCE

R

MAX

=

C

BUS

tRMAX

R

MIN

=

I

OL MIN

V

CC MAX

=1.8KΩ

SCL

SDA 8th BIT

WORD n

ACK

t

WR

STOP

CONDITION

START

CONDITION

X24C08

ADDRESS

X24C08

12

NOTES

X24C08

13

0.150 (3.80)

0.158 (4.00)

0.228 (5.80)

0.244 (6.20)

0.014 (0.35)

0.019 (0.49)

PIN 1

PIN 1 INDEX

0.010 (0.25)

0.020 (0.50)

0.050 (1.27)

0.188 (4.78)

0.197 (5.00)

0.004 (0.19)

0.010 (0.25)

0.053 (1.35)

0.069 (1.75)

(4X) 7°

0.027 (0.683)

0.037 (0.937)

0.0075 (0.19)

0.010 (0.25)

0° – 8°

X 45°

3926 FHD F22

8-LEAD PLASTIC SMALL OUTLINE GULL WING PACKAGE TYPE S

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESIS IN MILLIMETERS)

PACKAGING INFORMATION

X24C08

14

0.020 (0.51)

0.016 (0.41)

0.150 (3.81)

0.125 (3.18)

0.325 (8.25)

0.300 (7.62)

0.110 (2.79)

0.090 (2.29)

0.430 (10.92)

0.360 (9.14)

0.300

(7.62) REF.

PIN 1 INDEX

0.140 (3.56)

0.130 (3.30)

0.020 (0.51)

0.015 (0.38)

3926 FHD F01

PIN 1

SEATING

PLANE

0.062 (1.57)

0.058 (1.47)

0.255 (6.47)

0.245 (6.22)

0.060 (1.52)

0.020 (0.51)

TYP. 0.010 (0.25)

0°

15°

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

0.092 (2.34)
DIA. NOM.

HALF SHOULDER WIDTH ON

ALL END PINS OPTIONAL

0.015 (0.38)
MAX.

PACKAGING INFORMATION

8-LEAD PLASTIC DUAL IN-LINE PACKAGE TYPE P

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

X24C08

15

PACKAGING INFORMATION

0.150 (3.80)

0.158 (4.00)

0.228 (5.80)

0.244 (6.20)

0.014 (0.35)

0.019 (0.49)

PIN 1

PIN 1 INDEX

0.010 (0.25)

0.020 (0.50)

0.050 (1.27)

0.336 (8.55)

0.345 (8.75)

0.004 (0.19)

0.010 (0.25)

0.053 (1.35)

0.069 (1.75)

(4X) 7°

0.027 (0.683)

0.037 (0.937)

0.0075 (0.19)

0.010 (0.25)

0° – 8°

X 45°

3926 FHD F10

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

14-LEAD PLASTIC SMALL OUTLINE GULL WING PACKAGE TYPE S

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

X24C08

16

LIMITED WARRANTY

Devices sold by Xicor, Inc. are covered by the warranty and patent indemnification provisions appearing in its Terms of Sale only. Xicor, Inc. makes no warranty,
express, statutory, implied, or by description regarding the information set forth herein or regarding the freedom of the described devices from patent infringement.
Xicor, Inc. makes no warranty of merchantability or fitness for any purpose. Xicor, Inc. reserves the right to discontinue production and change specifications and
prices at any time and without notice.

Xicor, Inc. assumes no responsibility for the use of any circuitry other than circuitry embodied in a Xicor, Inc. product. No other circuits, patents, licenses are
implied.

U.S. PATENTS

Xicor products are covered by one or more of the following U.S. Patents: 4,263,664; 4,274,012; 4,300,212; 4,314,265; 4,326,134; 4,393,481; 4,404,475;
4,450,402; 4,486,769; 4,488,060; 4,520,461; 4,533,846; 4,599,706; 4,617,652; 4,668,932; 4,752,912; 4,829, 482; 4,874, 967; 4,883, 976. Foreign patents and
additional patents pending.

LIFE RELATED POLICY

In situations where semiconductor component failure may endanger life, system designers using this product should design the system with appropriate error
detection and correction, redundancy and back-up features to prevent such an occurence.

Xicor's products are not authorized for use in critical components in life support devices or systems.

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and whose
failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant
injury to the user.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.

Device

ORDERING INFORMATION

VCC Limits

Blank = 4.5V to 5.5V

3.5 = 3.5V to 5.5V
3 = 3.0V to 5.5V

2.7 = 2.7V to 5.5V

Temperature Range

Blank = Commercial = 0°C to +70°C
I = Industrial = –40°C to +85°C
M = Military = –55°C to +125°C

Package

P = 8-Lead Plastic DIP
S8 = 8-Lead SOIC
S14 = 14-Lead SOIC

Part Mark Convention

X24C08 P T -V

X24C08 X

X

P = 8-Lead Plastic DIP
S8 = 8-Lead SOIC
S = 14-Lead SOIC

Blank = 4.5V to 5.5V, 0°C to +70°C
I = 4.5V to 5.5V, –40°C to +85°C
B = 3.5V to 5.5V, 0°C to +70°C
C = 3.5V to 5.5V, –40°C to +85°C
D = 3.0V to 5.5V, 0°C to +70°C
E = 3.0V to 5.5V, –40°C to +85°C
F = 2.7V to 5.5V, 0°C to +70°C
G = 2.7V to 5.5V, –40°C to +85°C
