X24C04
1
Serial E2PROM
© Xicor, 1991 Patents Pending Characteristics subject to change without notice
FEATURES
• 2.7V to 5.5V Power Supply
• Low Power CMOS
—Active Read Current Less Than 1 mA
—Active Write Current Less Than 3 mA
—Standby Current Less Than 50 µA
• Internally Organized 512 x 8
• 2 Wire Serial Interface
—Bidirectional Data Transfer Protocol
• Sixteen Byte Page Write Mode
—Minimizes Total Write Time Per Byte
• Self Timed Write Cycle
—Typical Write Cycle Time of 5 ms
• High Reliability
—Endurance: 100,000 Cycles
—Data Retention: 100 Years
• 8 Pin Mini-DIP, 8 Pin SOIC and 14 Pin SOIC
Packages
4K X24C04 512 x 8 Bit
3839 FHD F01
DESCRIPTION
The X24C04 is a CMOS 4096 bit serial E2PROM,
internally organized 512 x 8. The X24C04 features a
serial interface and software protocol allowing operation
on a simple two wire bus.
The X24C04 is fabricated with Xicor’s advanced CMOS
Textured Poly Floating Gate Technology.
The X24C04 utilizes Xicor’s proprietary DirectWrite™
cell providing a minimum endurance of 100,000 cycles
and a minimum data retention of 100 years.
FUNCTIONAL DIAGRAM
START
STOP
LOGIC
CONTROL
LOGIC
SLAVE ADDRESS
REGISTER
+COMPARATOR
H.V. GENERATION
TIMING
& CONTROL
WORD
ADDRESS
COUNTER
XDEC
YDEC
D
OUT
ACK
E
2
PROM
32 X 128
DATA REGISTER
START CYCLE
(8) V
CC
R/W
PIN
(4) V
SS
(5) SDA
(6) SCL
(3) A
2
(2) A
1
(1) A
0
D
OUT
LOAD INC
CK
8
(7) TEST
3839-1
DirectWrite™ is a trademark of Xicor, Inc.
2
X24C04

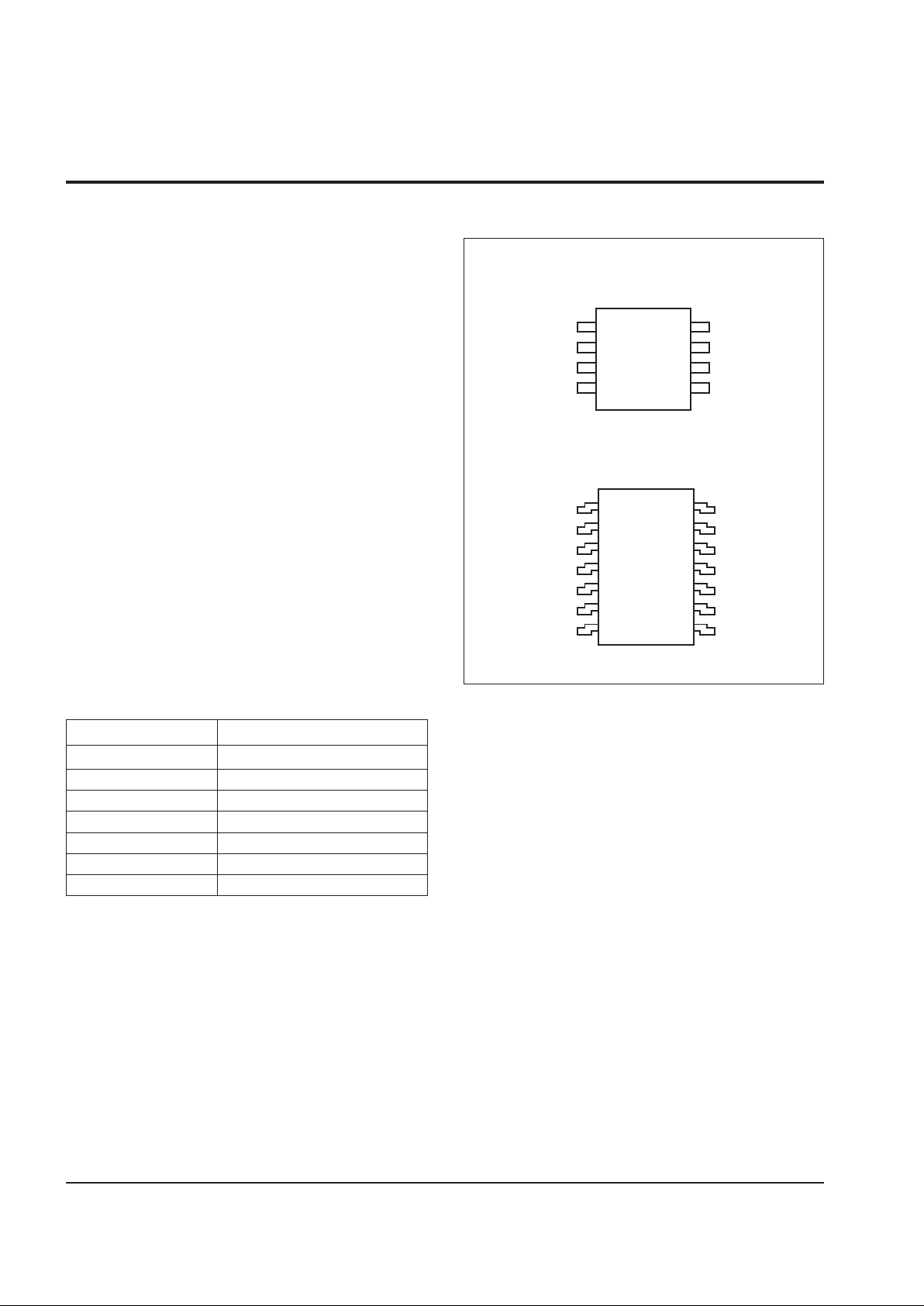

PIN CONFIGURATIONPIN DESCRIPTIONS
Serial Clock (SCL)
The SCL input is used to clock all data into and out of the
device.
Serial Data (SDA)
SDA is a bidirectional pin used to transfer data into and
out of the device. It is an open drain output and may be
wire-ORed with any number of open drain or open
collector outputs.
An open drain output requires the use of a pull-up
resistor. For selecting typical values, refer to the Pull-Up
Resistor selection graph at the end of this data sheet.
Address (A0)
A0 is unused by the X24C04, however, it must be tied to
VSS to insure proper device operation.
Address (A1, A2)
The Address inputs are used to set the appropriate bits
of the seven bit slave address. These inputs can be used
static or actively driven. If used statically they must be
tied to VSS or VCC as appropriate. If driven they must be
driven to VSS or to VCC.
3839 FHD F02
3839 FHD F03
PIN NAMES
Symbol Description
A0–A
2
Address Inputs
SDA Serial Data
SCL Serial Clock
TEST Hold at V
SS
V
SS
Ground
V
CC
Supply Voltage
NC No Connect
3839 PGM T01
SOIC
A
0
A
1
A
2
V
SS
1
2
3
4
8
7
6
5
V
CC
TEST
SCL
SDA
X24C04
DIP/SOIC
NC
A
0
A
1
NC
A
2
V
SS
NC
1
2
3
4
5
6
7
14
13
12
11
10
9
8
NC
V
CC
TEST
NC
SCL
SDA
NC
X24C04
X24C04
3
DEVICE OPERATION
The X24C04 supports a bidirectional bus oriented protocol. The protocol defines any device that sends data
onto the bus as a transmitter, and the receiving device
as the receiver. The device controlling the transfer is a
master and the device being controlled is the slave. The
master will always initiate data transfers, and provide
the clock for both transmit and receive operations.
Therefore, the X24C04 will be considered a slave in all
applications.
Clock and Data Conventions
Data states on the SDA line can change only during SCL
LOW. SDA state changes during SCL HIGH are reserved for indicating start and stop conditions. Refer to
Figures 1 and 2.
Start Condition
All commands are preceded by the start condition,
which is a HIGH to LOW transition of SDA when SCL is
HIGH. The X24C04 continuously monitors the SDA and
SCL lines for the start condition and will not respond to
any command until this condition has been met.

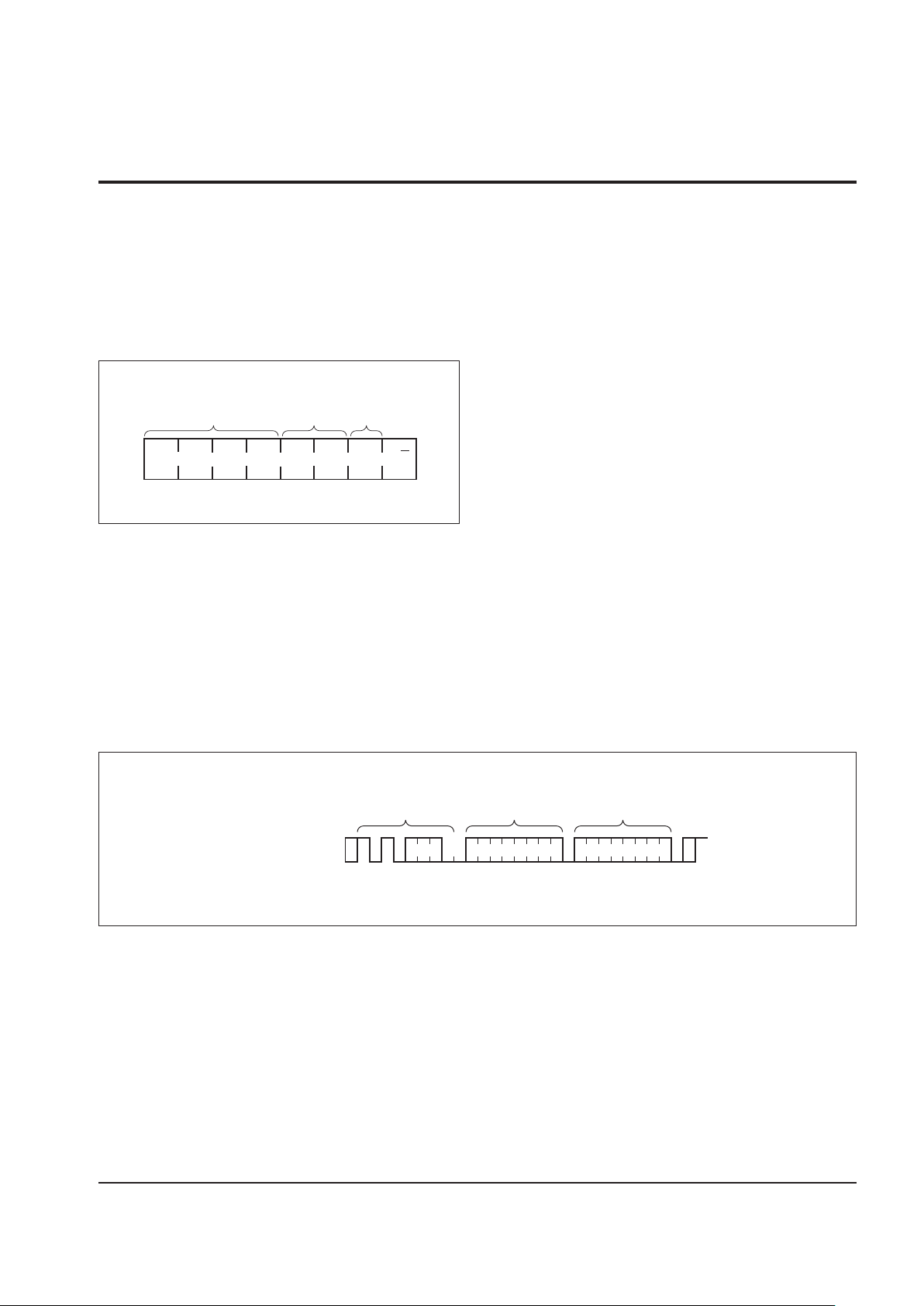

Figure 1. Data Validity
3839 FHD F06
SCL
SDA
DATA STABLE DATA
CHANGE
Figure 2. Definition of Start and Stop
3839 FHD F07
SCL
SDA
START BIT STOP BIT
4
X24C04
Stop Condition
All communications must be terminated by a stop condition, which is a LOW to HIGH transition of SDA when SCL
is HIGH. The stop condition is also used by the X24C04
to place the device in the standby power mode after a read
sequence. A stop condition can only be issued after the
transmitting device has released the bus.
Acknowledge
Acknowledge is a software convention used to indicate
successful data transfer. The transmitting device, either
master or slave, will release the bus after transmitting
eight bits. During the ninth clock cycle the receiver will
pull the SDA line LOW to acknowledge that it received
the eight bits of data. Refer to Figure 3.
The X24C04 will respond with an acknowledge after
recognition of a start condition and its slave address. If
both the device and a write operation have been selected, the X24C04 will respond with an acknowledge
after the receipt of each subsequent eight bit word.
In the read mode the X24C04 will transmit eight bits of
data, release the SDA line and monitor the line for an
acknowledge. If an acknowledge is detected and no
stop condition is generated by the master, the X24C04
will continue to transmit data. If an acknowledge is not
detected, the X24C04 will terminate further data transmissions. The master must then issue a stop condition
to return the X24C04 to the standby power mode and
place the device into a known state.
Figure 3. Acknowledge Response From Receiver
3839 FHD F08
SCL FROM
MASTER
DATA
OUTPUT
FROM
TRANSMITTER
1
89
DATA
OUTPUT
FROM
RECEIVER
START
ACKNOWLEDGE
X24C04
5
DEVICE ADDRESSING
Following a start condition the master must output the
address of the slave it is accessing. The most significant
four bits of the slave are the device type identifier (see
Figure 4). For the X24C04 this is fixed as 1010[B].
The last bit of the slave address defines the operation to
be performed. When set to one a read operation is
selected, when set to zero a write operation is selected.
Following the start condition, the X24C04 monitors the
SDA bus comparing the slave address being transmitted with its slave address (device type and state of A
1
and A2 inputs). Upon a correct compare the X24C04
outputs an acknowledge on the SDA line. Depending on
the state of the R/W bit, the X24C04 will execute a read
or write operation.
WRITE OPERATIONS
Byte Write
For a write operation, the X24C04 requires a second
address field. This address field is the word address,
comprised of eight bits, providing access to any one of the
512 words of memory. Upon receipt of the word address
the X24C04 responds with an acknowledge, and awaits
the next eight bits of data, again responding with an
acknowledge. The master then terminates the transfer by
generating a stop condition, at which time the X24C04
begins the internal write cycle to the nonvolatile memory.
While the internal write cycle is in progress the X24C04
inputs are disabled, and the device will not respond to any
requests from the master. Refer to Figure 5 for the
address, acknowledge and data transfer sequence.
Figure 4. Slave Address
3839 FHD F09
The next two significant bits address a particular device.
A system could have up to four X24C04 devices on the
bus (see Figure 10). The four addresses are defined by
the state of the A1 and A2 inputs.
The next bit of the slave address is an extension of the
array’s address and is concatenated with the eight bits
of address in the word address field, providing direct
access to the whole 512 x 8 array.
Figure 5. Byte Write
BUS ACTIVITY:
MASTER
SDA LINE
BUS ACTIVITY:
X24C04
S
T
A
R
T
SLAVE
ADDRESS
S
S
T
O
P
P
A
C
K
A
C
K
A
C
K
WORD
ADDRESS DATA
3839 FHD F10
101 0 A2 A1 A0 R/W
DEVICE TYPE
IDENTIFIER
DEVICE
ADDRESS
HIGH
ORDER
WORD
ADDRESS
6
X24C04
Page Write
The X24C04 is capable of a sixteen byte page write
operation. It is initiated in the same manner as the byte
write operation, but instead of terminating the write cycle
after the first data word is transferred, the master can
transmit up to fifteen more words. After the receipt of each
word, the X24C04 will respond with an acknowledge.
After the receipt of each word, the four low order address
bits are internally incremented by one. The high order five
bits of the address remain constant. If the master should
transmit more than sixteen words prior to generating the
stop condition, the address counter will “roll over” and the
previously written data will be overwritten. As with the byte
write operation, all inputs are disabled until completion of
the internal write cycle. Refer to Figure 6 for the address,
acknowledge and data transfer sequence.
Acknowledge Polling
The disabling of the inputs can be used to take advantage of the typical 5 ms write cycle time. Once the stop
condition is issued to indicate the end of the host’s write
operation the X24C04 initiates the internal write cycle.
ACK polling can be initiated immediately. This involves
issuing the start condition followed by the slave address
for a write operation. If the X24C04 is still busy with the
write operation no ACK will be returned. If the X24C04
has completed the write operation an ACK will be
returned and the host can then proceed with the next
read or write operation. Refer to Flow 1.
READ OPERATIONS
Read operations are initiated in the same manner as
write operations with the exception that the R/W bit of the
slave address is set to a one. There are three basic read
operations: current address read, random read and
sequential read.
It should be noted that the ninth clock cycle of the read
operation is not a “don’t care.” To terminate a read
operation, the master must either issue a stop condition
during the ninth cycle or hold SDA HIGH during the ninth
clock cycle and then issue a stop condition.
Figure 6. Page Write
BUS ACTIVITY:
MASTER
SDA LINE
BUS ACTIVITY:
X24C04
S
T
A
R
T
SLAVE
ADDRESS
S
S
T
O
P
P
A
C
K
A
C
K
A
C
K
A
C
K
A
C
K
WORD
ADDRESS (n) DATA n DATA n+1 DATA n+15
NOTE: In this example n = xxxx 000 (B); x = 1 or 0
3839 FHD F11
Flow 1. ACK Polling Sequence
WRITE OPERATION
COMPLETED
ENTER ACK POLLING
ISSUE
STAR T
ISSUE SLAVE
ADDRESS AND R/W = 0
ACK
RETURNED?
NEXT
OPERATION
A WRITE?
ISSUE BYTE
ADDRESS
PROCEED
ISSUE STOP
NO
YES
YES
PROCEED
ISSUE STOP
NO
3839 FHD F12
