XICOR X24C04S8-3, X24C04S8-2,7, X24C04S8, X24C04S14M-3,5, X24C04S14M-3 Datasheet

X24C04

1

Serial E2PROM

© Xicor, 1991 Patents Pending Characteristics subject to change without notice

FEATURES

• 2.7V to 5.5V Power Supply

• Low Power CMOS

—Active Read Current Less Than 1 mA
—Active Write Current Less Than 3 mA
—Standby Current Less Than 50 µA

• Internally Organized 512 x 8

• 2 Wire Serial Interface

—Bidirectional Data Transfer Protocol

• Sixteen Byte Page Write Mode

—Minimizes Total Write Time Per Byte

• Self Timed Write Cycle

—Typical Write Cycle Time of 5 ms

• High Reliability

—Endurance: 100,000 Cycles
—Data Retention: 100 Years

• 8 Pin Mini-DIP, 8 Pin SOIC and 14 Pin SOIC

Packages

4K X24C04 512 x 8 Bit

3839 FHD F01

DESCRIPTION

The X24C04 is a CMOS 4096 bit serial E2PROM,
internally organized 512 x 8. The X24C04 features a
serial interface and software protocol allowing operation
on a simple two wire bus.

The X24C04 is fabricated with Xicor’s advanced CMOS
Textured Poly Floating Gate Technology.

The X24C04 utilizes Xicor’s proprietary DirectWrite™
cell providing a minimum endurance of 100,000 cycles
and a minimum data retention of 100 years.

FUNCTIONAL DIAGRAM

START

STOP

LOGIC

CONTROL

LOGIC

SLAVE ADDRESS

REGISTER

+COMPARATOR

H.V. GENERATION

TIMING

& CONTROL

WORD
ADDRESS
COUNTER

XDEC

YDEC

D

OUT

ACK

E

2

PROM

32 X 128

DATA REGISTER

START CYCLE

(8) V

CC

R/W

PIN

(4) V

SS

(5) SDA

(6) SCL

(3) A

2

(2) A

1

(1) A

0

D

OUT

LOAD INC

CK

8

(7) TEST

3839-1

DirectWrite™ is a trademark of Xicor, Inc.

2

X24C04

PIN CONFIGURATIONPIN DESCRIPTIONS

Serial Clock (SCL)

The SCL input is used to clock all data into and out of the
device.

Serial Data (SDA)

SDA is a bidirectional pin used to transfer data into and
out of the device. It is an open drain output and may be
wire-ORed with any number of open drain or open
collector outputs.

An open drain output requires the use of a pull-up
resistor. For selecting typical values, refer to the Pull-Up
Resistor selection graph at the end of this data sheet.

Address (A0)

A0 is unused by the X24C04, however, it must be tied to
VSS to insure proper device operation.

Address (A1, A2)

The Address inputs are used to set the appropriate bits
of the seven bit slave address. These inputs can be used
static or actively driven. If used statically they must be
tied to VSS or VCC as appropriate. If driven they must be
driven to VSS or to VCC.

3839 FHD F02

3839 FHD F03

PIN NAMES

Symbol Description

A0–A

2

Address Inputs
SDA Serial Data
SCL Serial Clock
TEST Hold at V

SS

V

SS

Ground
V

CC

Supply Voltage
NC No Connect

3839 PGM T01

SOIC

A

0

A

1

A

2

V

SS

1
2
3
4

8
7
6
5

V

CC

TEST
SCL
SDA

X24C04

DIP/SOIC

NC

A

0

A

1

NC

A

2

V

SS

NC

1
2
3
4
5
6
7

14
13
12
11
10

9
8

NC
V

CC

TEST
NC
SCL
SDA
NC

X24C04

X24C04

3

DEVICE OPERATION

The X24C04 supports a bidirectional bus oriented pro­tocol. The protocol defines any device that sends data
onto the bus as a transmitter, and the receiving device
as the receiver. The device controlling the transfer is a
master and the device being controlled is the slave. The
master will always initiate data transfers, and provide
the clock for both transmit and receive operations.
Therefore, the X24C04 will be considered a slave in all
applications.

Clock and Data Conventions

Data states on the SDA line can change only during SCL
LOW. SDA state changes during SCL HIGH are re­served for indicating start and stop conditions. Refer to
Figures 1 and 2.

Start Condition

All commands are preceded by the start condition,
which is a HIGH to LOW transition of SDA when SCL is
HIGH. The X24C04 continuously monitors the SDA and
SCL lines for the start condition and will not respond to
any command until this condition has been met.

Figure 1. Data Validity

3839 FHD F06

SCL

SDA

DATA STABLE DATA

CHANGE

Figure 2. Definition of Start and Stop

3839 FHD F07

SCL

SDA

START BIT STOP BIT

4

X24C04

Stop Condition

All communications must be terminated by a stop condi­tion, which is a LOW to HIGH transition of SDA when SCL
is HIGH. The stop condition is also used by the X24C04
to place the device in the standby power mode after a read
sequence. A stop condition can only be issued after the
transmitting device has released the bus.

Acknowledge

Acknowledge is a software convention used to indicate
successful data transfer. The transmitting device, either
master or slave, will release the bus after transmitting
eight bits. During the ninth clock cycle the receiver will
pull the SDA line LOW to acknowledge that it received
the eight bits of data. Refer to Figure 3.

The X24C04 will respond with an acknowledge after
recognition of a start condition and its slave address. If
both the device and a write operation have been se­lected, the X24C04 will respond with an acknowledge
after the receipt of each subsequent eight bit word.

In the read mode the X24C04 will transmit eight bits of
data, release the SDA line and monitor the line for an
acknowledge. If an acknowledge is detected and no
stop condition is generated by the master, the X24C04
will continue to transmit data. If an acknowledge is not
detected, the X24C04 will terminate further data trans­missions. The master must then issue a stop condition
to return the X24C04 to the standby power mode and
place the device into a known state.

Figure 3. Acknowledge Response From Receiver

3839 FHD F08

SCL FROM

MASTER

DATA

OUTPUT

FROM

TRANSMITTER

1

89

DATA

OUTPUT

FROM

RECEIVER

START

ACKNOWLEDGE

X24C04

5

DEVICE ADDRESSING

Following a start condition the master must output the
address of the slave it is accessing. The most significant
four bits of the slave are the device type identifier (see
Figure 4). For the X24C04 this is fixed as 1010[B].

The last bit of the slave address defines the operation to
be performed. When set to one a read operation is
selected, when set to zero a write operation is selected.

Following the start condition, the X24C04 monitors the
SDA bus comparing the slave address being transmit­ted with its slave address (device type and state of A

1

and A2 inputs). Upon a correct compare the X24C04
outputs an acknowledge on the SDA line. Depending on
the state of the R/W bit, the X24C04 will execute a read
or write operation.

WRITE OPERATIONS
Byte Write

For a write operation, the X24C04 requires a second
address field. This address field is the word address,
comprised of eight bits, providing access to any one of the
512 words of memory. Upon receipt of the word address
the X24C04 responds with an acknowledge, and awaits
the next eight bits of data, again responding with an
acknowledge. The master then terminates the transfer by
generating a stop condition, at which time the X24C04
begins the internal write cycle to the nonvolatile memory.
While the internal write cycle is in progress the X24C04
inputs are disabled, and the device will not respond to any
requests from the master. Refer to Figure 5 for the
address, acknowledge and data transfer sequence.

Figure 4. Slave Address

3839 FHD F09

The next two significant bits address a particular device.
A system could have up to four X24C04 devices on the
bus (see Figure 10). The four addresses are defined by
the state of the A1 and A2 inputs.

The next bit of the slave address is an extension of the
array’s address and is concatenated with the eight bits
of address in the word address field, providing direct
access to the whole 512 x 8 array.

Figure 5. Byte Write

BUS ACTIVITY:
MASTER

SDA LINE

BUS ACTIVITY:
X24C04

S
T
A
R
T

SLAVE

ADDRESS

S

S
T
O
P

P

A
C
K

A
C
K

A
C
K

WORD

ADDRESS DATA

3839 FHD F10

101 0 A2 A1 A0 R/W

DEVICE TYPE

IDENTIFIER

DEVICE

ADDRESS

HIGH

ORDER

WORD

ADDRESS

6

X24C04

Page Write

The X24C04 is capable of a sixteen byte page write
operation. It is initiated in the same manner as the byte
write operation, but instead of terminating the write cycle
after the first data word is transferred, the master can
transmit up to fifteen more words. After the receipt of each
word, the X24C04 will respond with an acknowledge.

After the receipt of each word, the four low order address
bits are internally incremented by one. The high order five
bits of the address remain constant. If the master should
transmit more than sixteen words prior to generating the
stop condition, the address counter will “roll over” and the
previously written data will be overwritten. As with the byte
write operation, all inputs are disabled until completion of
the internal write cycle. Refer to Figure 6 for the address,
acknowledge and data transfer sequence.

Acknowledge Polling

The disabling of the inputs can be used to take advan­tage of the typical 5 ms write cycle time. Once the stop
condition is issued to indicate the end of the host’s write
operation the X24C04 initiates the internal write cycle.
ACK polling can be initiated immediately. This involves
issuing the start condition followed by the slave address
for a write operation. If the X24C04 is still busy with the
write operation no ACK will be returned. If the X24C04
has completed the write operation an ACK will be
returned and the host can then proceed with the next
read or write operation. Refer to Flow 1.

READ OPERATIONS

Read operations are initiated in the same manner as
write operations with the exception that the R/W bit of the
slave address is set to a one. There are three basic read
operations: current address read, random read and
sequential read.

It should be noted that the ninth clock cycle of the read
operation is not a “don’t care.” To terminate a read
operation, the master must either issue a stop condition
during the ninth cycle or hold SDA HIGH during the ninth
clock cycle and then issue a stop condition.

Figure 6. Page Write

BUS ACTIVITY:
MASTER

SDA LINE

BUS ACTIVITY:
X24C04

S

T
A
R

T

SLAVE

ADDRESS

S

S
T
O
P

P

A
C
K

A
C
K

A
C
K

A
C
K

A
C
K

WORD

ADDRESS (n) DATA n DATA n+1 DATA n+15

NOTE: In this example n = xxxx 000 (B); x = 1 or 0

3839 FHD F11

Flow 1. ACK Polling Sequence

WRITE OPERATION

COMPLETED

ENTER ACK POLLING

ISSUE

STAR T

ISSUE SLAVE

ADDRESS AND R/W = 0

ACK

RETURNED?

NEXT

OPERATION

A WRITE?

ISSUE BYTE

ADDRESS

PROCEED

ISSUE STOP

NO

YES

YES

PROCEED

ISSUE STOP

NO

3839 FHD F12

X24C04

7

Current Address Read

Internally the X24C04 contains an address counter that
maintains the address of the last word accessed,
incremented by one. Therefore, if the last access (either
a read or write) was to address n, the next read operation
would access data from address n + 1. Upon receipt of
the slave address with the R/W bit set to one, the
X24C04 issues an acknowledge and transmits the eight
bit word. The read operation is terminated by the master;
by not responding with an acknowledge and by issuing
a stop condition. Refer to Figure 7 for the sequence of
address, acknowledge and data transfer.

Random Read

Random read operations allow the master to access
any memory location in a random manner. Prior to
issuing the slave address with the R/W bit set to one,
the master must first perform a “dummy” write opera­tion. The master issues the start condition, and the
slave address followed by the word address it is to read.
After the word address acknowledge, the master im­mediately reissues the start condition and the slave
address with the R/W bit set to one. This will be followed
by an acknowledge from the X24C04 and then by the
eight bit word. The read operation is terminated by the
master; by not responding with an acknowledge and by
issuing a stop condition. Refer to Figure 8 for the
address, acknowledge and data transfer sequence.

Figure 7. Current Address Read

BUS ACTIVITY:
MASTER

SDA LINE

BUS ACTIVITY:
X24C04

S
T
A
R
T

SLAVE

ADDRESS

S

S
T
O
P

P

A
C
K

DATA

3839 FHD F13

Figure 8. Random Read

3839 FHD F14

BUS ACTIVITY:
MASTER

SDA LINE

BUS ACTIVITY:
X24C04

S
T

A
R
T

SLAVE

ADDRESS

S

S
T
O
P

P

A
C
K

A
C
K

A

C

K

WORD

ADDRESS n

SLAVE

ADDRESS DATA n

S
T
A
R
T

S

8

X24C04

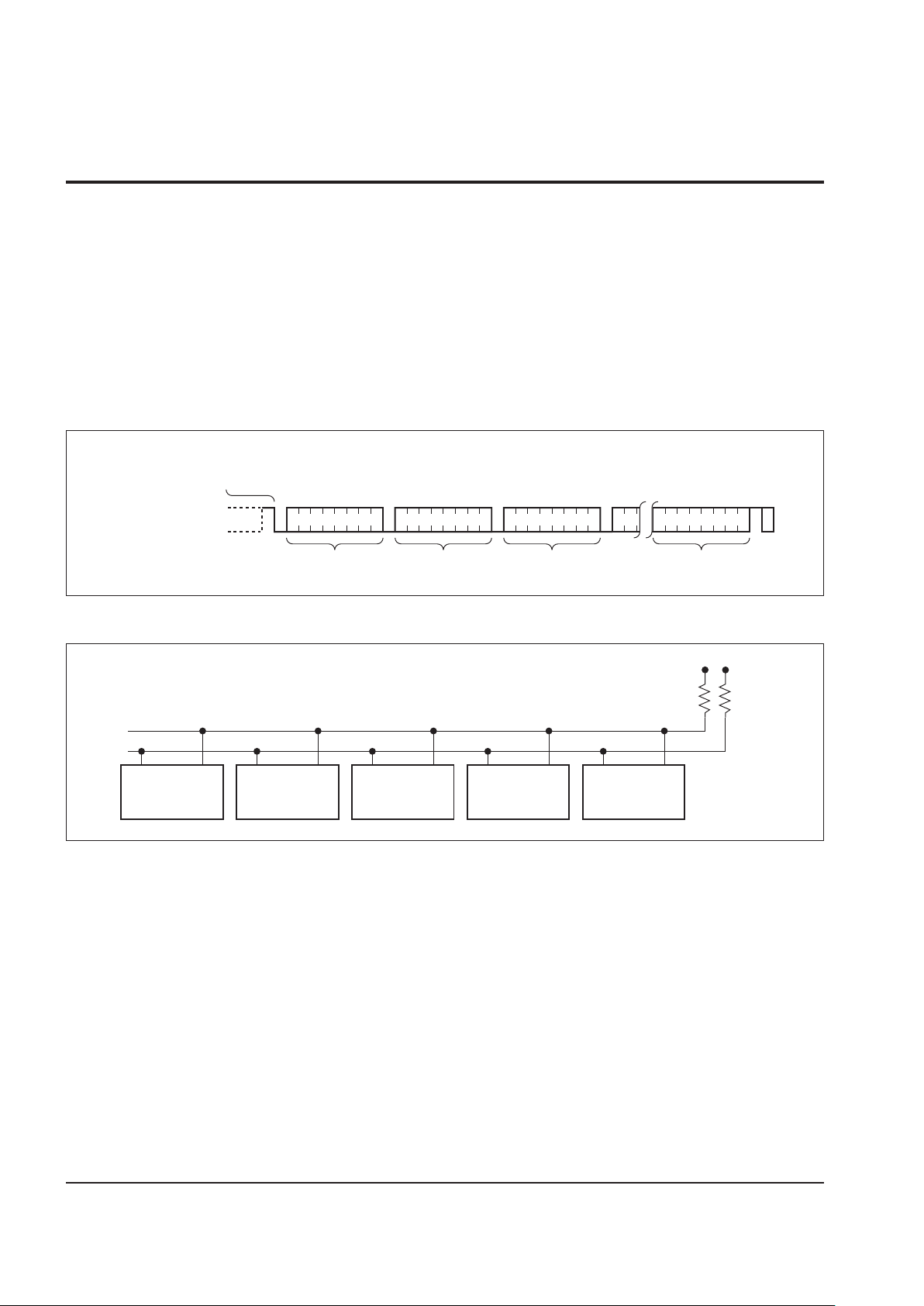

Sequential Read

Sequential Read can be initiated as either a current
address read or random access read. The first word is
transmitted as with the other modes, however, the
master now responds with an acknowledge, indicating it
requires additional data. The X24C04 continues to out­put data for each acknowledge received. The read
operation is terminated by the master; by not responding
with an acknowledge and by issuing a stop condition.

The data output is sequential, with the data from address
n followed by the data from n + 1. The address counter
for read operations increments all address bits, allowing
the entire memory contents to be serially read during
one operation. At the end of the address space (address

511), the counter “rolls over” to address 0 and the
X24C04 continues to output data for each acknowledge
received. Refer to Figure 9 for the address, acknowl­edge and data transfer sequence.

Figure 9. Sequential Read

BUS ACTIVITY:
MASTER

SDA LINE

BUS ACTIVITY:
X24C04

SLAVE

ADDRESS

A
C
K

A
C
K

DATA n+x

S
T
O
P

P

DATA n

A
C
K

DATA n+1

A
C
K

DATA n+2

3839 FHD F16

Figure 10. Typical System Configuration

MASTER

TRANSMITTER/

RECEIVER

SLAVE

RECEIVER

SLAVE

TRANSMITTER/

RECEIVER

MASTER

TRANSMITTER

MASTER

TRANSMITTER/

RECEIVER

PULL-UP
RESISTORS

SDA

SCL

V

CC

3839 FHD F17

X24C04

9

D.C. OPERATING CHARACTERISTICS (Over recommended operating conditions unless otherwise specified)

Limits

Symbol Parameter Min. Max. Units Test Conditions

I

CC1

VCC Supply Current (Read) 1 SCL = V

CC

x 0.1/V

CC

x 0.9 Levels

I

CC2

VCC Supply Current (Write) 3 mA @ 100 KHz, SDA = Open, All Other

Inputs = GND or VCC – 0.3V

I

SB1

(1)

VCC Standby Current 150 µA SCL = SDA = V

CC

– 0.3V, All Other

Inputs = GND or VCC, VCC = 5.5V

I

SB2

(1)

VCC Standby Current 50 µA SCL = SDA = V

CC

– 0.3V, All Other
Inputs = GND or VCC,
VCC = 3V

I

LI

Input Leakage Current 10 µAVIN = GND to V

CC

I

LO

Output Leakage Current 10 µAV

OUT

= GND to V

CC

V

lL

(2)

Input Low Voltage –1.0 VCC x 0.3 V

V

IH

(2)

Input High Voltage VCC x 0.7 VCC + 0.5 V

V

OL

Output Low Voltage 0.4 V IOL = 3 mA

3839 PGM T03

ABSOLUTE MAXIMUM RATINGS*

Temperature Under Bias.................. –65°C to +135°C

Storage Temperature ....................... –65°C to +150°C

Voltage on any Pin with

Respect to VSS............................ –1.0V to +7.0V

D.C. Output Current ............................................5 mA

Lead Temperature

(Soldering, 10 Seconds) ............................. 300°C

*COMMENT

Stresses above those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device.
This is a stress rating only and the functional operation of
the device at these or any other conditions above those
indicated in the operational sections of this specification is
not implied. Exposure to absolute maximum rating condi­tions for extended periods may affect device reliability.

Supply Voltage Limits

X24C04 4.5V to 5.5V
X24C04-3.5 3.5V to 5.5V
X24C04-3 3V to 5.5V
X24C04-2.7 2.7V to 5.5V

3836 PGM T03

RECOMMENDED OPERATING CONDITIONS

Temperature Min. Max.

Commercial 0°C70°C

Industrial –40°C +85°C

Military –55°C +125°C

3836 PGM T02

CAPACITANCE TA = 25°C, f = 1.0MHz, VCC = 5V

Symbol Parameter Max. Units Test Conditions

C

I/O

(3)

Input/Output Capacitance (SDA) 8 pF V

I/O

= 0V

C

IN

(3)

Input Capacitance (A0, A1, A2, SCL) 6 pF V

IN

= 0V

3839 PGM T05

Notes: (1) Must perform a stop command prior to measurement.

(2) VIL min. and VIH max. are for reference only and are not tested.
(3) This parameter is periodically sampled and not 100% tested.

10

X24C04

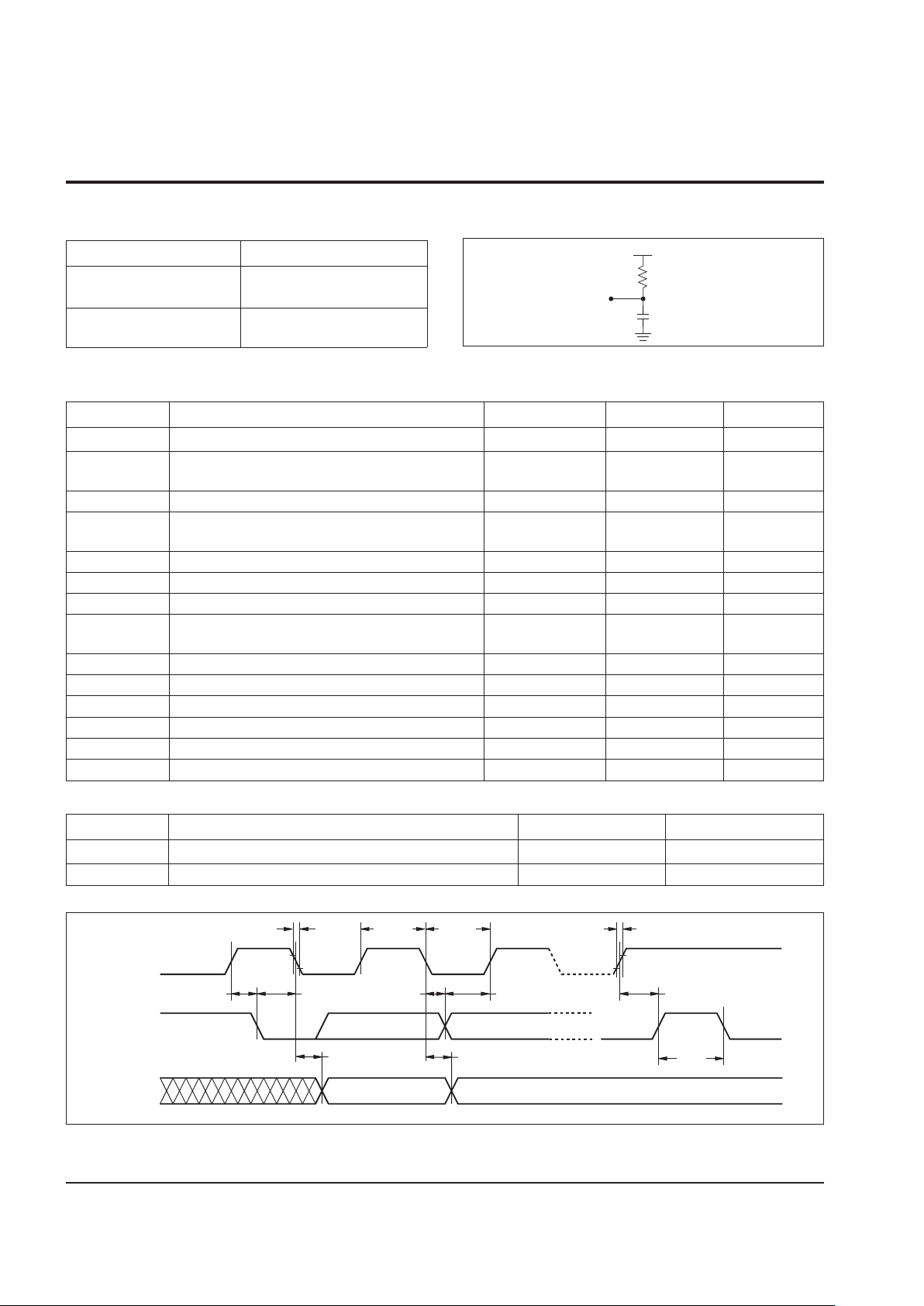

Bus Timing

t

SU:STA

t

HD:STAtHD:DAT

t

SU:DAT

t

LOW

t

SU:STO

t

R

t

BUF

SCL

SDA IN

SDA OUT

t

DH

t

AA

t

F

t

HIGH

3839 FHD F04

A.C. CONDITIONS OF TEST

Input Pulse Levels VCC x 0.1 to VCC x 0.9
Input Rise and

Fall Times 10 ns
Input and Output

Timing Levels VCC x 0.5

3839 PGM T02

5.0V

1533Ω

100pF

Output

EQUIVALENT A.C. LOAD CIRCUIT

A.C. CHARACTERISTICS (Over recommended operating conditions unless otherwise specified)
Read & Write Cycle Limits

Symbol Parameter Min. Max. Units

f

SCL

SCL Clock Frequency 0 100 KHz

T

I

Noise Suppression Time 100 ns
Constant at SCL, SDA Inputs

t

AA

SCL Low to SDA Data Out Valid 0.3 3.5 µs

t

BUF

Time the Bus Must Be Free Before a 4.7 µs
New Transmission Can Start

t

HD:STA

Start Condition Hold Time 4.0 µs

t

LOW

Clock Low Period 4.7 µs

t

HIGH

Clock High Period 4.0 µs

t

SU:STA

Start Condition Setup Time 4.7 µs
(for a Repeated Start Condition)

t

HD:DAT

Data In Hold Time 0 µs

t

SU:DAT

Data In Setup Time 250 ns

t

R

SDA and SCL Rise Time 1 µs

t

F

SDA and SCL Fall Time 300 ns

t

SU:STO

Stop Condition Setup Time 4.7 µs

t

DH

Data Out Hold Time 300 ns

3839 PGM T06

POWER-UP TIMING

Symbol Parameter Max. Units

t

PUR

(4)

Power-up to Read Operation 1 ms

t

PUW

(4)

Power-up to Write Operation 5 ms

3839 PGM T07

Notes: (4) t

PUR

and t

PUW

are the delays required from the time VCC is stable until the specified operation can be initiated. These parameters

are periodically sampled and not 100% tested.

X24C04

11

The write cycle time is the time from a valid stop
condition of a write sequence to the end of the internal
erase/program cycle. During the write cycle, the X24C04

bus interface circuits are disabled, SDA is allowed to
remain high, and the device does not respond to its slave
address.

Write Cycle Limits

Symbol Parameter Min. Typ.

(5)

Max. Units

t

WR

(6)

Write Cycle Time 5 10 ms

3839 PGM T08

SDA 8th BIT

WORD n

ACK

t

WR

STOP

CONDITION

START

CONDITION

X24C04

ADDRESS

SCL

3839 FHD F05

Write Cycle Timing

Guidelines for Calculating Typical
Values of Bus Pull-Up Resistors

SYMBOL TABLE

120
100

80

40

60

20

20 40 60 80

100

120

0

0

RESISTANCE (KΩ)

BUS CAPACITANCE (pF)

MIN.
RESISTANCE

MAX.
RESISTANCE

R

MAX

=

C

BUS

t

R

R

MIN

=

I

OL MIN

V

CC MAX

=1.8KΩ

3839 FHD F18

Must be
steady

Will be
steady

May change
from Low to
High

Will change
from Low to
High

May change
from High to
Low

Will change
from High to
Low

Don’t Care:
Changes
Allowed

Changing:
State Not
Known

N/A

Center Line
is High
Impedance

OUTPUTSINPUTSWAVEFORM

Notes: (5) Typical values are for TA = 25°C and nominal supply voltage (5V).

(6) tWR is the minimum cycle time from the system perspective when polling techniques are not used. It is the maximum time the

device requires to perform the internal write operation.

12

X24C04

0.150 (3.80)

0.158 (4.00)

0.228 (5.80)

0.244 (6.20)

0.014 (0.35)

0.019 (0.49)

PIN 1

PIN 1 INDEX

0.010 (0.25)

0.020 (0.50)

0.050 (1.27)

0.188 (4.78)

0.197 (5.00)

0.004 (0.19)

0.010 (0.25)

0.053 (1.35)

0.069 (1.75)

(4X) 7°

0.027 (0.683)

0.037 (0.937)

0.0075 (0.19)

0.010 (0.25)

0° – 8°

X 45°

0.020 (0.51)

0.016 (0.41)

0.150 (3.81)

0.125 (3.18)

0.325 (8.25)

0.300 (7.62)

0.110 (2.79)

0.090 (2.29)

0.430 (10.92)

0.360 (9.14)

0.300

(7.62) REF.

PIN 1 INDEX

0.140 (3.56)

0.130 (3.30)

0.020 (0.51)

0.015 (0.38)

PIN 1

SEATING

PLANE

0.062 (1.57)

0.058 (1.47)

0.255 (6.47)

0.245 (6.22)

0.060 (1.52)

0.020 (0.51)

TYP. 0.010 (0.25)

0°

15°

8-LEAD PLASTIC DUAL

IN-LINE PACKAGE TYPE P

0.092 (2.34)
DIA. NOM.

HALF SHOULDER

WIDTH ON ALL END

PINS OPTIONAL

0.015 (0.38)
MAX.

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

8-LEAD PLASTIC SMALL OUTLINE

GULL WING PACKAGE TYPE S

PACKAGING INFORMATION

X24C04

13

0.150 (3.80)

0.158 (4.00)

0.228 (5.80)

0.244 (6.20)

0.014 (0.35)

0.019 (0.49)

PIN 1

PIN 1 INDEX

0.010 (0.25)

0.020 (0.50)

0.050 (1.27)

0.336 (8.55)

0.345 (8.75)

0.004 (0.19)

0.010 (0.25)

0.053 (1.35)

0.069 (1.75)

(4X) 7°

0.027 (0.683)

0.037 (0.937)

0.0075 (0.19)

0.010 (0.25)

0° – 8°

X 45°

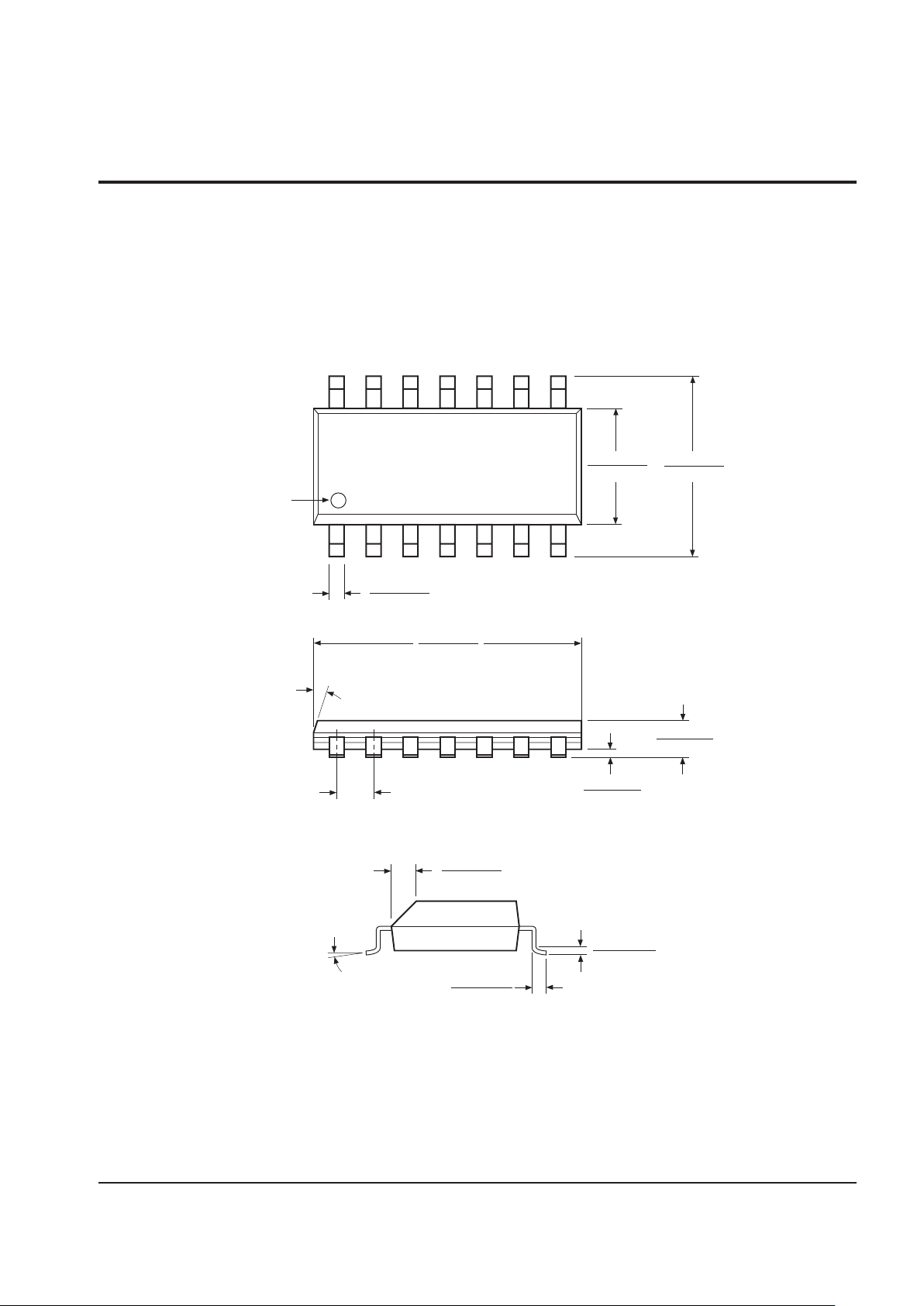

14-LEAD PLASTIC SMALL OUTLINE GULL WING PACKAGE TYPE S

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

PACKAGING INFORMATION

14

X24C04

ORDERING INFORMATION

LIMITED WARRANTY

Devices sold by Xicor, Inc. are covered by the warranty and patent indemnification provisions appearing in its Terms of Sale only. Xicor, Inc. makes no warranty,
express, statutory, implied, or by description regarding the information set forth herein or regarding the freedom of the described devices from patent infringement.
Xicor, Inc. makes no warranty of merchantability or fitness for any purpose. Xicor, Inc. reserves the right to discontinue production and change specifications and
prices at any time and without notice.

Xicor, Inc. assumes no responsibility for the use of any circuitry other than circuitry embodied in a Xicor, Inc. product. No other circuits, patents, licenses are
implied.

U.S. PATENTS

Xicor products are covered by one or more of the following U.S. Patents: 4,263,664; 4,274,012; 4,300,212; 4,314,265; 4,326,134; 4,393,481; 4,404,475;
4,450,402; 4,486,769; 4,488,060; 4,520,461; 4,533,846; 4,599,706; 4,617,652; 4,668,932; 4,752,912; 4,829, 482; 4,874, 967; 4,883, 976. Foreign patents and
additional patents pending.

LIFE RELATED POLICY

In situations where semiconductor component failure may endanger life, system designers using this product should design the system with appropriate error
detection and correction, redundancy and back-up features to prevent such an occurence.

Xicor's products are not authorized for use in critical components in life support devices or systems.

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and whose
failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant
injury to the user.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.

Device

VCC Limits
Blank = 4.5V to 5.5V

3.5 = 3.5V to 5.5V
3 = 3.0 to 5.5V

2.7 = 2.7V to 5.5V
Temperature Range

Blank = Commercial = 0°C to +70°C
I = Industrial = –40°C to +85°C
M = Military = –55°C to +125°C

Package
P = 8-Lead Plastic DIP
S8 = 8-Lead SOIC
S14 = 14-Lead SOIC

X24C04 P T -V

Blank = 8-Lead SOIC
P = 8-Lead Plastic DIP
S8 = 8-Lead SOIC
S14 = 14-Lead SOIC

Blank = 4.5V to 5.5V, 0°C to +70°C
I = 4.5V to 5.5V, –40°C to +85°C
B = 3.5V to 5.5V, 0°C to +70°C
C = 3.5V to 5.5V, –40°C to +85°C
D = 3.0V to 5.5V, 0°C to +70°C
E = 3.0V to 5.5V, –40°C to +85°C
F = 2.7V to 5.5V, 0°C to +70°C
G = 2.7V to 5.5V, –40°C to +85°C

X24C04 X

X

Part Mark Convention

X24C04

15

3926 FHD F01

NOTE:

1. ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

2. PACKAGE DIMENSIONS EXCLUDE MOLDING FLASH

0.020 (0.51)

0.016 (0.41)

0.150 (3.81)

0.125 (3.18)

0.110 (2.79)

0.090 (2.29)

0.430 (10.92)

0.360 (9.14)

0.300

(7.62) REF.

PIN 1 INDEX

0.145 (3.68)

0.128 (3.25)

0.025 (0.64)

0.015 (0.38)

PIN 1

SEATING

PLANE

0.065 (1.65)

0.045 (1.14)

0.260 (6.60)

0.240 (6.10)

0.060 (1.52)

0.020 (0.51)

TYP. 0.010 (0.25)

0°

15°

8-LEAD PLASTIC DUAL IN-LINE PACKAGE TYPE P

HALF SHOULDER WIDTH ON

ALL END PINS OPTIONAL

0.015 (0.38)
MAX.

0.325 (8.25)

0.300 (7.62)

16

X24C04

0.150 (3.80)

0.158 (4.00)

0.228 (5.80)

0.244 (6.20)

0.014 (0.35)

0.019 (0.49)

PIN 1

PIN 1 INDEX

0.010 (0.25)

0.020 (0.50)

0.050 (1.27)

0.188 (4.78)

0.197 (5.00)

0.004 (0.19)

0.010 (0.25)

0.053 (1.35)

0.069 (1.75)

(4X) 7°

0.016 (0.410)

0.037 (0.937)

0.0075 (0.19)

0.010 (0.25)

0° – 8°

X 45°

3926 FHD F22

8-LEAD PLASTIC SMALL OUTLINE GULL WING PACKAGE TYPE S

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESIS IN MILLIMETERS)

0.250"

0.050" TYPICAL

0.050"
TYPICAL

0.030"

TYPICAL

8 PLACES

FOOTPRINT

X24C04

17

0.150 (3.80)

0.158 (4.00)

0.228 (5.80)

0.244 (6.20)

0.014 (0.35)

0.020 (0.51)

PIN 1

PIN 1 INDEX

0.010 (0.25)

0.020 (0.50)

0.050 (1.27)

0.336 (8.55)

0.345 (8.75)

0.004 (0.10)

0.010 (0.25)

0.053 (1.35)

0.069 (1.75)

(4X) 7°

0.016 (0.41)

0.037 (0.937)

0.0075 (0.19)

0.010 (0.25)

0° – 8°

X 45°

3926 FHD F10

14-LEAD PLASTIC SMALL OUTLINE GULL WING PACKAGE TYPE S

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

0.250"

0.050" Typical

0.050" Typical

0.030" Typical
14 Places

FOOTPRINT

18

X24C04

0.320 (8.13)

0.290 (7.37)

TYP. 0.311 (7.90)

0.110 (2.79)

0.090 (2.29)

TYP. 0.100 (2.54)

0.300 (7.62)
REF.

0.023 (0.58)

0.014 (0.36)

TYP. 0.017 (0.43)

0.200 (5.08)

0.140 (3.56)

0.060 (1.52)

0.015 (0.38)

3926 FHD F05

PIN 1

SEATING

PLANE

0.200 (5.08)

0.125 (3.18)

0.065 (1.65)

0.038 (0.97)

TYP. 0.060 (1.52)

0.310 (7.87)

0.220 (5.59)

0.055 (1.40) MAX.

0°

15°

8-LEAD HERMETIC DUAL IN-LINE PACKAGE TYPE D

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)

0.005 (0.13) MIN.

0.015 (0.38)

0.008 (0.20)

0.405 (10.29)
––

0.150 (3.81) MIN.
