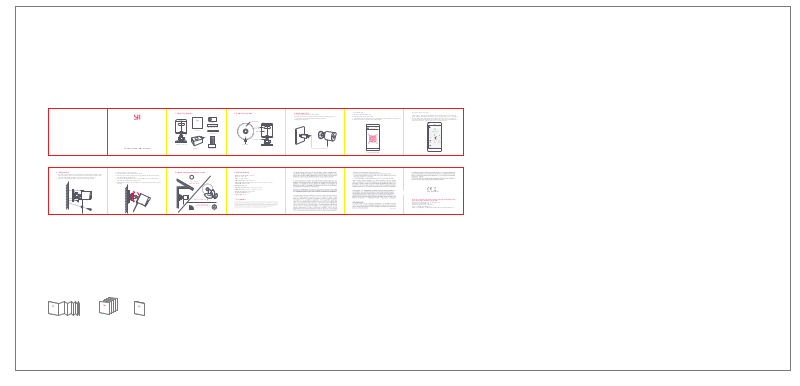

Xiaoyi Technology YHS3017 Users manual
H30 US V1.0
Manual x 1
Wall anchor x 10
Mounting screw x 10
Screwdriver x 1
Clip x 8
Adapter x 1
3). Bring your camera to the mounting spot.
4). Ensure your camera can connect to WIFI in the spot.
5). If you pair your camera with your phone successfully before, the camera will connect to
WIFI automatically when powered on.
6). You can preview the pictures now. If you cannot see the pictures, it maybe caused by
poor network, you need to adjust router position.
7). When previewing pictures, you should adjust visual angle of the camera and lock universe
ball tightly.
Don’t install in
backlight environment
Keep in range of router,
at most 10 meter for suggestion
Keep away from barriers
base x 1
+
Camera x 1
6. Basic parameters
YI Outdoor Camera 1080p Instructions
5). Add your camera to YI account
After you log in YI app, and enter the interface of choosing device, you are in the process of
pairing. Please wait until yellow light blinks and says ”waiting to connect,” click “the prompt
voice has been heard”. After you input SSID and WIFI password, use your camera lens to
scan the QR code. When QR code scan is successful, click ”next step” to finish the pairing
process. When you hear “pairing is successful”, you can begin to use.
4). Download YI App
a. Scan QR code to download YI app
b. Open the app and register for YI account
c. If you already have YI account, you can log in directly, add the camera according to prompt voice
d. Follow the instructions and prompt steps of app interface
1. Official Configuration 2. Product Configuration
1). Use screws to fix camera base in spot. Drill directly towards the hole of installation stickers
and push in extension screws. Aim camera base to installation stickers and push in screws.
If you mount the device on wooden wall, you can directly push in screws to fix.
2). Use clip to fasten power cord, keep in mind that don’t pull cable too tightly.
4. Install devices 5. Matters need attention when mounting
1). First of all pair your camera with your phone app
2). Before mounting outside, if you want to pierce through or route along the wall, you
should plan the route of the cable from the outlet to the camera.
3). Keep closer to your router
3. Basic instructions
choice device
0 ~ 360°
0 ~ 65°
TF card/
Reset port
Speaker
Microphone
Indicator light
Universal sphere
Maximum resolution/pixel: 1920*1080
Lens: 110°wide angle
Audio: built-in MIC/speaker
Video compression: H.264 High Profile
Photographic enhancement: 3D digital noise reduction, distortion correction
Alarm mode: Motion detection
Waterproof grade: IP65
Day to night conversion: IRCUT automatic switchover
Support platform: Andriod 4.1 or later/IOS 8.0 or later
Wireless encryption: WEP/WPA/WPA2
Length of USB cable: 3 meter
Power supply: DC5V1A
Fixed Clip
7. YI statement
Shanghai YI Technology Co., Ltd. hereby makes a statement that: In order to improve customer experience, products provided by the
company is classified into China mainland version and international version. Products of China mainland version are only limited to be
used in China mainland, while overseas use needs to purchase products of international version of our company from overseas dealers
specified by our company or overseas sales network self-operated by our company. For problems caused by use of incorrect version,
our company shall not take any responsibility. Products, applications, functions and interfaces etc. mentioned in this manual may be
improved or updated after sales, when actually used product and related applications are different from this manual, please focus
instructions in official website of our company: Chinese official website: www.xiaoyi.com International official website:
www.yitechnology.com, no further notification about update of this manual will be sent to individuals.
Manufacturer: Shanghai Xiaoyi Technology Co.,Ltd
Website: www.yitechnology.com
Service Telephone: +86-21-6765 6722
E-mail: support@yitechnology.com
Address: 6F,Building E, No.2889 Jinke Road,Pudong District,Shanghai,China
Thank you for choosing the YI Outdoor Home Camera, please read the instructions carefully
before using the product and keep it in good condition.
YI Outdoor
Camera
YI 1080P Dome
Camera
YI Home Camera
Cloud Edition
YI 1080P Home
Camera
YI Home Camera
YI 1080p Home
Camera 2
YI Dome Camera
FCC ID: 2AFIB-YHS3017
