Xiaomi PB400 Instructions Manual

ZI5 Ni-MH Battery Charger

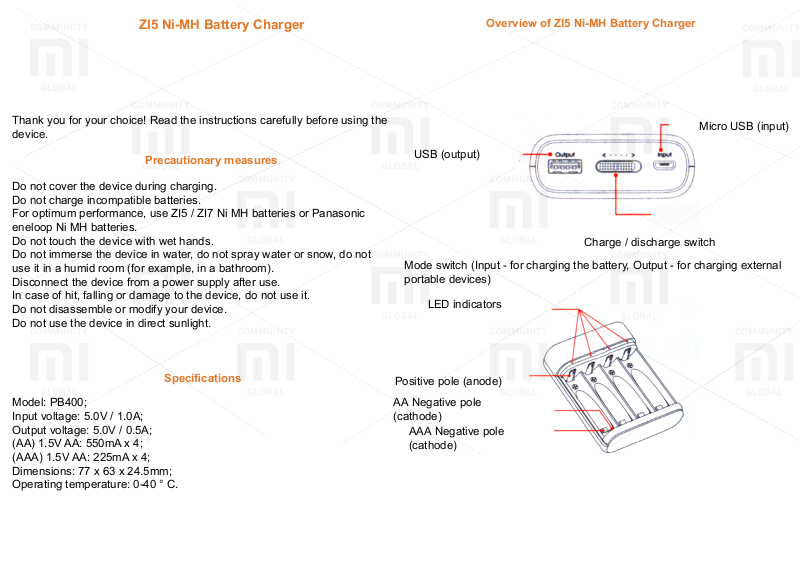

Overview of ZI5 Ni-MH Battery Charger

Thank you for your choice! Read the instructions carefully before using the
device.

Precautionary measures

Do not cover the device during charging.
Do not charge incompatible batteries.
For optimum performance, use ZI5 / ZI7 Ni MH batteries or Panasonic
eneloop Ni MH batteries.
Do not touch the device with wet hands.
Do not immerse the device in water, do not spray water or snow, do not
use it in a humid room (for example, in a bathroom).
Disconnect the device from a power supply after use.
In case of hit, falling or damage to the device, do not use it.
Do not disassemble or modify your device.
Do not use the device in direct sunlight.

Specications

Micro USB (input)

USB (output)

Charge / discharge switch

Mode switch (Input - for charging the battery, Output - for charging external

portable devices)

LED indicators

Positive pole (anode)

Model: РВ400;
Input voltage: 5.0V / 1.0A;
Output voltage: 5.0V / 0.5A;
(AA) 1.5V AA: 550mA x 4;
(AAA) 1.5V AA: 225mA x 4;
Dimensions: 77 x 63 x 24.5mm;
Operating temperature: 0-40 ° С.

АА Negative pole

(cathode)

ААА Negative pole

(cathode)

Charging

Installing AA battery

Switching the button to the Input side, charge nickel AA and AAA batteries

(any combination).

1. Ensure that anode and cathode of a battery are in proper contact with

anode and cathode of the device. Insert batteries into the device in the
direction, shown at the picture.

In the following table you will nd general information about the duration

of recharging. This data can vary depending on temperature and current
state of a battery.

The above-mentioned charging time of a batteries is accounted on the input
voltage of 5V / 1A, from 0% to 100% of charging of batteries. The charging

time depends on a level of remaining charge and an ambient temperature.

If you add another battery to the device (when charging a batteries), a
charging time increases.
It is possible after the battery is completely recharged, if a battery has not
been removed from the device in time, an indicator will light up again and

the device will re-charge it. To determine that a battery is fully charged and

to stop a power supply, the device needs a certain amount of time. This
does not indicate a malfunction of the battery charger or battery.

Installing AAA battery

2. Recharge batteries by connecting the Micro USB port of the device to a
5V DC power supply.

3. Slowly ashing LEDs indicates a normal charging process; A constantly

lit LEDs indicates that the battery is fully charged.

Status of LED indicators
