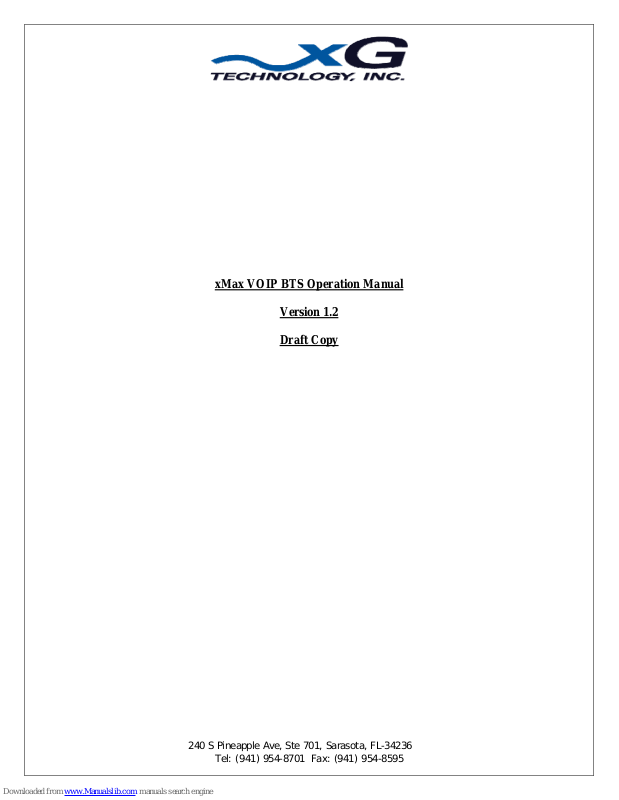

xG Technology xMax Operation Manual

xMax VOIP BTS Operation Manual

Version 1.2

Draft Copy

240 S Pineapple Ave, Ste 701, Sarasota, FL-34236

Tel: [phone] Fax: [phone]

Table Of Contents

• Introduction 2

• Physical Device 4

• AC Power Port 5

• Antenna Ports 6

• Ethernet Port 7

• Status Indicator 8

• Powering ON the xMax VOIP BTS 9

• Powering OFF the xMax VOIP BTS 9

• Technical Support 10

• Certification 10

• Warranty Information 10

240 S Pineapple Ave, Ste 701, Sarasota, FL-34236

Tel: [phone] Fax: [phone]

2

Introduction:

xMax Voice Over Internet Protocol (VOIP) Base Transceiver Station (BTS) is a
transceiver device. The device operates in the unlicensed 900 MHz band under Part 15 of
the FCC's rules. The bandwidth of the device is 26MHz (902-928MHz). The device is
used for communicating with xMax Handsets operating in the unlicensed 900 MHz band
under Part 15 of the FCC's rules. This device is a commercial unit and should be installed
by licensed technician. This device is capable of transmitting/receiving voice and data
services to and from xMax handsets. The xMax VOIP BTS is installed with all the
necessary software to make wireless VOIP phone calls using xG proprietary physical
layer technology.

Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.

Notice: Changes or modifications to this equipment not expressly approved by xG could
void the user's authority to operate the equipment.
