Networking Control Panel Categories..............................................93
System Update Application on the NVIDIA Control Panel .................97
Managing Your System Bios Screen................................................98
x
Inside the 650i Ultra
Installation CD
The following tools are in the 650i Ultra Installation CD:
Motherboard Drivers for:
Windows XP
Windows XP 64-bit
Windows Vista
Windows Vista 64-bit
Before You Begin…
Onboard Audio Drivers
Windows XP
Windows XP 64-bit
Windows Vista
Windows Vista 64-bit
Adobe Acrobat Reader 8.0
Raid Setup Floppy Disk Creator
Windows XP
Windows XP 64-bit
NVIDIA Software
NVIDIA MediaShield Storage
NVIDIA nTune 5.0
xi
Installing and Configuring the XFX nForce 650i Ultra Motherboard
Parts NOT in the Kit
This kit contains all the hardware necessary to install and connect your new
XFX nForce® 650i Ultra motherboard. However, it does not contain the
following items that must be purchased separately to make the motherboard
functional.
System memory support:
Supports dual channel DDR2 533/667/800. Supports up to 8 GBs DDR2
memory.
Power Supply
To calculate the power you are going to require for your specific
configuration, go to www.slizone.com.
These instructions tell you how to install each of the parts listed so you can
have a functioning motherboard. As you go through the installation
instructions, we are assuming you have purchased the necessary parts.
xii
Introduction
Intentions of the Kit
This kit provides you with the motherboard and all connecting cables necessary
to install the motherboard into a PC cabinet. If you are building a PC, you will
use most of the cables provided in the kit. If however, you are replacing a
motherboard, you will not need many of the cables.
When replacing a motherboard in a PC cabinet, you will need to reinstall an
operating system even though the current drives have an operating system.
xiii
Thank you for buying the XFX nForce® 650i Ultra Motherboard. This
motherboard offers the tools and performance PC users’ demand.
Features
Ultimate Overclocking
Unleash the underlying hardware. With comprehensive overclocking tools to
push the limits on front side bus (FSB) speed and support for higher memory
speeds, the NVIDIA nForce 650i Ultra MCPs were designed for overclocking.
Introduction
Guaranteed FSB speeds
Reach FSB speeds of 1333MHz with a CPU that supports this specification.
High-speed Memory
This board supports high-speed memory up to DDR2-800 to keep pace with
overclocked system components.
Comprehensive Overclocking Tools
Award-winning NVIDIA overclocking tools provide a complete kit of tools
giving everyone from the most veteran enthusiast to the novice overclocker the
ability to unleash the hardware in their PC.
1
Installing and Configuring the XFX nForce 650i Ultra Motherboard

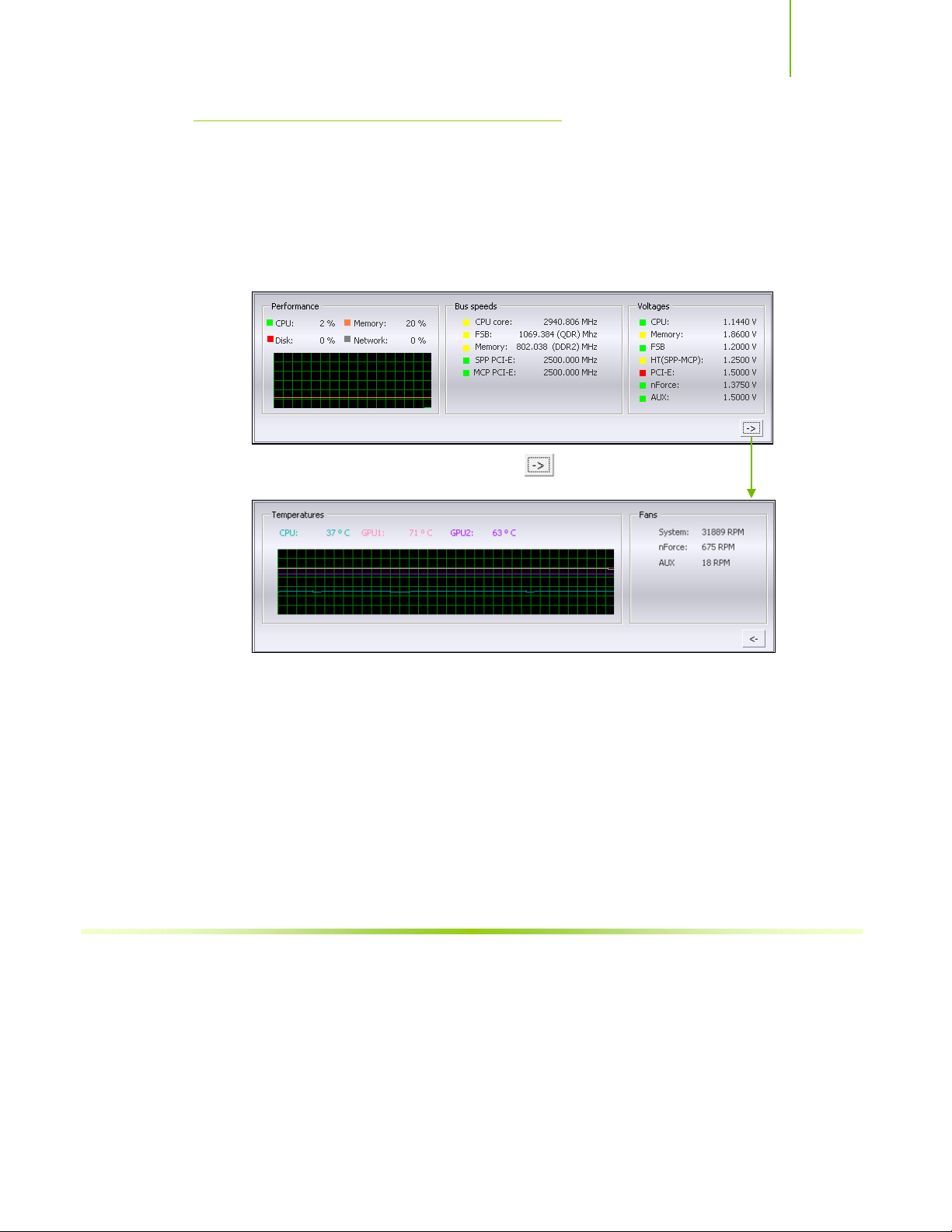

NVIDIA nTune Utility
NVIDIA nTune™ is a Windows-based utility that has added access to more
settings. Adjust CPU and memory speeds without rebooting. You can also
access most BIOS settings from inside Windows without having to go into the
BIOS. Save and automatically load profiles for each application you run.
NV BIOS
NV BIOS delivers easy-to-use tuning to let you have full control over your
hardware including processor voltage tables and memory drive strengths.
True x16 PCI Express Support
One full-bandwidth, 16-lane PCI Express link ensure maximum graphics
performance for next-generation GPUs and games.
DualDDR2 Memory Architecture
A state-of-the-art Dual DDR2 memory controller allows high bandwidth and
low latency data access to the CPU and GPU. Ensures data and information are
relayed through the system as quickly as possible for incredible performance.
NVIDIA MediaShield™ Storage
NVIDIA MediaShield is a suite of features that safeguards your most important
digital media assets; always reliable, scalable, and accessible. MediaShield
includes RAID and SATA drive support.
Multiple Disk Setup
Through a simple wizard-based interface, you can effortlessly set up your drives
for better data protection, faster disk access or maximum storage capacity.
MediaShield automatically selects RAID 0, 1, 0+1 or 5 configurations according
to your needs. Advanced users can access RAID options directly.
2
Introduction
DiskAlert System
The event of a disk failure, MediaShield users see an image that highlights which
disk has failed to make it easier to identify, replace, and recover.
RAID Morphing
MediaShield allows users to change their current RAID set-up to another
configuration in a one-step process called morphing. This eliminates the need
to back up data and follow multiple steps in the process.
Bootable Multidisk Array
MediaShield storage fully supports the use of multi-disk array for loading the
operating system at power-up.
Networking with NVIDIA nForce
NVIDIA networking delivers the highest network throughput at the lowest
CPU utilization. The manageable and stable NVIDIA networking solution
results in better networking management and a lower total cost of ownership.
Only NVIDIA integrates this level of networking features to allow you to take
your online experience to the next level.
NVIDIANative Gigabit Ethernet
The industry’s fastest Gigabit Ethernet performance eliminates network
bottlenecks and improves overall system efficiency and performance.
NVIDIA FirstPacket™ Technology
Be the ‘King of Ping’ with NVIDIA FirstPacket technology. Get the crystalclear phone conversations and online gaming performance you expect.
NVIDIA FirstPacket technology assures your game data, VoIP conversations,
and large file transfers are delivered according to preferences set by you in an
intuitive wizard.
3
Installing and Configuring the XFX nForce 650i Ultra Motherboard
High Definition Audio (HDA)
High definition audio brings consumer electronics quality sound to the PC
delivering high quality sound from multiple channels. Using HDA, systems can
deliver 192 kHz/32-bit quality for eight channels, supporting new audio
formats.
USB 2.0
USB 2.0 is standard plug-and-play interface that provides easy-to-use
connectivity for USB devices.
Operating systems:
Supports Windows XP 32bit/64bit and Windows Vista 32bit/64bit
Contains NVIDIA nForce 650i Ultra MCP and SPP
System Memory support
Supports dual channel JEDEC DDR2-800. Supports up to 8 GBs DDR2
memories.
USB 2.0 Ports
Supports hot plug
Eight USB 2.0 ports (four rear panel ports, four onboard USB headers)
Supports wake-up from S1 and S3 mode
Supports USB 2.0 protocol up to 480 Mbps transmission rate
Onboard Serial ATA II
300MBps data transfer rate
Four Serial ATA II connectors
NVIDIA MediaShield RAID with support for RAID 0, RAID 1, RAID
0+1, RAID 5, and JBOD
Supports hot plug and NCQ (Native Command Queuing )
Onboard LAN
Single LAN interface built-in onboard
Supports 10/100/1000 Mbit/sec Ethernet
Installing and Configuring the XFX nForce 650i Ultra Motherboard
PCI Express x16 Support
Supports 4 GB/sec (8 GB/sec concurrent) bandwidth
Low power consumption and power management features
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(Suspend to disk - depends on OS), and S5 (soft - off)
Expansion Slots
Three PCI slots
Two PCI Express x1 slot
One PCI Express x16 Graphics slot
6
Unpacking
The XFX nForce 650i Ultra motherboard comes with all the necessary cables
for adding a motherboard to a new chassis. If you are replacing a motherboard,
you may not need many of these cables.
Be sure to inspect each piece of equipment shipped in the packing box. If
anything is missing or damaged, contact your reseller.
All parts shipped in this kit are RoHS-compliant (lead-free) parts.
Unpacking and
Parts Descriptions
Equipment
The following equipment is included in the XFX nForce 650i Ultra
motherboard box.
XFX nForce 650i Ultra Motherboard
This PCI Express motherboard contains the NVIDIA
nForce 650i Ultra SPP and MCP.
I/O Shield
7
Installs in the chassis to block radio frequency
transmissions, protect internet components from
dust and foreign objects and aids in proper airflow
within the chassis.
Floppy Cable
Used to attach a floppy drive to the motherboard.
2-Port SATA Power Cable (Qty One)
Installing and Configuring the XFX nForce 650i Ultra Motherboard
SATA Signal Cable (Qty Two)
Used to support the Serial ATA protocol and each
one connects a single drive to the motherboard
IDE-ATA 133 HDD Cable
XFX nForce 650i Ultra
Motherboard
The XFX nForce 650i Ultra motherboard with the NVIDIA nForce 650i Ultra
SPP and MCP processors is a PCI Express motherboard. Figure 1 shows the
motherboard and Figures 2 shows the back panel connectors.
8
Unpacking and Parts Description
4
5
7
9
6
10
1515151817
19
20
8
12
17
13
11
16
14
2
3
1. CPU Socket 8. Serial-ATA connectors 15. PCI slots
2. NVIDIA SPP 9. Front panel connector 16. Front Panel Audio connector
3. CPU fan connector 10. Floppy drive connector 17. PCI Express x1 slot
4. DDR DIMM slots 0 - 3 11. System fan connector 18. PCI Express x16 slot
Installing and Configuring the XFX nForce 650i Ultra Motherboard
1
2
3
4
5
6
1. PS/2 Mouse Port
2. PS/2 Keyboard Port
3. USB 2.0 ports (two)
4. Lan Port with LEDs to indicate status.
• Yellow/Light Up/Blink = 10 Mbps/Link/Activity
• Yellow and Green/Light Up/Blink = 100 Mbps/link/Activity
• Green/Light Up/Blink = 1000 Mbps/Link/Activity
5. USB 2.0 Ports (two)
6. Port 2-Channel 4-Channel 6-Channel/8-Channel
Blue Line-In Line-In Line-In
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In
Orange Center/Subwoofer
Black Rear Speaker Out Rear Speaker Out
Grey
10
Figure 2. Chassis Backpanel Connectors
This section will guide you through the installation of the motherboard. The
topics covered in this section are:
Preparing the motherboard
Installing the CPU
Installing the CPU fan
Installing the memory
Installing the motherboard
Connecting cables and setting switches
Safety Instructions
Hardware Installation
To reduce the risk of fire, electric shock, and injury, always follow basic
safety precautions.
Remember to remove power from your computer by disconnecting the
AC main source before removing or installing any equipment from/to the
computer chassis.
11
Installing and Configuring the XFX nForce 650i Ultra Motherboard
notches on the CPU
Preparing the Motherboard
The motherboard shipped in the box does
need to purchase a CPU, a CPU fan assembly, and memory to complete this
installation.
Installing the CPU
Be very careful when handling the CPU. Make sure not to bend or break any
pins on the back. Hold the processor only by the edges and do not touch the
bottom of the processor.
Use the following procedure to install the CPU onto
the motherboard.
1. Unhook the socket lever by pushing down and away
from the socket.
2. Lift the load plate. There is a protective socket
cover on the load plate to protect the socket when
there is no CPU installed.
3. Remove the protective socket cover from the load plate.
4. Remove the processor from its protective cover,
making sure you hold it only by the edges.
It is a good idea to save the cover so that
whenever you remove the CPU, you have a safe
place to store it.
5. Align the notches in the processor with the
notches on the socket.
6. Lower the processor straight down into the socket
with out tilting or sliding it into the socket
not
contain a CPU or memory. You
Align notches with
12
Note: Make sure the CPU is fully seated and level in the
socket.
7. Close the load plate over the CPU and press down
while you close and engage the socket lever.
Hardware Installation
CPU side
Installing the CPU Fan
There are many different fan types that can be used with this motherboard.
Follow the instruction that came with you fan assembly. Be sure that the fan
orientation is correct for your chassis type and your fan assembly.
Installing Memory DIMMs
Your new motherboard has four 1.8V 240-pin slots for DDR2 memory. These
slots support 256 Mb, 512 Mb and 1 Gb DDR2 technologies for x8 and x16
devices. They also support dual channel DDR2 memory technology up to
10.7GB/s. There must be at least one memory bank populated to ensure
normal operation. Use the following the recommendations for installing
memory. (See Figure 1 on page 9 for the location of the memory slots on the
card)
One DIMM: Install into slot 0. You can install the DIMM into any slot,
however, slot 0 is preferred.
Two DIMMs: Install into either slots 0 and 1 or 2 and 3. The idea is to not
have the DIMMs in adjacent slots.
Four DIMMS: Install into slots 0, 1, 2, and 3.
DIMM Slot 0
DIMM Slot 2
DIMM Slot 1
DIMM Slot 3
Card-edge side
Use the following procedure to install memory DIMMs into the slots on the
motherboard. Note that there is only one gap near the center of the DIMM slot.
This slot matches the slot on the memory DIMM to ensure the component is
installed properly.
1. Unlock a DIMM slot by pressing the module clips outward.
2. Align the memory module to the DIMM slot, and insert the module
vertically into the DIMM slot. The plastic clips at both sides of the DIMM
slot automatically lock the DIMM into the connector.
13
Installing and Configuring the XFX nForce 650i Ultra Motherboard
Installing the Motherboard
The sequence of installing the motherboard into the chassis depends on the
chassis you are using and if you are replacing an existing motherboard or
working with an empty chassis. Determine if it would be easier to make all the
connections prior to this step or to secure the motherboard and then make all
the connections. Use the following procedure to install the I/O shield and
secure the motherboard into the chassis.
Note: Be sure that the CPU fan assembly has enough clearance for the chassis
covers to lock into place and for the expansion cards. Also make sure the
CPU Fan assembly is aligned with the vents on the covers.
Installing the I/O Shield
The motherboard kit comes with an I/O shield that is used to block radio
frequency transmissions, protects internal components from dust and foreign
objects, and promotes correct airflow within the chassis.
Before installing the motherboard, install the I/O shield from the inside of the
chassis. Press the I/O shield into place and make sure it fits securely. If the
I/O shield does not fit into the chassis, you would need to obtain the proper
size from the chassis supplier.
Securing the Motherboard into the Chassis
Most computer chassis have a base with mounting studs or spacers to allow the
mother board to be secured to the chassis and help to prevent short circuits. If
there are studs that do not align with a mounting hole on the motherboard, it is
recommended that you remove that stud to prevent the possibility of a short
circuit.
1. Carefully place the motherboard onto the studs/spacers located inside the
chassis.
2. Align the mounting holes with the studs/spacers.
3. Align the connectors to the I/O shield.
4. Ensure that the fan assembly is aligned with the chassis vents according to
the fan assembly instruction.
5. Secure the motherboard with a minimum of eight-to-ten screws.
14
Hardware Installation
Connecting Cables and
Setting Switches
This section takes you through all the connections and switch settings necessary
on the motherboard. This will include:
Power Connections
24-pin ATX power (

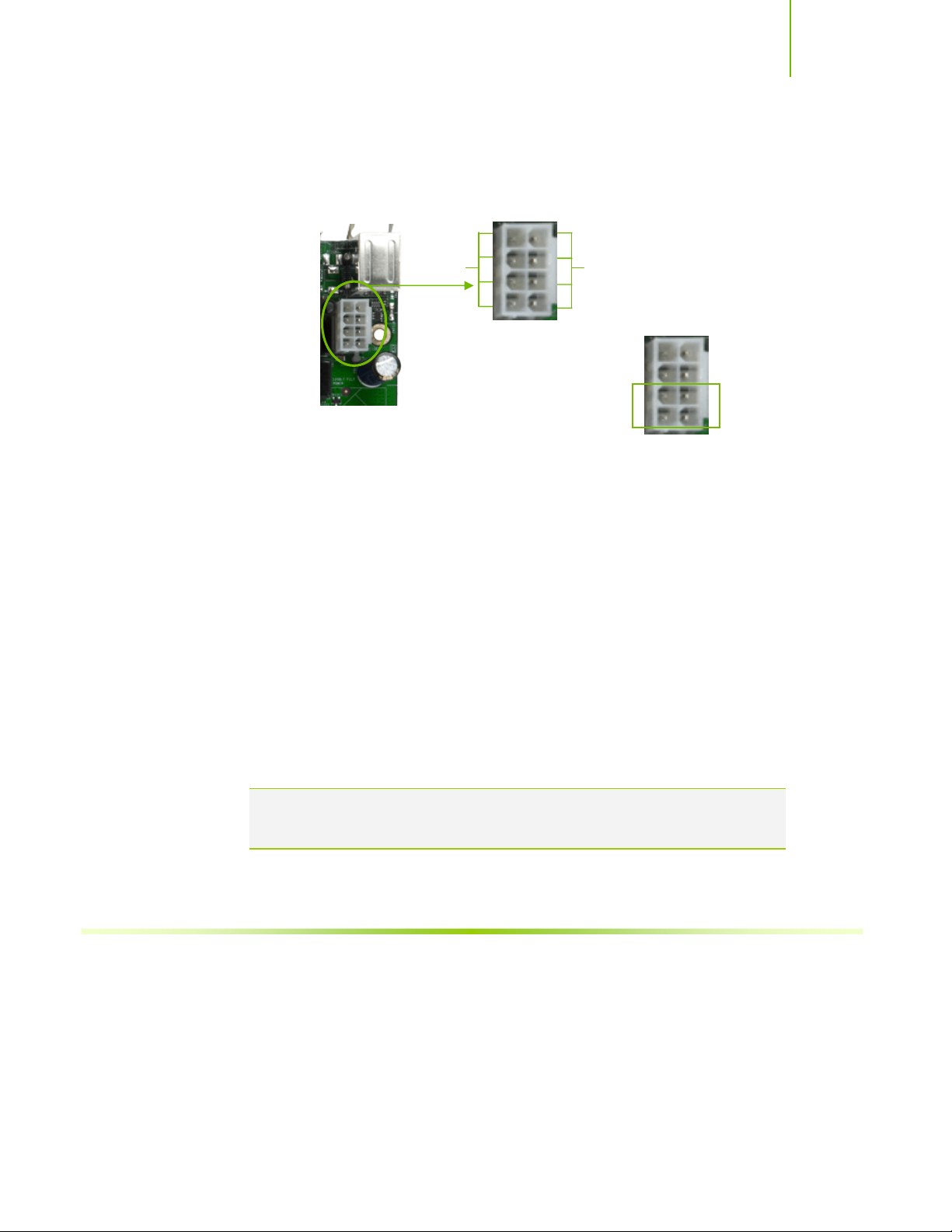

8-pin ATX 12V power (
Internal Headers
Front panel

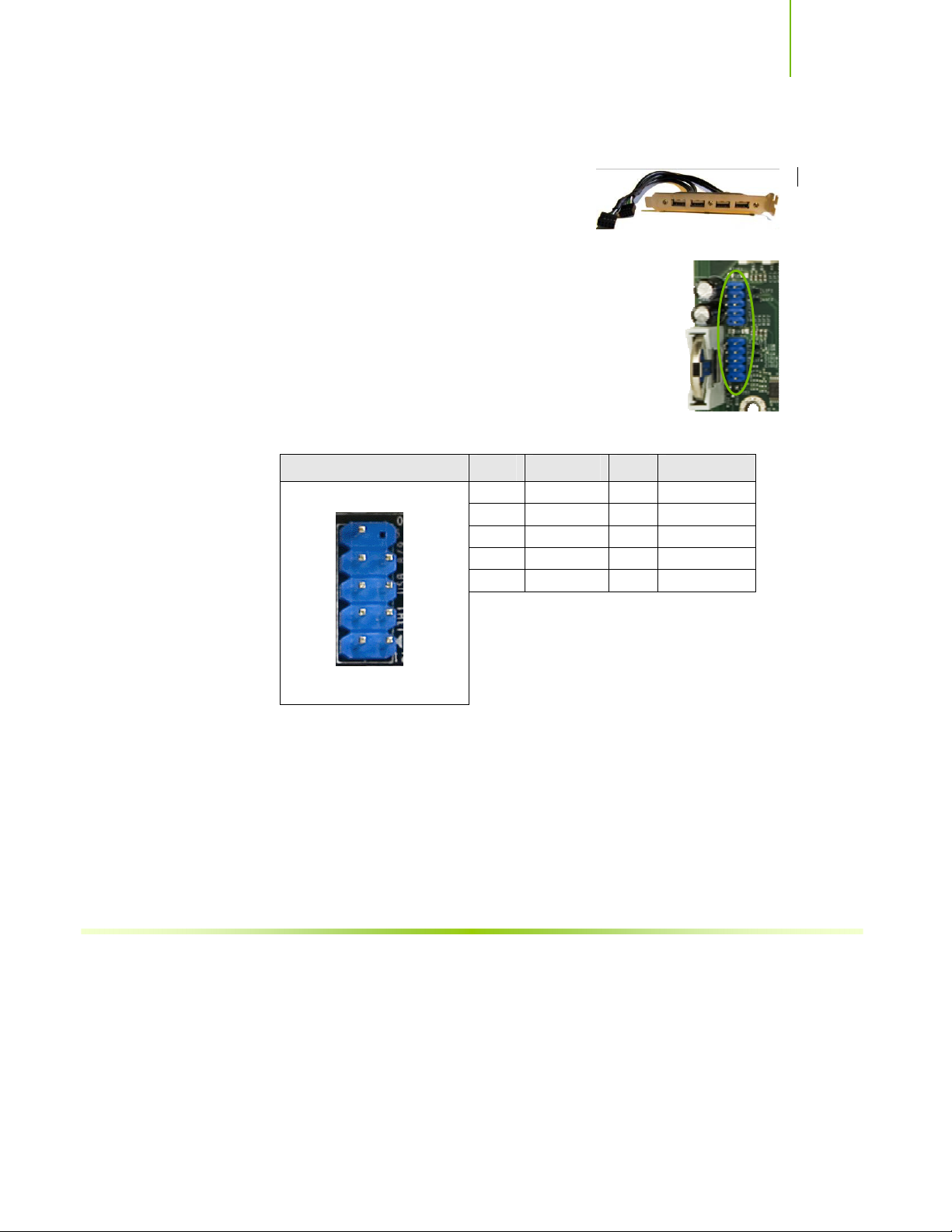

USB Headers
Audio
COM
FDD
IDE
Serial ATA II
Chassis Fans
Rear panel USB 2.0 Adapter
Expansion slots
CMOS jumper settings
PWR1
PWR2
)
)
See Figure 1 on page 9 to locate the connectors and jumpers referenced in the
following procedure.
15
Installing and Configuring the XFX nForce 650i Ultra Motherboard
Power Connections
This motherboard requires an ATX power supply. Make sure you have enough
power to cover all the expansion cards you will be installing. To determine what
you power requirements are for your specific configuration, refer to
www.slizone.com.
24-pin ATX Power
PWR1
is the main power supply connector located along the edge of the board
(PWR1)
next to the DIMM slots. Make sure that the power supply cable and pins are
properly aligned with the connector on the motherboard. Firmly plug the power
supply cable into the connector and make sure it is secure.
PWR1 connector
Plug power cable from system
power supply to PWR1
