Xezo Architect 2001 Operating Manual

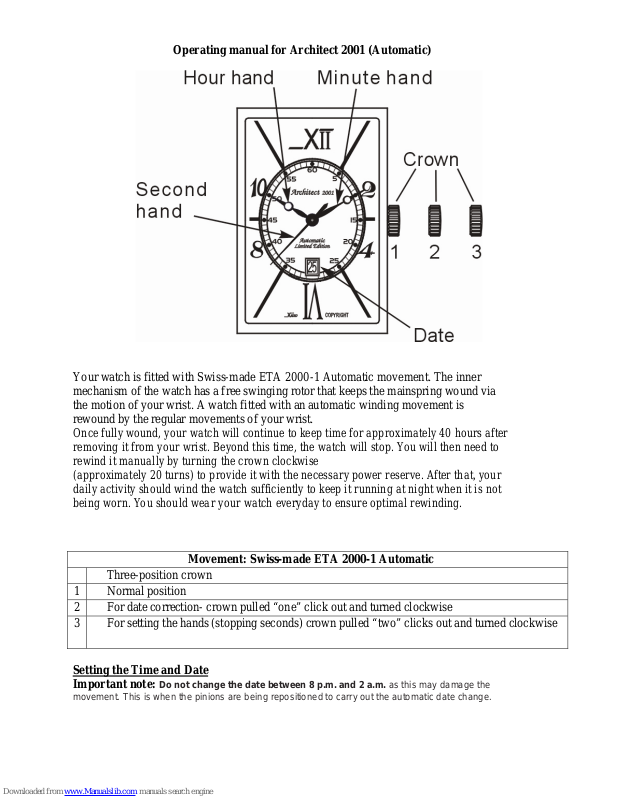

Operating manual for Architect 2001 (Automatic)

Your watch is fitted with Swiss-made ETA 2000-1 Automatic movement. The inner
mechanism of the watch has a free swinging rotor that keeps the mainspring wound via
the motion of your wrist. A watch fitted with an automatic winding movement is
rewound by the regular movements of your wrist.

Once fully wound, your watch will continue to keep time for approximately 40 hours after
removing it from your wrist. Beyond this time, the watch will stop. You will then need to
rewind it manually by turning the crown clockwise
(approximately 20 turns) to provide it with the necessary power reserve. After that, your
daily activity should wind the watch sufficiently to keep it running at night when it is not
being worn. You should wear your watch everyday to ensure optimal rewinding.

Movement: Swiss-made ETA 2000-1 Automatic
Three-position crown

1 Normal position
2 For date correction- crown pulled “one” click out and turned clockwise
3 For setting the hands (stopping seconds) crown pulled “two” clicks out and turned clockwise

Setting the Time and Date
Important note:

movement. This is when the pinions are being repositioned to carry out the automatic date change.

Do not change the date between 8 p.m. and 2 a.m. as this may damage the

You will need to wind your watch manually by turning the crown clockwise
(approximately 20 turns) to provide it with the necessary power reserve. After that, your
daily activity should wind the watch sufficiently to keep it running at night when it is not
being worn. You should wear your watch everyday to ensure optimal rewinding.

Pull out the crown to Position “2” (one “click” out). Rotate crown clockwise
until the date shows one day earlier than the date you want to set.
Pull out the crown to Position “3” (two “clicks” out). The seconds hand is stopped.
Set the local time by turning the crown clockwise to move the hour and
minute hands forward. Turn the watch hands past 12 once if you’re setting the watch for a
P.M. time.

Servicing your Xezo Automatic watch

Although components in your watch have been manufactured from first-rate materials,
certain parts are subject to natural wear and tear. It is vital that all moving parts are
properly lubricated at all times and that the watch is cleaned at regular intervals to
remove dirty oil.
We therefore, recommend that you have your watch serviced about once every 3-5 years.
Contact us for after-sales service.

http://www.xezo.com
