Xexun XT-009 User Manual

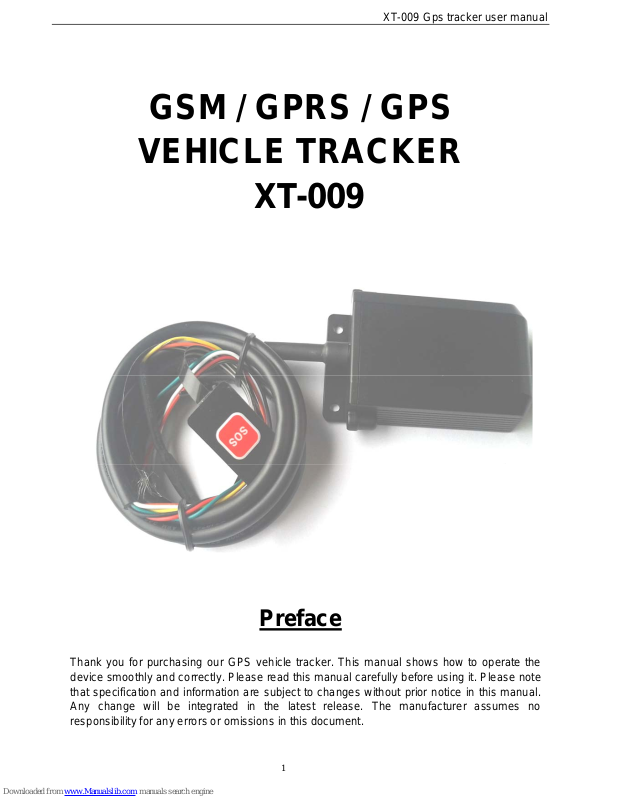

XT-009 Gps tracker user manual
1
GSM / GPRS / GPS
VEHICLE TRACKER
XT-009
Preface
Thank you for purchasing our GPS vehicle tracker. This manual shows how to operate the
device smoothly and correctly. Please read this manual carefully before using it. Please note
that specification and information are subject to changes without prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer assumes no
responsibility for any errors or omissions in this document.
XT-009 Gps tracker user manual
2
Index
1. Overview of function ----------------------------------------------------------------------------------------------3
2. Application------------------------------------------------------------------------------------------------------------3
3. Hardware description----------------------------------------------------------------------------------------------3
3.1 Outside ------------------------------------------------------------------------------------------------------------3
3.2 Internal mainboard --------------------------------------------------------------------------------------------3
4. Wire connection ----------------------------------------------------------------------------------------------------4
5. Specifications--------------------------------------------------------------------------------------------------------5
6. Battery and SIM Card installation------------------------------------------------------------------------------5
7. Startup-------------------------------------------------------------------------------------------------------------------6
8. Usage-------------------------------------------------------------------------------------------------------------------- 6
9. Tracker mode---------------------------------------------------------------------------------------------------------- 6
9.1 Initialization------------------------------------------------------------------------------------------------------ 6
9.2 Change the password-----------------------------------------------------------------------------------------7
9.3 Authorization number----------------------------------------------------------------------------------------7
9.4 SMS format --------------------------------------------------------------------------------------------------- --8
9.5 Auto tracking -----------------------------------------------------------------------------------------------------9
9.6 Tlimit function ---------------------------------------------------------------------------------------------------9
9.7 GEO fence --------------------------------------------------------------------------------------------------------9
9.8 Movement alert ----------------------------------------------------------------------------------------------10
9.9 Overspeed alert -----------------------------------------------------------------------------------------------11
9.10 IMEI checking -------------------------------------------------------------------------------------------------12
9.11 Firmware version checking ------------------------------------------------------------------------------12
9.12 Time zone setting --------------------------------------------------------------------------------------------12
9.13 SOS button -----------------------------------------------------------------------------------------------------12
9.14 SMS LINK -------------------------------------------------------------------------------------------------------13
9.15 SMSONE ---------------------------------------------------------------------------------------------------------13
9.16 Low battery alert ----------------------------------------------------------------------------------------------13
9.17 Message center -----------------------------------------------------------------------------------------------13
9.18 GSM ID -----------------------------------------------------------------------------------------------------------13
9.19 Motion sensor -------------------------------------------------------------------------------------------------14
9.20 SD Card ----------------------------------------------------------------------------------------------------------14
9.21 ACC status alert ----------------------------------------------------------------------------------------------14

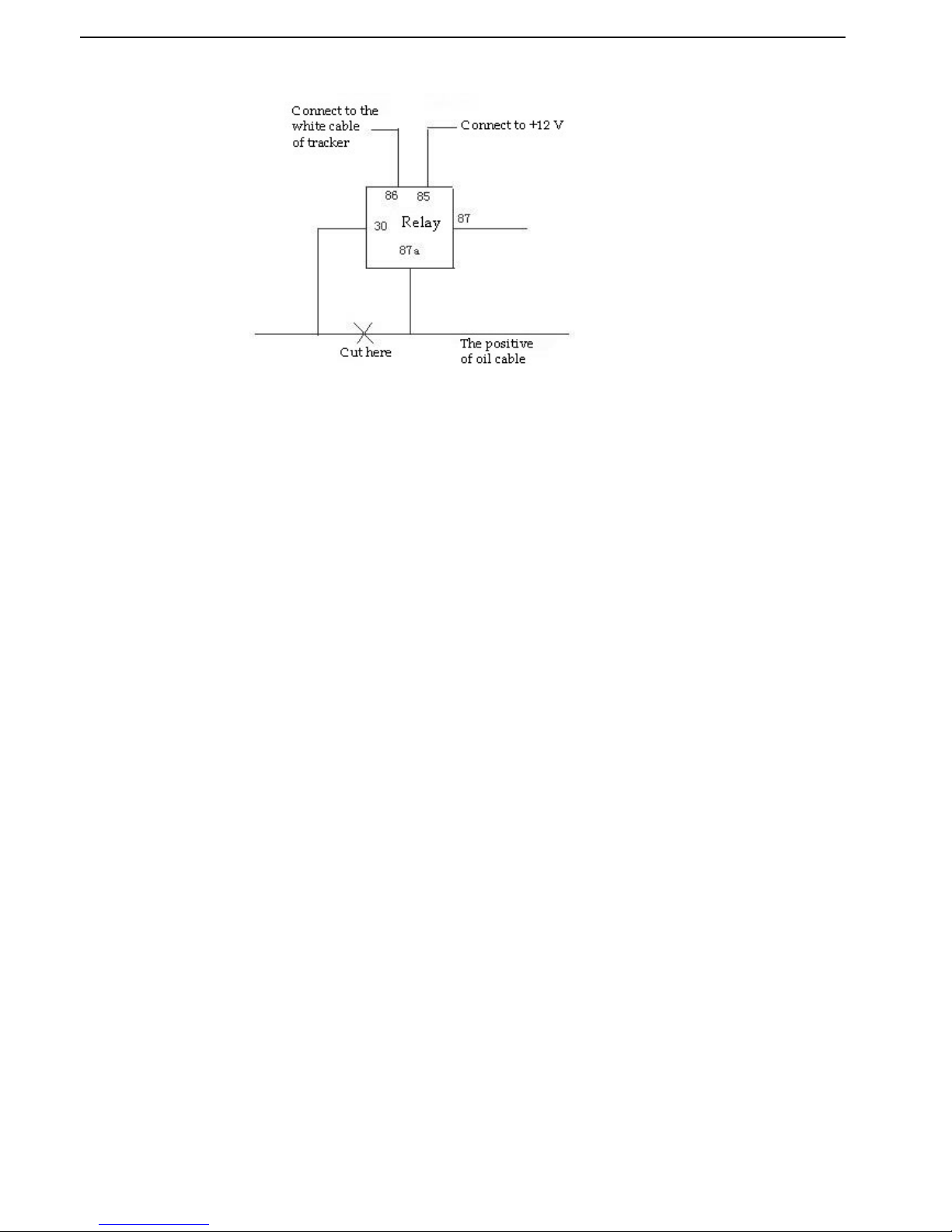

9.22 Remote oil &energy cut off function ------------------------------------------------------------------14
9.23 OTA feature ----------------------------------------------------------------------------------------------------15
10. Monitor Mode---------------------------------------------------------------------------------------------------------15
11. GPRS setting----------------------------------------------------------------------------------------------------------16
12. Causions----------------------------------------------------------------------------------------------------------------17
13. Faults and solutions------------------------------------------------------------------------------------------------18
XT-009 Gps tracker user manual
3
1. Overview of function
z
SMS/GPRS sending data
z
Movement/ Geofence/ Speed/ Low battery alarm
z
ACC alarm
z
SOS alarm
z
Remote cut-off electricity &oil function
z
Collision vibration alarm (Crash alarm)
z
Voice monitoring
z
Main power disconnect alarm
z
SD card saves GPRS data
z
OTA function (firmware update over the air)
z
Distance limit data transmission
z
Waterproof IP67
2. Application
z
Vehicle/motorcycle rental
z
Ship tracking
z
Fleet management
z
Tracking an offense
3. Hardware description
3.1 Outside
Microphone
SOS Button
Working LED
Power LED
XT-009 Gps tracker user manual
4
3.2 Internal mainboard
4. Wires connection
SD card
SIM card
Red: +12V
Black: -12V
Green connects to ACC
White connects to Relay
XT-009 Gps tracker user manual
5
5. Specification
Content specs
Dimention 73*46*24(mm)
Weigh 50g
Network GSM/GPRS
Band 850/900/1800/1900Mhz
GPS chip SIRF3 chip
GPS sensitivity -159dBm
GPS accuracy 5-10m
Start-up time
Cold status 45s
Warm status 35s
Hot status 1s
External power
supply
DC6-36V input
Battery 3.7V 1200mAh battery
Standby 120hous
Storage Temp -40°C to +85°C
Operation Temp -30°C to +80°C
Humidity 5%--95% non-condensing
6. Battery and SIM Card installation
Make sure SIM card have no call transfer, show calling ID is actived and PIN code request is off
1. Open two screws
2. Insert the SIM card and SD card
Open screws
Insert SIM card
Insert SD card
XT-009 Gps tracker user manual
6
7.Startup
z Put the SIM card and SD card in right places,connect the battery to tracker or connect the tracker
to 6-36Vcar/motorcycle battery. it will turn on automatically. the red light will on if connect tracker
to 6-36V car/motorcycle battery, it will off if disconnect.
z The green light will blink 2 times per second after start up. after 20-30 seconds, the light will on 1
seconds, off 3 seconds, GSM signal working normal.
z It takes 40~90 seconds to receive the GPS signals, in order to get good GPS signals, please put
the tracker outdoor.
8.Usage
This product has two modes, tracker and monitor, the default mode is tracker mode, you can send
SMS monitor + password to switch to monitor mode and then send tracker + password to switch
back to tracker mode.
9. Tracker mode
9.1 Initialization
Connect the battery
Closes the screws
