Xexun TK201 User Manual

1

GSM/GPRS/GPS TRACKER

USER MANUAL

UPreface

Thank you for purchasing TK201 GPS Tracker. This manual shows how to operate the device
smoothly and correctly. Make sure to read this manual carefully before using this product. Please
note that specification and information are subject to changes without prior notice in this manual. Any
change will be integrated in the latest release. The manufacturer assumes no responsibility for any
errors or omissions in this document.

2

Content

1 Summary ---------------------------------------------------------------------------------- 3
2 Application --------------------------------------------------------------------------------- 3
3 Hardware description

3.1 Front face -------------------------------------------------------------------------------------- 3

3.2 Rear face -------------------------------------------------------------------------------------- 3

3.3 Side face --------------------------------------------------------------------------------------- 3

3.4 Bottom face --------------------------------------------------------------------------------------- 4

3.5 Interior --------------------------------------------------------------------------------------- 4
4 Specifications ---------------------------------------------------------------------------------------- 4
5 Power on/off ---------------------------------------------------------------------------------------- 5
6 Usage

6.1 SIM card installation ----------------------------------------------------------------------- 5

6.2 Battery and Charger ------------------------------------------------------------------------ 5

6.3 Quick Startup ---------------------------------------------------------------------- 6

6.4 Initialization ---------------------------------------------------------------------- 6

6.5 Change the password ---------------------------------------------------------------------- 6

6.6 Authorization -------------------------------------------------------------------------- 7

6.7 Real-time polling ------------------------------------------------------------------------ 7

6.8 Auto track ------------------------------------------------------------------ 8

6.9 Voice Surveillance ------------------------------------------------------------------------ 8

6.10 Modes switch between “track” and “monitor” ------------------------- 8

6.11 Geo-fence ----------------------------------------------------------------------- 9

6.12 Movement Alert ----------------------------------------------------------------------- 9

6.13 Overspeed Alert ---------------------------------------------------------------------- 9

6.14 IMEI Check ---------------------------------------------------------------------- 10

6.15 SOS Button -------------------------------------------------------------------- 10

6.16 Low battery alert -------------------------------------------------------------------- 10

6.17 Hidden number tracking -------------------------------------------------------- 10

6.18 SMS center -------------------------------------------------------------------- 10

6.19 GPRS setting -------------------------------------------------------------------- 11
7 Cautions --------------------------------------------------------------------- 12
8 Faults & Solutions --------------------------------------------------------------------- 13

3

1Summary

Working Based on existing GSM/GPRS network and GPS satellites, this product can
locate and monitor any remote targets by SMS or GPRS.

2 Applications

z Rental vehicle / Fleet management etc
z Protect the child / the old / the disabled / pet etc
z Provide peace-of-mind for businessmen
z Personnel management
z Covert Tracking

3HardwareDescription

3.1 Front face 3.2 Rear face

3.3Sideface

You can update software,
charge battery from here.

Youcan press the “SOS” buttons for 3s for
emergent help.

Indicator for signals.

Turn on / off the unit here.

4

3.4 Bottom face

3.5 Interior

4Specs.

Content Specs.

Dim. 51mm x 46mm x 17mm

Weight 45g

Network GSM/GPRS

Band 850/1800/1900Mhz or 900/1800/19 00Mhz

GPS chip SIRF3 chip

GSM/GPRS

module

Siemens MC55/Siemens MC56 or Simcom300/Simcom340

GPS sensitivity -159dBm

GPS accuracy 5m

Time To First Fix

Cold status 45s

Warm status 35s

Hot status 1s

Car charger

12—24V input

5V output

Wall charger

110－220V input

5V output

Battery Chargeable changeable 3.7V 850mAh Li-ion battery

Standby 48 hours

Storage Temp. -40°C to +85°C

Operation Temp. -20°C to +55°C

Humidity 5%--95% non-condensing

Install the battery like this.

Microphone

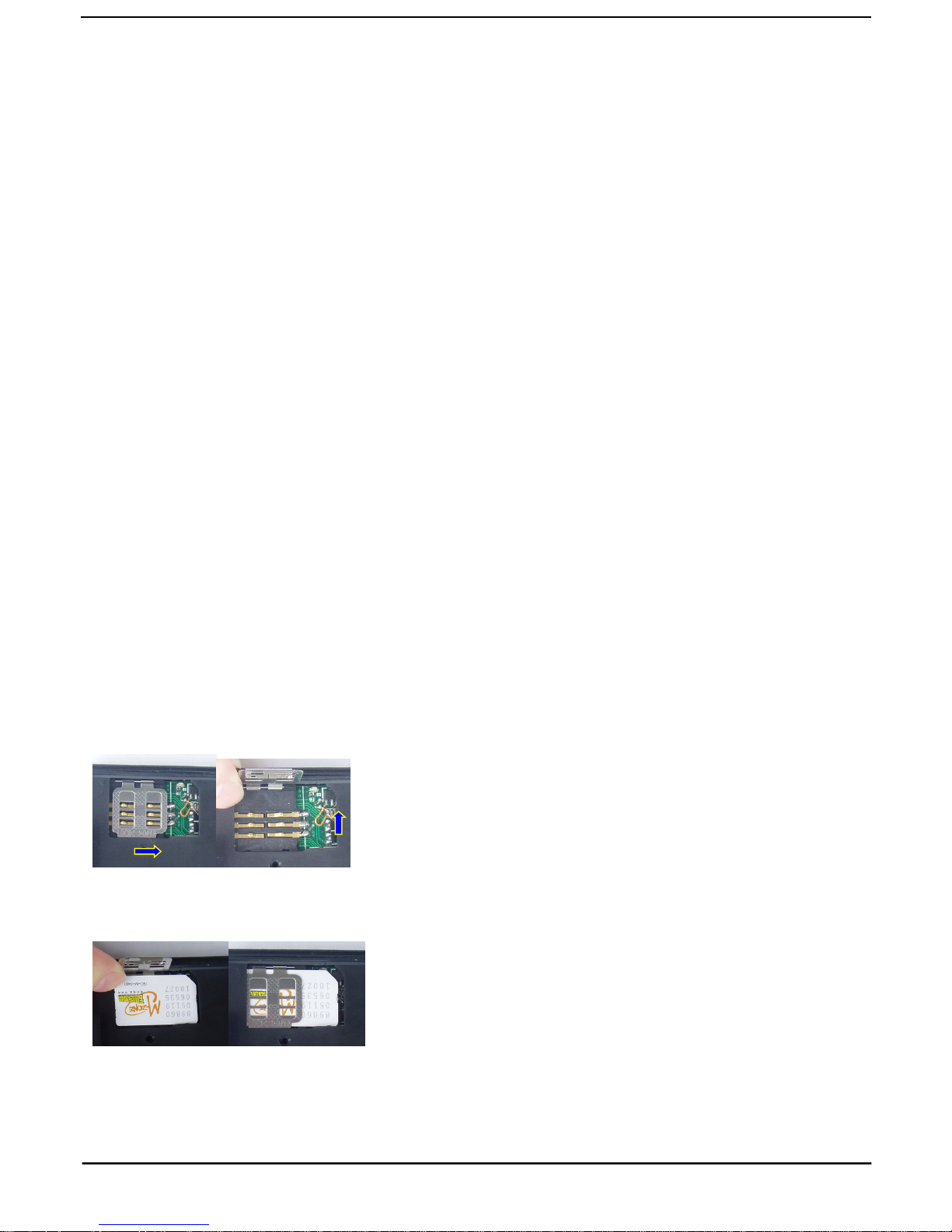

Put SIM card here.
