Xerox XPAF Forms Generator User Guide

Version 6.0 May 2013

XPAF Forms Generator

User Guide and Reference

Changes are periodically made to this document. Changes, technical inaccuracies, and typographic errors will be corrected in subsequent editions.

GENERATOR

1. Introduction ............................................................................................................................................................... 1

About this manual ........................................................................................................................................................ 1

Contents ................................................................................................................................................................... 1

Conventions.............................................................................................................................................................. 2

Related publications .................................................................................................................................................... 2

Xerox publications .................................................................................................................................................... 2

IBM publications ....................................................................................................................................................... 2

2. Overview .................................................................................................................................................................. 3

XFG features ............................................................................................................................................................... 3

Prerequisites................................................................................................................................................................ 3

Operating environment ................................................................................................................................................ 3

Hardware requirements ............................................................................................................................................ 3

Software requirements ............................................................................................................................................. 3

Xerox laser printer support ....................................................................................................................................... 4

Contrasting XFG with a typical forms application ........................................................................................................ 4

Forms you can create with XFG .................................................................................................................................. 4

3. Planning your forms .................................................................................................................................................. 6

Determining format ...................................................................................................................................................... 6

Page orientation ....................................................................................................................................................... 6

Page frames ............................................................................................................................................................. 7

Form origin ............................................................................................................................................................... 8

Positioning form elements ...................................................................................................................................... 10

Grids ....................................................................................................................................................................... 11

Data types .............................................................................................................................................................. 12

Fonts ......................................................................................................................................................................... 13

Fixed and proportionally-spaced fonts Font orientation

Adding color to forms ................................................................................................................................................. 15

Ink color availability and control

Choosing paper size .................................................................................................................................................. 15

4. Using XFG commands .......................................................................................................................................... 16

Creating forms with XFG commands ......................................................................................................................... 16

Available specifications .......................................................................................................................................... 16

Command format ....................................................................................................................................................... 17

....................................................................................................................................................... 13

.................................................................................................................... 13

.............................................................................................................................. 15

iii

GENERATOR

Reserved words ...................................................................................................................................................... 17

Special characters .................................................................................................................................................. 17

Understanding the command sy ntax flow charts .................................................................................................... 18

Setting up your form .................................................................................................................................................. 18

FORM command .................................................................................................................................................... 19

PAPER command LANDSCAPE/PORTRAIT command GRID command FONT command ICATALOG command PALETTE command INK command IRESULT command

Description commands .............................................................................................................................................. 28

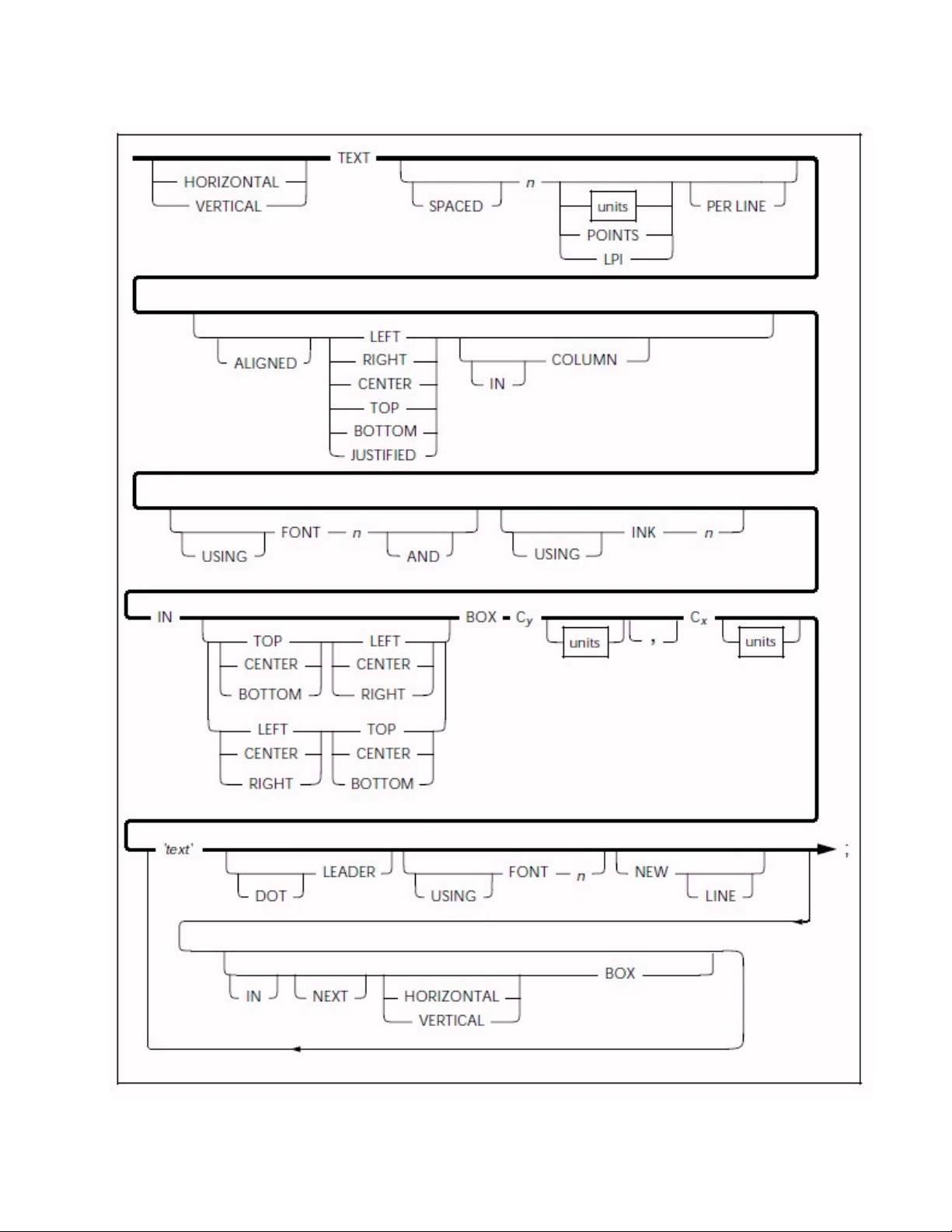

LINE command BOX command TEXT AT command TEXT IN BOX command LOGO command GRAPHIC command SECTION command DO SECTION command COLUMN command INTERWORD command DOT LEADER command LET command COMMENT command END command

5. Creating a sample form .......................................................................................................................................... 51

Setting up the form .................................................................................................................................................... 52

Using the sample description command .................................................................................................................... 53

6. Managing and printing sample forms ...................................................................................................................... 57

JCL requirements ...................................................................................................................................................... 57

.................................................................................................................................................. 19

...................................................................................................................... 20

...................................................................................................................................................... 22

..................................................................................................................................................... 24

............................................................................................................................................. 24

............................................................................................................................................... 25

......................................................................................................................................................... 25

............................................................................................................................................... 28

....................................................................................................................................................... 29

....................................................................................................................................................... 30

................................................................................................................................................ 33

........................................................................................................................................ 37

.................................................................................................................................................... 41

.............................................................................................................................................. 42

............................................................................................................................................... 43

........................................................................................................................................ 44

............................................................................................................................................... 46

......................................................................................................................................... 46

........................................................................................................................................ 47

........................................................................................................................................................ 48

............................................................................................................................................ 50

....................................................................................................................................................... 50

XFG compiler JCL Downloading and printing a sample Editing an existing form

7. Messages ............................................................................................................................................................... 61

Message indicators .................................................................................................................................................... 61

A. System Considerations ........................................................................................................................................... 71

.................................................................................................................................................. 58

........................................................................................................................ 59

.......................................................................................................................................... 60

GENERATOR

Boxes and their image ............................................................................................................................................... 71

Text in boxes ............................................................................................................................................................. 71

Using lines within sections ......................................................................................................................................... 71

B. FMT Grid Format Properties ................................................................................................................................... 72

C. Approved abbreviations for reserved words ........................................................................................................... 74

D. Supported paper sizes ............................................................................................................................................ 76

E. Glossary ................................................................................................................................................................. 77

F. Index ....................................................................................................................................................................... 91

About this manual

1. Introduction

This manual describes how to use the XPAF Forms Generator (XFG) to create an electronic version of a form. XFG compiles Forms Source Language (FSL) to generate a Xerox LCDS form (.FRM) and store it in the XPAF Centralized Forms Library. XPAF uses this library to manage and download forms to LPS and PCL printers and to PDF documents as required. Utility programs and JCL are provided to access this library and retrieve these FRMs outside of XPAF to allow sampling and/or private forms management.

This manual is designed for users who are familiar with the MVS-z/OS operating systems and have experience using Xerox printers. For more information, refer to the “Overview” chapter.

This manual describes XFG commands and statements and how to plan and lay out your forms. Before using this manual, become familiar with its contents and conventions.

This manual contains the following sections:

Chapter 1 “Introduction” describes the purpose of this manua l, conte nts and conv ent ion s . Chapter 2 “Overview” describes the XFG features, operating environment and hardware

and software requirements. It also lists supported Xerox laser printing systems and common forms you can create and manage with XFG.

Chapter 3 “Planning your forms” describes how to plan and design forms. It shows you

how to determine page orientation and format, add colors, select paper size and use the design ruler.

Chapter 4 “Using XFG commands” describes the available commands and how to set up

your forms. It also contains the command statement conventi ons and defi nitions

you use to create the FSL and examples of JCL. Chapter 5 “Creating a sample form” describes how to create a form using XFG. Chapter 6 “Managing and printing sample forms” describes how to compile, store and

download forms to the printer. Chapter 7 “Messages” lists the error and informational messages that may appear during

forms compilation. Appendix A “System considerations” describes the printer limitations you may encounter

during the creation of complex forms. Appendix B “FMT grid format properties” lists the grid and origin substitutions you can use

for the supported paper sizes. Appendix C “Approved abbreviations for reserved words” lists the abbreviations you can use

for reserved words. Appendix D “Supported paper sizes” lists the paper sizes that XFG supports.

XPAF Forms Generator 1 User Guide and Reference

Conventions

This manual uses the following conventions: In this manual, the word "character" refers to an "alpha-num er ic char act er,"

except where noted. “Supported paper sizes” appendix References to chapters, sections and appendices appear in quotation marks. ICATALOG Commands, operands and parameters that you enter appear in bold. XPAF Forms Generation Document names, library names, variable information and user-defined

Language 5.0 Creating Forms data you enter appears in italic. LPI System commands and parameters appear in upperc as e letters. Note Notes are hints that help you perform a task or understand the text. CAUTION: Cautions appear immediately before any action that may destroy the

data stored on your network or damage your equipment. Make sure you

understand the potential impact of the action before you perform it.

Related publications

You can find additional information related to XFG in the following publications.

Xerox publications

Xerox related publications include the following:

Publication Number

Xerox LPS Forms Creation Guide 720P90081 Xerox LPS Operations Reference 720P90041 Xerox LPS PDL/DJDE Reference 720P90051

Xerox LPS Print Description Language Quick Reference Card 720P60681

Xerox LPS Standard Font Library User Guide 720P86174

IBM publications

IBM publications related to XFG include the following: IBM z/OS JCL Reference IBM z/OS User’s Guide

XPAF Forms Generator 2 User Guide and Reference

2. Overview

The XPAF Forms Generator (XFG) operates in a standard IBM z/OS environment

that includes Xerox high–speed, high–volume centralized, PCL and/or PDF printers.

This chapter describes the XFG features, prerequisites, operating environment and

the supported printers. Refer to the Xerox XPAF User Guide for more information.

XFG features

XFG provides the following features:

• Flexible language statement syntax. The syntax allows you to quickly and easily develop your form electronically. The syntax is similar to the source language that resides on the Xerox laser printing system (LPS) printer and that the Forms Description Language (FDL) compiler uses. XFG also allows additional command extensions, such as dot leaders, which the FDL compiler does not support.

• Additional flexibility. You have the ability to download host–generated forms, which were compiled in different formats, to specific laser printers.

• Increase in several FDL limits.

• Standard entries. You have the ability to enter standard XFG reserved words and

identifiers in uppercase or lowercase letters.

Prerequisites

You should have a working knowledge of your MVS or z/OS operating system and

be able to perform the following procedures:

• Create and edit a text file on your system.

• Use JCL to compile a job on your system.

• Use JCL to access a file through your resource management interface and

download your selected file to your Xerox laser printing system.

Operating environment

The host computer, peripheral devices, printers and software make up your printing

system. This section describes the hardware and software requirements to operate XFG.

Hardware requirements

XFG 5.0 operates on IBM S/370 and S/390 series computers running the MVS/ESA

or z/OS operating system.

Software requirements

XFG operates in batch mode or interactively under ISPF panels within the IBM

MVS/ESA and z/OS operating system. It does not use operating system features specific to any MVS release level. Any specific requirements for your site are provided during installation and described in the XPAF 5.0 Installation Guide.

XPAF Forms Generator 3 User Guide and Reference

Xerox laser printer support

XFG supports Xerox centralized and decentralized printers.

Centralized printers

Centralized printers are high–speed, high–volume printers generally used in central

locations for printing data processing output from mainframe computers. They may be attached to the host computer by an S/370 channel or attached remotely by a TCP/IP connection.

Decentralized printers

XFG also supports Xerox decentralized printers through XPAF. These printers are

generally in remote locations away from the mainframe. A TCP/IP communications link connects them to the host.

Contrasting XFG with a typical forms application

XFG allows you to create electronic versions of your forms, compile them, store

them in your XPAF CFORMLIB and download them to your printer as needed. This eliminates the need to stock large quantities of prepr inte d for ms.

Once you download your form to a Xerox LPS printer, the printer merges your form

with variable data. This capability allows you to create, store and print any number of forms, in any order, on plain paper.

In a typical forms application that does not use XFG, you have to prepare and load

preprinted forms (often printed in large quantities) on a printer connected to a computer. You can load only one set of forms at a time and must remove and replace any forms currently loaded with the preprinted forms you want. The typical forms application usually requires a stock of preprinted forms. If there are different forms, storage costs can be high. If you have to modify preprinted forms, you usually must discard old versions, making your costs even higher.

Forms you can create with XFG

The following list provides examples of general business forms you can create with

XFG:

• Bar codes

• Billing statements and invoices

• Calendars

• Checklists

• Financial statements

• Floor plans

• Flow diagrams

• Marketing surveys

• Order fo rms

• Organizational charts

• Packing and shipping slips

• Production and inventory control forms

• Reorder lists

• Reports

• Routing forms

• Schedules

• Status report forms

XPAF Forms Generator 4 User Guide and Reference

• Bank statements

• Government compliance forms

• Insurance forms

• Tax return forms

Depending on your business, you may need to create forms to meet specific industry standards. XFG allows you to create the following types of specialized forms:

XPAF Forms Generator 5 User Guide and Reference

Determining format

3. Planning your forms

This chapter describes the parameters you must determine and specify when designing your form.

Careful planning and design are critical to creating electronic versions of your forms. Form planning and design specify such things as page size, orientation, layout, fonts, inks, and highlight colors.

For additional information about designing complex forms and Xerox laser printer capabilities, refer to the “System considerations” appendix.

Before you create a form with XFG command statements, you must plan its lay out, cont ent, and appearance according to the requirements described in the following sections.

Page orientation

The orientation of a page is either portrait or landscape. Figure 3–1 shows these orientations. Figure 3-1 Page Orientation

The landscape orientation, sometimes called the horizontal format, refers to a page

whose horizontal side is longer than its vertical side. The portrait orientation, sometimes called a vertical format, refers to a page whose

vertical side is longer than its horizontal side. Use the portrait orientation for text material such as letters, manuals, reports, and forms that need the tall vertical format.

XPAF Forms Generator 6 User Guide and Reference

Note: Corresponding

SYSTEM PAGE

VIRTUAL PAGE

PHYSICAL PAGE

Page frames

Landscape format is ideal for forms, spreadsheets, and reports that require columns across the page. For example, the landscape orientation is appropriate for a Gantt chart that lists six or twelve months horizontally, and lists the tasks vertically.

Large paper size forms in short edge feed (SEF) require you to specify the FONTS command in the opposite orientation. For example, for a portrait orientation, use landscape fonts, and for a landscape orientation, use portrait fonts. Make sure you specify the orientation you want. For example, for a portrait form, specify PORTRAIT for the orientation, and for a landscape form, specify LANDSCAPE.

The page frame is a set of boundaries associated with a page as a unit of printing or imaging. There are three types of page frames: system, physical, and virtual. Figure 3–2 shows the relationship between the system, physical, and virtual page. Figure 3-2 Page Frames

edges of physical and

system pages. This is

important when

considering edge-marking.

For additional information about page frames, refer to the Xerox LPS Forms Creation Guide.

System page

The system page is the maximum area the printer allows you to image graphics and text. The system page is slightly larger than the physical page. If the default paper sizes have been established for your printer, the system page has little bearing on your form design.

XPAF Forms Generator 7 User Guide and Reference

If you decide to place marks along the edge of the physical page (edge–marking) in your form, be familiar with the edge–marking limitations. To accommodate edge–marking, the system page must be larger than the physical page. Since the system page boun d aries correspond to at least two edges of the physical page boundaries for all paper sizes, you can only use edge–marking on the two edges of the physical page that does not correspond to the system page.

The product guide for each printer contains specific information about edge–marking.

Physical page

The physical page is the actual paper size. On a Xerox LPS, you define the default size of the physical page during system generation (SYSGEN). During planning, you must consider the default paper size or other paper sizes available for your printer. See the “Supported paper sizes” appendix for more information.

Virtual page

The virtual page is the area you specify for printing. The virtual page can be as large as the physical page (actual paper size), but can never be larger than the physical page. If you do not specify the virtual page size, the defined (planned) area of the virtual page is the same as the physical page.

Form origin

All form data described by XFG is positioned on the page relative to a point, called the form origin. The form origin is a reference point from which you place all elements on a form using XFG commands. The form origin is a point that is offset from the upper left corner of the virtual page. You can specify this point during form description. If you do not define a virtual page and specify a form origin, the default form origin is the origin of the physical page.

XPAF Forms Generator 8 User Guide and Reference

LANDSCAPE FORM

FORM ORIGIN OFFSET PORTRAIT FORM ORIGIN

Figure 3–3 shows the location of the form origin of the virtual page in relation to the actual page size.

Figure 3–3. Form origin location

LANDSCAPE

PAGE

PORTRAIT PAGE

FROM VIRTUAL PAGE

FORM ORIGIN OFFSET FROM VIRTUAL PAGE

VIRTUAL PAGE (USER DEFINED)

DEFAULT SIZE= ACTUAL PAPER SIZE (PHYSICAL PAGE)

XPAF Forms Generator 9 User Guide and Reference

Positioning form elements

You can place the following elements on a form with XFG:

• Boxes

• Fixed text

• Images

• Lines

• Logos and signatures

• Sections

You locate an element by determining the horizontal (x) and vertical (y) distance from the upper–left corner (origin) of the form. These coordinates (x, y) comprise the origin of the document. The form origin (upper left corner of the page) is always (0,0).

Form element Element origin Vertical ruled line Top of the line at the midpoint of the

thickness of the line.

Horizontal ruled line Left end of the line at the midpoint of

the thickness of the line.

Box (outlined) Upper–left corner of the box at the

midpoint of the thickness of the outline.

Box (shaded) Upper–left corner of the box. Fixed text (single line) Upper–left corner of the first character

cell when the line appears upright.

Fixed text Upper edge of the topmost character (multiple lines) cell and the leftmost edge of the

leftmost character cell when viewed in

an upright position. Graphics Upper–left corner of the image. Logos Upper–left corner of the first

Sections (of a form) Upper–left corner of the section.

character cell.

XPAF Forms Generator 10 User Guide and Reference

LANDSCAPE

PORTRAIT

Grids

You specify the location of a form element (alphanumeric character, line, or box) on a page in terms of its horizontal and vertical displacement from the form origin. You can use these units of measure to define this displacement:

• Characters per inch (cpi) horizontally

• Dots per inch (300 dpi)

• Linear units (inches or centimeters)

• Lines per inch (lpi) vertically

• Xdots (600 dpi)

X and Y coordinates

If you draw a horizontal and vertical line through the form origin to create x and y coordinates, the location of the form origin is expressed as y=0, x=0. When specifying both coordinates, provide the y value first. Figure 3–4 shows the correct placement for x and y coordinates.

Figure 3–4. X and Y coordinates

0,0

XPAF Forms Generator 11 User Guide and Reference

Data types

If you draw additional lines horizontally and vertically away from the form origin so that each additional line is one unit of measure apart, you create a grid. You can now position form elements by specifying a grid position.

Negative coordinates

You can use negative x and y values to place the form elements above and to the left of the form origin. You can only specify negative values within the system page boundaries.

Unit value

You can specify the unit of measure you want to use to position form elements on the page. However, predefined formats automatically select the grid values for you. The “FMT grid format properties” appendix lists the predefined grid format properties for various page sizes.

There are two types of data: forms data and variable data. Make sure you consider them when you create forms for printing on Xerox LPS printers.

Forms data

Forms data is the information on a form that remains the same, such as form titles and column titles. Typically, fixed–length forms data changes only when you modify the form. Forms data is the only data you enter in the design process.

When designing a column size you must consider the amount of variable data the column accommodates, not the size of the fixed– length column title.

Variable data

Variable data is the data you overlay in the space provided by the designed form. Variable data varies in length. An example of variable data is a name and address.

You must allow sufficient space in the columns to accommodate the variable data. Otherwise, variable data may be invalid or unusable. For example, if you do not provide sufficient space for an address, the zip code could be truncated. Spacing for variable data is extremely important and is more accurately calculated with fixed spacing of the font characters.

XPAF Forms Generator 12 User Guide and Reference

Fonts

Fonts are character sets, each having a unique typeface (Times, Roman or Helvetica), type size (points), and type style (normal, bold, or italic).

Fonts must reside in the host database and on the printer. Check with your System Administrator to identify the fonts available on your printer. If you specify a font that does not reside in the host database, you receive an error message when you compile the form.

Fixed and proportionally-spaced fonts

You can use fixed and proportionally spaced fonts on Xerox LPS Printers. Each character occupies an area of the form cell called a character cell. With fixed fonts, all character cells in the set are the same width. With

width.

proportional fonts, character cells vary Usually, you use fixed fonts for variable data and proportional spacing

for forms data. Figure 3–5 shows examples of fixed and proportional spacing.

Figure 3–5. Character spacing

CHARACTER

CELL

FIXED SPACING

PROPORTIONAL SPACING

Font orientation

XPAF Forms Generator 13 User Guide and Reference

In addition to typeface, style, and size, you can also define fonts by their orientation:

• Landscape

• Portrait

• Inverse landscape

• Inverse portrait

Figure 3–6 shows the font orientations relative to the physical page.

LANDSCAPE FONT

Figure 3–6. Font orientation

PORTRAIT FONT

LANDSCAPE PAGE

PORTRAIT PAGE

Font orientation when using short–edge paper feed

Normally, stock feeds into the printer moving in the direction of the page length. You assign each job a font with a landscape orientation (characters align along the long edge of the page) or a font with a portrait orientation (characters align along the short edge of the page).

Some printers, such as the Xerox 4135 LPS, support paper sizes up to 14.33 by 17 inches by allowing the stock to feed into the printer moving in the direction of the page width. This is the short edge feed (SEF) option. This reversal of the feed edge reverses the font orientation the job must use. When printing a landscape document using the SEF option, specify portrait fonts. When printing a portrait document using the SEF option, specify landscape fonts.

XPAF Forms Generator 14 User Guide and Reference

Adding color to forms

The Xerox highlight color LPS printers allow you to use color to emphasize important parts of your form. With a highlight color printer, you can use different shades of a single color to highlight parts of your form. The following examples show typical color enhancements for forms:

• Highlighted titles

• Highlighted columns representing totals or important results

• Lines setting off groups of columns or items or used as a

border for your form

• Boxes filled with any of the colors and tints available in the ink catalog

You use the XFG command statements to control color. For more information, refer to the “Using XFG commands” chapter.

On a highlight color printer, text, lines, and box borders always print in the primary color of the printer, even if you specify a different color, tint, and so on.

Ink color availability and control

Choosing paper size

When planning colors, you should determine if your company has any regulations and controls for using colors on forms. You may need to use a specific ink list, which contains an ink catalog, palette, and ink for items such as logos and form titles. Contact your System Administrator to determine the available ink colors.

For additional information regarding default ink palettes, catalogs, color models, ink priority and substitutions, and modifying Xerox LPS PDL/DJDE Reference Manual.

output, refer to the

Once you determine the actual page size (physical page) available for your printer, you can specify any size within the physical page size for your form.

Contact your System Administrator to determine available paper sizes. For a list of paper sizes for the family of Xerox laser printers, refer to the “Supported paper sizes” appendix.

XPAF Forms Generator 15 User Guide and Reference

Creating forms with XFG commands

Available specifications

4. Using XFG commands

You use the XPAF Forms Generator (XFG) keyword commands to translate your form design into a format for the host computer. The command set representing your form becomes the Forms Source Language (FSL), which the host compiles and stores. You can download the compiled form to a Xerox LPS printer. This chapter describes the XFG commands and their functions.

The XFG command language syntax is usually the same as the Forms Description Language (FDL) command language syntax. You may be familiar with the FDL commands and how to use them at the printer.

For more information on FDL commands and printer usage, refer to the Xerox Laser Printing Systems Forms Creation Guide.

The XFG commands allow you to specify the following features:

• Form name identifies the forms you are developing.

• Page orientation specifies a page as portrait or landscape.

• Font selection specifies the fonts you want to use.

• Vertical and horizontal grid positions specify grid position and position

form elements in line printer measurements (line number and character position) or inches, centimeters, dots and xdots.

• Highlight color enhances graphs, charts, forms and other publi cat ion s.

• Shading mixes color with black to produce shades of a primary color

(red, green, or blue).

• Caption position specifies locations of captions on a page or selects automatic placement within a specified area.

• Logo and graphic position specifies the location of selected logos and graphics on a page.

XPAF Forms Generator 16 User Guide and Reference

Command format

Each XFG command consists of a command identifier, parameters and reserved words associated with the function.

The following conventions apply:

• A semicolon (;) terminates a command.

• A comment line begins with the word COMMENT, followed by a comment

and semicolon (;).

• A blank space separates reserved words and parameters.

• Commas are legal only as shown in the command syntax flow charts and

may be optional.

Command information appears within the first 72 columns of each record. Commands can continue for multiple records; however, there is a limit of 4,096 characters allowed in one text block. Multiple commands can appear in one record if you separate them with semicolons. The system ignores records containing all blanks. Y ou can use them to separate comman d statements.

Reserved words

Special characters

Reserved words appear in bold uppercase text in the command syntax flow charts in this chapter. You can abbreviate many reserved words to the first three characters (except FMTn, where you must specify the integer n). Refer to the “Approved abbreviations for reserved words” appendix for the list of abbreviations you can use. Avoid using reserved words as section or form names.

Use the following special characters to meet certain requirements within the command statements:

• A single quote (’) encloses a text string, for example, ’This is a font count’ produces “This is a font count” in the printed version. When you use a reserved word such as “font” in a string, it is not processed as a command.

• A pound symbol (#) within a text string shifts the text between uppercase and lowercase characters. Each string begins with an uppercase character. For example, F#IRST produces “First” in the printed version. To shift back to uppercase characters, you must enter another pound symbol (#) character in the text string. For example, R#EV#A produces “RevA” in the printed version.

• An exclamation poi nt (!) specifies a character in the font character set, not the keyboard character. Enter an exclamation point (!) and the ASCII hexadecimal code point for the character you want to print. For example, 65!7B produces 65°. No mapping or translation is done to these characters.

• Special char acter s ( ‘ # ! ) print only if you type them twice in succession. For example, ‘IT’’S HERE!!’ produces “IT’S HERE!” in the printed version.

XPAF Forms Generator 17 User Guide and Reference

Understanding the command syntax flow charts

Many XFG statements offer several options. This chapter represents XFG command syntax in the form of flow charts, which allow you to visualize the main command statement and the way options branch from that statement.

If you want to enter a command in its short form, without options, follow the main command line in the flow chart until you reach a semicolon. Otherwise, follow the branching below the main command line to include any parameters you want.

The main command line contains the required words and operands. Under the command line, or under a branching line, you can use optional words to clarify the command. Parameters that are vertically stacked (one above the other) under the main command line or under a branching line indicate choices for that particular parameter. Ellipses (...) indicate multiple occurrences of the preceding parameter.

Words, characters, or phrases shown in lowercase are variables. Replace these variables with names or values that you have selected.

Setting up your form

Before you enter commands to describe a form, you enter setup commands to specify the following:

• FORM specifies the name and resolution of the form.

• PAPER specifies the paper size.

• LANDSCAPE/PORTRAIT specifies page orientation and virtual page

size.

• GRID specifies grid unit and form origin.

• FONTS specifies fonts to be used in form.

• ICATALOG and PALETTE specifies ink catalog and palette.

• INK specifies inks and colors valid only when using Xerox color printers.

• IRESULT specifies results when objects imaged with different inks

overlap on Xerox highlight color printers only.

The name parameter of the FORM command is required. The other commands are optional. If you do not specify the optional commands, the defaults are used. If you want to include text on the form, you must specify the FONT command.

XPAF Forms Generator 18 User Guide and Reference

FORM command

FORM name

You must first specify the FORM command when you describe your form. You must also completely contain it in the first record of the form description.

Enter a form name between one and six characters. This is the only required parameter in the FORM command. FORM must be the first command of the form file and must precede any comments. Once the form is compiled, this name identifies the form stored on the printer.

flow.

Figure 4–1 shows the FORM command syntax

Figure 4–1. FORM command syntax

, 300

RESOLUTION

600

SPI

Parameters: Name identifies the name you want to use for the form. The form name must be from one to six characters. Name is a required parameter, but you can omit the remainder of the FORM command.

RESOLUTION: You can specify the resolution (300 or 600 SPI) or leave the resolution blank. IS and SPI are optional. The 600 SPI resolution is only valid on the Xerox 4650 LPS.

Default: 300 SPI if you do not specify SPI. There are no defaults for the form name.

Examples Long form: FORM NEWFOR, RESOLUTION IS 300 SPI; Short form: FORM NEWFOR;

;

PAPER command

Use the PAPER command to specify the paper size for your form. If you specified a predefined form using the GRID command, the paper

size is determined automatically and you do not need to use the PAPER command.

If you use the PAPER command to specify a paper size at run time, make sure the paper size matches the size specified in the JDE or JDL for the variable data.

Before printing your form, verify that the printer contains the correct paper size. Use the printer status key on the printer console. An error message displays if a paper size mismatch occurs at run time. The job aborts and your form does not print.

Refer to the output statement PAPER SIZE command in the Xerox LPS PDL/DJDE Reference manual.

Figure 4–2 shows the command syntax

flow.

XPAF Forms Generator 19 User Guide and Reference

Figure 4–2 PAPER command syntax

Parameters SIZE and IS are optional words you can use for clarity in the long form

Default INCHES, if you do not specify units.

Examples Long form:

of the language coding. USLETTER, USLEGAL, A3, A4, and B4 are the standard paper

sizes you can use with the Xerox LPS. Width (w) and length (l) represent the decimal paper size for printers

that allow you to print forms in nonstandard paper sizes. units indicates the unit of measure you want to use when specifying

the size of the page. The units you can choose are INCHES, CENTIMETERS, DOTS, and XDOTS. You can use two decimal places when you specify inches and centimeters. You must express DOTS and XDOTS in integers.

Refer to the “Supported paper sizes” appendix for more information.

If you do not specify the PAPER command and a predefined format is not defined in the GRID command, XFG assumes USLETTER.

PAPER SIZE IS USLETTER;

PAPER SIZE IS 8.5 INCHES BY 11 INCHES; Short form:

PAPER USLETTER;

LANDSCAPE/PORTRAIT command

Use the LANDSCAPE/PORTRAIT command to specify the orientation of the f or m, and the size and origin of the virtual page.

If you specified the predefined format in the GRID command, the form orientation is established automatically and you do not need to use the LANDSCAPE/PORTRAIT command.

flow.

Figure 4–3 shows the command syntax

XPAF Forms Generator 20 User Guide and Reference

LANDSCAPE

PORTRAIT

Figure 4–3. LANDSCAPE/PORTRAIT command syntax

PAGE

SIZE IS

units

;

WIDE

units

HIGH

Parameters LANDSCAPE specifies the landscape form orientation. If you only

specify LANDSCAPE, grid units and form origin correspond to the standard grid format (FMT1).

PORTRAIT specifies the portrait form orientation. If you only specify PORTRAIT, grid units and form origin correspond to the standard grid

format for the portrait page (FMT6), unless you change them with the GRID command.

Refer to the “FMT grid format properties” appendix for more information.

PAGE, SIZE, and IS specifies the width and height of the virtual page.

The value you use to specify the special page size is n. You must use positive numbers and you cannot exceed the size specified in the PAPER SIZE command. You can use two decima l places when you specify inches. You must express DOTS and XDOTS as integers.

units indicates the unit of measure you want to use when specifying the size of the virtual page. The units you can choose are INCHES, CENTIMETERS, DOTS, and XDOTS. You can use two decimal places when you specify inches and centimeters. You must express

DOTS and XDOTS as integers.

Defaults If you do not use the LANDSCAPE/PORTRAIT command, XFG

uses these defaults:

• LANDSCAPE (orientation)

• FMT1 (grid units and form origin)

• 8.5 by 11 inches (virtual page)

Examples Long form:

• INCHES (if you do not specify units)

PORTRAIT PAGE SIZE IS 8.5 INCHES WIDE BY 11 INCHES

HIGH; Short form: PORTRAIT; It allows XFG to default to the FMT6 predefined format.

XPAF Forms Generator 21 User Guide and Reference

GRID command

Use the GRID command to specify the dimensions of the grid unit and the location of the form origin with respect to the virtual page origin. All XFG description commands create and place form elements (lines and boxes) relative to the form origin.

flow.

Figure 4–4 shows the command syntax

Figure 4–4. GRID command syntax

XPAF Forms Generator 22 User Guide and Reference

Parameters UNIT and IS are optional words you can use as a lead–in to the

Defaults Predefined format FMT1, if you do not specify the GRID or

Examples Long form:

format – id and units identifiers. The name of the predefined format that you hav e selected is format –

id. Refer to the “FMT grid format properties” appendix for more information.

The size of the grid unit is n, expressed in positive numbers of units (for example, 6 inches). If you specify inches or centimeters, the value represents one side of a square grid unit. If you only specify one DOTS or XDOTS parameter, the grid unit is the same number of dots both horizontally and vertically.

CPI specifies the number of characters per inch for the horizontal size of the grid unit.

LPI specifies the number of lines per inch for the vertical size of the grid unit.

ORIGIN specifies the origin of the form relative to the virtual page origin. ORIGIN establishes the 0.0 X and Y coordinates.

The GRID sizes must fall into the boundaries of the physical page. The smallest grid allowed is 1 XDOT by 1 XDOT. The largest grid allowed is 1 physical page by 1 physical page.

Y specifies the form origin offset downward from the top–left corner of the virtual page.

X specifies the form origin offset to the ri ght of the left edge of the virtual page.

units indicates the unit of measure you want when specifying the offset origin. The units are INCHES, CENTIMETERS, DOTS, and XDOTS. You can use two decimal places when you specify inches and

centimeters. You must express DOTS and XDOTS

integers.

LANDSCAPE/PORTRAIT commands. Predefined format FMT6, if you specify PORTRAIT

(LANDSCAPE/PORTRAIT command), but not GRID. If you specify a predefined format, all GRID format parameters are automatically provided, unless you change them with the ORIGIN parameters.

INCHES, if you do not specify units. A value of 1, if you omit an n value when you specify DOTS or

XDOTS.

GRID UNIT IS 12 CPI BY 8 LPI ORIGIN 0.18 INCH 0.66 INCH; Short form:

GRID FMT1;

XPAF Forms Generator 23 User Guide and Reference

FONT command

You cannot specify any text in your form until you specify the fonts you are going to use with the FONT command. Check with your System Administrator for the fonts available for your forms.

flow.

Figure 4–5 shows the command syntax

Figure 4–5. FONT command syntax

Parameters Font name identifies the standard or custom font for your form. Font

name is a maximum 6-character string. Use a blank space or a comma to separate multiple font names. There is a maximum of 32 fonts per form.

When you compile a form in LPS format, font name is converted to uppercase.

Defaults None.

Examples Long form:

FONT Font1;

There is no shor t form.

ICATALOG command

Use the ICATALOG command to specify the ink catalog to be used on highlight and full color printers.

The ink catalog is a file that contains color information. It resides on highlight color printers.

If you do not specify a catalog for a highlight color printer, the printer uses its default catalog.

flow.

Figure 4–6 shows the command syntax

Figure 4–6. ICATALOG command syntax

XPAF Forms Generator 24 User Guide and Reference

Parameter name represents the ink catalog to use for color information. Your

ink catalog name must not exceed six alphanumeric characters.

Default Printer default catalog and palette, if you do not specify the

Examples Long form: ICATALOG IS CAT1;

Short form:

You cannot use spaces.

ICATALOG (highlight color only).

ICATALOG CAT1;

PALETTE command

Use the PALETTE command to specify the ink palette to use for color information on highlight and full color printers. The

ink

palette

is a subset of inks in the ink catalog. If you do not specify a palette for a highlight color printer, the printer

uses its default palette.

flow.

Figure 4–7 shows the command syntax

Figure 4–7. PALETTE command syntax

Parameter name represents the ink palette you use for ink information.

Your palette name must not exceed 32 alphanumeric characters, including spaces.

Default Printer default catalog and palette, if you do not specify the

PALETTE (highlight color only).

Examples Long form: PALETTE IS ’PAL1’;

Short form:

PALETTE ’PAL1’;

INK command

The INK command is only valid on Xerox highlight color and

full

color

printers. This command specifies all of the inks and colors you use

full

when you create a form on Xerox highlight color and

color printers. The inks you specify with the INK command are referenced as an index number when you use the LINE, TEXT and BOX commands. They are not referenced as their identification name.

The ICATALOG and PALETTE commands must precede the INK command, as the printer uses the palette and catalog specified

these commands. If you do not specify a catalog or palette for a

XPAF Forms Generator 25 User Guide and Reference

highlight color form, the printer uses its default catalog and palette.

Ink index numbers begin with 1 for the first ink you specify, 2 for the second, and so forth. This numbered list of ink names is the ink list you use for your form. The ink you selected for a spe cific description command is identified by the associated ink number found in the ink list. This command follows the FONT command. The maximum

Parameters Inkname identifies all of the inks you use to create your form. If you

Default The printer default ink, if you do not specify the INK (highlight color

Example Long form:

number of ink names that can be defined is 255. Figure 4–8 shows the command syntax

flow.

Figure 4–8. INK command syntax

use a reserved word such as BLACK as an ink name, you must enclose it in single quotes: ’BLACK’. You must also enclose ink names with embedded blanks in single quotes.

NOSUBSTITUTION specifies that ink substitutes are not allowed for this ink. If you do not specify this parameter, the printer may attempt to substitute another ink.

only).

INKS RED, PINK; There is no shor t form.

Inkname format

This format describes a variety of ways you can specify an ink. Use this statement to describe forms you are compiling for Xerox highlight color or full color printers.

Figure 4–9 shows the inkname syntax.

Figure 4–9. Inkname syntax

palette .

catalog .

’palette’

‘color’

color

XPAF Forms Generator 26 User Guide and Reference

Once you establish an INK command parameter (catalog, palette, or ink color), it remains in effect until you change it or another parameter overrides it. A color or palette name containing one or more blank spaces requires quotes around the name.

Defaults The user catalog specified in the ICATALOG command, if

Examples This example shows you how to use the single quotes

you do not specify a catalog in the INK com ma nd. System default catalog, if you do not specify a default catalog

(highlight color only).

The palette you specify in the PALETTE command, if you do not specify a palette in the INK command.

System default palette, if you do not specify a default palette

(highlight color only).

When the ink color begins with a digit, you must specify it

within

quotes.

describing specific inks:

RED or ‘RED’

PAL1.‘RED’, or ‘PAL1’.‘RED’, or PAL1.RED CAT1.PAL1.‘RED’, or CAT1.‘PAL1’.‘RED’, or CAT1.‘PAL1’.RED, or

CAT1.PAL1.RED

XPAF Forms Generator 27 User Guide and Reference

IRESULT command

The color result you receive from overlapping objects is either black or color for the entire page. The IRESULT command allows you to specify the result when objects imaged with different inks ov erlap . The IRESULT command appears in the XFG, FDL, and PDL OUTPUT statements and DJDE. You can use the IRESULT command only on a Xerox highlight color printer.

flow.

Figure 4–10 shows the command syntax

Figure 4–10. IRESULT command syntax

Parameters DEFAULT uses the printer default IRESULT, which may be BLACK or COLOR.

BLACK specifies a black pixel to print when you place two objects

with different inks that overlap, and black and highlight pixels coincide.

COLOR specifies a color pixel to print when you place two objects with different inks that overlap, and black and highlight pixels coincide.

Default DEFAULT, if you do not enter the command.

Examples Long form:

IRESULT IS BLACK; Short form:

IRESULT COLOR;

Description commands

Once you complete the setup commands, you can use the following commands in any sequence to enter descriptive data:

• LINE

• BOX

• TEXT AT

• TEXT IN BOX

• LOGO

• GRAPHIC

• SECTION

• DO SECTION

• COLUMN

• INTERWORD

• DOT LEADER

• LET

• COMMENT

• END

XPAF Forms Generator 28 User Guide and Reference

You must place coordinates within the boundaries of the physical page. If coordinates stay within the physical page, but extend beyond the virtual page, XFG issues a warning message. The size of the lines table, currently set at 1,500, determines the maximum number of lines and boxes. Text must fit on the physical page. You can enter up to 4,096 characters in a text block.

LINE command

Use the LINE command to specify one or more lines in the same direction on your form.

Figure 4–11 shows the LINE command syntax.

Figure 4–11. LINE command syntax

Parameters Co allows you to specify a line origin location on the form grid,

measured from the origin AT location, the point at which the line begins. If the line is horizontal, Co represents the origin in the vertical direction (y–axis coordinate); if the line is vertical, Co Represents the origin in the horizontal direction (x–axis coordinate).

XPAF Forms Generator 29 User Guide and Reference

units indicates the unit of measure for specifying the line origin. The units are INCHES, CENTIMETERS, DOTS, and XDOTS. You can use two decimal places when you specify inches and centimeters.

Defaults HORIZONTAL, if you do not specify a line orientation.

Examples Long form:

You must express DOTS and XDOTS in integers. DRAW is an optional reserved word. The number of lines you want drawn on your form is n. HORIZONTAL

or VERTICAL specifies the direction of your lines. LINES specifies that

this reserved word is required. IN units is a shorthand method of specifying units for the entire

command. IN units overrides all other units used. For example, if you

want to draw a line using inches but specify grid FMT1,

units uses

inches as the grid for all units in the specific LINE statement. FROM, TO specifies the coordinate at the coordinate start (C

point and the coordinate end (Ce) point.

)

SOLID, BROKEN, or DOTTED specifies the type of line you want to

draw. HAIRLINE, 0 point (invisible), 1 point, or 2 points specifies the

thickness of the line you want to draw. INK n specifies the ink color index from the ink list for a Xerox

highlight or full color LPS printer. REPEAT specifies that you want a selected line repeated

according to the following commands. HORIZONTALLY or VERTICALLY specifies the orientation of the

lines you want repeated.

EVERY Ci indicates that you want a line repeated at the increment (Ci) you have specified.

AT Ca indicates that you want the line repeated at the absolute coordinate (Ca) you have specified.

SOLID, if you do not specify a line type. 1, if you do not specify a line weight. VERTICALLY, if you do not specify the REPEAT orientation.

AT 3 INCHES DRAW 5 HORIZONTAL LINES IN INCHES FROM 4 INCHES TO 10 INCHES USING SOLID 1 USING INK 3

AND

REPEAT HORIZONTALLY EVERY 0.50 INCHES; Short form:

AT 3 5 LINES 4 TO 10 REPEAT EVERY 0.50;

BOX command

Use the BOX command to describe the size and shape of a box on your form. Similar to lines, you can repeat boxes at fixed intervals or at specified locations. The origin of the box is its upper left corner at the midpoint of the thickness of the outline. If you are using a HighLight Color printer, the BOX command allows you to outline the

frame of the box syntax

flow.

XPAF Forms Generator 30 User Guide and Reference

color. Figure 4–12 shows the BOX command

Figure 4–12. BOX command syntax

XPAF Forms Generator 31 User Guide and Reference

Parameters Cy specifies the y–axis coordinate for the box origin location.

Cx specifies the x–axis coordinate for the box origin location.

units indicates the unit of measure for specifying the box origin. The units are INCHES, CENTIMETERS, DOTS, and XDOTS. You can use two decimal places when you specify inches and centimeters. You must express DOTS and XDOTS in integers.

The number of boxes you want to draw is n. IN units is a shorthand method of specifying units for the entire

command. IN units overrides all other units used. For example, if you want to draw a box using inches but specify grid FMT1, uses inches as the grid for all units in the specific BOX statement.

The width of the box you have specified is p. The height of the box you have specified is q.

SOLID, BROKEN, or DOTTED specifies the type of line.

INCHES

HAIRLINE, 0 point (invisible), 1 point, or 2 points specifies the

thickness of the line for your box. INK n specifies the INK number you selected from the ink list to draw

the line in color for use on a Xerox highlight or full color LPS printer. You may specify the same, or different, ink numbers for the outline of the box.

FILL and INK n specifies the ink you want to use to fill a box. The box fill can be a color or a tint of color. The ink you specify must be defined in the ink list of the INK command.

SHADING specifies shadowing: LIGHT, MEDIUM, or HEAVY. REPEAT specifies that you want a box repeated according to the

following commands. HORIZONTALLY or VERTICALLY specifies the orientation of the

repeated boxes.

EVERY Ci indicates that you want a box repeated at the increment (Ci) you have specified.

AT Ca indicates the absolute x or y coordinate where you want the

Defaults SOLID, if you do not specify the line type.

box repeated in a horizontal or vertical direction.

1, if you do not specify the line weight or shading. 0, if you do not specify the line weight but do specify shading. MEDIUM, if you do not specify the degree of SHADING. HORIZONTALLY, if you do not specify the REPEAT orientation.

When you specify a box and shade with one command and do not specify a line type for your box, your box will be shaded but you will

it.

not have a line around

Examples Long form:

AT 4,6 DRAW 4 BOXES 14 WIDE BY 4 HIGH USING SOLID HAIRLINE INK 2 AND REPEAT EVERY 5;

Short form: AT 4,6 BOX 14 WIDE BY 4

HIGH;

XPAF Forms Generator 32 User Guide and Reference

TEXT AT command

Use the TEXT AT command to incorporate text into your form. To include text in a form, you must specify at least one font. You use the FONT setup command to specify the font, and you can only specify one FONT command. The fonts you specify with the FONT command are referenced as an index number. They are not referenced as their f ont na me. Font index numbers begin with 1 for the first font you specify, 2 for the second, and so on.

Once you specify a font index number

a TEXT command, it remains in effect until you specify a new font index. When you use multiple text segments within a TEXT AT command and they reference different font indexes, the last font you use remains in effect until you specify a new font index.

Figure 4–13 shows the TEXT AT command syntax

flow.

XPAF Forms Generator 33 User Guide and Reference

Figure 4–13. TEXT AT command syntax

XPAF Forms Generator 34 User Guide and Reference

Parameters HORIZONTAL or VERTICAL specifies the direction of the text

Example JUSTIFIED parameters:

relative to the page orientation. SPACED defines the amount of vertical space (in n units) a line

of text occupies. If you specify a value (not zero), it replaces the line spacing value of the font being used for this TEXT AT command. An LPI value specifies line height in terms of lines per inch. All other specifications are actual line height measurements. The n units value must be positive. The units are INCHES, CENTIMETERS, CPI, LPI, DOTS, and XDOTS. You can use two decimal places when you specify inches and centimeters. You must express DOTS and XDOTS in integers. POINTS specifies that you want the TEXT SPACED in n

POINTS (1/72 inch). ALIGNED specifies the text justification alignment (LEFT, RIGHT,

CENTER, TOP, BOTTOM, JUSTIFIED). See the Xerox Laser Printing

Systems Forms Creation Guide for alignment examples. You can center multiple horizontal strings beneath each other or right– or left– justify them. You can center multiple vertical strings alongside each other or align them on the top or bottom.

The JUSTIFIED alignment mode allows you to justify text. In simple justification (with no COLUMN), you must specify where the lines break. You can justify lines by finding the longest line in a block of lines, then justify other text strings to this length. This method of justification is best for justifying small blocks of text or when you must justify the last line of a paragraph. You can use the JUSTIFIED parameter with the INTERWORD SPACE and the COLUMN SIZE IS commands. In this mode, text begins at the coordinates you specify and extends to the right column boundary. Line breaks occur automatically. Enter text in one continuous string without line breaks.

TEXT JUSTIFIED AT 1,1

‘This is a sample’ ‘of justified text’ ‘in block format.’;

This produces the following text on the form: This is a sample

of justified text in block format.

You specify IN COLUMN for any alignment mode and use it

with

the COLUMN SIZE IS command. Line breaks occur automatically when you use TEXT ALIGNED IN COLUMN or TEXT JUSTIFIED IN

COLUMN. You can enter a complete paragraph of text

one continuous string. A quote indicates the end of a paragraph rather than a line break. The system ignores multiple line breaks. Columns do not have a fixed location on the page. You place them relative to the TEXT command you specify. The horizontal coordinate you specify sets the left column boundary. You set the right column boundary to the sum of the column width and the left column boundary. You can include a maximum of 4096 characters in one continuous text string.

XPAF Forms Generator 35 User Guide and Reference

Example Text justified in a column:

COLUMN 1 INCH WIDE; TEXT JUSTIFIED IN COLUMN AT 1,1

Defaults HORIZONTAL and CENTER, if you do not specify the orientation and

‘four four four five five five six six six’ This produces the following text on the form: four four four

five five five six six six

seven

FONT n specifies the index number of the font you selected. Refer to the FONT command for additional information.

INK n specifies the index number of the ink color you selected from the ink list to use with a Xerox highlight or full color LPS printer. The specified INK is in effect for this command and not for subsequent

TEXT commands. Cy defines the coordinate you selected on the y–axis where the text

origin is located.

Cx defines the coordinate you selected on the x–axis where the text

origin is located.

‘text’ specifies a text string that appears exactly as you enter (except for special characters).

DOT LEADER specifies dot leaders you have selected to place between text or at a column boundary. Dot leaders extend the full width of the column you specify in the COLUMN command, unless interrupted by a ’text’ string. You can place dot leaders between two text strings and a right boundary previously defined by you in the COLUMN command. If you place dot leaders between two text

with

strings, the right most text string aligns

the right column boundary.

Do not use DOT LEADER in the JUSTIFIED mode. DOT LEADER overrides any alignment mode and places the text flush with the column boundaries.

USING FONT n specifies a change of font for the next body of text which is not the dot leader string. When you specify dot leaders and a change of font s together, the DOT LEADER keywords must precede the FONT n keywords.

NEW LINE specifies a new line to follow a text string. You can only use the NEW LINE keyword once between text strings. NEW LINE is similar to a blank text string (’ ’). If you want to use multiple blank l ines between text strings, use multiple blank text strings (’ ’ ’ ’ ’ ’), not NEW LINE. NEW LINE is ignored if it is not used with DOT LEADER or FONT n.

alignment for the TEXT AT command. Use the font index of the last TEXT command, if USING FONT is not

entered. If you omi t FONT in all TEXT commands, FONT1 from the FONT list is used.

DOTS, if you do not specify units. If a TEXT command containing a dot leader is not preceded by a

COLUMN command, the system uses a default column width of

6.5 inches (portrait) or 9.5 inches (landscape).

XPAF Forms Generator 36 User Guide and Reference

Single dots repeated, if you do not use a DOT LEADER

Examples The following is an example of a DOT LEADER used between two

command to specify the DOT LEADER text string.

text strings: TEXT AT 1,1 ’John Doe’ DOT LEADER ’987–6543’; This produces the following text on the form:

John Doe......................................................987–6543

The following is an example of a DOT LEADER following a text string and ending at the column boundary:

TEXT AT 1,1 ’Sales Tax’ DOT LEADER NEW LINE ‘Total Now Due’ DOT LEADER;

This produces the following text on the form:

Sales Tax ......................................................................

Total Now Due ..............................................................

The following is an example of the long form of the TEXT AT command:

HORIZONTAL TEXT SPACED 12 POINTS PER LINE ALIGNED CENTER IN COLUMN USING FONT 1 AND USING INK 1 AT 1, 1 ’Phone List’ NEW LINE ’John Doe’ DOT LEADER ’987–6543’;

The following is an example of the short form:

TEXT SPACED 12 POINTS PER LINE ALI CEN INK 1 AT 1,1 ’Phone List’ NEW LINE ’John Doe’ DOT LEA ’987–6543’;

This produces the following text on the form:

Phone List

John Doe ........................................... 987–6543

TEXT IN BOX command

Use the TEXT IN BOX command to incorporate text into a box on your form. The command syntax format designates the proper type and placement of text in a box according to the planned form. This command format is similar to the TEXT AT command, except it includes those parameters necessary to designate the placement of text in a box.

You must define a box with matching coordinate values before you can reference it in a TEXT IN BOX command. You can create boxes and adjoining boxes with BOX commands, LINE commands, or both.

XPAF Forms Generator 37 User Guide and Reference

Figure 4–14. TEXT IN BOX command syntax

XPAF Forms Generator 38 User Guide and Reference

Parameters HORIZONTAL or VERTICAL specifies the text orientation of the text

within the box.

Do not confuse TEXT alignment with TEXT placement in the box. You can align horizontal text LEFT or RIGHT. You can align vertical text TOP or BOTTOM.

SPACED defines the amount of vertical space (in n units) you want a

line of text to occupy. If you specify a value (not 0),

replaces the line spacing value of the font being used for this TEXT AT command. All specifications except LPI are actual line height measurements. An LPI value specifies line height in lines per inch. The n units value you specify must be positive. The units are INCHES, CENTIMETERS, DOTS, and XDOTS. You can use two decimal places when you specify inches and centimeters. You can express DOTS and XDOTS only in integers. POINTS specifies that you want the TEXT SPACED in n POINTS (1/72 inch).

ALIGNED specifies that you want the text aligned LEFT, RIGHT, CENTER, TOP, BOTTOM, JUSTIFIED. See the Xerox Laser

Printing Systems Forms Creation Guide for alignment examples. The ALIGNED and JUSTIFIED commands including IN COLUMN, are

not recommended with the TEXT IN BOX command. These are more appropriate with the TEXT AT command. If you want to use

“

JUSTIFIED IN COLUMN, refer to the

TEXT AT command” section for

a description of how to use these parameters. FONT n specifies the index number of the font you selected. Refer

to the “FONT command” section for additional information. INK n specifies the index number of the ink color you selected from

the ink list to use with a Xerox highlight or full color LPS printer. The specified INK is in effect for this command and not for subsequent

TEXT IN BOX commands. IN specifies the position in a box where you want to place the text.

There are nine positions as follows:

Cy defines the coordinate of the box origin on the y axis. Cx defines the coordinate of the box origin on the x axis.

’text’ specifies a text string that displays on the form exactly as you

enter it (except for special characters). DOT LEADER specifies dot leaders you have selected to place

between text or to a column boundary. Dot leaders extend the full width of the column you specify in the COLUMN command, unless interrupted by a ’text’ string. You can place dot leaders between two text strings and a right boundary previously defined in the COLUMN command. If you place dot leaders between two text strings, the right most text string aligns with the right column boundary.

XPAF Forms Generator 39 User Guide and Reference

Do not use DOT LEADER in the JUSTIFIED mode. DOT LEADER overrides any alignment mode and places the text flush with the column

Defaults HORIZONTAL, if you do not specify the box orientation. The

boundaries. USING FONT n specifies a change of font for the next body of text

which is not the dot leader string. When you specify dot leaders and a change of font s together, the DOT LEADER keywords must precede the FONT n keywords.

IN NEXT HORIZONTAL or VERTICAL BOX specifies the text to place in an adjacent box (horizontally or vertically). Adjacent boxes must

have a common, congruent side. For example,

HORIZONTAL BOX... produces the results shown in Figure

4–15.

Figure 4–15. IN NEXT HORIZONTAL BOX

IN NEXT VERTICAL BOX... produces the results shown in Figure

4–16.

Figure 4–16. IN NEXT VERTICAL BOX

same applies for [IN] [NEXT] [HORIZONTAL/VERTICAL] [BOX...]; The font index of the last FONT command, if USING FONT is

not entered. If you omit FONT in all text commands, then FONT

1 from the FONT list is used.

DOTS, if you do not specify units. CENTER, if you do not specify the alignment. The same applies for

the IN [TOP, .......BOTTOM] BOX.... for text placement within a box.

XPAF Forms Generator 40 User Guide and Reference

Examples Long form:

HORIZONTAL TEXT SPACED 12 POINTS PER LINE USING FONT 1 AND USING INK 1 IN CENTER CENTER BOX 4 3 ‘FIRST’ ‘NATIONAL’ ‘TRUST’ IN NEXT HORIZ ONTAL BOX ‘FIRST’

‘DEPOSIT’ ‘INSURANCE’; Short form:

TEXT 12 POINTS INK 1 IN BOX 4 3 ‘FIRST’ ‘NATIONAL’ ‘TRUST’ BOX ‘FIRST’ ‘DEPOSIT’ ‘INSURANCE’;

LOGO command

Use the LOGO command to place logos in the form. The logo is a

special font of one or more characters, which carries with

the relative position of the characters to make up the logo. Although a logo may comprise many characters, it is positioned as a single unit. There is an option that overrides the colors given to a color logo file.

For example, if you reference a logo

a color other than blue on a blue form, you must specify ’USING INK n’ to override the existing color specification of the logo. If

ink

you do not use this option, the printer requests an

substitution prior to printing the form. Logos you specify in a form you are printing on a Xerox highlight color LPS printer must be in color format. You receive a ‘LOGO NOT FOUND’ message if you reference a black and white logo in a highlight color (HC) form. The command format designates the proper placement of a logo according to the planned form.

flow.

units

LOGO name

Figure 4–17 shows the LOGO command syntax

Figure 4–17. LOGO command syntax

units

;

INK n

USING

Parameters name identifies the unique file name (or font identifier) for the logo.

A logo name may consist of one to six characters.

Cy defines the y–axis coordinate for the logo origin location. C

defines the x–axis coordinate for the logo origin location. units indicates the unit of measure for placement of the logo.

The units are INCHES, CENTIMETERS, DOTS, and XDOTS. You can use two decimal places when you specify inches and centimeters. You must express DOTS and XDOTS in integers.

XPAF Forms Generator 41 User Guide and Reference

INK n specifies the ink number from the ink list that overrides the corresponding ink specified in the ink list of the logo file. If the logo has a NOSUBSTITUTION flag, then ink overrides are not allowed

Default None.

Examples Long form:

(highlight color only).

LOGO NEW1 AT 1,1 USING INK 3; There is no shor t form.

GRAPHIC command

GRAPHIC name AT

SCALE n

A form may consist only of graphic images. You can have up to 16 images per page. Xerox highlight color LPS printers allow you to print colored graphics on your form. For highlight color forms, y ou can also override any ink specified in the ink list of a color graphic file.

You must specify each graphic associated with a form in the forms source language (FSL) file with the GRAPHIC command. Figure

flow.

4–18 shows the command syntax

Figure 4–18. GRAPHIC command syntax

units

INK

USING

Parameters name identifies the IMG graphic file name you specify.

This is the name of the graphic stored on the printer.

Cy defines the coordinate on the y–axis to locate the logo origin.

units

;

Cx defines the coordinate on the x–axis where you want the logo origin

located. units indicates the unit of measure for placement of the graphic. The

units are INCHES, CENTIMETERS, DOTS, and XDOTS. You can use two decimal places when you specify inches and centimeters. You must express DOTS and XDOTS in integers.

SCALE n specifies the scaling of the printed graph ic that you have selected. The scaling factor value n must be an integer. You can only scale on a factor from 1 to 8.

INK n specifies the ink number from the ink list which overrides the corresponding ink li st of the graphic (highlight color only).

Default None.

XPAF Forms Generator 42 User Guide and Reference

Examples Long form:

GRAPHIC SYMBOL AT 1,1 SCALE IS 4 USING INK 3; There is no short form.

SECTION command

Use the SECTION command when a form consists of identical blocks of commands. You can save time by defining one section and then repeating it at the locations you want.

You can also use this command to define an entire form as a section. Within the section, you can use any other command, statement, or specification except another SECTION command, DO SECTION command, FORM command, or END command.

flow.

Figure 4–19 shows the SECTION command syntax

Figure 4–19. SECTION command syntax

SECTION

BEGIN

name ;

LINE

COMMAND

BOX

TEXT AT

COMMAND

TEXT IN BOX

GRAPHIC

LOGO

COMMAND

GRID

COMMAND

INTERWORD

DOT LEADER

COLUMN

LET

COMMAND

END

SECTION ;

ENDSECTION

Parameter name specifies the name of the SECTION you want to use to invoke

the SECTION command. You may define and invoke more than one

with

section, but you must terminate each section

the command END SECTION or ENDSECTION before you define another section. Do not use a reserved word or keyword as a section name. name is a maximum 16-character string.

Default None.

XPAF Forms Generator 43 User Guide and Reference

SECTION definitions The BEGIN SECTION command informs the compiler that what

SECTION invocation A SECTION is invoked by using the DO SECTION command.

Examples Long form:

BEGIN SECTION NUSEC; LOGO NEW0 AT 0,0 USING INK 2; TEXT AT 1,1 USI NG FONT 3 AND INK 1 ’Acme Weather Balloons’ END SECTION;

There is no shor t form.

follows includes the END SECTION command and lines up to form a logical collection of commands that may be invoked as needed to build a complete form.

Most XFG commands may be found within a SECTION and these commands are documented in the SECTION command desc r iptio n. The key point to remember is that coordinates within the SECTION definition are relative to 0, 0. Also, if the GRID command is specified, then the GRID is only valid SECTION. The GRID command is a local variable and its scope is that of the defining SECTION. Other statements within the section will then use the local GRID command to determine the placement of lines, boxes, text, etc. Remember that these placement values are still relative to 0, 0.

The final placement of the elements is defined by the S

ECTION command.

This command names the desired SECTION as well as the origin of the SECTION. The AT parameter takes on the role of the ORIGIN command for the SECTION and is used to determine the final placement of lines, boxes, text, etc. The final placement is computed as follows:

xFinal=xOrigin + xValue * xGrid and yFinal=yOrigin + yValue * yGrid

xValue and yValue are taken from the selected command. xGrid and yGrid are taken from the active GRID command. xOrigin and yOrigin are taken from the DO SECTION command that

invokes the section. If a GRID command has not been defined within the SECTION, the GRID

that is in effect for the FORM is used.

within

the bounds of the defining

DO SECTION command

Use the DO SECTION command to invoke a defined section. You must first define a section before you can invoke it. You can repeat sections at absolute or incremental coordinates. You can also repeat a section in the same location. This command is useful for sections

XPAF Forms Generator 44 User Guide and Reference

containing relative coordinates. Figure 4–20 shows the DO SECTION command syntax

flow.

Figure 4–20. DO SECTION command syntax

Parameters name specifies the name of the section you want to invoke.

n TIMES specifies the number of times you want the section repeated.

Cy specifies the y–axis where you want the section origin

located.

Cx specifies the x–axis where you want the section origin located.

units indicates the unit of measure for placement of the section origin. The units are INCHES, CENTIMETERS, DOTS, and XDOTS. You can use two decimal places when you specify inches and centimeters.

You must express DOTS and XDOTS

integers.

REPEAT specifies the number of times you want a section repeated in the orientation you specified.

HORIZONTALLY or VERTICALLY specifies the orientation of the lines you want repeated.

EVERY Ci indicates that you want to repeat a section at the

increment you have specified.

AT Ca indicates that you want to repeat the section at the

Default VERTICALLY, if you specified REPEAT.

Examples Long form:

absolute coordinate you have specified.

DO SECTION NUSEC 3 TIMES AT 1,1 AND REPEAT HORIZONTALLY EVERY 4;

Short form: DO NUSEC 3 AT 1,1 REPEAT HORIZONTALLY EVERY 4;

XPAF Forms Generator 45 User Guide and Reference

COLUMN command

Use the COLUMN command to establish the column

width

when you specify TEXT ALIGNED JUSTIFIED IN COLUMN. You can also use the COLUMN command to establish a right boundary for the DOT LEADER command.

Parameters units indicates the unit of measure for the column width. The units are

INCHES, CENTIMETERS, DOTS, and XDOTS. You can use two

decimal places when you specify inches and centimeters. You can express DOTS and XDOTS only in integers.

flow.

Figure 4–21 shows the COLUMN command syntax

Figure 4–21. COLUMN command syntax

Defaults The default units specified for the GRID command, if you do not

specify units.

Column width of 6.5 inches (portrait) or 9 inches (landscape),

you do

not specify column width using the COLUMN command.

Examples Long form:

COLUMN SIZE IS 3.8 INCHES WIDE; Short form:

COLUMN IS 3.8 IN WIDE;

INTERWORD command

The INTERWORD command specifies the interword

multiplier

used

to determine the interword gap.

The interword gap formula

The interword gap is the blank space between words in printed text. It is determined in XFG with this formula:

interword gap = interword multiplier * base gap where base gap is:

• the width of ASCII code point X’20’, usually a

“blank”

• based on the first named font

interword multiplier is one of these values:

• the value specified by the INTERWORD command

• 1.0, if no INTERWORD command is specified

XFG uses the interword gap you specify as the minimum value. For fully justified text, XFG adjusts the interword gap when needed.

Specifying the interword multiplier

The INTERWORD command specifies the interword multiplier

the

formula above. Figure 4–22 shows the syntax for the INTERWORD command.

XPAF Forms Generator 46 User Guide and Reference

DOT LEADER command

Figure 4–22. INTERWORD command syntax

INTERWORD n ;

SPACE

n is the interword multiplier used to determine the interword gap. This value is multiplied by the base gap.

Examples:

INTERWORD SPACE IS 0.8; INTERWORD 0.8;

Use the DOT LEADER command to define the character string you specify when you use DOT LEADER in the TEXT AT command. The text string portion of the TEXT AT command allows for DOT LEADER requests.

Figure 4–23 shows the command syntax

Figure 4–23. DOT LEADER command syntax

flow.

Parameters ’string’ specifies the type of dot leader you want to use. Strings

cannot exceed 12 characters. USING FONT n specifies the font you want to use for the dot

leader characters.

Defaults Single dots of the font currently in use, if you do not specify a font

Examples Long form:

and you use DOT LEADER in the TEXT command.

’*’;

DOT LEADER USING FONT 1

*****************************

Sample strings you can use are as follows:

’ .’ produces . . . . . . . . . . . . . . . . . . .

’*’ produces

**********************************

’–.’ produces –.–.–.–.–.–.–.–.–.–.–.–.–.–.–.–.–.–.–. ’xo’ produces xoxoxoxoxoxoxoxoxoxoxoxoxoxoxoxoxoxoxo

XPAF Forms Generator 47 User Guide and Reference

LET command

Use the LET command to define variable names. You can specify all x and y coordinates with either literal values or variable names. If you use variable names, you must first define them with the LET command. The LET command allows an identifier (variable) to equal an n value. Variable names must begin with an alphabetic character and may be up to 16 characters in length.

You can define up to 50 variables for each form (two to ten variables for each form is typical). You can define the maximum number of variables in one LET statement or in

individual

statements. You can place LET statements anywhere in the form following the FORM statement, and you can redefine variables any number of times.

You can only set variables to a specific numeric amount. You cannot specify units in the LET statement. However, you can specify units (if needed) when the variable is used as a coordinate. For example, if variable Y1 is set to 3 in a LET statement and a line is drawn at Y1 inches, it is drawn at 3 inches. If the grid units are dots and no units are specified, then the line Y1 is drawn at 3 dots.

flow.

Figure 4–24 shows the LET command syntax

Figure 4–24. LET command syntax

LET

identifier

identifier ;

XPAF Forms Generator 48 User Guide and Reference

Parameters identifier = identifier specifies the variable name and value you select

for the LET command. The first identifier specifies the variable and

Default None.

Examples Long form:

Relative coordinate

Parameters identifier is the variable name you specify for the relative

Default None.

Examples The following examples show the long form of the relative

the second identifier specifies the variable value n.

LET X1 = 5.5, X2 = 4.0, Y1 = 3.0; There is no shor t form.

You can specify all coordinates as literal values or variables. You must first define variables in the LET statement. Refer to the “LET command” section for additional information. If you use variables outside of the LET command, they are called relative coordinates. These coordinates can also have a positive or a negative value. This allows you to place text items relative to one another. If you want to shift the whole block of text up or have to change the initial values. You can shift text automatically when you add or delete text items.

XFG uses spaces to delimit keywords. Therefore, relative coordinates must not contain spaces between the variable name Y1

and the value

.5.

I.E. AT Y1+.5 will work while AT Y1 +.5 will not.

flow.

Figure 4–25 shows the variable syntax

Figure 4–25. Relative coordinate syntax

identifier

–

+ n

–

coordinate. + or – specifies a positive or negative value that you can apply to the

n value.

coordinate variables. In this example, you can define the Y coordinate as the value of

Y1 plus 3 centimeters: AT Y1+3 CM

XPAF Forms Generator 49 User Guide and Reference

COMMENT command

In this example, you can define the Y coordinate as the value of

Y2 minus 4.5 grid units: AT Y2–4.5 There is no shor t form.

In the examples above, the value of Y1 and Y2 change. When you refer to Y1 in the FSL, it is 3 larger. Likewise, Y2 is 4.5 smaller.

Use the COMMENT command to retain a record of your comments in the source statement. Comments do not appear on the form, and the compiler ignores them. You do not need to enclose the COMMENT command text in single quotes.

flow.

Figure 4–26 shows the COMMENT command syntax

Figure 4–26. COMMENT command syntax

COMMENT text ;

Parameter text specifies the comment text string you want to include in the

XFG command statement.

Default None.

Examples Long form:

COMMENT ***XFG IS ABLE TO DESCRIBE MANY TYPES OF FORMS***;

There is no shor t form.

Note that a comment is delimited by a semi-colon (;) and all text between the command COMMENT and the semi-colon is ignored. A comment may span multiple lines.

END command

Use the END command to terminate a form description. Figure 4–27 shows the command syntax

flow.

Figure 4–27. END command syntax

END

;

Parameter END specifies an end–of–file condition from the source input disk

file or from the input data stream.

Default There is no default for the END command. It is an optional

Example Long form:

command.

FORM XFG1; ..................; END; There is no short

form.

XPAF Forms Generator 50 User Guide and Reference

XEROX2

COMPOSITE INVENTORY STOCK STATUS REPORT

5. Creating a sample form

This chapter describes how to create a simple form electronically using the XPAF Forms Generator (XFG). The forms shown in the following figures are examples only and appear smaller than the actual forms.

The steps on the following pages include both long and short forms of commands. The long form of a command may include optional keywords and system default values that you may omit as you become familiar with the forms creation process.

To make the form description easier to read, you can enter a comment before each command. For example, before specifying column headings, you might enter the

COMMENT DEFINE TITLES; The program does not process comments. You can enter XFG commands on the same line or you can enter

each command on a separate line to make your form description easier to read. You must end each command with a semicolon. Refer to the “Using XFG commands” chapter for complete information on XFG commands and their parameters and defaults.

Figure 5–1 shows the landscape form that you can create using the procedures in this chapter.

Figure 5–1. Sample electronic form

COMPOSITE INVENTORY STOCK STATUS REPORT

following:

XPAF Forms Generator 51 User Guide and Reference

Setting up the form

Follow these steps to set up the basic elements of your form:

1. Use the FORM command to specify both a unique form name

that identifies the form to the system and a resolution. In this example, the form name is XEROX2 and the

resolution is 300 SPI. FORM XEROX2, RESOLUTION IS 300 SPI;

2. Specify the physical paper size.

This example specifies U.S. letter size: PAPER SIZE IS USLETTER;

3. Specify the grid unit and form origin. The form origin

should coincide with variable data origin and form grid units should correspond with the character and line spacing of the variable data.

The example below shows the long form of the command using FMT1 values:

IN;

GRID UNIT IS 13.6 CPI 8.1 LPI ORIGIN .18 IN .66

This example shows the short form of the command: GRID FMT1;

You do not need to use the LANDSCAPE/PORTRAIT command

to specify page orientat ion an d virtual page size

you specify a

predefined format in the GRID command.

4. Specify the fonts you want to use. In this example, you specify a large font (UN214A) for the

report title, a smaller font (UN107A) for the column headings, and a very small font (UN104A) for the form identifier:

FONTS UN214A, UN107A, UN104A; When you refer to these fonts in later descriptive commands, the

first font specified (UN214A) is identified as FONT 1, the second as FONT 2, and the third as FONT 3.

This example shows entering all of these setup commands in their long form:

FORM XEROX2 RESOLUTION IS 300 SPI; PAPER SIZE IS USLETTER; GRID UNIT IS 13.6 CPI 8.1 LPI ORIGIN .18 IN .66

IN;

FONTS UN214A, UN107A, UN104A;

XPAF Forms Generator 52 User Guide and Reference

Using the sample description command

Since the sample form uses the default resolution, default physical page size, and default grid format, you can omit these commands. This example shows entering all of the setup commands required in their short form:

FORM XEROX2; FONTS UN214A, UN107A, UN104A;

After y ou fin ish setting up the sample form, follow these steps to enter descriptive data:

1. Draw 14 parallel horizontal lines as shown.

Physical and virtual page origin

Form origin (0,0)

-1

132

7 11 15

55 59

The following example shows the long form of the LINE command: AT 7 DRAW 14 HORIZONTAL LINES FROM –1 TO 132

USING SOLID 1 AND REPEAT VERTICALLY EVERY 4; The LINE command draws lines in a horizontal direction under

character row 7 and every fourth row thereafter, beginning two character positions to the left of character position 1 and ending at character position 132.

SOLID 1 specifies the appearance of the lines, which are solid and one point wide. Make sure that you stay within the boundaries of the system page when you specify a negative character position.

VERTICALLY is the default direction of the repetition process when printing is horizontal, since the usual intent is to draw parallel lines.

XPAF Forms Generator 53 User Guide and Reference

If you omit optional keywords and system defaults, the short form of

-1 4 12 39 48 55 64 72 79 87 96 104 112 121 132 7

the command looks like this example: AT 7 14 LINES –1 TO 132 EVERY 4;

2. Draw 15 parallel vertical lines as shown.

This example shows the long form of the LINE command: AT –1 DRAW VERTICAL LINES FROM 7 TO 59 USING SOL ID

1 AND REPEAT HORIZONTALLY AT 4, 12, 39, 48, 55, 64, 72, 79, 87, 96, 104, 112, 121, 132;

The LINE command draws lines in a vertical direction, beginning at character position –1 and repeated at the specified intervals, with each line extending from character row 7 to character row 59. HORIZONTALLY is the default direction of the repetition process when printing is vertical.

The following example, which omits optional keywords and system defaults, is the short form of the command:

AT –1 VERTICAL LINES 7 TO 59 AT 4, 12, 39, 48, 55, 64, 72, 79, 87, 96, 104, 112, 121, 132;

3. Use the BOX command to draw an invisible box and center it above the table.

This example shows the long form of the command: AT 2, –1 DRAW 1 BOX 133 WIDE BY 5 HI GH USING SOLID

XPAF Forms Generator 54 User Guide and Reference

The BOX command draws an invisible box 133 grid units wide by 5 grid units high under character row 2, beginning two character positions to the left of character position 1. Use SOLID 0 as the thickness of the box line when you want to draw an invisible box. Notice that the horizontal sides of the box begin and end at the same character positions as the horizontal lines of the table.

This example shows the short form of the command: AT 2, –1 BOX 133, 5 SOLID 0;

4. Position the title in the center of the invisible box. This example shows the long form of the TEXT IN BOX

command: HORIZONTAL TEXT ALIGNED CENTER USING FONT 1

IN CENTER BOX 2, –1 ’COMPOSITE STOCK INVENTORY STATUS REPORT’;

The TEXT IN BOX command places the title COMPOSITE STOCK INVENTORY STATUS REPORT in the center of the box whose upper l eft corne r begins at character row 2, at character position –1. FONT 1 is UN214A, the first font you specified with the FONT command; FONT 2 is UN107A, the second font specified.

5. Specify the column headings. This example shows the long form of the command: HORIZONTAL TEXT ALIGNED CENTER USING FONT 2

’NO’

IN CENTER BOX 7, –1 ’CAT’ IN NEXT HORIZONTAL BOX ’ITEM’

’NO’ IN NEXT HORIZONTAL BOX ’DESCRIPTION’ IN NEXT HORIZONTAL BOX ’REOR’ ’POINT’ IN NEXT HORIZONTAL BOX ’REOR’ ’QTY’ IN NEXT HORIZONTAL BOX ’OPEN’ ’STOCK’ IN NEXT HORIZONTAL BOX ’VENDOR’ ’RECEIPTS’ IN NEXT HORIZONTAL BOX ’STOCK’ ’ORDERS’ IN NEXT HORIZONTAL BOX ’COMM’ ’STOCK’ IN NEXT HORIZONTAL BOX ’SALES’ ’ISSUES’ IN NEXT HORIZONTAL BOX ’BACK’ ’ORDERS’ IN NEXT HORIZONTAL BOX ’VENDOR’ ’RETURNS’ IN NEXT HORIZONTAL BOX ’STOCK’ ’TRANSFERS’ IN NEXT HORIZONTAL BOX ’CURRENT’ ’STOCK’; This command places a column heading in each column of the

table, using FONT 2. The system automatically centers column headings.

The TEXT IN BOX command simplifies the task of placing text in a series of adjacent boxes. You only need to specify the coordinates of the upper–left corner of the first box. Subsequently, when you enter a BOX command, the system automatically recognizes the coordinates of a box directly to the right of the current box. The keywords IN NEXT HORIZONTAL are optional. It is also possible to specify the box directly below the current box, however, you must enter the keywords IN NEXT VERTICAL.

XPAF Forms Generator 55 User Guide and Reference

This example shows the short form of the command:

’NO’

TEXT FONT 2 IN BOX 7, –1 ’CAT’ BOX ’ITEM’

’NO’

BOX ’DESCRIPTION’ BOX ’REOR’ ’POINT’ BOX ’REOR’ ’QTY’ BOX ’OPEN’ ’STOCK’ BOX ’VENDOR’ ’RECEIPTS’ BOX ’STOCK’ ’ORDERS’ BOX ’COMM’ ’STOCK’ BOX ’SALES’ ’ISSUES’ BOX ’BACK’ ’ORDERS’ BOX ’VENDOR’ ’RETURNS’ BOX ’STOCK’ ’TRANSFERS’ BOX ’CURRENT’ ’STOCK’;

6. Apply shading to the form. This example shows the long form of the command: At 11, –1 DRAW 6 BOXES 133 WIDE BY 4 HIGH USING

SHADING MEDIUM AND REPEAT VERTICALLY EVERY 8; This command draws six shaded boxes 133 grid units wide by 4

grid units high and an identical series of shaded boxes every eighth row. The coordinates of the upper left corner of the first box are character row 11, character position –1.

This example shows the short form of the command: AT 11, –1 6 BOXES 133, 4 SHADING VERTICALLY EVERY 8;

7. Place the form’s identifier and date of issue at the bottom of the form.

This example shows the long form of the command: HORIZONTAL TEXT USING FONT 3 AT 61, –1 ’XEROX2

(5/93)’; This command places the words XEROX2 (5/93) at character row

61, character position –1, or on the line immediately below the table, flush with the left edge of the table. Font 3 is UN104A, the third font specified in the FONT command.

This example shows the short form of the command: TEXT FONT 3 AT 61, –1 ’XEROX2 (5/93)’;

8. Terminate the form description with an END command, as follows:

END;

XPAF Forms Generator 56 User Guide and Reference

JCL requirements

6. Managing and printing sample forms

When you have created your form design using XPAF Forms Generator (XFG) commands, you can compile, store and print a sample of it. After this process completes, your form becomes available for use. This chapter describes the job control language (JCL) to invoke the XFG compiler.

During installation, your System Administrator or system installer creates all the libraries necessary to run XPAF. If you are not familiar with the items you need to change in the JCL, contact your System Administrator. The following sample JCL is provided in the XPFSAMP library created during the XPAF install procedure.

Note: The XINSLSTR member of your XINPARM PDS must contain a valid license string for XFG:

# XPAF_XFG feature on product XPAF 5.0, Exp.09-May-2012 FEATURE=XPAF_XFG ExpDate=09-May-2012 Cpuid=FF01565A2066 LicenseString=BF591B238607DA318800E23EFACB

Note: The XINSXOAF member of your XINPARM PDS must contain the following parameters for XFG:

XLOGDSN=your.hlq.XOAF.XLOG, XLOG=Y, SLOG=N, CFONTDSN=your.hlq.CFONTLIB, CLOGODSN=your.hlq.LOGOLIB, PAPERSIZE=dfltpapersize,

XPAF Forms Generator 57 User Guide and Reference

XFG compiler JCL

Figure 6–1 shows an example of the JCL you use to compile a form and store it in

the database. This JCL may be found in the XPFSAMP library as member XOAFSAMP.

Figure 6–1. Invoking the XFG compiler

//user$XO JOB (D498,340),'XOAF BATCH',CLASS=S,MSGCLASS=Y,

// REGION=4000K,NOTIFY=&SYSUID //* //* THIS JOB EXECUTES A BATCH XOAF JOB //* //XOAFBAT PROC //* //* RUN XOAF //XOAF EXEC PGM=XOASUP00,REGION=2048K,PARM=&SYSUID //STEPLIB DD DISP=SHR,DSN=your.hlq.XPFLOAD //XINPARM DD DISP=SHR,DSN=your.hlq.XINPARM //TABLELIB DD DISP=SHR,DSN=your.hlq.TABLELIB //XOAPRINT DD SYSOUT=X,DCB=(RECFM=FB,LRECL=121,BLKSIZE=6050) //UJLLIST DD SYSOUT=X //SYSPRINT DD SYSOUT=X //XPAFXLOG DD DISP=SHR,DSN=your.hlq.xoaf.XLOG //SYSABEND DD SYSOUT=* //* //* ***** FOLLOWING FOR XPDL ***** //CON DD DISP=SHR,DSN=your.hlq.XPDLCNF //MSG DD DISP=SHR,DSN=your.hlq.XPDLMSG //INVXLT DD DISP=SHR,DSN=your.hlq.INVXLT //PCCFIL DD DISP=SHR,DSN=your.hlq.PCCFIL //TYPFIL DD DISP=SHR,DSN=your.hlq.TYPFIL //XPDLDFT DD DISP=SHR,DSN=your.hlq.XPDLDFT // PEND //* //* ========> RUN XOAF <======== //* //XOAF EXEC XOAFBAT //XOAF.CFONTLIB DD DISP=SHR,DSN=your.hlq.CFONTLIB //XOAF.CLOGOLIB DD DISP=SHR,DSN=your.hlq.LOGOLIB //XOAF.XOAIN DD * COMPILE FORM('xxx.FSLLIB(BANF)') TO('your.hlq.CFORMLIB')

XPAF Forms Generator 58 User Guide and Reference

User Guide and Reference

XPAF Forms Generator

//user$XF JOB (D498,340),'XFG UTILITY',CLASS=S,MSGCLASS=Y,

Downloading and printing a sample

If you want to download and print a sample of the form, run the XFGUTIL job

following a successful compile. Figure 6–2 shows an example of JCL you use to download and sample a form on the printer. This JCL is available in the XPFSAMP library as member XFGUTIL.

Figure 6–2. Downloading and printing a sample

The parameters in the inline IDEN DD sta tement are as follows:

PREFIX The text string to use as the prefix for the DJDE records generated OFFSET The offset of the DJDE prefix from the start of the record SKIP The byte position of start of the DJDE parameters in a DJDE record JDE If specified, a JDE= DJDE will be generated with the specified value JDL If specified, a JDL= DJDE will be generated with the specified value PRINTFORMNAME Indicates whether or not XFGUTIL should add variable text to the form sample that

TEMPFORMNAME Specifies a different form name with which the form will be downloaded and

// REGION=4M,NOTIFY=&SYSUID //* //* THIS JOB EXECUTES THE XFG UTILITY PROGRAM TO DOWNLOAD AND //* SAMPLE A FORM FROM THE CFORMLIB //* //* THE FORM NAME IS GIVEN IN THE PARM= STATEMENT //* THE IDEN PARAMETERS ARE GIVEN IN THE IDEN FILE //* THE OUTPUT IS WRITTEN TO SYSPRINT //* //* THE FORM WILL BE DOWNLOADED WITH THE DELETE OPTION //* IF ,D IS CODED AFTER THE FORM NAME IN THE PARM STATEMENT //* //XFGUTIL EXEC PGM=XFGUTIL,REGION=4M,PARM=(form,D) //STEPLIB DD DISP=SHR,DSN=your.hlq.XPFLOAD //XINPARM DD DISP=SHR,DSN=your.hlq.XINPARM //CFORMLIB DD DISP=SHR,DSN=your.hlq.CFORMLIB //SYSPRINT DD SYSOUT=X //IDEN DD * PREFIX='@@@DJDE' OFFSET=0 SKIP=8 JDE=DFLT JDL=DFAULT PRINTFORMNAME=Y TEMPFORMNAME=TMPZZZ

displays the form name

sampled. This can be used to avoid overwriting a production version of a form that you have updated and wish to sample before going live.

XPAF Forms Generator 59

If you are using XPAF to print to your LPS printers you may use a simple

IEBGENER job with Extended JCL to download and sample your forms. Figure 6–3 shows an example of JCL you use to download and sample a form on the printer using XPAF.

Figure 6–3. Downloading and printing a sample with XPAF

//user$SF JOB (D498,340),'BANF FORM SAMPLE',CLASS=S,MSGCLASS=Y //* //* SAMPLE FORM FROM CFORMLIB //* //SAMPFORM EXEC PGM=IEBGENER //SYSPRINT DD SYSOUT=* //* //OUTP OUTPUT LINECT=0, PORTRAIT // CLASS=X,FORMS=PORT,BANSTYLE=NONE, // JDL=XPAF,JDE=LETTER,FEED=TRAY2, // XFORM1=BANF,REVFORM=BANF, // PMODE=POR,TOF=1,BOF=128,XDUPLEX=NO, // BEGIN1=(P3,IN,1,IN),FONT0=P0612B //* //SYSUT2 DD SYSOUT=(,),DCB=(RECFM=FA,BLKSIZE=80), // OUTPUT=(*.OUTP) //SYSIN DD DUMMY //SYSUT1 DD * 1SAMPLE OF FORM BANF.FRM /* //

Editing an existing form

If you want to edit an existing form, select the forms source language (FSL) with

your ISPF editor, make the necessary changes and then compile your edited form with XFG.

XPAF Forms Generator 60 User Guide and Reference

7. Messages

This chapter lists the error messages that appear when problems occur, an

indication of the cause of the message and the action you can perform to correct the problem.

Message indicators

• I (informative) indicates the status or activity of the system where no action is needed by the operator. FRM will be generated.

• W (warning) indicates an error in the description of your form. It also indicates the action you may be required to take to correct the problem. FRM will be generated.

• E (error) indicates a syntax or similar error. FRM will not be generated.

• F (fatal) indicates a serious error that can prevent you from compiling

your form or may abnormally end (ABEND) your session. FRM will not be generated.

XFG1001W Discarding excess FDL

XFG1002W Semicolon expected

XFG1003W Character not in FDL alphabet

XFG1004W DRAWN and REPEAT EVERY disagree, using 2

Indication Excess FSL statements were found beyond the END statement.

Action Verify that these statements do not belong in the form, then

move or delete them.

Indication A semicolon was expected in the statement. The compiler

inserted one and continued with the compile.

Action None required.

Indication A character was found in the FSL statements that does not exist in

the FSL alphabet. The character was ignored.

Action Verify that the character does not belong in the FSL statements, then

move or delete

Indication The number of lines entered for the DRAW command must be greater

than 1. The compiler substituted 2 for the invalid existing number.

Action Enter the correct values and recompile the form.

it.

XPAF Forms Generator 61 User Guide and Reference

XFG1005W Undefined Section Name <name>, command ignored

Indication The section name used has not been defined.

Action Verify that the section name was spelled correctly or make sure the

section is defined prior to invoking it with the DO SECTION command.

XFG1006W Invalid line weight, using HAIRLINE

Indication An invalid line weight was entered. The compiler substituted a value

of HAIRLINE.

Action If HAIRLINE is not the value you want, correct the FSL and

recompile the form.

XFG1007W Invalid border weight, using HAIRLINE

Indication An invalid border weight was entered for a box. The compiler

substituted a value of HAIRLINE.

Action If HAIRLINE is not the value you want, enter a valid border

weight.

XFG1008W Possible missing or unmatched quotes

Indication The compiler cannot detect a closing quote.

Action Make sure that all quotes in the preceding commands in your FSL

are matched.

XFG1009E 600 spi cannot be used with highlight color form

Indication There is no Xerox printer support for highlight color in 600 spi mode.

Action Use 300 spi for color forms or use black and white mode for 600 spi.

XFG1010W Box not found

Indication A box with the origin specified, or the NEXT BOX could not be found.

Action Recalculate the box coordinates. To ensure the box is found, use

dot coordinates for the box origin.

XFG1012W Unexpected fraction, using integer

Indication A fraction was entered where an integer was expected. The

integer part of the number is used.

Action Change fraction to an integer value and recompile the form.

XFG1014W Invalid resolution, using 300 spi

Indication An invalid resolution was entered in the

Action Change the resolution to 300 or 600 spi.

RES

statement.

XPAF Forms Generator 62 User Guide and Reference

XFG1015W Unexpected end of text (terminating code expected)

Indication The terminating code character is missing at the end of the text string.

Action Reenter the text with the terminating code. If the problem

XFG1016W Text will not fit in column

Indication The entered text is t oo long to fit in the specified column.

Action Reduce the length of the text string or increase the size of the

XFG1018W Text might not fit in box

Indication The entered text block exceeds or is equal to the dimensions of the

Action Check the printed form. If text crosses the boundary of the box,

XFG1020W Missing END statement

Indication End of file was found with no END statement.

Action No action is required, since the END statement is optional. You may

XFG1021W Setup command out of sequence

Indication A setup command (FORM/RESOLUTION, FONT, GRID,

Action Place the setup command with the rest of the setup commands at

XFG1022W Identifier name too long, using <name>

Indication An identifier was used that exceeds the max imum 16 char act ers

Action None required. The system truncates the identifier at 16

XFG1024W Section name too long, using <name>

Indication The section name used exceeds the maximum 16 characters

Action None required. The system truncates the section name at 16

XFG1025W Logos not supported for XES forms

Indication You used the LOGO command while generating an XES form. In this

Action Do not use the LOGO command while generating XES forms or, if

If you entered the text correctly, this could indicate a damaged file.

persists, contact your System Administrator.

column to fit the text. Otherwise the text will not be printed.

box in which it is to be placed.

reduce the length of the text string or increase the size of the

box to fit the text.

want to add the END statement and recompile.

LANDSCAPE/PORTRAIT, INK, ICATALOG, or PALETTE) was entered after a formatting command (such as LINE, TEXT, BOX).

the beginning of the form source and after the FORM/RESOLUTION command.

allowed.

characters.

allowed.

characters.

release, logos are treated as fonts in XES forms.

possible, enter the logo as a font.

XPAF Forms Generator 63 User Guide and Reference

XFG1026W Catalog name too long, using <six-character catalog name>

Indication The catalog name used exceeds the maximum six characters

allowed.

Action None required. The system truncates the catalog name at six

characters.

XFG1027W Dot Leader too big for column

Indication You specified a dot leader that exceeds the column setting.

Action Change the dot leader or the column setting.

XFG1028W Text String Longer than 256 characters

Indication A text string contains more than the maximum 256 characters.

Action Reduce the size of the text string.

XFG1029W No substitution allowed for Logo <logo name>

Indication You entered the USING INK parameter in the LOGO command when

the NO SUBSTITUTION flag was set for the specified logo in the logo resource.

Action Do not use the USING INK parameter with this logo.

XFG1030W Can not close data base

Indication The compiler is not able to close the database because it is being used

by another user.

Action Try again in a few minutes. If the problem persists, note the return

code number and contact your System Administrator.

XFG1031W Palatte name too long, using <thirty-two-character palette name>

Indication The palatte name used exceeds the maximum thirty-two

characters allowed.

Action None required. The system truncates the palatte name at

thirty-two characters.

XFG1032W Column off right of physical page

Indication The specified column width exceeds the physical page boundary.

Action Resize the column width to fit the physical page boundary.

XFG3001E Syntax error on <command segment>

Indication The specified command segment contains a syntax error.

Action Correct the error and recompile the form.

XPAF Forms Generator 64 User Guide and Reference

XFG3002E DRAW N and REPEAT AT counts disagree

XFG3003E N TIMES and REPEAT AT counts disagree

XFG3004E Horizontal text inconsistent with top/bottom

XFG3005E Vertical text inconsistent with left/right

XFG3006E Identifier exceeds 6 characters

XFG3007E Stacked text and justify conflict

XFG3008E Setup command not allowed within section

XFG3009E Code point <code point> in font <font name> has a zero width

XFG3010E DO SECTION not allowed within section

Indication The DRAW and REPEAT AT counts do not agree.

Action Correct and recompile the form.

Indication The number of TIMES and the REPEAT AT counts do not agree.

Action Correct and recompile the form.

Indication Horizontal text is aligned TOP or BOTTOM instead of LEFT or

RIGHT.

Action Correct the text direction with the proper alignment.

Indication Vertical text is aligned LEFT or RIGHT instead of TOP or

BOTTOM.

Action Correct the text direction with the proper ALIGNMENT.

Indication An identifier name, such as FORM name, exceeded six

characters.

Action Correct the identifier name and recompile the form.

Indication Stacked text cannot be justified.

Action Remove the JUSTIFY and recompile the form.

Indication One of the setup commands such as FONT or INK was found within

a section.

Action Move the setup command to th e beginning part of the FSL.

Indication Some of the characters in this font have a zero width value.

Action Reload the font.

Indication A DO SECTION command was found within a section.

Action Remove the DO SECTION command and recompile the form.

XPAF Forms Generator 65 User Guide and Reference

XFG3011W Ambiguous positioning of <position>, <position> given. <position>,

<position> used

Indication Ambiguous positioning of text in a box such as Left, Left instead of

Action Correct the ambiguous position.

XFG3012E BEGIN SECTION not allowed within section

Indication A BEGIN SECTION command was found within a section.

Action Remove the command or end the current section.

XFG3014E Value out of range

Indication A zero value or a value that exceeds page limits was

Action Correct the value to one within the valid limits.

XFG3015E Keyword out of context/sequence

Indication You sequenced a keyword incorrectly.

Action Enter the keyword in the correct order.

XFG3016E FONT command not defined

Indication Text is referenced in the form and no FONT command was

Action Enter the FONT command with the valid fonts you want to use

XFG3017E Invalid font index

Indication The font index in the TEXT command is outside the range of

Action Correct the font number to a value within the range of fonts defined,

XFG3018E INK command not defined

Indication Inks are referenced in the form and there is no INK command

Action Enter the INK command with the valid inks you want to use

Left with Bottom, Center, or Top.

encountered.

specified.

form.

those defined in the FONT command.

or define a new font if the font is missing from the font list.

specified.

form.

the

XPAF Forms Generator 66 User Guide and Reference

XFG3019E Invalid ink index

Indication The ink index referenced in a LINE, TEXT, BOX, GRAPHIC, or

LOGO command is outside the range of those defined in the INK

Action Correct the ink number so that it is within the range of inks defined or

XFG3020E Line off (top/bottom/left/right) of physical page

Indication The line went off either the top, bottom, left, or right of the

Action Correct the line coordinates so that it does not extend beyond the

XFG3021E Font name <font name> exceeds 20 characters

Indication The font name exceeded the 20 character maximum l ength.

Action Use a valid font name, which should consist of 20 characters or less.

XFG3024E Line end coordinate <= start coordinate

Indication The line ending coordinate is less than or equal to the line

Action Correct the line coordinates and recompile the form.

XFG3030E Box off (top/bottom/left/right) of physical page

command.

define a new ink if the ink is missing from t he ink list.

physical page.

starting coordinate.

Indication

The box went off either the top, bottom, left, or right of the physical page.

Action

Correct the box coordinates so the box does not extend beyond the physical page.

XFG3034E

XFG3035E

Box width is zero

Indication

Action

Box height is zero

Indication

Action

The width of the box was zero. Correct the box width and recompile the form.

The height of the box was zero. Correct the box height and recompile the form.

XFG3040W Text off (top/bottom/left/right) of physical page

Indication The text went off either the top, bottom, left, or right of the

physical page.

Action Correct the text coordinates so the text does not extend beyond the

physical page.

XPAF Forms Generator 67 User Guide and Reference

XFG3050W Logo off (top/bottom/left/right) of physical page

Indication The logo went off either the top, bottom, left, or right of the

physical page.

Action Correct the logo coordinates so the logo does not extend

beyond the physical page.

XFG3585W nn DAYS LEFT IN GRACE PERIOD

Indication The expiration date has passed for the XPAF Forms Generator.

A grace period has been entered and there are nn days left in the grace period before the product will cease to function.

Action Contact Xerox to obtain a valid license.

XFG3589W *** WARNING *** WARNING *** WARNING *** WARNING ***

Indication This message is issued in conjunction with other me ssa ges.

Action Refer to the actions for the messages issued with

XFG3589W.

XFG3593E NO VALID LICENSE STRING FOUND FOR XFG

Indication A valid license for the XPAF Forms Generator could not be

found.

Action Contact Xerox to obtain a valid license.

XFG3594E XFG LICENSE HAS EXPIRED

Indication The XPAF Forms Generator license has expired.

Action Contact Xerox to obtain a valid license.

XFG3595W XFG LICENSE WILL EXPIRE IN nn DAYS

Indication The XFG License has less than 30 days before it will expire.

Action Contact Xerox to renew the license string.

XFG4001F Unexpected end of file

Indication The END statement was encountered before any description

commands. There is nothing to compile.

Action Move the END command to the last line of the FSL and

recompile the form

XFG4006F Cannot open FSL

Indication There is a serious system error. The compiler was not able to open

the input FSL file.

Action Verify that the file name is correct and rerun the job. If the

problem persists, contact your System Administrator.

XFG4009F Cannot open IFF

XPAF Forms Generator 68 User Guide and Reference

Indication There is a serious system error. The compiler was not able to open

Action Contact your System Administrator.

XFG4010F Grid format not defined <format name>

Indication The format specified in the GRID command does not exist.

Action Correct and recompile the form.

XFG4012F Too many fonts specified

Indication The FONT command specified more than the limit of 32 fonts.

Action Delete the number of fonts used so the maximum of 32 is not

XFG4014F Cannot open scratch file <file name>

Indication There is a serious system error. The compiler was not able to

Action Verify that the file name is correct and rerun the job. If the

XFG4020F Font not found <font name>

Indication The font specified in the FONT command was not found in the

Action Load the necessary font into the font database or correct the FONT

XFG4022W Logo not found <logo name>

Indication The logo specified in the LOGO command was not found in the

Action Correct the name of the logo or load the required logo into the

XFG4023F Undefined font index

Indication A font index was referenced in a TEXT command that was not

Action Correct the TEXT command to the correct reference from the font

XFG4034F Invalid graphic scale factor

Indication An incorrect graphic scaling factor was entered. The scaling factor

Action Correct the scaling factor and recom pile the form.

XFG4040F Text string exceeds buffer limits

Indication The text string entered exceeded the text buffer limits of 4096

XPAF Forms Generator 69 User Guide and Reference

the immediate IFF file created by the parser.

exceeded and recompile the form.

obtain a scratch file used during compilation.

problem persists, contact your System Administrator.

database.

command with the correct name and recompile the form.

database.

database and recompile the form.

defined in the font list.

list.

must be an integer in the range 1 to 8.

characters.

Action Shorten the text string by breaking the text up into two or more

TEXT commands.

XFG4053F Maximum number of inks allowed (255) exceeded

Indication Your FSL uses more than the maximum 255 inks (colors) allowed.

Action Reduce the number of inks in your FSL to 255 or less.

XFG4054F Cannot reassign identifier to itself

Indication You made an invalid use of the LET command. An identifier

cannot be on both the right–hand and left–hand side of the assignment statement.

Action Remove the identifier from the right–hand side of the assignment

statement.

XFG4062F Invalid LPS tape label

Indication There is a serious system error. The compiler was not able to

process the tape label of the compiled form it just created.

Action Contact your System Administrator.

XFG6020I There are N forms compiled

Indication There are n forms compiled in this job, either through multi-form or

multi-member selection.

Action None

XPAF Forms Generator 70 User Guide and Reference

Boxes and their image

A. System Considerations

Consider the following items when designing and planning your form:

• Superimposed edges when adjoining boxes

• Text size in boxes

• Lines with sections

These items are especially important when designing complex forms. You can avoid error messages and save the time it takes to correct the problems by being aware of the system considerations described in this appendix.

with

You can draw boxes with just a single box statement or line statements. The box statement may not work correctly if it specifies two boxes adjoined by a single side. This causes the adjoining side lines of the boxes to become superimposed. Since the two lines use the same pair of coordinates, a line density problem may occur.

line–by–

Text in boxes

Using lines within sections

If you are using a TEXT IN BOX command, XFG determines given text can fit in the box. If your text font size exceeds the maximum allowable size, XFG generates an error message (XFG1018W). If you see this error, you have the

• Make the box larger.

• Reduce the number of lines.

• Use a smaller font.

• Use a TEXT AT command rather than a TEXT IN BOX

command if the text fits visually.

Refer to the “Messages” chapter for more information.

When you create a form by invoking defined sections, make sure you do not begin and end lines at section boundaries. It is more efficient to allow the line to continue through a serie s of sections.

following

the

choices:

XPAF Forms Generator 71 User Guide and Reference

B. FMT Grid Format

Properties

This appendix lists the FMT parameters you use in the LANDSCAPE/PORTRAIT and GRID commands. It includes the FMT

properties for 8.5 by 11–inch paper, 8.5 by 14–inch paper, and A4 paper. The FMT defaults are FMT1 (landscape) and FMT6 (portrait). Table B–1 lists the grid and origin substitutions you can use when you print on 8.5 by 11–inch paper.

Table B–1. FMT properties for 8.5 by 1 1–inch paper

Specification Substitution FMT1

FMT2

FMT3

FMT4

FMT5

FMT6

FMT7

FMT8

FMT9

FMT10

FMT11

LANDSCAPE; GRID UNIT IS 13.6 CPI, 8.1 LPI, ORIGIN 0.18 INCH, 0.66 INCH;

LANDSCAPE; GRID UNIT IS 15 CPI, 8.1 LPI, ORIGIN 0.18 INCH, 0.50 INCH;

LANDSCAPE; GRID UNIT IS 13.6 CPI, 10.7 LPI, ORIGIN 0.14 INCH, 0.66 INCH;

LANDSCAPE; GRID UNIT IS 15 CPI, 10.7 LPI, ORIGIN 0.14 INCH, 0.50 INCH;

LANDSCAPE; GRID UNIT IS 10 CPI, 6 LPI, ORIGIN 0.17 INCH, 0.50 INCH;

PORTRAIT; GRID UNIT IS 13.6 CPI, 8.1 LPI, ORIGIN 0.57 INCH, 0.58 INCH;

PORTRAIT; GRID UNIT IS 12 CPI, 6 LPI, ORIGIN 0.50 INCH, 0.50 INCH;

PORTRAIT; GRID UNIT IS 10 CPI, 6 LPI, ORIGIN 0.50 INCH, 0.50 INCH;

LANDSCAPE; GRID UNIT IS 20 CPI, 10 LPI, ORIGIN 0.25 INCH, 0.25 INCH;

PORTRAIT; GRID UNIT IS 17.6 CPI, 12.5 LPI, ORIGIN 0.22 INCH, 0.51 INCH;

PORTRAIT; GRID UNIT IS 20 CPI, 12.5 LPI, ORIGIN 0.22 INCH, 0.50 INCH;

XPAF Forms Generator 72 User Guide and Reference

Table B–2 lists the grid and origin substitutions you can use when you print on 8.5 by 14–inch paper.

Table B–2. FMT properties for 8.5 by 14–inch paper

Specification Substitution FMT12

LANDSCAPE; GRID UNIT IS 13.6 CPI, 8.1 LPI, ORIGIN 0.18 INCH, 0.66 INCH;

FMT13

PORTRAIT; GRID UNIT IS 13.6 CPI, 8.1 LPI, ORIGIN 0.57 INCH, 0.58 INCH;

Table B–3 lists the grid and origin substitutions you can use when you print on A4 paper.

Table B–3. FMT properties for A4 paper

Specification Substitution FMT1A

LANDSCAPE; GRID UNIT IS 12.5 CPI, 8.3 LPI, ORIGIN 0.18 INCH, 0.57 INCH;

FMT2A

LANDSCAPE; GRID UNIT IS 14.3 CPI, 8.3 LPI, ORIGIN 0.18 INCH, 0.60 INCH;

FMT3A

LANDSCAPE; GRID UNIT IS 12.5 CPI, 11.1 LPI, ORIGIN 0.18 INCH, 0.57 INCH;

FMT4A

LANDSCAPE; GRID UNIT IS 14.3 CPI, 11.1 LPI, ORIGIN 0.18 INCH, 0.60 INCH;

FMT5A

LANDSCAPE; GRID UNIT IS 10.0 CPI, 6.0 LPI, ORIGIN 0.22 INCH, 0.85 INCH;

FMT6A

PORTRAIT; GRID UNIT IS 13.6 CPI, 8.1 LPI, ORIGIN 0.91 INCH, 0.46 INCH;

FMT7A

PORTRAIT; GRID UNIT IS 12.0 CPI, 6.0 LPI, ORIGIN 0.85 INCH, 0.39 INCH;

FMT8A

PORTRAIT; GRID UNIT IS 10.0 CPI, 6.0 LPI, ORIGIN 0.85 INCH, 0.39 INCH;

FMT9A

LANDSCAPE; GRID UNIT IS 20.0 CPI, 10.0 LPI, ORIGIN 0.14 INCH, 0.85 INCH;

FMT10A

PORTRAIT; GRID UNIT IS 17.6 CPI, 12.5 LPI, ORIGIN 0.57 INCH, 0.39 INCH;

FMT11A

PORTRAIT; GRID UNIT IS 20.0 CPI, 12.5 LPI, ORIGIN 0.57 INCH, 0.39 INCH;

XPAF Forms Generator 73 User Guide and Reference

and

grid

PALette

HAIrline

PAPer

HEAvy

per

BEGin

HIGh

POInts

BLAck

HORizontal

PORtrait

BOTtom

ICAtalog

pts

BOXes in

REPeat

BROken

INch

RESolution

INKs

RIGht

INTerword

SCAle

CENter

IREsult

SECtion

CENTImeters (cm)

SHAding

color

JUStified

SHIft

COLumn

LANdscape

SIZe

COMment

LEAder

SOLid

characters per inch (CPI)

LEFt

SPAced

DEFault

let

spots per inch (SPI)

LIGht

TEXt

dot

LINes

TIMes

dots

logo

DOTTed

lines per inch (LPI)

top

DRAw

LITeral

UNIt

end

MEDium

USIng

ENDSection

MEMber

USLEGal

EVEry

new

USLETter

FONTs

VERtical

FORm

NOSubstitution

WIDe

FROm

ORIgin

XDOts

C. Approved

abbreviations for reserved words

Abbreviations can be helpful in reducing the number of characters or lines you need to describe a function or command. However, while abbreviations are helpful, they can create problems if you do not use them properly. If you use abbreviated reserved words, make sure they are identical to those in the approved list.

The following list contains approved abbreviations for reserved words. The approved abbreviation is shown in capital letters or in parentheses beside the word. If an abbreviation is not shown, you cannot abbreviate the reserved word.

ALIgned GRAphic page

XPAF Forms Generator 74 User Guide and Reference

XPAF Forms Generator 75 User Guide and Reference

D. Supported paper sizes

You can design forms for a variety of paper sizes, however, you must be aware of the paper sizes your printer supports. Even though XFG supports a paper size, it may not be available or supported by your printer. If you are not sure of the size of paper your printer supports, contact your System Administrator.

Table D–1 lists the paper sizes that XFG supports. Table D–1. Paper sizes available for XFG

Paper size (inches) XFG designation

8.5 by 11 USLETTER

8.5 by 14 USLEGAL

16.54 by 11.69 A3

8.27 by 11.69 A4

10.12 by 14.33 B4 8 by 10.2 (None) 8 by 10.5 (None) 8 by 13 (None)

8.27 by 10.63 (None)

8.27 by 13 (None)

8.37 by 10.78 (None)

8.46 by 10.83 (None)

8.46 by 12.4 (None)

8.46 by 14.02 (None)

8.5 by 10.75 (None)

8.5 by 13 (None) 11 by 17 (None)

XPAF Forms Generator 76 User Guide and Reference

E. Glossary

application software Host– or LPS–resident software that directs the computer to perform

alphanumeric Set of letters and whole numbers.

batch processing Process that allows repetitive operations to be per formed sequentially

abort To prematurely terminate the printing of a job, execution of a

program, or execution of a nonprinting task.

algorithm A step by step procedure for solving a problem.

alignment Positioning of an image on a page for printing.

ASCII American Standard Code for Information Interchange. Standard

7–bit code that represents alphanumeric information. Each alphanumeric character and several nonprinting characters are assigned a binary number covering 128 possible characters. It is used for information interchange among data processing systems, data communication systems, and associated equipment. See also EBCDIC.

application Use to which a computer program or system is applied (for

example, sorting employee records).

specific tasks or functions. Common business applications include payroll, accounting, inventor y , and so on.

argument Independent variable of a function, such as a parameter.

ascender Portion of the lowercase letter that extends above the main body of the

character (such as b, d, or h).

band Unit in a printed page that optimally handles image processing

sequence.

batch Body of data accumulated and grouped by kind before

processing.

on batched data without much involvement from the computer operator.

binary Numbering system with a base of 2. All numbers are

represented by combinations of 1 and 0.

XPAF Forms Generator 77 User Guide and Reference

bit Binary integer. Smallest unit of information recognized by a computer.

Numeric integer of 1 or 0 represent the binary scale of notation. In computers and related devices, the binary numeric values can be represented by a positive or negative electrical pulse. As a general rule, 1 equals ON, TRUE, or YES; and 0 (zero) equals OFF, FALSE, or NO. A number of bits strung together can represent a character to

bitmap Visual representation of graphi c images in which a bit defines a

bitmapped Display image generated bit by bit for each point or dot. A

blocking Process of combining two or more records into a single block of data,

block length Number of characters or bytes contained in a block of data. The block

boot To load initial operating instructions for a program into the memory of

buffer Compartment of memory in which data is stored during transfer from

byte Fixed number of bits operated upon as a unit (in data processing,

carriage return Control character that causes the printing system to start printing at

centralized printer Class of Xerox printers that includes the 4050, 4090, 4135, 4650,

channel 1. In data communications, path or line that allows two or more

character Single printable letter (A to Z), numeral (0 to 9), symbol (& % #), or

the computer. Multipliers of the bit are as follows:

• 1 byte = 8 bits

• 1 kilobyte (KB) or 1,024 bytes = 8,192

bits

• 1 megabyte (MB) or 1,048,576 bytes = 8,388,608 bits

picture element (pixel). For example, if a bit is 1, the corresponding pixel is printed.

software–driven scanner is used to create characters and graphics.

which can be moved, operated upon, stored, and so on, as a single unit by the computer.

is treated as a unit in the computer. Block lengths may be specified in units such as records, words, computer words, or characters.

the computer. These instructions direct the loading of the rest of the program. Booting may require the entry of a few commands or keystrokes (soft boot) or the turning on of a switch to begin the process (hard boot).

one device to another.

usually 8). A byte may represent a character, a machine instruction, or some other logical unit of information.

the left margin of the current line (unless set to be interrupted as a line end).

4850, 4890, 8790, and 9790 printers. Centralized printers are frequently placed in a central location to handle a large volume of output.

devices to communicate. 2. In computers, a path for commun icat ion between the central processing unit (CPU) and peripheral devices.

punctuation marks (, . ! ?) used to represent data. Characters can also be nonprinting, such as a space, tab, or carriage return.

XPAF Forms Generator 78 User Guide and Reference

composite character Character that has multiple bitmap references combined into one

consumable supplies Supplies such as paper and dry ink that are depleted during the

character cell Digitized space containing a single character within a font set.

character code Code representing alphanumeric information, such as ASCII.

character map Grid of blocks, where each block corresponds to a letter,

number, punctuation mark, or special character.

character set Number of different characters used by a particular device,

including alphabetic, nu meric, and special characters such as symbols.

CLPS Centralized laser printing system. Technology that uses a laser to

transfer character forms to a page. See also LPS.

cpi Characters per inch. Designates the number of characters per inch

for a particular typeface. See also pitch.

cluster Group of related feeder trays, usually containing the same size and

type of paper stock. Each cluster has a name, consisting of one to six alphanumeric characters.

code 1. Set of symbols representing data or instruction to a computer.

2. To write a list of software instructions that cause the product or system to perform specified instructions.

code conversion Translation of one type of character or symbol code to another.

collate To arrange or assemble into ordered sets.

column Vertical arrangement of characters.

command User instruction to a computer. Commands are words,

mnemonics, or characters that cause a computer to perform predefined operations.

command language Set of commands that can be used to instruct a system on how to

perform a task.

comment Explanation added to program instructions. They are ignored by the

computer.

compatibility Characteristics of computer equipment permitting one device to use

the same information or programs as another device without conversion or code modification.

compiler Software that translates instructions written in high–level language into

machine language for execution by a system.

bitmap and stored on disk in font memory.

computer language Computer–oriented language consisting solely of computer

instructions. See also machine language.

computer program Sequence of instructions suitable for processing b y a computer.

concatenate To connect or link in a series, such as files grouped together for faster

processing.

condition code Code returned by a job that is used to verify successful

execution of the job.

configuration One or more computers and related devices (terminals, printers, and

so forth) interconnected and programmed to operate as a system.

console Functional unit containing devices used by an operator to

communicate with an operating system. It may consist of a display, keyboard, and certain switches or other controls.

course of normal operation.

XPAF Forms Generator 79 User Guide and Reference

control program Program that supports the operating system by monitoring the flow

coordinate Point on the x–axis and y–axis that determines a grid position.

copy To duplicate data in a new location or on an additional storage

copy–sensitive Term used to indicate jobs in which multiple copies of a report will

data 1. In general, facts, numbers, letters, symbols, and so forth, that can

database Information to meet specific processing and retrieval needs.

data file Collection of related data records organized in a specific manner so

data processing Operations carried out on data by means of algorithms and

data set Collection of logically related records stored in a database. See also

data storage Preservation of data on various media, such as tape and disks.

debug To detect and correct errors in a program.

decentralized printer Class of Xerox printers that includes any remotely connected

printers. Decentralized printers are frequently placed in a remote location to handle a lower volume of output.

default Value assigned to a field by the system. Default fields may be used for

device Any piece of hardware other than the central processing unit

digitize To express or represent data in digital (binary) format so it can be

display Viewing device (monitor) used to visually display the results of

DJDE Dynamic job descriptor entry. Command within an input data

dot Unit of measurement representing a frac t ion of an inch; for example,

dpi Dots per inch. Indicates the number of dots per inch displayed on a

download To load files from the host onto LPS system disks.

dry ink Minute, dry particles of resin and carbon black used to create

of jobs, tasks, processing, and so forth, within the system.

medium. For example, to copy files from disk to tape.

contain different data, such as paychecks and banking state ment s.

be processed or produced by a computer. 2. In data processing, the source data, or raw data, entered for processing, as opposed to the results obtained by processing.

Generally applies to integrated files of data, arranged for access by many subsystems.

that each record is similarly structured, for example, a payroll file set up

with

with one record for each employee, structured the last name first, followed by the rate of pay and

all

deductions.

programs to produce information or a specific result. The rearrangement of data into a suitable form for further use.

file

such items as document formats, menu selections, input fields, font selection, and paper or image size. You can change the default value of a field.

(CPU).

processed electronically.

operator interaction with the system.

stream used to modify the printing environment dynamically.

300 dots per inch (dpi). Dot may also refer to a picture element (pixel) or spot.

terminal screen or printed to form a character or graphic.

images. Dry ink can accept an electrical charge.

XPAF Forms Generator 80 User Guide and Reference

duplex Printing or copying on both sides of the paper.

embedded blanks Blank spaces within a command line.

floating accent Non-spacing accent characters that can be combined

font white space Spacing character in the font.

Xerox XPAF Forms Generator User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

XPAF Forms Generator

Table of Contents

About this manual

1. Introduction

Contents

Conventions

Related publications

Xerox publications

IBM publications

2. Overview

XFG features

Prerequisites

Operating environment

Hardware requirements

Software requirements

Xerox laser printer support

Contrasting XFG with a typical forms application

Forms you can create with XFG

Determining format

3. Planning your forms

Page orientation

Page frames

Form origin

Positioning form elements

Grids

Data types

Fonts

Fixed and proportionally-spaced fonts

Font orientation

Adding color to forms

Ink color availability and control

Choosing paper size

Creating forms with XFG commands

Available specifications

4. Using XFG commands

Command format

Reserved words

Special characters

Understanding the command syntax flow charts

Setting up your form

FORM command

PAPER command

LANDSCAPE/PORTRAIT command

GRID command

FONT command

ICATALOG command

PALETTE command

INK command

IRESULT command

Description commands

LINE command

BOX command

TEXT AT command

TEXT IN BOX command

LOGO command

GRAPHIC command

SECTION command

DO SECTION command

COLUMN command

INTERWORD command

DOT LEADER command

LET command

COMMENT command

END command

5. Creating a sample form

Setting up the form

Using the sample description command

JCL requirements

6. Managing and printing sample forms

XFG compiler JCL

Downloading and printing a sample

Editing an existing form

7. Messages

Message indicators

Boxes and their image

Text in boxes
