Phaser® 6200 Color Laser Printer

Resources

A large amount of information is stored in yo ur printer as printable page s. The followin g pages show the Help Guide, a printable page listing resouces for getting help.

All the printable pages have this format, with color bars at the top and at the bottom of the page. Print these pages at the printer’s front panel.

Accessing printable pages

Access these pages from the Printable Pages Menu:

1. At the front panel, scroll to the

Printable Pages Menu using the Down Arr ow or

Up Arrow key and pres s the OK key.

2. Scroll to th e de s ir e d printabl e page (s u c h a s

Print Help Guide) using the Down Arr o w or

Up Arrow key and pres s the OK key.

For a complete list of pr intable pages, print the Menu Map.

Error Mess ages

When there is a problem with the printer, the fro nt panel display (1) shows the error message. Press the i button (2) for more information about the error message and ways to solve the problem.

6200-51

6200-69

Phaser 6200

PHASER® 6200 COLOR PRINTER

Help Guide

Resources

CentreWare® Internet Services (IS)

Printer management tool that helps System Administrators:

• Configure and manage multi-vendor printers.

• Provide remote diagnostics and troubleshooting for printer problems.

• Monitor printer and consumable status.

• Hotlink to software updates and Technical Support.

CentreWare IS uses TCP/IP to communicate directly with the printer's embedded web server and runs on any  computer with a web browser.

To launch CentreWare IS, enter your printer's IP address in a web browser (xxx.xxx.xxx.xxx). The IP address is  listed on your front panel. To view the IP Address on the front panel, highlight Printer Identification and press OK.

For detailed information on CentreWare IS software, refer to its online help.

PhaserSMARTTM (English Only)

Automated printer diagnostics and troubleshooting through the web and your web browser.

Launch CentreWare IS: From a web browser, enter your printer's IP address. Select Support. Select the  Technical Support link to access PhaserSMART.

For Windows: From your Phaser printer driver properties, select the Troubleshooting tab. Select the 

PhaserSMART Technical Support web link.

infoSMART

This is the same troubleshooting knowledge base used by Xerox Customer Support. Provides solutions for  printer issues, such as error codes, print quality, media jams, software installation, networking, and more.

www.xerox.com/officeprinting/infoSMART

(English Only)

Interactive Documentation CD-ROM

Detailed printer information in the form of topics, instructions, and videos. Information includes printer setup,  networking, loading trays/paper, driver and printer features, troubleshooting, and support.

Front panel

The front panel offers a suite of tools along with information pages to help solve print-quality, paper feed,  supplies, and printer administration problems.

Page 1 of 3

Button

You can press the Information button at any time to get additional information about the message displayed  on the front panel.

Printable pages

To print a Menu Map, navigate the front panel and its menu items:

1. Select Menus and press OK.

2. Select Print Menu Map and press OK.

Driver help

If you are using Windows 95/98, Windows 2000/XP, or Windows NT, install the driver from your printer's software CDROM and access the printer driver to:

• Link to relevant web sites from the Troubleshooting tab.

• View information about the printer features on the driver tabs by clicking the Help button on the tab.

• View troubleshooting information by clicking a Help button, then selecting the Troubleshooting Guide.

Troubleshooting

Paper jams

PhaserSMART

After you launch PhaserSMART, select the Troubleshooting Guide to help identify your printer's problem. If your printer detects a jam error, PhaserSMART will point you to a specific solution. Otherwise, select Media Jams for PhaserSMART to lead you to the best solution.

Interactive Documentation CD-ROM

For paper jams and error messages, see the Troubleshooting section.

Driver help

In the Troubleshooting Guide, refer to Error Messages for Paper Jams.

Print-quality problems

Ensure the paper type selected in the front panel matches the paper loaded in the trays and the Multi-Purpose Tray (MPT). Tray settings can be found by selecting Printer Setup Menu and then Tray Setup Menu.

The following table provides a list of printable pages that are accessible from the Support Menu  and Improve Print Quality?:

Condition     Printable page

For additional paper tips:   Print Paper Tips Page

To troubleshoot print-quality symptoms:  Print Diagnostic Pages

To correct colors:    Print-Quality Tips Page

Page 2 of 3

PhaserSMART After you launch PhaserSMART, select the T roubleshooting Guide to help identify your printer's problem. Starting with

Print/Image Quality Issues, PhaserSMART will walk you through a decision tree to resolve print-quality problems. Interactive Documentation CD-ROM

For print-quality problems, see the Troubleshooting section.

Networking problems

Printable pages

To obtain information on printer options, configurations and settings:

1. On the front panel, highlight Printable Pages and press OK.

2. Scroll to Print Configuration Pages and press OK. To obtain information on network, parallel and USB connections and setting:

1. On the front panel, highlight Menus and press OK.

2. Scroll to Connection Setup Menu and press OK.

3. Scroll to Print Connection Setup Page and press OK.

Interactive Documentation CD-ROM For network setup and troubleshooting, see the Networking section.

Replacing consumables

Interactive Documentation CD-ROM Refer to the Support section for instructions and videos that walk you through the replacement of consumables.

Instruction Sheets

Each consumable comes with instructions included in the original packaging.

Web links

To link to product and supplies information, download printer drivers, view documents, and access support information:

To access the troubleshooting knowledge base used by Xerox Customer Support staff:

To link to a color resource for tools and information, such as interactive tutorials, color printing templates, helpful tips, and customized features to meet your individual needs:

To view technical support information:

www.xerox.com/officeprinting

www.xerox.com/officeprinting/infoSMART

www.colorconnection.xerox.com

www.xerox.com/officeprinting/6200support

To order Xerox supplies:

To find your local sales and support center:

Page 3 of 3

www.xerox.com/officeprinting/6200supplies

www.xerox.com/officeprinting/contacts

Phaser® 6200 Color Laser Printer

Diagnosing Print Quality

A large amount of information is stored in yo ur printer as printable page s. The followin g pages show the Diagnose Print Quality printable page, whic h describes solutions for print quality problems.

All the printable pages have this format, with color bars at the top and at the bottom of the page. Print these pages at the printer’s front panel.

Accessing printable pages

Access these pages from the Printable Pages Menu:

1. At the front panel, scroll to the

Printable Pages Menu using the Down Arr ow or

Up Arrow key and pres s the OK key.

2. Scroll to th e de s ir e d printabl e page (s u c h a s

Print Diagnostics Pages) using the

Down Arrow or Up Arrow key and press the OK key.

Menu Map

For a complete list of pr intable pages, print the Menu Map:

1. Select

Menus on the front panel and press the OK key.

2. Select

Print Menu Map and press the OK key.

6200-51

Test Pattern A 600 x 600

P 6200 P 6200P 6200 P 6200

P 6200 P 6200 P 6200 P 6200

P 6200 P 6200

8 mm

192 mm

PHASER® 6200 COLOR PRINTER

Diagnose Print Quality

Problem

Dark Lines/Smudges or Streaks- All Colors

Black and/or colored areas appear on the page in all colors and/or in non-print areas.

Repeating Defects

Marks or voids recur uniformly in only one color.

Marks of any color or voids recur uniformly in all colors and/or in non-printed areas.

Solution

1. From the printer's front panel Support Menu select Improve

Print Quality?, then select Print Paper Tips Page and 

press OK.

2. Ensure the paper you are using is the correct type for the

printer and is properly loaded.

3. Ensure the paper loaded in the tray matches the paper

type selected on the printer's front panel and in the printer driver.

4. From the printer's front panel Support Menu select Improve

Print Quality?, then select Remove Print Smears and press

OK. Three cleaning pages will run through the printer.

5. If the problem continues, replace the Imaging Unit.

1. Replace the Imaging Unit if defects occur

every:

23.3 mm (.91 in.)

28.5 mm (1.12 in.)

62.0 mm (2.44 in.)

131.8 mm (5.19 in.)

2. Replace the Transfer Roller if defects occur every:

63.6 mm (2.5 in.)

3. If the defect occurs every:

82.25 mm (3.24 in.)

a. From the printer's front panel Support Menu select

Improve Print Quality?, then select Remove Print 

Note: Print the Repeating Defects

Page for guides to identify defect.

Color Misregistration

Color has shifted outside of the designated area or has been superimposed over another color area.

Smears and press OK.

b. If the problem continues, replace the Fuser.

1. Ensure the printer is on a solid, level, flat surface.

2. If the horizontal registration is off:

a. From the front panel Support Menu, select Improve Print

Quality?, and press OK.

b. Select Color Registration Menu and Press OK. c. Follow the instructions on the Color Registration Page  just printed.

Abc Defg Hijk

Abc Defg Hijk Lmnop

Qrstuvw XYZ

123456789

Abc Defg Hijk Lmnop

Qrstuvw XYZ 123456789

P 6200 P 6200 P 6200 P 6200

P 6200 P 6200 P 6200

261 mm

3. If the vertical registration is off:

a. Turn the printer off and then back on to correct.

Page 1 of 3

Problem

Solution

Incomplete Fusing

Toner appears to be pulled off print, or is  easy to rub off.

Image Offset

Toner appears to have been pulled off the page and placed about 82.25 mm down the page from where it should be.

1. From the printer's front panel Support Menu select  

Improve Print Quality?, then select Print Paper Tips Page.

2. Ensure the paper you are using is the correct type for the

printer and is properly loaded.

3. Ensure the paper loaded in the tray matches the paper type

selected on the printer's front panel and in the printer driver.

4. If the problem persists, select the appropriate Tray Setup

Menu for the tray you are using and set the paper type to 

the next heaviest type of paper. Refer to the Paper Tips

Page for media types and weight.

Note: To access the Paper Type Menu, open

and close the selected paper tray or re-insert the paper loaded in the MPT. The front panel will then prompt you to select the paper type.

1. From the printer's front panel Support Menu select Improve

Print Quality?, then select Print Paper Tips Page and 

press OK.

2. Ensure the paper you are using is the correct type for the

printer and is correctly loaded in tray.

3. Ensure the paper loaded in the tray matches the paper type

selected on the printer's front panel and in the printer driver.

4. If the problem persists, select the appropriate Tray Setup

Menu for the tray you are using and set the paper type to

the next lightest type of paper. Refer to the Paper Tips

Page for media types and weight.

Note: To access the Paper Type Menu, open

and close the selected paper tray or re-insert the paper loaded in the MPT. The front panel will then prompt you to select the paper type.

Page 2 of 3

Problem

Solution

Printing Is Too Light or Too Dark in All Colors

Transparency Print Quality

Possible Print Quality defects occurring on Transparency media such as: Light and/or Dark spots Smeared Toner Light Bands on print

1. Try a different Color Matching mode. From the printer's front panel Support Menu select Improve Print Quality?, then select Print-Quality Tips Page. and press OK.

Note: The TekColor Correction set to Automatic provides the

best results for most documents.

2. If the print is too light, verify that the printer driver Print Quality Mode or Front Panel Defaults is not set to Draft Mode.

3. Adjust the light or darkness levels. From the front panel Support Menu select Improve Print Quality?, then select Calibrate Colors Menu, then selet Print Tutorial Page. Follow the procedure for Lighten/Darken Colors.

Use only Phaser® 6200 Transparency.

Using non-Phaser® 6200 Transparencies may cause printquality problems or damage the printer's Fuser.

Damage caused by using non-supported media will not be covered under the warranty, service agreement or Total Satisfaction Guarantee.

For a list of Transparency part numbers, refer to the printer's

Paper Tips Page.

See www.xerox.com/officeprinting/infoSMART on the world wide web for more on-line support information.

Page 3 of 3

Phaser® 6200 Color Laser Printer

Calibration

A large amount of information is stored in yo ur printer as printable page s. The followin g pages show the Color Registration Men u, Color Cali braion Tut o ri a l, and Calibrate for Margins printable pages, which explain how to calibrate the printer.

All the printable pages have this format, with color bars at the top and at the bottom of the page. Print these pages at the printer’s front panel.

Accessing printable pages

Access most printable pages from the Printable Pages Menu. Access the calibr a tion pages from the

Support Menu:

1. At the front pan el, s croll to Support Menu us ing the Down Arrow or Up Arrow key an d pres s

the OK key.

2. Scroll to

Improve Print Quality? usin g the Down Arrow or Up Arrow key and press

the OK key.

3. Scroll to the

Color Registration Menu, Calibrate Colors Menu, or Calibrate

Margins Menu

using the Down Arrow or Up Arrow key and press the OK key .

4. Scroll to the desired printable page (such as

Print Color Registration Page, Print

Tutorial Page

, or Print Calibrate Margins Page) and press the OK key.

Menu Map

For a complete list of pr intable pages, print the Menu Map:

1. Select Menus on the front panel and press the OK ke y .

2. Select

Print Menu Map and press the OK key.

6200-51

PHASER® 6200 COLOR PRINTER

Color Registration Menu

The Color Registration Menu allows you to adjust the printer's cyan, magenta and yellow against black to ensure that the colors are properly aligned.

Steps:

You can adjust the settings from -7 to +7 units. (left to right). See the images on the left. 0 is always the printer's current color registration setting.

1. From the printer's front panel Support Menu, scroll to Improve Print Quality? and press OK.

2. Scroll to the Color Registration Menu and press OK to print this page.

3. To adjust the color registration, select Adjust Cyan and press OK.

 a. Using the page just printed, select the number for the heaviest

Cyan area.

 b. The Cyan lines above that number should form a straight line with the black lines.

 c. Enter that number by using the Up Arrow or Down Arrow keys and press OK.

4. Repeat steps a through c for Adjust Magenta and Adjust Yellow.

Note: The adjustment value entered is stored and is now the new 0 positon for that color. Repeat the process until all

three colors are aligned at the 0 position.

5. Reprint this page to verify the adjustment.

-7-6-5-4-3-2-1 0+1+2+3+4+5+6+7

Page 1 of 1

-7-6-5-4-3-2-1 0+1+2+3+4+5+6+7

PHASER® 6200 COLOR PRINTER

123

456

91011

151617

212223

303132

3940

48 49

Color Calibration Tutorial

Overview

Color calibration procedures adjust the printer for optimal color output. Color settings may need adjustment upon initial printer set-up or when toners and imaging units are replaced. There are two procedures: Lighten/Darken Colors and

Balance Colors. If the overall image appears either too light or dark, use the Lighten/Darken Colors procedure. If a finer

adjustment of the primary colors (cyan, magenta and yellow) are needed, continue with the Balance Colors procedure.

Lighten/Darken Colors

The Lighten/Darken Colors procedure uniformly increases or decreases each primary color (cyan, magenta, yellow and black) to produce a lighter or darker image.

Procedure:

1. Select Lighten/Darken Colors from the Calibrate Colors Menu and press OK. Use the printed Color Reference Page

to evaluate the lightness/darkness of the image. The printer's current Lighten/Darken Value is listed on the page.

2. Use the Up Arrow and Down Arrow keys to change the value from -5 (lightest) to 5 (darkest) and press OK.

3. The Color Reference Page automatically prints using the new lighten/darken value. Repeat this procedure until you

achieve the desired result.

4. To finish the procedure select one of the following:

Accept Changes and Continue: Saves the new value and returns to the Calibrate Colors Menu.

Accept Changes and Exit: Saves the new value and returns to the Main Menu.

Discard Changes and Exit: Returns to the Main Menu without saving

Balance Colors

The Balance Colors procedure sets the balance between the primary colors (cyan, magenta and yellow) to simulate black.

Each of the color balance pages (like the page illustrated on the right) contains a  large cluster of circles, numbered from 0 to 54, that vary in hue.

The center circle (0) should match or appear to blend with some portion of its  surrounding hexagonal gray ring. The circle can show a color shift if one or more  of the colors are printing with a different density. For example, if cyan is printing  lighter than normal, the circle will appear redder.

Procedure:

1. Select Balance Colors from the Calibrate Colors Menu; The Light Color Balance page prints automatically.

2. Follow the steps on the Light Color Balance page until the desired adjustment is achieved.

3. Follow the steps on the Dark Color Balance page until the desired adjustment is achieved.

Light Color Balance Adjustment

Page 1 of 1

PHASER® 6200 COLOR PRINTER

Calibrate for Margins

The Calibrate Margins Menu allows you to adjust the printer's imaging area relative to the edges of the paper. The imaging area is shown as a dashed rectangle; the printer will not print outside this rectangle.

Step 1. Adjust Side 1 Margins. To move the dashed rectangle to the postion you want it on the page:

1. From the printer's front panel Support Menu, scroll to Improve Print Quality? and press OK.

2. Scroll to the Calibrate Margins Menu and press OK. Select Print Calibrate Margins Page and press OK to print this

page.

3. To move the dashed rectangle you see on the page printed to the position you want, use the front panel menu

items Adjust Side 1 "A" Margin and Adjust Side 1 "B" Margin as illustrated below.

4. Reprint this page to verify the adjustment.

You can adjust the settings from -40 to +40 units. The thickness of the rectangle's dashed lines is 1 unit. 12 units move the rectangle 1 mm. The maximum distance the rectangle can be moved (-40 to +40) is 6.7 mm.

A+

Phaser 6200 Color Printer

Calibrate Margins

Phaser 6200 Color Printer

Calibrate Margins

Phaser 6200 Color Printer

Calibrate Margins

B- B+

Phaser 7700 Color Printer

Calibrate Margins

A-

Increase Adjust Side 1 "A"

Margin setting to move up.

Decrease Adjust Side 1 "A"

Margin setting to move down.

Decrease Adjust Side 1 "B"

Margin setting to move left.

Increase Adjust Side 1 "B"

Margin setting to move right.

Step 2. If the printer has the duplex option, adjust Side 2 Margins.

1. With Side 1 facing you, hold the print up to a strong light. Note the shadow of the solid lines printed on Side 2.

2. Use the front panel menu items Adjust Side 2 "A" Margin and Adjust Side 2 "B" Margin to move the Side 2 solid 

lines until they align with the Side 1 rectangle. Reprint to verify your adjustment.

Phaser 6200

Cal

Phaser 6200

Cal

Page 1 of 1

Phaser® 6200 Color Laser Printer

Paper Jams

In addition to informatio n on prev enting jams and what causes a paper jam, this section includes instructions for clearing the following jams:

■ 1 — Jam at the fuser — see page 5.

■ 2 — Jam at the duplex unit — see page 7.

■ 3 — Jam at the Multi-Purpose T ray — see page 8.

■ 4 — Jam at the registration roller — see page 9.

■ 5 — Jam at the tray — see page 11.

When there is a paper jam, the printe r’s front panel displa y (1 ) sho ws the jam error messa g e. Pre s s th e i button (2) for more information about how to clear the jam.

Caution

Be careful not t o touch the ton er lo cated on th e j ammed pa per, becaus e the t one r might not b e

fused to the pa pe r and might rub off.

Videos are available for clearing jams. Videos are located on the

Interactive Documentation CD-ROM and the Xerox web site at: www.xerox.com/officeprinting/6200support/

6200-60

6200-69

Phaser 6200

Paper Jams

Phaser® 6200 Color Laser Printer 5

Preventing jams

■ To reduce the frequency of paper and transparency jams, use only Xe rox Phaser bra nded paper

and media designed for the Phaser® 6200 printer. See the Supplies section in the Support Guid e on the Interactive Documentation CD-ROM or go to the Xerox web site at:

http://www.xerox.com/officeprinting/6200supplies

to order supplies.

■ Fan paper prior to loading in the trays or the Multi-Purpose T ray.

■ For supported paper sizes, see the Supported Pape rs section in the Trays and Paper Guide on the

Interactive Documentation CD-ROM.

■ For proper p aper-load ing in stru ctions, see the Loading Trays section in the Trays and Pap er G uid e

on the Interactive Documentation CD-ROM.

■ Use clean, undamaged paper. Do not use paper that is curled.

■ Load pape r from a newly opened package.

■ Do not add paper above the tray’s fill line.

■ Make sure that the tray guides are properly set for the paper size.

What causes a paper jam?

Paper jams occur most often unde r these conditions:

■ An incorrect pap e r type was selected in the printer driver.

■ The paper does not meet specifications.

■ The loaded paper size or weight is not supported by the paper tray.

■ The paper is damaged, moist, curled, creased, or folded.

■ The paper is not loaded properly.

■ The tray’s side and rear guides are not adjusted properly for the paper.

■ The tray is overfilled; paper is lo aded above the tray’s fill line.

Jam at the fuser

Follow these steps to clear the jam. Refer to the labels inside the printer for jam-clearing instructions.

1. Use the latch on th e right side of the printer to open Front Door B.

6200-65

Paper Jams

Phaser® 6200 Color Laser Printer 6

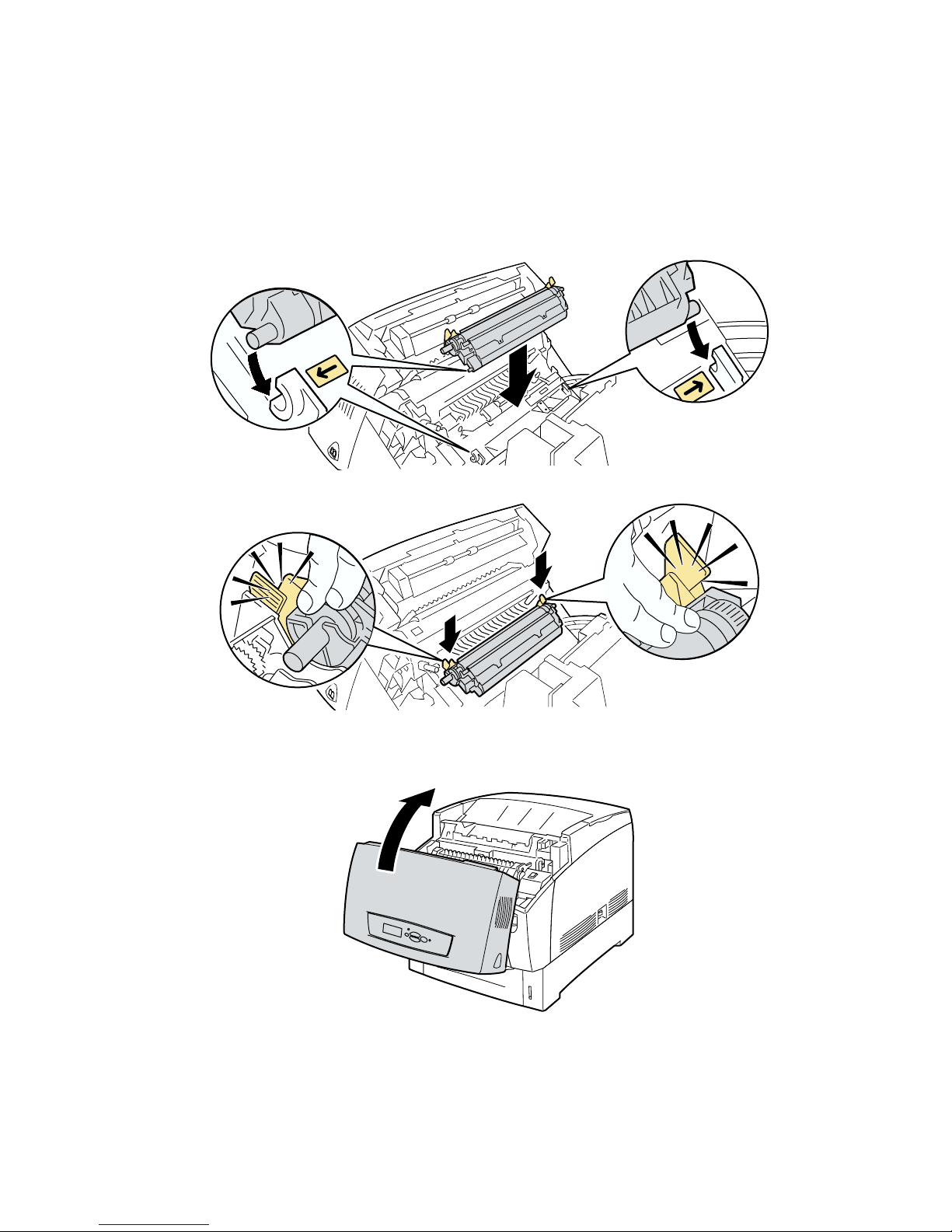

2. Rotate the two green levers at both end s o f the fuser unit upward .

Warning

The fuser is hot. To prevent burns, do not touch the black part o f the fuser.

3. Remove the ja mme d pa per. Make sure that all scraps of paper are remo ve d.

4. Completely push down the two green levers at both ends of the fuse r.

6200-61

6200-63

6200-62

Paper Jams

Phaser® 6200 Color Laser Printer 7

5. Close the fro nt door.

For additional information , access PhaserSMART.

Jam at the duplex unit

Follow these steps to clear the jam. Refer to the labels inside the printer for jam-clearing instructions.

1. Open Front Door B.

2. Remove the ja mme d pa per. Make sure that all scraps of paper are remo ve d.

6200-64

6200-65

6200-19

Paper Jams

Phaser® 6200 Color Laser Printer 8

3. Close the fro nt door.

For additional information , access PhaserSMART.

Jam at the Multi-Purpos e Tray

1. Remove the jammed paper from the Multi-Purpo s e Tray.

2. Use the latch on th e front of the printer to open Front Door A.

3. Remove any ja mm e d paper. Make su re that all scraps of paper are remo ve d.

6200-64

6200-13

6200-66

Paper Jams

Phaser® 6200 Color Laser Printer 9

4. Close the fro nt door.

5. Open the Multi-Purpose Tray and load the paper. Do not load paper above the fill line. Make sure

that the guides are set flush against the paper. Make sure that the pap e r is clean and not stuck together.

Jam at t he registration roller

Follow these steps to clear the jam. Refer to the labels inside the printer for jam-clearing instructions.

1. Remove Tr a y 1 complete l y.

6200-64

6200-08

6200-09

6200-35

Paper Jams

Phaser® 6200 Color Laser Printer 10

2. Remove the jammed paper from up inside the printer tray slot. Make sure that all scraps of paper

are removed.

3. Insert Tray 1 and push it completel y into the pr i nter.

4. Use the latch on th e front of the printer to open Front Door A.

6200-15

6200-67

6200-66

Paper Jams

Phaser® 6200 Color Laser Printer 11

5. Remove any jamm e d paper.

6. Close the fro nt door.

For additional information , access PhaserSMART.

Jam at the tray

Follow these steps to clear the jam. Refer to the labels inside the printer for jam-clearing instructions.

1. Pull out the tray specif ied on the front panel.

6200-16

6200-64

6200-35

Paper Jams

Phaser® 6200 Color Laser Printer 12

2. Remove any jamm e d paper.

3. Make sure that the paper is loaded correctly in the tray and the g uides are set flush against the

paper.

4. Remove any jammed paper from up inside the printer tray slot. Make sure that all scraps of paper

are removed.

6200-14

6200-04

6200-15

Paper Jams

Phaser® 6200 Color Laser Printer 13

5. Insert the tray and pus h it completely into the printer.

6. Use the latch on th e front of the printer to open Front Door A.

7. Remove any jamm e d paper.

8. Close the fro nt door.

6200-67

6200-66

6200-64

Phaser® 6200 Color Laser Printer

Regular Printer Maintenance

Your printer needs little maintena nce other than periodic cleaning of the dens ity sensor and replacin g the following Cus tomer-Replaceable Consumables (CRCs) and Customer-Replaceabl e Units (CRUs):

■ Toner cartridges (black, cyan, mage nta and yellow) — see page 17

■ Imaging unit — see page 18

■ Transfer roller — see page 23

■ Fuser — see page 20

■ Feed rollers — see page 25

Order extra printer supplies wh en the printer’s fro nt panel displays a warning that the consumable is low or near the end of its life. You must replace the consumable when the front panel displays an error message that the consumable is empty or at the end of its lif e. For part number informat ion, refer to the Supplies section of the Support G uide on the Interactive Documentation CD-ROM. T o order consumables and other supplies, visit the Phaser® 6200 Suppl ie s and Accessories web site

. Each item

includes installation instructions in the package.

Caution

Keep the imaging unit out of direct sunligh t. Otherwise , faded images, light areas or da rk

bands may result. Do not place the printer near vents or dust-producing equipmen t.

Warning

Do not burn the old toner cartridges, the imag ing unit, the transfer roller, or the fuser.

Cleaning the outside of the printer

You can clean the outside of the printer with a soft, damp well-wrung cloth. You can use a cloth moistened with a mi ld neutral deterg ent to remove stains; do not spray detergent directly onto the printer.

Warning

To prevent electric shock, turn the printer off and unplug the power cord bef ore cleaning the

printer.

Caution

Do not use a vacuum cleaner to clean the printer. Do not lubricate the printer with oil.

Regular Printer Maintenance

Phaser® 6200 Color Laser Printer 15

Cleaning the density sensor

The printer s tops printing when the density sensor is dirty. To clean the de nsity sensor:

1. Use the latch on th e front of the printer to open Front Door A.

2. Remove the transfer roller. Squeeze the orange tabs at both sides of the tr ans fer roller and gently

lift it out of the pr in t e r .

3. Use a dry towel or cotton swa b to wipe the density sensor.

6200-66

6200-23

6200-12

Regular Printer Maintenance

Phaser® 6200 Color Laser Printer 16

Caution

Do not use canne d a ir or isopropyl alcohol on the sensor.

4. Reinstall the transfer roller. Insert the rounded ends of the tran sfer roller into the curved black

guides inside the printer. Lock the tran s fer roller into the printer by pushing down on the orange tabs until you hear a click.

5. Close the fro nt door.

6200-24

6200-25

6200-64

Replacing a Toner Cartridge

Phaser® 6200 Color Laser Printer 17

Replacing a Toner Cartridge

6-8x

4.2

2.1

4.1

2.2

Click Declic Clic Klicken Clic Clique

Klik Klick

Pull Tirer Tirare Ziehen Tirar Puxe

Trek Dra

Replacing the Imaging Unit

Phaser® 6200 Color Laser Printer 18

Replacing the Imaging Unit

Pull Tirer Tirare Ziehen Tirar Puxe

Trek Dra

4.5 kg 10 lbs

prim

ante cou

leur laser

P H

0 0

C ol

o r

a ser

r in

C olor

Im ag

ing

nit

Replacing the Imaging Unit

Phaser® 6200 Color Laser Printer 19

4.5 kg 10 lbs

Replacing the Fuser

Phaser® 6200 Color Laser Printer 20

Replacing the Fuser

Phaser® 6200 Color Laser Printer 21

Replacing the Fuser

Phaser® 6200 Color Laser Printer 22

12 13

Replacing the Transfer Roller

Phaser® 6200 Color Laser Printer 23

Replacing the Transfer Roller

3.13.1

3.2

3.3

4 5

Replacing the Transfer Roller

Phaser® 6200 Color Laser Printer 24

6.1

6.2 6.2

TRANSFER ROLLER 016-2013-00

Replacing the Feed Rollers

Phaser® 6200 Color Laser Printer 25

Replacing the Feed Rollers

4.1

4.2

3.2

3.1

2.1

2.2

Replacing the Feed Rollers

Phaser® 6200 Color Laser Printer 26

6.1

6.2

7.1

7.2

Phaser® 6200 Color Laser Printer

Repacking Instructions

Phaser® 6200 Color Laser Printer 28

Phaser® 6200 Color Laser Printer

Index

Calibrate for Margins 3 calibration 3 cleaning

density sensor 15

outsid e of printer 14 cleanin g the printe r 14 clearing jams 4 Color Calibration Tutorial 3 Color Registration Menu 3 Customer-Re placeable Consumables

(CRCs) 1 4

density sensor 15 diagnosing print quality 2 duplex unit

jam 7

error messages 1

feed rollers

replacing 25 front panel

displaying errors 1 fuser

jam 5

replacing 20

Help Guide 1

imaging unit

replacing 18 informati on on front panel 1 instruction sheets

Repacking Instructions 27

Replacing a Toner Cartridge 17

Replacing the Feed Rollers 2 5

Replacing the Fus e r 20

Replacing the Imaging Unit 18

Replacing th e Transfer Roller 23

jam at the duplex unit 7 jam at the fuser 5 jam at the Mult i-Purpose Tra y 8 jam at the regi s tr at ion roller 9 jam at the tray 11 jams

clearing 4

preventing 5

misfeed at the tray 11 Multi-Purpose Tray

jam 8

paper jams

clearing 4

preventing 5 preventing jams 5 printabl e page s 1

calibration pages 3

Diagnosing Print Qual it y 2

Help Guide 1

Phaser® 6200 Color Laser Printer 30

Index

registratio n rol le r

jam 9 repacking i nstructions 27 resources 1

toner cartridge

replacing 17 transfer roller

replacing 23 tray

jam 11

Xerox Phaser 6200DX Troubleshooting Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
