Xerox N2025 PARTS LIST
Introduction ..................................................................................................................... 5-3
EDNord - Istedgade 37A, 9000 Aalborg - Telefon 9633 3500
Covers
PL 1.1 Covers................................................................................................................. 5-4
Paper Trays
PL 2.1 Paper Tray (A3/Ledger)....................................................................................... 5-5
PL 2.2 Paper Tray (A4/Letter)......................................................................................... 5-6
Paper Feeder
PL 3.1 Paper Feeder....................................................................................................... 5-7
MBF Assembly
PL 4.1 MBF Assembly..................................................................................................... 5-8
PL 4.2 Paper Handler...................................................................................................... 5-9
Paper Transport
PL 5.1 Paper Transport................................................................................................... 5-10
Exit Assembly Fuser
PL 6.1 Rear Cover Assembly.......................................................................................... 5-11
PL 6.2 Fuser.................................................................................................................... 5-12
Frame Drives
PL 7.1 Frame & Drives.................................................................................................... 5-13
Xerographics
PL 8.1 Xerographics........................................................................................................ 5-14
Electrical
PL 9.1 Electrical.............................................................................................................. 5-15
PL 9.2 Electrical.............................................................................................................. 5-16
Offsetting Catch Tray
PL 10.1 Offsetting Catch Tray (1 of 2)............................................................................ 5-17
PL 10.2 Offsetting Catch Tray (2 of 2)............................................................................ 5-18
Optional Feeder 1
PL 11.1 500 Sheet Feeder (1 of 3).................................................................................. 5-19
PL 11.2 500 Sheet Feeder (2 of 3).................................................................................. 5-20
PL 11.3 500 Sheet Feeder (3 of 3).................................................................................. 5-21
High Capacity Feeder
PL 12.1 2000 Sheet Feeder (1 of 4)................................................................................ 5-22
PL 12.2 2000 Sheet Feeder (2 of 4)................................................................................ 5-23
PL 12.3 2000 Sheet Feeder (3 of 4)................................................................................ 5-24
PL 12.4 2000 Sheet Feeder (4 of 4)................................................................................ 5-25
Duplex
PL 13.1 Duplex................................................................................................................ 5-26
5 Parts-list
Initial Issue
DocuPrint N2025/N2825
02/2000
5-1
Parts-list
Parts-list
EDNord - Istedgade 37A, 9000 Aalborg - Telefon 9633 3500
02/2000
5-2
Initial Issue
DocuPrint N2025/N2825
Introduction
EDNord - Istedgade 37A, 9000 Aalborg - Telefon 9633 3500
Overview
The Parts List section provides exploded view illustrations of all spared subsystem
components and a listing of the corresponding part numbers. The illustrations show the
relationships between parts.
Organization of this Section
The following elements make up the Parts List section:Parts Lists (PL)Each item number in the
part numbers listing corresponds to an item number in the illustration. All the parts in a given
subsystem of the machine will be located in the same illustration or in a series of associated
illustrations. The parts which are not spared are indicated by “- -” in the Part column.
Exploded View IllustrationsAn item that is called out on an illustration has a corresponding
listing within this section.Components are given item numbers that correspond to the part
number listings. Hardware items are lettered. All hardware dimensions are in millimeters
unless otherwise noted.
Assemblies and kits are a combination of several separate components. A bracket is used on
the illustration when an assembly or kit is spared but is not shown. The item number of the
assembly or kit precedes the bracket; the item numbers of the piece parts follow it.Part Number
IndexThis index lists all the spared parts in the system in numerical order. Each number is
followed by a reference to the parts list on which the part may be found.
Other InformationAbbreviationsAbbreviations which may be used in the parts lists text or
illustrations are as follows:US ------ United States Parts Distribution SystemXE ------ European
Parts Distribution SystemAO ------ South America Parts Distri bution SystemXCL ------ Canada
Parts Distribution SystemP/J ------ Plug/Jack P/O ------ Part ofW/ ------ WithW/O -----WithoutTagA Tag is used when a part or area of the system has been modified. The Change
Tag Index, which is found in the General Procedures/Information Section, lists the name and
purpose of the Tag. In some cases, you will go to the parts lists and find a part number listed as
“with Tag.” Go to the Change Tag Index for a description of what the Tag is and w hat you need
to install the Tag. The Change Tag Index will either list a kit number or indicate “piece part.” If
“piece part” is indicated, the par ts lists reference(s) will be given and all parts associated with
the Tag will have to be individually located, ordered, and installed.The notation “P/O Tag” after
a part number indicates that the item is par t of a Tag. The notation “Tag” after a pa rt number
will be used only to indicate the entire Tag, whether that is a kit number or an individual
part.Whenever you install a Tag kit or all the piece parts that make up a Tag, mark the
appropriate number on the Tag matrix.
5. The notation “with X~Y” following an part name indicates an assembly that is made up of
components X through Y. For example, “1 (with 2~4)” means part 1 consists of part 2, part
3, and part 4.
6. The notation "RS" means that the part is a requested spare. Part numbers for these parts
will be provided as soon as they are available.
7. An asterisk * following a part name indicates the page contains a note about this part.
8. The notation “J1<>J2 and P2” is attached to a wire harness. It indicates that connector
jack 1 is attached to one end of the wire harness and connector jack 2 is attached to the
other end that is plugged into plug 2.
9. A notation "(part of item 1.1)" indicates that the part is included with item 1.2.1 (PL1.2, line
item 1).
Using the Parts List
1. The numbers shown in each illustration correspond to the parts list number for that
illustration.
2. Throughout this manual, parts are identified by the prefix “PL”, followed by a number, a
decimal point, and another number. For example, PL3.1.12 means the part is item 12 of
parts list 3.1.
3. The capital letters “C”, “E”, and “S” shown in an illustration stand for C-ring, E-ring, and
Screw, respectively.
4. A shaded triangle t in an illustration indicates the item is part of an assembly.
Initial Issue
DocuPrint N2025/N2825
02/2000
5-3
Parts-list
Introduction
PL 1.1 Covers
EDNord - Istedgade 37A, 9000 Aalborg - Telefon 9633 3500
Item Part Description
1 48K75876 Top Cover Assembly (includes 2-
2 - - - - - Top Cover
3 3E46230 Stopper (left)
4 - - - - - Bracket (left)
5 48E64291 Top Cover Cap
6 48E64082 Left Cover
7 - - - - - Bracket (right)
8 3E46240 Stopper (right)
9 - - - - - Top Cover
10 - - - - - Latch (right)
11 - - - - - Latch (left)
12 - - - - - Tray Guide (right)
13 - - - - - Tray Guide (left)
14 - - - - - Tray Extension
15 50E88420 Tray Stopper
16 101K31281 Control Panel Assembly
17 48E64122 Right Cover
18 - - - - - Front Cover
19 48E64102 Lower Left Cover
20 892E08620 Control Panel Overlay (US)
892E08640 Control Panel Overlay (Port.)
892E08660 Control Panel Overlay English
21 - - - - - Label
22 - - - - - Front Label
23 802K04213 Front Cover Assembly (with 18, 22)
24 - - - - - Access Cover Label 3
25 - - - - - Cover Pop Up Stand
26 892E08500 Badge
S 600K76430 Hardware Kit (includes Screw)
15, 21, 22)
Parts-list
PL 1.1
02/2000
5-4
Initial Issue
DocuPrint N2025/N2825
PL 2.1 Paper Tray (A3/Ledger)
EDNord - Istedgade 37A, 9000 Aalborg - Telefon 9633 3500
Item Part Description
1 109R00484 Tray Assembly (A3/Ledger)
- - - - - Tray Assembly A3/Ledger
2 - - - - - Bottom
3 - - - - - L atch Spring
4 - - - - - Side Guide Plate (left)
5 - - - - - Side Guide Plate (right)
6 - - - - - Side Lever (right)
7 - - - - - Latch Assembly (right)
8 - - - - - Spring Long
9 - - - - - Ground Spring
10 - - - - - End Guide
11 - - - - - Plate End Guide Spring
12 - - - - - End Plate Guide
13 - - - - - Tray 1 Long Housing
14 - - - - - Rack
15 - - - - - Pinion
16 - - - - - Bottom Cover (Long)
17 - - - - - Sector Gear (Long)
18 - - - - - Idler Gear
19 - - - - - End Guide Lock
20 - - - - - Tray 1 Cover
21 - - - - - Size Cam (Long)
22 - - - - - Pin Lock
23 - - - - - Long Side Label
24 - - - - - Max Paper Label
25 - - - - - Hold Here Label
26 - - - - - Paper Set Label
27 - - - - - Latch
28 - - - - - Tray Set Label
29 - - - - - Side Cap (right)
30 - - - - - Latch Cover (right)
31 - - - - - Latch Cover (left)
32 - - - - - Latch Assembly (left)
33 802K05701 Tray Cover Assembly (with 20, 28)
34 - - - - - Mini Bottom Plate
35 - - - - - Rack (left)
36 - - - - - N/F Center Spring
37 - - - - - Tray Plate
S 600K76430 Hardware Kit (Includes Screw)
(includes 2-28)
Initial Issue
DocuPrint N2025/N2825
02/2000
5-5
Parts-list
PL 2.1
PL 2.2 Paper Tray (A4/Letter)
EDNord - Istedgade 37A, 9000 Aalborg - Telefon 9633 3500
Item Part Description
1 109R00485 Tray Assembly (Short) (includes 2-
- - - - - Tray Assembly A4/Letter
2 - - - - - Bottom Plate Assembly
3 - - - - - L atch Spring
4 - - - - - Side Guide Plate (left)
5 - - - - - Side Guide Plate (right)
6 - - - - - Side Lever (right)
7 - - - - - Latch Assembly (right)
8 - - - - - Spring
9 - - - - - Ground Spring
10 - - - - - End Guide
11 - - - - - Spring Plate End Guide
12 - - - - - End Plate Guide
13 - - - - - Tray 1 Short Housing
14 - - - - - Rack
15 - - - - - Pinion
16 - - - - - Bottom Cover (Short)
17 - - - - - Sector Gear (Short)
18 - - - - - Idler Gear
19 - - - - - End Guide Lock
20 - - - - - Size Cam (A4/Letter)
21 - - - - - Pin Lock
22 - - - - - Short Side Label
23 - - - - - Max Paper Label
24 - - - - - Set Paper Label
25 - - - - - Latch
26 - - - - - Latch Cover (right)
27 - - - - - Latch Cove (left)
28 - - - - - Latch Assembly (left)
29 - - - - - Side Cap (right)
30 - - - - - Handle Cover
31 - - - - - Mini Bottom Plate
32 - - - - - Rack (left)
33 - - - - - N/F Center Spring
34 - - - - - Tray Plate
S 600K76430 Hardware Kit (Includes Screw)
33)
Parts-list
PL 2.2
02/2000
5-6
Initial Issue
DocuPrint N2025/N2825
PL 3.1 Paper Feeder
EDNord - Istedgade 37A, 9000 Aalborg - Telefon 9633 3500
Item Part Description
1 54K13043 Rear Chute Assembly (includes 2-
2 - - - - - Chute (Rear)
3 - - - - - Pinch Roll
4 - - - - - Pinch Spring
5 - - - - - Rod GG (P/O item 16)
6 - - - - - Collar GG (P/O item 16)
7 - - - - - Tray 1 Guide Assembly (with
8 54K13055 Retard Chute Assembly (includes
9 - - - - - Retard Chute (P/O item 8)
10 - - - - - Turn Roll Assembly (left) (P/O item
11 - - - - - Bearing Support (P/O item 8)
12 - - - - - Bearing ES8 (P/O item 8)
13 19K94613 Retard Holder Assembly (P/O item
14 - - - - - Retard Arm (P/O item 8)
15 - - - - - Turn Gear (left) (P/O item 8)
16 600K72189 Tray 1 Guide Assembly (right)
17 - - - - - Tray 1 Guide (right) (P/O item 16)
18 - - - - - GG Actuator
19 - - - - - GG Spring
20 32K93788 Tray 1 Guide Assembly (left)
21 - - - - - Tray 1 Guide (left)
22 - - - - - Size Actuator
23 110E98320 Paper Size Switch
24 162K42630 Sensor Harness Assem bly (J20-
25 - - - - - Low Paper Sensor Harness
26 130E82030 MBF Home Switch
27 MBF Actuator
28 130E81970 Tray 1 Low Paper Sensor
29 - - - - - Low Paper Actuator
30 - - - - - Low Paper Spring
31 - - - - - Retard Lever (P/O item 8)
32 - - - - - Release Spring (P/O item 8)
33 - - - - - Ground Clip
E 600K76430 Hardware Kit (Includes E-ring)
S 600K76430 Hardware Kit (Includes Screw)
4)
5,6,16)
9-15, 31, 32)
8)
8)
(includes 5, 6 &17-19)
(includes 21-33)
J201, J202)
Assembly (J127-P128)
Initial Issue
DocuPrint N2025/N2825
02/2000
5-7
Parts-list
PL 3.1
PL 4.1 MBF Assembly
EDNord - Istedgade 37A, 9000 Aalborg - Telefon 9633 3500
Item Part Description
1 59K15221 MBF Assembly [includes 2, 5-11,
2 - - - - - Tray Assembly
3 3K8552 Latch Assembly (left)
4 - - - - - Upper Guide
5 809E15350 MBF Spring 1
6 - - - - - Pick Up Gear
7 - - - - - Pick Up Cam
8 - - - - - Core Roll
9 - - - - - MBF Feed Roll (P/O item 26)
10 - - - - - Pick Up Shaft
11 - - - - - Bearing #8
12 3K85941 Latch Assembly (right)
13 121K20060 Tray 1 Tur n Roll Clutch
14 59K13064 Turn Roll Assembly -Tray 1
15 - - - - - Bracket
16 - - - - - Tray 1 Pick Up Gear
17 - - - - - MBF Idle Gear 1
18 - - - - - Tray 1 Core Roll
19 59K11930 Envelope Feed Roll (P/O item 27)
20 - - - - - Core Bearing #8
21 809E15350 Spring
22 59K14640 Tray 1 Feed Roll
23 - - - - - MBF Turn Roll Shaft
24 - - - - - Label
25 600K72223 Gear Kit (includes 6, 16, 17 & PL
26 600K73122 Feed Roll Assembly Kit (contains 2)
27 600K73132 Envelope Feed Roll Kit (includes 2)
E 600K76430 Hardware Kit (Includes E-ring)
S 600K76430 Hardware Kit (Includes Screw)
13-24 (PL 4.1), 2-5, 7-11, 13-16,
18-31 (PL 4.2)]
4.1B items 23, 24)
Parts-list

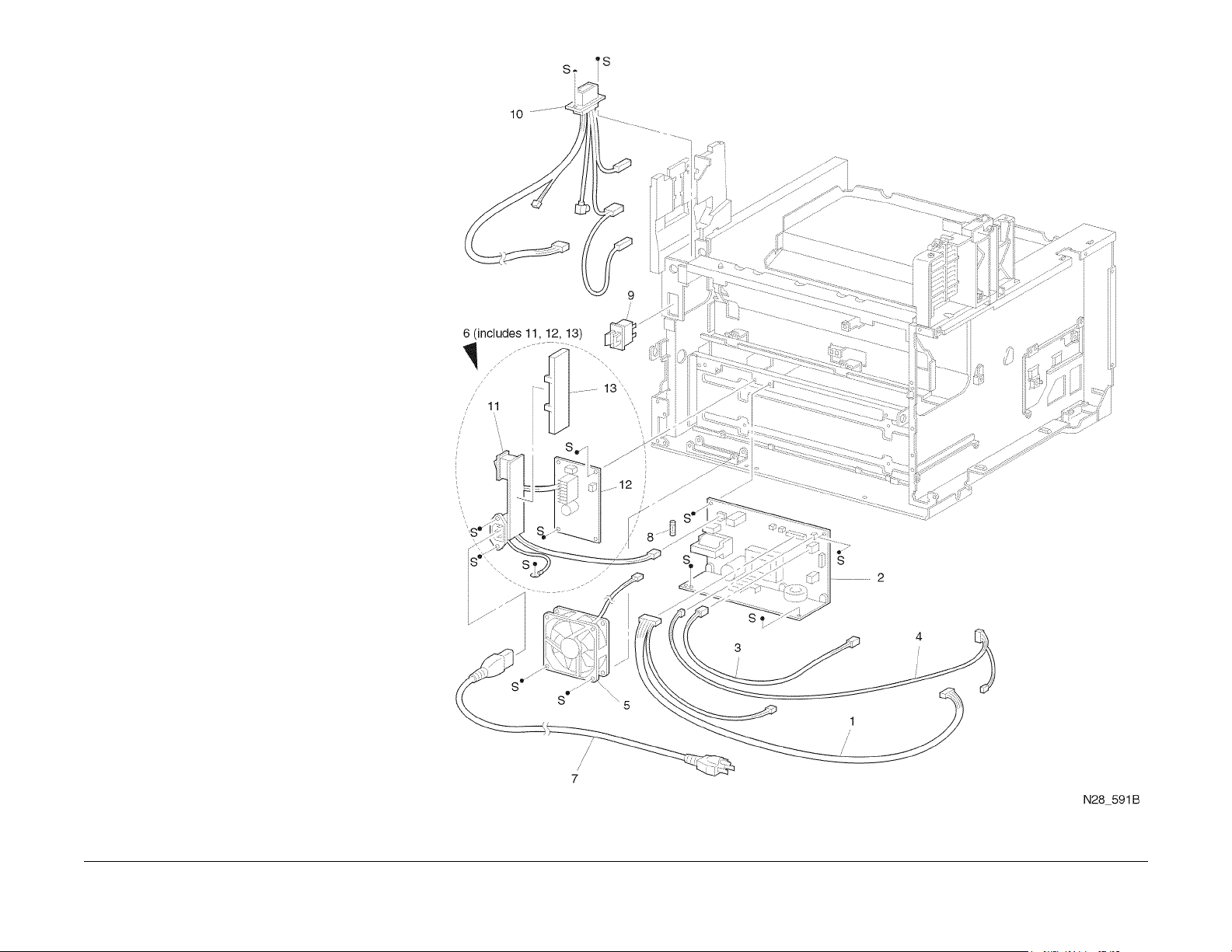

PL 4.1
02/2000
5-8
Initial Issue
DocuPrint N2025/N2825
Loading...
