Xerox KS-801 User Manual
10/100 Fast Ethernet Managed
Switch with Fiber Connectivity
KS-801
Operation Manual
-1-
DOC.020419-KS801-K
The information contained in this document is subject to change without prior notice.
TRADEMARKS
Ethernet is a registered trademark of Xerox Corp.
This device complies with Class A Part 15 the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received including the interference that may cause.
CISPR A COMPLIANCE:
This device complies with EMC directive of the European Community and meets or exceeds the following technical standard.
EN 55022 - Limits and Methods of Measurement of Radio Interference Characteristics of Information
Technology Equipment. This device complies with CISPR Class A.
W ARNING: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
CE NOTICE
Marking by the symbol indicates compliance of this equipment to the EMC directive of the
European Community. Such marking is indicative that this equipment meets or exceeds the following
technical standards:
EN 55022: Limits and Methods of Measurement of Radio Interference characteristics of Information
Technology Equipment.
EN 50082/1:Generic Immunity Standard -Part 1: Domestic Commercial and Light Industry.
EN 60555-2: Disturbances in supply systems caused by household appliances and similar electrical equipment - Part 2: Harmonics.
-2-
Table of Contents
1. Introduction.........................................................4
1.1 Features...............................................................................5
1.2 Specifications.......................................................................7
2. Installing the Switch ...........................................8
2.1 Packing List .........................................................................8
2.2 Panels..................................................................................9
2.3 Mounting the Switches .......................................................10
3. Making Network Connections .........................11
3.1 Network Switched Ports ..................................................... 1 1
3.2 10/100BASE-TX Fast Ethernet Ports..................................13
3.3 Fast Ethernet Fiber Slot .....................................................15

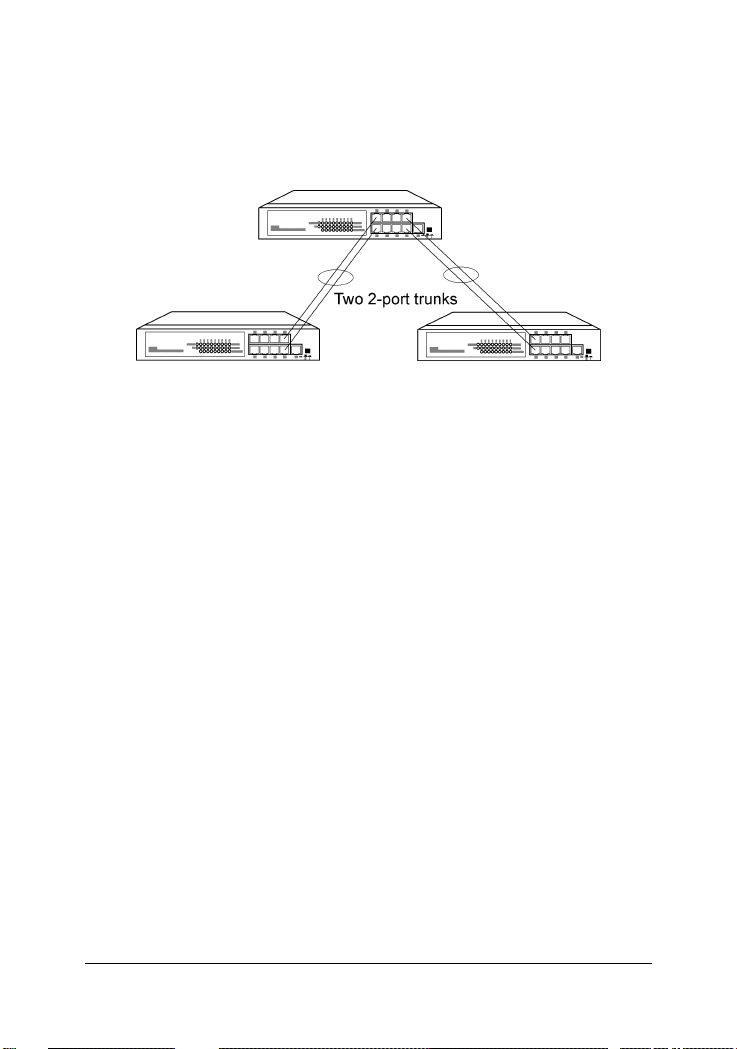

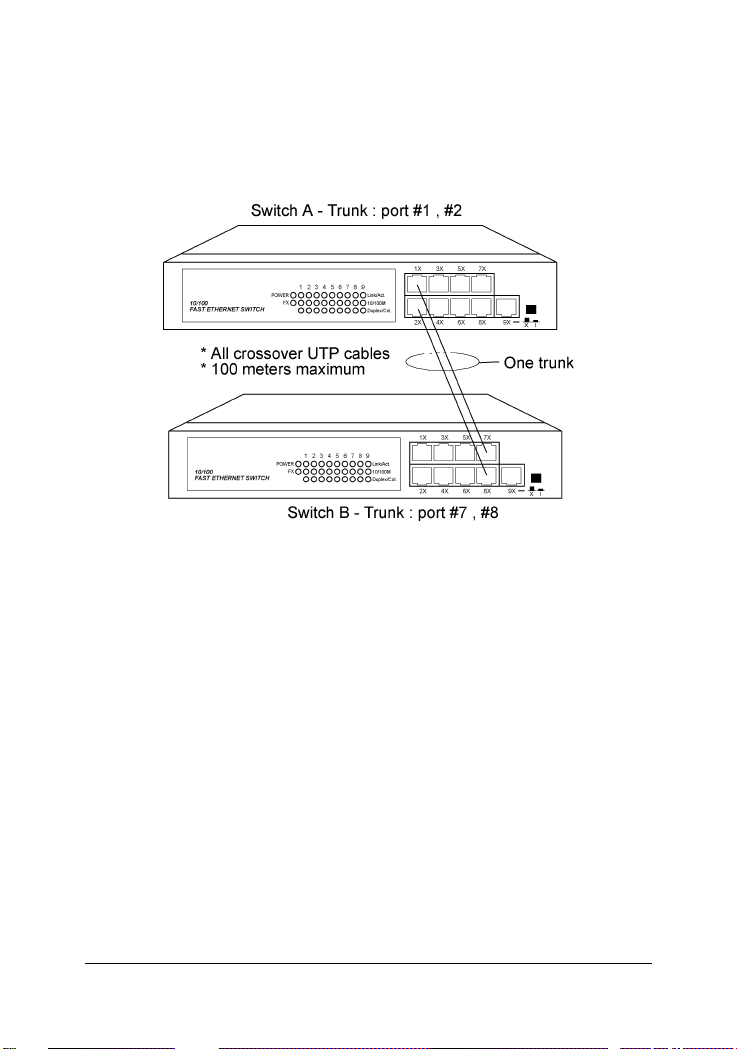

3.4 Making Trunk Connections .................................................18
3.5 Making Sniffer ....................................................................2 0
4. LED Indicators ..................................................21
4.1 LED Panels........................................................................21
4.2 Interpretation ......................................................................21
5. Performing Network Management .................. 22

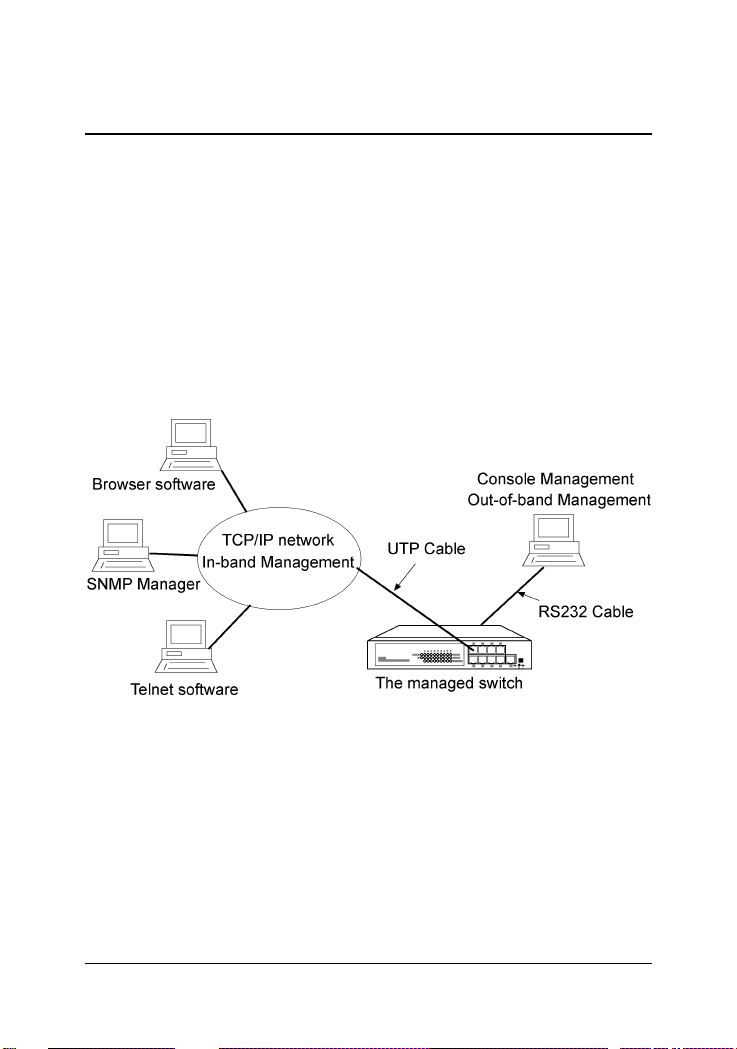

5.1 Management Support .........................................................22
5.2 Management objects..........................................................2 3
5.3 Setting IP Address .............................................................24
5.4 Console Management ........................................................24
5.5 Web Management..............................................................2 5
5.6 T elnet Management ............................................................25
5.7 SNMP Management ...........................................................26
5.8 Support ..............................................................................2 6
-3-
6. Console & Telnet Management .......................27
6.1 Set IP Address...................................................................28
6.2 IP Status............................................................................28
6.3 View Port Status ................................................................29
6.4 View Port Counters ............................................................3 0
6.5 View STP Status................................................................31
6.6 Restore Default V alues.......................................................33
6.7 Update Firmware ................................................................34
6.8 Remote Boot System.........................................................36
7. Web Management ............................................. 37

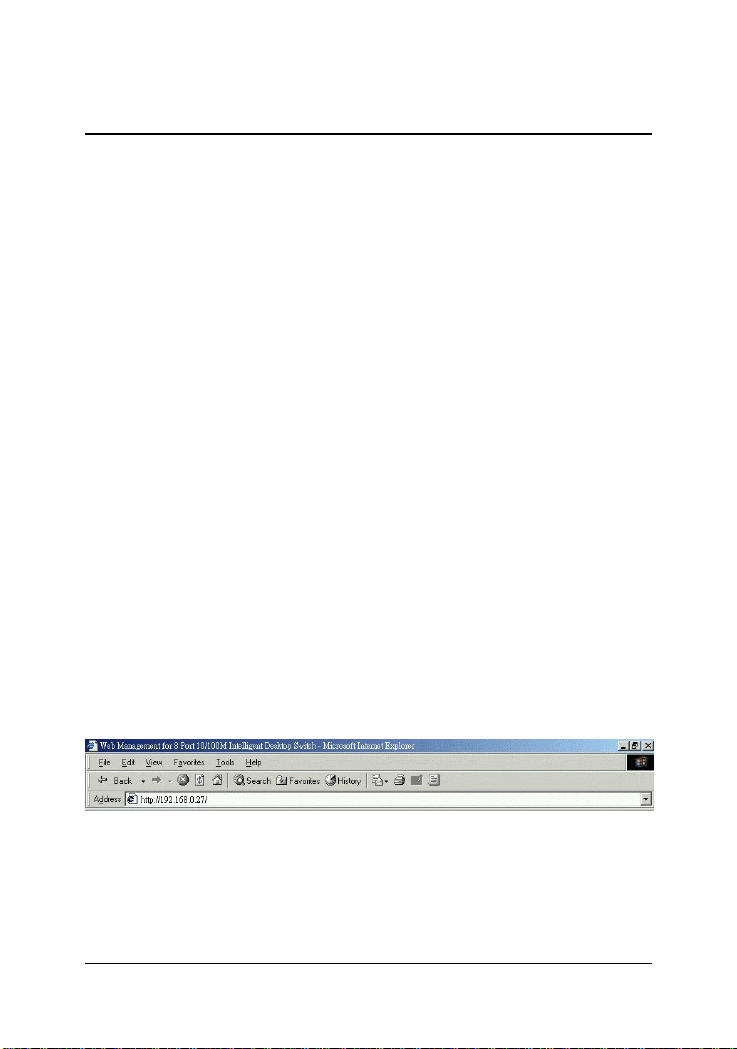

7.1 Start Browser Software and Making Connection .................3 7

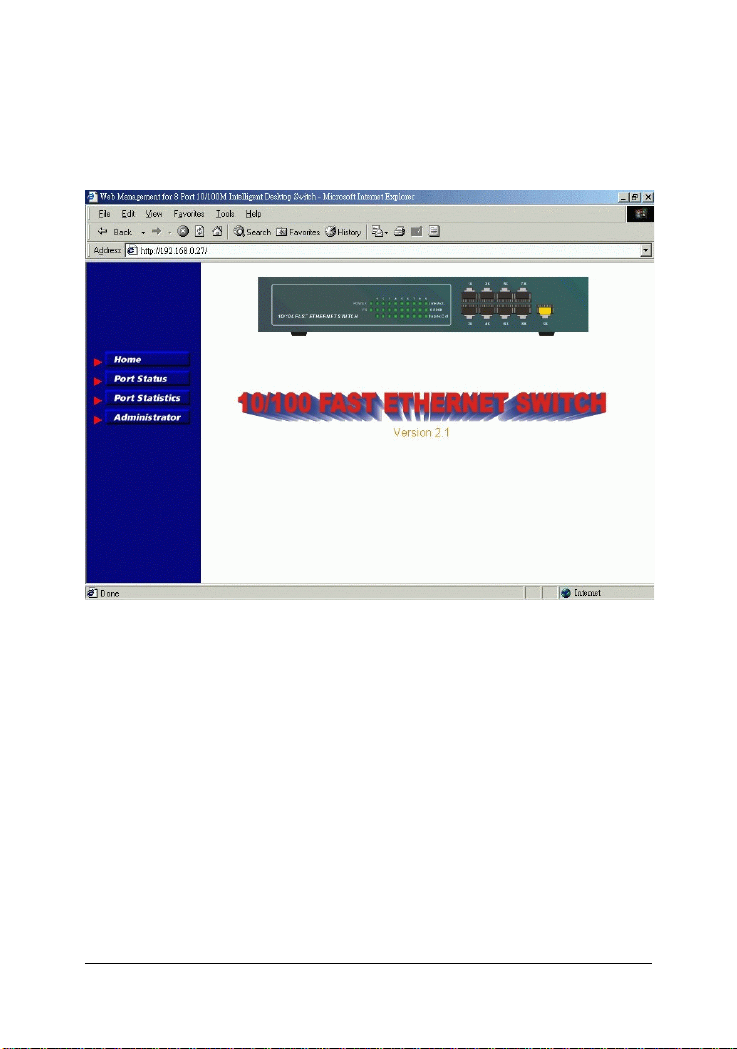

7.2 Login to the Switch.............................................................3 8
7.3 Port Status.........................................................................4 0

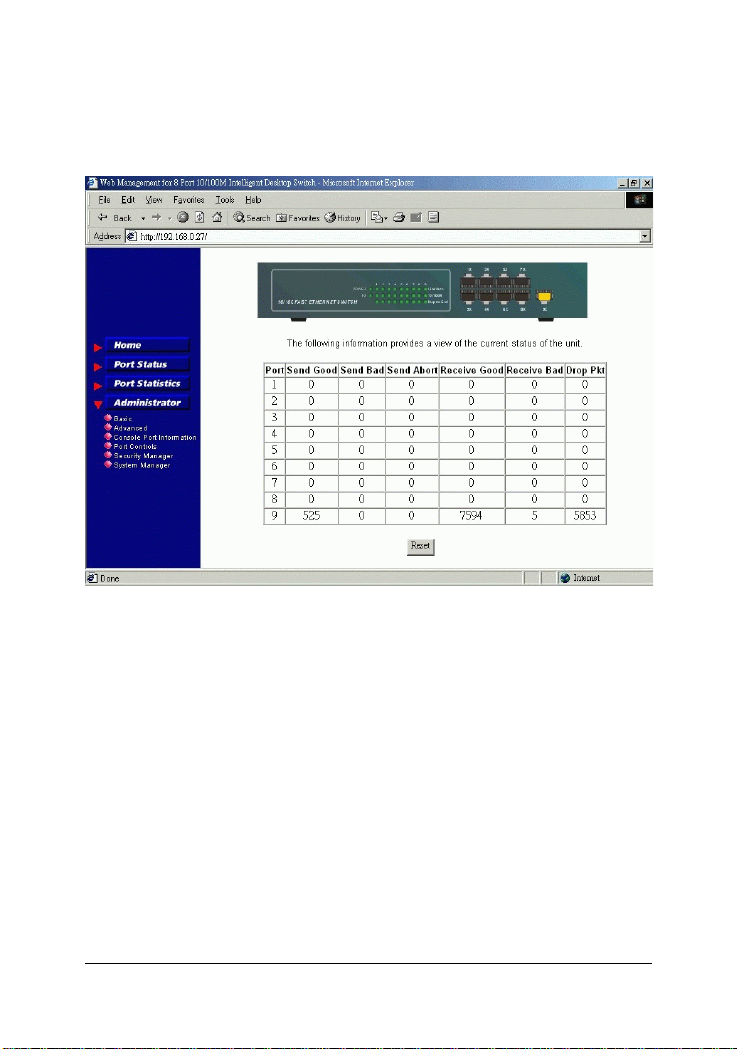

7.4 Port Statistics ....................................................................41
7.5 Administrator......................................................................42
7.5.1 Basic ..............................................................................43
IP Address ...............................................................................44
SNMP Entries ..........................................................................45
7.5.2 Advanced ........................................................................47

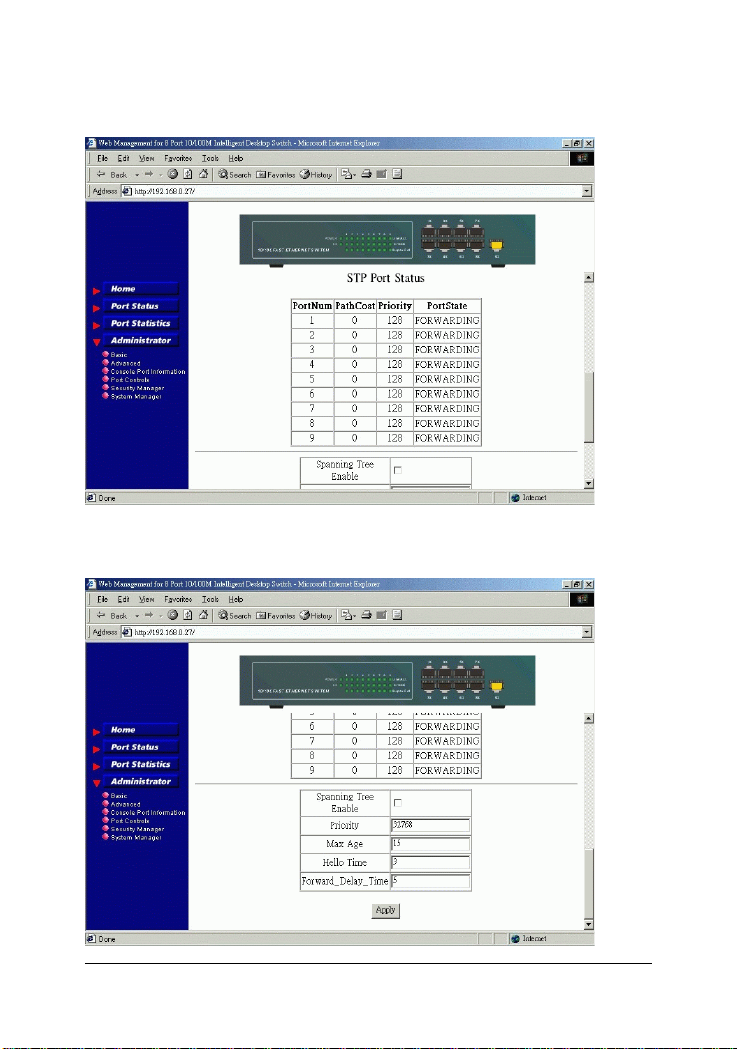

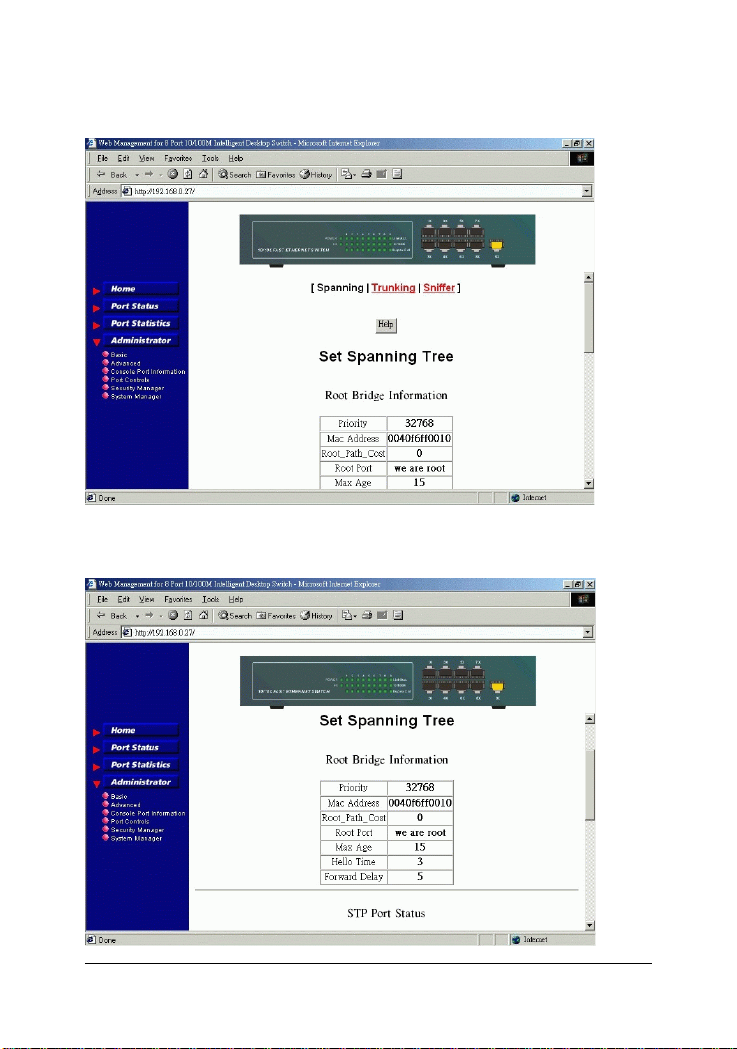

Advanced / Spanning ...............................................................48
Advanced / Trunking.................................................................53

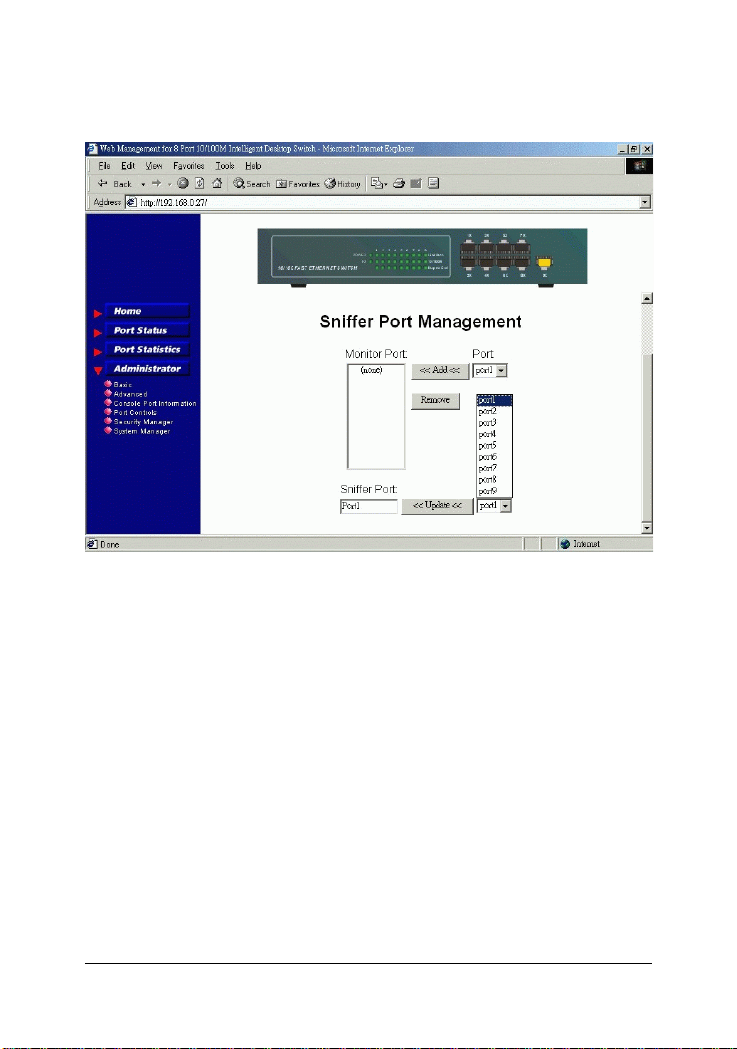

Advanced / Sniffer ....................................................................54
7.5.3 Console Port Information .................................................56
7.5.4 Port Controls ...................................................................57
7.5.5 Security Manager ............................................................58
7.5.6 System Manager.............................................................59

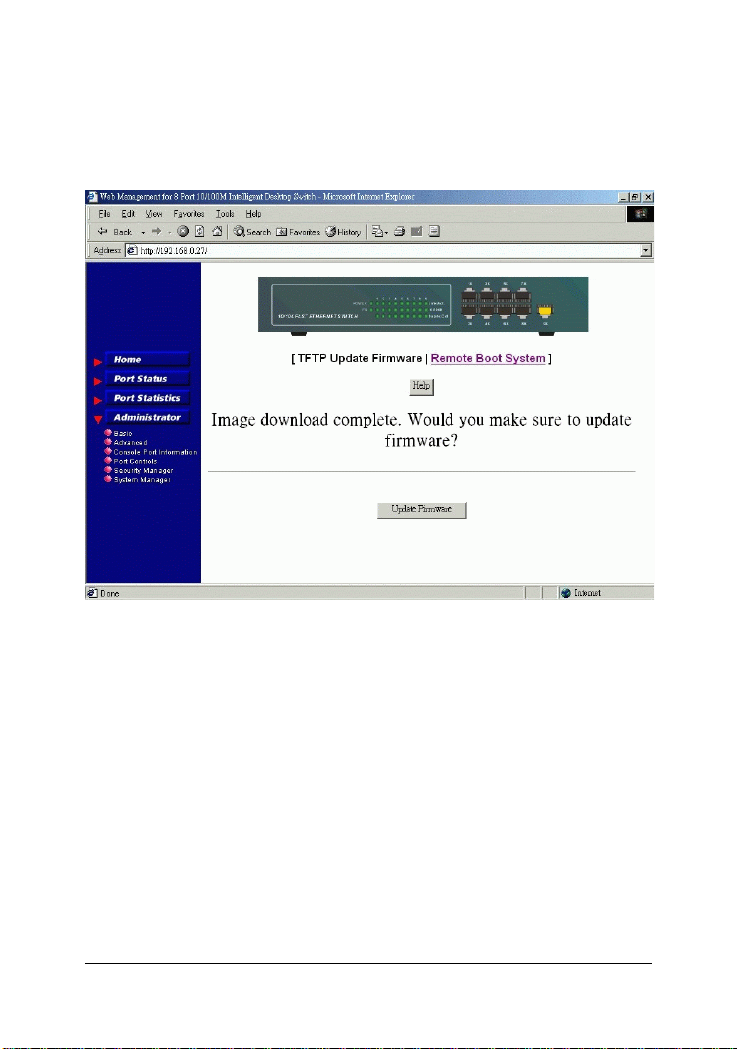

TFTP Update Firmware.............................................................60

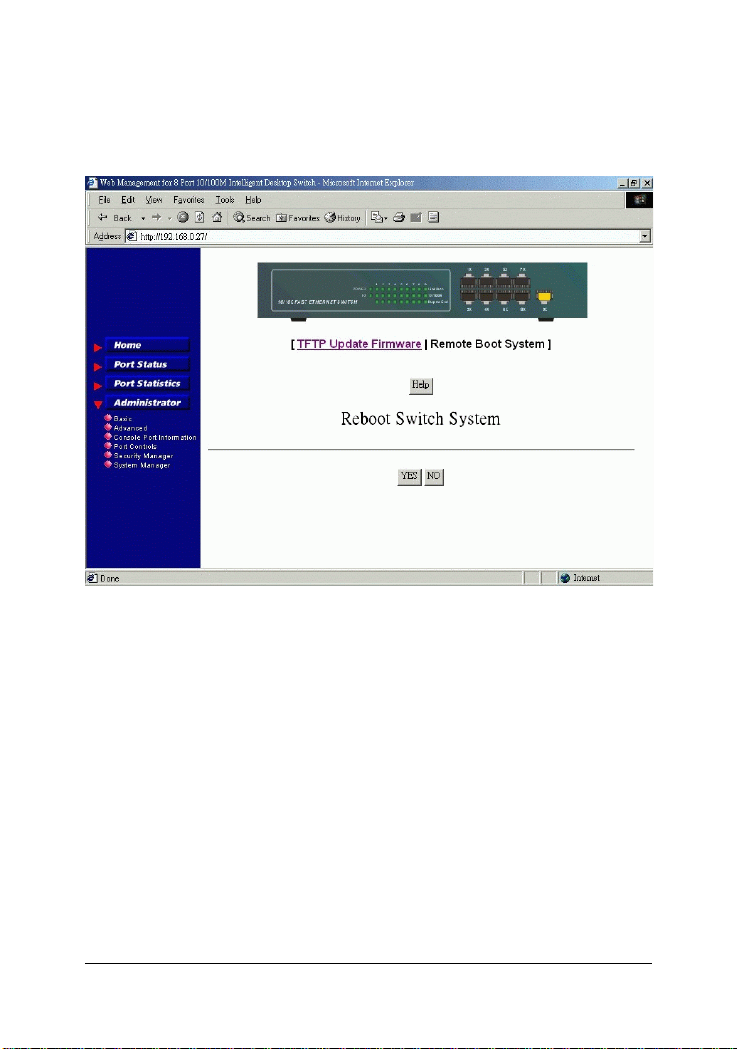

Remote Boot System...............................................................62
-4-
1. Introduction
Driven by recent advances in desktop computing technology, today’s
network applications have increased in speed, power and the ability to
process information. To meet the demands of these more bandwidthintensive applications, this switch device provides significant increase
in performance for your Ethernet and Fast Ethernet network. The switch
comes with high number of 10/100 Fast Ethernet switched ports, each
capable of transferring information simultaneously at full wire speed to
control and allocate the network bandwidth. It also provides one Fast
Ethernet Fiber slot for uplink to fiber backbone.
The key features of the switch units are:
• Easy Migration : With 10BASE-T , 100BASE-T support, the switch
provides a non-disruptive and smooth migration path from Ethernet
to Fast Ethernet network.
• Easy Installation : With the functions of auto-speed-sensing and
auto-negotiation on each port, the switches support plug-and-play
installation by default which eliminates configuration problems.
• Fiber Connectivity : With 100BASE-FX slot support, the switch pro-
vides an optional solution for fiber uplink when it is needed.
• Network Management : With the built-in SNMP and web manage-
ment software agent, the switch provides network management function for advanced applications remotely .
-5-
1.1 Features
Designed for resolving congestion problems caused by bandwidth-hungry devices and bandwidth-intensive applications as well as a high number of users, the switches not only adhere to the IEEE 802.3 10BASE-T ,
IEEE 802.3u 100BASE-TX, and 100BASE-FX standards, but also feature:
• Nine of 10/100BASE-TX auto-negotiation switched ports for
flexible connections to desktop PCs, servers and hubs.
• The 10/100BASE-TX switched ports support:
- auto speed sensing for 100Mbps or 10Mbps connection
- auto configuration with auto-negotiation devices
• One 100Mbps Fast Ethernet fiber slot supports:
- 100BASE-FX ST fiber module for MM fiber
- 100BASE-FX SC fiber module for MM and SM fiber
- 100BASE-FX MT-RJ fiber module for MM and SM fiber
- 100BASE-FX VF-45 fiber module for MM fiber
• Self learning for network configuration
• Store and forward switching to ensure only good packets are forwarded
• Full-duplex or half-duplex operation support for all switched ports
• Forwarding and filtering at full wire speed
• Supports IEEE 802.3x flow control for full-duplex operation
• Supports back-pressure flow control for half-duplex operation
• Supports IEEE 802.1d spanning tree protocol
• Supports port trunking function
• Supports port sniffer function
• Supports Web-based and SNMP management
• Full diagnostic LED indicators to indicate the power and port
status
• 19-inch rack mountable
-6-
Management Features:
• Out-of-band console management via RS232 console port
• In-band Telnet management over TCP/IP network
• In-band W eb-based management over TCP/IP network
• In-band SNMP management
- SNMP agent RFC 1155-1157
- MIB-II, private MIB
- SNMP traps
• TFTP - software upgrade capability
-7-
1.2 Specifications
Standard IEEE 802.3 10BASE-T , IEEE 802.3u 100BASE-TX FX
IEEE 802.3x Full duplex flow control
IEEE 802.1D Spanning tree
Network ports 9 10/100BASE-TX switched ports
1 Fast Ethernet fiber slot for 100BASE-FX fiber modules
Console port 1 DB9 Male connector
Cables 10BASE-T Cat. 3, 4, 5 UTP cable (100 meters max.)
100BASE-TX Cat. 5 UTP cable (100 meters max.)
100BASE-FX Multimode and Single Mode fiber
Unit LED Power status
TP Port LED Link/Activity , Speed, Duplex/Collision status per port
Filtering rate 14,880 pps for Ethernet (10BASE-T)
148.8 Kpps for Fast Ethernet (100BASE-TX and -FX)
Forwarding rate 14,880 pps for Ethernet (10BASE-T)
148.8 Kpps for Fast Ethernet (100BASE-TX and -FX)
Filtering address Multicast/Broadcast/Unicast address
MAC addresses 4K entries
T runking 2 trunks max., 4 trunking ports per trunk max.
RAM buffer 512K bytes
Environment Temperature 0oC to 40oC
Relative humidity 10% to 90% non-condensing
Power Universal power supply 100-240V AC, 47-63Hz, 25W
Dimension 260x150x44.4mm (10.24x5.9x1.75inch)
-8-
2. Installing the Switch
The switch is designed to operate in workgroup environments without a
complicated configuration procedure. It also features an auto-select 100240V , 50/60Hz power supply unit, which works in most countries around
the world.
Before connecting the supplied power cord into the switch, check to see
that the cord voltage and current rating conform to the standards of the
country of operation.
2.1 Packing List
The switch has the following components shipped with it:
• One switch unit
• One AC power cord
• One RS232 console cable
• 19-inch rack mount kit
• CD for installation guide, software modules, MIB file and software
operation manuals
-9-
2.2 Panels
The following figure illustrates the major components on front and rear
panels:
10/100 Port 1-9 10BASE-T/100BASE-TX Port #1 - #9
Crossover SW Crossover setting switch for 10/100 Port #9
100 Fiber Slot 100M Fiber slot for Port #9
LED indicators LED display for power and all port status
AC power socket Plug-in socket for AC power cord
Console port Connector for local console connection
-10-
2.3 Mounting the Switches
The switches can be placed on a desktop as a stand-alone unit. Allow
enough ventilation space between the switch and the objects around it.
Desktop Mounting
For mounting the switch into a 19-inch rack, a pair of mounting brackets
is included in the pack.
Install Rack Mount Brackets
Install the switch into a 19-inch rack as illustrated in the following figure:
Install the Switch into a 19-inch Rack
-11-
3. Making Network Connections
3.1 Network Switched Ports
The following figure illustrates the switched ports provided on the switch.
The switch comes with nine Fast Ethernet switched ports and Port #9
provides two connection types, one is 10/100BASE-TX RJ-45 connector
and the other is 100BASE-FX fiber slot. The Fast Ethernet fiber slot can
accommodate one optional Fast Ethernet fiber module.
The following table lists the connectors provided on each network ports:
Port # Standard Connector type Mark
Port 1-8 10/100BASE-TX MDI-X RJ-45 1X - 8X
Port 9 10/100BASE-TX RJ-45 9X
(crossover SW defines RJ-45 type)
Port 9 100BASE-FX 100 Fiber Slot 100BASE-FX
-12-
• 10/100BASE-TX Fast Ethernet Switched Ports
Each switched port supports one connection to a LAN segments. Each
segment is an independent shared network in one collision-domain.
The connection can be to either a 10BASE-T or a 100BASE-TX device.
• MDI-X and MDI RJ-45 Connectors
MDI-X jack is labeled [X] normally to indicate the jack is designed
with internal crossover function. It allows a connection to an end
station using straight-through UTP cable. MDI RJ-45 connector is
provided for easy uplink via standard straight-through UTP to
other device that supports MDI-X RJ-45 connector. The following
table shows the pin assignments of MDI-X and MDI RJ-45
connector respectively:
PIN# MDI-X Jacks MDI Jack
1 Rx+ Tx+
2 Rx- Tx 3 Tx+ Rx+
6 Tx- Rx-
4,5,7,8 NC NC
• Crossover SW
This push button switch is dedicated for Port #9 RJ-45 jack. When
pushing ON, Port #9 RJ-45 is set to MDI type.
Crossover SW Port #9 RJ-45
OFF MDI-X
ON MDI
• 100 Fiber Slot
Optional fiber connectivity support for Port #9. This can not be used
with RJ-45 9X jack at the same time. Refer to section 3.3.
-13-
3.2 10/100BASE-TX Fast Ethernet Ports
The switch can support connections to the following devices:
• 10BASE-T or 10/100BASE-TX network cards
• 10BASE-T hub ports
• 100BASE-TX hub ports
• 10/100BASE-TX dual speed hub ports
• 10/100BASE-TX switch ports
Auto-negotiation Capable
The ports support auto-negotiation function when establishing a link
connection with any auto-negotiation capable device. The connection
speed and duplex mode are determined through the negotiation process
with the connected device.
Auto-speed-sensing
When connecting to a non-auto-negotiation device, half duplex mode is
used. However, the ports can auto-detect the connection speed.
Manual Configuration
The ports are configured to be enabled for auto-negotiation as factory
default. However, it also can be changed and stick to one of the following configurations through network management operation:
• 10M Half-duplex
• 10M Full-duplex
• 100M Half-duplex
• 100M Full-duplex
T runking Function
The ports are configured as normal data ports instead of trunking ports
as factory default. In order to support trunking function, any port can be
configured as a trunking port manually through network management
operation. As configured, it is no longer a data port. For more details
about trunking, refer to section 3.4.
-14-
Flow Control
Half-duplex mode uses back pressure flow control to prevent the receiving buffer from being overrun by data from a source node. Full-duplex
mode uses the 802.3x flow control standard to prevent fast Physical Ports
data traffic from overrunning slow data traffic.
UTP Cable Connections
When making a connection to another device using straight-through
UTP cable, make sure MDI-X to MDI connection rule is followed. The
following figure illustrates the pin assignments of a straight-through
UTP and a crossover UTP cable:
Straight-through and Crossover UTP Cable
It is suggested to use straight-through UTP cables for all UTP connections. The maximum length and UTP cable categories used for the connections to a 10BASE-T device and 100BASE-TX device are:
CONNECTED DEVICE UTP CABLE USED & MAXIMUM LENGTH
10BASE-T device Cat. 3, 4, 5 UTP (100 meters)
100BASE-TX device Cat. 5 UTP (100 meters)
-15-
3.3 Fast Ethernet Fiber Slot
The switch provides one fast Ethernet fiber slot. It can accommodate one
optional fiber module for your fiber connection. Depending on the fiber
interface and the types of fiber cables, the following fiber modules are
available for selection:
Module Connector type Fiber cable Maximum length
800-T ST MM* 2 Km
800-C SC MM 2 Km
800-SA SC SM* 15 Km
800-S3 SC SM 30 K m
800-S5 SC SM 50 K m
800-JM MT-RJ MM 2 Km
800-JS MT-RJ SM 15 Km
800-VM VF-45 MM 2 Km
* MM : Multimode fiber cable, SM : Single mode fiber cable
Switched port #9 supports two types of connections. One type is UTP
connection through Port 9X. The other is fiber connection through slot
FIBER respectively. Both types of connections can not be used at the
same time. Each fiber module provides optional jumpers to enable or
disable fiber connection.
-16-
Module Outline
The following figure illustrates an example of the fiber modules. Different
type of modules is mounted with different fiber connector .
Fiber Module (T op view)
Fiber Jumper Setting
The jumper group J1 on the module is used to enable or disable the
fiber module. The following figure shows the jumper setting definitions:
Fiber Jumper Setting
-17-
Duplex Mode Setting
The duplex mode used for the fiber module is configured by software
port control settings. See chapter 5 for more information.
Specifications
Standard IEEE 802.3u 100BASE-FX
Speed 100Mbps
Duplex mode Full duplex or half duplex
Wavelength 1300nm
Fiber Connectors ST, SC, MT-RJ, VF-45
Fiber cable MM 50/125mm, 62.5/125mm recommended
SM 9/125mm recommended
Module Installation
1. Turn off the power to the switch unit.
2. Open the cover of Fiber slot.
3. Set Fiber jumper J1.
4. Insert the module into slot until it is seated properly.
5. Screw the module onto the chassis securely .
-18-
3.4 Making Trunk Connections
T wo switch units can be cascaded together through any regular switched
data port on each unit when a port expansion is required. However, the
transfer bandwidth between the two cascaded ports is limited to 200Mbps
full duplex. To increase the bandwidth for the connection between two
switch units, a trunking function is implemented on the switch unit for
this purpose. Normal data ports can be configured optionally as trunking
ports through the network management operation. Two trunking ports
composes one trunk. Two switch units can be cascaded through one
trunk. The aggregated bandwidth of one trunk can be up to 400Mbps, if
2 trunking ports are used for one trunk.
The switch supports the following trunk configurations:
Configuration Trunk Trunking ports
1 None None
2 1 Trunk [Port 1, Port 2]
3 1 Trunk [Port 7, Port 8]
4 2 Trunk1 [Port 1, Port 2]
Trunk2 [Port 7, Port 8]
Refer to Console (T elnet) management chapter and W eb management
chapter for more information about how to configure a data port as a
trunking port.
-19-
Loading...
