Xerox Fiery X12, Fiery XP12 Job Management Guide

Fiery X12/XP12

JOB MANAGEMENT GUIDE

for DocuColor 12

This publication is protected by copyright, and all rights are reserved. No part of it may be reproduced or transmitted in any form or by any means for any purpose without express prior written consent from Electronics For Imaging, Inc., ex cept as expressly permitted her ein. Information in this document is subject to change without notice and does not represent a commitment on the part of Electronics For Imaging, Inc.

The software described in this publication is furnished under license and may only be used or copied in accordance with the terms of such license. Patents: 5,867,179; 5,835,788; 5,666,436; 5,553,200; 5,543,940; 5,537,516; 5,517,334; 5,506,946; 5,424,754; 5,343,311; 5,212,546; 4,941,038; 4,837,722;

4,500,919; D406,117

Trademarks

EFI, the EFI logo, Fiery , the F iery logo, F iery Driven, the F iery Driven logo, EFICOLOR, ColorW ise, and Rip-While-P rint are trademarks r egistered in the U.S. Patent and Trademark Ofﬁce. Fiery Z4, Fiery X4, Command WorkStation, AutoCal, Starr Compression, Memory Multiplier, NetWise, and VisualCal are trademarks of Electronics For Imaging, Inc.

All Xerox product names mentioned in this publication are trademarks of the XEROX CORPORATION. Adobe, the Adobe logo, Adobe Illustrator , P ostScript, Adobe P hotoshop, Adobe S eparator , and A dobe P ageMaker are trademarks of A dobe Systems Incorporated,

registered in certain jurisdictions. EPS (Encapsulated PostScript) is a trademark of Altsys Corporation. Apple, the A pple logo, AppleS hare, A ppleTalk, EtherT alk, LaserWriter, and Macintosh are registered trademarks, and MultiFinder is a trademark of Apple Computer, Inc. Microsoft, MS, MS-DOS, and Windows are registered trademarks of Microsoft in the US and other countries. QuarkXPress is a registered trademark of Quark, Inc. Times, Helvetica, and Palatino are trademarks of Linotype AG and/or its subsidiaries. ITC Avant Garde, ITC Bookman, ITC Zapf Chancery, and ITC Zapf Dingbats are registered trademarks of International Typeface Corporation. Ethernet is a registered trademark of Xerox Corporation. UNIX is a registered trademark of UNIX System Laboratories, a wholly owned subsidiary of Novell, Inc. PANTONE is a registered trademark of Pantone, Inc. Matchprint is a trademark of Imation Corp.

All other terms and product names may be trademarks or registered trademarks of their respective owners, and are hereby acknowledged.

Legal Notices APPLE COMPUTER, INC. (“APPLE”) MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE APPLE SOFTWARE. APPLE DOES NOT WARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE APPLE SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY , RELIABILITY, CURRENTNESS, OR OTHERWISE. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE APPLE SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.

IN NO EVENT WILL APPLE, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE TO YOU FOR ANY CONSEQUENTIAL, INCIDENTAL OR INDIRECT DAMA GES (INCLUDING DAMA GES FOR LOSS OF BUSINESS PR OFITS, BUSINESS INTERRUPTION, L OSS OF BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE APPLE SOFTWARE EVEN IF APPLE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

Apple’s liability to you for actual damages from any cause whatsoever, and regardless of the form of the action (whether in contract, tort [including negligence], product liability or otherwise), will be limited to $50.

Restricted Rights Legends

For defense agencies: Restricted Rights Legend. Use, reproduction, or disclosure is subject to restrictions set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at 252.227.7013.

For civilian agencies: Restricted Rights Legend. Use, reproduction, or disclosure is subject to restrictions set forth in subparagraph (a) through (d) of the commercial Computer Software Restricted Rights clause at 52.227-19 and the limitations set forth in Electronics For Imaging, Inc.’s standard commercial agreement for this software. Unpublished rights reserved under the copyright laws of the United States.

Printed in the United States of America on recycled paper.

Part Number:

n/a

CE Mark

The CE marking applied to this product symbolises Rank Xerox’s declaration of conformity with the following applicable directives of the European Union as of the dates indicated.

January 1, 1996—Council Directive 70/80/CCO amended by Council Directive 93/68/EEO. Approximation of the laws of the member states related to low voltage equipment.

January 1, 1996—Council Directive 59/336/EEC. Approximation of the laws of the member states related to electromagnetic compatibility. A full declaration deﬁning the relevant directives and referenced standards can be obtained from your Rank Xerox representative.

W ARNING: In or der to allow this equipment to operate in proximity to industrial, scientiﬁc, and M edical (ISM) equipment, the external radiation fr om ISM equipment may have to be limited or special migration measures taken.

FCC Information

WARNING: FCC Regulations state that any unauthorized changes or modiﬁcations to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

Class A Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits ar e designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, and uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference in which case the user will be required to correct the interference at his own expense.

Industry Canada Class A Notice

This Class A digital apparatus complies with Canadian ICES-003.

Avis de Conformation Classe A d l’Industrie Canada

Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.

Certiﬁcate by Manufacturer/Importer

This is to certify that the FC07 is shielded against radio interference in accordance with the provisions of VFG 243/1991. The G erman Postal Services have been advised that this device is being put on the market and that they have been given the right to inspect the series for compliance with the regulations.

Bescheinigung des Herstellers/Importeurs

Heirmit wird bescheinigt, dass der FC07 im Uebereinstimmung mit den Bestimmungen der VFG 243/1991 Funk-Entstort ist. Der D eutschen Bundespost wurde das Inverkehrbringen dieses Geraetes angezeigt und die Berechtigung zur Ueberpruefung der Serie auf Einhaltung der Bestimmungen eingeraumt.

RFI Compliance Notice

This equipment has been tested concerning compliance with the relevant RFI protection requirements both individually and on system level (to simulate normal operation conditions). However, it is possible that these RFI Requirements are not met under certain unfavorable conditions in other installations. It is the user who is responsible for compliance of his particular installation.

Dieses Geraet wurde einzeln sowohl als auch in einer Anlage, die einen normalen Anwendungsfall nachbildet, auf die Einhaltung der Funk-entstoerbestimmungen geprueft. Es ist jedoch moeglich, dass die Funk-enstoerbestimmungen unter unguenstigen Umstaenden bei anderen Geraetekombinationen nicht eingehalten werden. Fuer die Einhaltung der Funk-entstoerbestimmungen seigner gesamten Anlage, in der dieses Geraet betrieben wird, ist der Betreiber verantwortlich.

Compliance with applicable regulations depends on the use of shielded cables. It is the user who is responsible for procuring the appropriate cables. Einhaltung mit betreffenden Bestimmungen kommt darauf an, dass geschirmte Ausfuhrungen gebraucht werden. Fuer die beschaffung richtiger Ausfuhrungen

ist der Betreiber verantwortlich.

Software License Agreement

Before using the Software, please carefully read the following terms and conditions. BY USING THIS SOFTWARE, YOU SIGNIFY THAT YOU HAVE ACCEPTED THE TERMS OF THIS AGREEMENT. If you cannot or do not accept these terms, you may return the entire package within ten (10) days to the Distributor or Dealer from which you obtained them for a full refund.

Electronics for Imaging, Inc. grants to you a non-exclusive, non-transferable license to use the software and accompanying documentation (“Softwar e”) included with the Fiery you have purchased, including without limitation the PostScript software provided by Adobe Systems Incorporated.

You may: a. use the Software solely for your own customary business purposes and solely with the Fiery; b. use the digitally-encoded machine-readable outline and bitmap programs (“Font Programs”) provided with the Fiery in a special encrypted format (“Coded

Font Programs”) to reproduce and display designs, styles, weights, and versions of letters, numerals, characters and symbols (“Typefaces”) solely for your own customary business purposes on the display window of the Fiery or monitor used with the Fiery;

c. use the trademarks used by Electronics for Imaging to identify the Coded Font Programs and Typefaces reproduced therefrom (“Trademarks”); and d. assign your rights under this Agreement to a transferee of all of your right, title and interest in and to the Fiery provided the transferee agrees to be bound by

all of the terms and conditions of this Agreement. You may not:

a. make use of the Software, directly or indirectly, to print bitmap images with print resolutions of 600 dots per inch or greater, or to generate fonts or typefaces for use other than with the Fiery;

b. make or have made, or permit to be made, any copies of the Software, Coded Font Programs, accompanying documentation or portions thereof, except as necessary for use with the Fiery unit purchased by you; provided, however, that under no circumstances may you make or have made, or permit to be made, any copies of that certain portion of the Software which has been included on the Fiery hard disk drive. You may not copy the documentation;

c. attempt to alter, disassemble, decrypt or reverse engineer the Software, Coded Font Programs or accompanying documentation. d. rent or lease the Software.

Proprietary Rights

You ackno wledge that the S oftware, Coded Font Programs, T ypefaces, Trademarks and accompanying documentation are proprietary to Electronics F or Imaging and its suppliers and that title and other intellectual property rights therein remain with Electronics For Imaging and its suppliers. Except as stated above, this Agreement does not grant you any right to patents, copyrights, trade secrets, trademarks (whether registered or unregistered), or any other rights, franchises or licenses in respect of the Software, Coded Font Programs, Typefaces, Trademarks or accompanying documentation. You may not adapt or use any trademark or trade name which is likely to be similar to or confusing with that of Electronics For Imaging or any of its suppliers or take any other action which impairs or reduces the trademark rights of Electronics For Imaging or its suppliers. The trademarks may only be used to identify printed output produced b y the Coded Font Programs. At the reasonable request of Electronics For Imaging, you must supply samples of any Typeface identiﬁed with a trademark.

Conﬁdentiality

You agr ee to hold the Software and Coded F ont P rograms in conﬁdence, disclosing the Softwar e and Coded Font P rograms only to authoriz ed users having a need to use the Software and Coded Font Programs as permitted by this Agreement and to take all reasonable precautions to prevent disclosure to other parties.

Remedies

Unauthorized use, copying or disclosure of the Software, Coded F ont Programs, Typefaces, Trademarks or accompanying documentation will result in automatic termination of this license and will make available to Electronics For Imaging other legal remedies.

Limited Warranty And Disclaimer

Electronics For Imaging warrants that, for a period of ninety (90) days from the date of delivery to you, the Software under normal use will perform without signiﬁcant errors that make it unusable. Electronics For Imaging’s entire liability and your exclusive remedy under this warranty (which is subject to you returning the Fiery to Electronics For Imaging or an authorized dealer) will be, at E lectronics For I maging’ s option, to use r easonable commercial efforts to attempt to correct or work around errors, to replace the Software with functionally equivalent software, or to refund the purchase price and terminate this Agreement. Some states do not allow limitations on duration of implied warranty, so the above limitation may not apply to you.

Except for the above express limited warranty, Electronics For Imaging makes and you receive no warranties or conditions on the Products, express, implied, or statutory, and Electronics For Imaging speciﬁcally disclaims any implied warranty or condition of merchantability or ﬁtness for a particular purpose.

For warranty service, please contact your authorized service/support center.

EXCEPT FOR THE ABOVE EXPRESS LIMITED WARRANTY, ELECTRONICS FOR IMAGING MAKES AND YOU RECEIVE NO WARRANTIES OR CONDITIONS ON THE SOFTW ARE OR CODED FONT PROGRAMS, EXPRESS, IMPLIED, STATUTORY, OR IN ANY OTHER PROVISION OF THIS AGREEMENT OR COMMUNICATION WITH YOU, AND ELECTRONICS FOR IMAGING SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OR CONDITION OF MER CHANT ABILITY OR FITNESS FOR A PAR TICULAR PURPOSE. Electronics F or Imaging does not warrant that the operation of the software will be uninterrupted or error free or that the Software will meet your speciﬁc requirements.

Limitation Of Liability

IN NO EVENT WILL ELECTRONICS FOR IMAGING OR ITS SUPPLIERS BE LIABLE FOR ANY DAMA GES, INCLUDING LOSS OF DATA, LOST PROFITS, COST OF COVER OR O THER SPECIAL, INCIDENT AL, CONSEQ UENTIAL OR INDIRECT DAMAGES ARISING FR OM THE USE OF THE SOFTWARE, CODED FONT PROGRAMS OR ACCOMPANYING DOCUMENTATION, HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY. THIS LIMITATION WILL APPLY EVEN IF ELECTRONICS FOR IMAGING OR ANY AUTHORIZED DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. YOU ACKNO WLEDGE THAT THE PRICE OF THE UNIT REFLECTS THIS ALL OCA TION OF RISK. BECAUSE SOME STATES/JURISDICTIONS DO NOT ALLOW THE EX CLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

Export Controls

You agr ee that you will not export or re-export the S oftware or Coded Font Programs in any form without the appropriate United States and foreign government licenses. Your failure to comply with this provision is a material breach of this Agreement.

Government Use

Use, duplication or disclosure of the Software by the United States Government is subject to restrictions as set forth in subdivision (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 or in subparagraphs (c) (1) and (2) of the Commercial Computer Software—R estricted Right Clause at 48 CFR 52.227-19, as applicable.

Third Party Beneﬁciary

You are hereby notiﬁed that Adobe Systems Incorporated, a California corporation located at 345 Park Avenue, San Jose, CA 95110-2704 (“Adobe”) is a thirdparty beneﬁciary to this Agreement to the extent that this Agreement contains provisions which relate to your use of the Fonts, the Coded Font Programs, the T ypefaces and the Trademarks licensed hereby. Such pro visions are made expressly for the beneﬁt of Adobe and ar e enforceable by Adobe in addition to Electronics For Imaging.

General

This Agreement will be governed by the laws of the State of California. This Agreement is the entire agreement held between us and supersedes any other communications or advertising with respect to the Software, Coded Font

Programs and accompanying documentation. If any provision of this Agreement is held invalid, the remainder of this Agreement shall continue in full force and effect. If you have any questions concerning this Agreement, please write to Electronics For Imaging, Inc., Attn: Licensing Dept. or see Electronics For Imaging’s web

site at www.eﬁ.com. Electronics For Imaging

303 V elocity Way Foster City, CA 94404

Contents

Preface

About this manual

Terminology xv

About the documentation Fiery job environments

Permissions xvii

Safety warnings Cleaning the Fiery

Chapter 1: Using the Control Panel

Introduction to the Fiery Control Panel

Activity light 1-2 Buttons 1-2 Display window 1-3 Functions menu 1-5

Starting and shutting down the Fiery

Starting the Fiery 1-6 Restarting the Fiery 1-8 Shutting down the Fiery 1-9

xiii

xvi xvi

xviii xviii

1-1

1-6

Chapter 2: Using the FieryBar

Introduction to the FieryBar

Status 2-1 Activity light 2-2 Commands 2-2

Starting and shutting down the Fiery

Restarting the Fiery 2-4 Shutting down the Fiery 2-5

2-1

2-4

viii Contents

Chapter 3: Introduction to the Command WorkStation

About the Command WorkStation Starting up and logging in

Connecting to the server 3-5 Logging in 3-6 Logging out 3-7

The Command WorkStation interface

Window area (Queues, Archive, FreeForm, Job Log) 3-9 Menu bar 3-10 Server selection tabs 3-13 Sliders 3-14 Job ticket information 3-15 Window selection tabs 3-16

Queues window

Status bars 3-17 Job icons 3-20 Spool area 3-20 RIP area 3-22 Print area 3-23 Job commands 3-24

Archive window FreeForm window

About FreeForm printing 3-29 Using the FreeForm window 3-30 Job commands for FreeForm master jobs 3-32 Filtering jobs in the FreeForm window 3-33 Assigning and monitoring FreeForm Masters 3-33

3-1 3-4

3-7

3-16

3-27 3-29

Job Log window

Filtering jobs 3-36

Job properties

Viewing and editing job properties 3-40

3-34

3-39

ix Contents

Thumbnails and full-screen previews (DocBuilder Pro)

Editing and merging ﬁles with DocBuilder Pro 3-42 Full-screen previews 3-44

Chapter 4: Managing Print Jobs

Communicating with users

What the user needs to know 4-1 How users communicate print requirements 4-3 Customizing the Command WorkStation window 4-4

Setting Command WorkStation Preferences Printing server information pages Workflow scenarios

Using the copier 4-10 Using the copier as a scanner 4-10

Canceling jobs Page-level operations of the Command WorkStation

Previewing print jobs 4-12 Merging PostScript and raster ﬁles with DocBuilder Pro 4-15

Viewing and overriding print settings

Printing variable data documents (FreeForm) 4-25

3-41

4-1

4-5 4-6 4-8

4-11 4-12

4-22

Downloading files and fonts

Managing server fonts 4-29

Managing jobs with multiple color servers Archiving jobs

Importing archived jobs from external media 4-34

Using the Job Log Duplex Alignment Other server management commands

4-26

4-30 4-32

4-35 4-36 4-37

x Contents

Chapter 5: Using Imposition

Main window Job previews Navigating in the main window

Switching between page view and layout view 5-5 Setting magniﬁcation levels 5-6 Viewing the sheets 5-7

Using templates

Template pop-up menu 5-9 Saving your work 5-9

Chapter 6: Advanced Features of DocBuilder Pro

Imposition settings

Sheet area 6-2 Layout area 6-4 Scaling area 6-6 Finishing area 6-8

Modifying the layout manually

Reordering pages in layout mode 6-11 Rotating pages 6-12 Setting gutter sizes 6-13

5-1 5-3 5-4

5-8

6-1

6-11

Managing templates Tips for using the Imposition feature of DocBuilder Pro

DocBuilder Pro and Acrobat technology 6-15

File management

Saving imposed jobs 6-17

6-14 6-15

6-16

xi Contents

Chapter 7: Overview of Fiery WebTools

Fiery WebTools

Access privileges 7-1

Using Fiery WebTools

Chapter 8: Fiery WebSpooler and Fiery Spooler

Tracking and managing jobs with Fiery WebSpooler

About the Fiery WebSpooler window 8-3 Manipulating job options and job ﬂow 8-4 Overriding job option settings 8-6 Thumbnails and full-screen previews (DocBuilder) 8-7 Using the Job Log 8-9

Fiery Spooler for Mac OS computers

Differences between Fiery Spooler for Mac OS and Fiery WebSpooler 8-13

Appendix A: Basics of Imposition

Printing books with the Imposition feature of DocBuilder Pro

Basics of imposition layout A-1 Printer’s marks A-4 Additional sheets A-5 Binding methods A-6 Gang-up printing A-8

7-1

7-2

8-1

8-11

A-1

xii Contents

Appendix B: Templates

1-Up Full Bleed 2-Up Perfect 2-Up Saddle 3-Up Trifold Brochure 4-Up Gate Fold 4-Up Head to Head 4-Up Z-Fold

Appendix C: Troubleshooting

Error messages Maintaining optimal system performance Troubleshooting

Command W orkStation hangs C-6 Command WorkStation fails to connect to a Fiery C-6 Unexpected printing results C-7 Clearing the server C-8 Users are unable to connect to the DocuColor 12 C-8 Setup error messages C-9 AutoCal error messages C-10

B-1 B-2 B-4 B-6

B-8 B-10 B-12

C-1

C-5

C-6

Index

xiii About this manual

Preface

This manual is intended for Fiery X12 or Fiery XP12 Color Server™ operators or administrators, or users with the necessary access privileges, who monitor and manage job ﬂow, and troubleshoot problems that may arise. It describes the functions and features of Fiery® utilities and Fiery WebTools™ for the purposes of print job management and color quality control.

OTE

The term “Fiery” is used in this manual to refer to the Fiery X12 or Fiery XP12 Color Server. The Fiery supports the DocuColor 12 digital copier printer. The term “copier” is used to refer to the DocuColor 12.

This icon speciﬁes information, features, or procedures that apply only to the

X12

Fiery X12. This icon speciﬁes information, features, or procedures that apply only to the

XP12

Fiery XP12.

The Fiery includes Command WorkStation™ software, which enables an operator to manage all jobs sent to the Fiery. Although it may not be the case at all sites, the documentation for this product assumes the presence of an operator who controls and manages jobs sent by users from remote workstations.

Client utilities can be installed onto the Fiery from the User Software CD if the Fiery Advanced Controller Interface option is installed. Do not install any other applications onto the Fiery. Other applications are not supported and can cause system problems.

About this manual

This manual is organized as follows:

• Chapter 1 describes the Fiery Control Panel. It explains the various messages and

icons that you might see on the Control Panel and describes how to print system information pages from the Control Panel. It also explains how to start up and shut down the Fiery.

• Chapter 2 describes the FieryBar™. It explains the various messages and icons that

you might see and also explains how to start up and shut down the Fiery if you have the Fiery Advanced Controller Interface installed.

xiv Preface

• Chapters 3 and 4 describe the Command WorkStation interface. The Command

WorkStation application can be installed on networked Windows 95/98 and Windows NT 4.0 computers and is used to view and manage virtually all aspects of Fiery activity. In addition to providing a graphic display of the job ﬂow, the Command WorkStation allows you to reprint or hold jobs, view and override print option settings, download ﬁles, manage printer fonts, preview print jobs, merge rasterized jobs, calibrate the Fiery, and perform Setup (server conﬁguration). This chapter also provides information on archiving jobs, moving jobs between Fiery color servers, and printing variable data documents.

• Chapter 5 describes how to use the Imposition feature of DocBuilder Pro™ to

arrange the pages of your print job in special layouts for folding, binding, or cutting after printing. The Imposition feature is only available if you have the DocBuilder Pro Upgrade for the Command WorkStation installed.

• Chapter 6 provides instructions on using the advanced aspects of the Imposition

feature of DocBuilder Pro to create custom layouts and get the most from the Imposition feature.

• Chapter 7 introduces Fiery WebTools, explains how to access them, and directs you

to sources of more information (in this manual or in other manuals in the documentation set).

™

• Chapter 8 describes Fiery WebSpooler and Fiery Spooler

, which can be used to view and manage Fiery job activity. The interface and features of Fiery WebSpooler have identical counterparts in the Command WorkStation; therefore, this chapter refers you to Chapters 3 and 4 for details about many Fiery WebSpooler functions.

• Appendix A provides an overview of the terms and concepts of Imposition including various folding, binding, and cutting methods.

• Appendix B includes descriptions of the built-in templates available from the Imposition feature of DocBuilder Pro.

• Appendix C lists error messages that you might see on the Fiery Control Panel, the FieryBar, the Command WorkStation, Fiery WebSpooler, Fiery Spooler, or the copier, and contains some troubleshooting information.

xv About this manual

Terminology

Speciﬁc terms are explained as they are introduced. However, the following general terms are used throughout:

PostScript (PS)

• Fiery uses this language for imaging the page and for communication with applications and with the print engine.

The term “PostScript” can also be used to refer to PDF data jobs. PDF is a structured form of PostScript that provides the ability to preview, scale, and reorder pages. Where applicable, the term “PDF” is speciﬁcally used to refer to PDF data or jobs.

Printer Control Language (PCL)—

• description language. The Fiery uses this language for imaging the page and for communication with applications and with the print engine.

Job

—A ﬁle consisting of PostScript or PCL commands and comments that describe

• the graphics, sampled images, and text that should appear on each page of a document, and the printer options that should be used in printing, such as media or color rendering style.

—A computer language designed as a page description language. The

A computer language designed as a page

•

—Write to a disk. Usually used in this manual to refer to a PostScript or PCL

Spool

print job being saved to the Fiery hard disk in preparation for processing and printing.

•

—Acronym for raster image processing, which changes text and graphics

RIP

commands into descriptions of each mark on a page. In common use as a noun, a “raster image processor ” (RIP) is the computer processor that performs this function.

•

—The process of rendering, or imaging, a page or a job on a printer.

These concepts can explain how the Fiery and the copier work together as a powerful printing system. The Fiery RIP changes text and graphics commands in PostScript or PCL into color speciﬁcations for each dot of toner deposited on a page by the copier.

xvi Preface

About the documentation

This manual is part of the set of Fiery documentation, which includes the following manuals for users and system administrators:

• The

Conﬁguration Guide

Fiery for the supported platforms and network environments. It also includes guidelines for setting up UNIX, Windows NT 4.0, and Novell NetWare servers to provide PostScript and PCL printing services to clients.

•

Getting Started

Speciﬁcally, it describes installation of PostScript and PCL printer drivers, printer description ﬁles, and other user software provided on the User Software CD. It also explains how to connect each user to the network.

• The

Printing Guide

jobs via remote workstations on the network.

• The

Color Guide

Fiery X12/XP12 Color Server. It addresses concepts and issues associated with printing to the Fiery and outlines key workﬂow scenarios. This manual explains how to calibrate your copier and take advantage of the ColorWise system as well as features in ColorWise Pro Tools™. In addition, the offers information on printing from popular Windows and Mac OS applications.

describes how to install software to enable users to print to the Fiery.

provides information on managing the color output of your

explains basic conﬁguration and administration of the

describes the printing features of the Fiery for users who send

color management

Color Guide

• The

Job Management Guide

including the Command WorkStation, and how they can be used to manage jobs. This manual is intended for an operator or administrator, or a user with the necessary access privileges, who needs to monitor and manage job ﬂow, and troubleshoot problems that may arise.

•

Release Notes

the problems you may encounter.

provide last-minute product information and workarounds for some of

explains the functions of the Fiery client utilities,

Fiery job environments

The Fiery supports several levels of control of printing, job management, and setup, and offers you the ﬂexibility to choose the conﬁguration that corresponds to the requirements of your site. Your situation may correspond to one of the descriptions outlined below, or you may prefer an intermediate level of control.

xvii Fiery job environments

At one extreme, an administrator or operator in a high-volume printing environment controls the entire job ﬂow and all printing. Print jobs arriving from remote users are spooled to the server disk and stored until the operator decides it is time to print them. Additional functions (calibration, job overrides, prioritizing, font management) are reserved for the administrator or operator.

At the other extreme, anyone on the local network can control all printing and server functions; operator intervention is not necessary. Users can print from their workstations to any of the published print connections. Anyone can use the Command WorkStation, Fiery WebSpooler, or Fiery Spooler to control any print job.

The spectrum of control that an administrator can implement is described fully in the Conﬁguration Guide.

Permissions

Support for these job environments is achieved by a combination of Fiery Setup options. By default, anyone can access Setup, but the administrator can limit access to Setup by specifying an Administrator password for the Fiery (see the Conﬁguration Guide).

Also by default, anyone can log in to the Command WorkStation, Fiery WebSpooler, or Fiery Spooler and control job ﬂow, but an administrator can restrict access to these functions by specifying an Operator password.

The three security levels from greatest to least control are:

• Administrator —confers control of Setup and is the highest level of control. The person who has access to Setup can control the printing and job management environment by choosing which queues are enabled, and by electing to set passwords. The Administrator can also manage the fonts on the server, clear the server disk when necessary, and set a common web link for all users who log in to the Fiery using their web browser.

• Operator—includes control of print jobs that arrive at the server and the ability to perform calibration and reboot the server.

xviii Preface

• Guest—allows users to view the status of active jobs and the list of stored jobs. They cannot make changes to jobs or change their printing instructions. A password is not needed to log in as Guest and view jobs from the Command WorkStation, Fiery WebSpooler, or Fiery Spooler windows.

This manual describes the features of the Fiery client utilities, including the Command WorkStation, and all operator privileges, whether those privileges are available to everyone or are exclusive to only certain people. It also includes descriptions of administrator functions, sometimes referring you to other manuals for more information.

Safety warnings

The Fiery display window is a liquid crystal display (LCD) that is made of glass and can break. Do not subject it to strong shocks.

If the display window breaks and the liquid crystal material leaks out, do not inhale, ingest, or touch it. If the material gets on your skin or clothing, wash it off with soap and water immediately.

Do not touch or put pressure on the panel. This will change the color of the panel.

Cleaning the Fiery

Clean the Fiery with a soft cloth moistened with isopropyl alcohol or ethyl alcohol. Never use water or ketone as these may permanently alter the display.

1-1 Introduction to the Fiery Control Panel

Chapter 1: Using the Control P anel

Up button Menu buttons

Down button Display window

You can use the Fiery Control Panel to view status information, print special pages, and set up printing. While most elements in the Control Panel display have counterparts in the Command WorkStation, you can view current functions on the Control Panel even when the Command WorkStation is not connected to the server or is not running.

Introduction to the Fiery Control Panel

The Control Panel shown below is located on the front of the Fiery.

Fiery X12

X12

Line selection buttons

XP12

Fiery XP12

Activity light

Display window

Up button Down button

Line selection buttons

Menu button

1-2 Using the Control Panel

Activity light

The activity light indicates the current Fiery activity. If the light is: Solid red An error has occurred causing the Fiery to be disabled. Flashing red There is an error causing printing to be disabled, but the

Fiery is capable of processing. Solid green The Fiery is idle. Flashing green The Fiery is processing or printing a job, or communicating

with a remote computer. No light The Fiery is off or starting up.

Buttons

Line selection buttons

Up and down buttons

Menu button Press this button to view other screens. Under normal

There are four line selection buttons on the right side of the

Control Panel. Use these buttons to select the command

displayed on the corresponding line of the display window.

When a button is active, a special character (>) appears in the

display window next to the button.

Use these buttons to scroll to different screens in multi-

screen lists, to select Setup options from a list of available

options, and to scroll alphanumeric characters.

operation, the Control Panel displays the Info, RIP, or Print

Status screen with information about the status of the Fiery.

If you press the Menu button, the Functions menu is

displayed and you can perform additional operations (see

page 1-5). If a job is processing or printing, press the Menu

button to cycle among the active screens.

1-3 Introduction to the Fiery Control Panel

Display window

The display window provides information about the status of the F iery, displays menu information, and enables you to view and edit information in the Setup menus.

The status area at the bottom of the display window displays text that tells you what screen you are looking at and highlights one of the icons to indicate what the Fiery is doing. Only the icons for the screens that are currently available appear. The menu button cycles among the active screens.

The screens are:

Alert Status If there is a problem with processing a job or printing functions, an error message

appears on the Control Panel. For information on error messages, see Appendix C, “Troubleshooting.”

Print Status When the Fiery is printing a job, the Print Status screen appears. This screen

displays the following:

Cancel Job —Press the top line selection button to cancel the job currently

printing.

User name —The name of the user who sent the job currently processing. Pages/Total—The number of copies of the current job printed and the total

number of copies of the job requested.

RIP Status When the Fiery is processing a job, the RIP Status screen appears. This screen

displays the following:

Cancel Job —Press the top line selection button to cancel the job currently

processing. The Fiery cancels the job before printing begins.

Document name —The name of the document currently processing. User name —The name of the user who sent the job currently processing. Kilobytes—The size (in kilobytes) of the job processed so far.

NOTE: This number is always displayed in kilobytes; for example, 10MB is

displayed as 10000KB.

1-4 Using the Control Panel

Info Status When the Fiery is not processing or printing a job, it displays information about

the current server and software. It displays the following information:

Server Name —The Fiery name, as it is conﬁgured in Setup. Status—The current status of the F iery. The Fiery status can be: Idle, Initializing,

Busy, Processing, or Printing.

Megabytes—The space (in megabytes) available on the Fiery hard disk, for

example, 756MB.

Version—The system software version running on the Fiery.

Functions You can press the Menu button to display the Functions menu. Use the up and

down buttons to scroll through the list. Press the line selection button to the right of a command to select that command. See page 1-5 for more information.

Network The network icon appears at the bottom left of any of the other screens when a

job is being sent to the Fiery, either over the network or through the parallel port. The network icon also appears, together with a ﬂashing green activity light, when a remote utility is running.

Print Pages

Suspend Printing

Resume Printing

1-5 Introduction to the Fiery Control Panel

Functions menu

The Functions menu provides many of the options available from the Command WorkStation. You can choose the following commands from this menu:

Print special pages from the Fiery. You can print the following pages from the submenu that appears:

PS Test Page/PCL Test Page —A Test Page enables you to conﬁrm that the Fiery is

properly connected to the copier, and provides color and grayscale samples to troubleshoot problems with the copier or the Fiery. The following settings are among those listed on the Test Page: Server Name, Printer Model, color settings, calibration information, date and time the Test Page was printed.

Configuration —Prints the Conﬁguration page, which gives the current server and

device conﬁguration. This page lists general information about the hardware and software conﬁguration of the Fiery, the current options for all Setup settings, information about the current calibration, and the Ethernet and Token Ring addresses of the Fiery.

Job Log—Prints a log of the last 55 jobs. For information on the ﬁelds in the Job

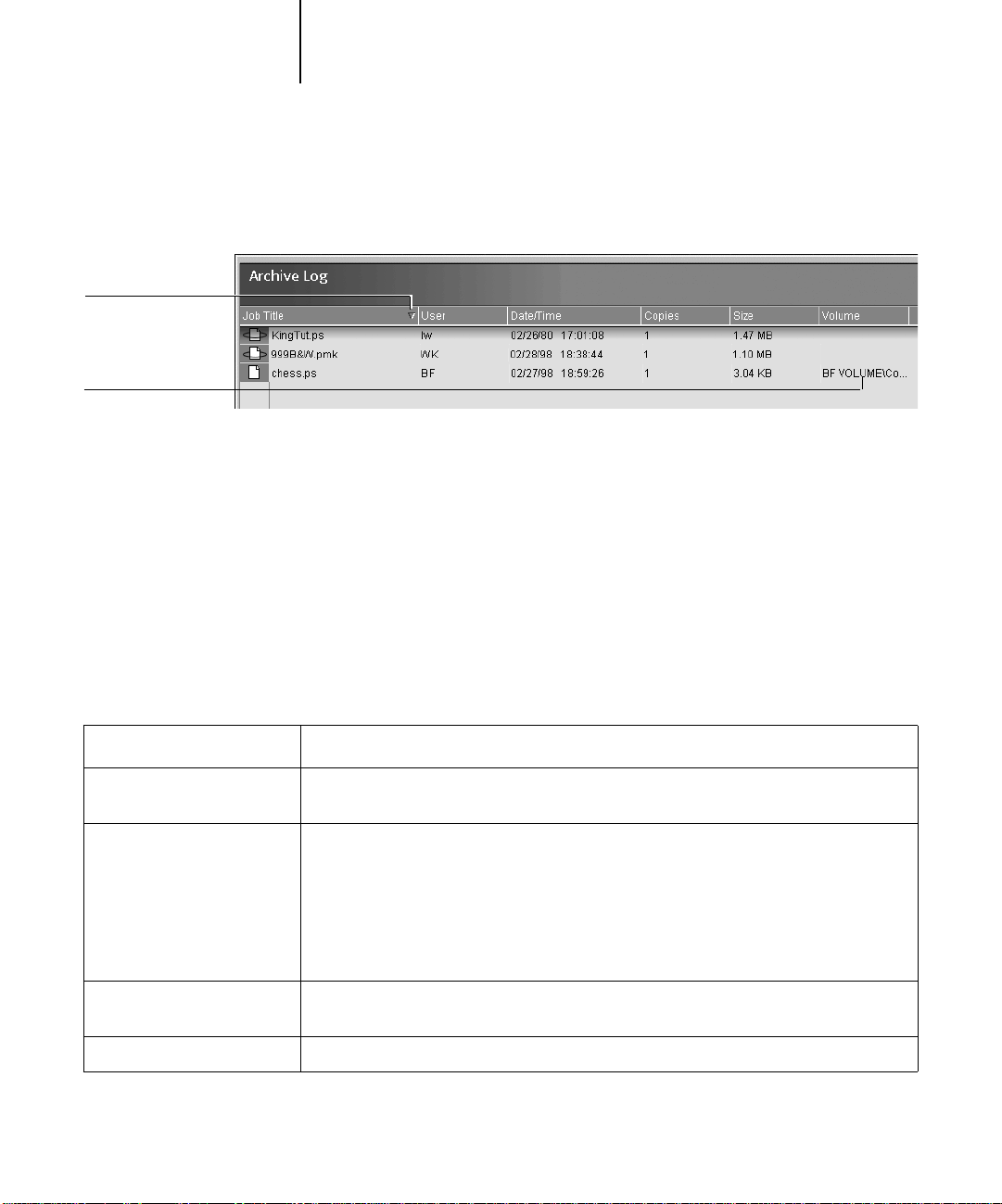

Log and on printing it in other forms, see “Job Log window” on page 3-34.

Control Panel Map— Prints the Control Panel Map, which is an overview of the

screens you can access from the Control P anel. For information about using these screens to set up the Fiery, see the Conﬁguration Guide.

Color Charts —Prints samples of the RGB, CMY, and PANTONE colors av ailable

from the Fiery.

PS Font List/PCL Font List—Prints a list of all fonts currently on the F iery hard disk.

Suspend communication between the Fiery and the copier. You must suspend printing if you want to interrupt the current Fiery job so that you can use the copier to make copies. Jobs continue to process on the Fiery. After you make the copies, select Resume Printing to continue printing jobs from the Fiery.

Resume communication between the copier and the Fiery after you have ﬁnished making copies.

1-6 Using the Control Panel

Shut Down

Clear Server

Run Setup

Run Diagnostics

Calibration

Shut down all Fiery activity in the correct manner and then restart. You should use this option instead of the power switch on the back of the Fiery. The following options are available from the submenu that appears:

Restart Server —Restarts the server without shutting down the Fiery hard disk. Shut Down System —Shuts down the Fiery hard disk. Reboot System —Restarts the system after shutting down the Fiery hard disk.

Clear all jobs in all server queues as well as all jobs archived on the Fiery hard disk, the index of archived jobs (in the Archive window), all FreeForm masters, the index of FreeForm masters (in the FreeForm window), and the Job Log. Check with your administrator or operator before choosing Clear Server. If an Administrator passwor d has been set, you must enter it to access Clear Server.

Enter the Setup menu and change Setup option settings. See the Conﬁguration Guide for more details.

This function is provided for service representatives only. Contact your authorized service/support technician for information about running diagnostics.

Calibrate the Fiery using AutoCal. For more information, see the Color Guide. If an Administrator password has been set, you must enter it to access Calibration.

Starting and shutting down the Fiery

Generally, you can leave the Fiery running all the time. This section describes how to shut down and restart the Fiery when necessary.

Starting the Fiery

To start the Fiery, move the power switch on the back of the Fiery to the On position. If the copier is also powered off, power it on before powering on the Fiery.

Power switch

1-7 Starting and shutting down the Fiery

X12

XP12

Fiery X12

Fiery XP12

Power switch

Diagnostic messages appear on the Fiery Control Panel. If any diagnostics fail, more information and instructions appear. Contact your service representative if the Fiery encounters problems while running the diagnostics. The Fiery continues starting up and displays the message Idle when it is ready to receive data.

NOTE: If an Administrator password has been set, you are required to enter it to access

Setup.

When the display reads Idle, press the Menu button to enter the Functions menu. Choose Run Setup, and the following options appear. For information about the Setup menus and options, see the Conﬁguration Guide.

Choose: To do this:

Exit Setup Server Setup Network Setup Printer Setup

Exit the Setup menus; the Fiery reboots. Enter the Server Setup menus. Enter the Network Setup menus. Enter the Printer Setup menus.

1-8 Using the Control Panel

Choose: To do this:

PS Setup PCL Setup Color Setup Job Log Setup Change Password

Restarting the Fiery

You should use the procedure described below to restart the Fiery rather than using the power switch on the back of the Fiery.

TO RESTART THE FIERY:

1. Make sure that the Fiery is not receiving, processing, or printing a job.

Make sure that the status message on the Control Panel is Idle.

Enter the PostScript Setup menu. Enter the PCL Setup menu. Enter the Color Setup menu. Enter the Job Log Setup menu. Change the Administrator password.

NOTE: If the Fiery is restarted when jobs are waiting to RIP or print, these jobs are

moved to the Hold queue. Once the server is restarted, you must select these jobs in the Hold queue and select RIP and Hold, Print, or Print and Hold from the Job menu.

2. Press the Menu button to display the Functions menu.

3. Use the down button to scroll to the last screen and choose Shut Down.

4. Use the line selection button to choose Restart Server.

1-9 Starting and shutting down the Fiery

Shutting down the Fiery

You may need to shut down the Fiery for service. When you do so, fonts that have been downloaded to the hard disk drive are not deleted. Print jobs in the Hold and Printed queues and jobs that have been processed but not printed are not deleted and are available for printing when you restart the Fiery.

TO SHUT DOWN THE FIERY:

1. Make sure that the Fiery is not receiving, processing, or printing a job.

Make sure that the status message on the Control P anel is Idle. If a job has just ﬁnished processing or printing, wait at least ﬁve seconds after the Control Panel status message changes to Idle before proceeding.

NOTE: If the Fiery is restarted when jobs are waiting to RIP or print, these jobs are

moved to the Hold queue. Once the server is restarted, you must select these jobs in the Hold queue and select RIP and Hold, Print, or Print and Hold from the Job menu.

2. Press the Menu button to display the Functions menu.

3. Use the down button to scroll to the last screen and choose Shut Down.

4. Use the line selection button to choose Shut Down System.

Proceed to the next step when the screen displays the message, “I t is no w safe to pow er off the server.”

5. Power off the Fiery by moving the power switch on the back to the Off position.

NOTE: After pow ering off the F iery, make sure to also po wer off the copier. Leaving the

copier powered on while the Fiery is powered off can lead to excessive drain on the Fiery motherboard battery.

2-1 Introduction to the FieryBar

Chapter 2: Using the FieryBar

RIPping area Printing area Activity light

Click to expand or collapse FieryBar

If you have the Fiery Advanced Controller Interface option installed, you can use the FieryBar to view Fiery status information, launch software, set up and restart the F iery, delete stored jobs, cancel active jobs, and log off Windows. While most elements in the FieryBar have counterparts in the Command WorkStation, you can view current functions on the FieryBar even when the Command WorkStation is not running.

Introduction to the FieryBar

The FieryBar, located at the top of the monitor screen, comprises the following parts:

Message areaRIP status area

Status

The FieryBar displays information about the status of the Fiery: RIPping area Displays the name of the job currently processing. RIP status area Displays the amount of the job that has processed.

Printing area Displays the name of the job currently printing.

Message area Displays error messages and other Fiery information.

2-2 Using the FieryBar
